8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
- Stock: In Stock
- Model: ST22004323
- SKU: ST22004323
$18.69
Ex Tax: $18.69
Description:

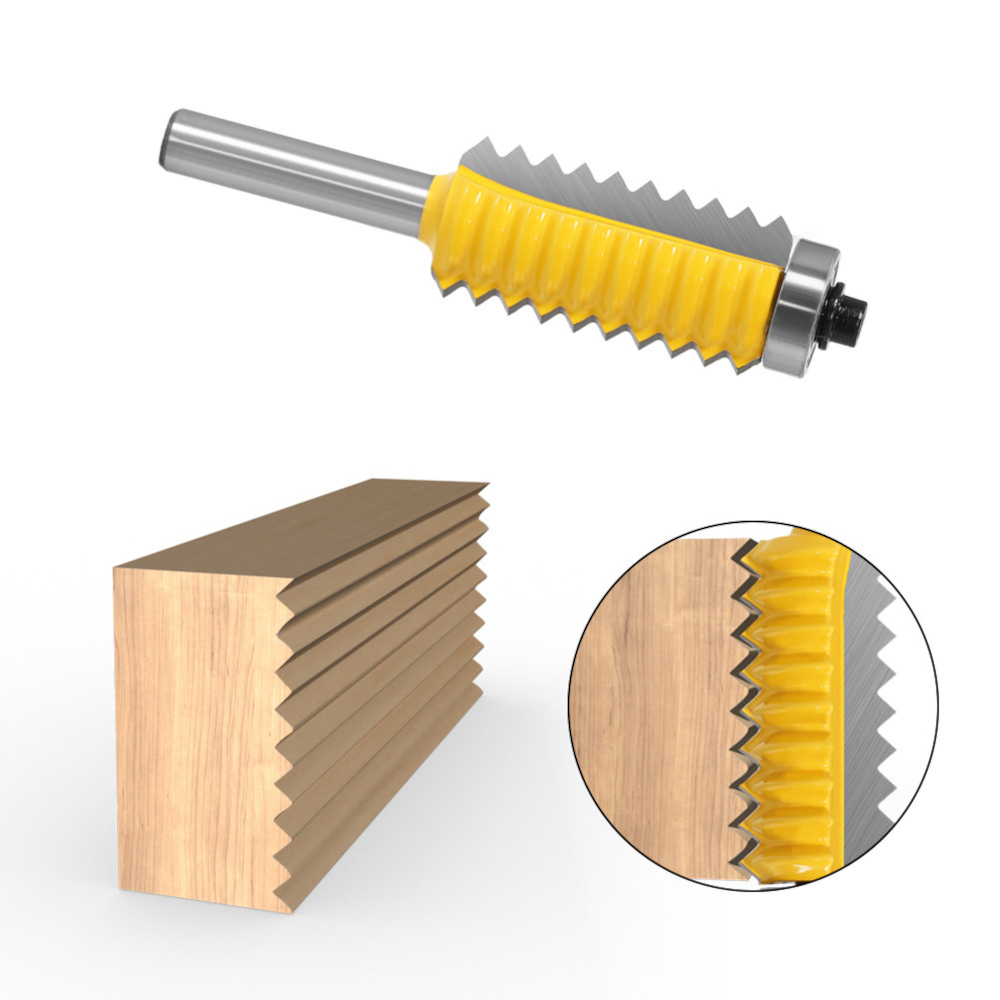

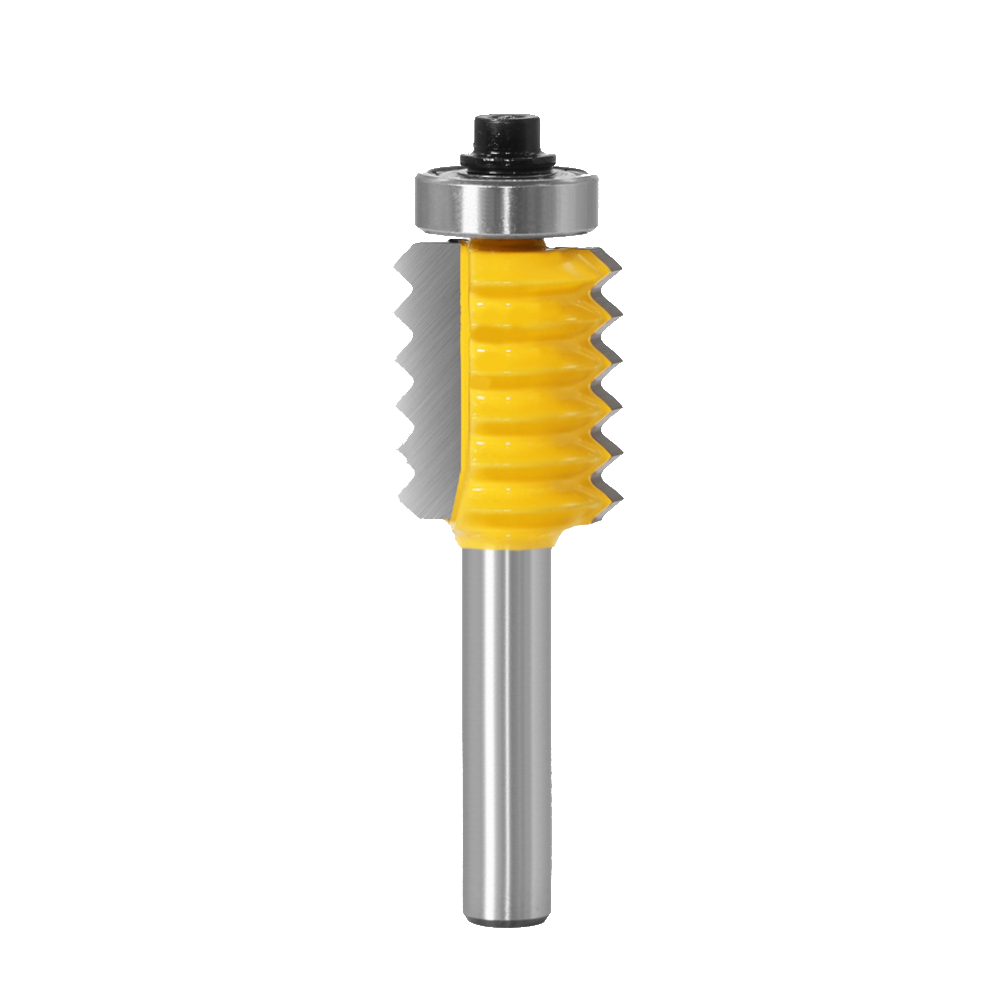

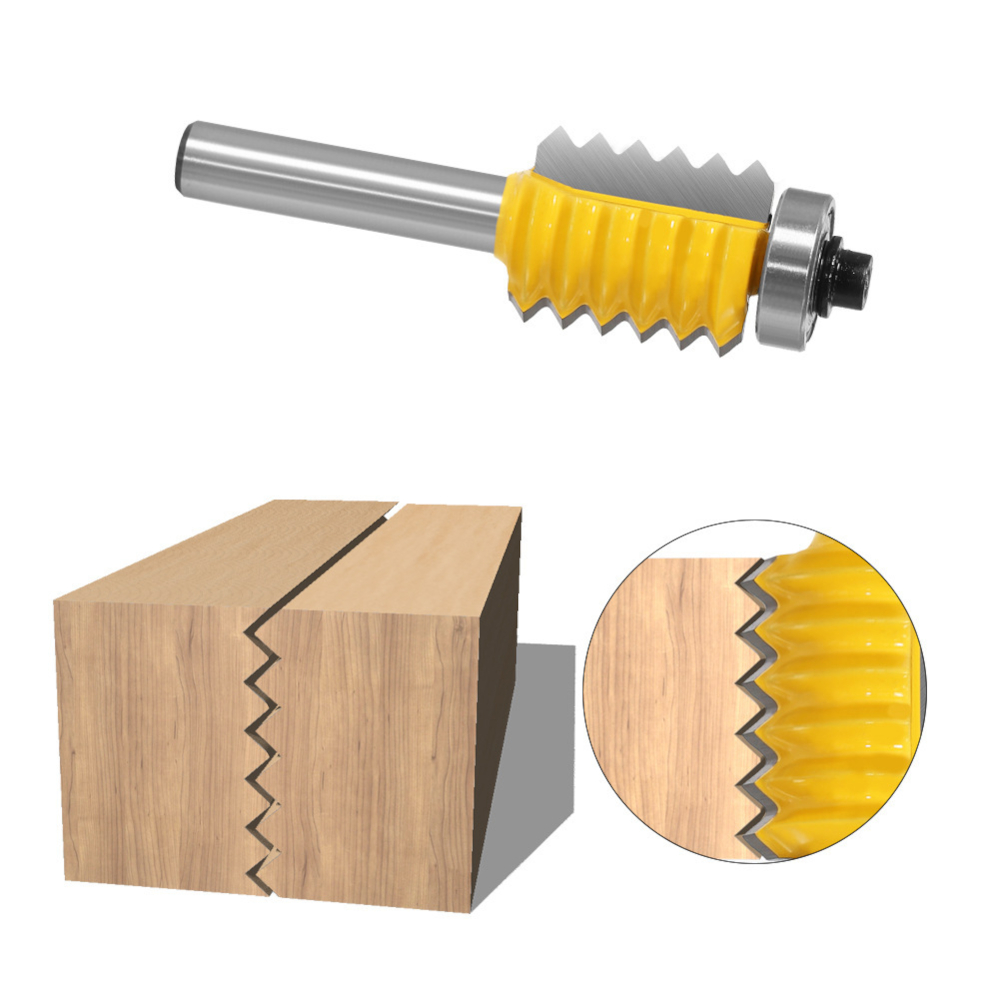

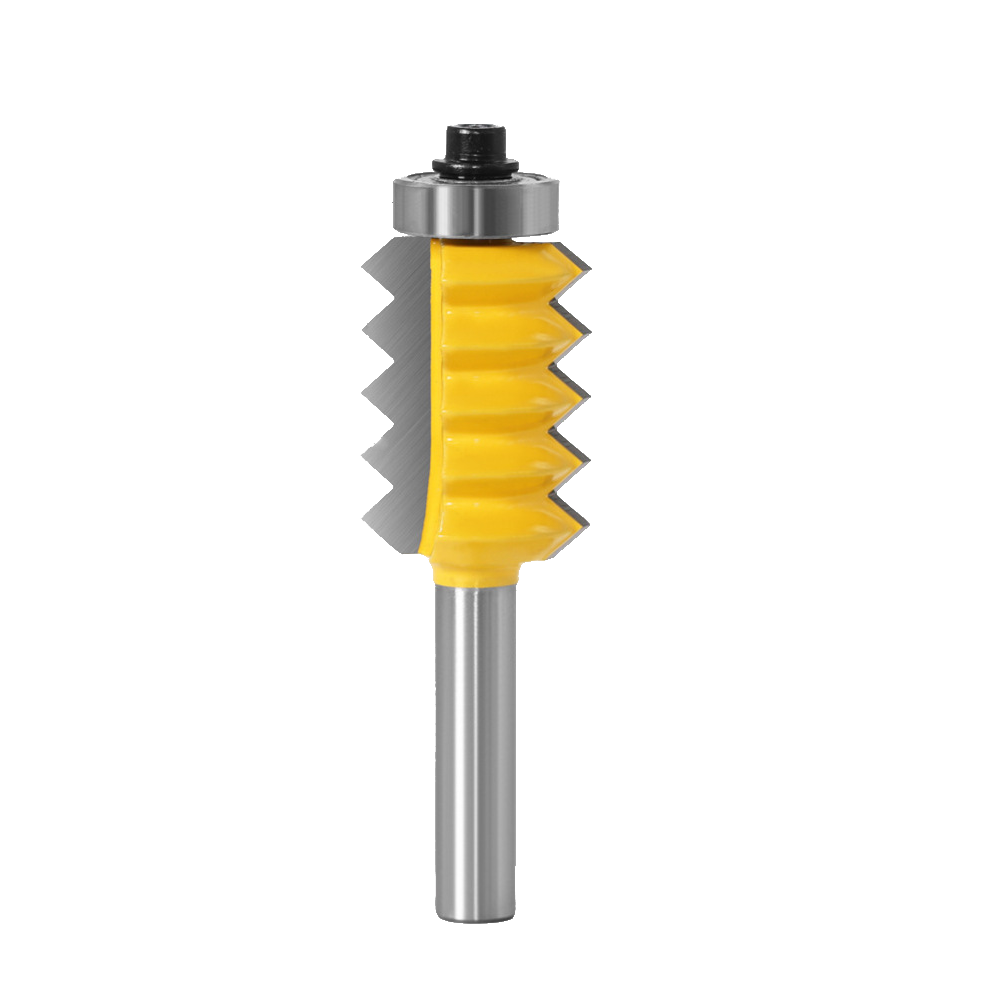

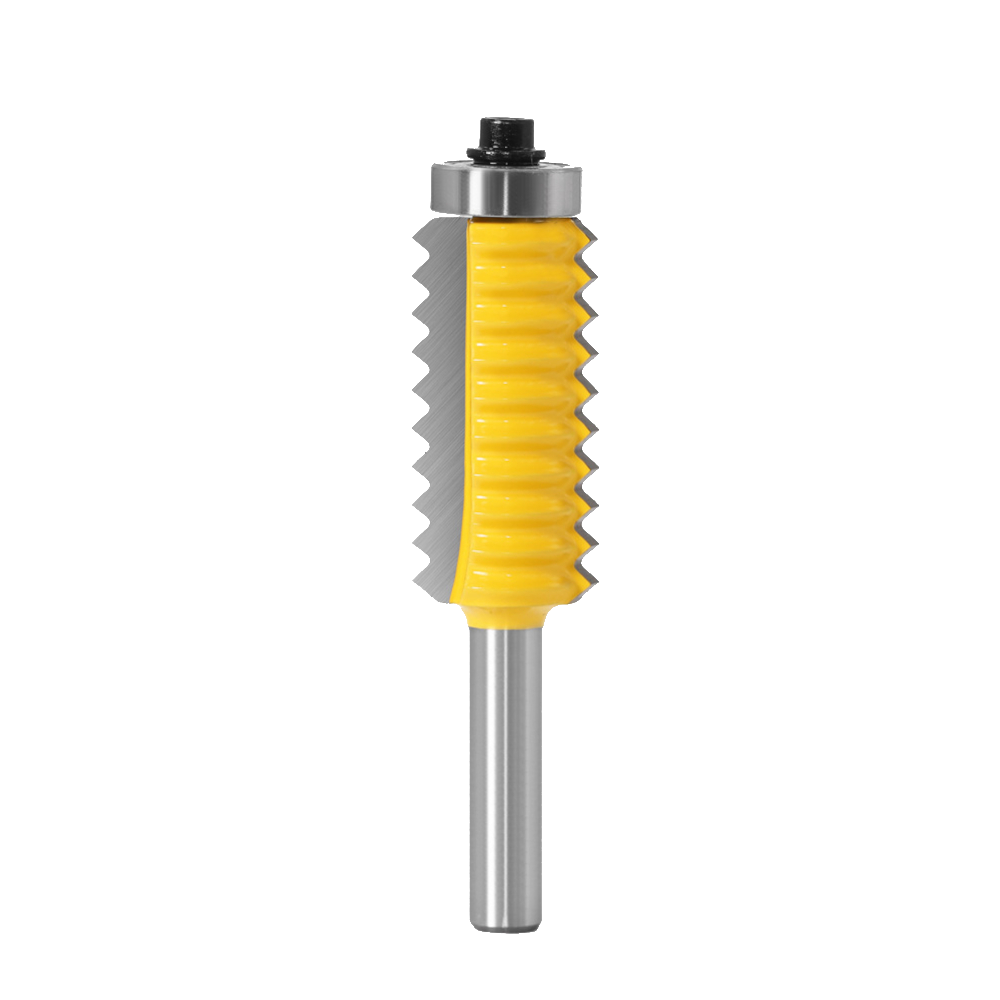

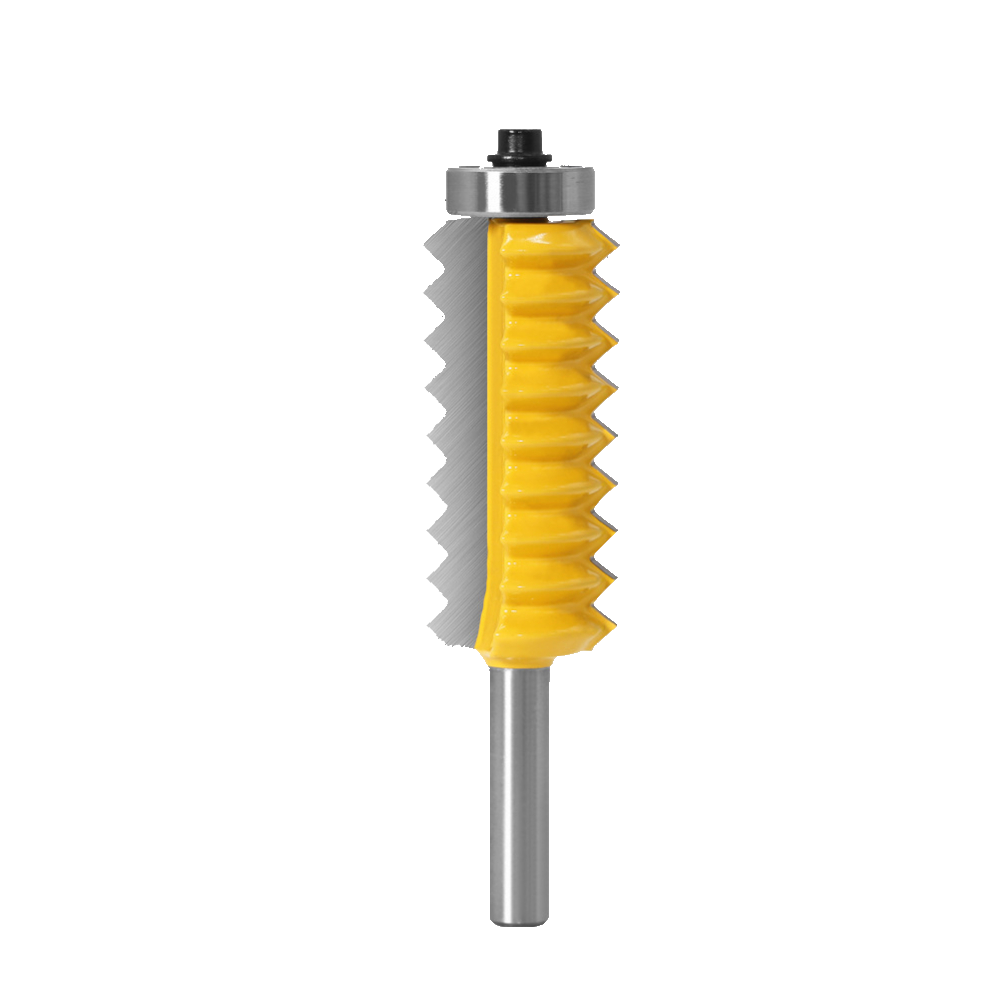

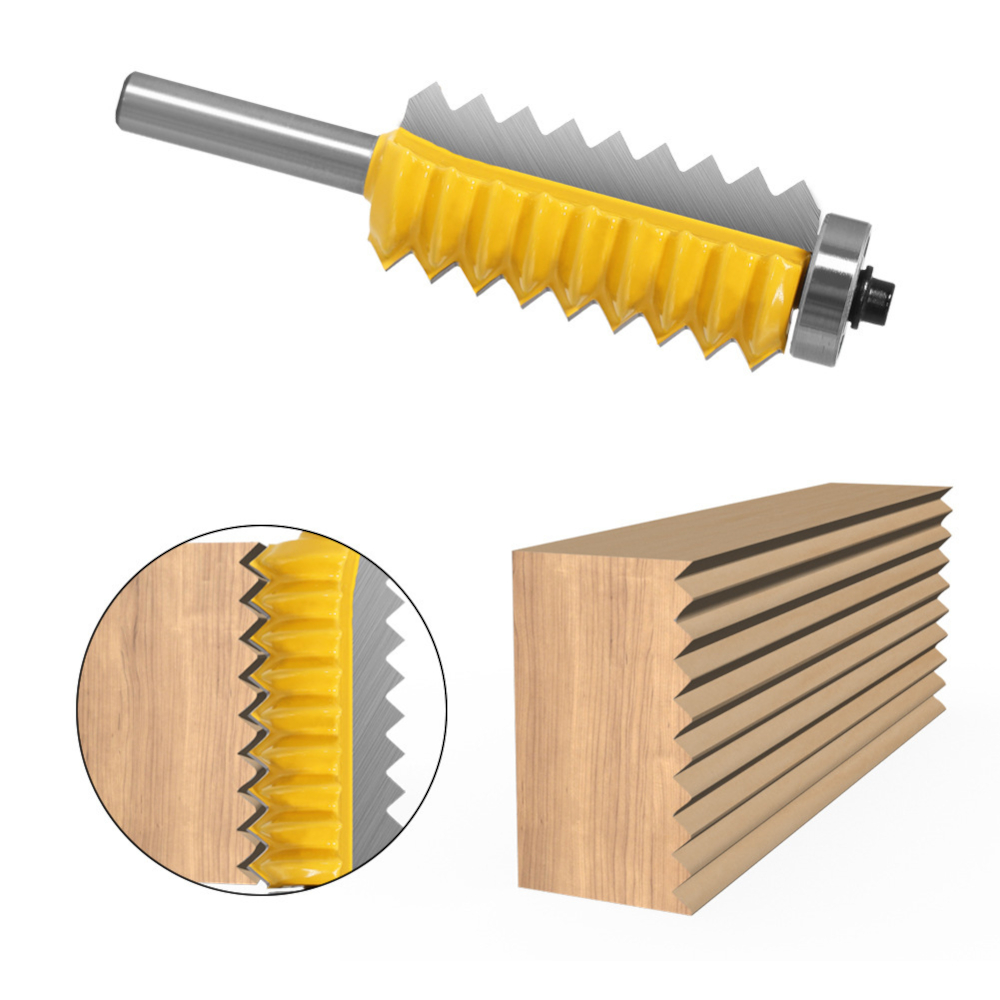

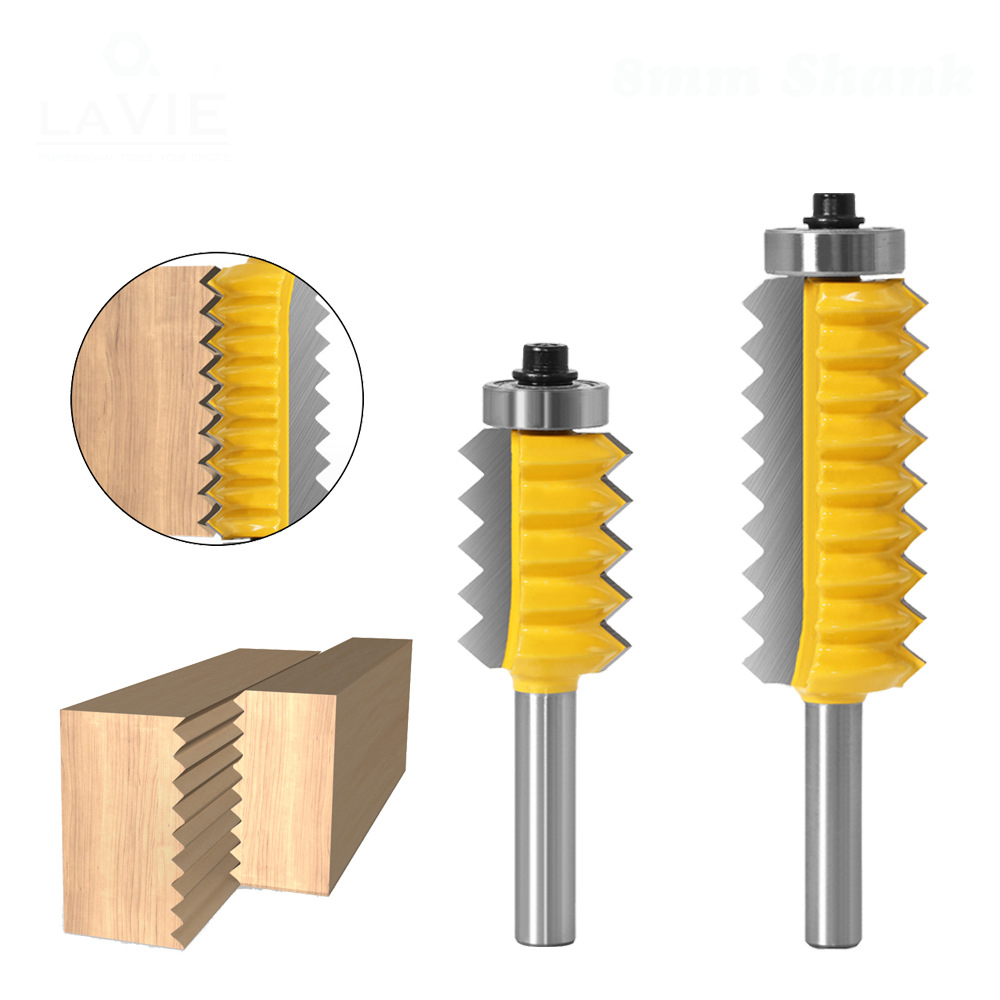

8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
Specifications:
| Product Name | Router Bit |
| Material | Carbide, Carbon Steel |
| Size(Optional) | #1: 8x24mm #2: 8x30mm #3: 8x41mm #4: 8x55mm |
| Shank Diameter | 8mm |
| Applicable Machines | Trimming machine, engraving machine, router, electric milling machine |
| Uses | Suitable for wood products such as density board, medium fiber board, particle board, wood, etc. |
| Diameter | 15.9mm |
| Quantity | 1 Pc × Router Bit |
| Size | Type | Bearing Diameter | Cutting Tooth Depth | Cutting Length | Cutting Tooth Width | Cutting Tooth Length | Shank Diameter | Total Length |

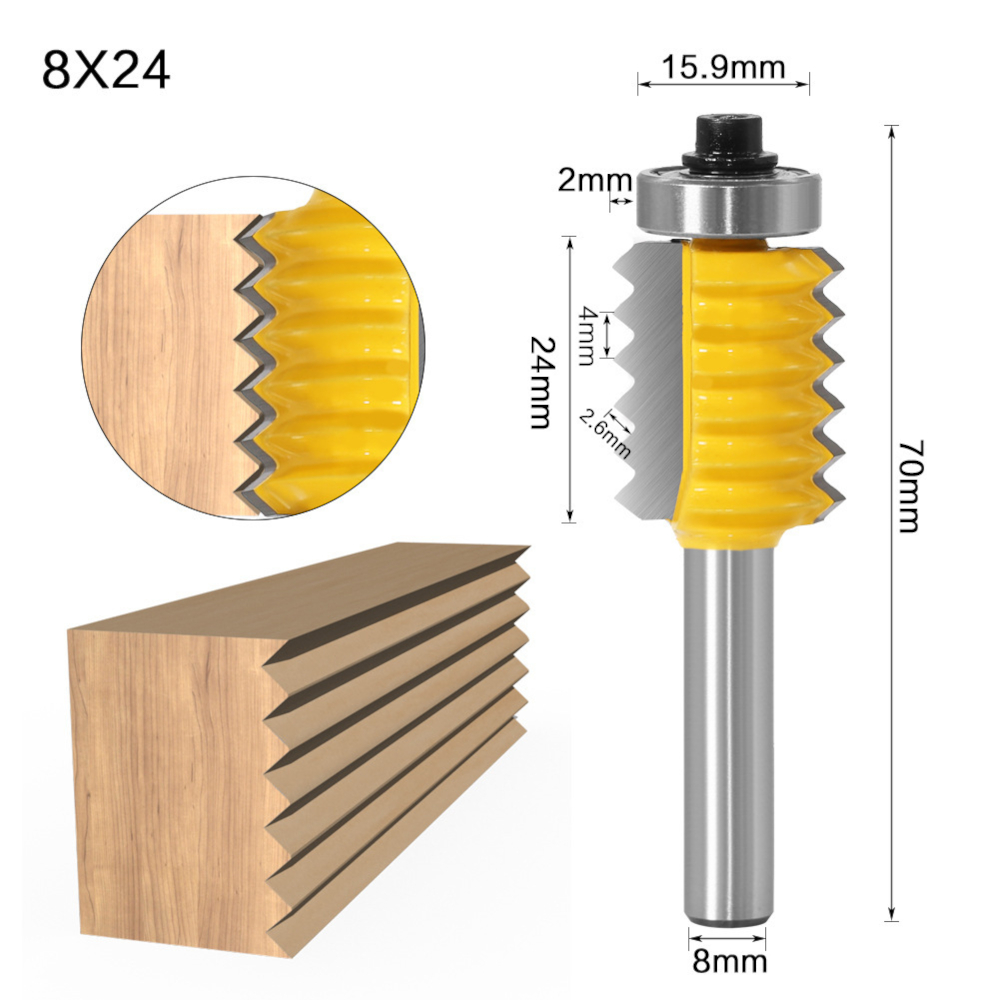

| #1 | 8x24mm | 15.9mm | 2mm | 24mm | 4mm | 2.6mm | 8mm | 70mm |

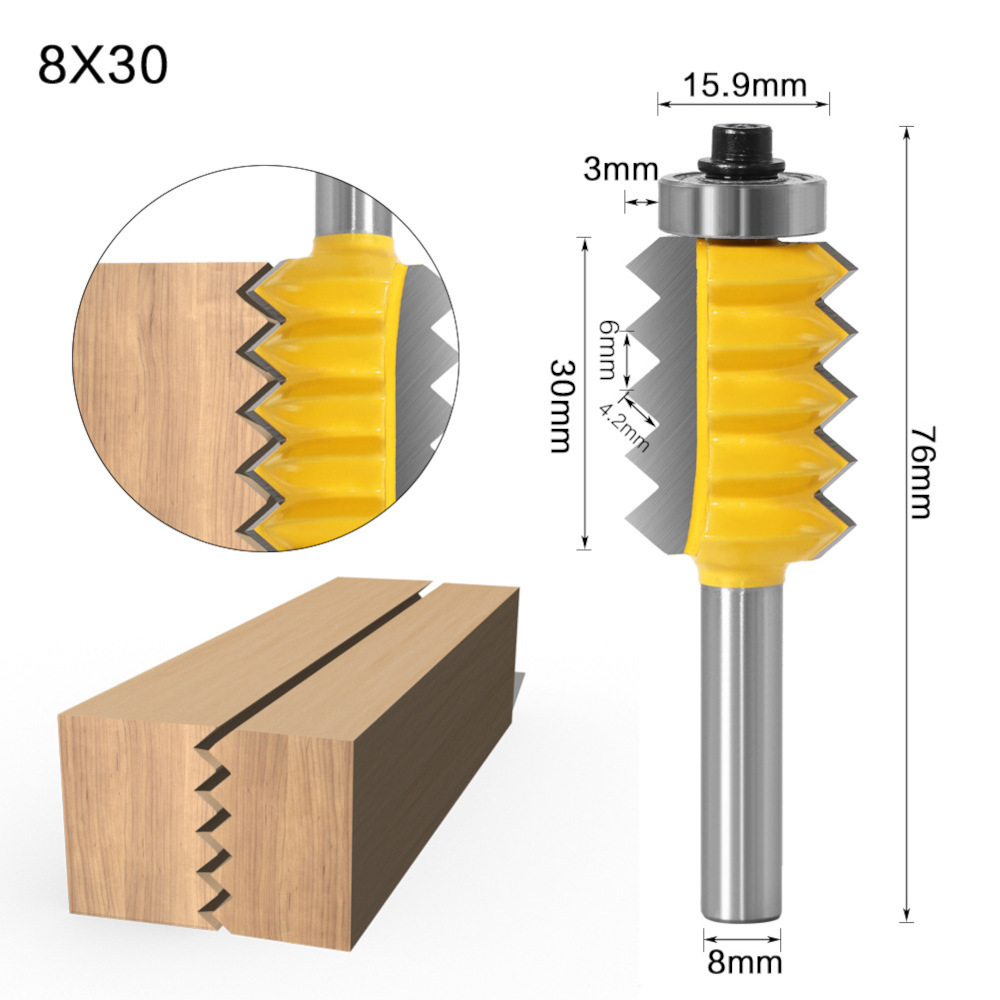

| #2 | 8x30mm | 15.9mm | 3mm | 30mm | 6mm | 4.2mm | 8mm | 76mm |

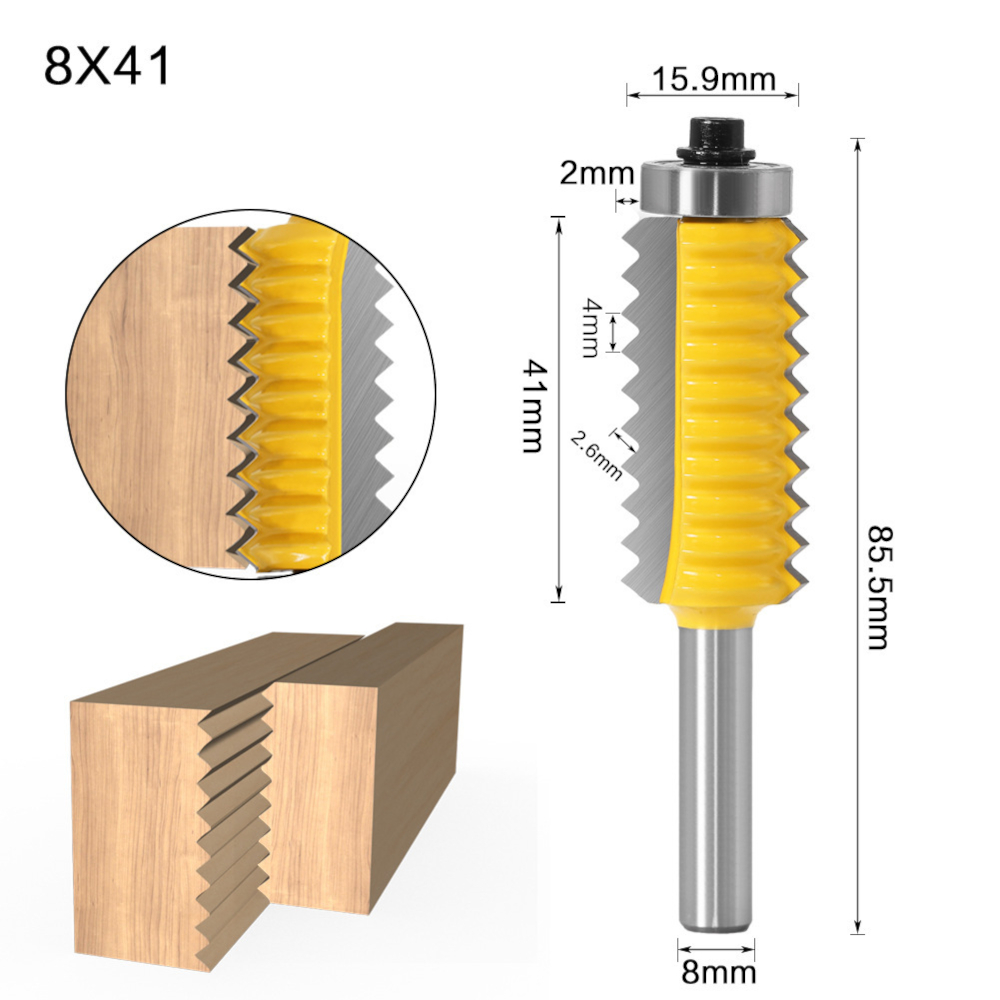

| #3 | 8x41mm | 15.9mm | 2mm | 41mm | 4mm | 2.6mm | 8mm | 85.5mm |

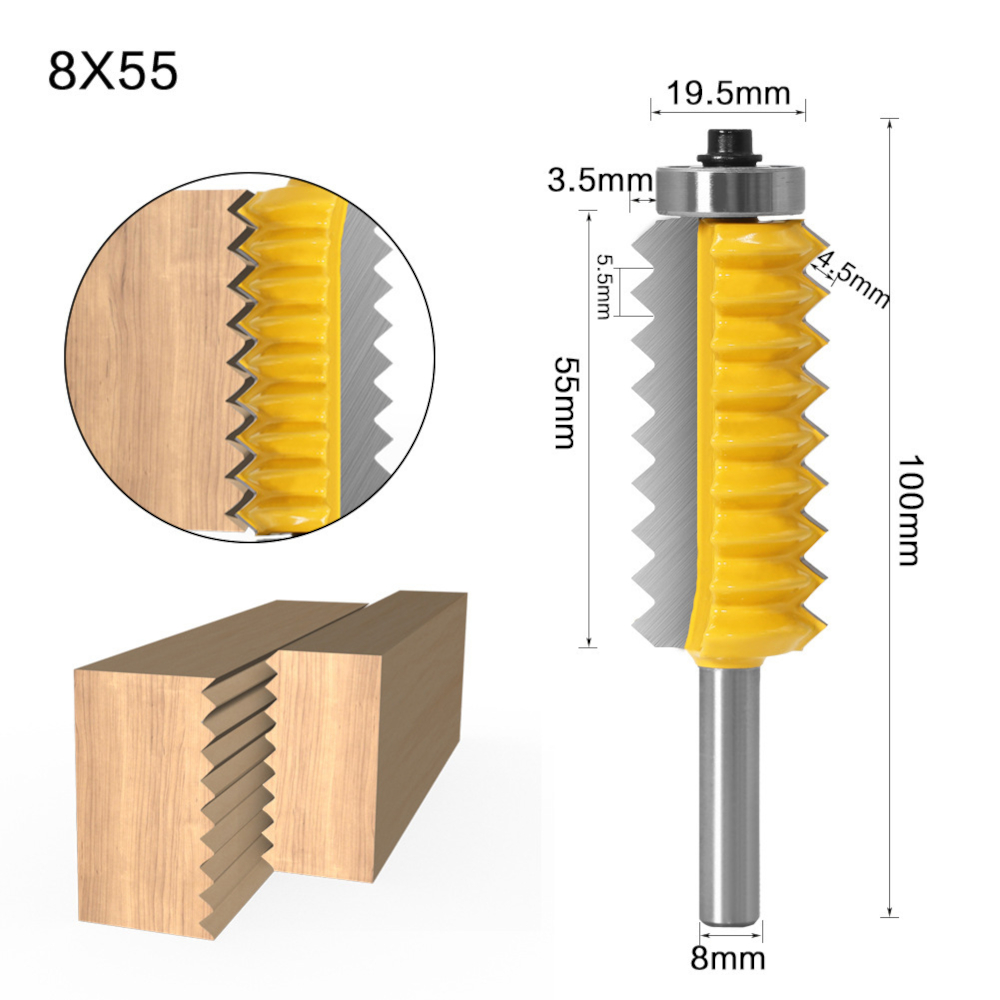

| #4 | 8x55mm | 19.5mm | 3.5mm | 55mm | 5.5mm | 4.5mm | 8mm | 100mm |
Features:
- Industrial quality using for hand making a drawer or other woodworking.
- Solid hardened steel bodies with anti recoil design.
- Build-up & heat resistant Teflons coating.
- Hook & Shear Angles: High hook & shear angles allow
- Cutters to slice smoothly into stock producing clean, fragment free.
- Bearing: Totally enclosed & lubricated.
Package Included:
| 1 Pc × | Router Bit |
