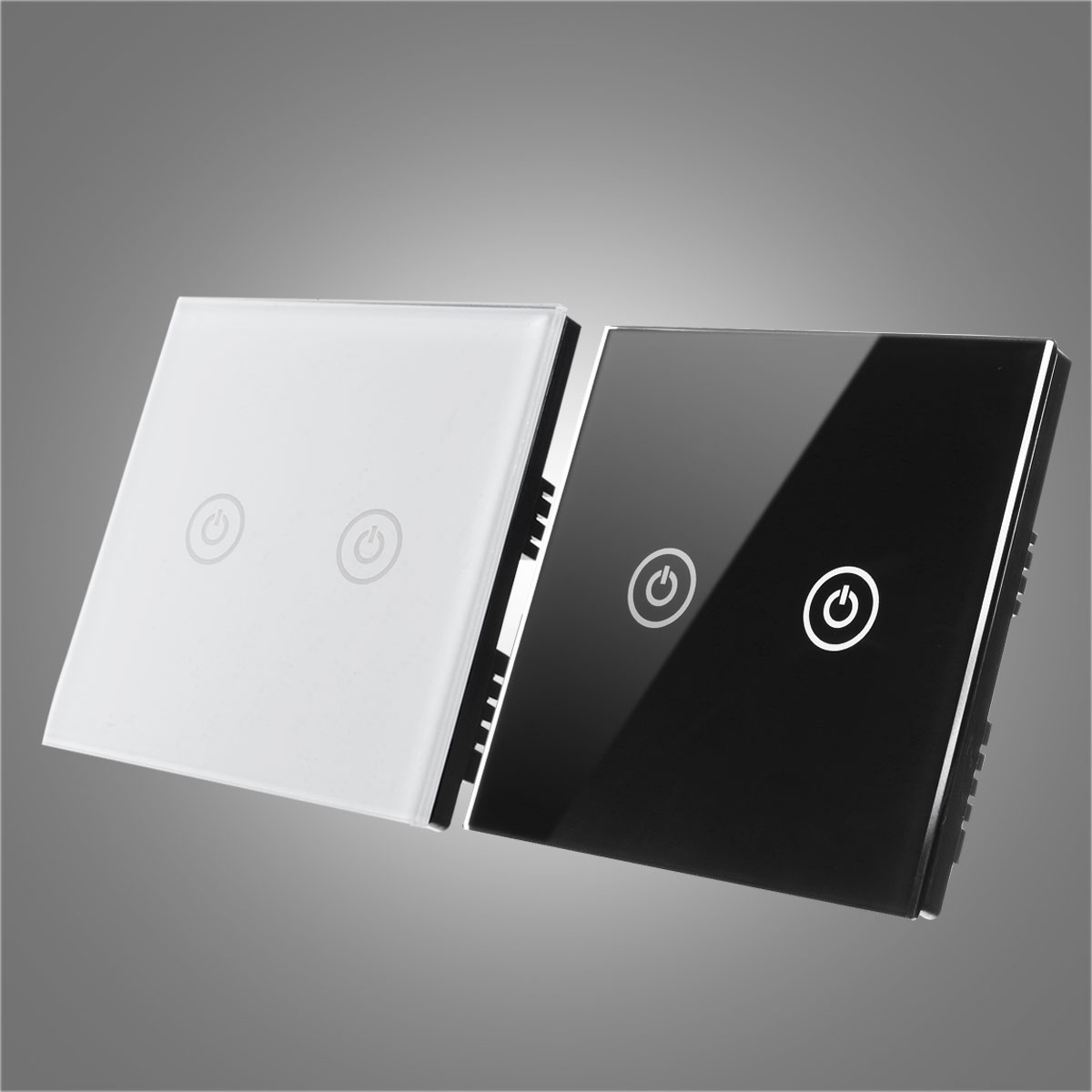

AC100-250V 1 Way 2 Gang Tempered Glass Remote Control Touch Switch Light Wall Switch
- Stock: In Stock
- Model: ST220016350
- Dimensions: 86.00mm x 86.00mm x 32.00mm
- SKU: ST220016350
$22.99
Ex Tax: $22.99
Specification:
Switch Using Instruction:
Attention: 1.Do not install when charged;
2.Rated working voltage: 110-220V AC, 50Hz-60Hz;
3.Strictly follow the instructions to install;
4.The total load of the switch should not over 600W (3 switches);
5.The line box should be “86” mode and the size should not be smaller than 75*75*50mm;
6.If the first charging test is going under the condition that without the glass panel. Finished the testing, first cut off the electricity, fix the switch and cover the glass panel and then recharge it;
7.The switch is not adapt to the old inductance day lamps;
8.Please do not install the switch in the damp ares avoiding the leakage and shock from electricity;
9.Please do not install multiple touch switches together (better no more than three switches), which escaping interference.
Package Included:
1 x Touch Control Panel Switch
1 x User Manual

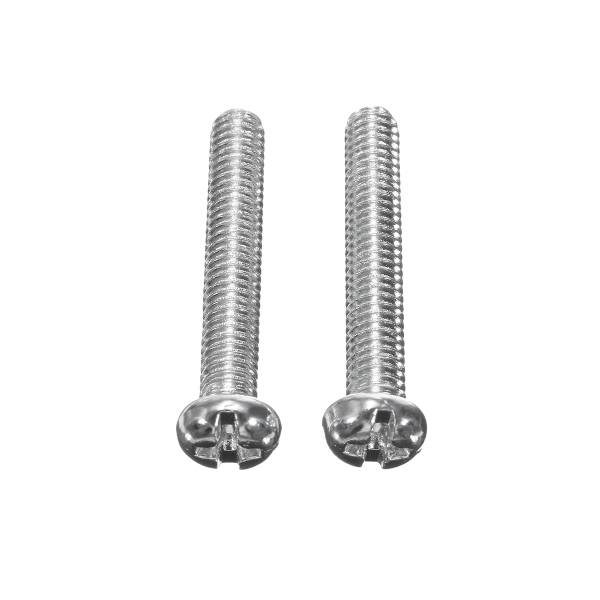

2 x Screws
More detail:
,
,
,
,
,
,
,
,
,
| Product Name | Touch Switch |

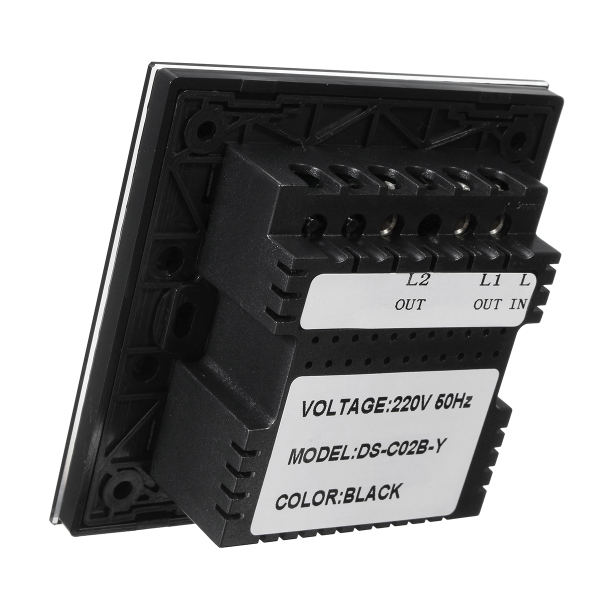

| Model | DS-C028-Y |
| Type | 1 Way 2 Gang |
| Color | Black, White |

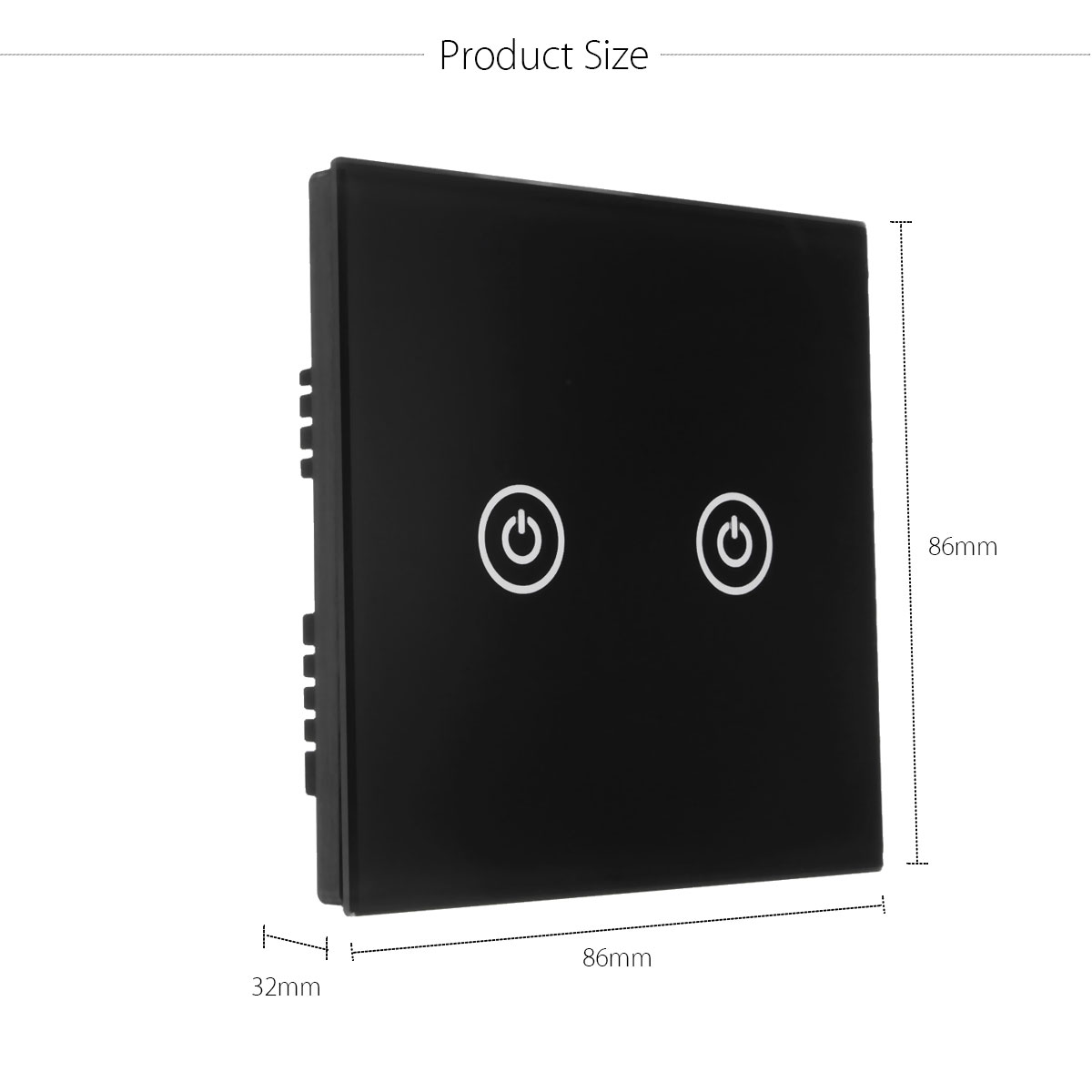

| Size | 86x86x32mm |
| Panel Material | High Grade Tempered Glass |
| Shell Material | Inflaming Retarding ABS (Acrylonitrile Butadiene Styrene Copolymers) |
| Voltage | 100-250V AC / 50Hz-60Hz |

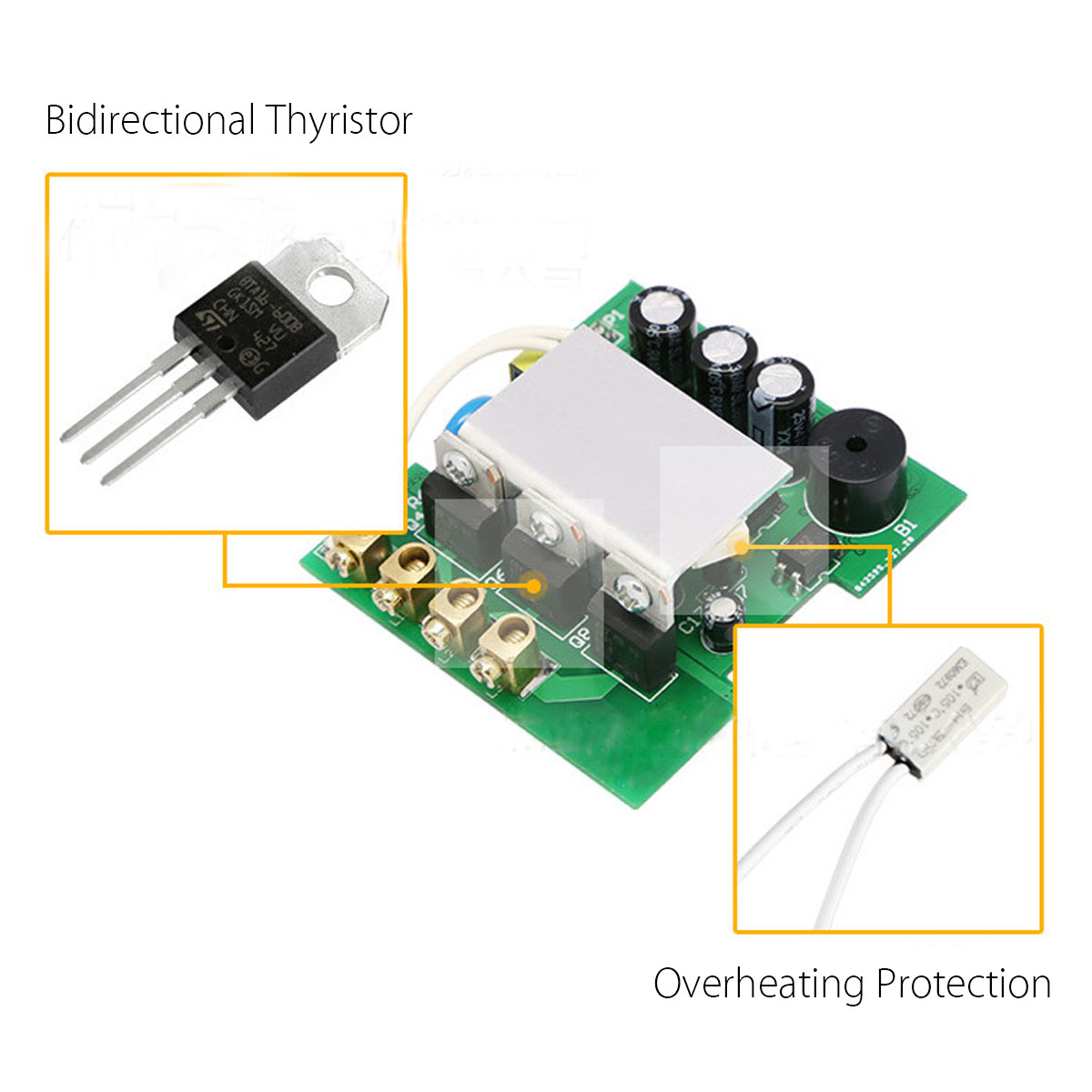

| Current | Stable Current ≤2A, Transient Current≤5A (Use with 16A Bidirectional thyristor) |
| Power |
Unit Channel Load≤200W |
| Power consumption | less than 0.05W of static power consumption |
| Temperature | -20 ~ 70 ℃ |
| Humidity | 10% to 90% |
| Minimum load | single fire switches connected total load power ≥5W |
Switch Using Instruction:
|
1.Hand Mode Control: -Switch ON/OFF on the glass panel. When the switch is ON, the pilot light changes to red; when it is OFF, the pilot light changes to blue. Everytime turning ON/OFF will the boomer make a sound of “Dee” to confirm the operation succeed. |
|

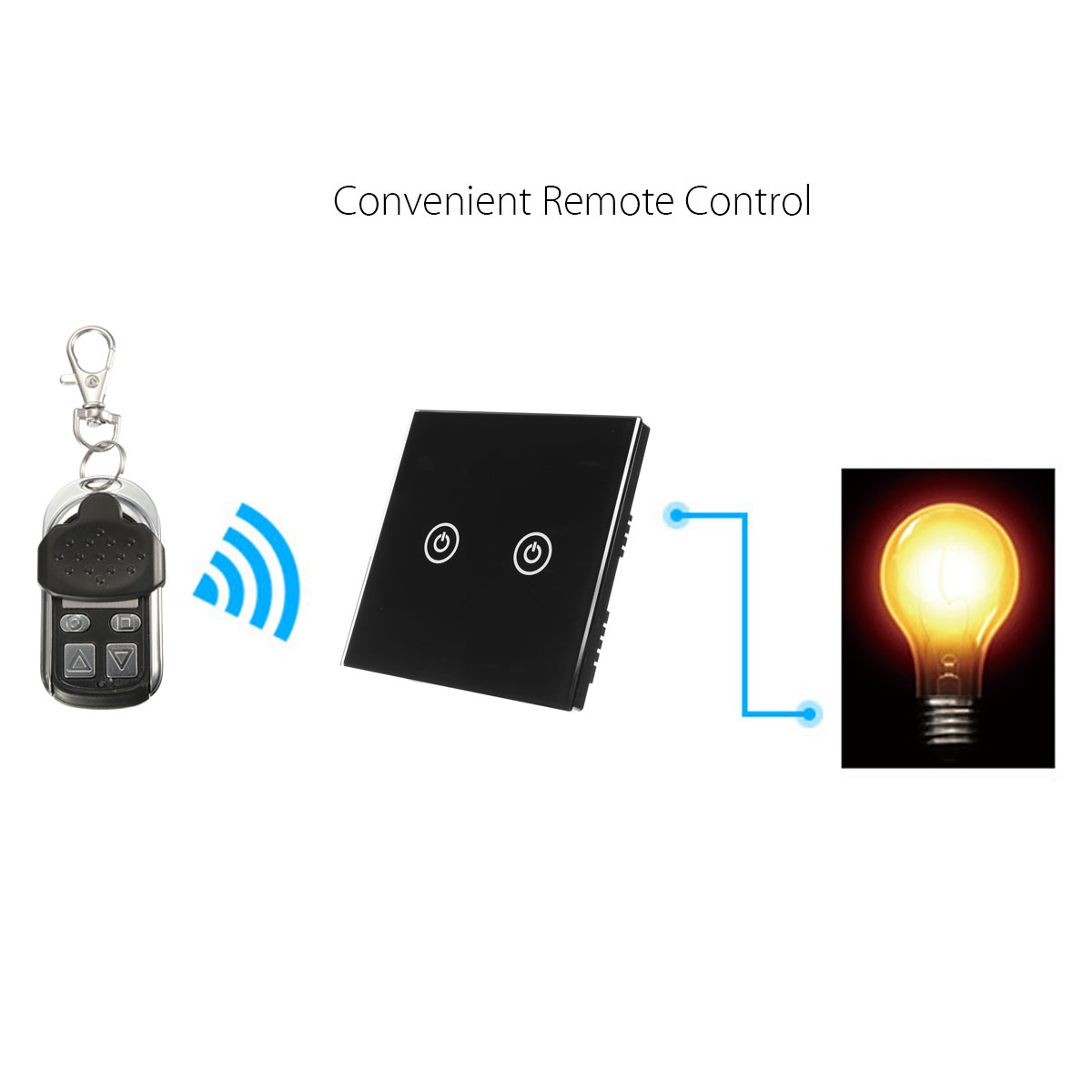

2.Remote Control: -Before using remote control, user pairing to the switch is needed. Finishing User pairing to the certain switch, remote control will be available to the related switch. (Not Include The Remote Controller) |
Attention: 1.Do not install when charged;
2.Rated working voltage: 110-220V AC, 50Hz-60Hz;
3.Strictly follow the instructions to install;
4.The total load of the switch should not over 600W (3 switches);
5.The line box should be “86” mode and the size should not be smaller than 75*75*50mm;
6.If the first charging test is going under the condition that without the glass panel. Finished the testing, first cut off the electricity, fix the switch and cover the glass panel and then recharge it;
7.The switch is not adapt to the old inductance day lamps;
8.Please do not install the switch in the damp ares avoiding the leakage and shock from electricity;
9.Please do not install multiple touch switches together (better no more than three switches), which escaping interference.
Package Included:
1 x Touch Control Panel Switch
1 x User Manual
2 x Screws
