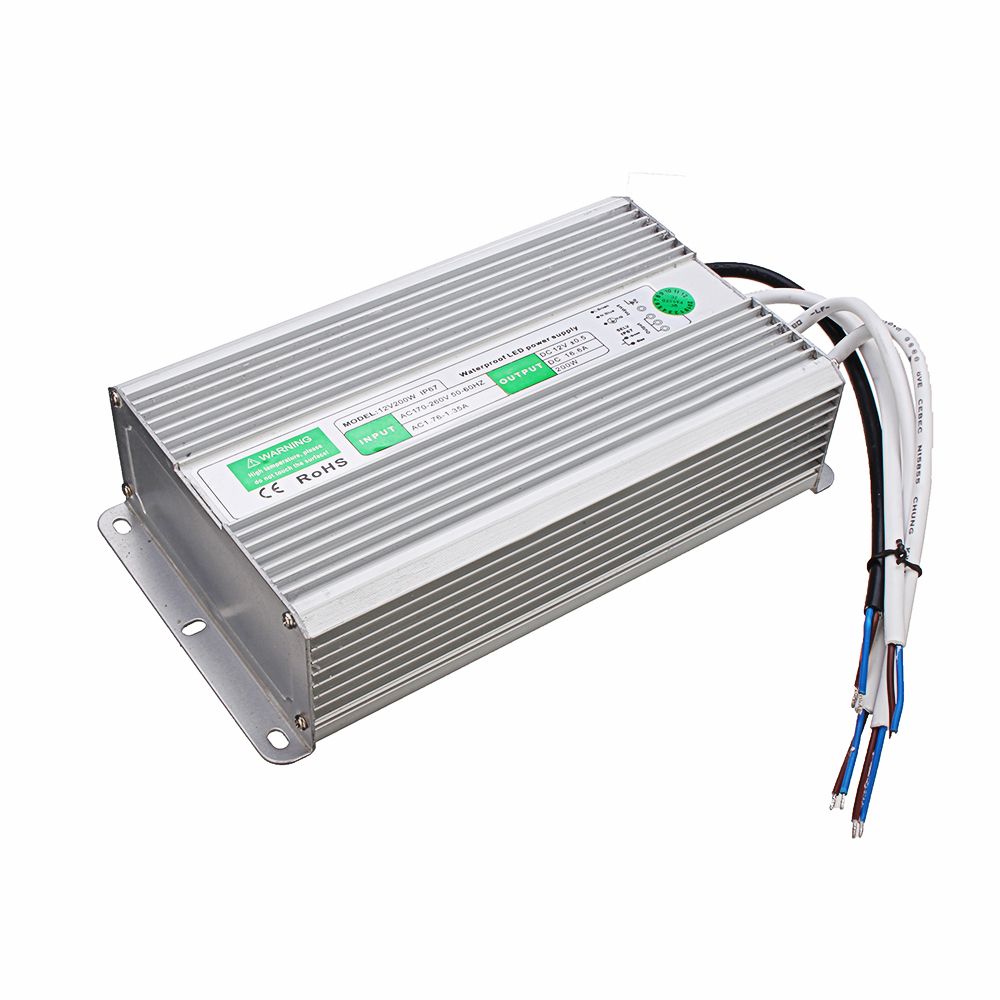

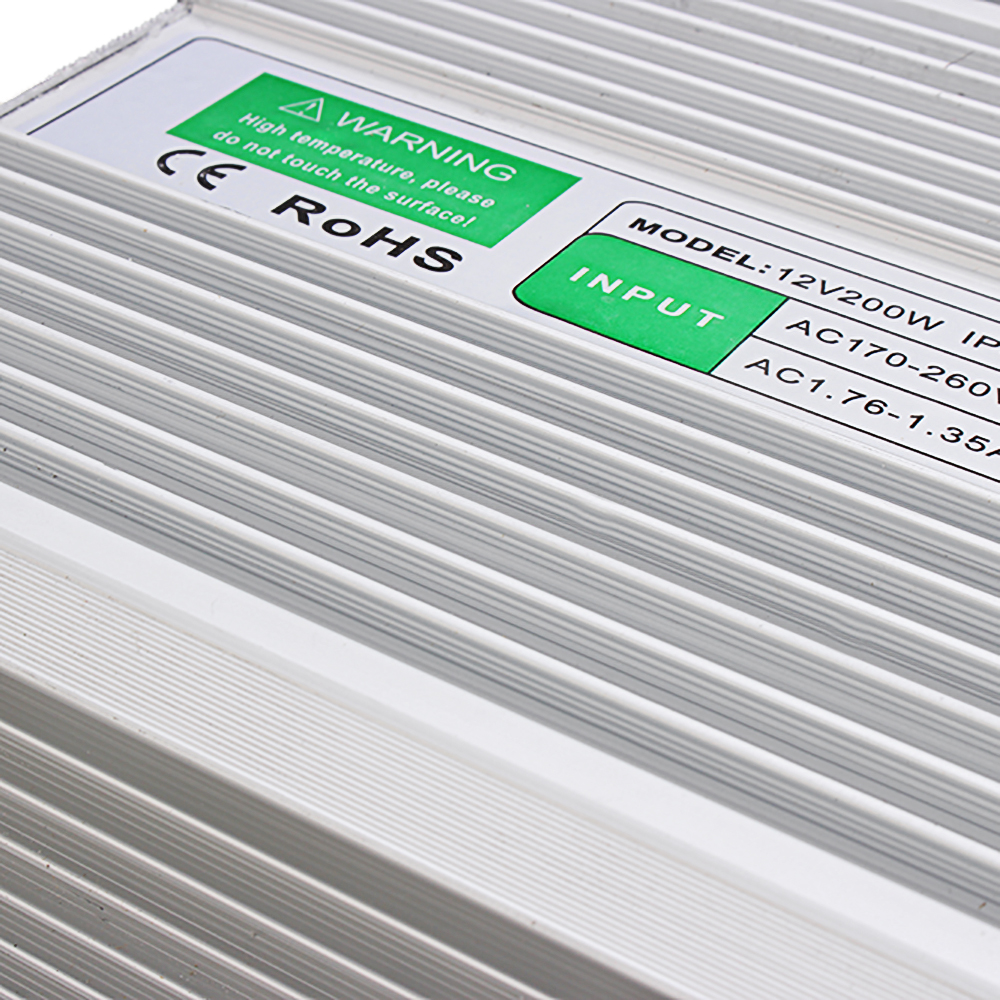

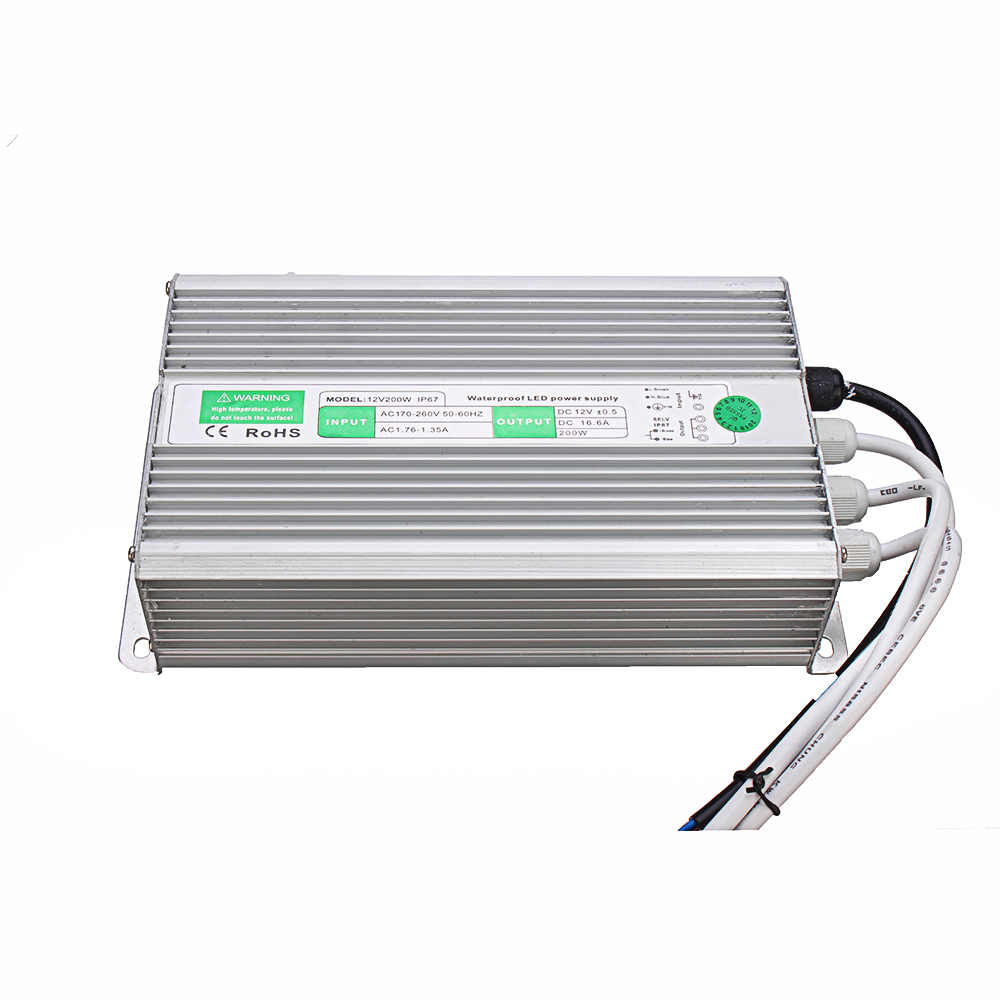

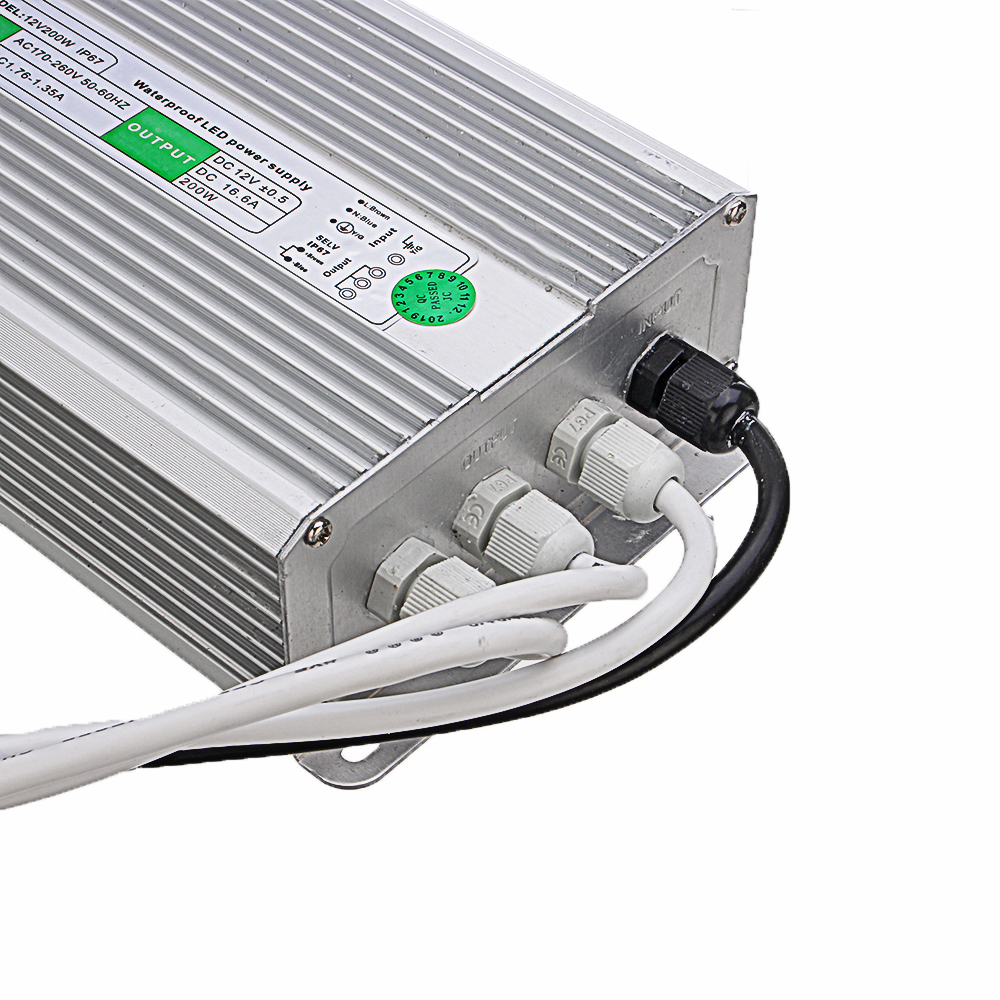

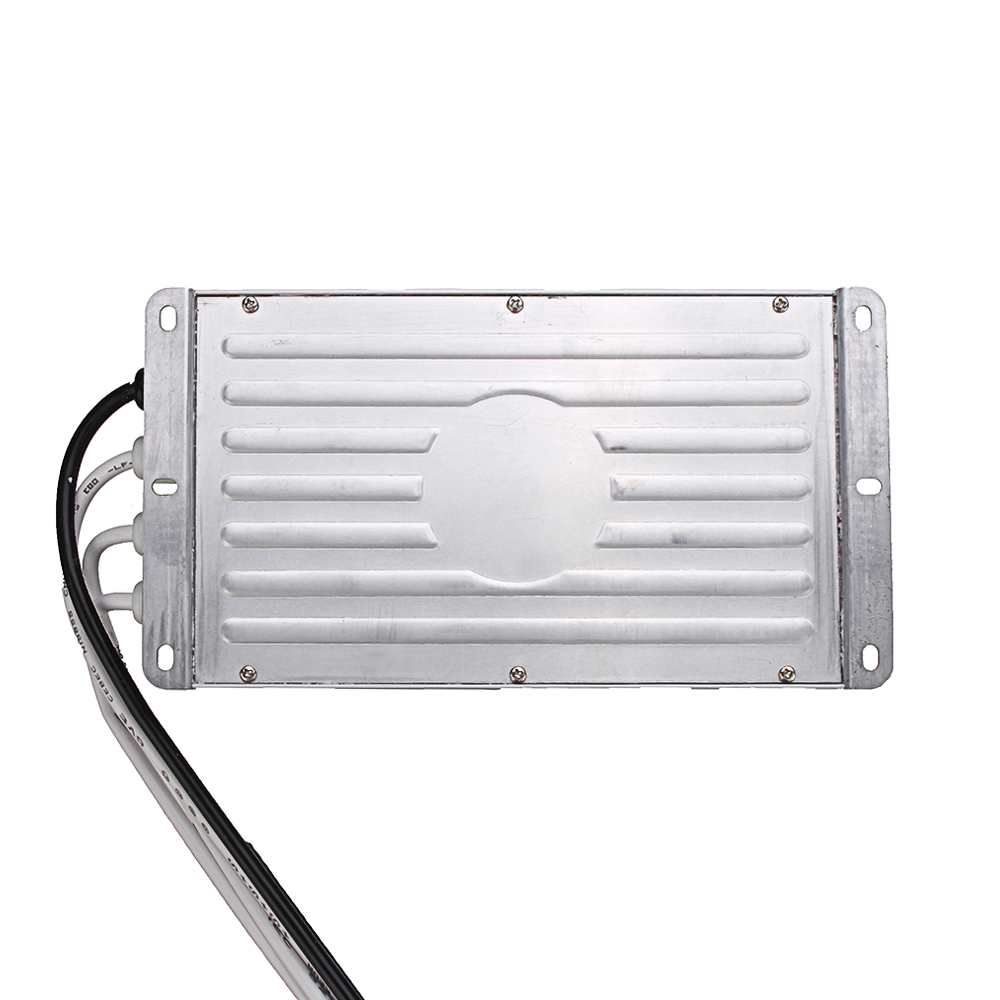

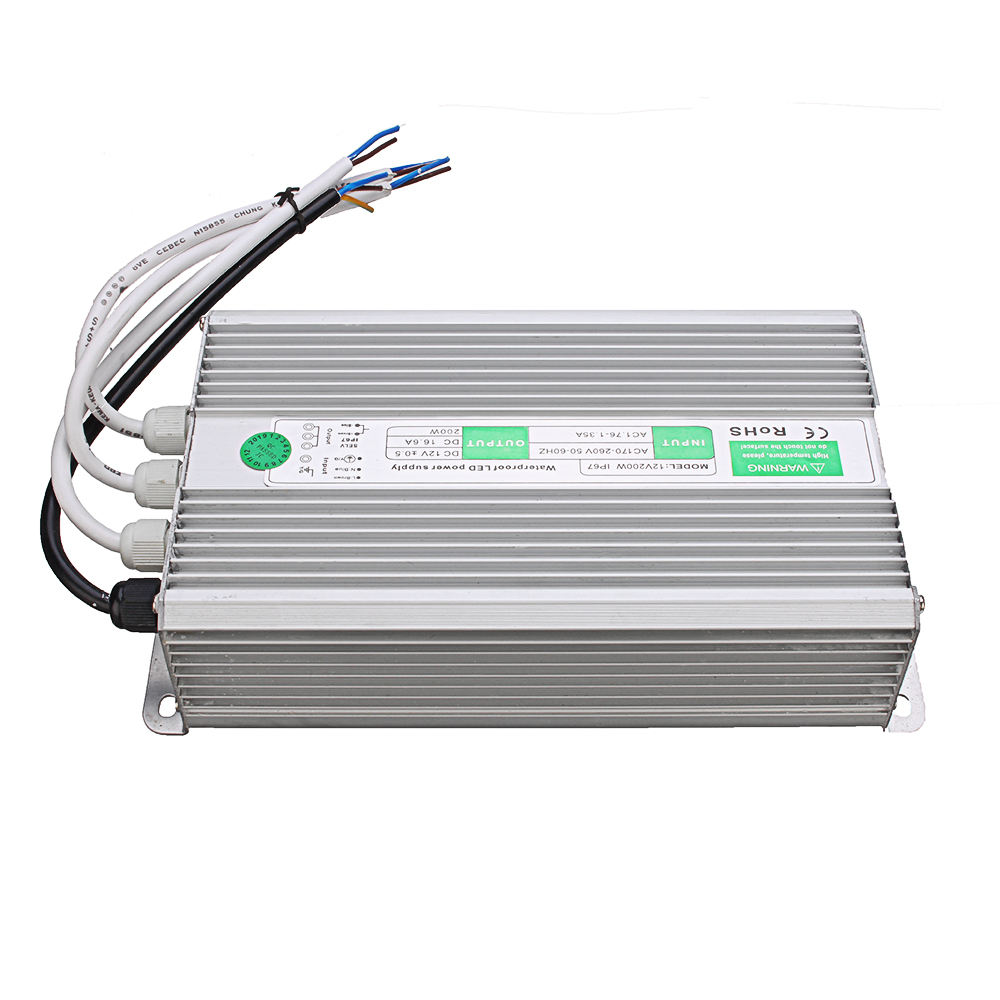

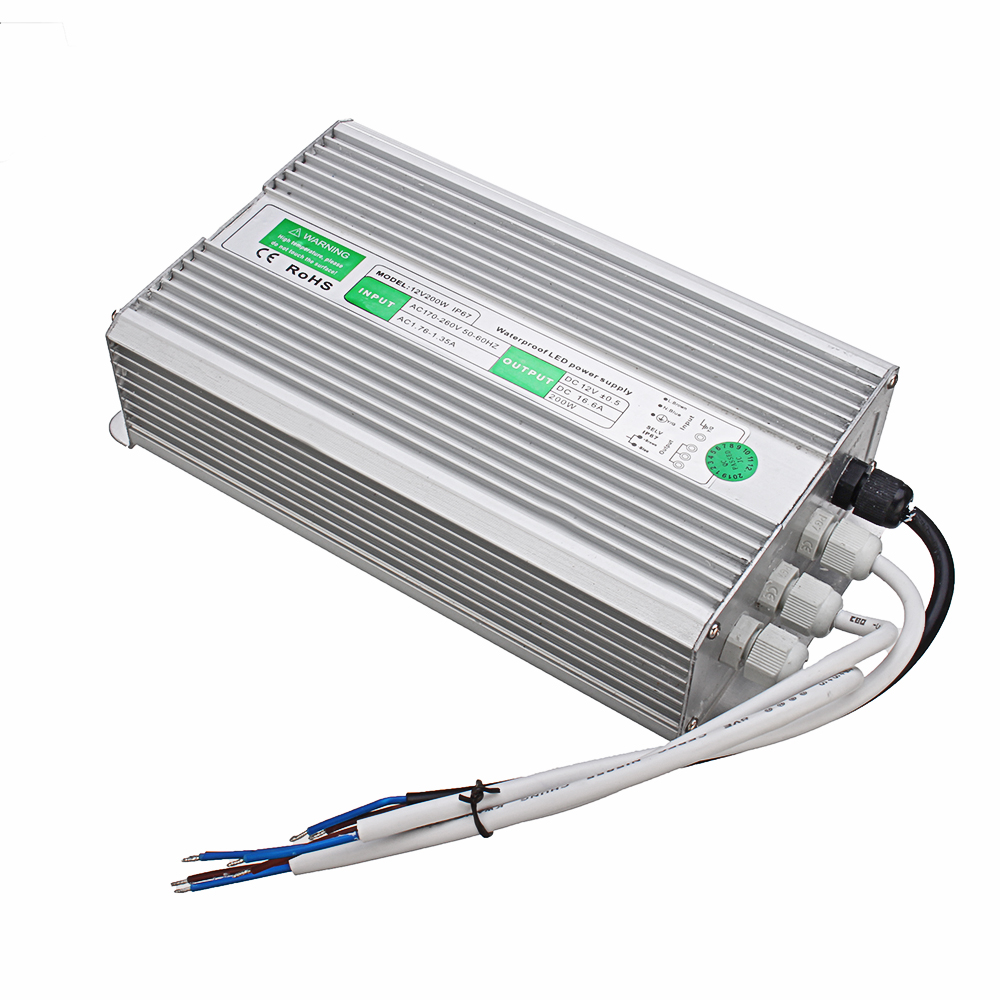

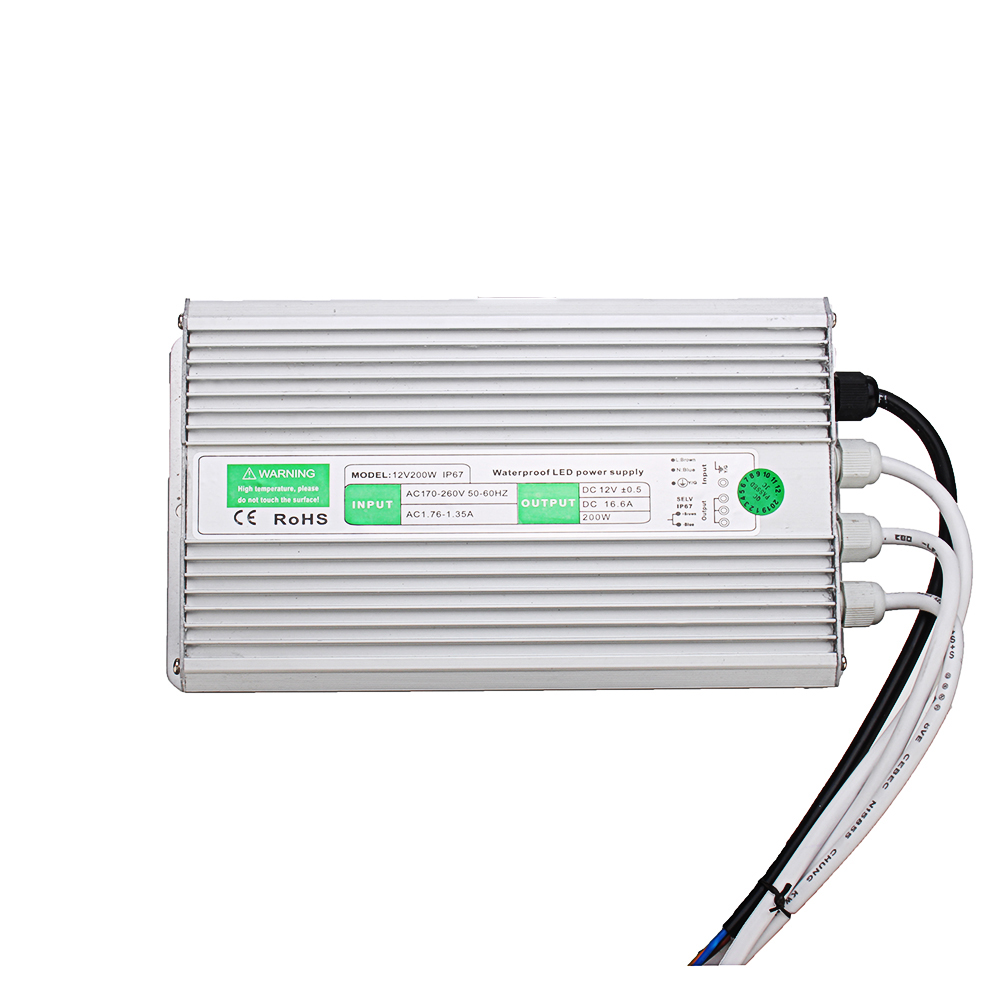

AC110V-240V to DC12V 200W Waterproof Switching Power Supply 235*126*52mm
- Stock: In Stock
- Model: ST230049195
- SKU: ST230049195
$79.99
Ex Tax: $79.99
More informations: >>>>>>Contact Us<<<<<<
Input Electrical Characteristics:
Output Electrical Characteristics:
DC Output Short Circuit Protection.
Feature:
Input Electrical Characteristics:
| Input voltage range | 180-264VAC |
| Normal voltage range | 230VAC |
| Frequency range | 47-63Hz |
| Max input ac current | <2A (IN AC230V) |
| Inrush current (cold start) | 30A |
| Efficiency (full load) | 85%≥(IN AC230V) |
| Leakage current | <0.5mA |
| Standby power loss | ≤1W |
Output Electrical Characteristics:
| Output Voltage | Regulation | Min. current | Rated current |
| 12 | ±5% | 0 | 16.5A |
DC output Over Voltage Protection.
Note: The power supply shall be tested at max AC voltage (264Vac) and max load.
| Output Voltage | Max. Over Voltage | Comments |
| 12 | 18V | Shutdown |
DC Output Overcurrent Protection.
| Output Voltage | Over Current | Comments |
| 12 | 17.5-19A | Shutdown |
DC Output Short Circuit Protection.
| Output Voltage | Comments |
| 12 | Shutdown |
Feature:
1. International AC input range
2. High efficiency, low working temperature
3. Short circuit,overload,over-current protection
4. 100% fully load burn-in test
5. Built-in EMI filter, low ripple noise
6. Low cost, high reliability
7. CE and FCC approval
1 x Power supply
