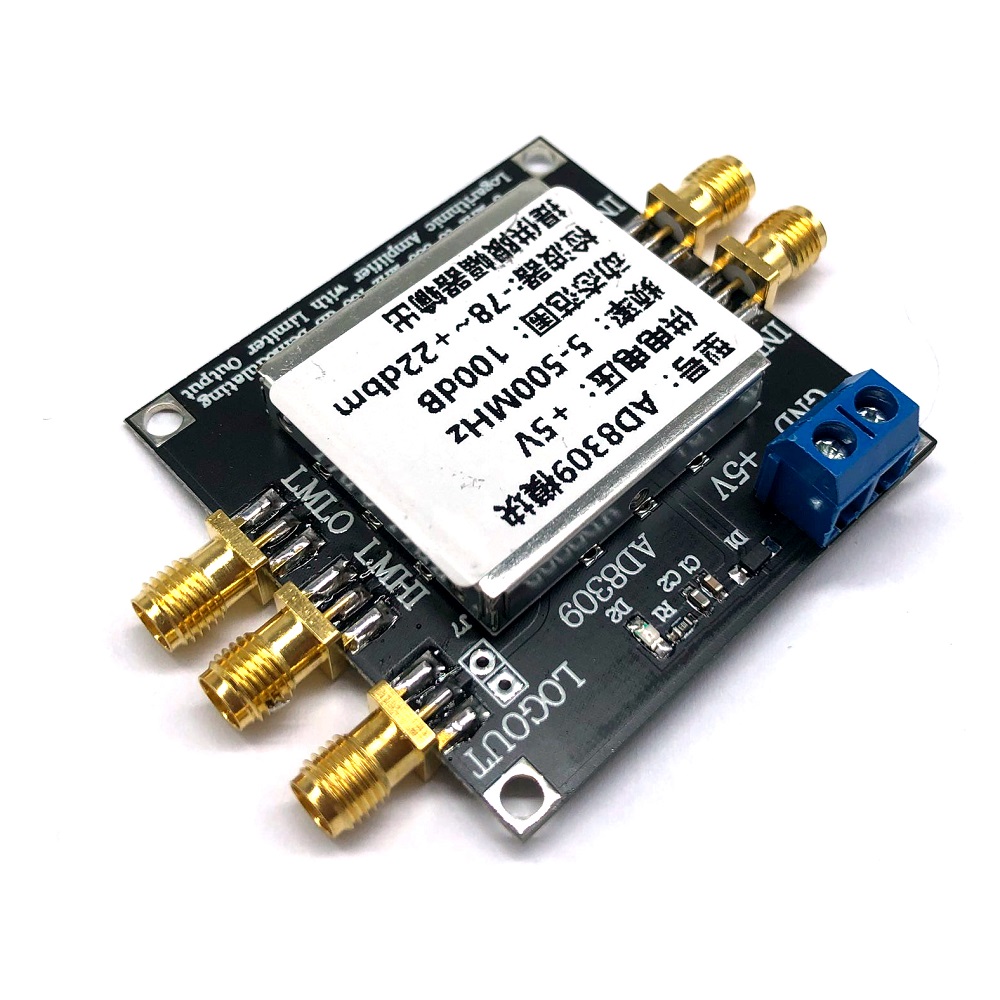

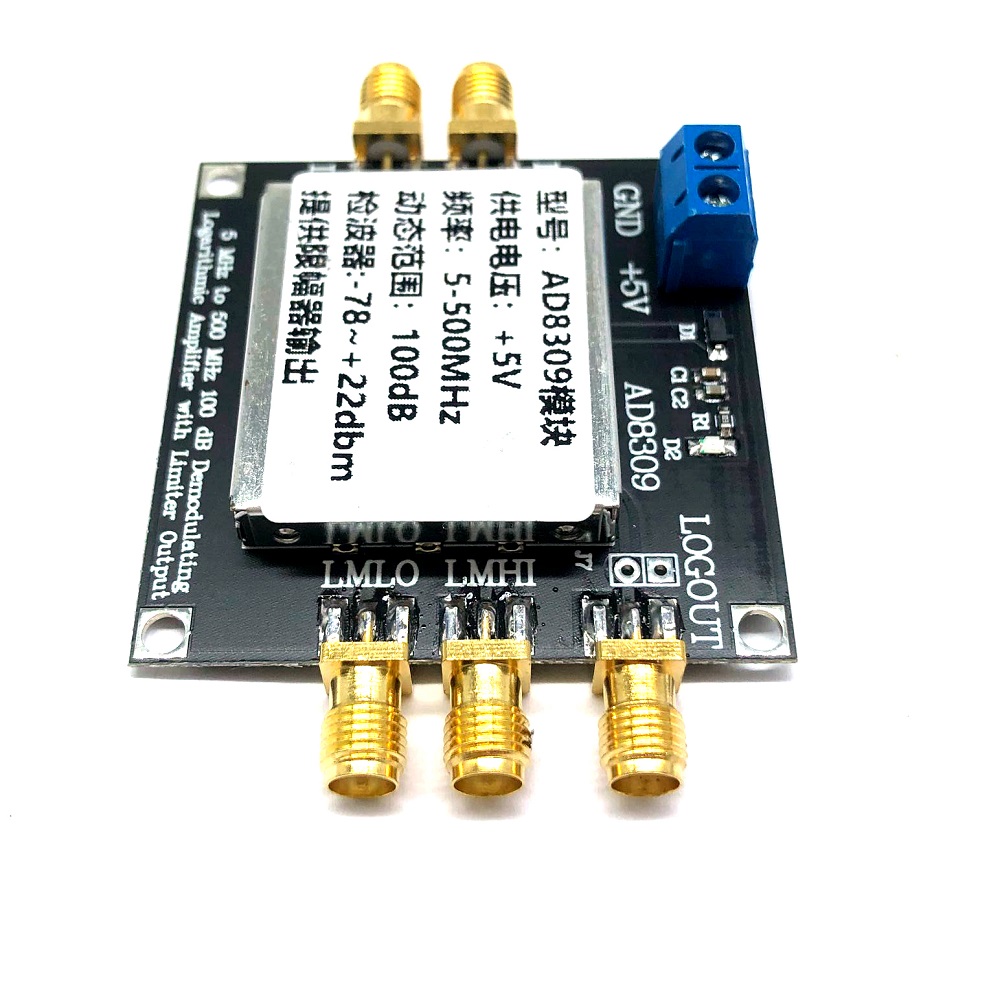

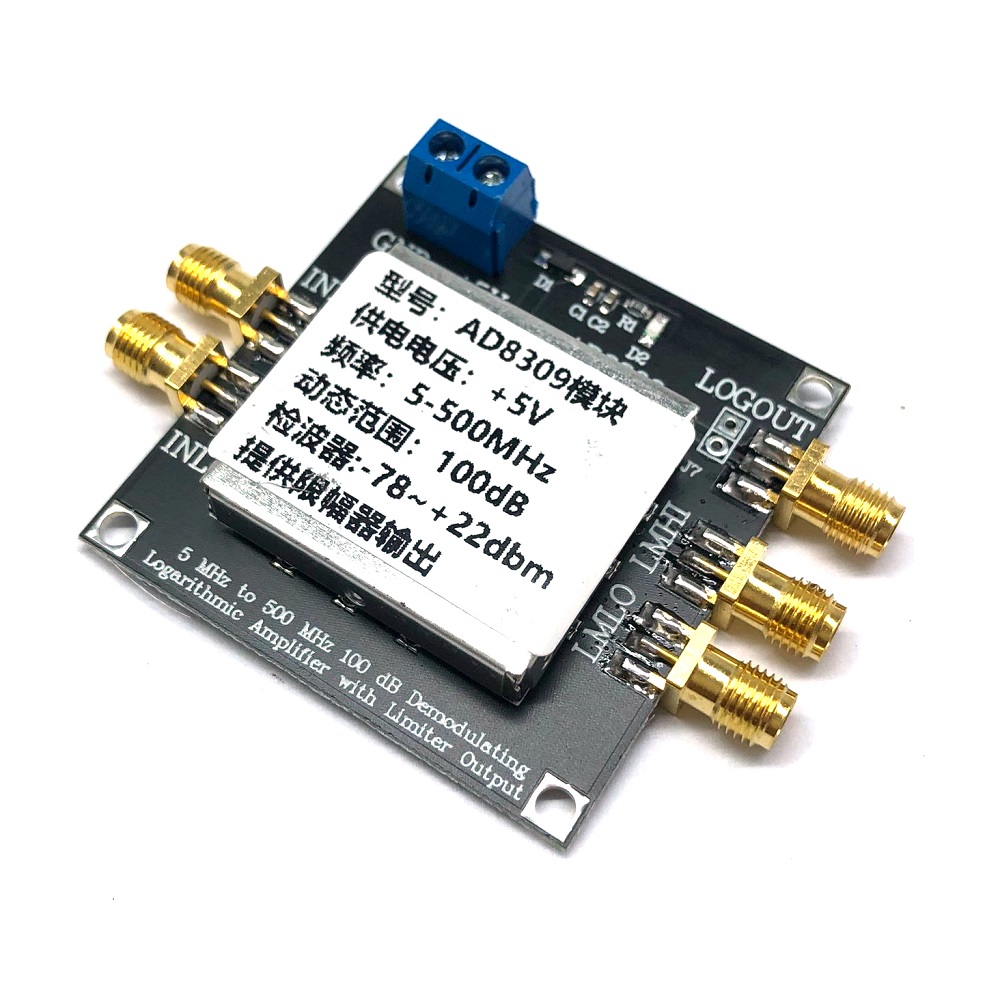

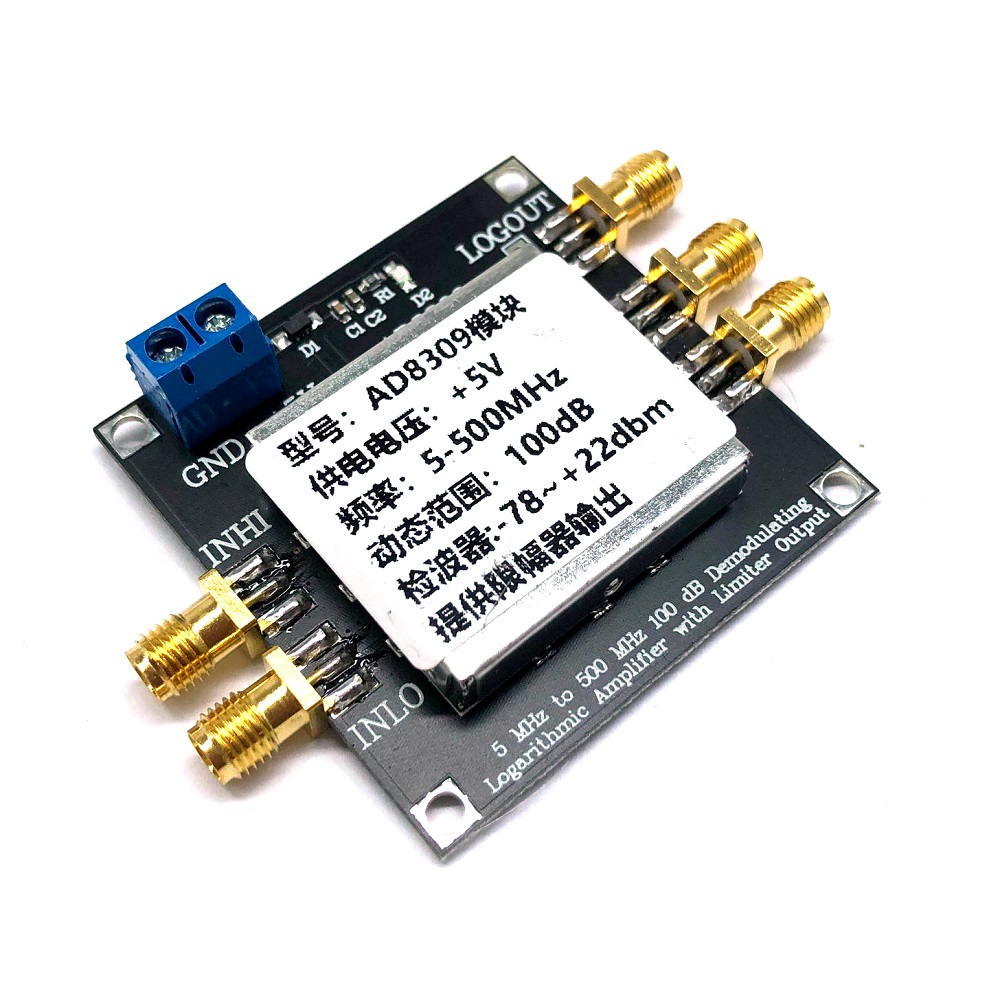

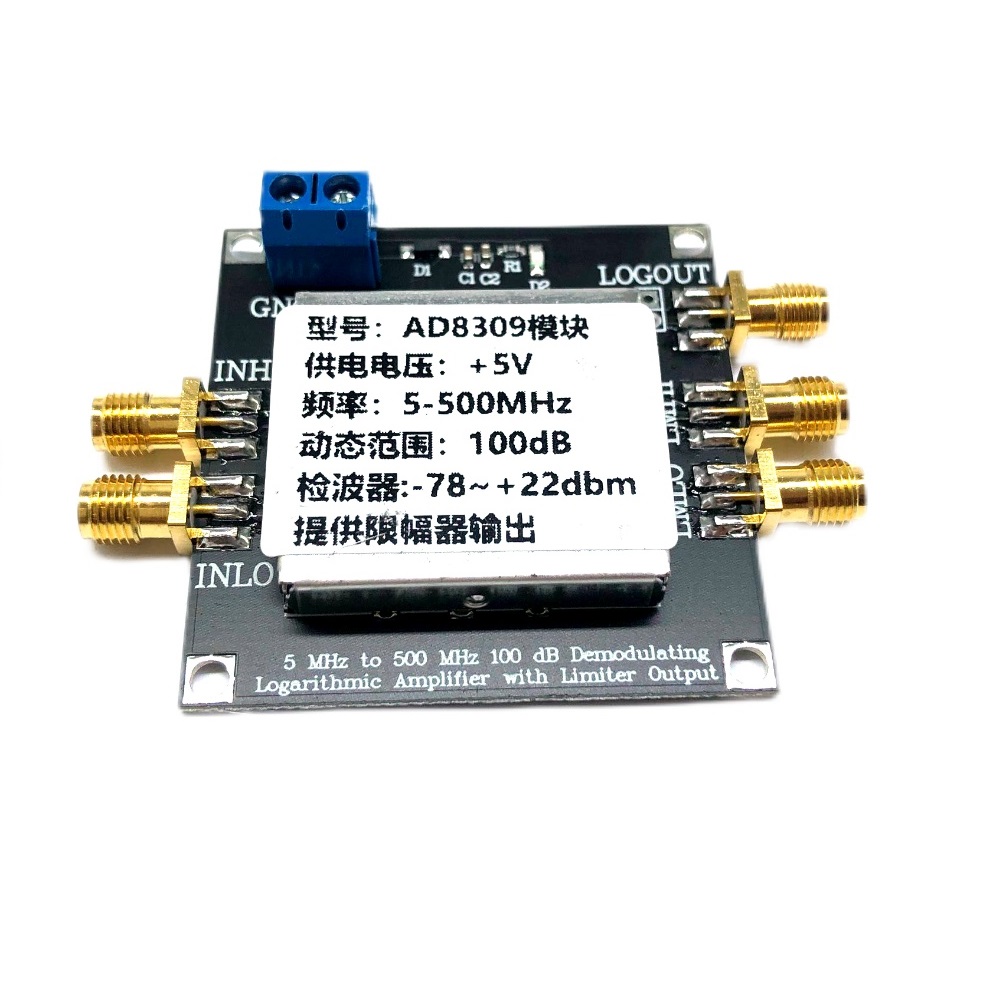

AD8309 500MHZ 100dB Dynamic Amplifier with Limiting Output for FSK PSK Demodulation
- Stock: In Stock
- Model: ST230047001
- SKU: ST230047001
$21.38
Ex Tax: $21.38
Description:
AD8309 is a 500 MHz detection logarithmic amplifier based on continuous detection technology, suitable for received signal strength indicator (RSSI) and phase detection in cellular base stations, and other radio transceiver applications.
The device provides a dynamic range of 100 dB, an accuracy of ±0.4 dB in the middle 80 dB range, and an operating frequency of up to 500 MHz. The logarithmic output is proportional to the logarithm of the input signal and can provide a 0.4 V to 2.5 V DC signal within a 100 dB input range. The device also provides a limiter output that can amplify the input signal by 100 dB and provides a stable limiter output with a maximum phase deviation of ±100 ps. This limiter output is useful for demodulating FSK and PSK modulated signals.
Specification:
Power supply voltage: 55V DC (within a typical current value of 20mA);
Complete multistage logarithmic-limiting IF amplifier
Dynamic range: 100 dB -78 dBm to +22 dBm (Re 50 O)
Programmable limiter gain and output current
Differential output to 10 mA, 2.4 V peak-to-peak
Total gain: 100 dB, bandwidth: 500 MHz
Frequency range: 5MHZ-500MHZ;
Constant phase (typical delay deviation: 680 ps)
Power-on time: 500 ns, sleep current: <1 mA
RSSI scaling does not change with temperature and power supply voltage: slope: 20 mV/dB, intercept: -95 dBm
RSSI linearity: ±0.4 dB (to 200 MHz)
Single power supply: +2.7 V to +6.5 V
Current: 16 mA (typical value)
Input and output interface: SMA outer screw inner hole
Product size: 50 x 50 x 9mm
Product weight: 20 g
With metal shell shield
Package included:
1 x Amplifier
