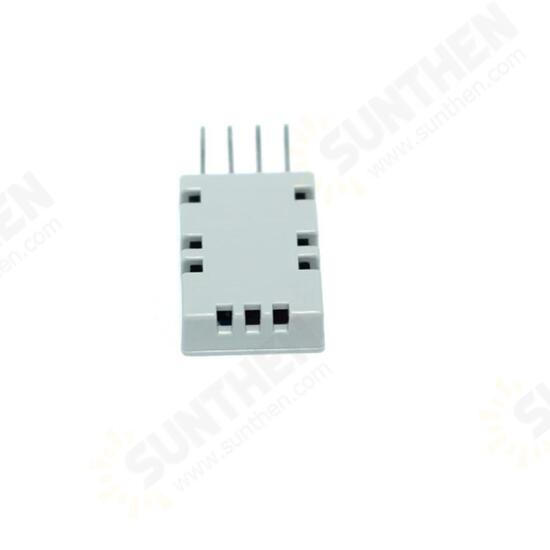

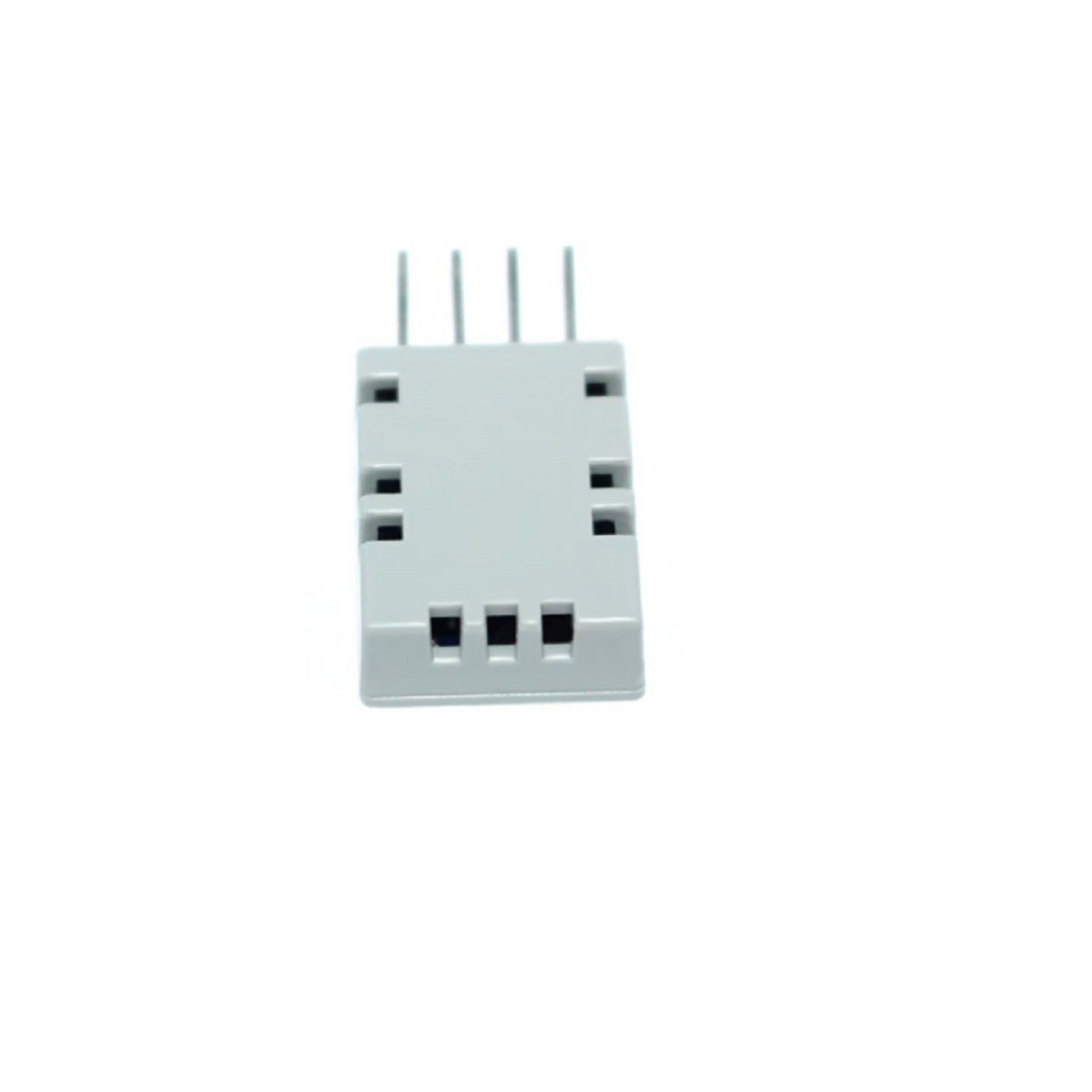

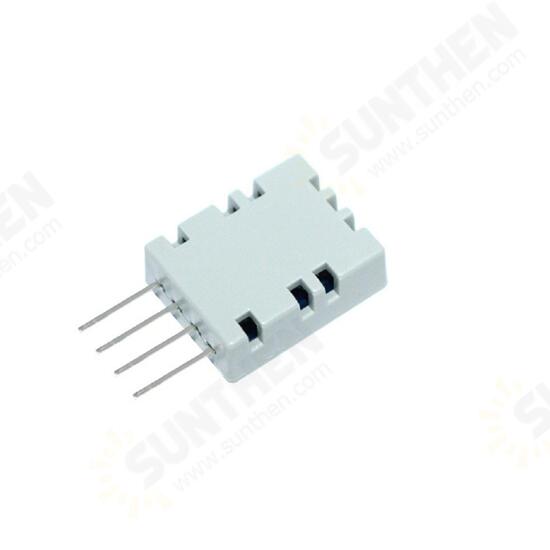

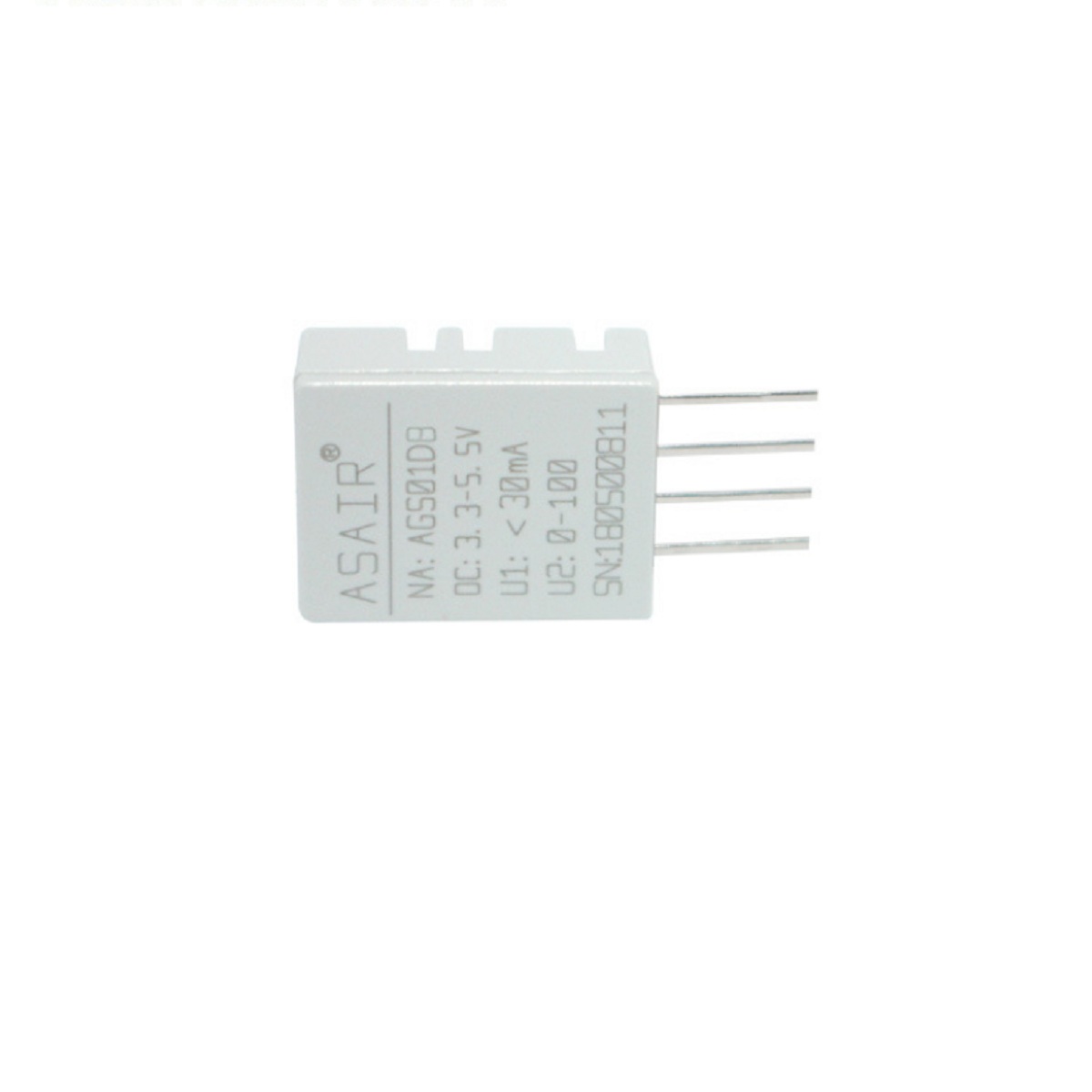

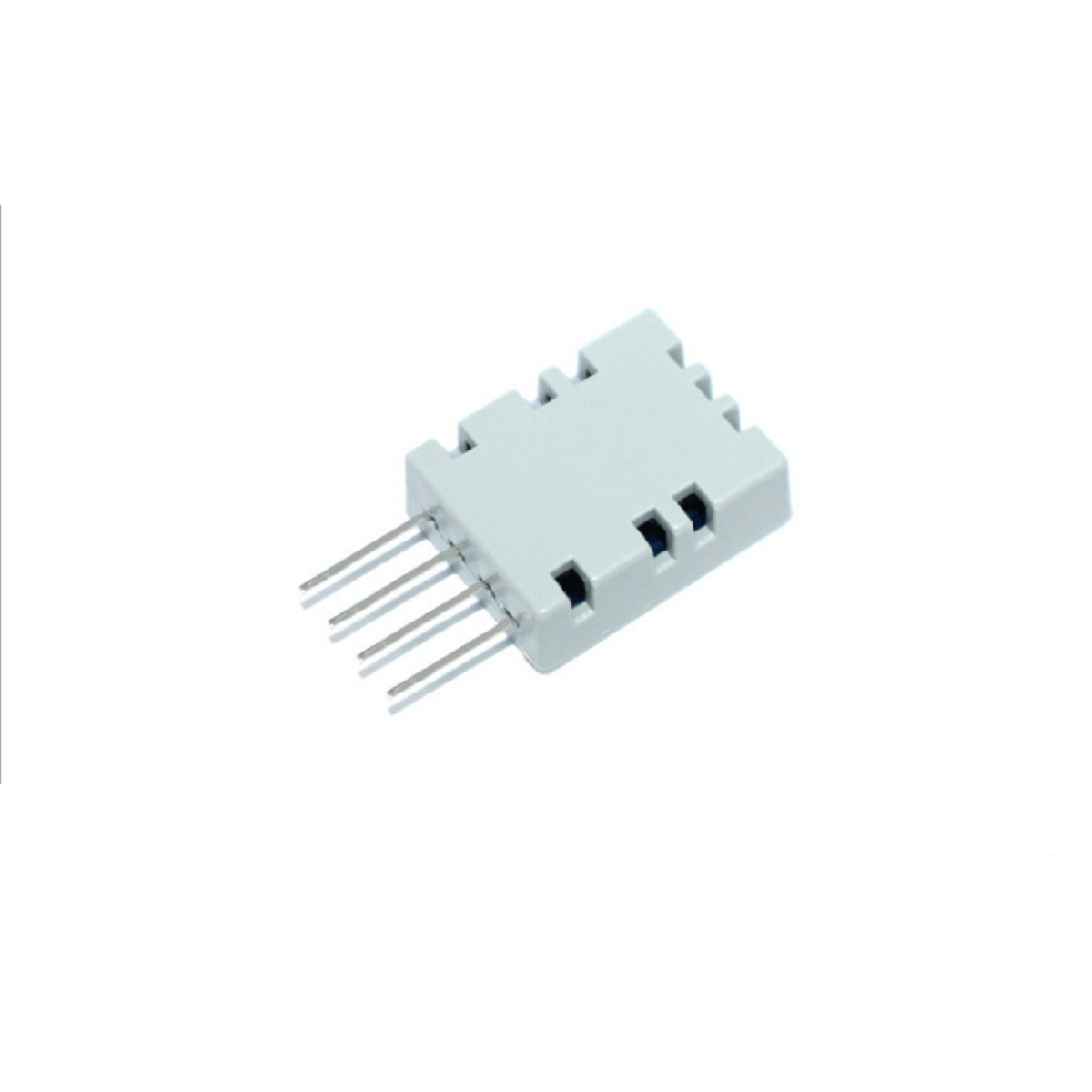

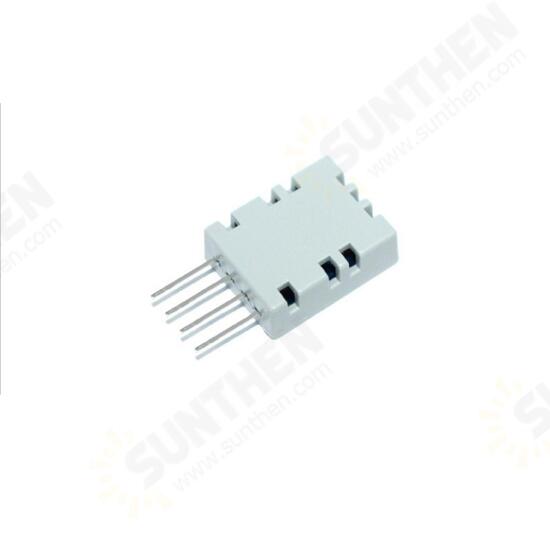

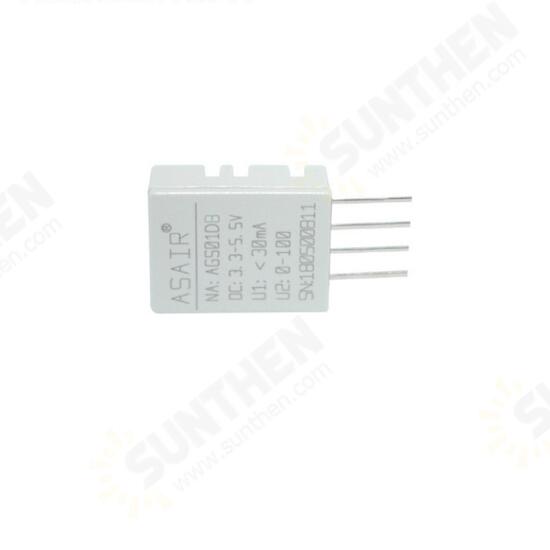

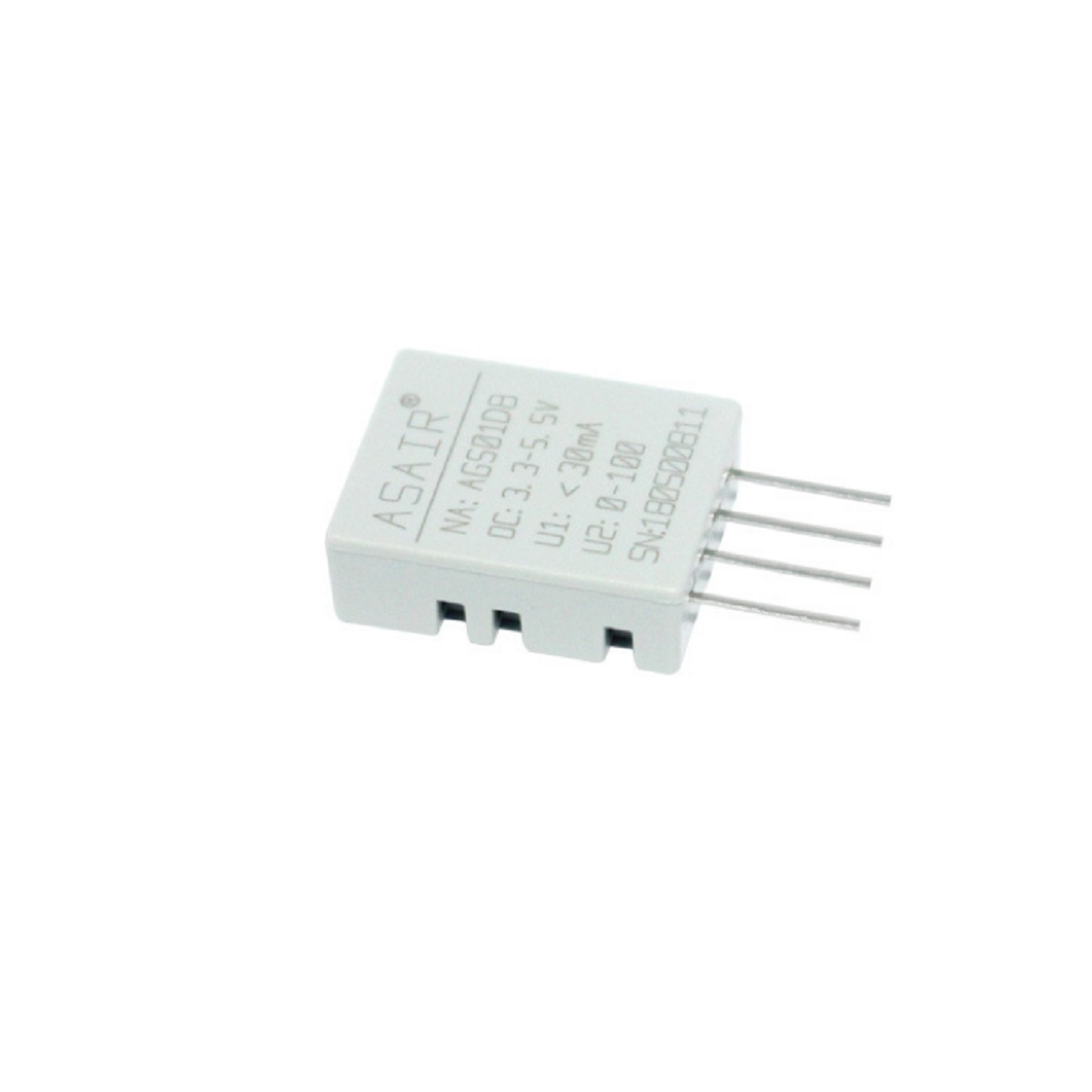

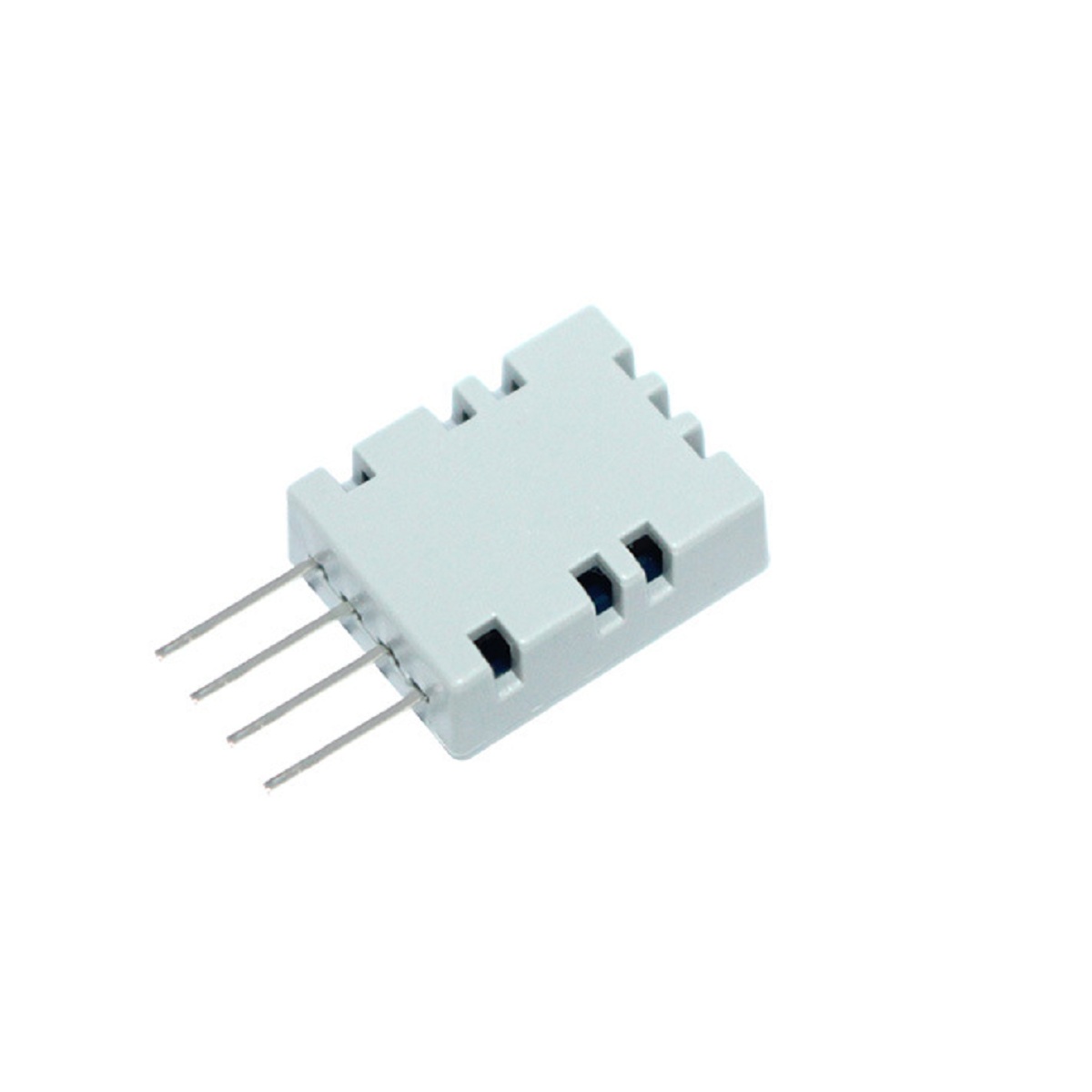

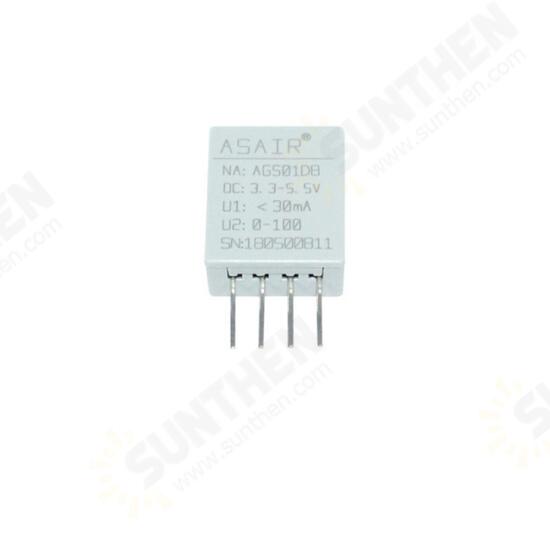

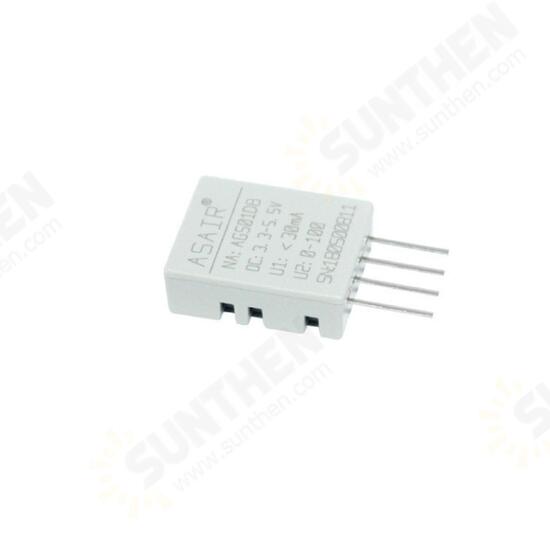

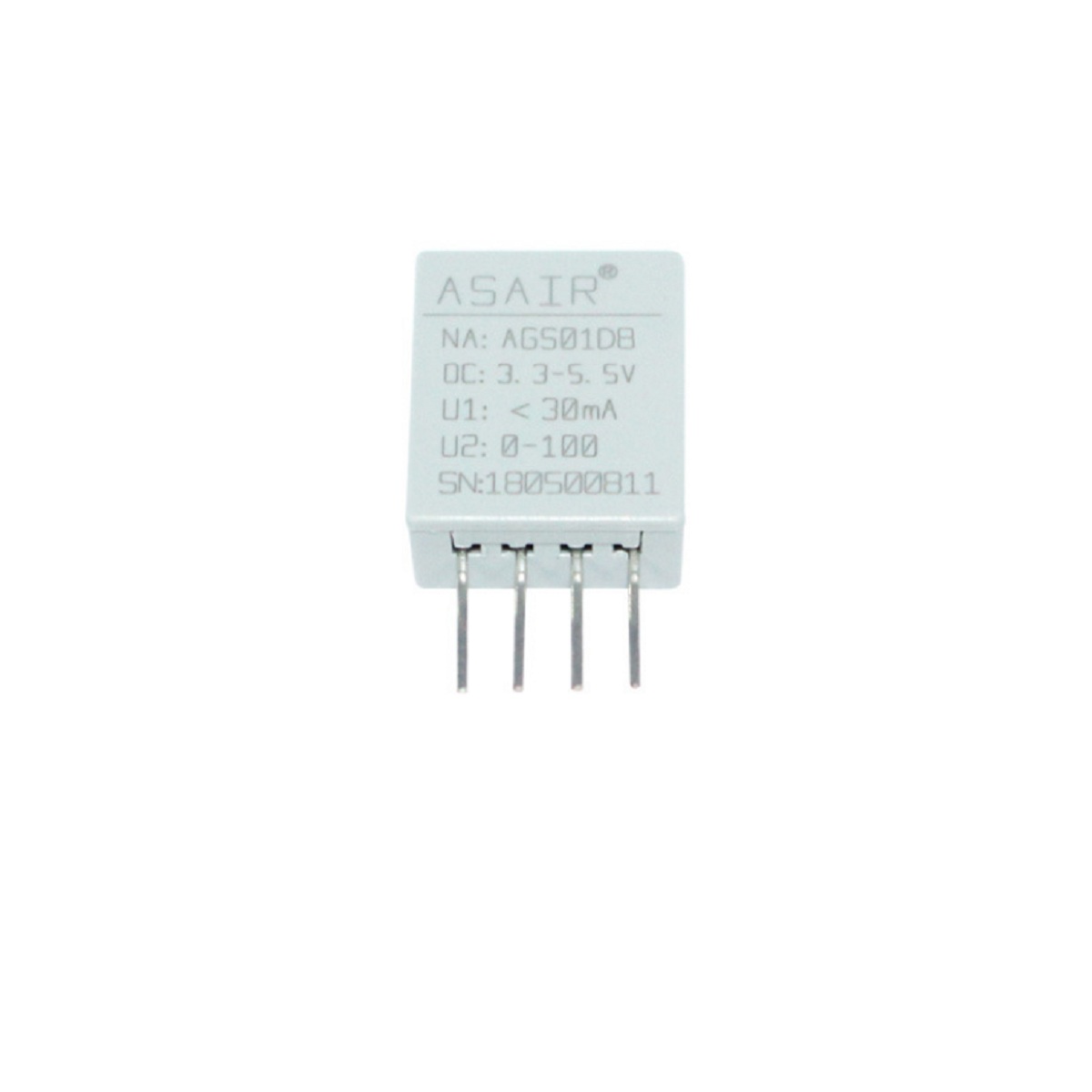

AGS01DB Air Quality Sensor MEMS Technology of VOC Gas Sensor Module
- Stock: In Stock
- Model: ST220016107
- SKU: ST220016107
$13.99
Ex Tax: $13.99
Specification:
Model: VOC Gas Sensor - AGS01DB
Measurement objects: ethanol, ammonia, sulfide, benzene vapor, smoke, polluted gas, harmful gas, volatile organic compounds, etc.

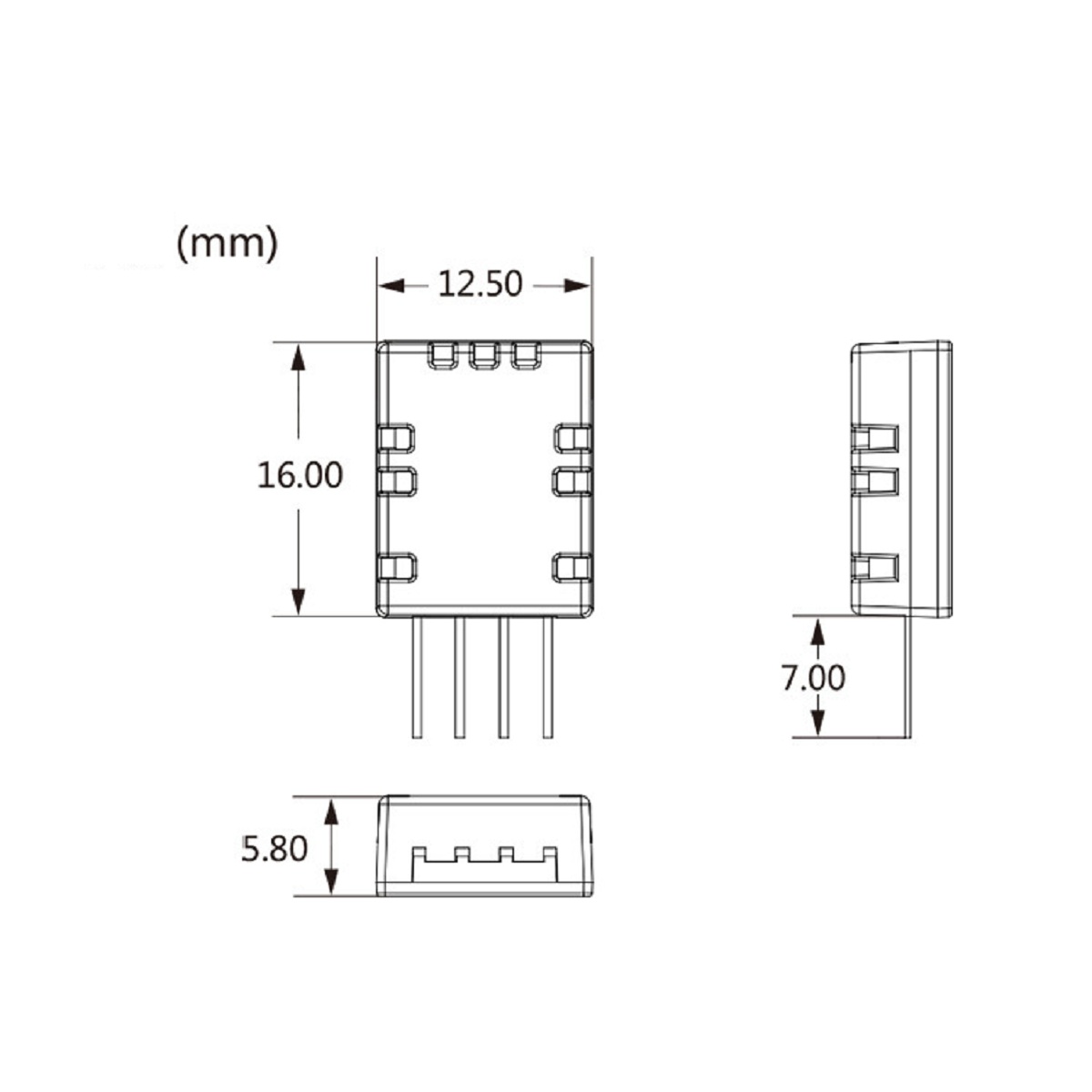

Size: 16*12.5*5.8 (mm)
Supply Voltage: 3.3-5.5V DC
Mini supply current: 24mA
Maximum supply current: 30mA
Typical power supply current: 26mA
Typical output power (3.3V power supply): 86 mW
Typical output power (5V power supply): 130 mW
Sampling period: >= 2S/time
Output mode: IIC slave mode
Preheating time: 120 seconds
Working temperature: 0C~50°C
Working humidity: 0-95% RH
Sensor Category: MEMS Semiconductor Metal Oxide Sensors
Output unit: PPM
Measurement limit: 0-100PPM
Measurement accuracy: 20% (F. S)
Standard test gas: ethanol
Resolution: 0.1 PPM
Packaging: 4PIN pin
Description:
AGSO1DB is a MEMS VOC gas sensor with calibrated digital signal output. It uses special digital module acquisition technology and gas sensing technology to ensure that the product has high reliability and excellent long-term stability. This kind of MEMS gas sensor has the characteristics of low power consumption, high sensitivity, quick response, high reliability and stability, low cost and simple driving circuit.
Package Includes: 1 X AGSO1DB is a MEMS VOC gas sensor
