ALUMINUM Tungsten Electrode Sharpener Grinder Head TIG Welding Accessories with Cut-Off Slot Multi-Angle & Offsets
- Stock: In Stock
- Model: ST22008063
- SKU: ST22008063
$50.59
Ex Tax: $50.59
Description:

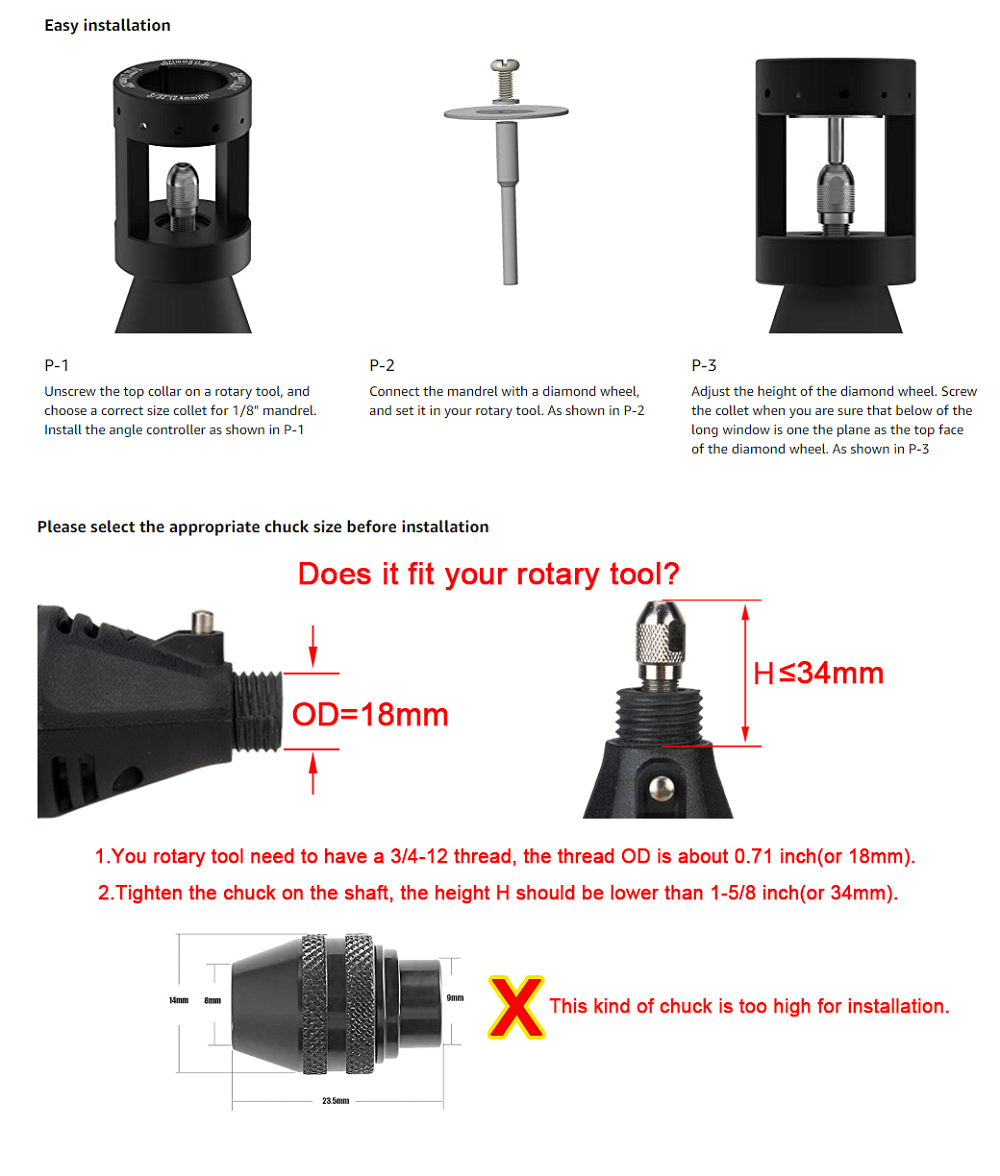

Fits most all Rotary Tools with a 3/4-12 thread including Black and Decker and More! (Package No Rotary Tool/No Drill Included).

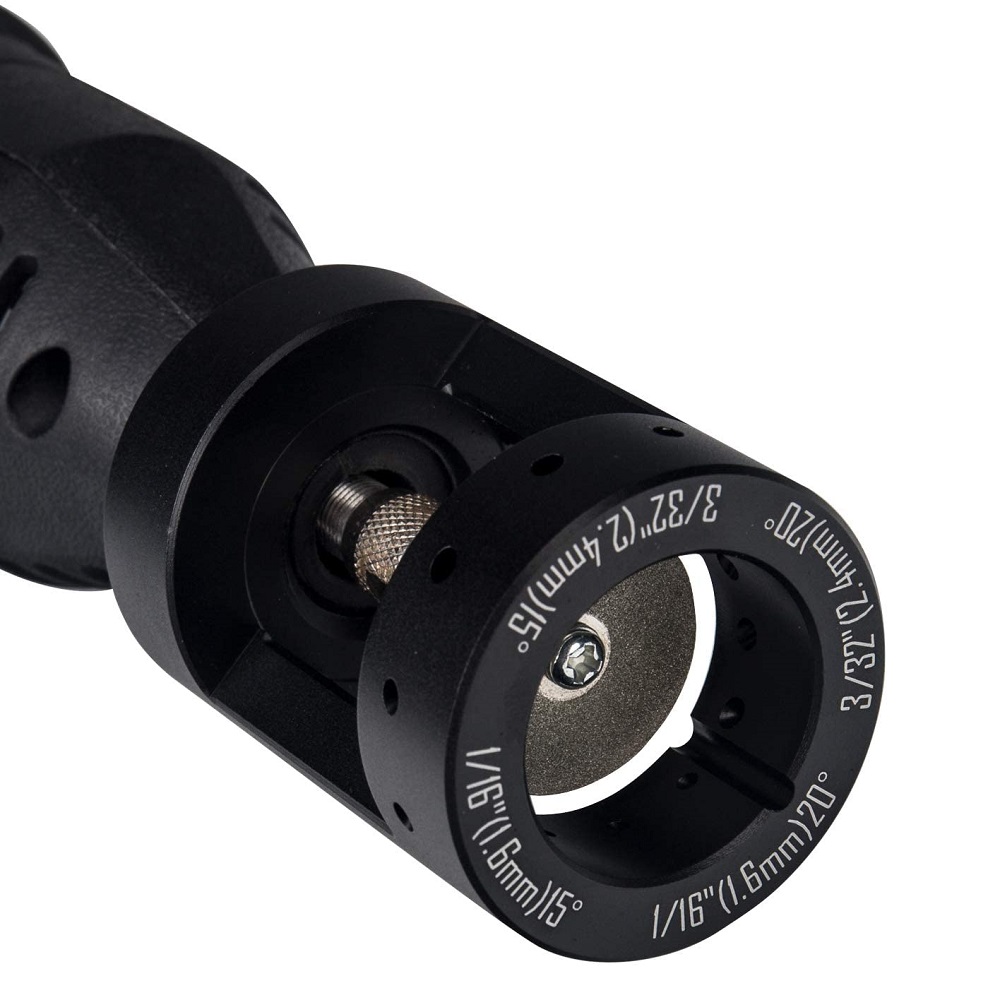

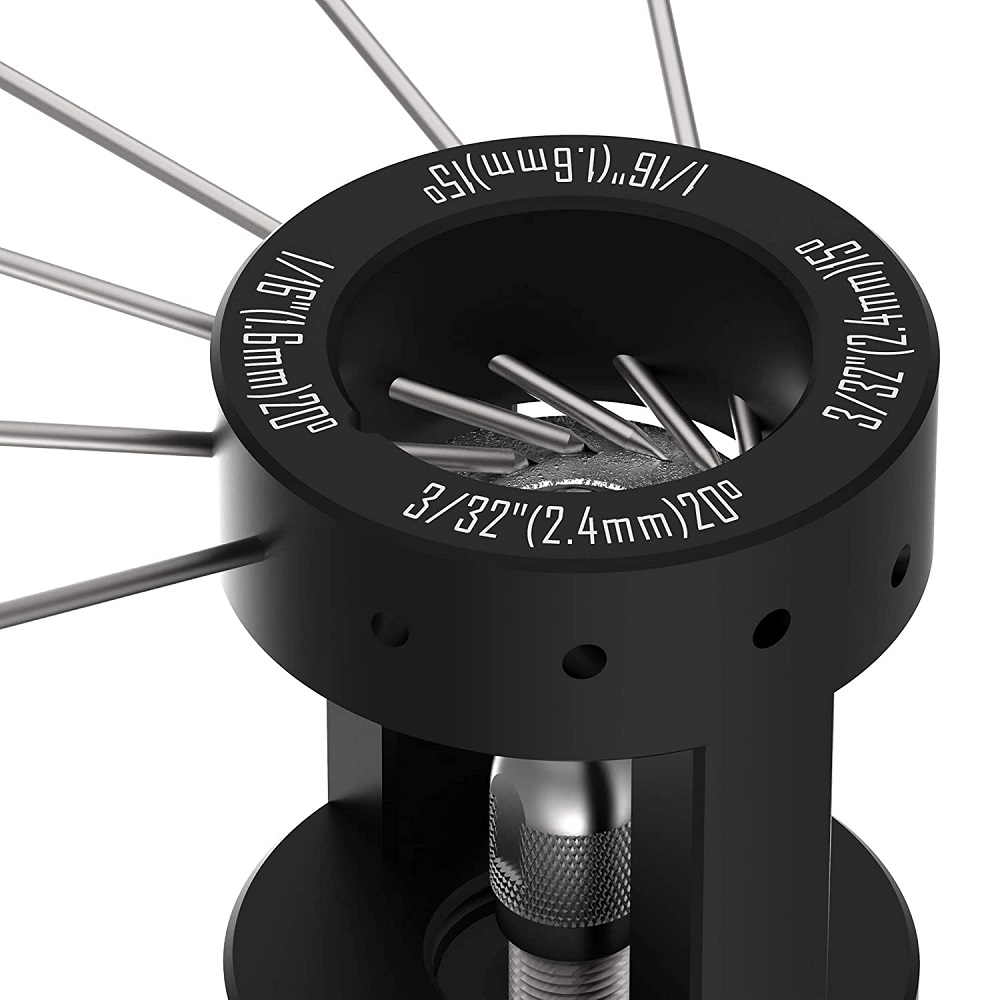

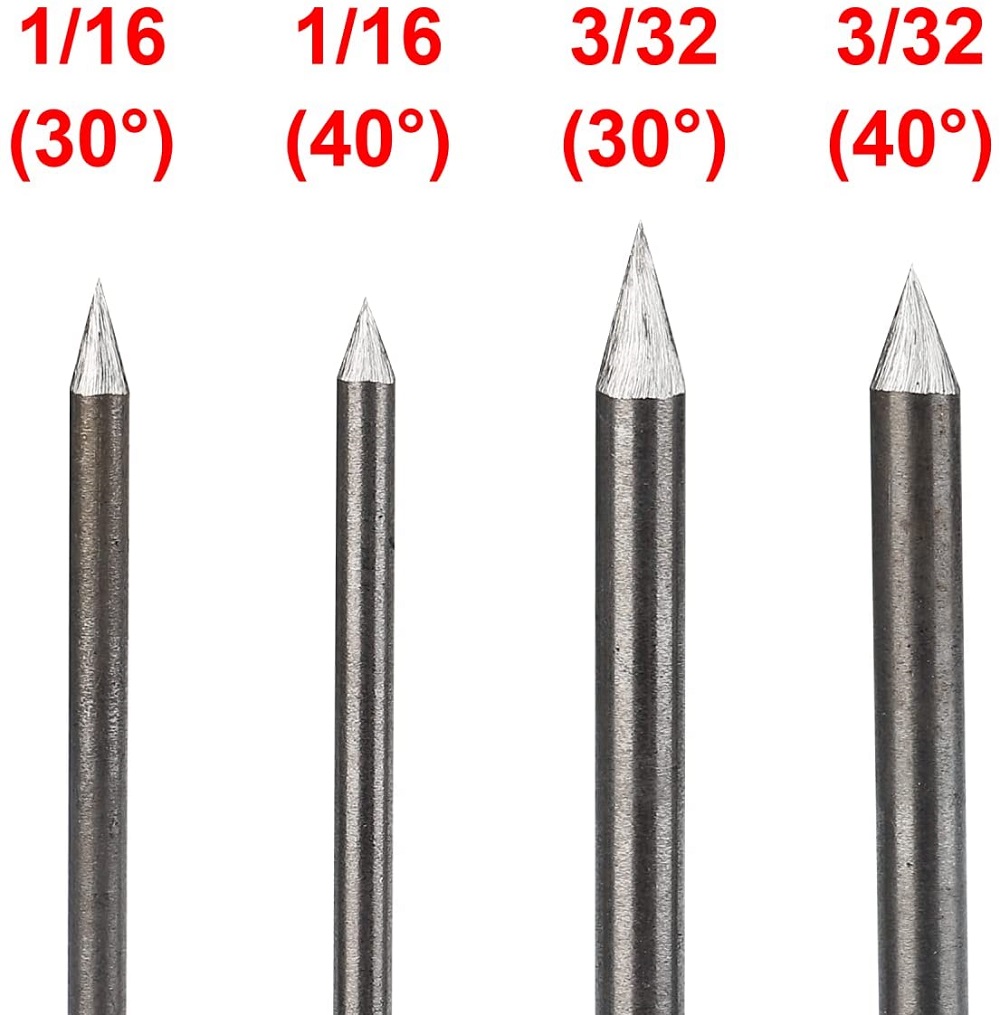

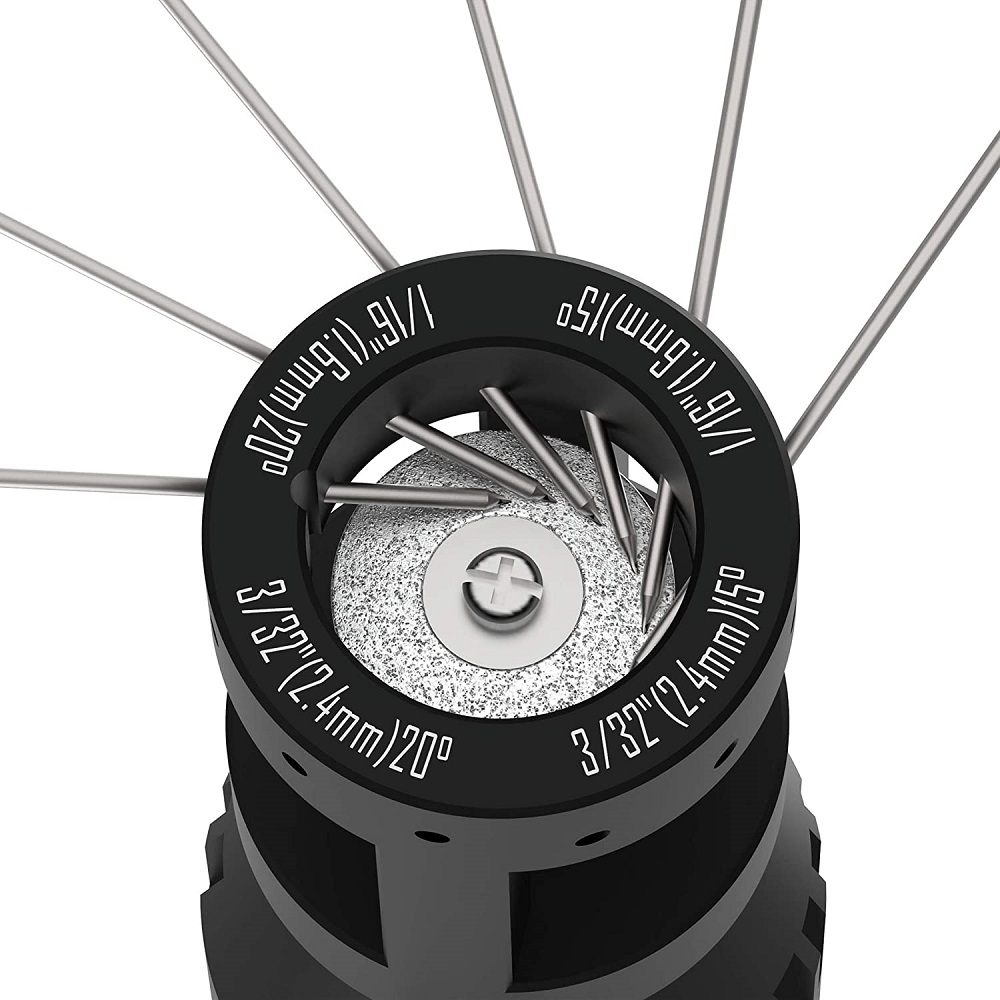

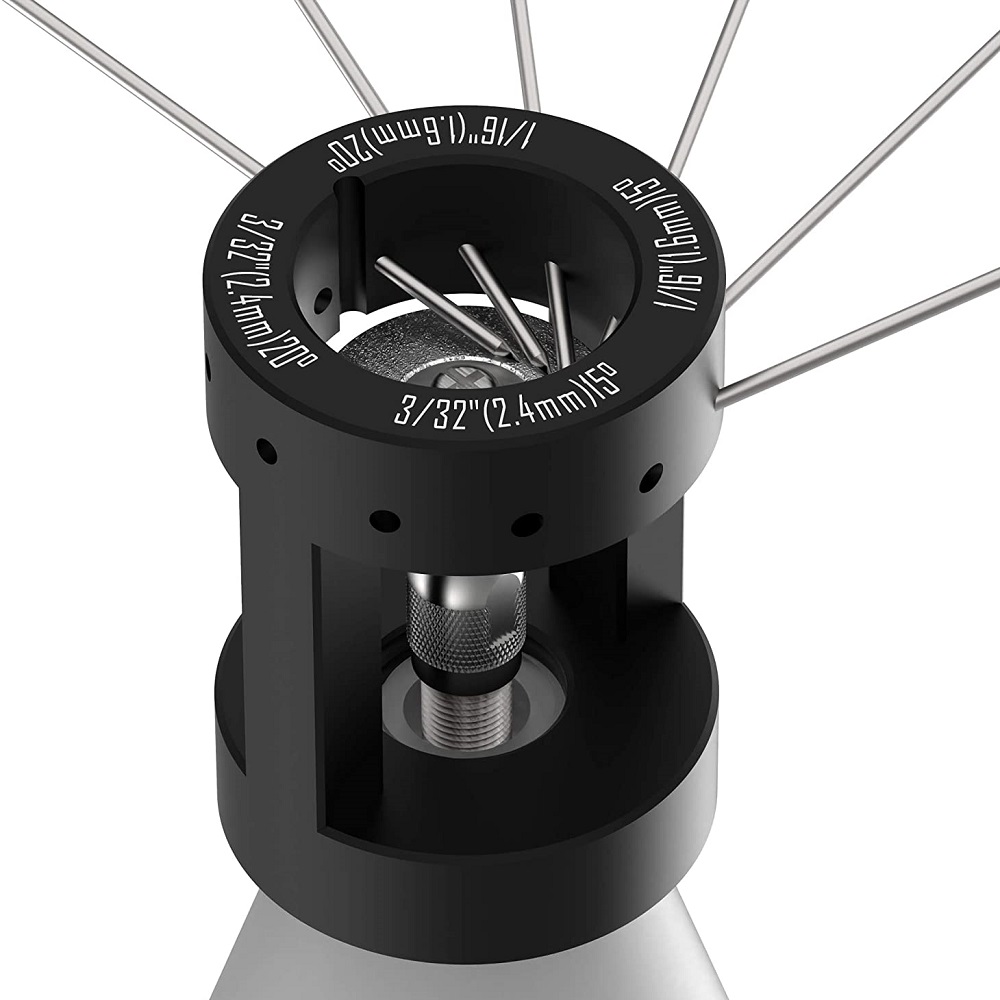

This tool will grind 2 sizes tungsten, 2 angles tips for each size. 4 types holes 1/16" (1.6mm) 15°, 1/16" (1.6mm) 20°, 3/32" (2.4mm) 15° , 3/32" (2.4mm) 20°. 15° is 30° when the ground on tips, 20° is 40°. Each type has 3 holes that will grind different circles on diamond wheels, which will reduce diamond wheels consumption by 2 times.

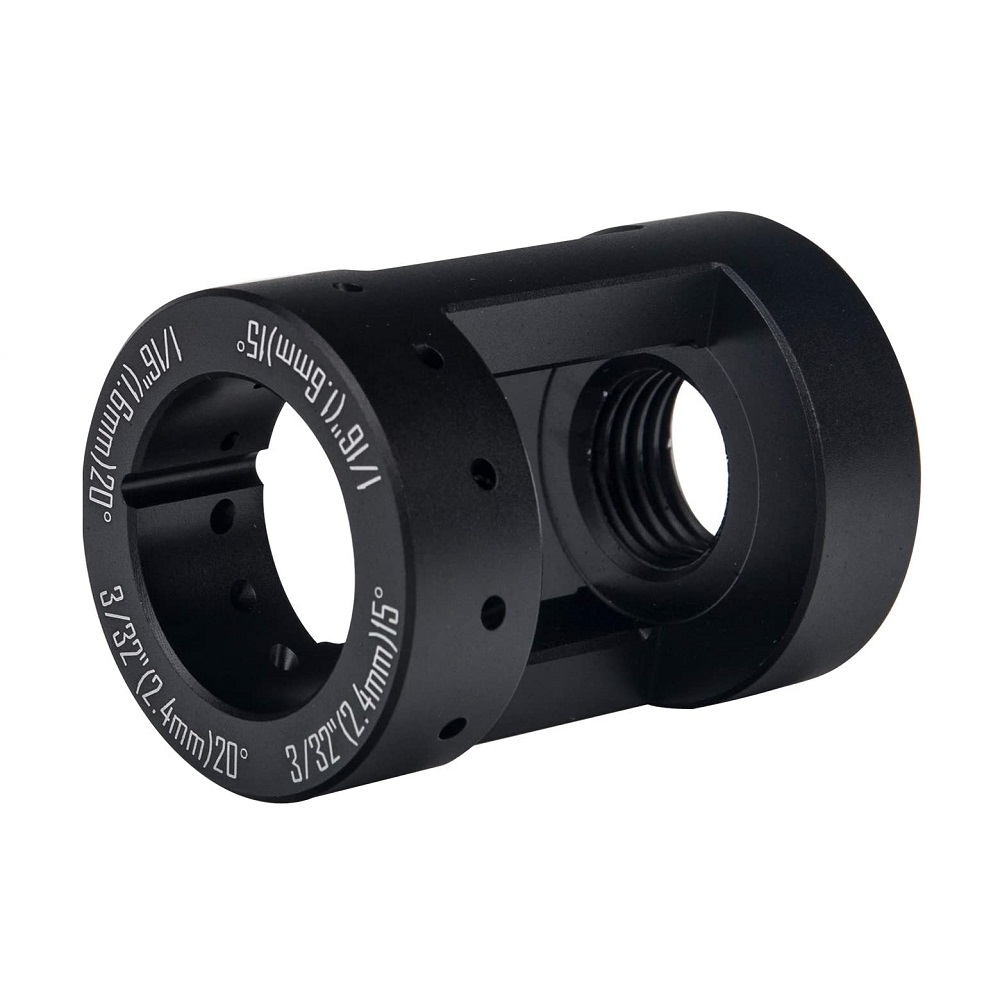

The main body is very light and convenient, only 87g. But very strong and precise. All holes are stationary, so we can set an offset compensation for each size hole to make sure all tungsten's tip center is on the grinding center point, this offset can ensure that the lines on the tip of the tungsten electrode are as straight as possible. If the hole position is variable, offset compensation cannot be set.
The tungsten sharpening tool also has tungsten cut-off port processing. After the tungsten you are using is worn or contaminated, you can use the cut-off port for cutting so that you can use it again. All holes are designed at the same height for the diamond wheel. Needn't set the height again and again. Very easy to install and use. Save your ready time for welding, Welders deserve it!
The product made of Upgrade aluminum alloy material, CNC finishing more Durable, there will be no trouble of high temperature melting.
Exquisite accessories:
120-140 Grit, With good hardness, wear resistance and good impact resistance. Sharping system is great to use.
Can be used with your rotary tool to cut a wide variety of materials.
CNC machined mandrel swing less when grinding
Note:
When using, please plug the connecting rod in mostly and screw it tightly.
When grinding: Apply light pressure to the wheel. Heavy pressure will result in excessive wheel wear and a rougher tungsten point.
Always wear eye protection, respiratory protection, and protective clothing when using the angles controller and when welding.
Remove the grinding wheel firstly before taking out the tool after use.

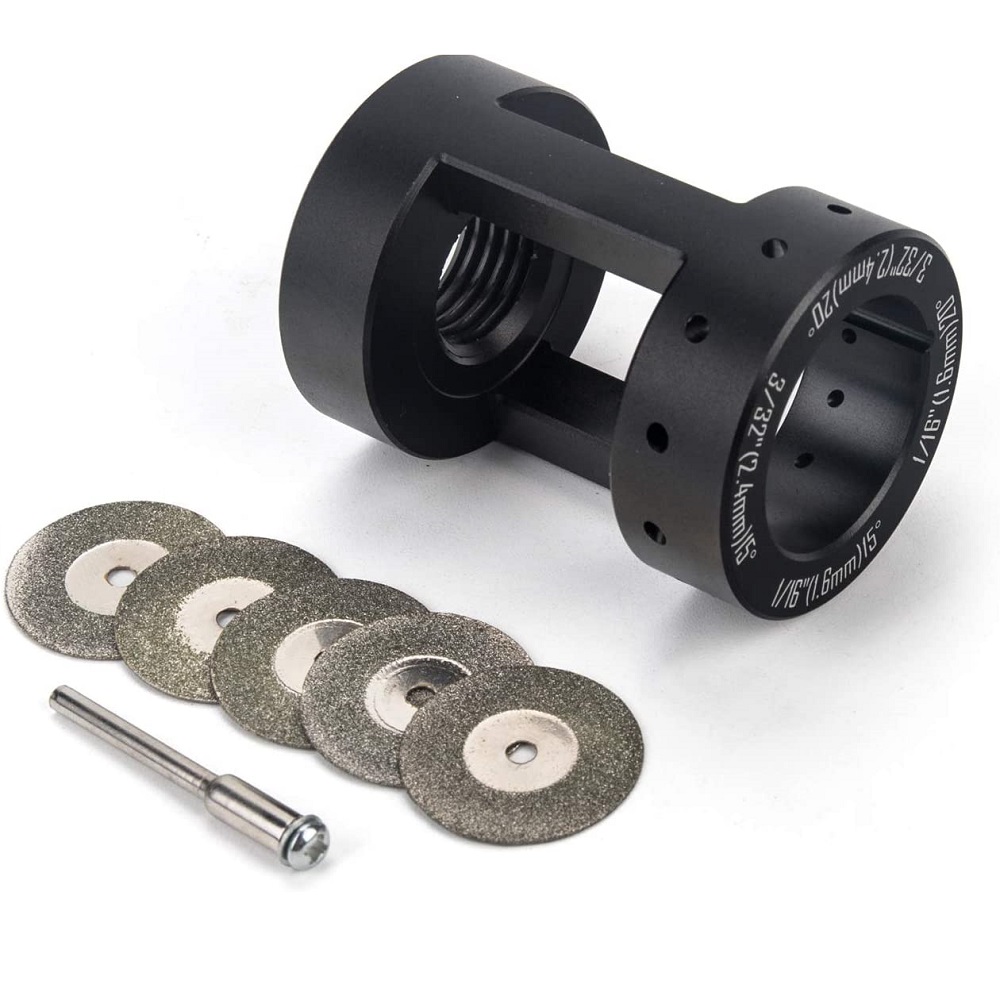

Package included:
1 x ALUMINUM Tungsten Electrode Sharpener

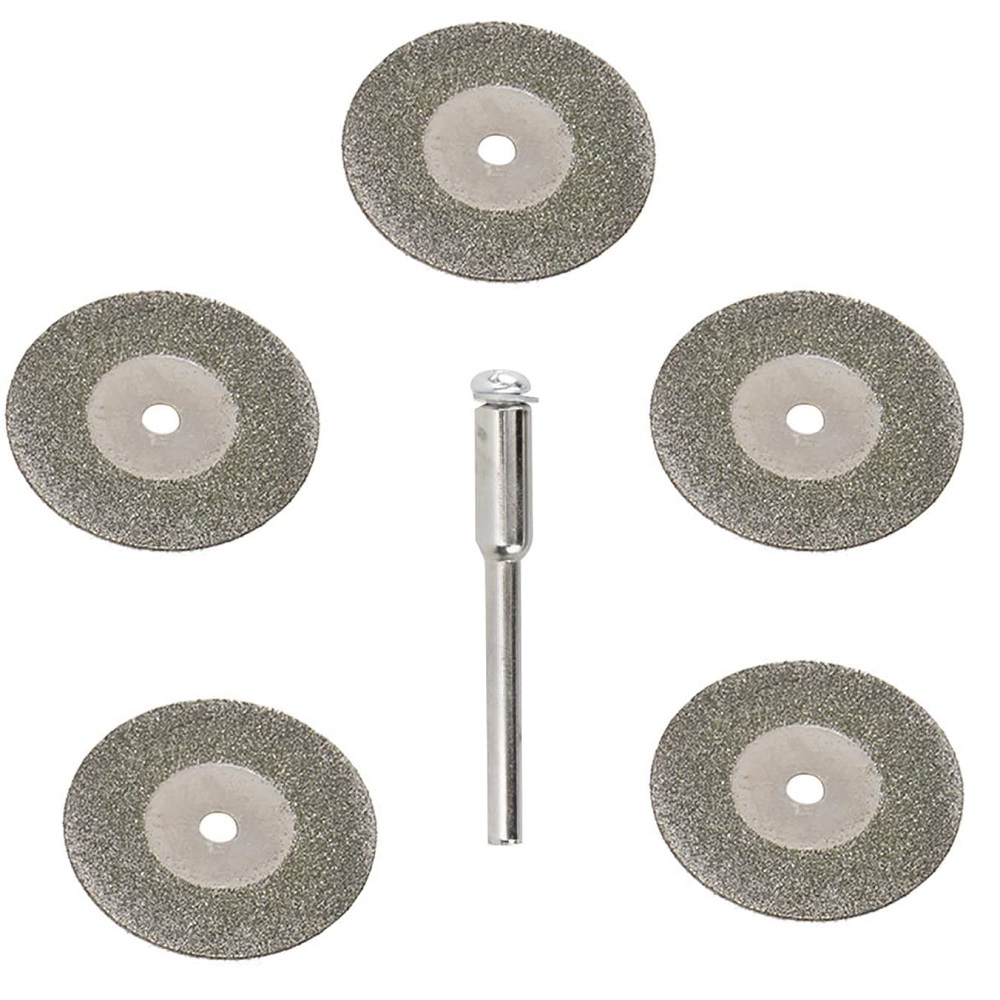

5 x 25mm Double Diamond Wheels
1 x Connecting Rod
