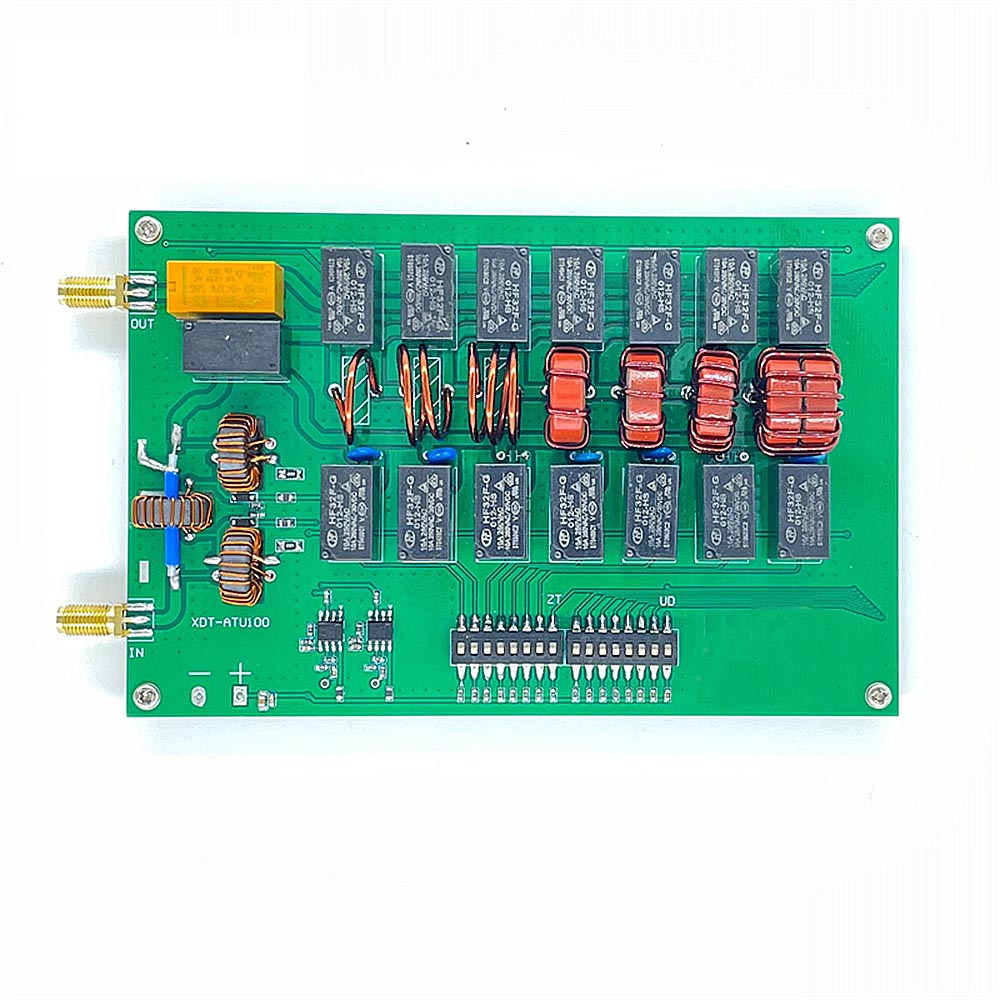

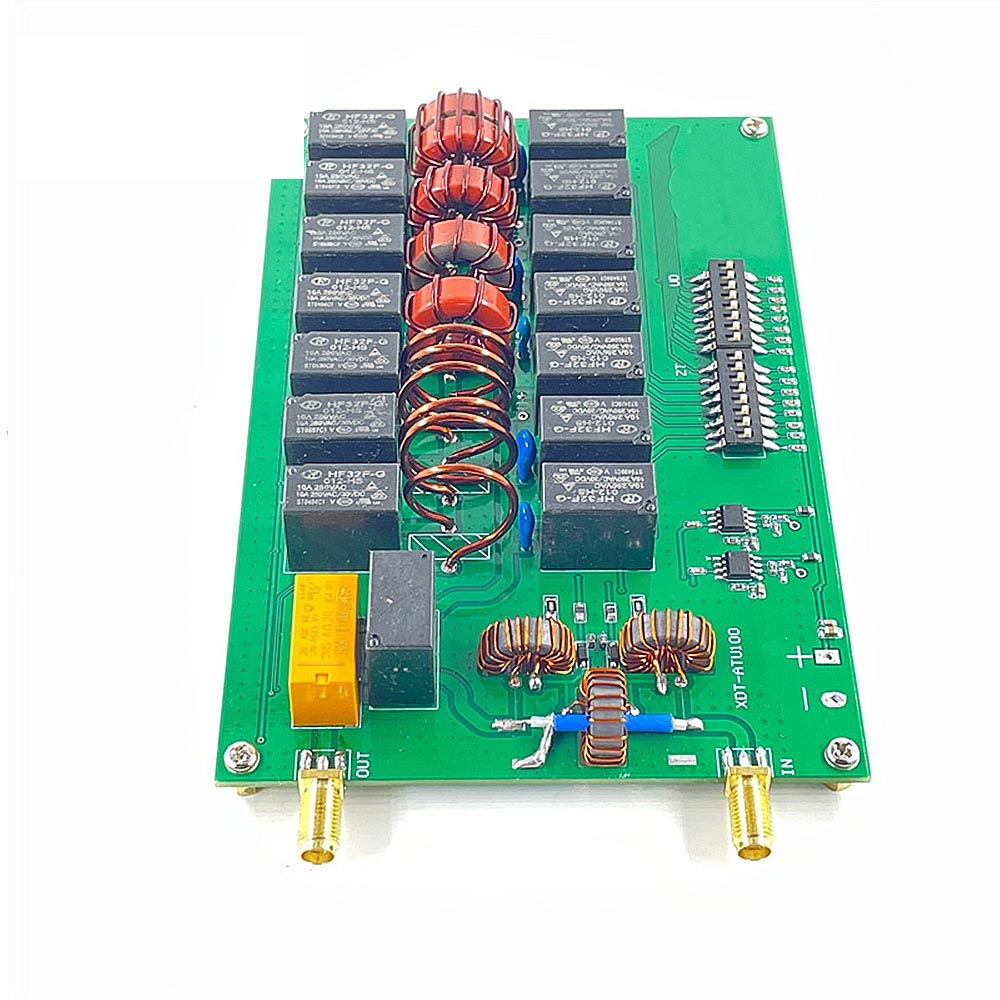

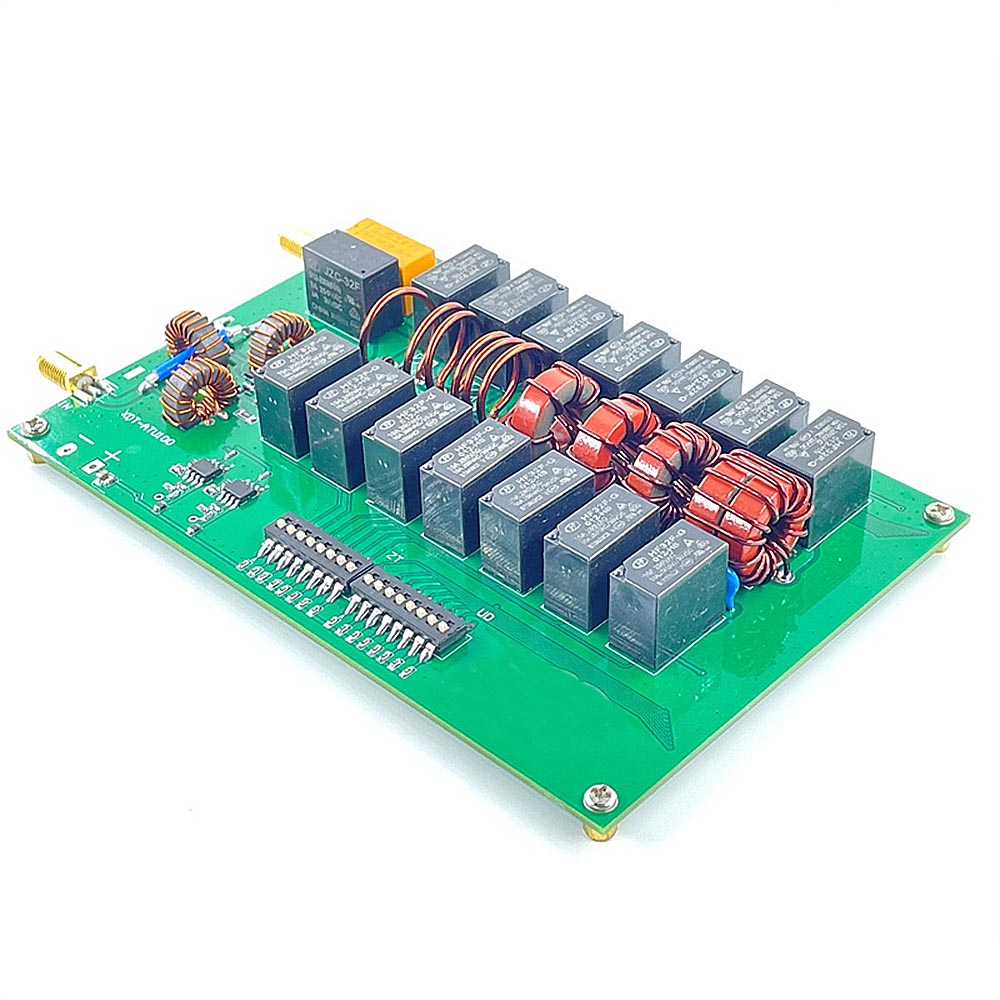

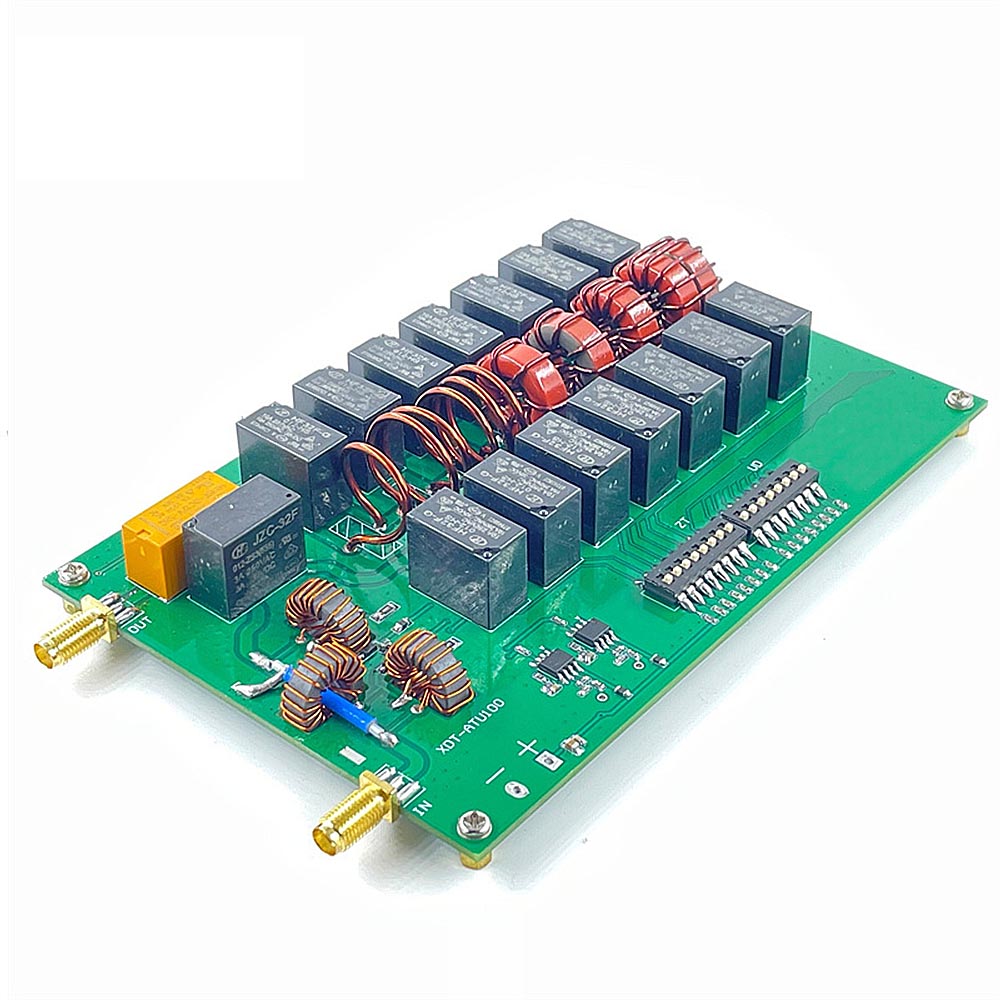

ATU100 1.8MHz-50MHz 200W Manual Antenna Tunner Assembled 1W Minimum Tuning Power

Product Specifications:

* Frequency range: 1.8MHz-50MHz

* Working voltage: 12V

* Working current: 0.5A

* Maximum withstand power: 200W

* The minimum measured power of the instrument: 1W

* The maximum measured power of the instrument: 200W

* Instrument measurement accuracy: 5%

* Meter measurement linearity: 8%

* Minimum step of capacitance: 10pF

* Inductance minimum step: 50nH

* Maximum matching capacitance: 1609pF

* Maximum matching inductance: 6.35uH

Functions:

* Antenna impedance matching function

* Pass-through mode and tuning mode switching

* Switch between rising impedance and falling impedance mode

* Forward and reverse power detection

* Manual capacitance and inductance adjustment

Switches & Interfaces:

* Input interface: connect with a radio

* Output interface: connect with an antenna

* Power supply interface: connect with the power supply

* Forward voltage output port: connect with voltmeter

* Reverse voltage output port: connect with voltmeter

* Turn switch upwards to connect to a capacitor

* DIP switch 1: to capacitor 10pF

* DIP switch 2: to capacitor 22pF

* DIP switch 3: to capacitor 47pF

* DIP switch 4: to capacitor 100pF

* DIP switch 5: to capacitor 220pF

* DIP switch 6: to capacitor 470pF

* DIP switch 7: to capacitor 820pF

* DIP switch 8: choose pass-through and tuning mode selection (turn the switch upwards for tuning mode; downwards for pass-through mode)

* Turn switch downwards to access an inductor

* DIP switch 9: to 50nH inductor

* DIP switch 10: to 100nH inductor

* DIP switch 11: to 200nH inductor

* DIP switch 12: to 400nH inductor

* DIP switch 13: to 800nH inductor

* DIP switch 14: to 1600nH inductor

* DIP switch 15: to 3200nH inductor

* DIP switch 16: selection of raising and lowering resistance modes (move the switch upwards to increase; downwards to decrease)

Package Include:

1×Antenna Tuner
