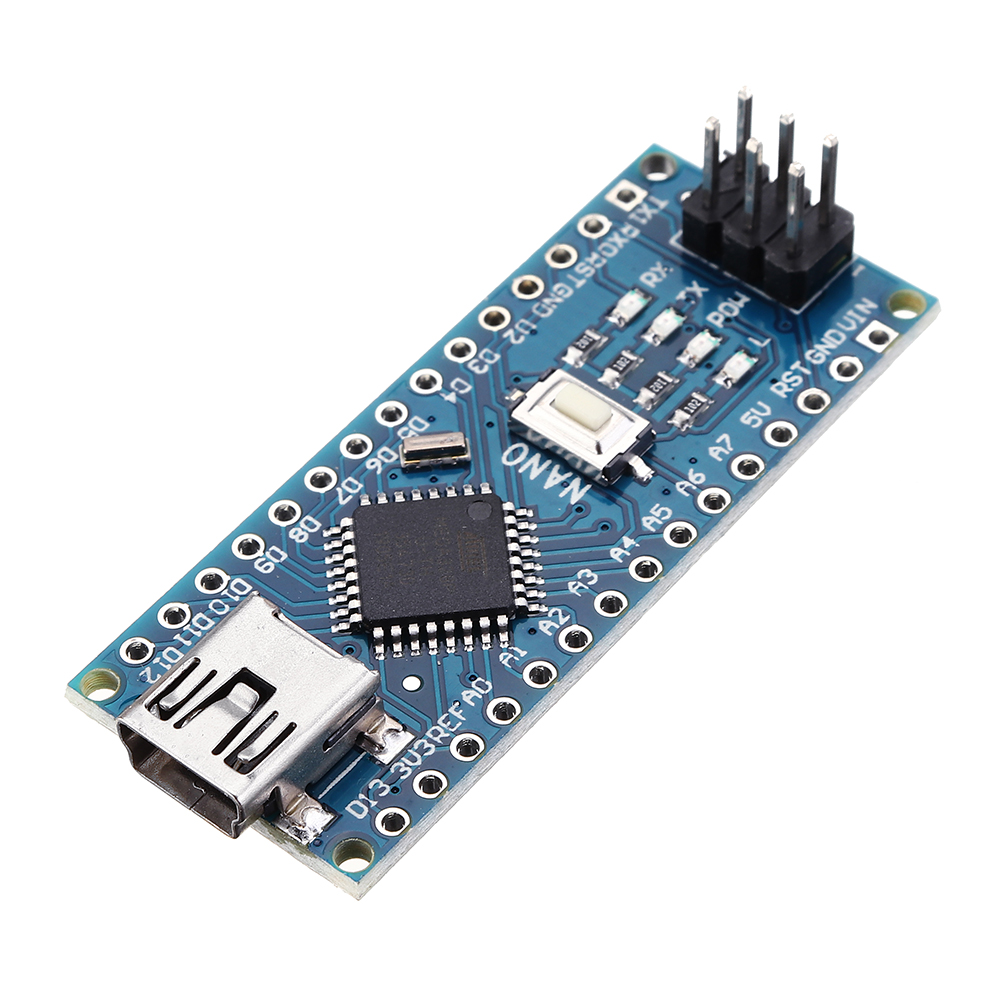

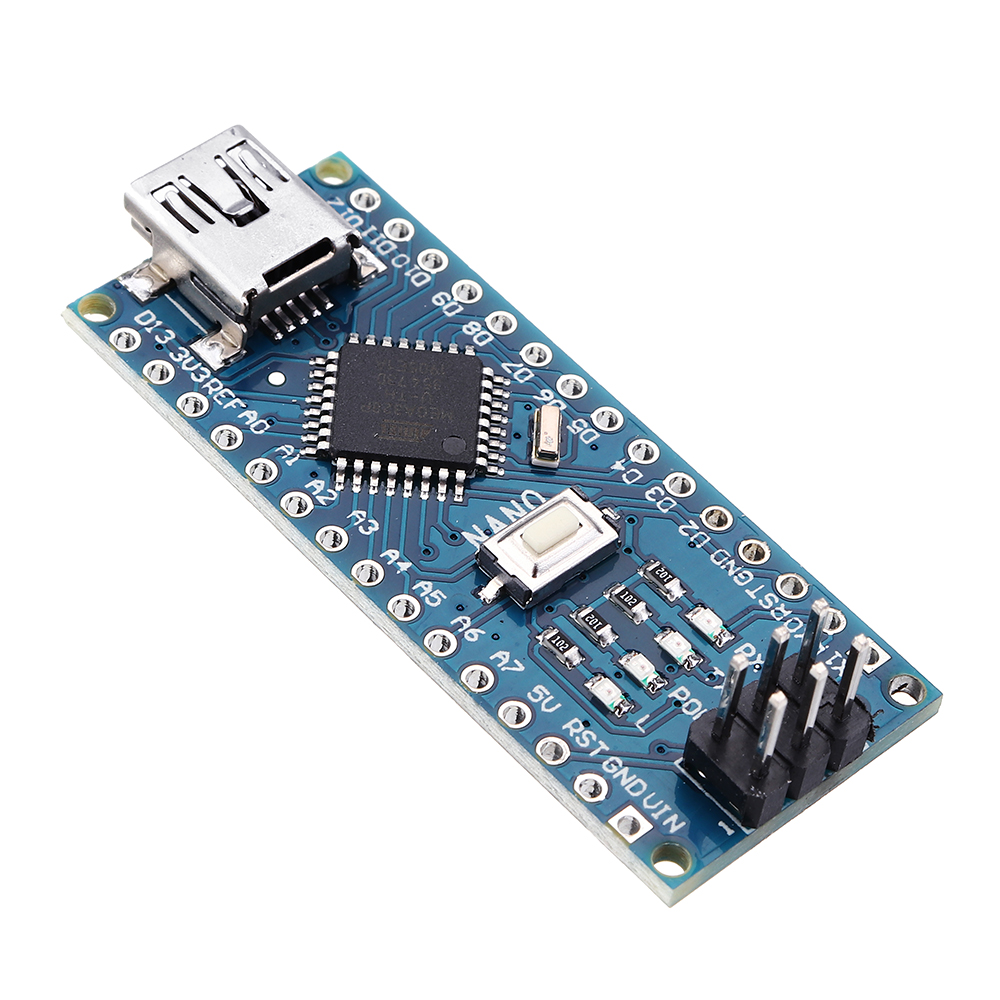

ATmega328P Nano V3 Controller Board For Improved Version Development Module for Arduino - products that work with official Arduino boards
- Stock: In Stock
- Model: ST230046036
- SKU: ST230046036
$8.99
Ex Tax: $8.99
Specification:
Microcontroller ATmega328
Operating Voltage (logiclevel): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz

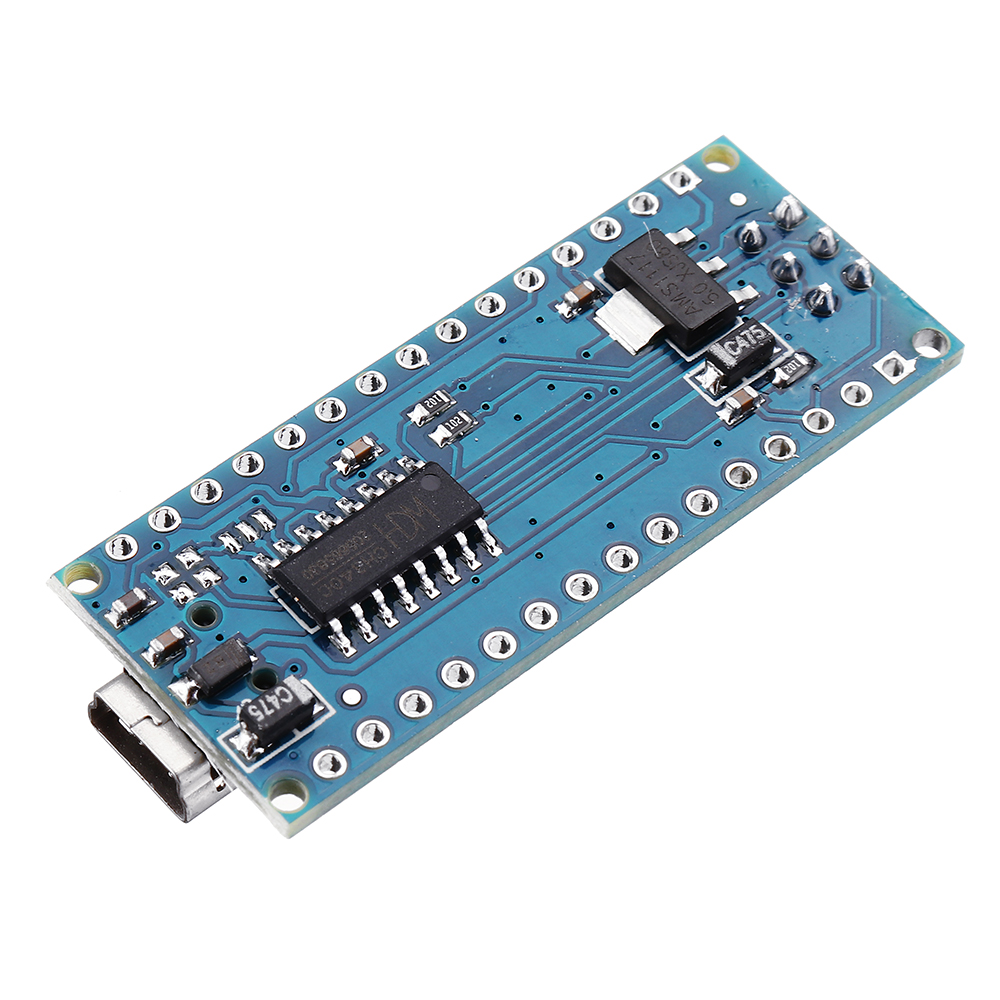

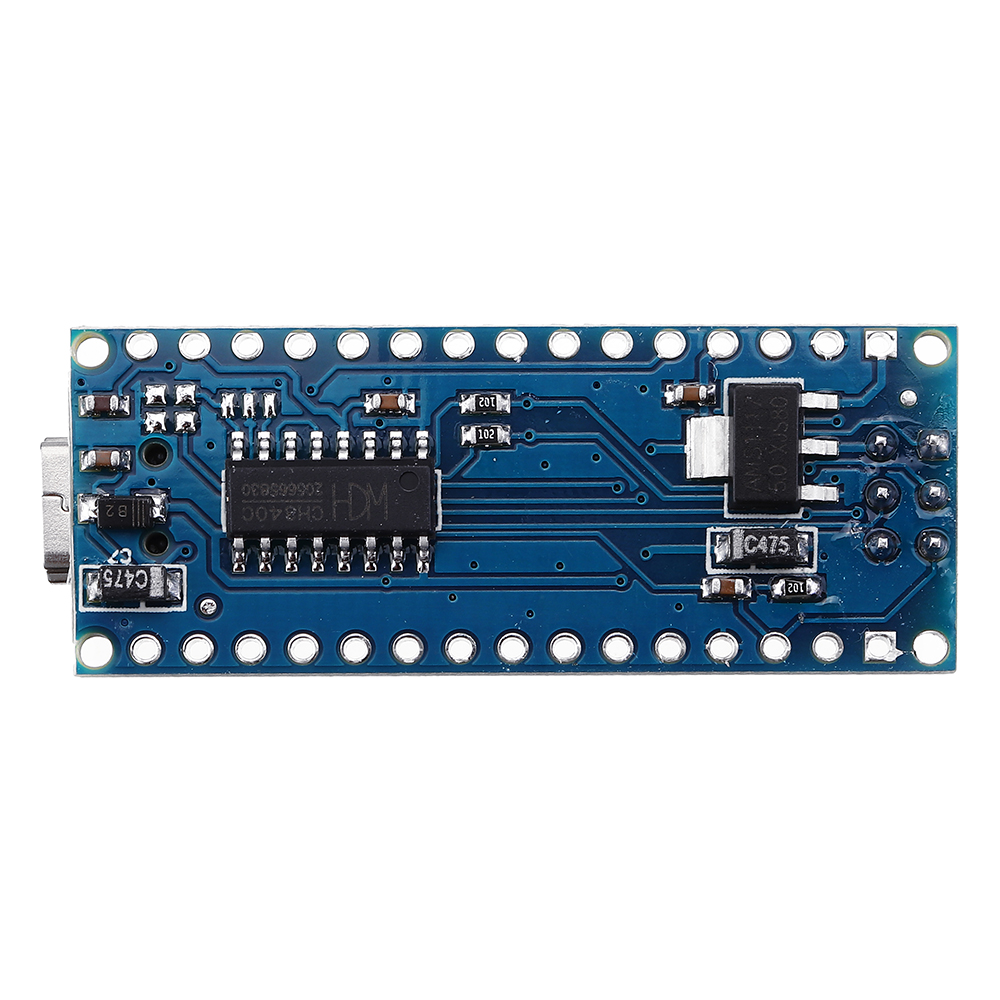

Chip: CH340G (CH340B is the update version of CH340G, CH340B comes with crystal, but CH340G doesn't, and we default sending CH340G version)
Note:
Improved USB chip for speed and stability using WIN7/WIN8.

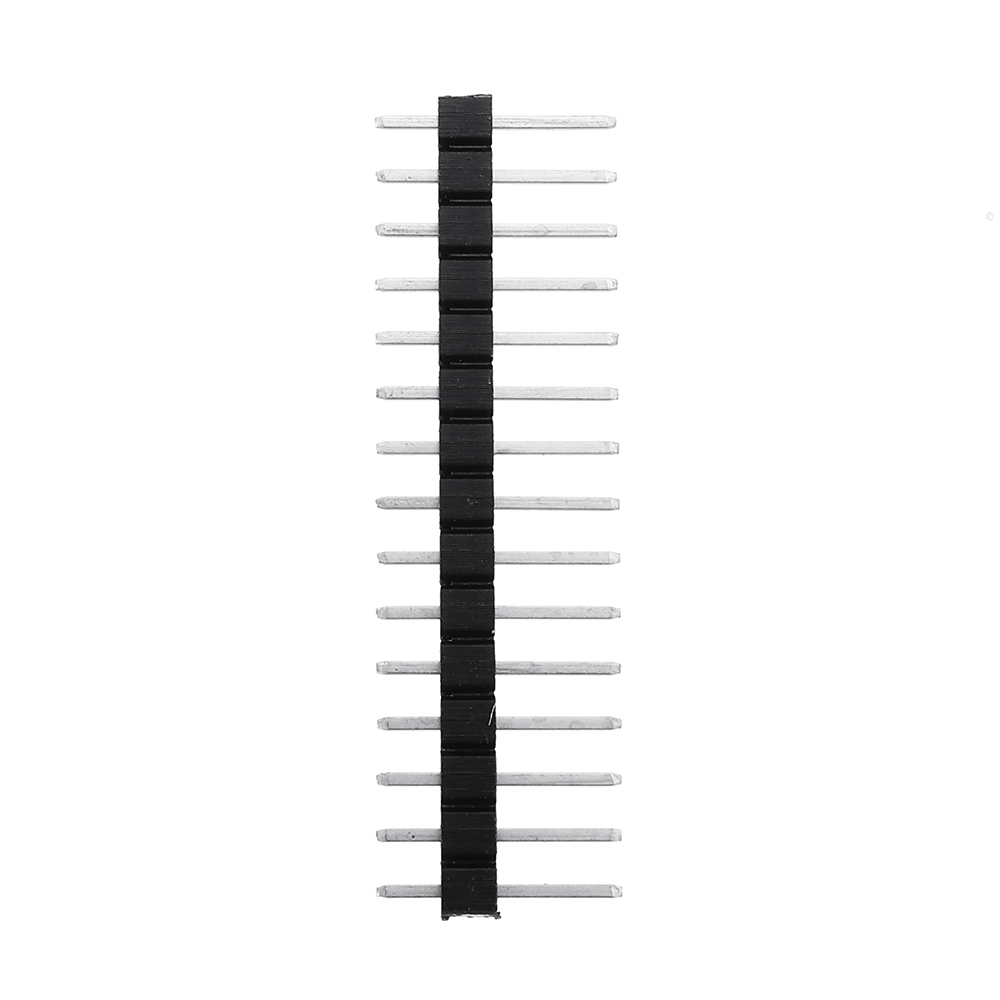

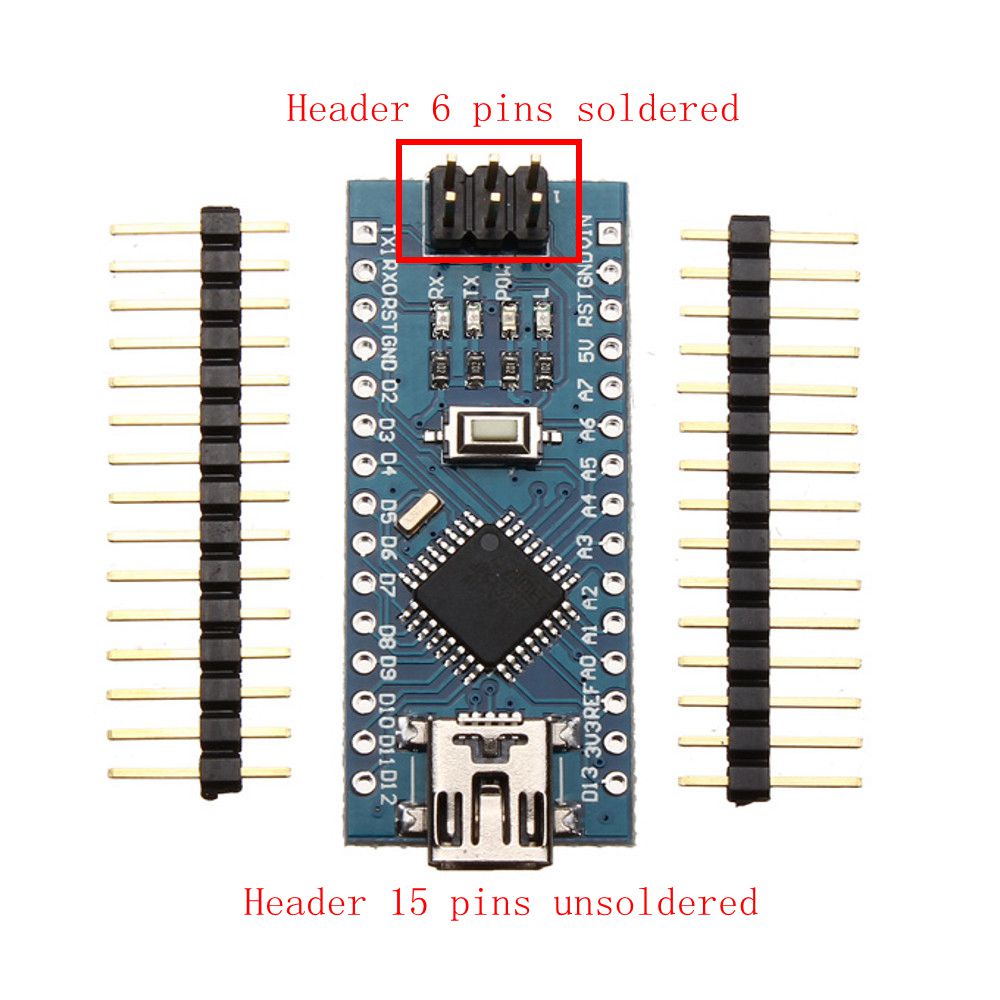

This version comes with 15 pin headers unsoldered, 6 pin headers soldered and not included the USB cable.
Package included:

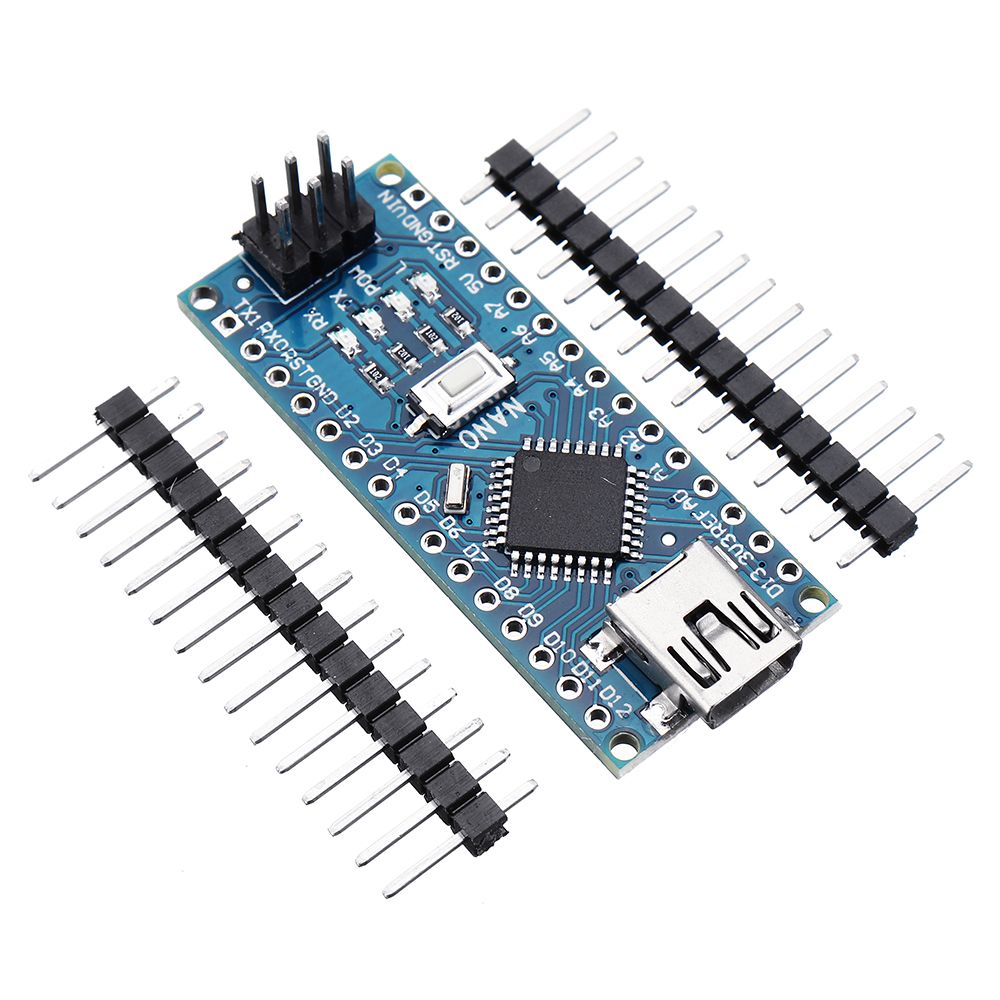

1/3/5 x Nano V3.0 Board with pins (optional)
Microcontroller ATmega328
Operating Voltage (logiclevel): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Chip: CH340G (CH340B is the update version of CH340G, CH340B comes with crystal, but CH340G doesn't, and we default sending CH340G version)
Note:
Improved USB chip for speed and stability using WIN7/WIN8.
This version comes with 15 pin headers unsoldered, 6 pin headers soldered and not included the USB cable.
Package included:
1/3/5 x Nano V3.0 Board with pins (optional)
