Air105 204Mhz 640kb RAM+4MB Falsh Development Board MCU USB 2.0 Full Speed with 30W Camera Compatible STM32 for Arduino

The Air105 chip is equipped with a high-performance M4 core with a maximum frequency of 204Mhz, built-in 640KB SRAM and 4MB flash. Using QFN88 package, the size is only 10mm×10mm, there are 56 programmable GPIO pins, the chip has built-in rich peripheral resources, not only provides UART/GPIO/12C/ADC/SPI, DAC/USB/DC MI/HSPI/LCDI /KCU and other advanced peripheral interfaces, built-in lithium battery charging function, supports 5V/3.3V power supply, and comes with a 5v to 3.3V LDO, which greatly simplifies the peripheral circuit.

- Up to 204Mhz maximum frequency

- 640KB RAM + 4MB Flash

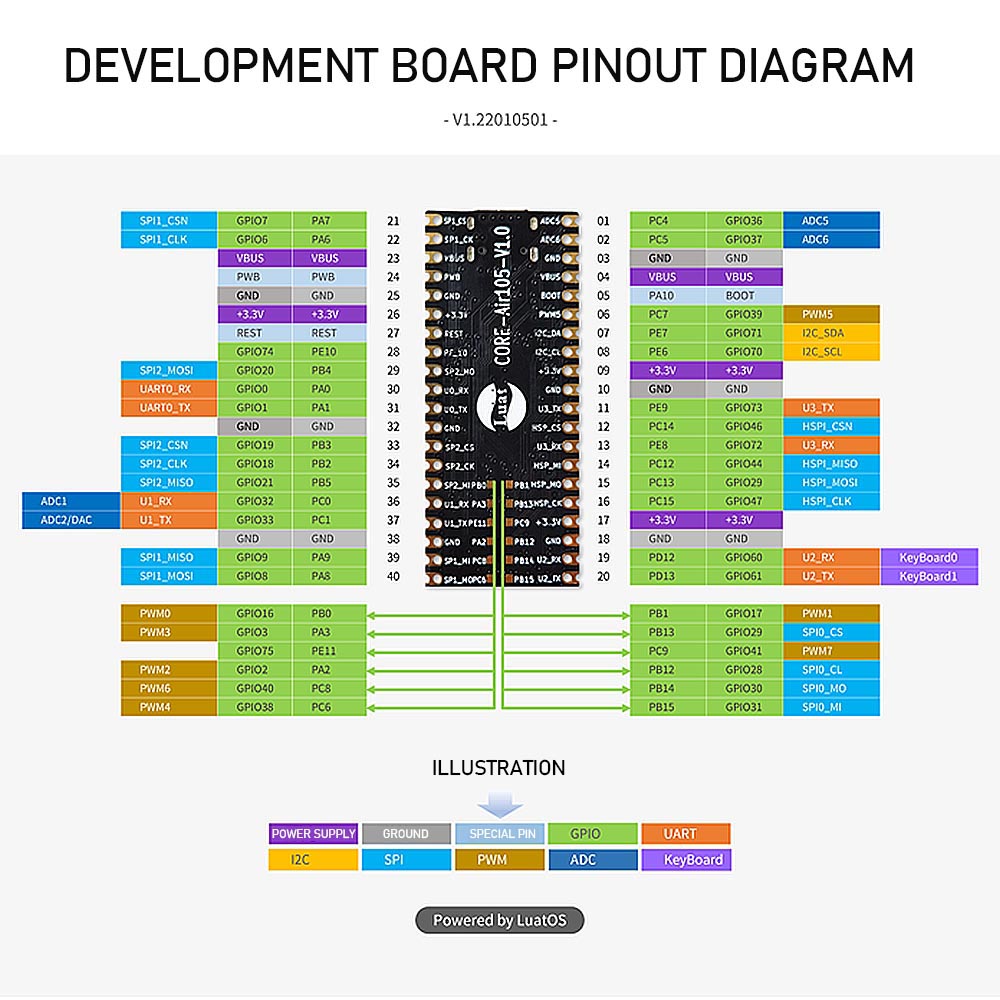

- QFN88 package, 56 sets of GPIO available

- Full speed USB2.0, 30W camera

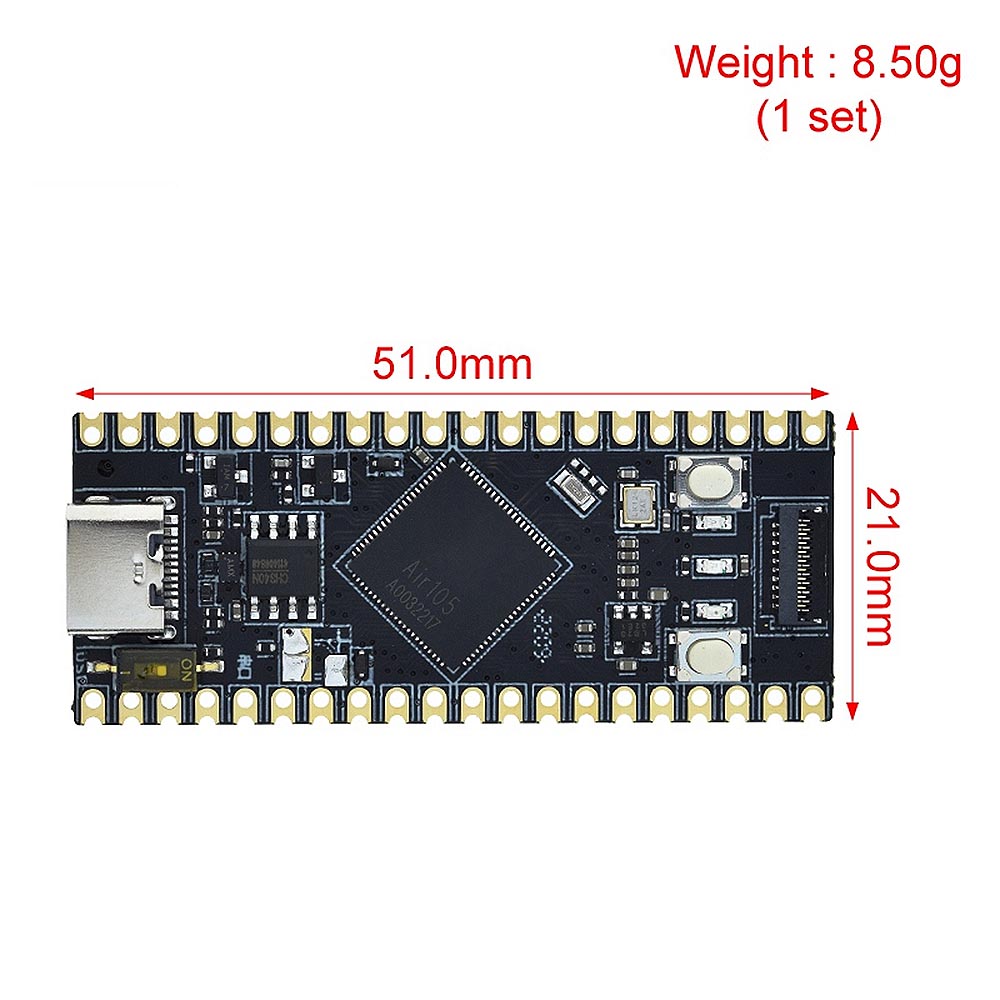

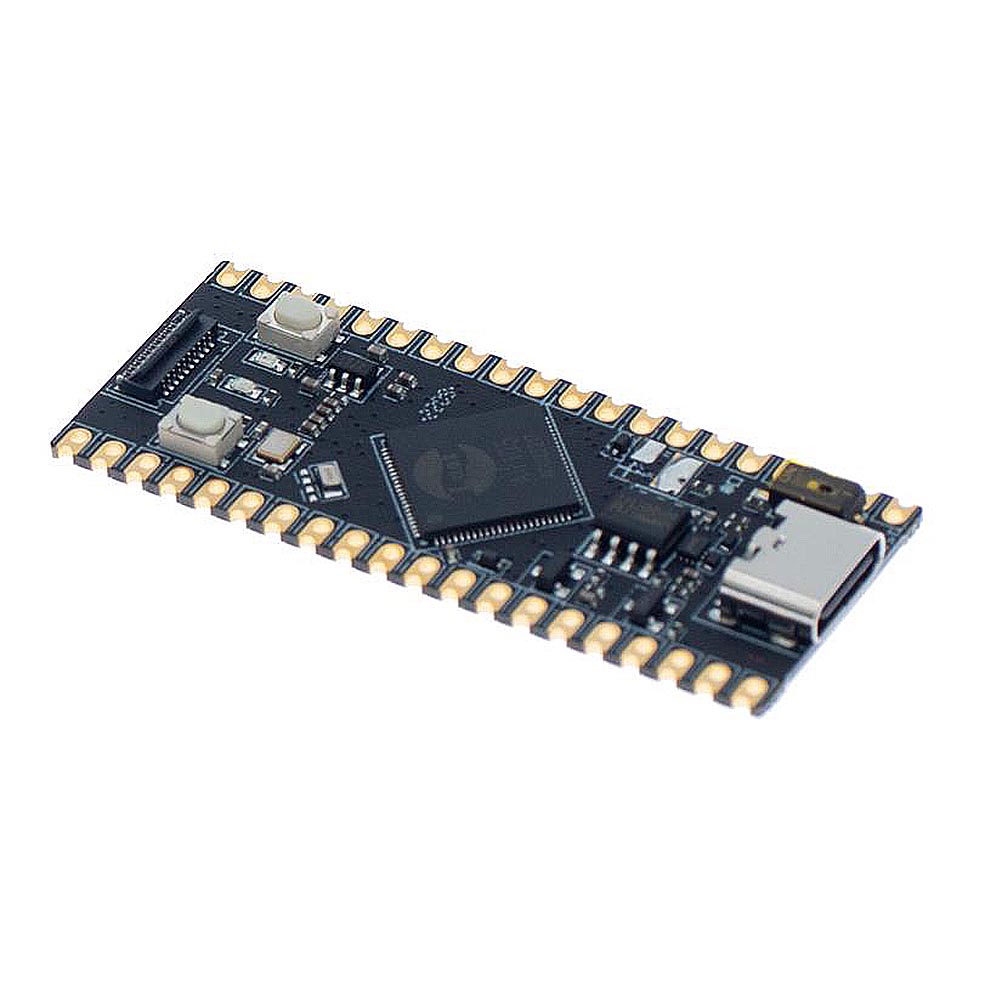

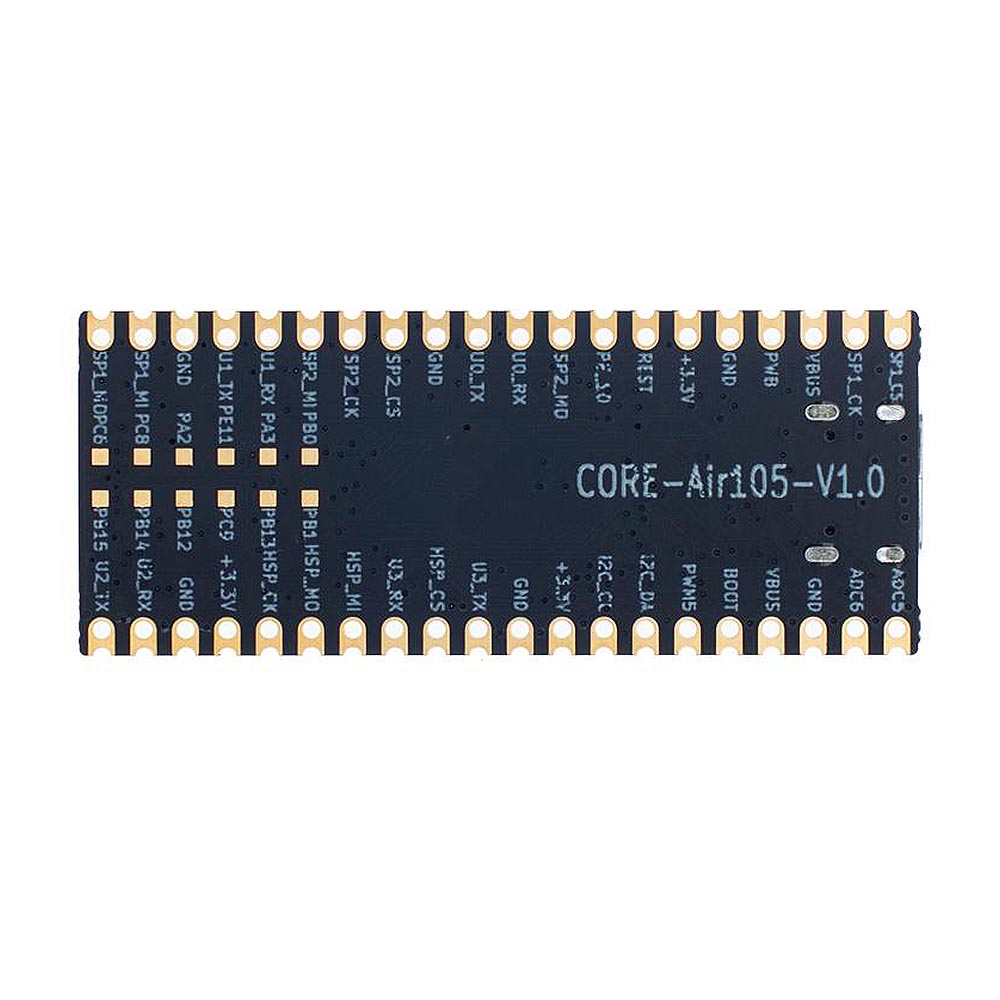

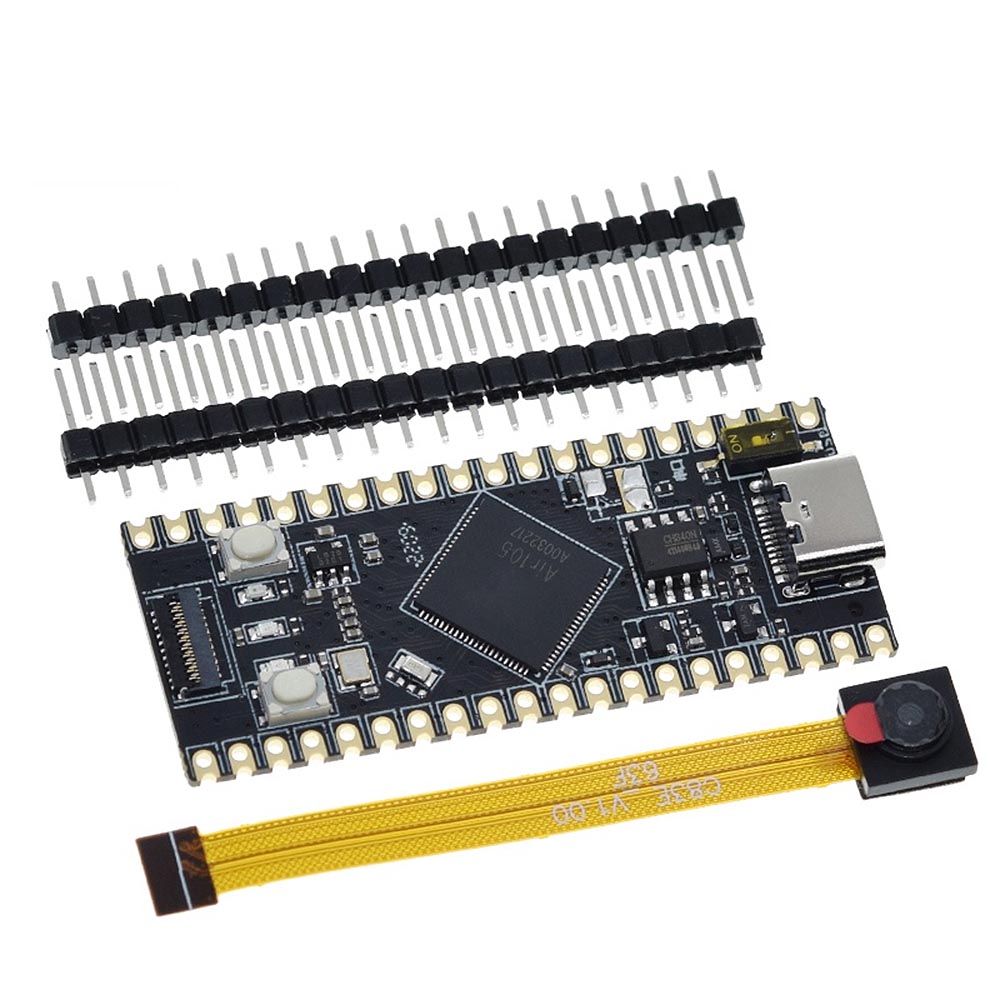

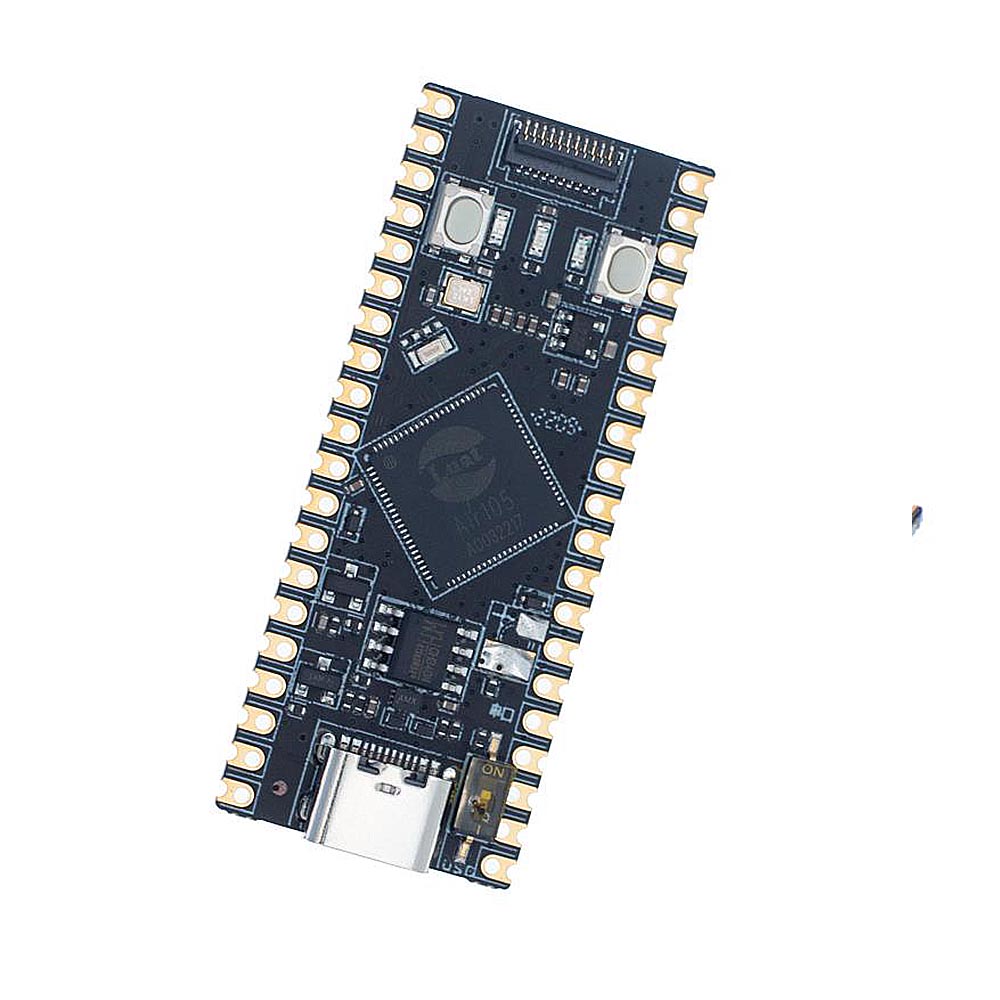

1×Air105 Development board

2×Pin Set

1×30W Camera
