Alpha A85 Indoor 2 Inch 4S FPV Racing Drone w/Turtle 800TVL Camera SucceX-D 20A F4 Whoop AIO
- Stock: In Stock
- Model: ST22001106
- SKU: ST22001106
$207.89
Ex Tax: $207.89
PRODUCT DESCRIPTION
Let's welcome the iFlight Alpha series, a new way to fly FPV. Ever wanted to have a Turtle 800TVL Camera on the smallest possible whoop size quad? We sticked the Turtle 800TVL Camera to one of our new 2inch whoop frames, did some tuning and tried to find the optimal ratio between weight and power. This is what we came up with to combine flight time efficiency with sufficient power.
FEATURES:

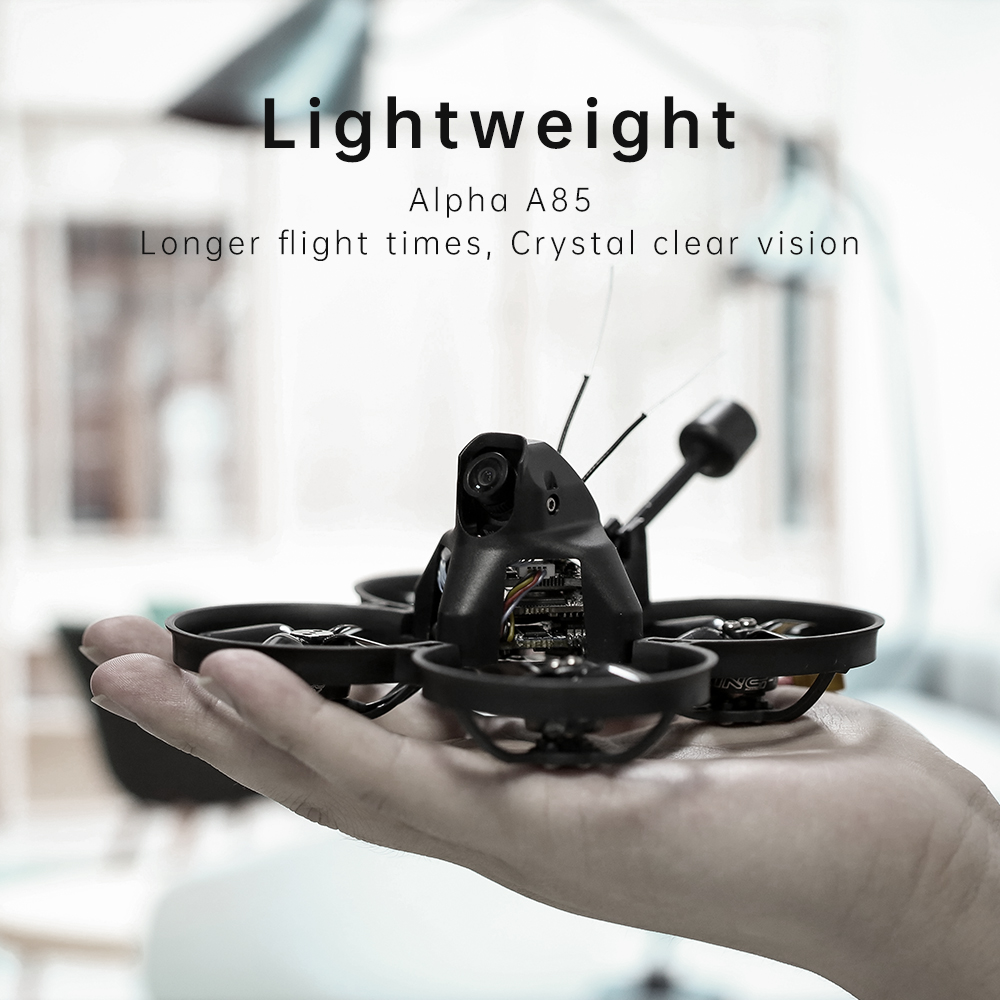

76 grams (without battery)

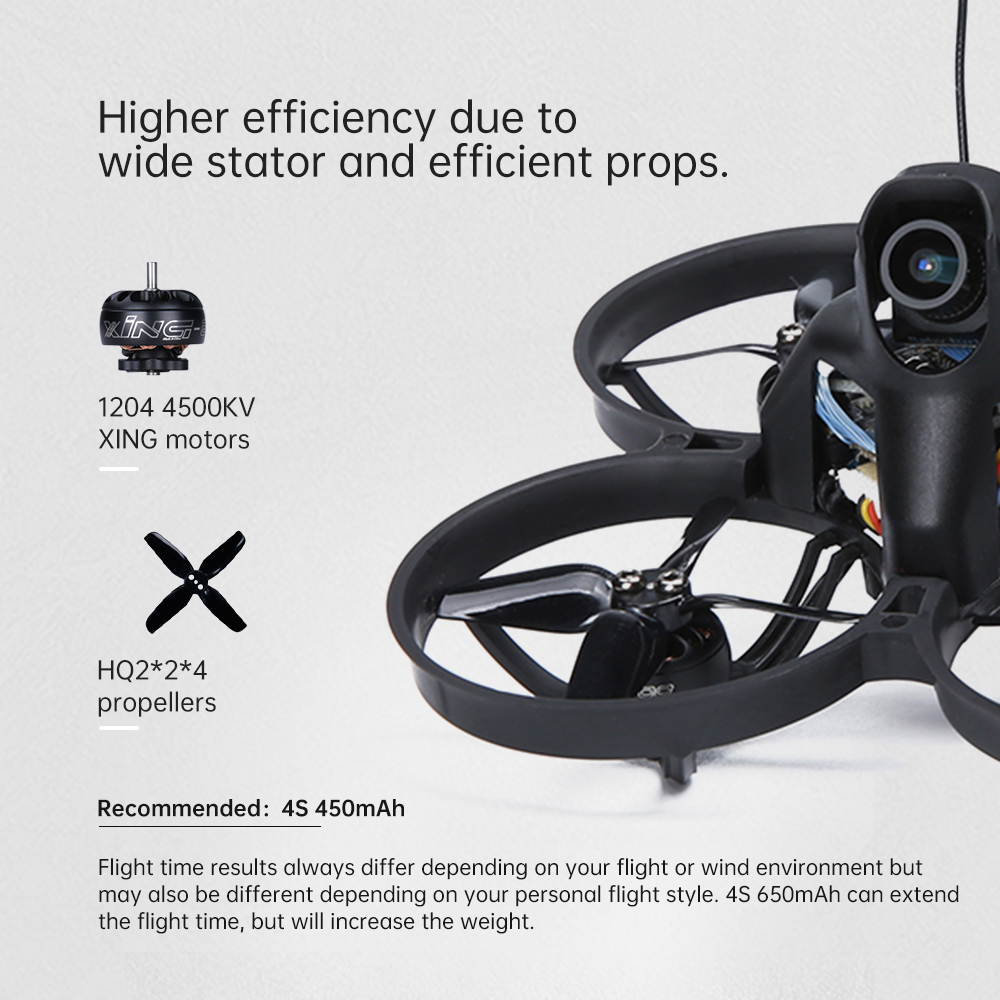

Butter smooth XING-E 1204 (more torque and efficiency with longer flight times compared to 1105 motors)

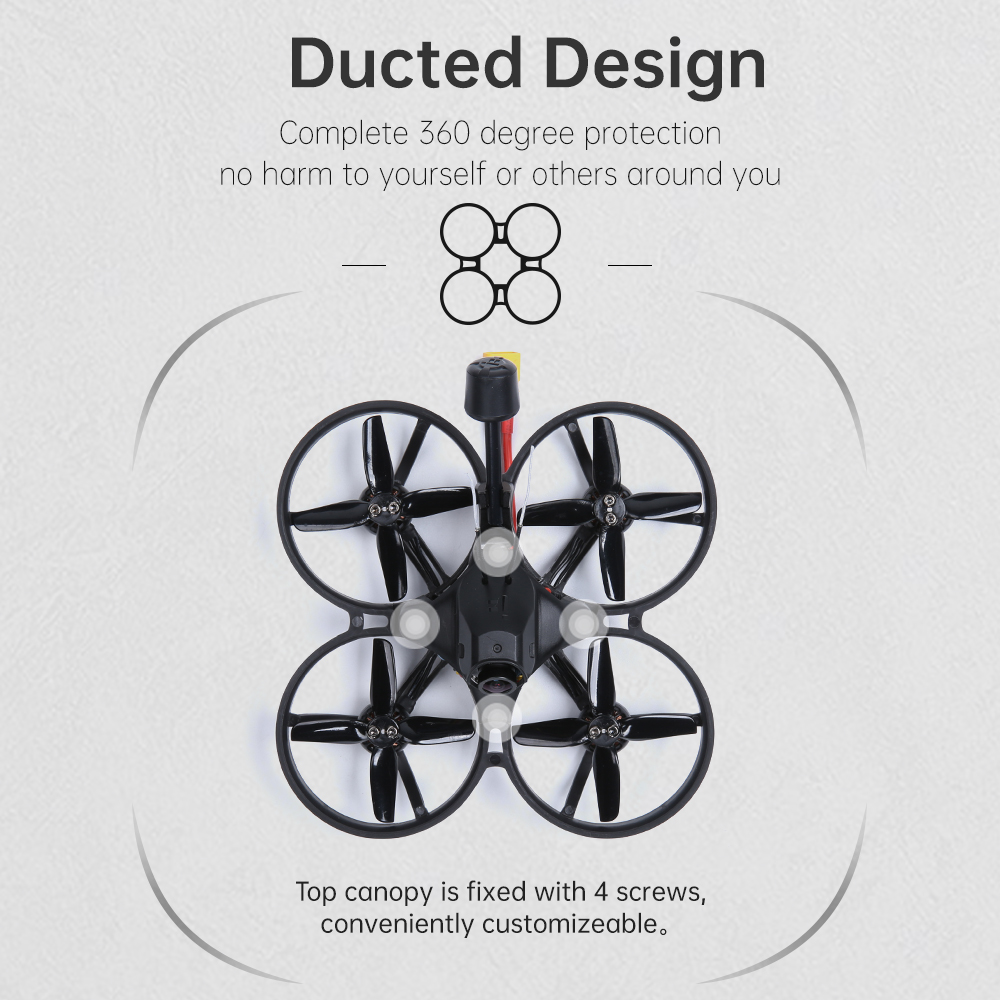

Ducts to protect the sensitive environment or yourself
Pre-tuned with smooth cinematic settings
iFlight Albatross 5.8G RHCP light antenna upgrade (included)
iFlight Albatross 900mhz light micro antenna upgrade (included with every Crossfire Nano RX)
Alpha A85 w/Turtle 800TVL Camera BNF Specs:
SucceX-D 20A Whoop F4 AIO Board
XING-E 1204 FPV Micro Motor
Wheelbase: 85mm
Body size: 125*125mm
Ducted propeller size: 2 inch
FC pattern: 25.5*25.5mm
FPV cam spacing: 14mm
Weight: 76.4g (without battery) 128.2g（with fullsend 4s 450mAh battery）
Flight time: 5-7 min cruising (4S 450mAh)
FACTORY SETUP and WIRING DIAGRAM:
This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some Betaflight tweaks to enhance the flight experience.
Reflashed your drone but didn't backup the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK
Alpha A85 w/Turtle 800TVL Camera Quad BNF Included Components and Parts
Prebuilt and tested Quadcopter
1x Alpha 85mm Frame
1x Turtle 800TVL Camera
1x 5.8G SucceX Micro Force VTX 300mW
1x iFlight Albatross RHCP 5.8g light antenna
2sets HQ 2 inch 4-blades (Set of 4 - Color May Vary)
1x iFlight Lipo Strap

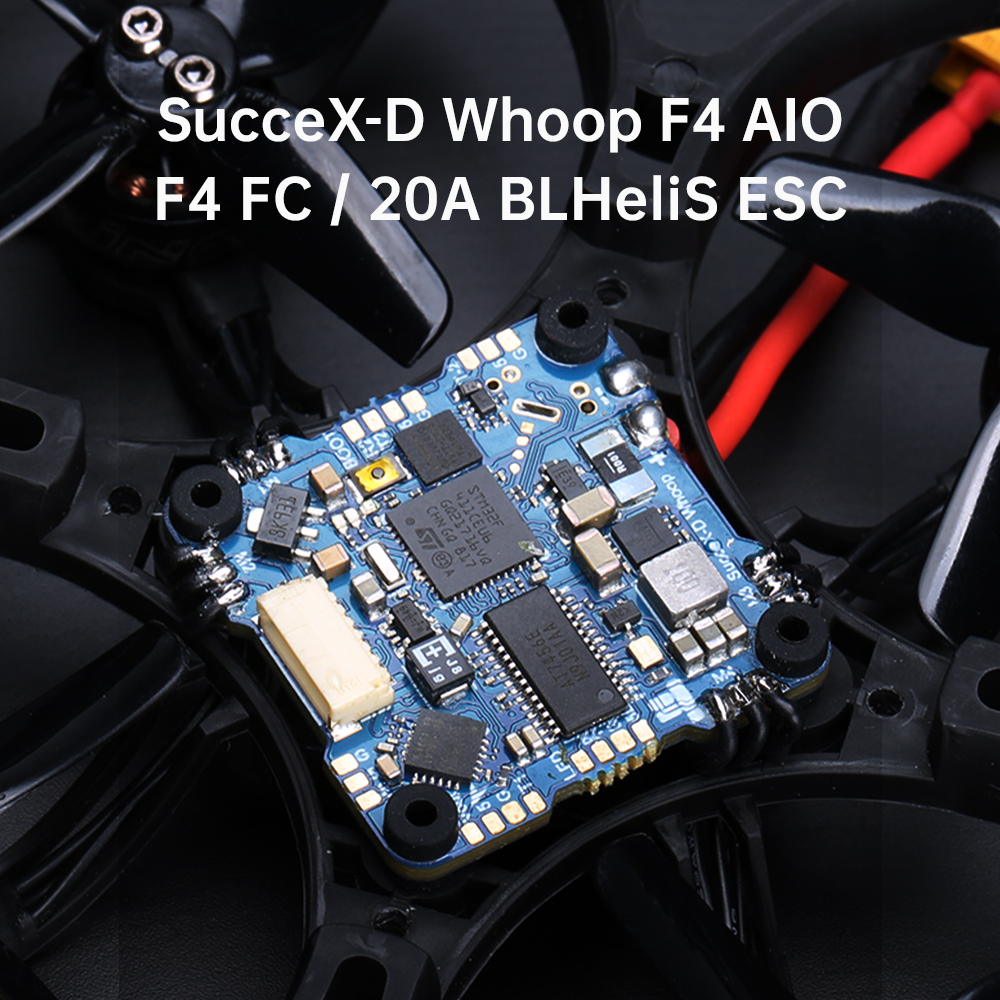

FC // SucceX-D 20A F4 Whoop AIO
*Size：30.5*30.5mm
*Mounting pattern：25.5*25.5mm/φ3mm
*Connector：Micro-USB
*MCU：STM32F411
*Gyro：MPU6000
*Blackbox：8MB
*BEC output：5V 2A/10V 2A
*INA pad：UART2 (nR2)
*Barometer：no
*Constant current：20A，25A（Burst）
*Input：2-5S
*Current sensor：yes
*BLHeli：BLHeli-S
*ESC Telemetry：no
*Target：IFLIGHT_F411_PRO
*ESC Firmware：G-H-30 BLS
