Auto RF Modulator Compact RF Modulator Audio Video TV Converter RHF UHF Signal Amplifier AC230V
- Stock: In Stock
- Model: ST22011213
- SKU: ST22011213
$35.99
Ex Tax: $35.99
Features:
Humanized design, easy to install and operate.
High performance circuit design provides accurate picture reproduction.
Can convert audio and video to RF via channel.
VHF / UHF operating frequency from 47 to 868 MHz.
With selectable output level of audio and video.
Compatible with all local CATV system.
Specification:
Plug Type: US / EU / AU(Optional)

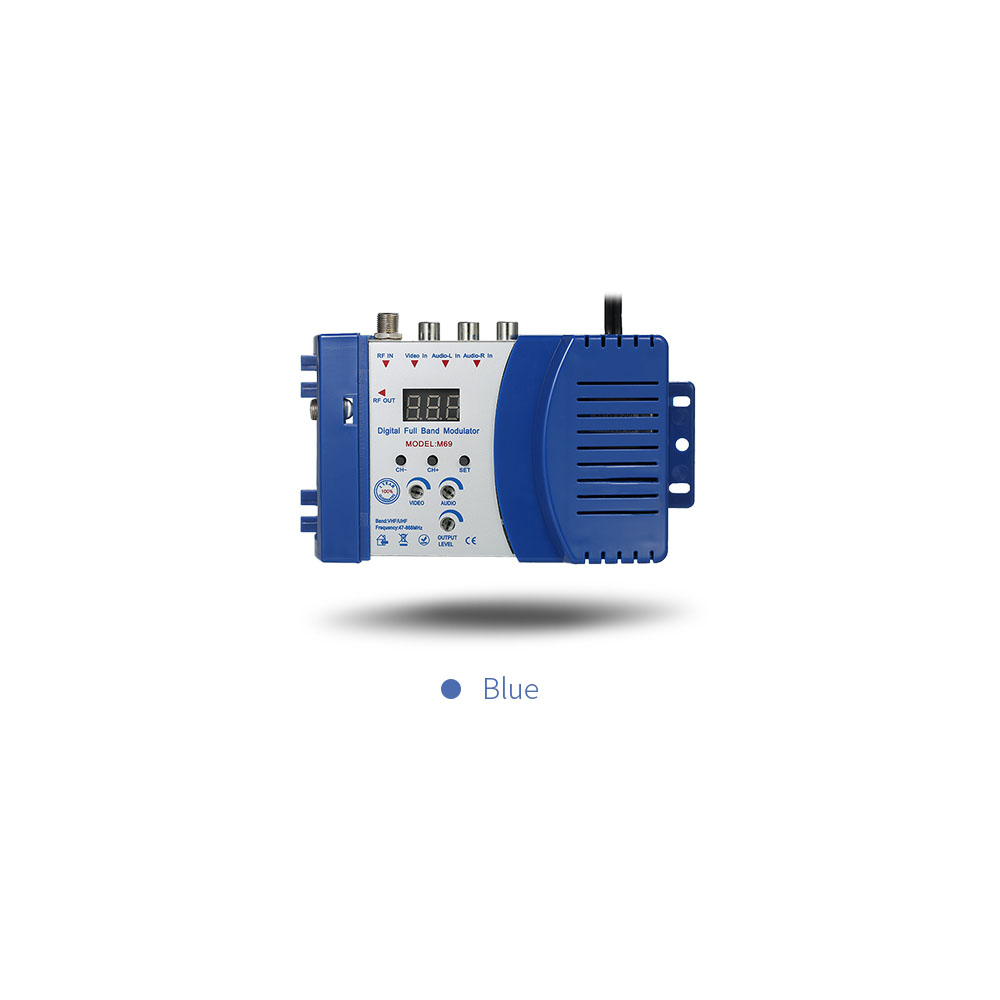

Color: Blue
Material: ABS
Input: AC230V/110V, 50Hz
Max. Power: 3W
Frequency Range: 47-868MHz
Output Impedance: 750Hm
Output Level: 80-95dBuV
Input Level: 0.77Vp-p for 80%+/-10% modulation
Sound System: M=4.5MHz, , ,

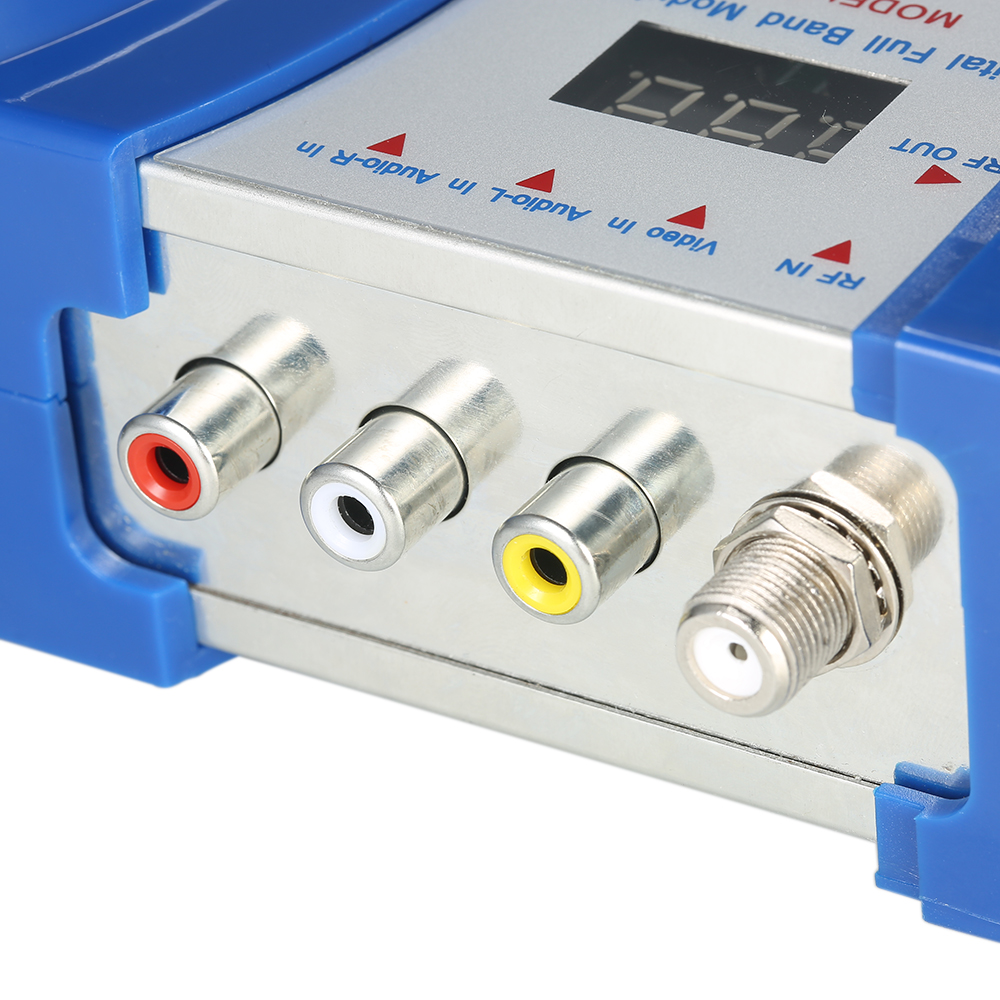

A/V connector: RCA Female
RF Input: F Female
RF Output: F Female
Operating Temperature: -10℃ ~+60℃ / 14℉~140℉

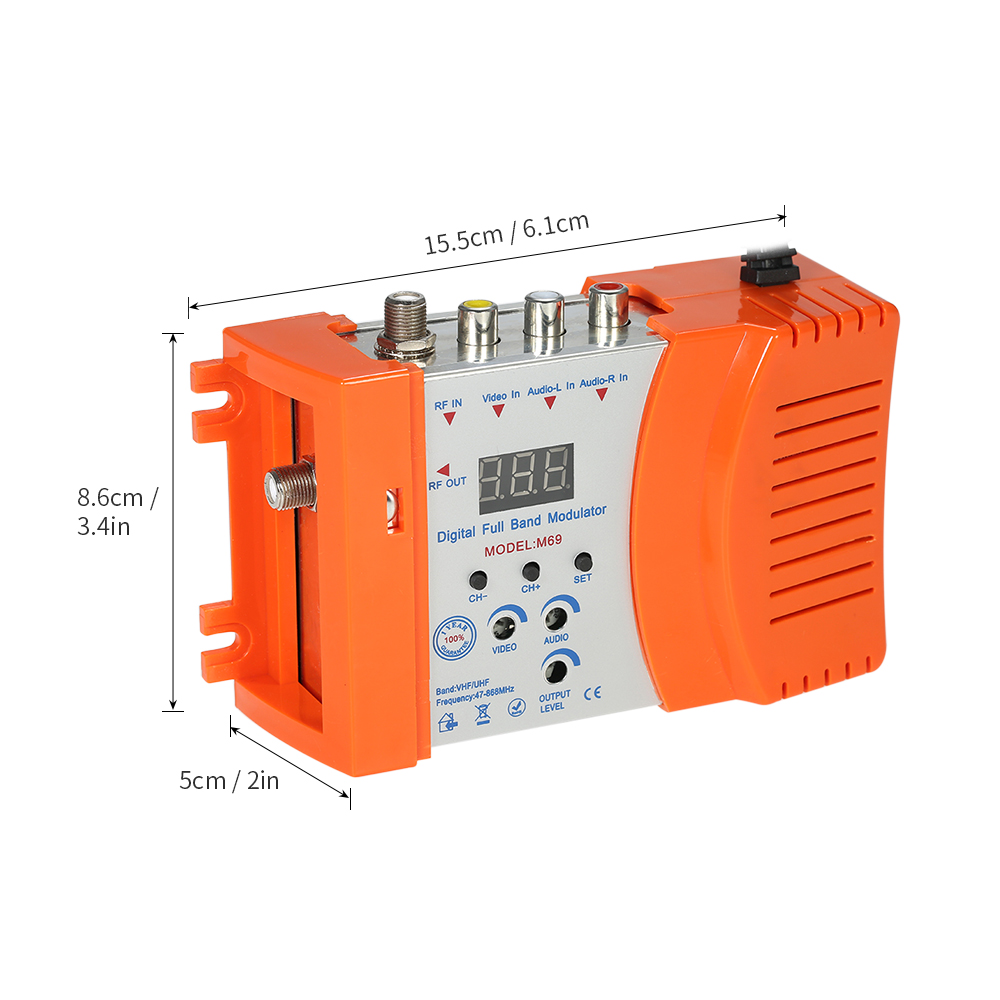

Item Size: Approx. 15.5 * 8.6 * 5cm / 6.1 * 3.4 * 2in
Item Weight: Approx. 356g / 12.6oz
Package Size: Approx. 16.5 * 10.8 * 5.5cm / 6.5 * 4.3 * 2.2in
Package Weight: Approx. 415g / 14.6oz
Package Included:
1 x Modulator
1 x Modulator
1 x User Manual(English)

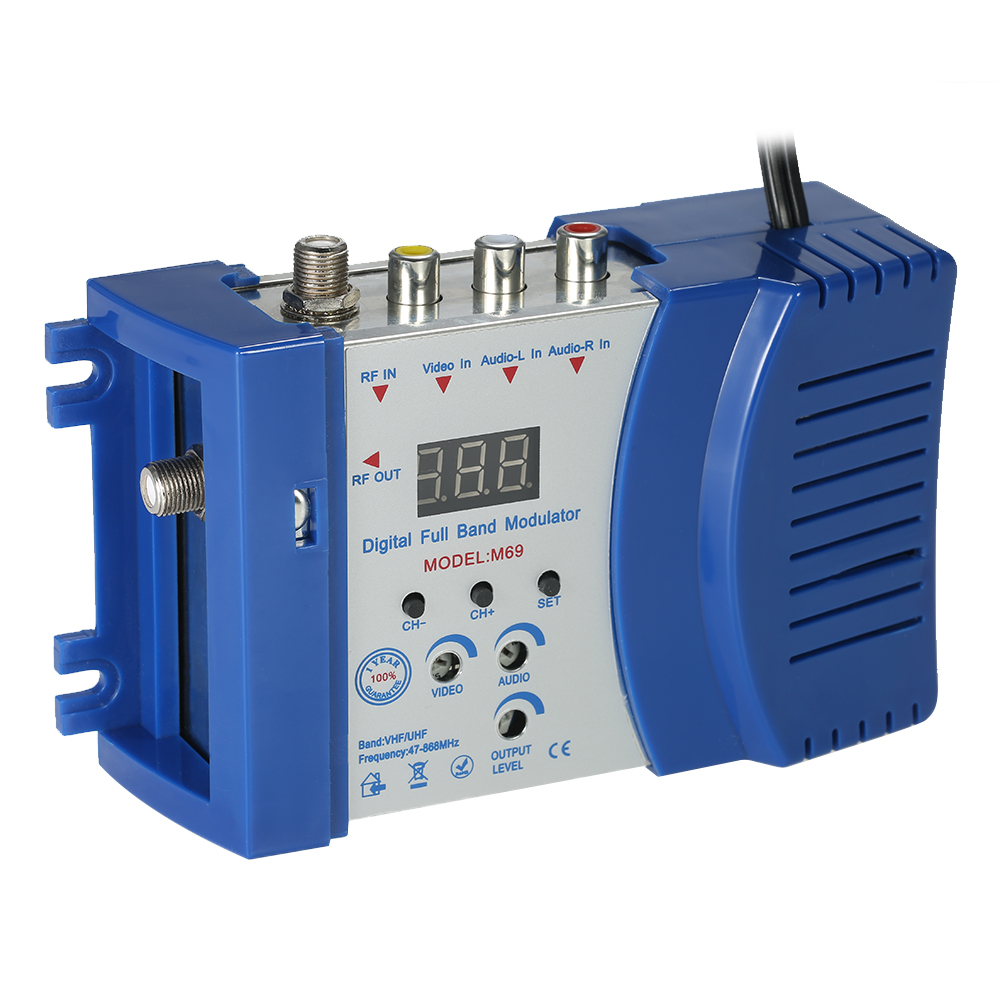

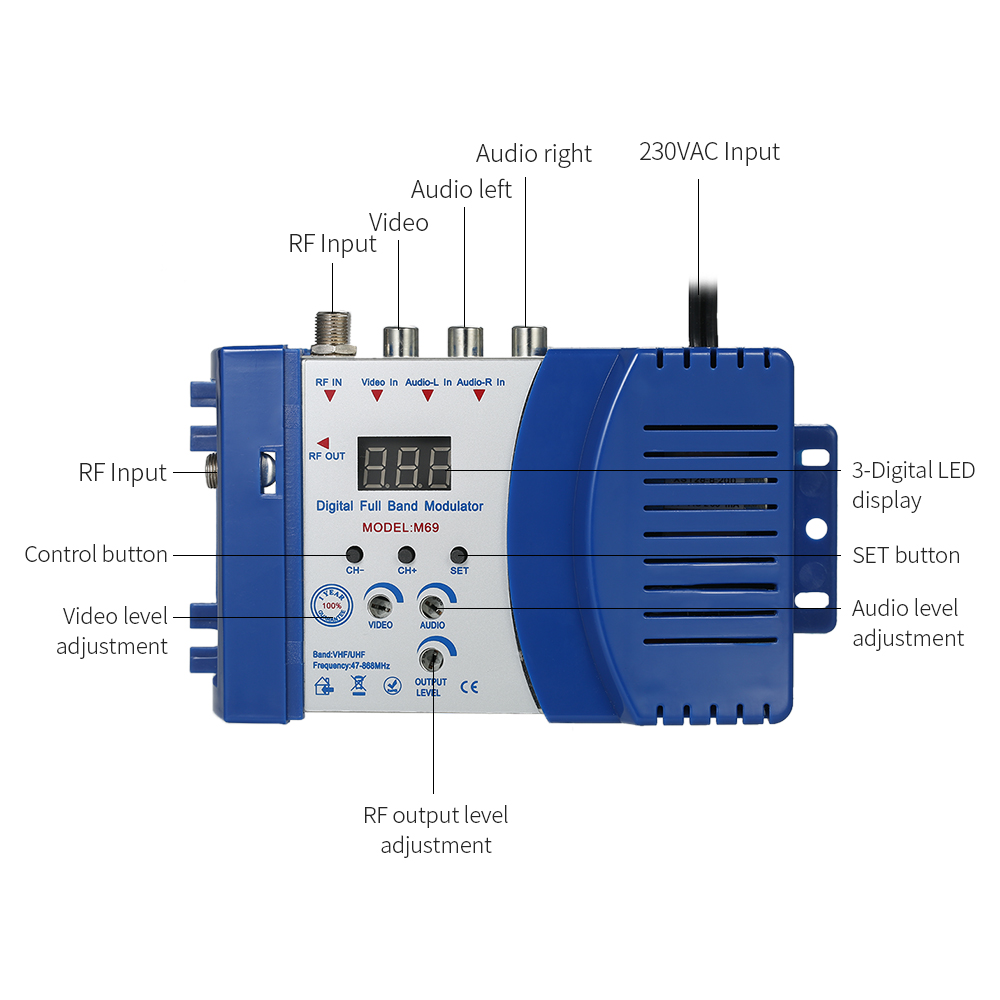

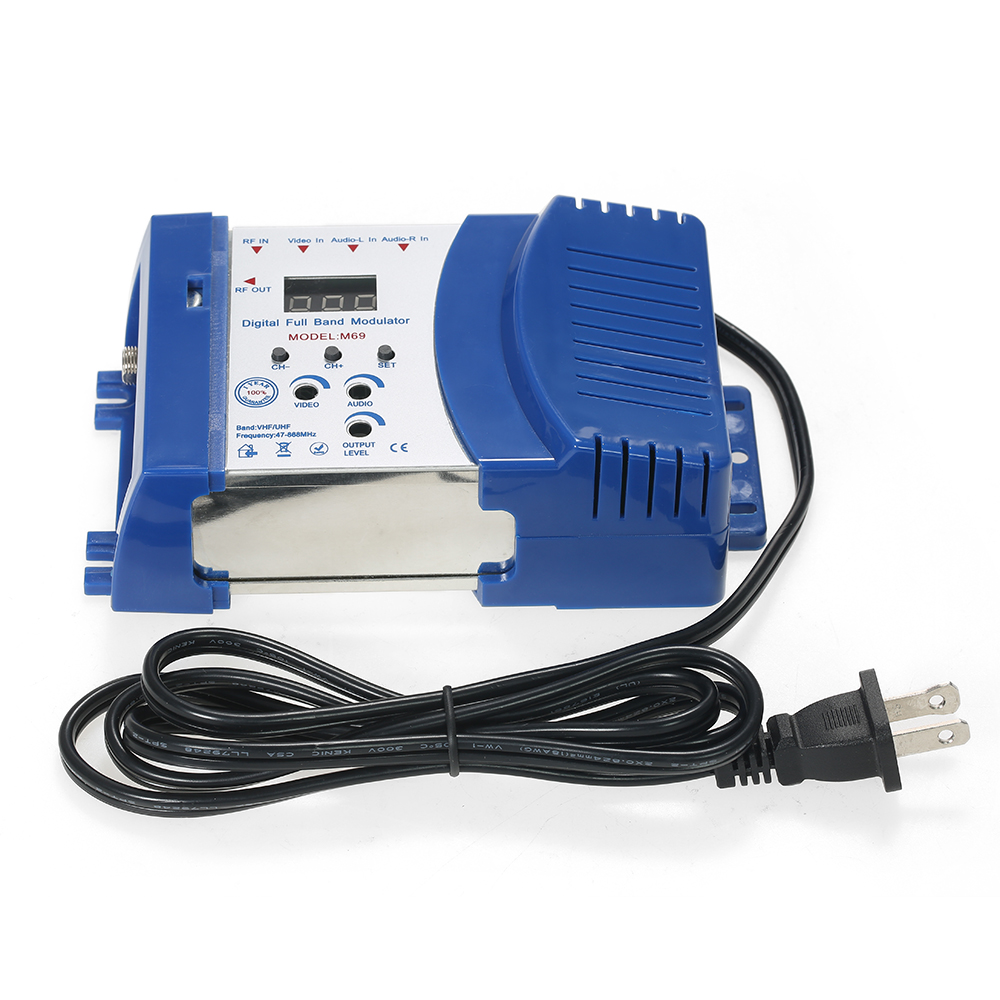

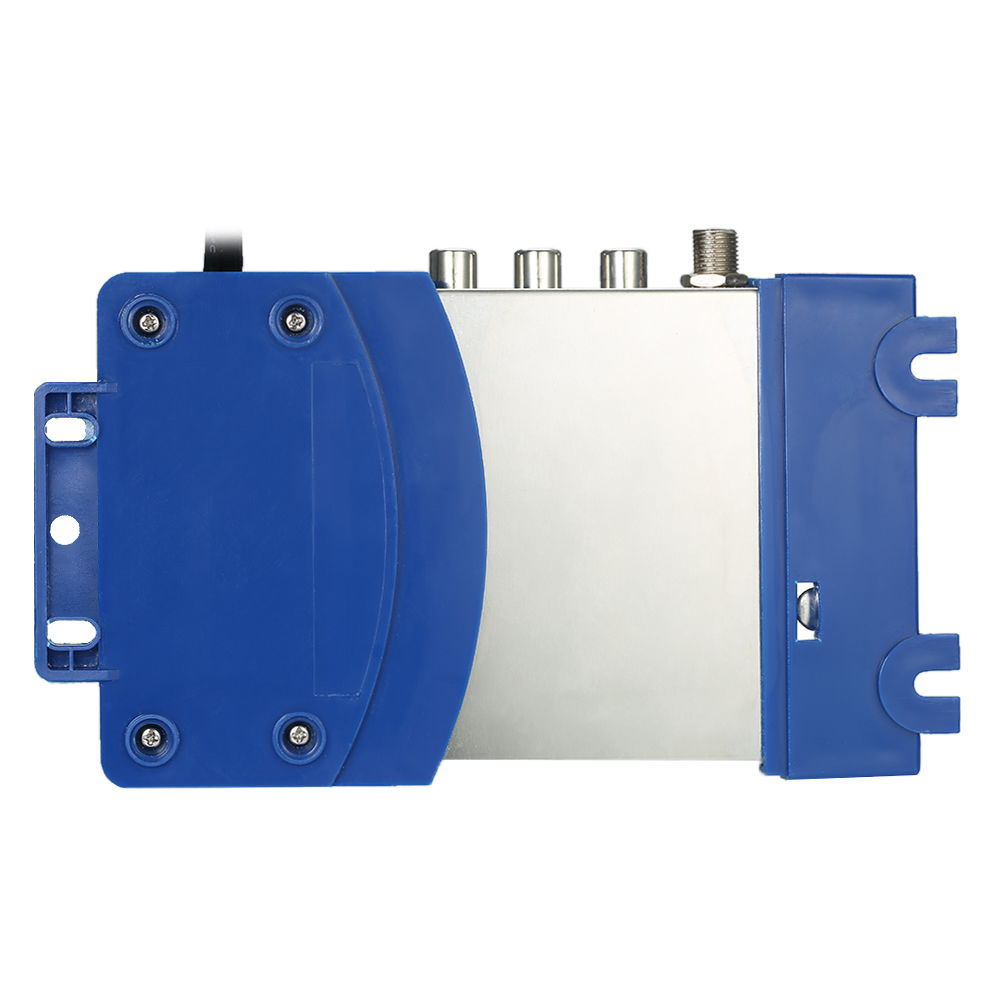

Details Pictures:
