Introduction:
Following the latest advancements in FPV technology, the engineering team at EMAX were required to design a new drone from the ground up to meet the required aerodynamic properties and performance for a sub 250 gram aircraft. The result was the Babyhawk II, an all-new class of FPV drone.
With over 2 1/2 years of development and simulation testing, the most optimal power to weight ratio of performance and efficiency was achieved without any compromises. Powering the system is the ECO 1404, 3700kv, a lightweight but high performance brushless motor capable of flight characteristics of larger aircraft, with the capability to carry additional payloads such as an action cam.
Paired with the motor is the AVAN Scimitar 3.5" propeller offering linear throttle response in an efficient package focused on flight time and control. The 3.5" blade length offers the most efficient performance for a small payload in the smallest possible wheelbase, creating a new class of FPV drones.
The TBS Unify Pro32 video transmitter paired together with the RunCam Racer 5 camera offers a premium and reliable analog video system. With video clarity and transmission strength known for traveling long distances with maximum penetration, pilots can feel safe knowing a powerful connection and image will be available for any flight situation.
The Babyhawk II offers superior performance for a sub 250 gram class of aircraft, re-inventing FPV for a new live.
Specification:
Model: Babyhawk II HD
Item Name: 155mm F4 4S FPV Racing Drone
Version: PNP
Optional Receiver : Frsky D8 Receiver / TBS Crosfire Nano Receiver / PNP (without Receiver)
Drone Wheelbase: 155mm
Weight: 117±2g ( without Battery)
Product size: 155x210mm
Flight Controller: F4 Flight Controller AIO 25A ESC Board ( STM32F411 Firmware)
Onboard ESC: 25A BLHeli_S 4in1 ESC
Brushless Motor: Emax ECO 1404 3700KV Motor
Propeller: Emax Avan 3.5 Inch Propeller
Camera & VTX: TBS UNIFYPRO32 NANO 5G8 VTX+RUNCAM Racer5
Features:
- Under 250g FPV Racing Drone with Analog Digital System
- Equiped with AVAN 3.5 Inch Prop & ECO 1404 3700KV Motor
- Support 4S, Powerfule and Lightweight
Recommend Lipo Battery ( Not Included):
Tattu 4S 14.8V 850mAh 45C XT30 Lipo Battery ( Contact Us)
Contact Us buy Digital HD Version.
Contact Us buy Parts together.
Pacakge Included:

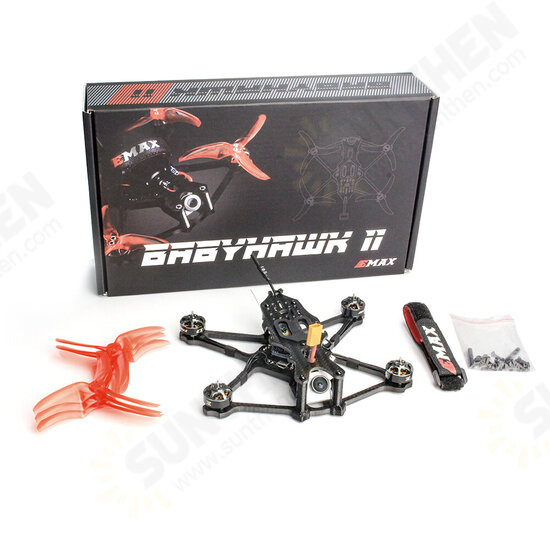

1x Emax Babyhawk II Analog FPV Drone
1x Instruction Card
1x Extra Propeller CW
1x Extra Propeller CCW
1x bag of Screws
