Battery Capacity Tester with LCD Indicator for 12V 24V 30V Lead acid Lithium LiPo
- Stock: In Stock
- Model: ST220015467
- SKU: ST220015467
$11.99
Ex Tax: $11.99
Description:
Battery Capacity Tester with LCD Indicator for 12V 24V 30V Lead acid Lithium LiPo
Specification:
Input voltage:8-30V
Package:
1x Battery Capacity Indicator
Battery Capacity Tester with LCD Indicator for 12V 24V 30V Lead acid Lithium LiPo
Specification:
Input voltage:8-30V
Input current:5-12mA
Fit for Battery Type: lead-acid/Pb-Acid battery and Lithium battery
LI 1S/2S /3S / 4S /5S /6S /7S Lead-acid 12V/24V
Dimension: please refer to the picture
Using Instruction:
(1) Key operation:

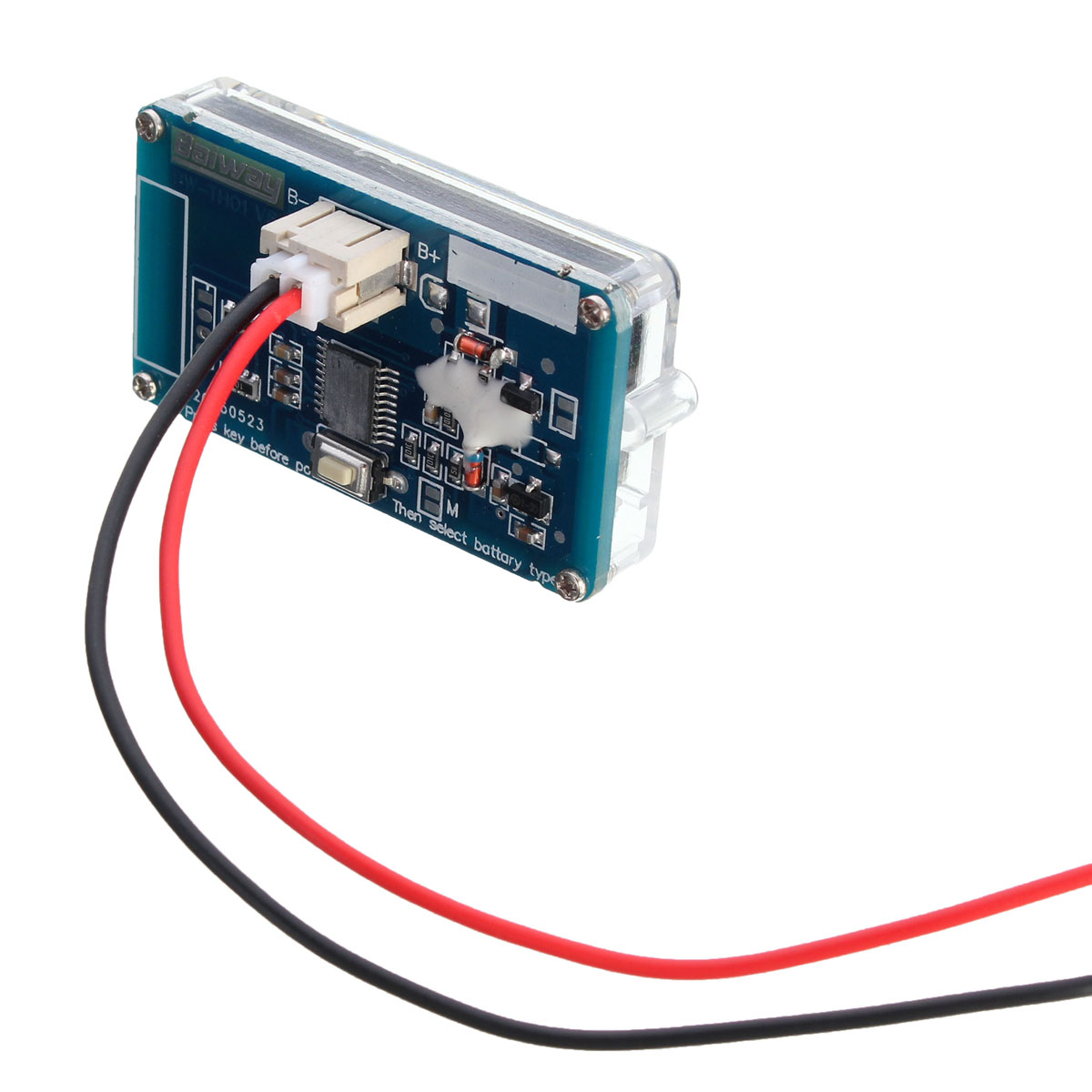

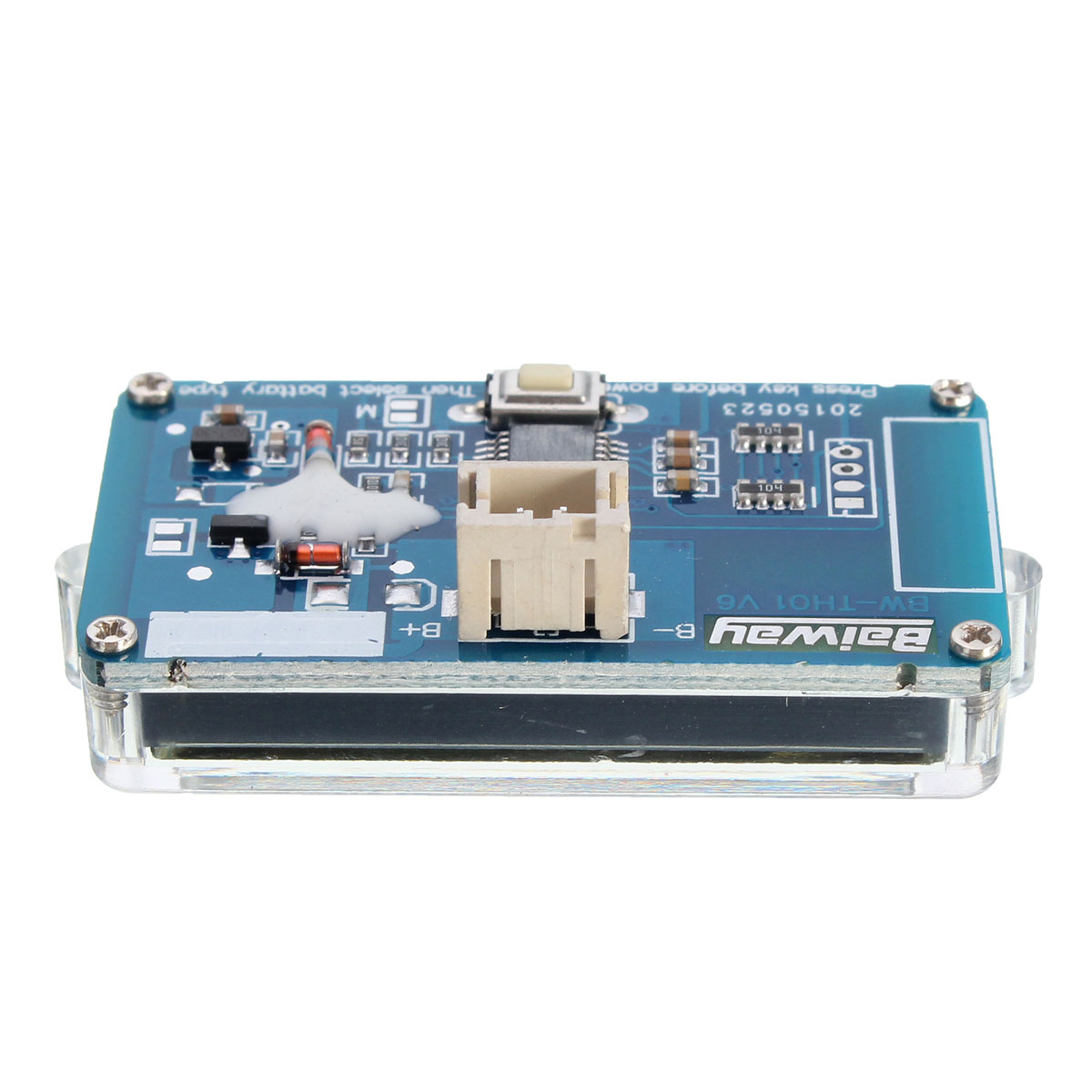

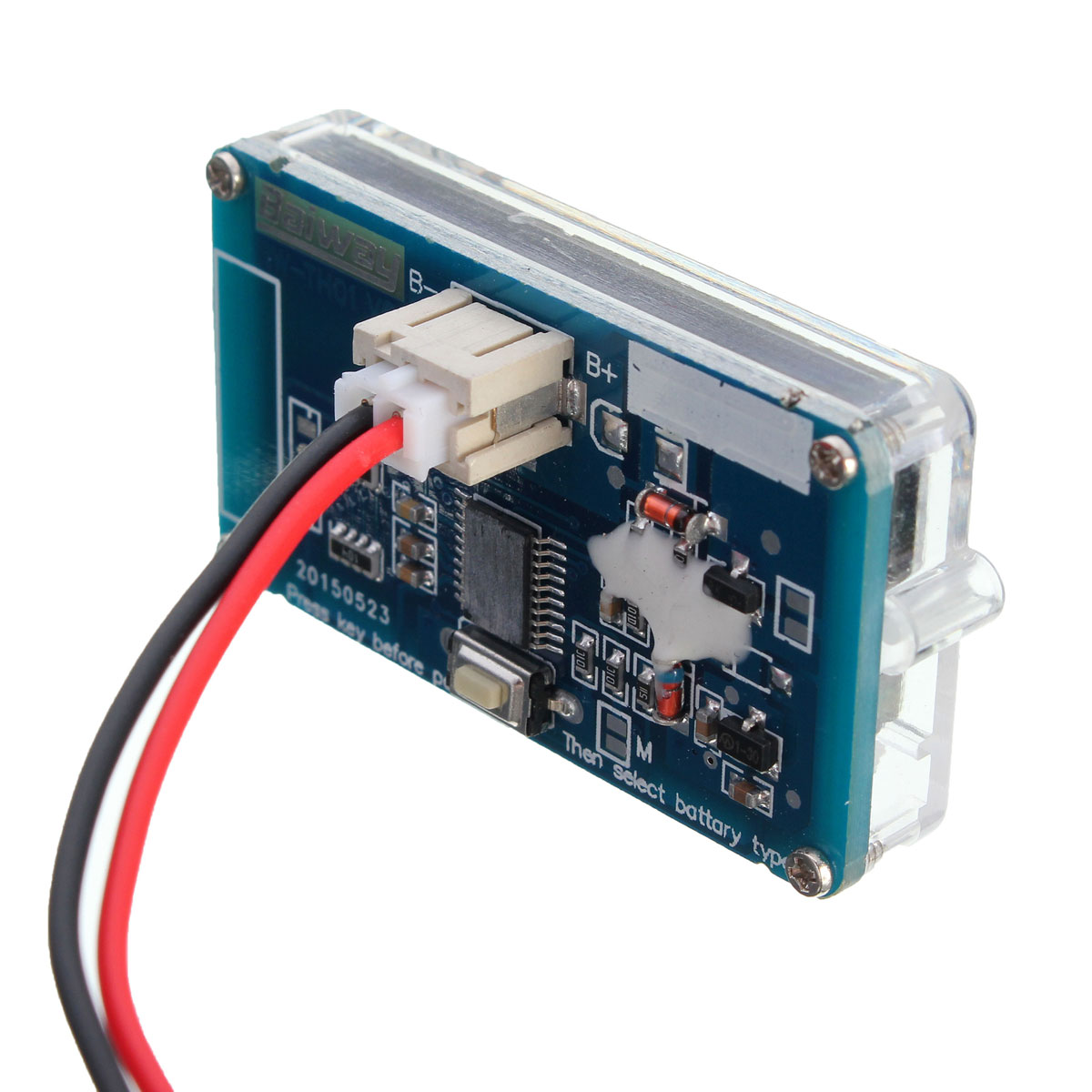

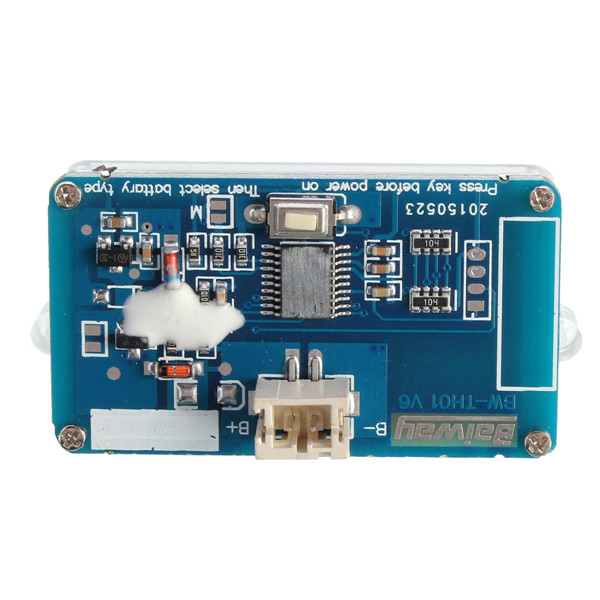

The one white buttons on the back of the indicator are used to select parameters.
(2) Batteries model selection:
(2) Batteries model selection:
1.Power off the indicator
2.Hold key
3.Power the indicator on
3.Power the indicator on
4.Release button,then the screen will display for symbols in English: "XP"
or "XC" ,x is the number of cells, then users can select batteries model by keys in the following order:
P1: Pb12V lead-acid battery
P2: Pb24V lead-acid battery
P3: not work
P4: not work
C2: 2 pcs lithium batteries
C3: 3 pcs lithium batteries
C4: 4 pcs lithium batteries
C5: 5 pcs lithium batteries
C6: 6 pcs lithium batteries
C7: 7 pcs lithium batteries
C8: not work
C15: not work.

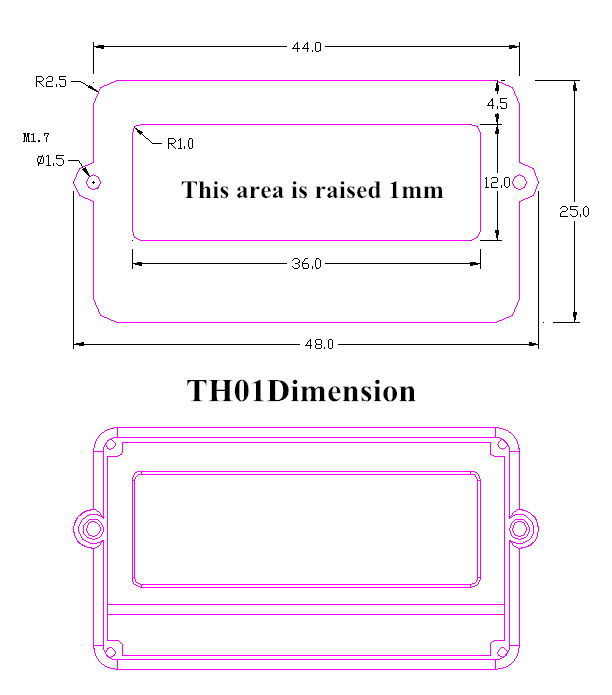

Drawing:
Drawing:
Hole size: 36 * 12mm,
Screw holes are 2.0mm.
Fixing screws spacing :44mm,
Screw holes are 2.0mm.
Fixing screws spacing :44mm,
Note mounting installation inside the grounds.
Package:
1x Battery Capacity Indicator
