- Stock: In Stock
- Model: ST22001116
- SKU: ST22001116
Beta85X comes back now with the light F4 AIO 12A FC V2, clear C01 camera, and tough micro canopy! Fast and powerful with the 1105 5000KV motors. Updated F4 AIO 12A FC, which has an 8M Flash chip for Betaflight Black Box and 3 full UARTs (UART1, UART2, and UART6), will definitely give you much more power, enable you to fly on 450mAh 4S battery safely. Perfectly suitable for racing. Fully enjoy the powerful explosive force and an awesome flight experience that the drone brings to you!
Bullet Point
Beta85X pushes the new era of brushless whoop drones to a higher level. With the new power system, you could fly real acro with a C01 camera in racing or freestyle on 4S power.
It comes with upgraded F4 AIO 12A FC, which has an 8M Flash chip for Betaflight Black Box and 3 full UARTs (UART1, UART2, and UART6). Pilots could use one UART for DJI digital FPV unit or Caddx Vista digital FPV unit and the other UART for an external receiver like TBS Crossfire.
Miniature, and lightweight design of C01 camera, weights at only 1.96g, it is with high resolution and 1/3" CMOS sensor, which ensures a high-quality and clear image.
Tough and light enough micro canopy and frame are super suitable for the Beta85X. Whole drone no soldering or tinkering necessary. This canopy adopts with injection molding technique, more durable and flexible.
Powerful 1105 5000KV motor, with lightweight but definitely will give you extreme power and speed to fly on 4S. The motor comes with cable connectors. Just plug and play. EMAX Avan 2" prop is the best combo in this Beta85X drone.
450mAh 4S high rate battery is recommended by default. But pilot could also use their own batteries with battery strap. Optional and affordable.
For 85mm brushless whoop drones, there are 4 versions for your choice - Beta85X FPV, Beta85X HD, Beta85X 4K, and Beta85X for GoPro..
Specification
Item: Beta85X FPV

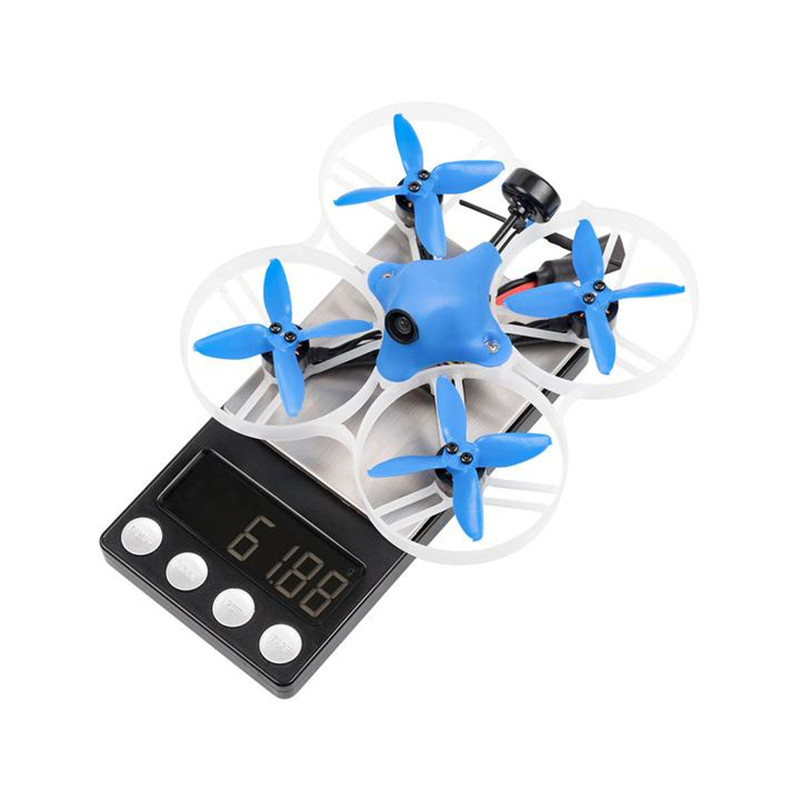

Weight: 61.88g (without battery)
FC: F4 AIO 12A FC V2
Motors: 1105 5000KV with connector
Props: EMAX Avan 2" 4-Blades Props
FPV Camera: C01 camera
FPV Canopy: Micro canopy
Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire
Battery: 4S 450mAh Battery (Not including)
5.8G FPV antenna
Flight time: 4min - 6min with 450mAh 4S battery (smooth flight in a windless environment)
FC Specification
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: BETAFPVF411 (BEFH)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
ESC Specification
Support BLheli/BLHELI_S suite Pass-through ready
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-4S Lipo
Continue current: 12A
Peak current: 13A
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
Factory firmware: G-H-30-16.7
C01 Camera and VTX
C01 Micro Cam is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for 800TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

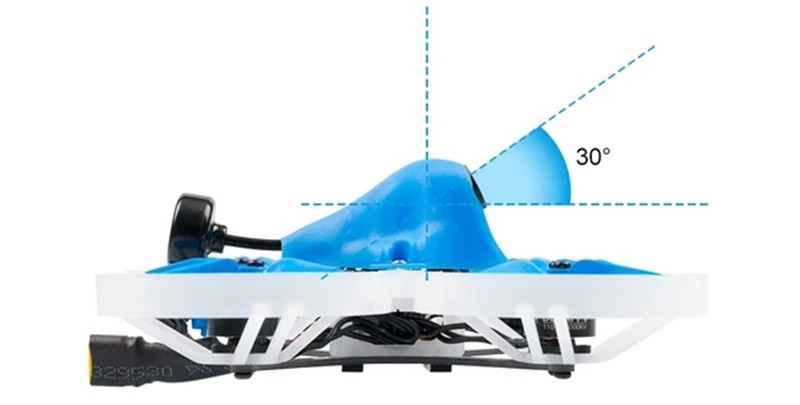

The C01 camera comes with the FPV version of Beta85X drone. The camera tilt angle is 30 degrees.
C01 Camera
Image Sensor: 1/4" CMOS Sensor
Horizontal: 800TVL with Global WDR
Signal System: NTSC
Lens : 2.1mm(M8) FOV 160°
S/N Ratio: >50db
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V / [email protected]
Housing Material: ABS
Dimension: 11*11mm
Net weight: 1.4g
1105 5000KV Motors
Lower 5000KV for Beta85X 4S, which could support 4S power and won't cause the issue of overheat. Providing stronger thrust in 4S whoop drone. Powerful, fast, and durable.
We DO NOT recommend the 1105 6000KV motors for 4S power because the motor may overheat or burn which will cause permanent damage on the motor or ESC. And don't use 1105 5000KV motors for 3S power, the performance will not be as good as the 1105 6000KV motors since lack of power.
| Motor | Recommend Battery | Voltage |
| 1105 6000KV | 3S 450mAh Battery | 11.1V |
| 1105 5000KV | 4S 450mAh Battery | 14.8V |
Props Out
The Beta85X drone also comes with "props out" by default. Why we need "props out" direction?
Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in the hardest cornering.
Package Included:
1 * Beta85X Whoop Quadcopter (4S)
4 * EMAX Avan 2" 4-Blades Props
