- Stock: In Stock
- Model: ST22001328
- SKU: ST22001328
Notice:
The Camera and Camera Mount for Gopro are NOT Included.
ONLY Include fixing mount Base.
Features:
1. The 3-inch propeller has higher efficiency and strength; this product is easy to disassemble and easy to carry; reasonable power configuration, longer battery life.
2. Excellent structural design brings a more enjoyable control feel to flight.

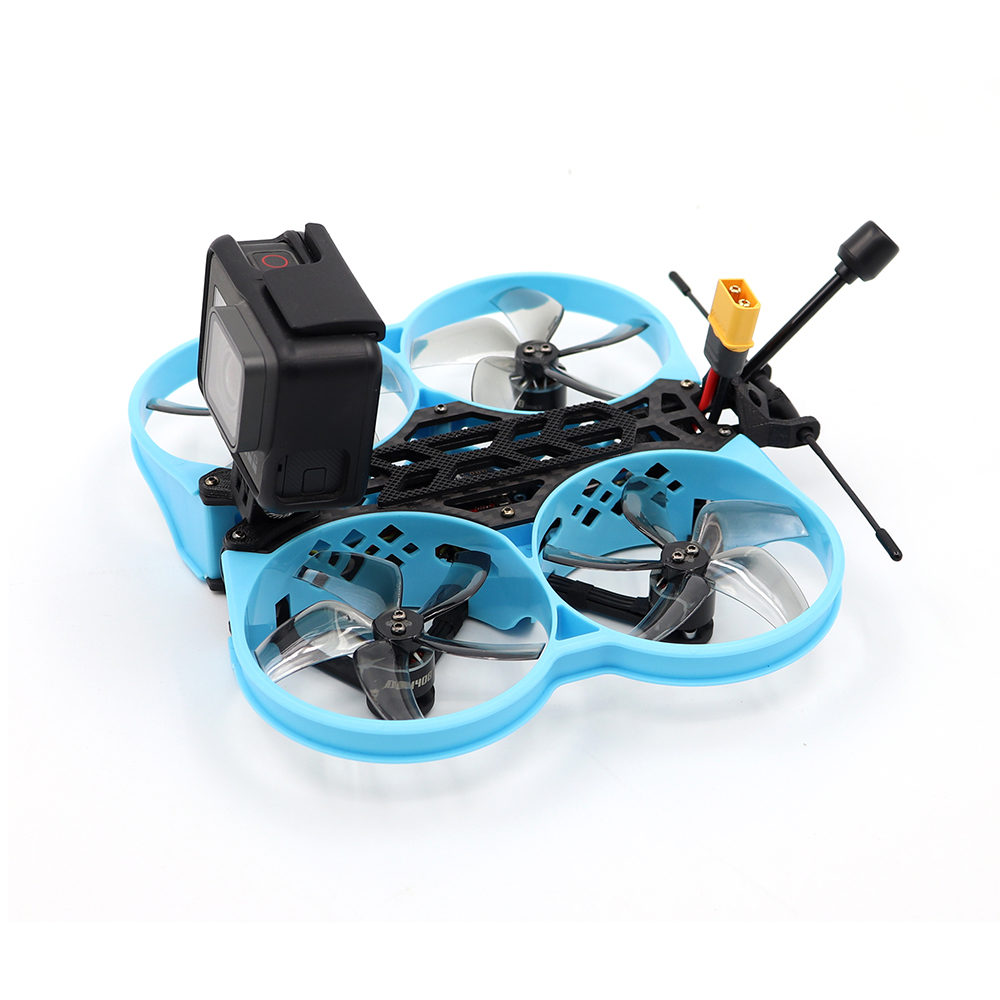

3. Can drive full-size GOPRO, battery life up to about 6 minutes.
4. The tail of the drone is equipped with LED lights with adjustable colors. There is a buzzer to control the alarm.

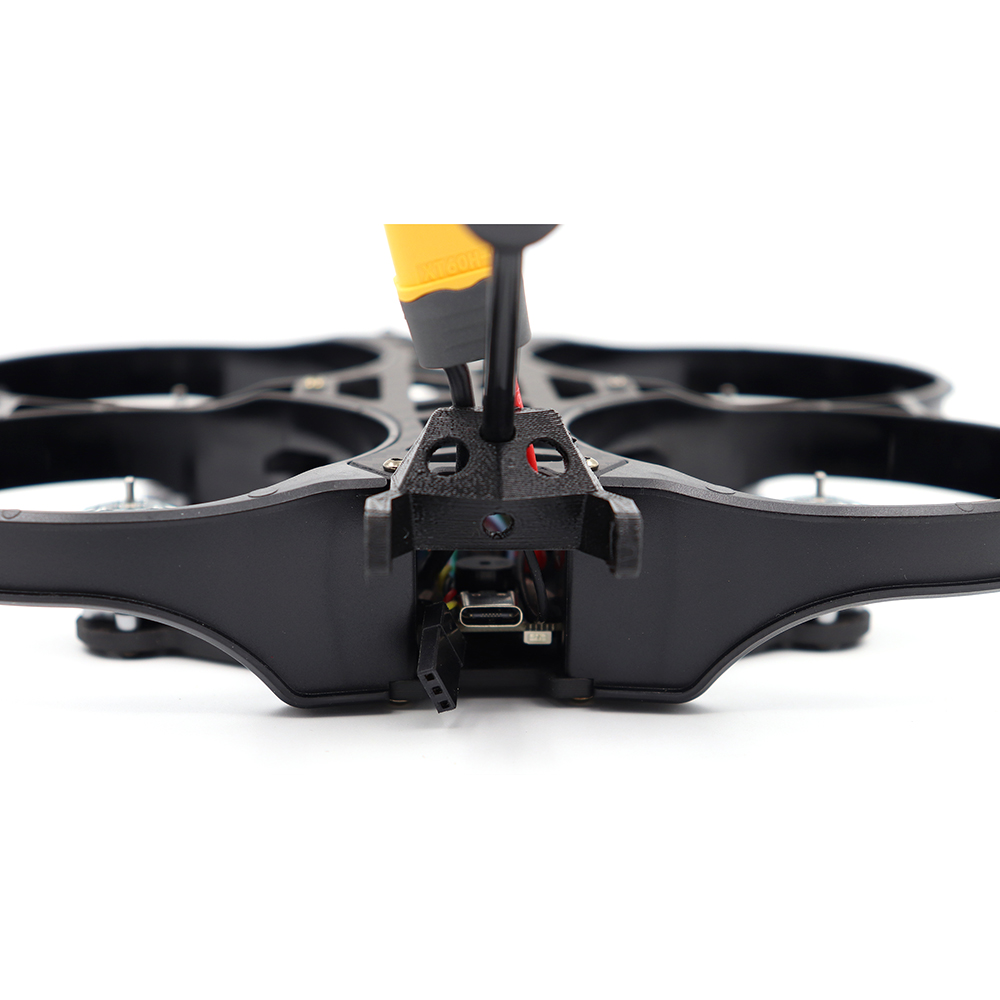

5. There is a type-c interface, which can be used to adjust the flight control parameters.
Description:

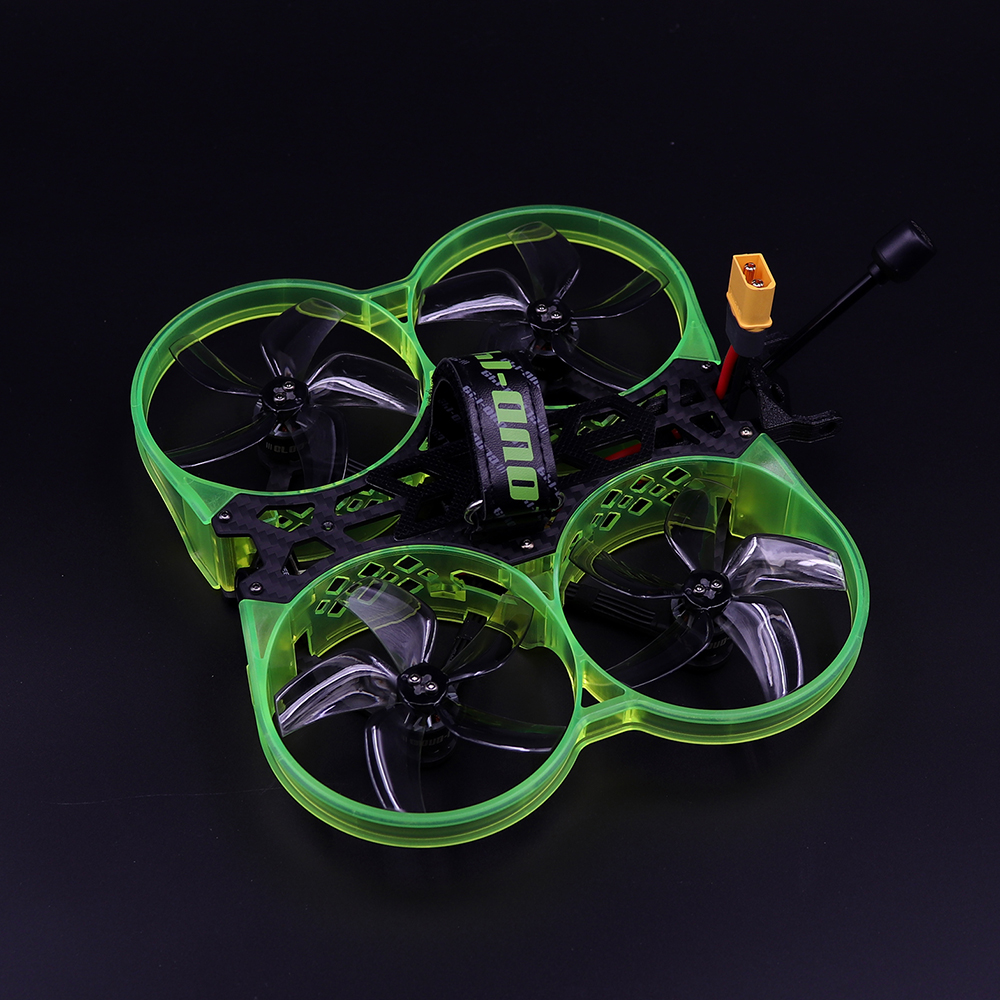

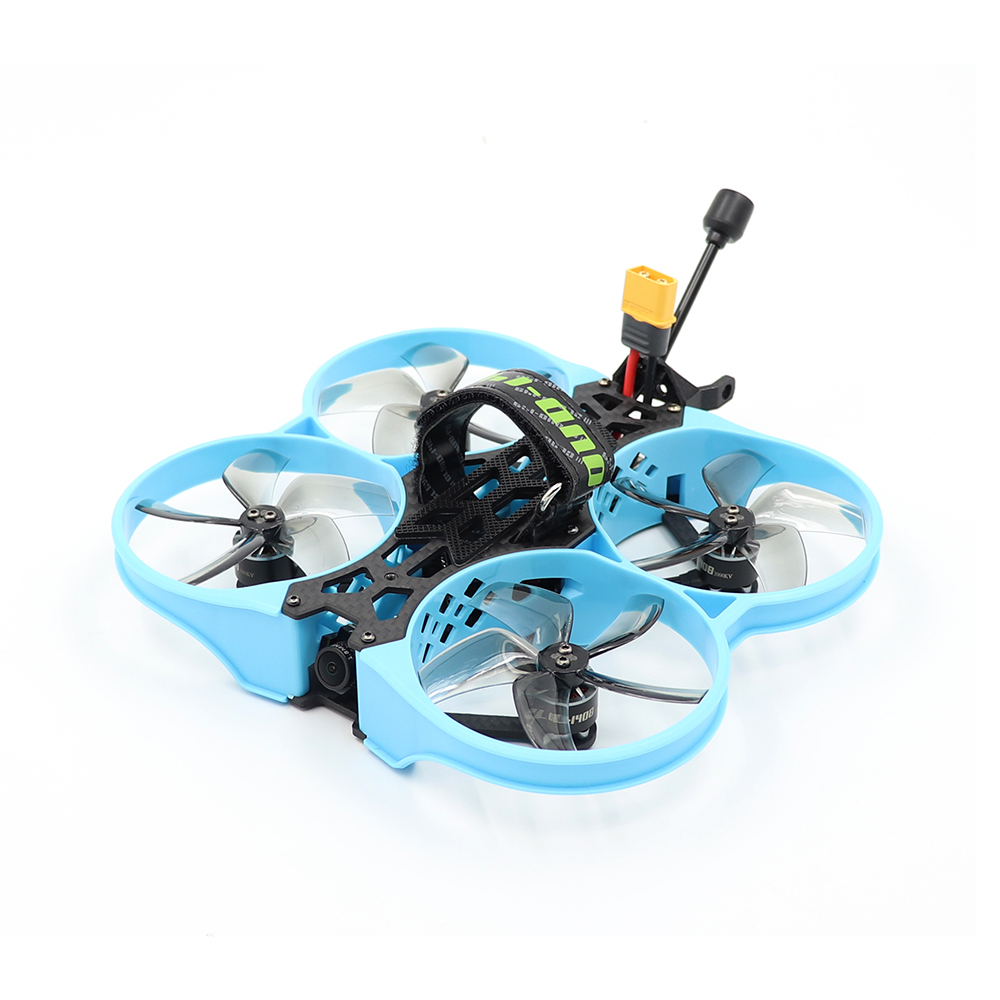

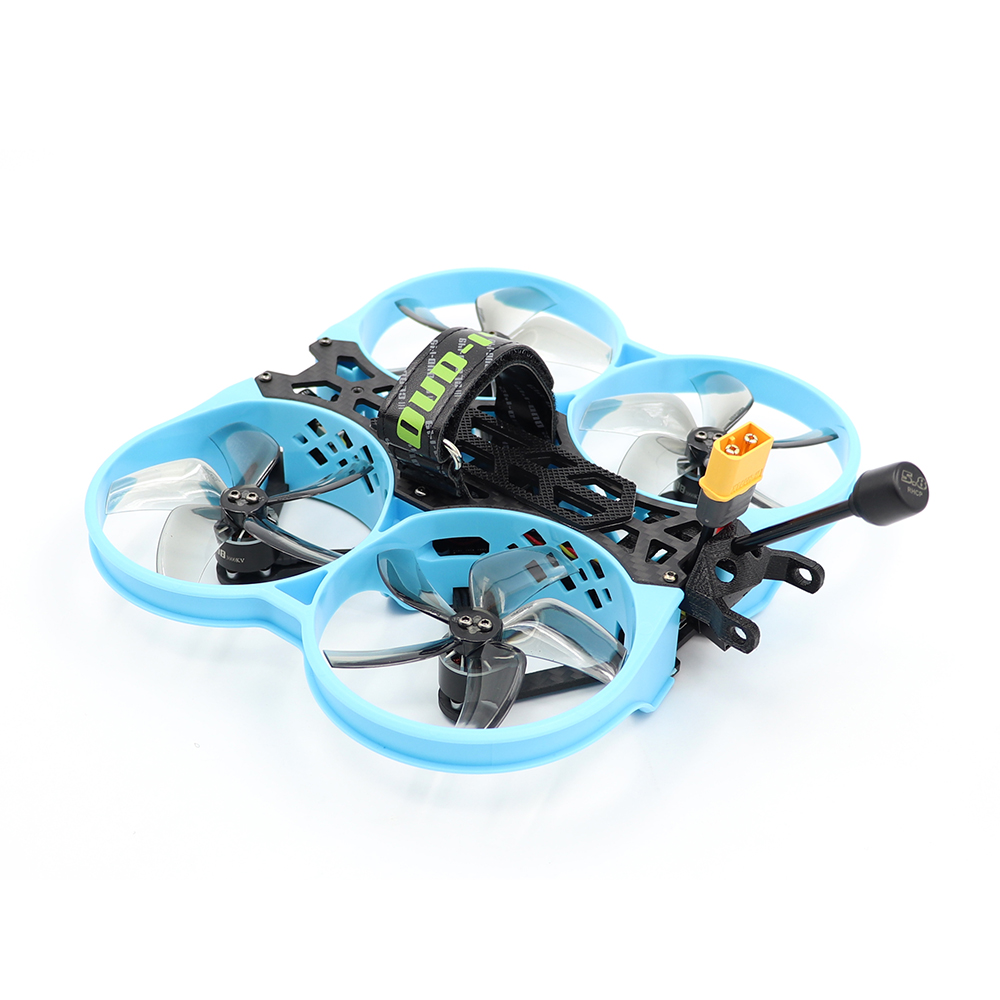

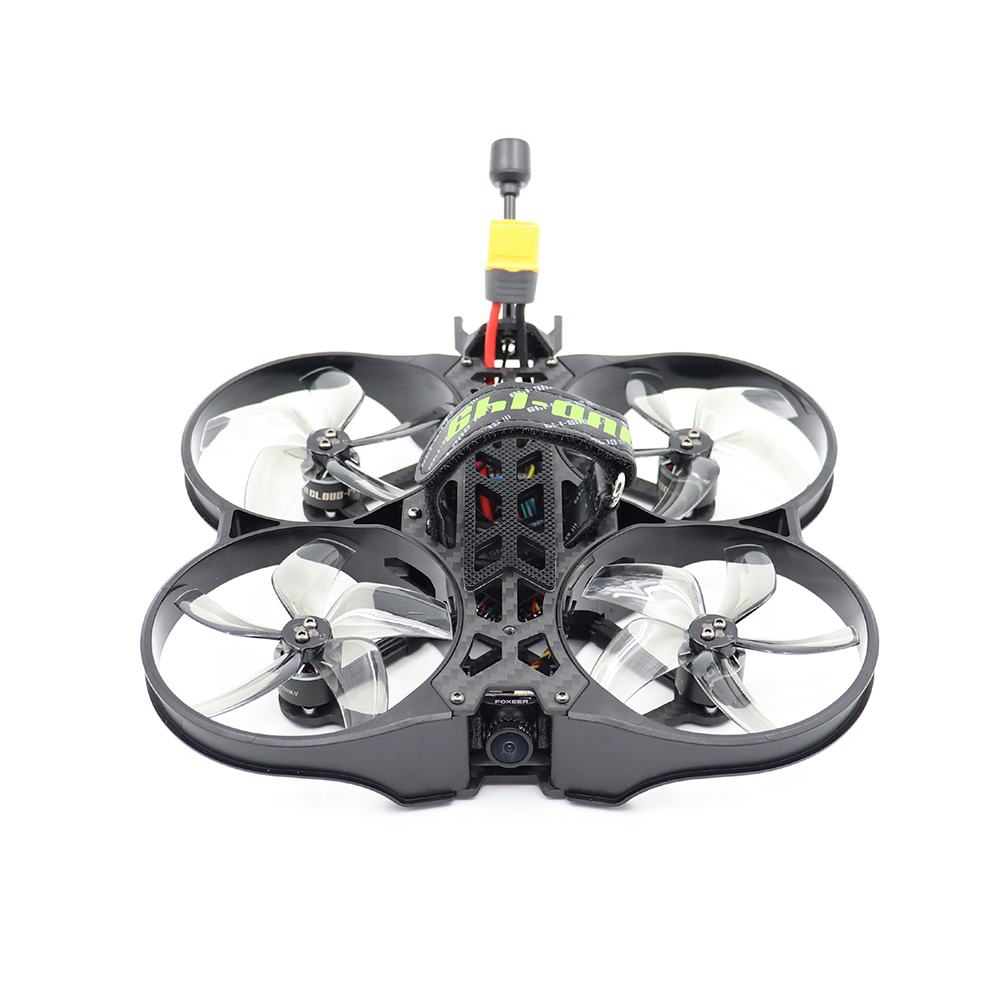

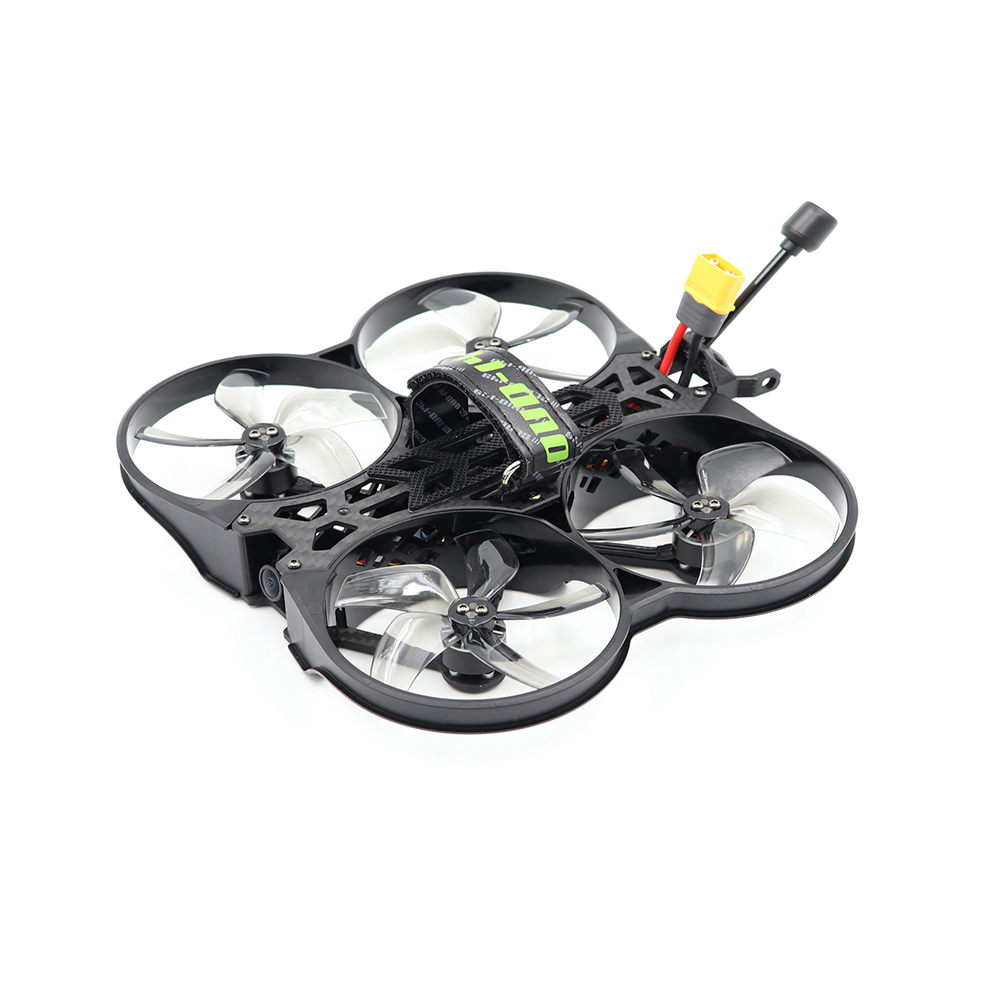

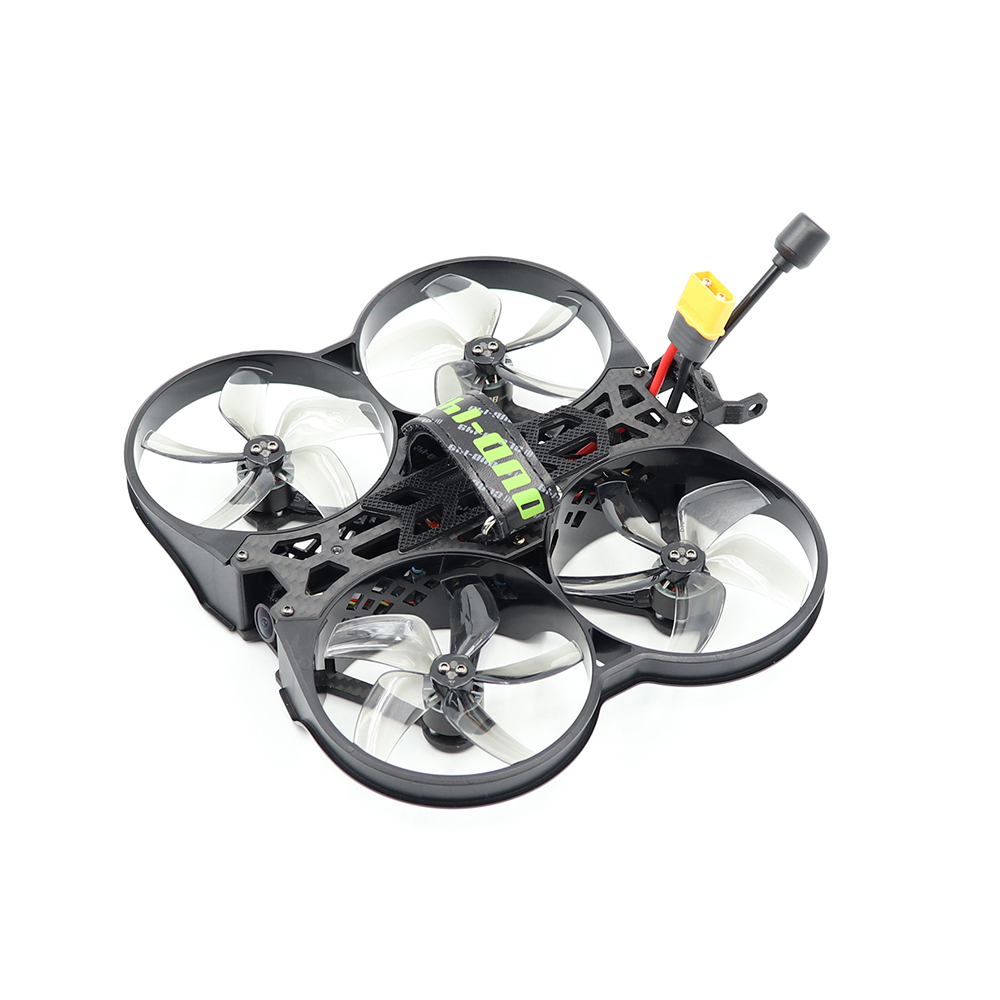

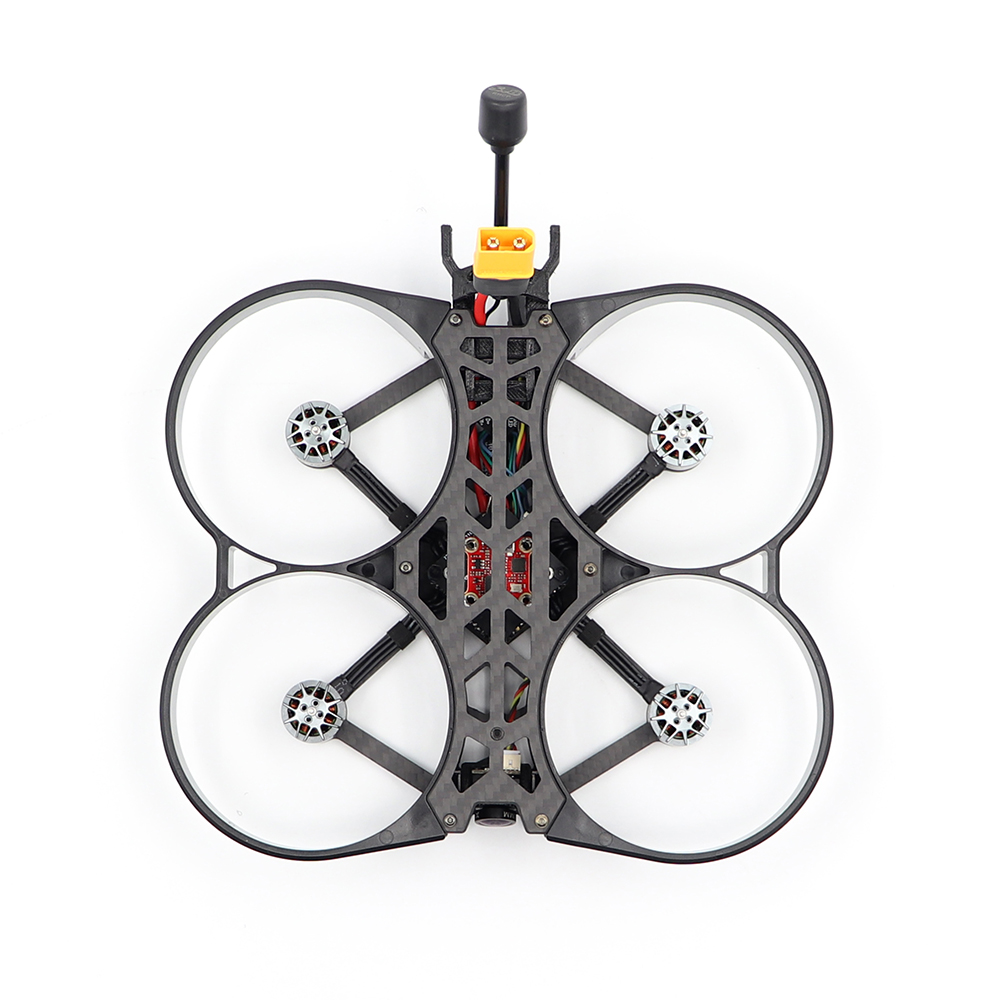

Model: Cloud-149 V2
Wheelbase: 133mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Size: 195x200mm
Weight: 217±10g
Flight Controller ( Diagram Picture) | Connector: Micro-USB MCU: STM32F411 Gyro: MPU6000 BEC Output: 5V 2A INA Pad: nR2 Barometer: Yes Size: 31x31mm Mounting pattern: 25.5x25.5mm/φ3mm FC Firmware:MATEKF411 |
BLHELI_ S 20A ESC | Con. Current: 20A Burst Current: 25A BLHeli: BLHeli_S ESC Telemetry: No ESC Firmware: G-H-30 BLS |
| CLOUD-1408 3000KV Motor | Configuration: 9N12P Stator Diamter: 14mm Stator Length: 8mm Shaft Diameter: 2mm Motor Dimensions: Φ18.2 * 17.9mm The hole position of motor: 12mm Weight:15.5g |

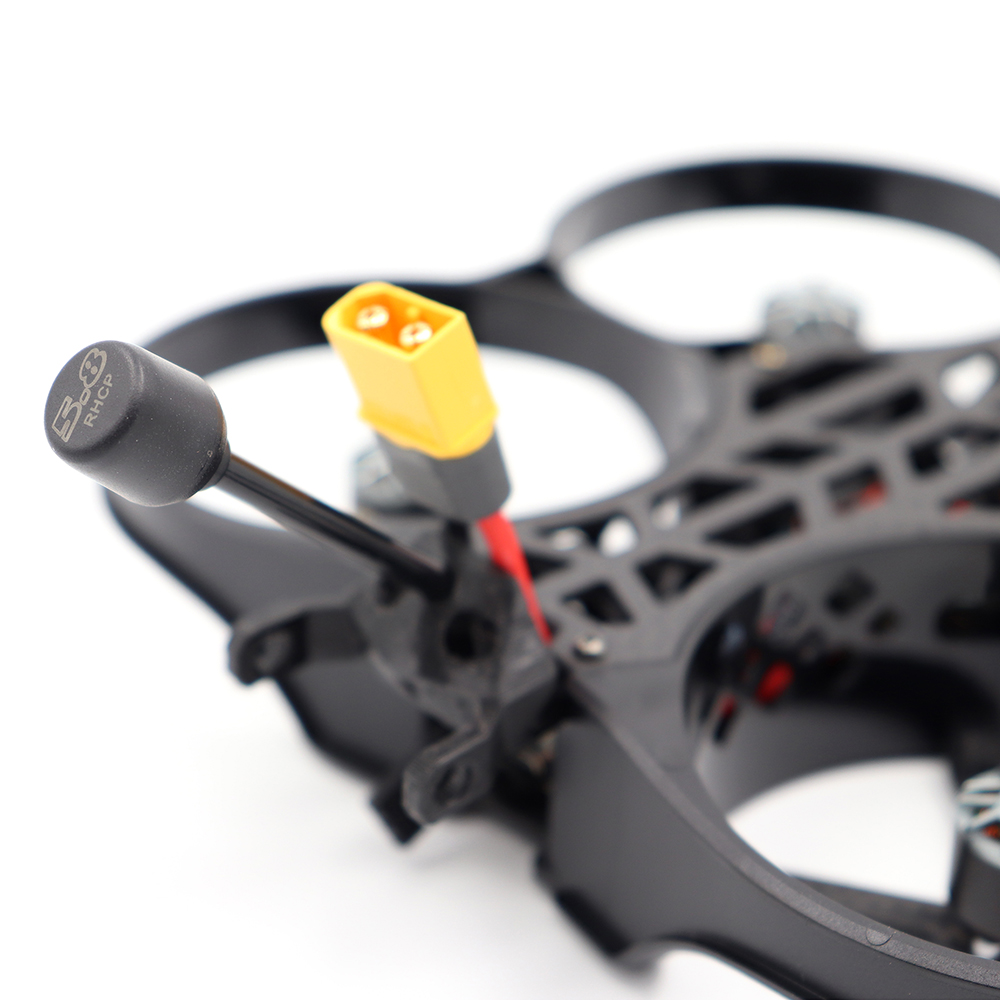

ERRF 5.8g 400mW VTX ( Manual) | Power: PIT/25/200/400mW Antenna interface: IPEX (UFL) VTX protocol :TBS SmartAudio Size:21x21mm |
| FOXEER Razer nano camera | Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL Scale: 4:3 Power Requirement: DC 4.5V~7V Dimension: 14x15mm |
| Propeller | Gemfan D76 76mm 3 Inch 5-Blade |
Recommended(No Included, need buy additionaly):
Battery: 4S 1300mAh 100C Lipo Battery XT60 Plug
Flight Time: 6-9mins
Package Included:
1x REPTILE CLOUD149 V2 Frame kit
1x F411 AIO
1x 5.8G VTX
1x 5.8G Antenna
1x 1200TVL camera
4x 1408 3000KV motor
1x 5-blade three-inch propeller
1x Cable tie
1x Battery non-slip
2x EVA anti-collision strip
1x Hexagonal screwdriver
1x Corner pad
1x M2 screw
1x Fixing Mounting Base
