- Stock: In Stock
- Model: ST230047472
- SKU: ST230047472
Content | Specs. |
Dim. | 90（L）x49.3(W)x16.7(H) |
Weight | 50g |
Network | GSM/GPRS/GPS, TCP/IP |
Band | 850/900/1800/1900 Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5-10m |
Time To First Fix | Cold status 45-90s Warm status 35s Hot status 1s |
Work voltage | 12-36V |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +45°C |
Humidity | 15%--95% |
2. Install SIM Card
Preparation: insert 2G GSM SIM card with activated GPRS data; Make sure SIM card with full balance; If SIM card with PIN code, must remove it advance.

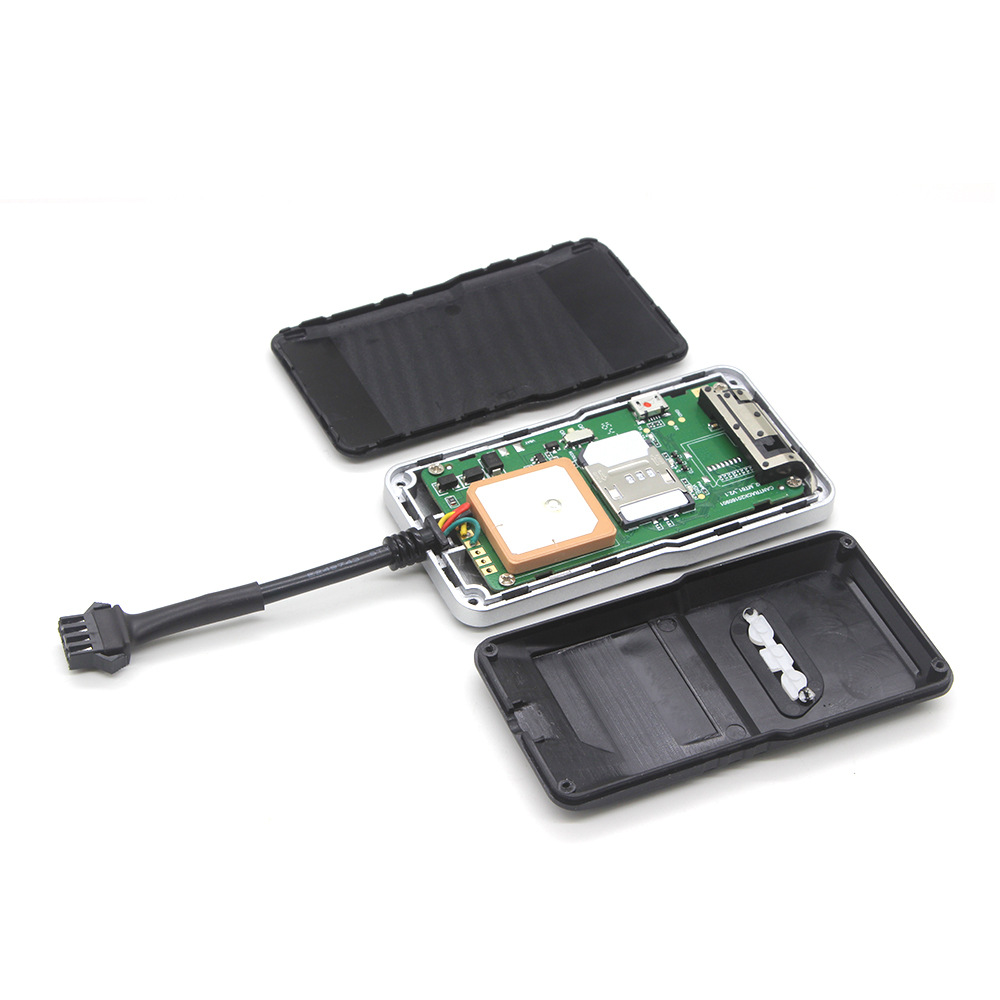

Open back cover from the small hole near shell edge →Take off screws as below→Switch ON/OFF button to"on" place

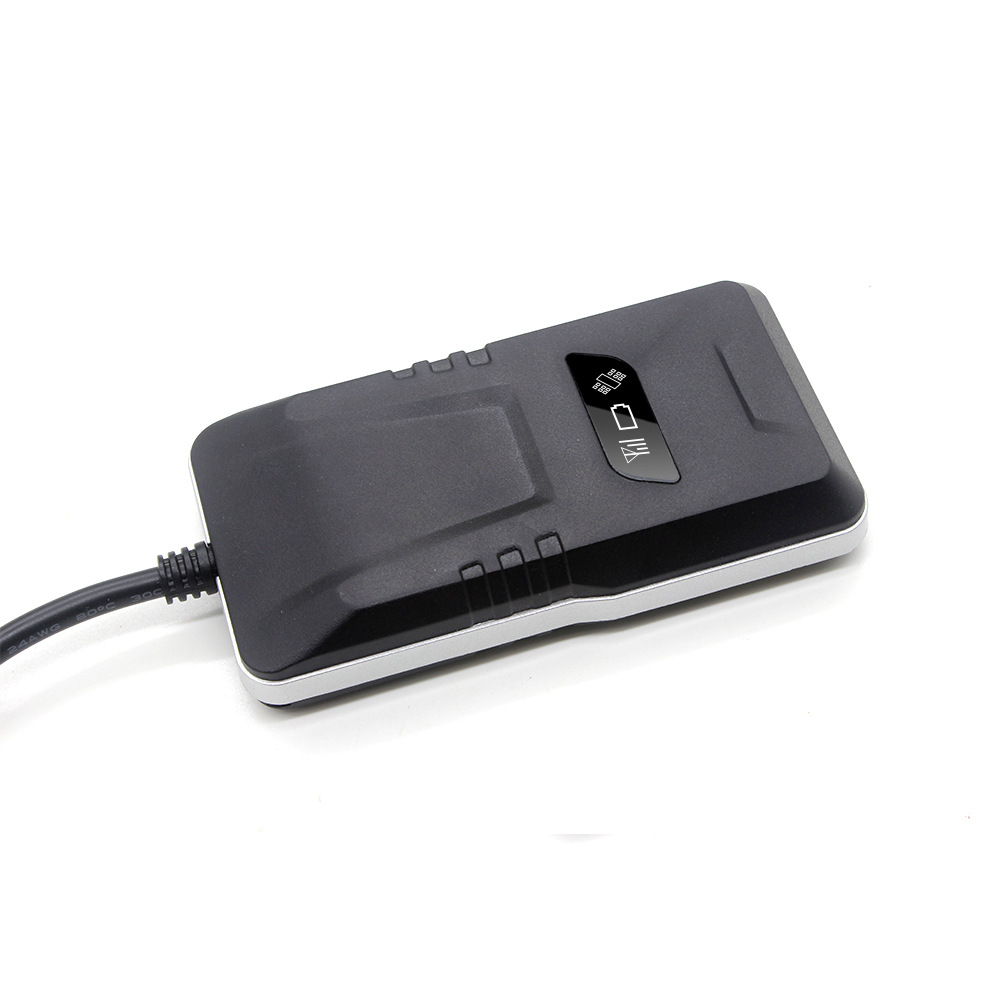

3.Device light description
Light | Signal | Normal status |
Red light | Power | Stable light on |
Green light | GSM signal | Stable light on |
Blue | GPS signal | Stable light on |
Note:Device will turn into sleep mode with lights off after around 3 minutes, it will wake up if make a call to device number or detect any vibration.
4. Installation
The device has built-in GSM and GPS antenna, make sure front side upward and there is no metal shielding.

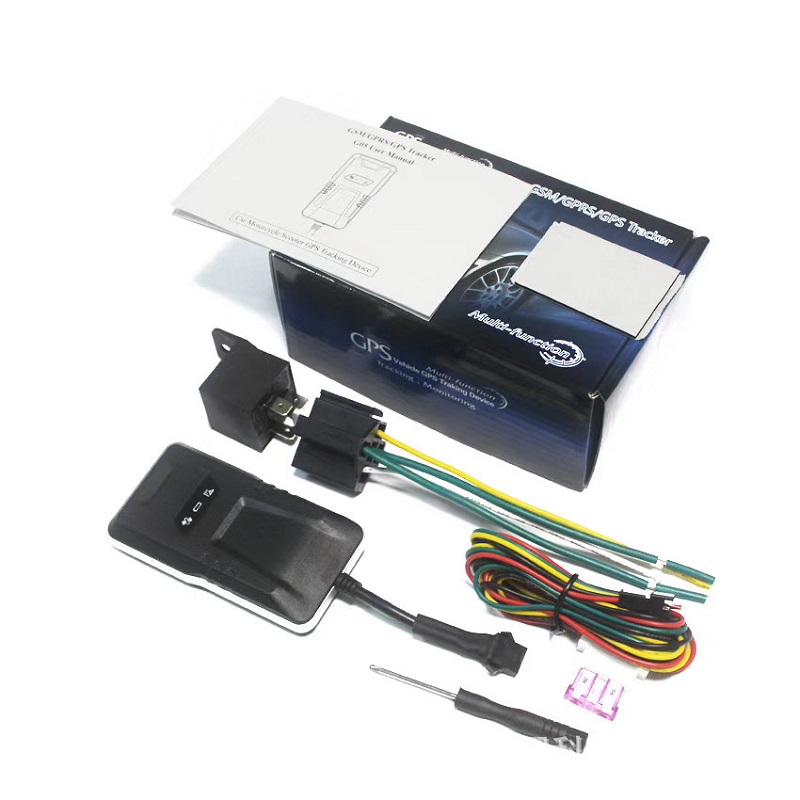

Package included:

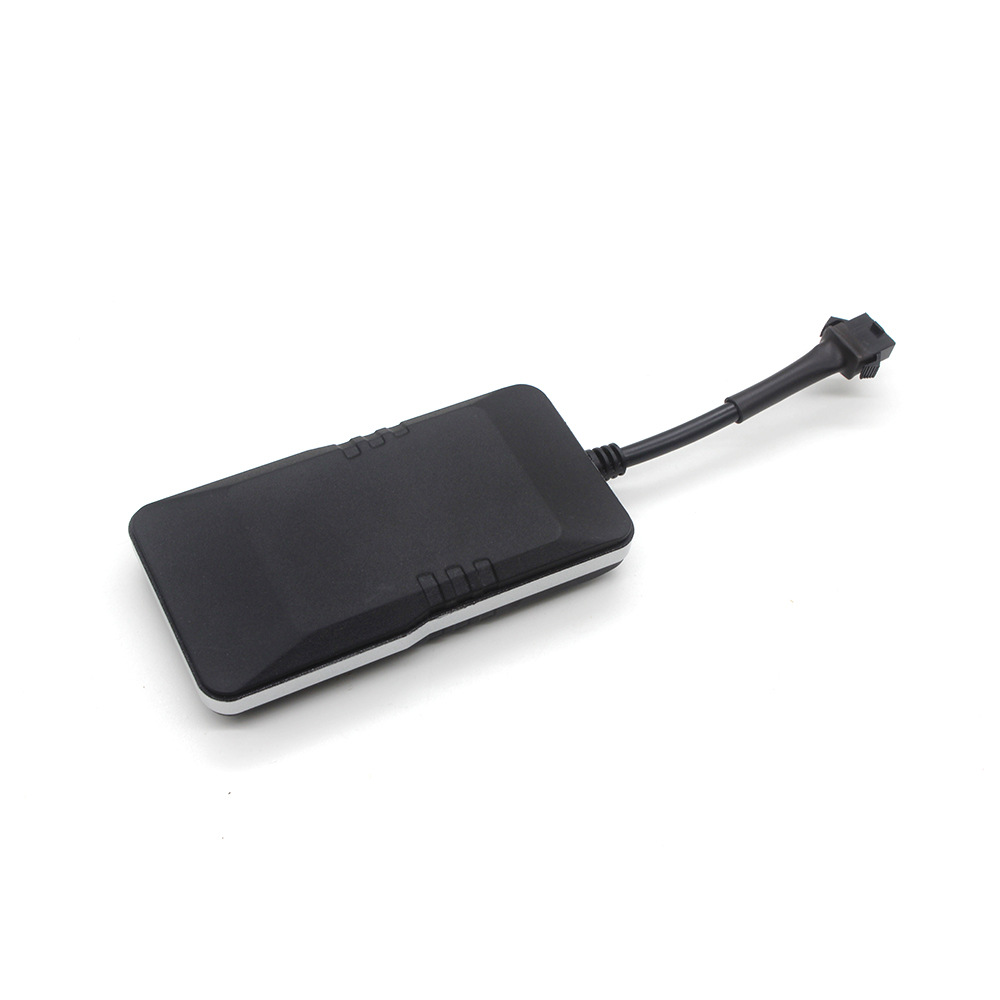

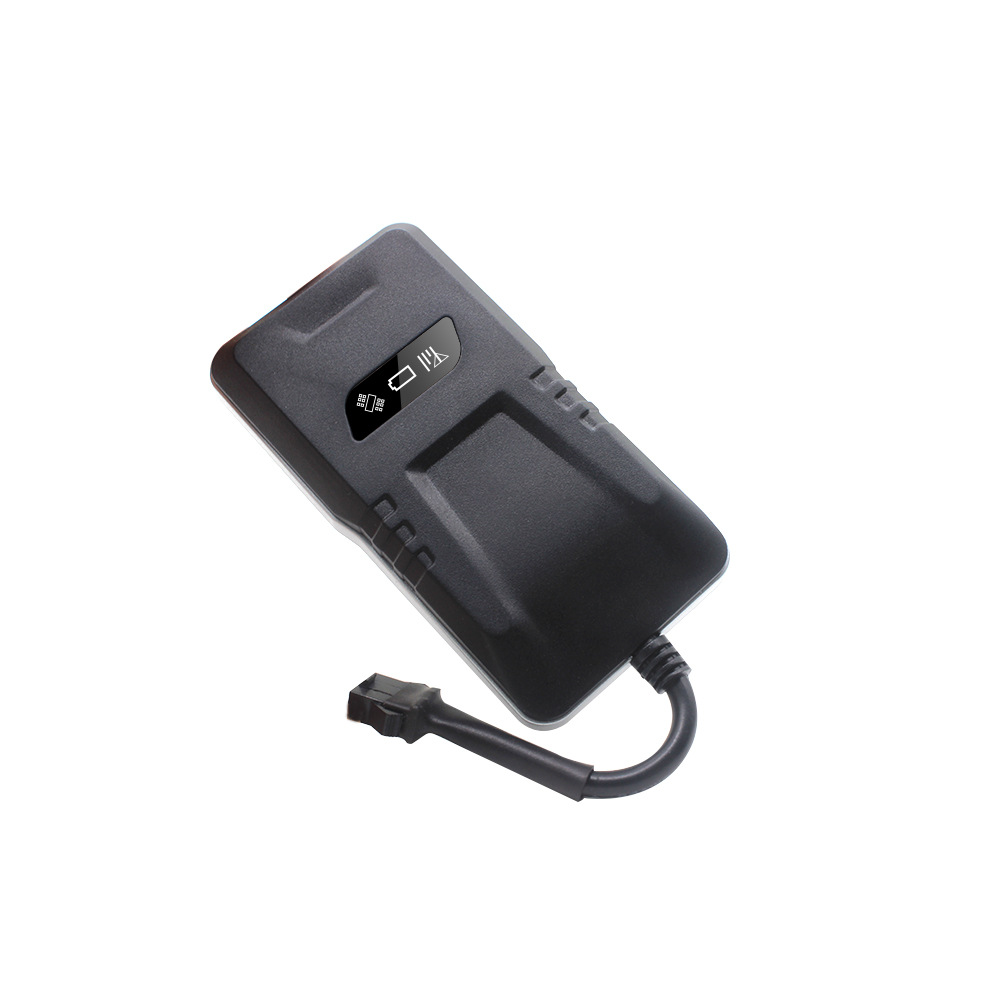

1 x GPS Locator

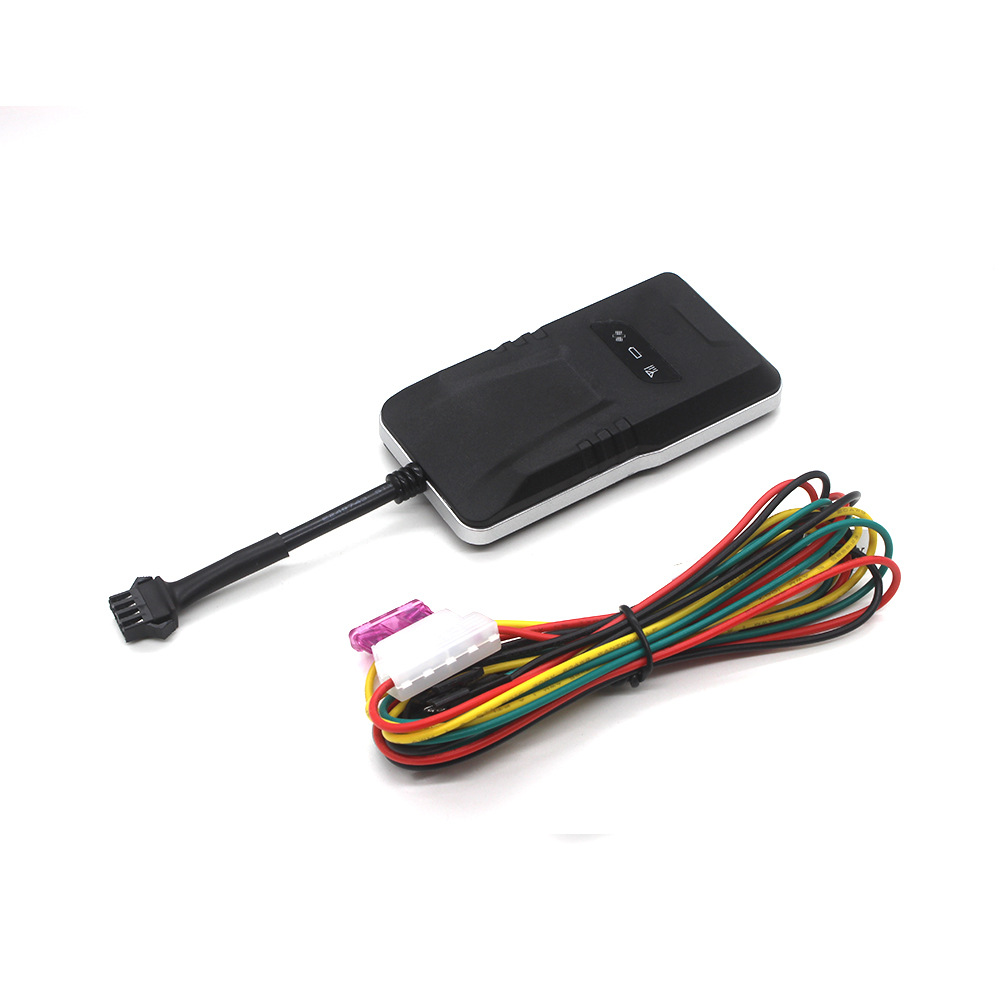

1set of accessories (as shown in the picture)
1 x manual
