Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE

Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE
  • Stock: In Stock
  • Model: ST220016437
  • SKU: ST220016437
$12.99
Ex Tax: $12.99
Cable to Cable 3 Pin Screw Locking Wire IP68 Waterproof Connector M20x1.5 CE

Features:
Precision design,
The middle wiring terminals can be screw with cables, or with heat shrink tubing after soldering
Pulling up to 160 Newtons
Perfect tightness
Work underwater 4 meter for 21 days

Specification: Contacts 1-3 pins
Cablc outer diameter range 6-10mm
Rate voltage 110V-380V
Temperature range -40°C--120°C
Current 13A
Breakdown Voltage 4000V
Color :Black
IP rating: IP68
Material of Insulation: PA 66
Flammability: UL94-V2

Package Included: 1 x Waterproof Connector

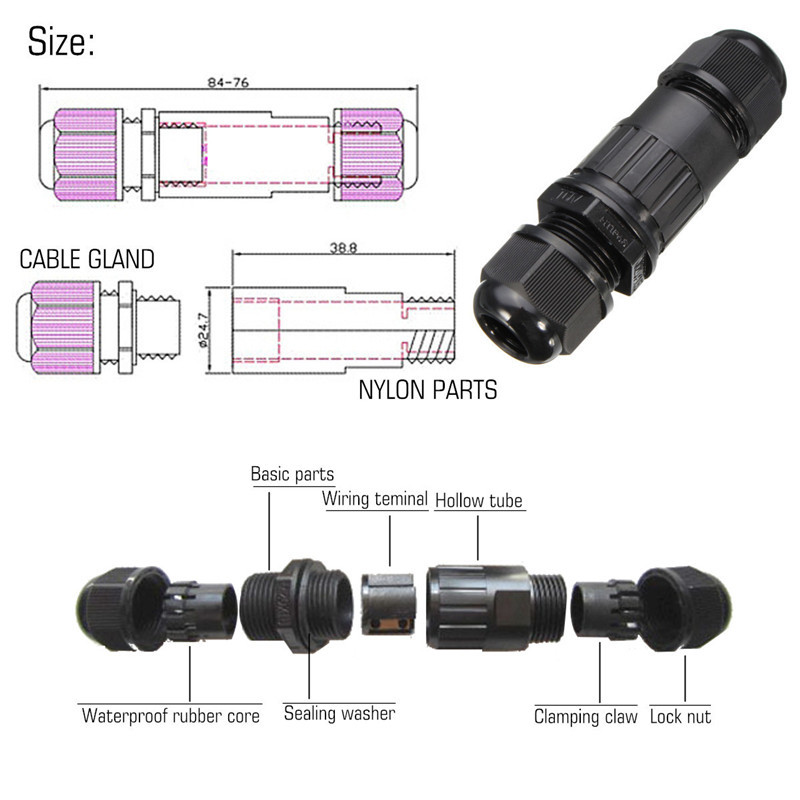

Drawing:
Cable-to-Cable-3-Pin-Screw-Locking-Wire-IP68-Waterproof-Connector-M20x15-CE-1040862-1

Cable-to-Cable-3-Pin-Screw-Locking-Wire-IP68-Waterproof-Connector-M20x15-CE-1040862-2

Cable-to-Cable-3-Pin-Screw-Locking-Wire-IP68-Waterproof-Connector-M20x15-CE-1040862-3

Cable-to-Cable-3-Pin-Screw-Locking-Wire-IP68-Waterproof-Connector-M20x15-CE-1040862-4

Cable-to-Cable-3-Pin-Screw-Locking-Wire-IP68-Waterproof-Connector-M20x15-CE-1040862-5
