- Stock: In Stock
- Model: ST22022926
- Dimensions: 325.00mm x 195.00mm x 65.00mm
- SKU: ST22022926
Specifications:
Maximum power (pmax) | 28W |
Open circuit voltage (VOC) | 20V |
Maximum power voltage (Vmpp) | 18V |
Short circuit current (Isc) | 5A |
Maximum power current (Impp) | 4.8A |
Net Weight | 610g |

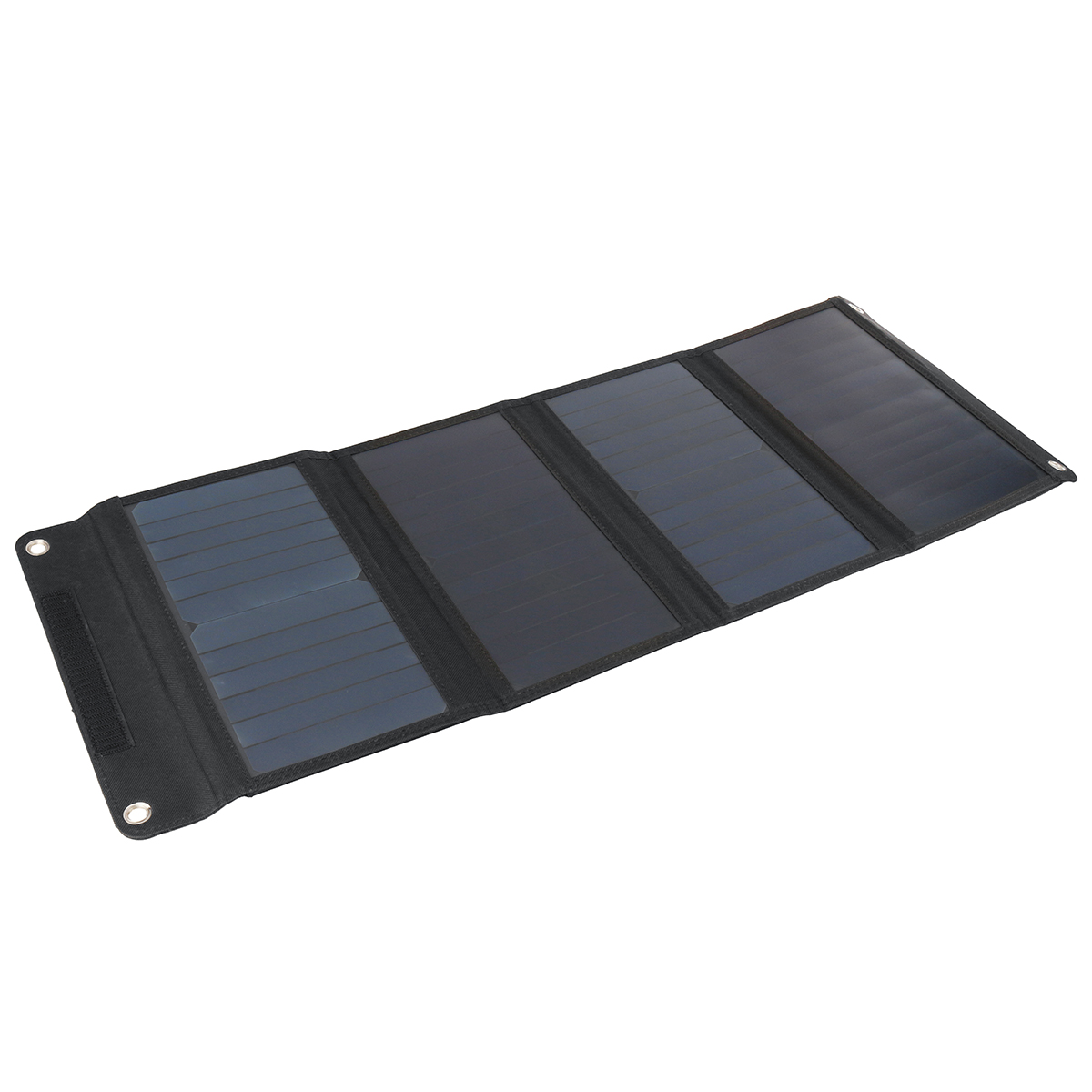

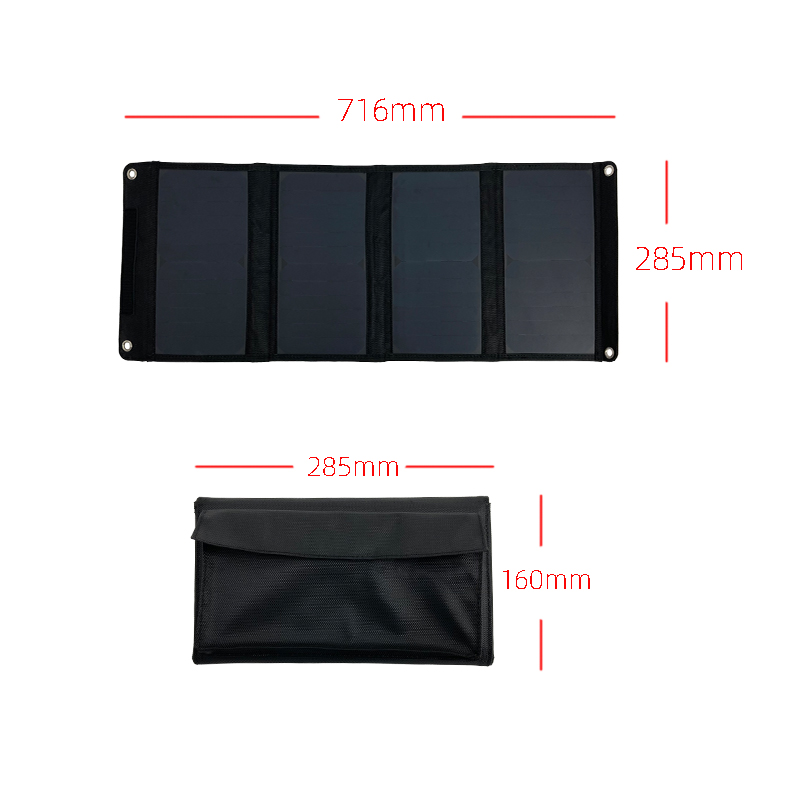

Product unfolded size | 716*285*3mm |
Product folding size | 160*285*25mm |
Packing size | 325*195*65mm |
Package weight | 910g |
Features:

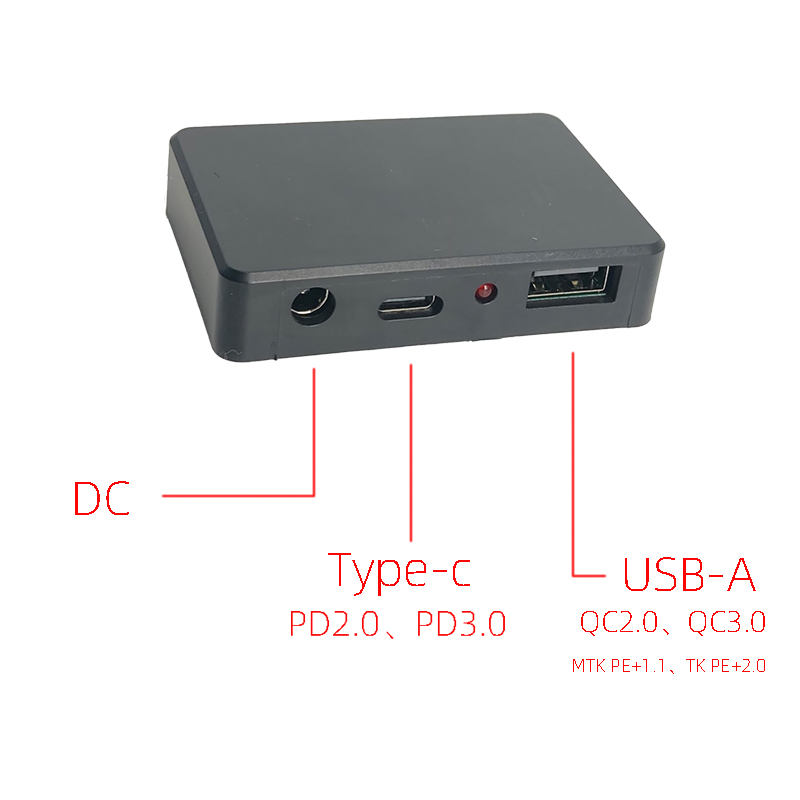

USB-A port:
Output power 24W
Voltage and current: 4.5V/5a; 5V/4.5a; 9V/2.5a; 12V/2a
Support fast charging protocol
Support BC1.2, Apple agreement
Support QC2.0, QC3.0, support MTK PE+1.1, TK PE+2.0

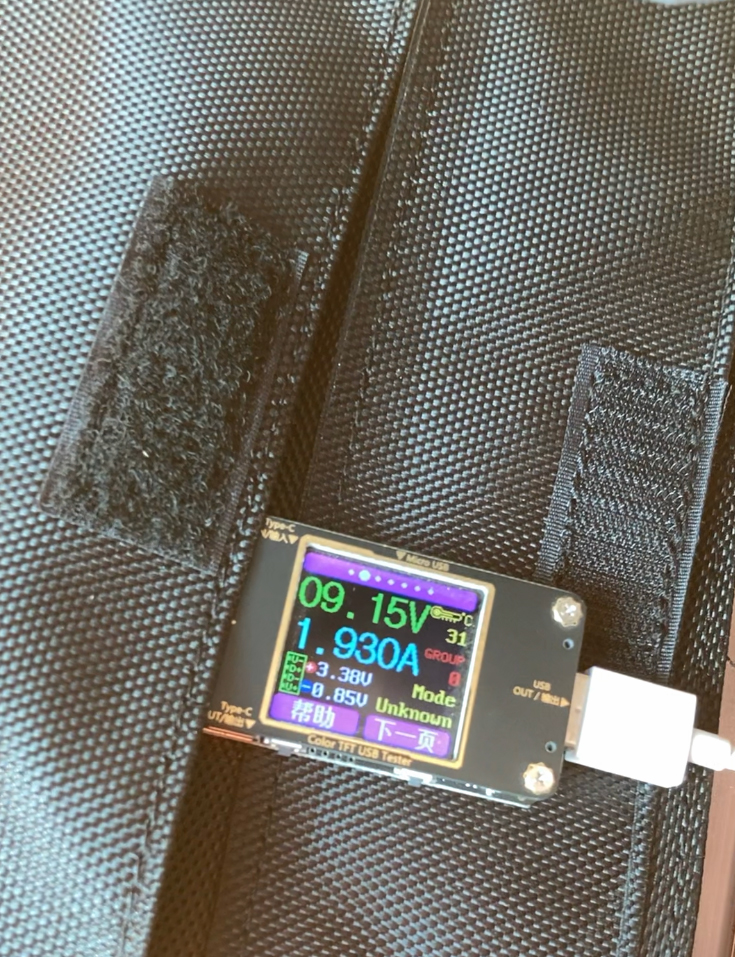

Type-c:
1 Output power: 28W
2 Voltage and current: 5V/3a; 9V/3a; 12V/3a; PPS3.3-5.9V/3a; 3.3-11V/3a
Support agreement: PD2.0, PD3.0 (PPS)
Note:The Type-c interface supports fast charging. If you want to fast charge, you need to prepare a fast charging cable by yourself. Our accessories only have ordinary charging cables, and ordinary charging cables cannot use the fast charging function.
DC output:
Output power: 28W
Maximum open circuit voltage: 14V, working voltage: 12V
Protective function:
1 Input protection: a) Overvoltage protection b) Long-term voltage protection
2 Output protection a) Over voltage protection b) Constant voltage protection c) Over current protection d) Short circuit protection e) Over temperature protection
Standard test conditions: AM = 1.5 Irradiance = 1000W / m2 Temperature = 25°C

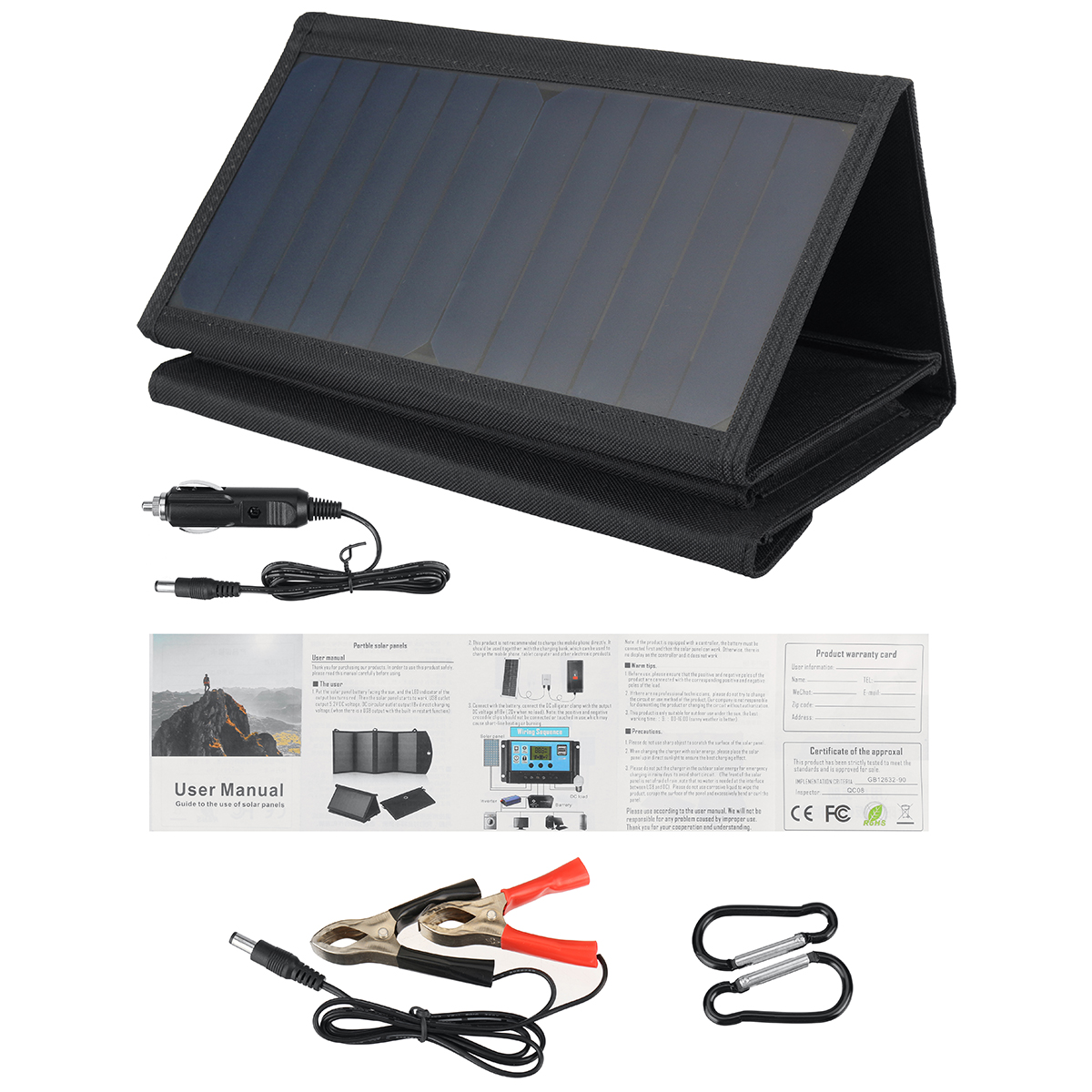

Package Included:

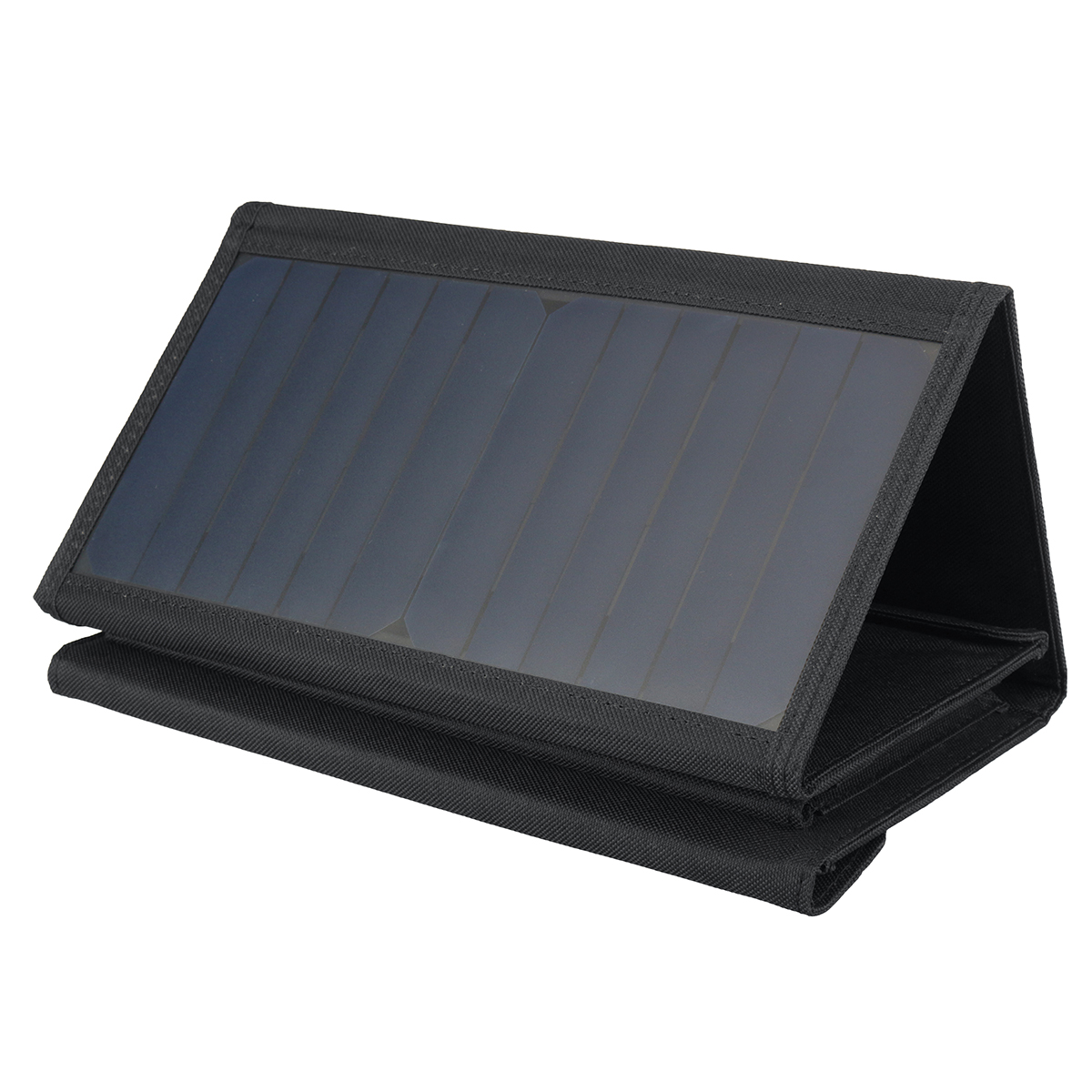

Solar folding bag*1

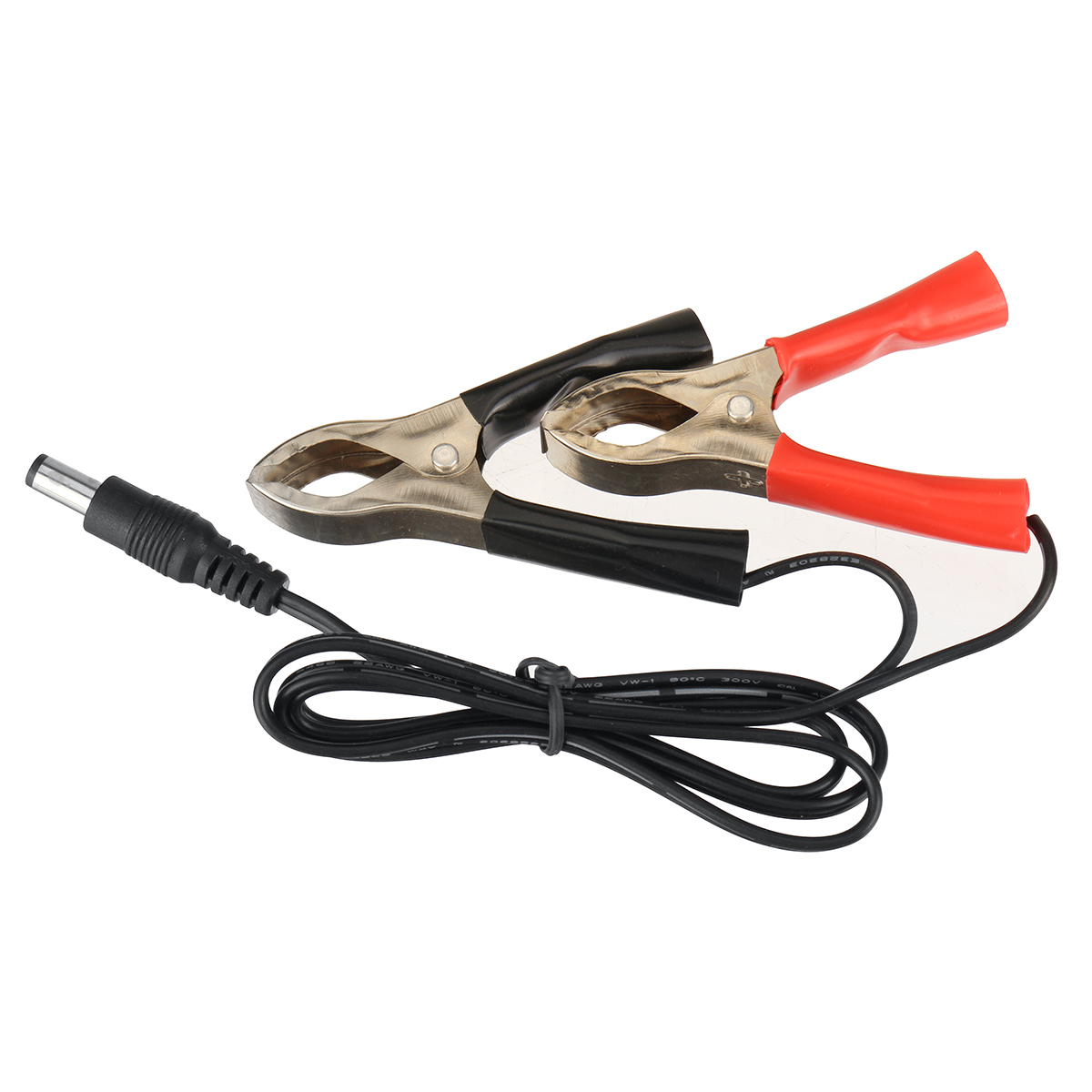

Battery clip*1

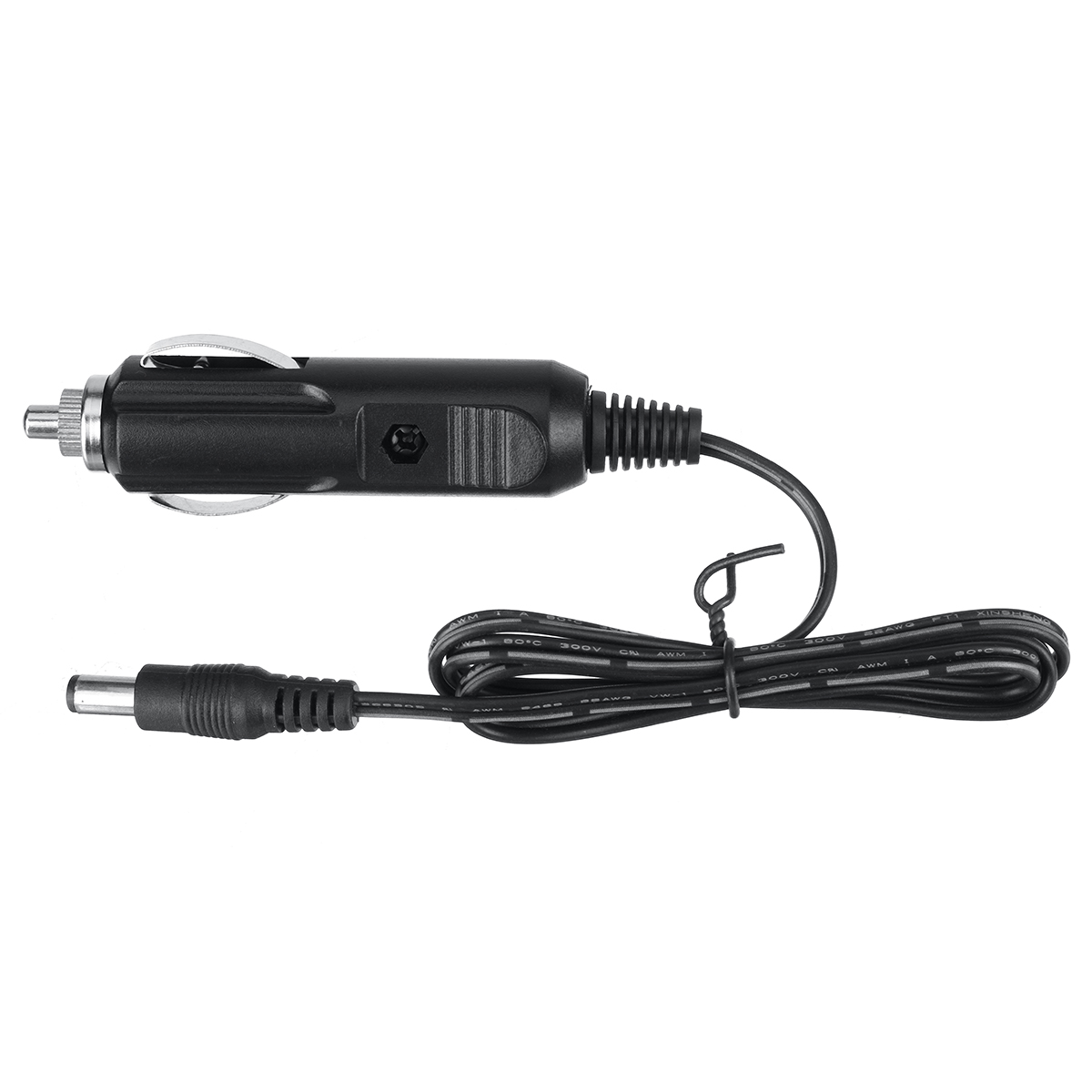

Car charger*1

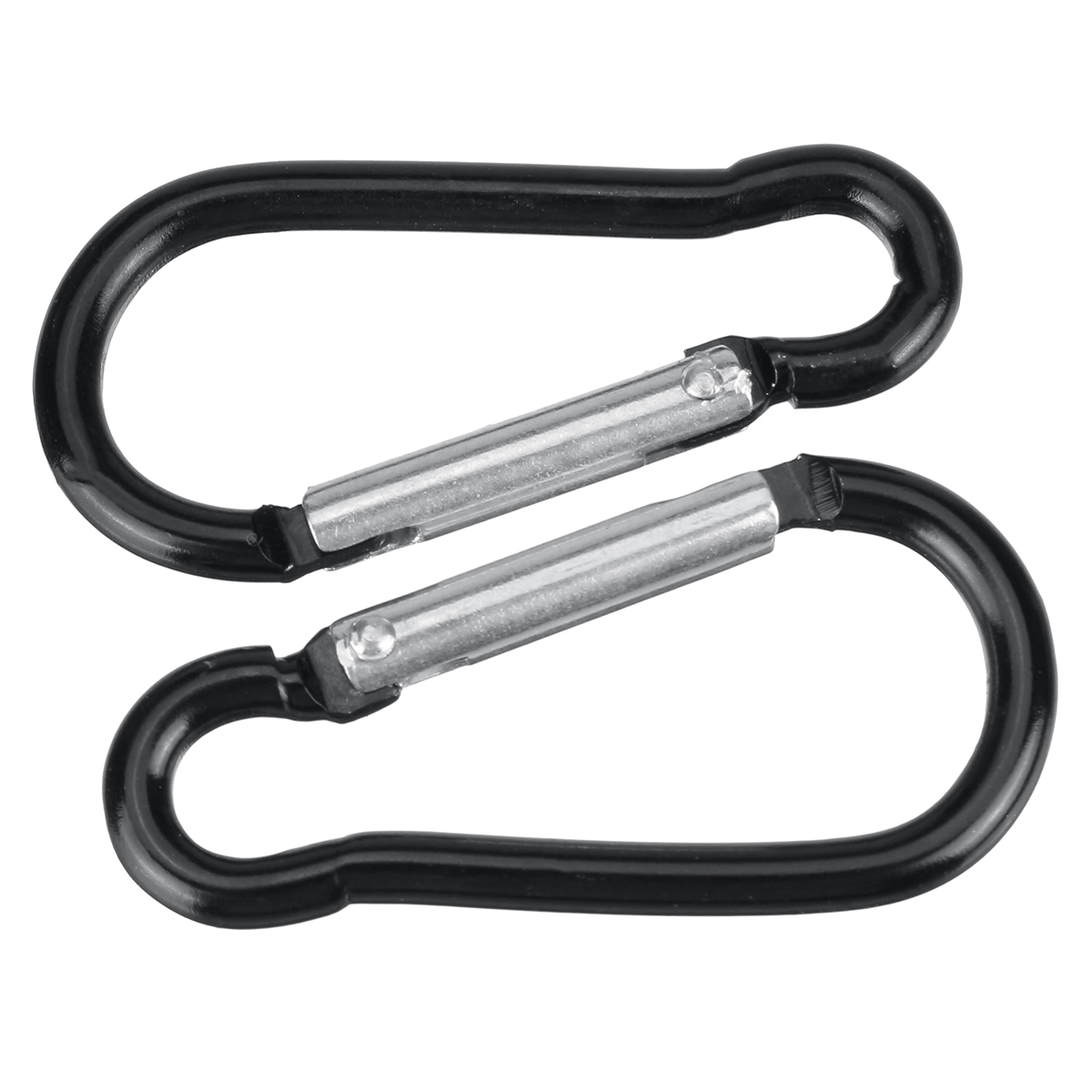

Carabiner*2
Manual*1
