PRODUCT DESCRIPTION
Caddx Nebula Nano Upgrade to Caddx Vista Polar from July 29,2021

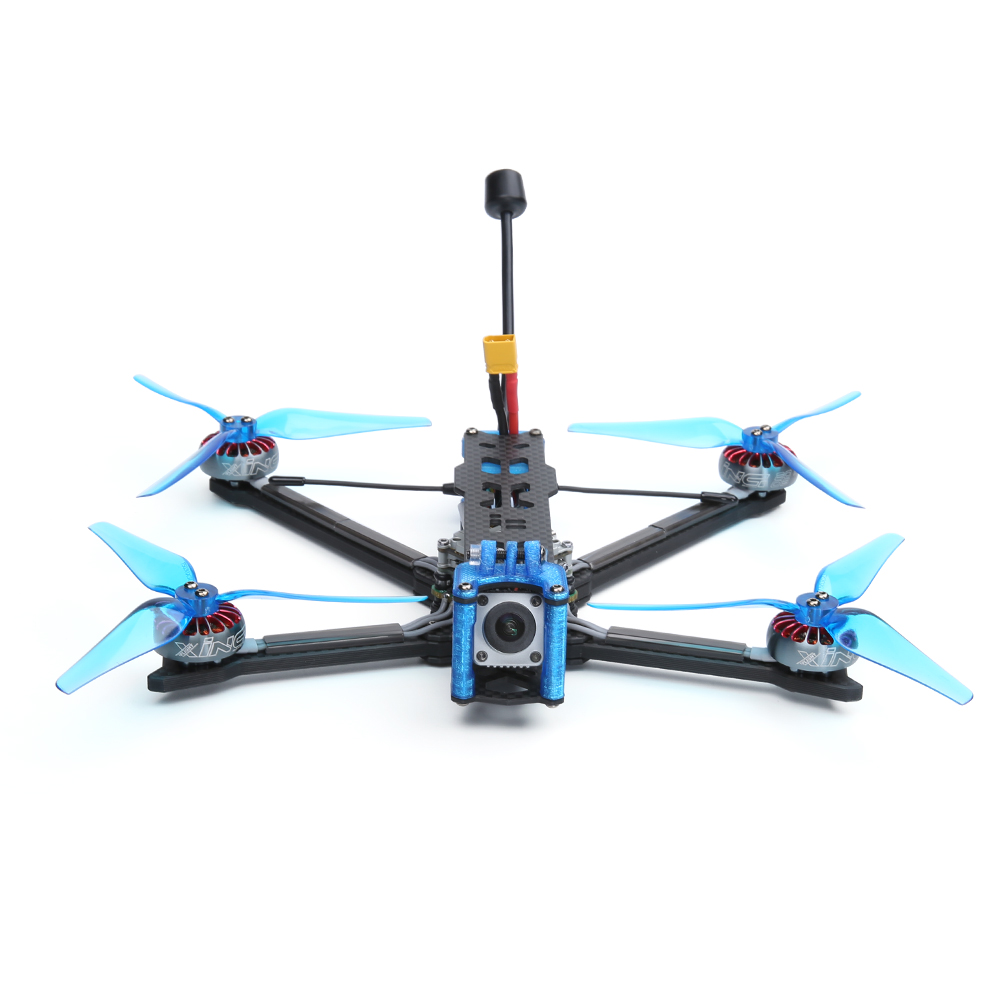

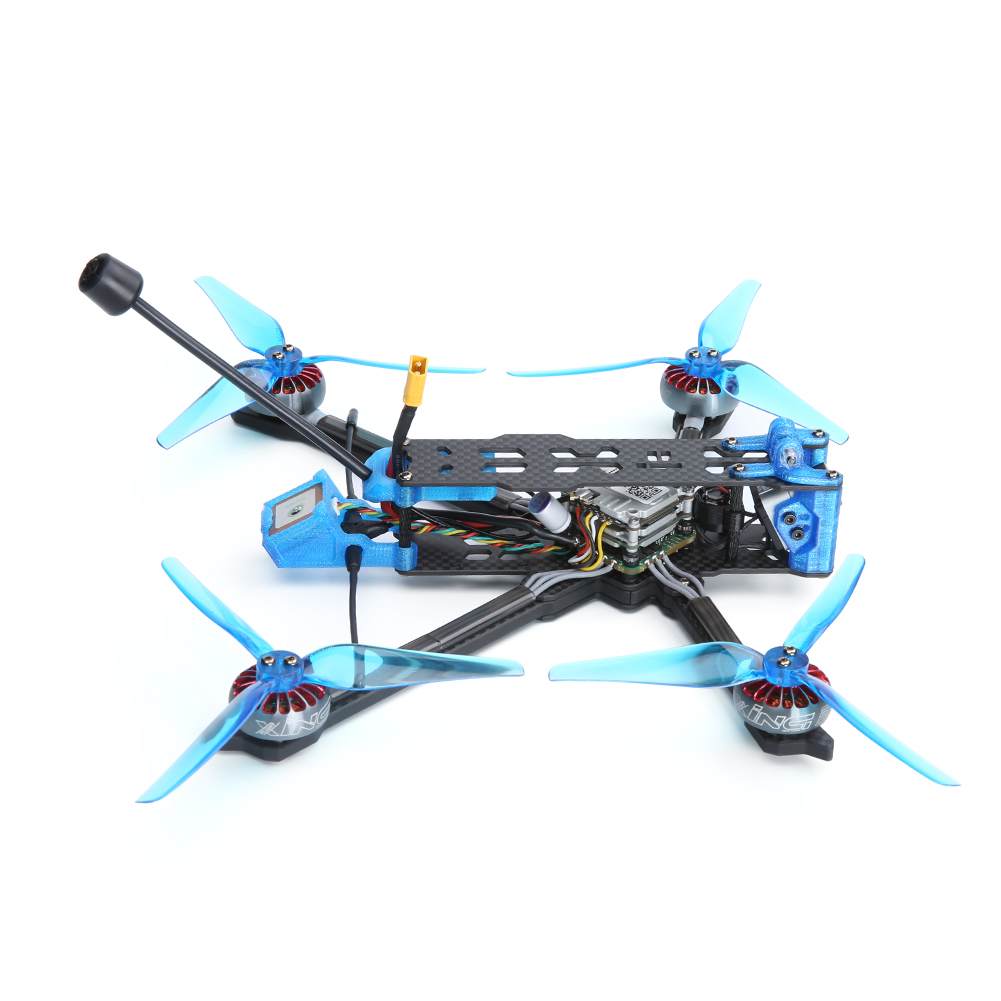

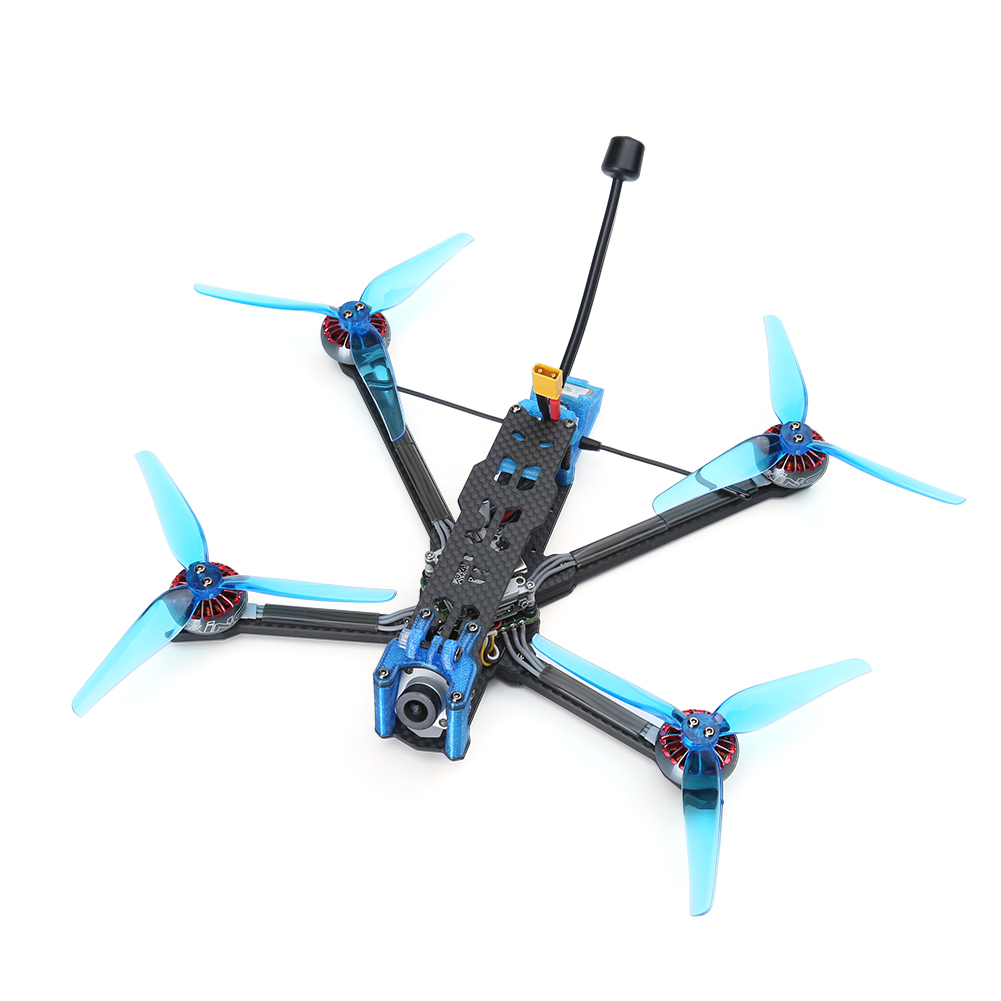

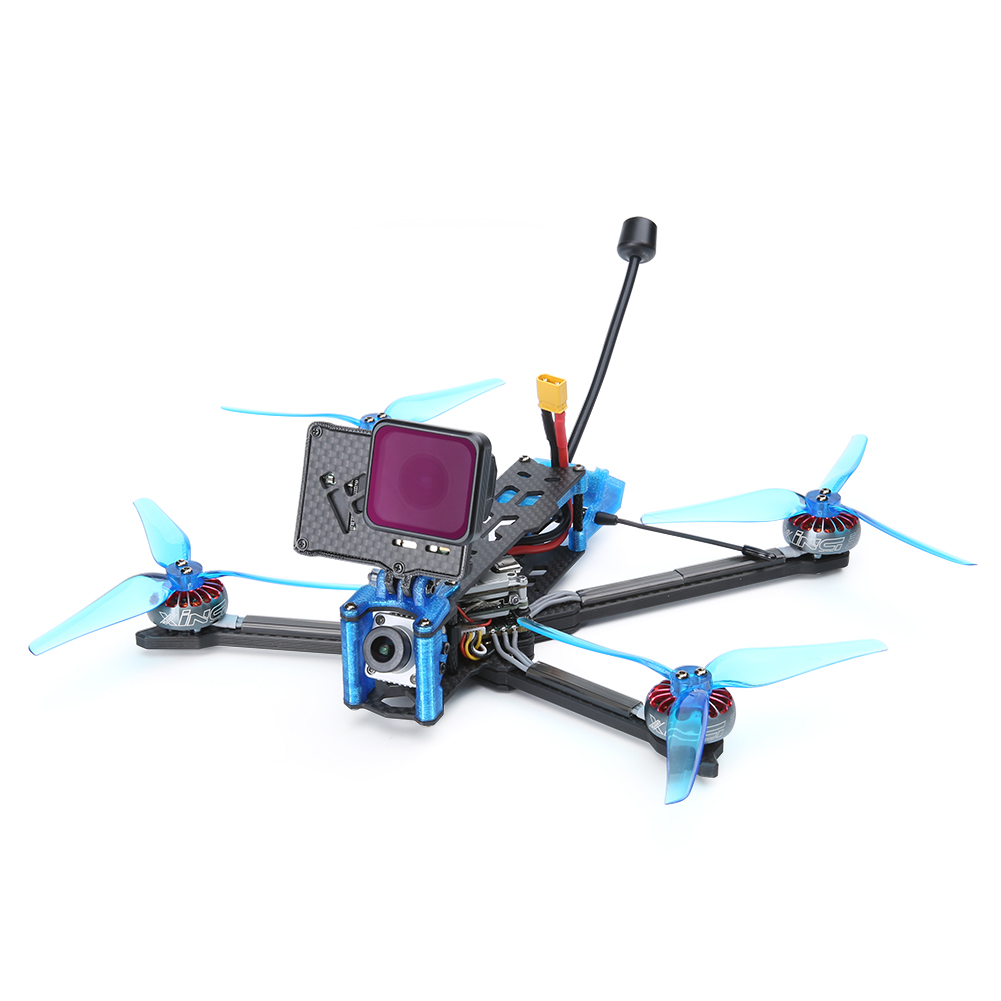

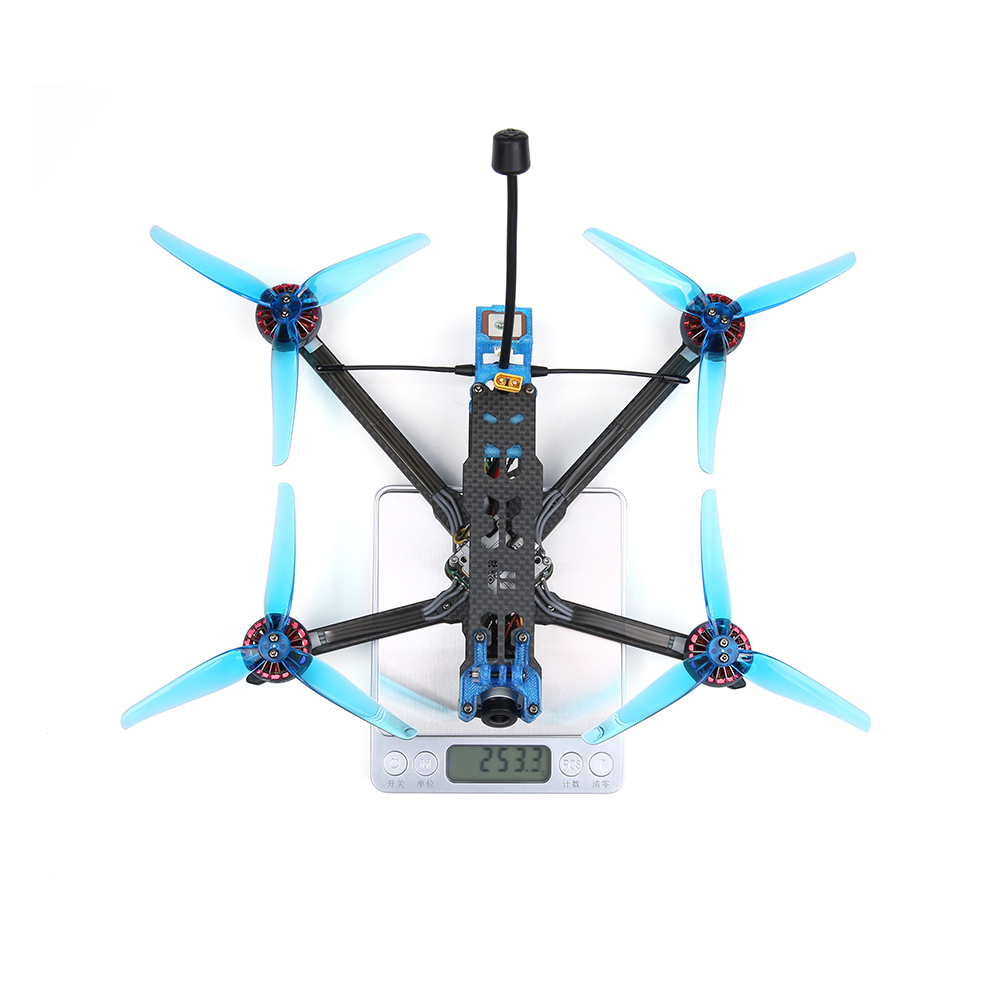

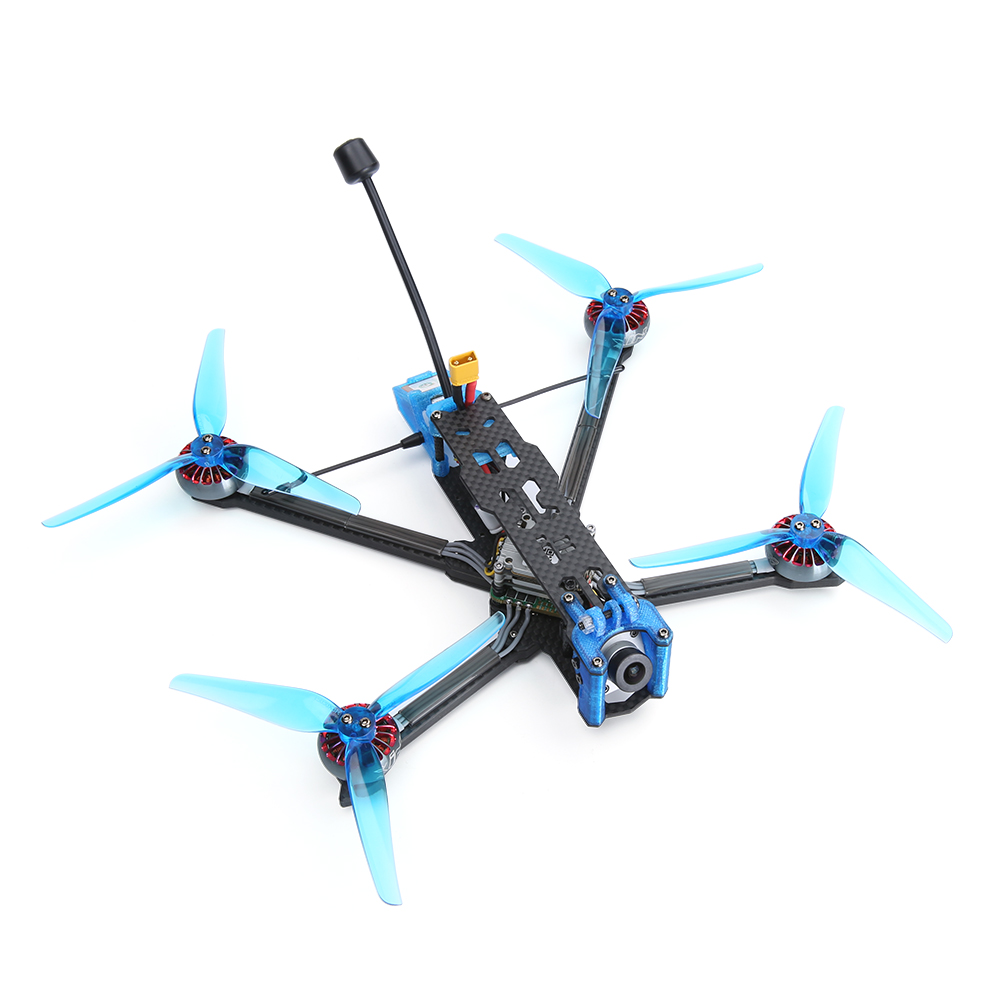

Introducing our first ultra-light Long Range 5 inch BNF for every terrain and beyond. Our newest Beast F7 AIO on board coupled with our XING 2005 motors. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go. Get flight times above 25min using at least Li-On 4S 3000mAh packs. Go crazy and strap a Li-On 4S pack on and go even further, depending on capacity and weight!
GPS Rescue ready for easy recovery in case of signal loss, or even if you've been surfing those mountains and suddenly can't find the way back home.. Betaflight OSD pre-setup GPS elements will show you the way! Custom iFlight 150mm LR antenna for best signal coverage even at long distances.
Outstanding digital FPV experience in 720p directly on your goggles. Custom iFlight 150mm LR antenna for best signal coverage even at long distances.
Expected flight times (cruising, no freestyle, average speed):
Without GoPro: 4S 850mAh, 11-13min // 4S 1300mAh, 14-15min // 4S 3000mAh Lion pack, 22-24min
With naked GoPro: 4S 850mAh, 9-11min // 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min
With full GoPro Hero8: 4S 850mAh, 3-5min // 4S 1300mAh, 4-6min
HIGHLIGHTS:

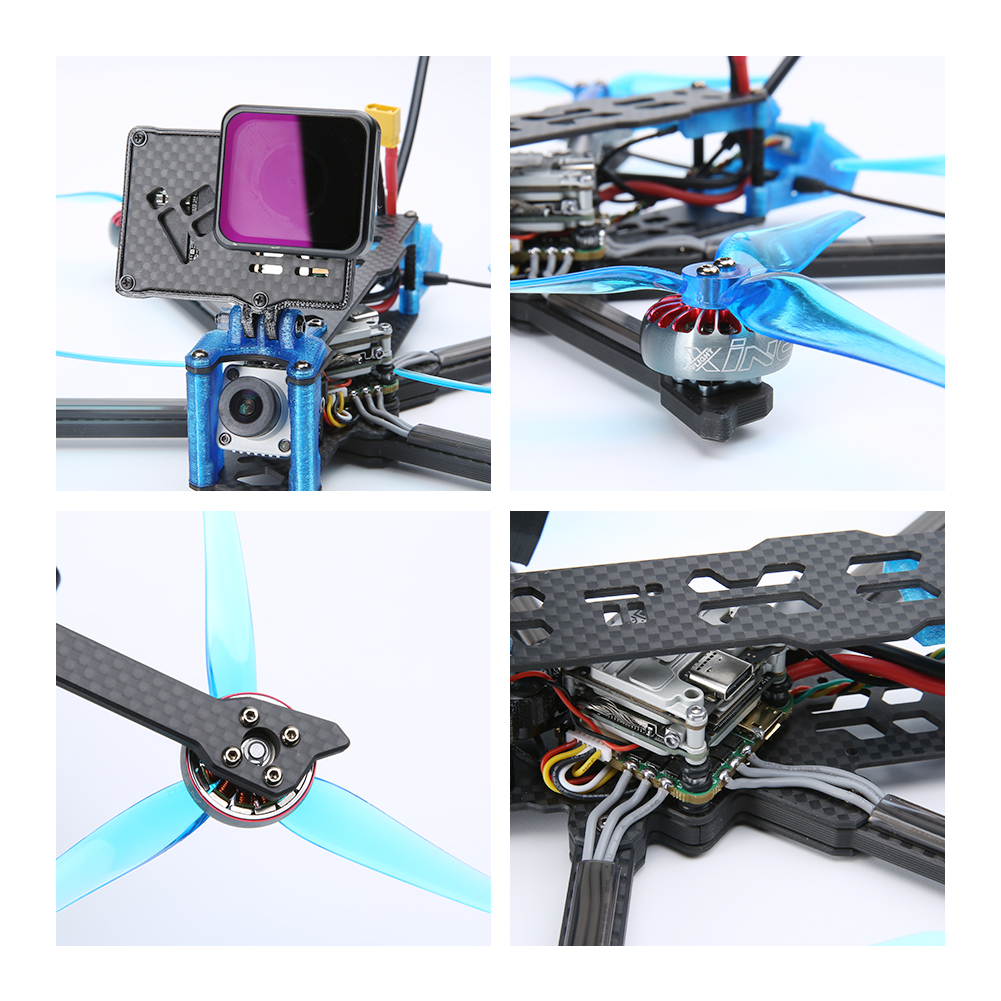

-Mini long-range quad
-XING 2005 2550KV Ultralight motors (Prop mount pattern currently only compatible with iFlight Nazgul Props)
-Deadcat Frame body
-DC (DeadCat geometry) bottom plate, No props in view
-GPS pre-installed for more safety at distance
-Beast F7 45A AIO board

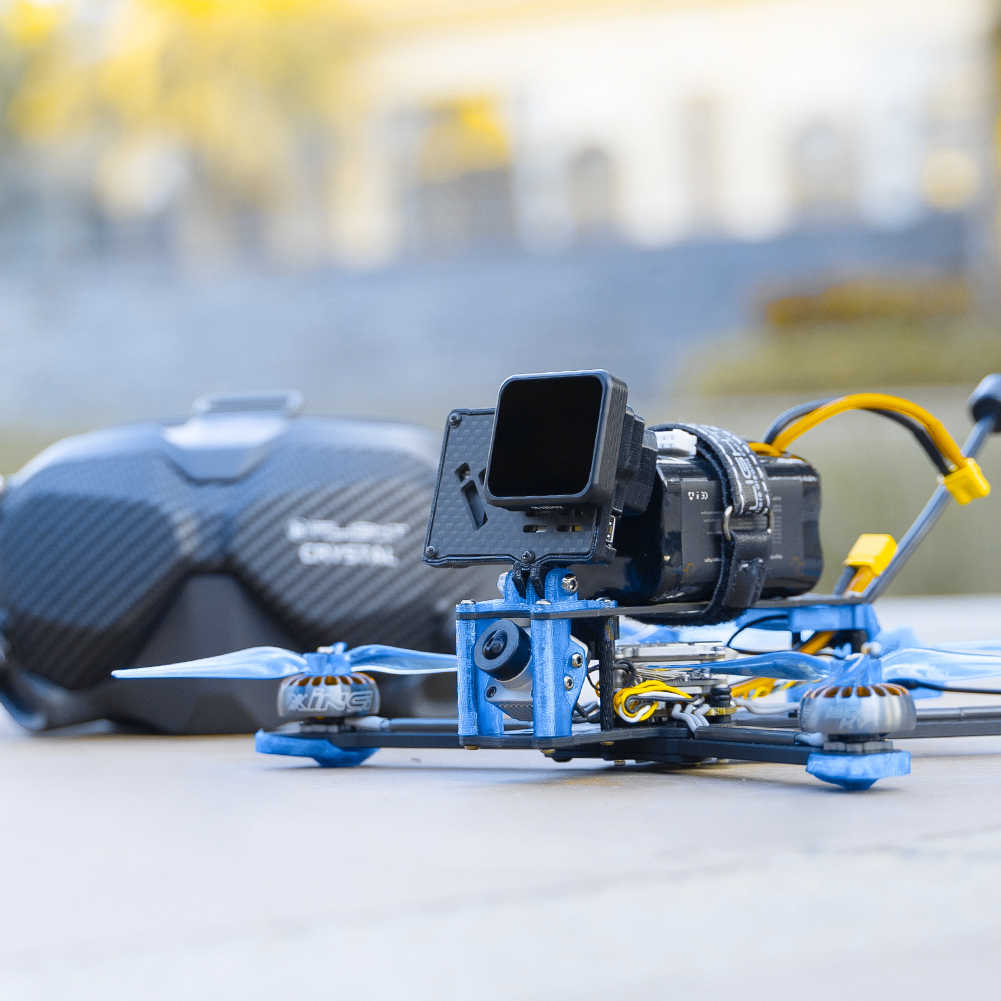

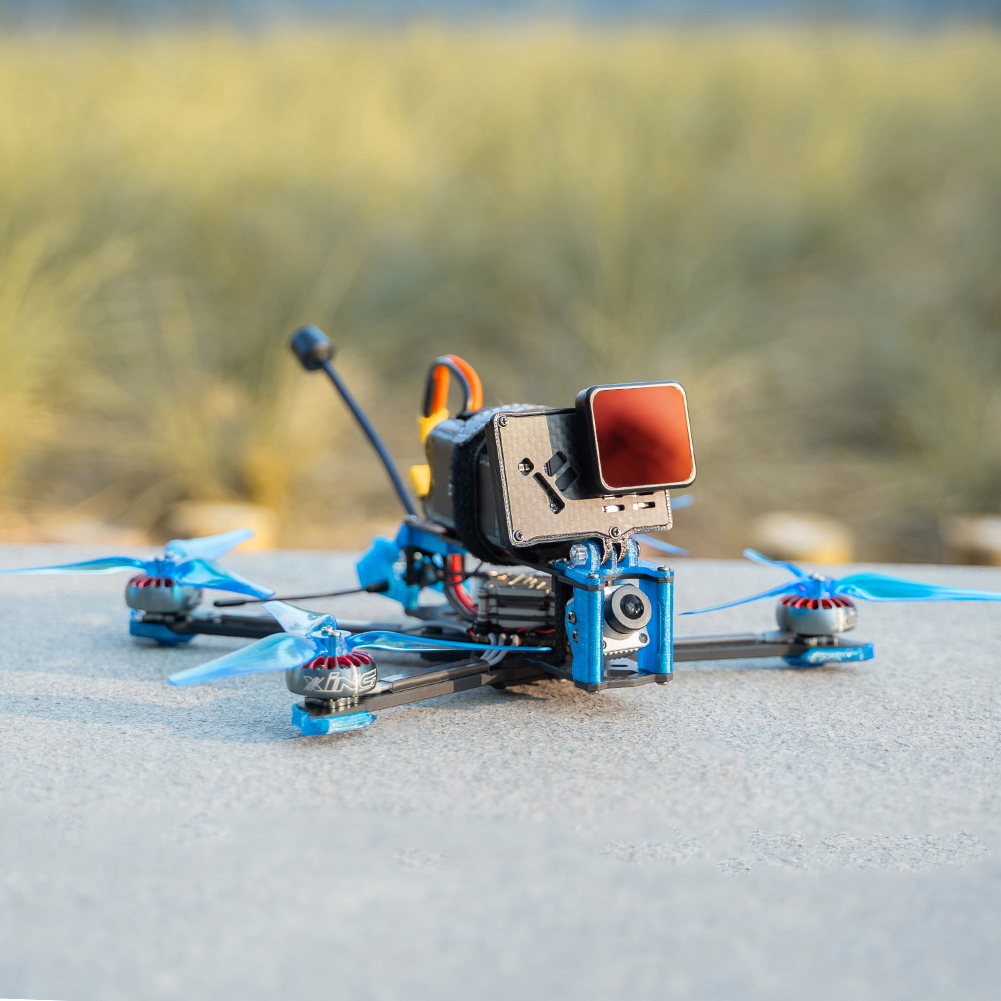

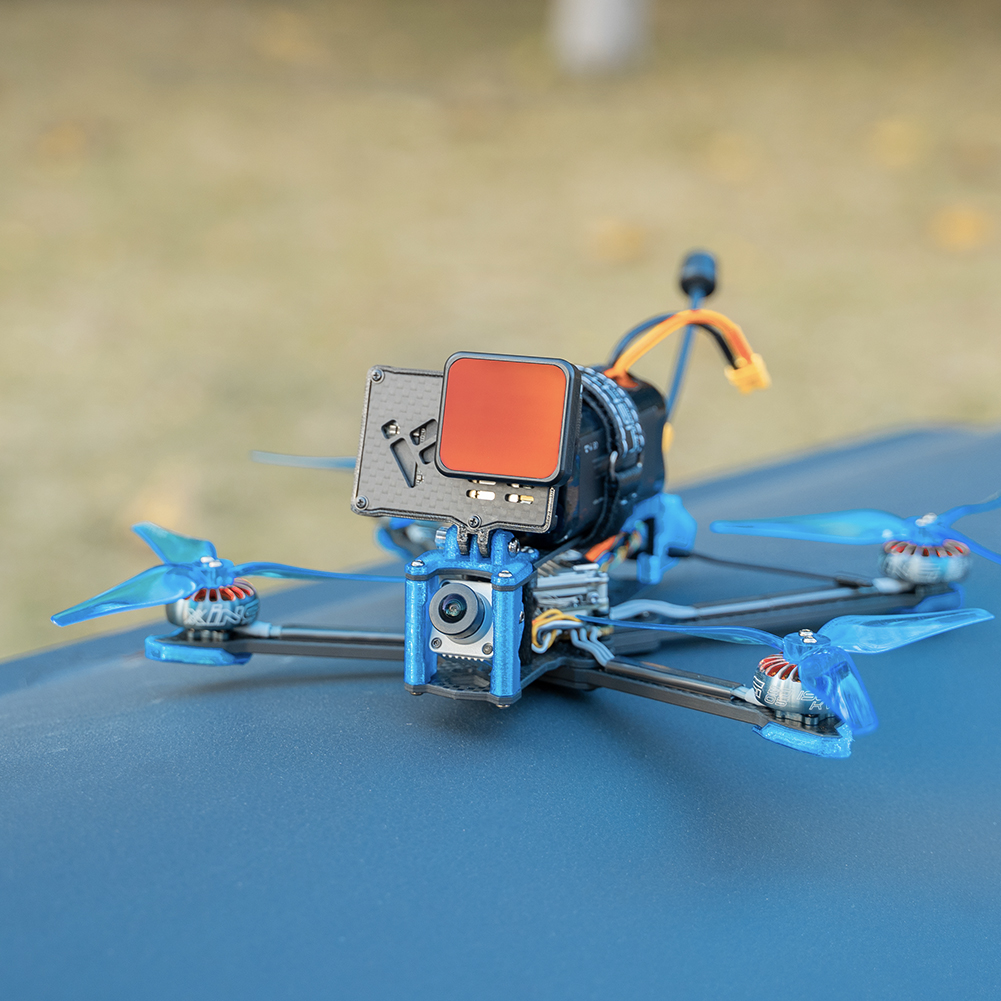

-Naked GoPro ready
-360° TPU protection, Vista cam protection, and antenna mounts
-Caddx Vista Polar Digital HD System (Upgrade from July 29,2021)
PRE-TUNED & PRE-SETUP:
-Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
-To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
-Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
-Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
-GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behavior.
-Please check our linked article on "GPS Rescue Mode // Setup"
FRAME // ：Chimera5

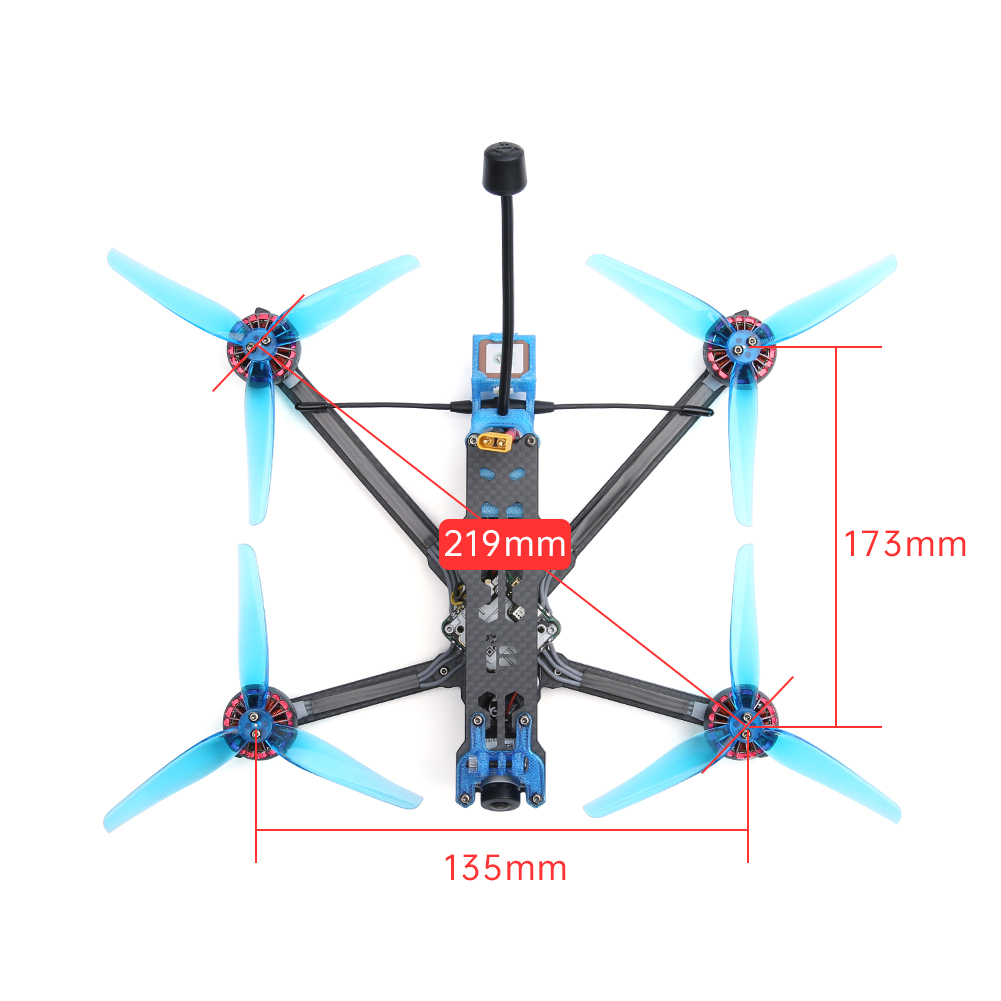

-Wheelbase: 219mm
-Main body dimension: 135*173mm
-Bottom to top distance: 28mm
-Arm thickness: 4mm
-Bottom plate thickness: 2mm
-Top plate thickness: 2mm
-Middle Plate thickness: 2.5mm
-TPU Camera plate
-FC: 25.5*25.5mm/20*20mm
-FPV Cam: 19mm Micro / 20mm
FC // Beast F7 AIO
- MCU: BGA-STM32F745
- Gyro: MPU6000
- Blackbox: 8Mb Onboard Flash
- BEC output: 5V 2.5A
- Barometer: BMP280
- Connector: Micro-USB
- OSD: AT7456E
- FC Firmware：IFLIGHT_F745_AIO
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensions: 32.5*32.5mm
- Weight: 8.5g
ESC // 45A 2-6S
Specification:
- Uarts: 5
- Current Sensor: Yes
- Input: 2-6S LIPO
- Current scale: 200
- Constant: 45A / Burst: 50A
- BLHeli: BLHeli-S
- Telemetry: no
- ESC Firmware: BlheliS G-H-30
- Mounting pattern: 25.5*25.5mm/Φ3mm
- Dimensions:32.5*32.5mm
Chimera5 DC HD Quad BNF Included Components and Parts
- Prebuilt and tested Quadcopter
- 1x Chimera5 DC Frame
- 1x Caddx Vista Polar Digital HD HD System Kit
- 1x Albatross LHCP RP-SMA 5.8g antenna
- 2sets x Nazgul 5030 inch 3-blades (Set of 4 - Color may vary)
- 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
- 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
Additional Suggested Parts (not included)
- Naked GoPro Hero8 Case- DJI HD FPV Goggles V2
