Summary:

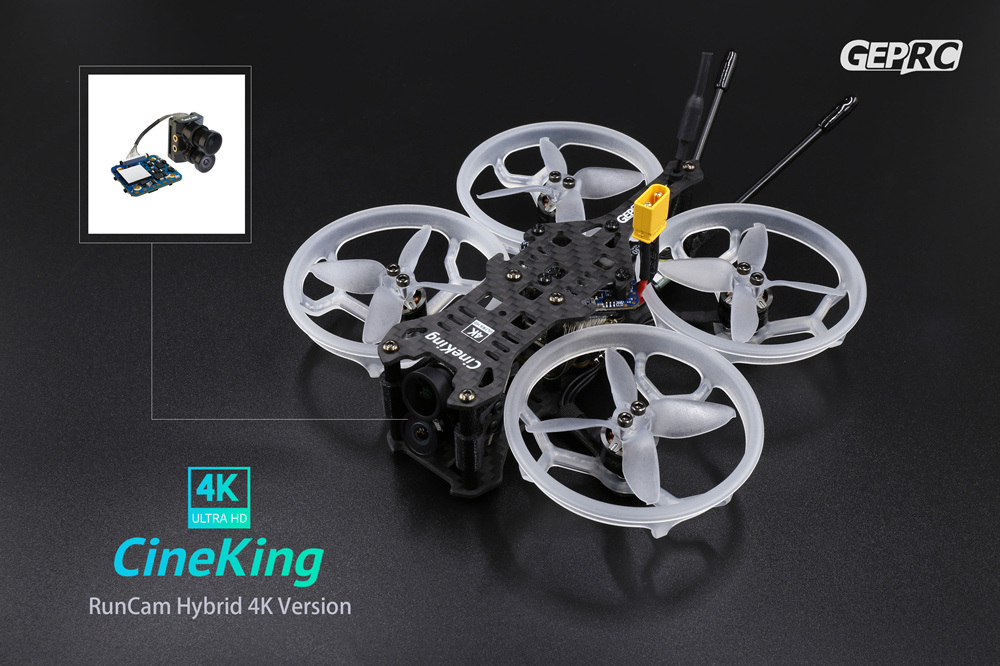

CineKing 4K has been able to complete the shooting task with great success. This time, the Runcam Hybrid 4K version can be added to meet the needs of different customers.

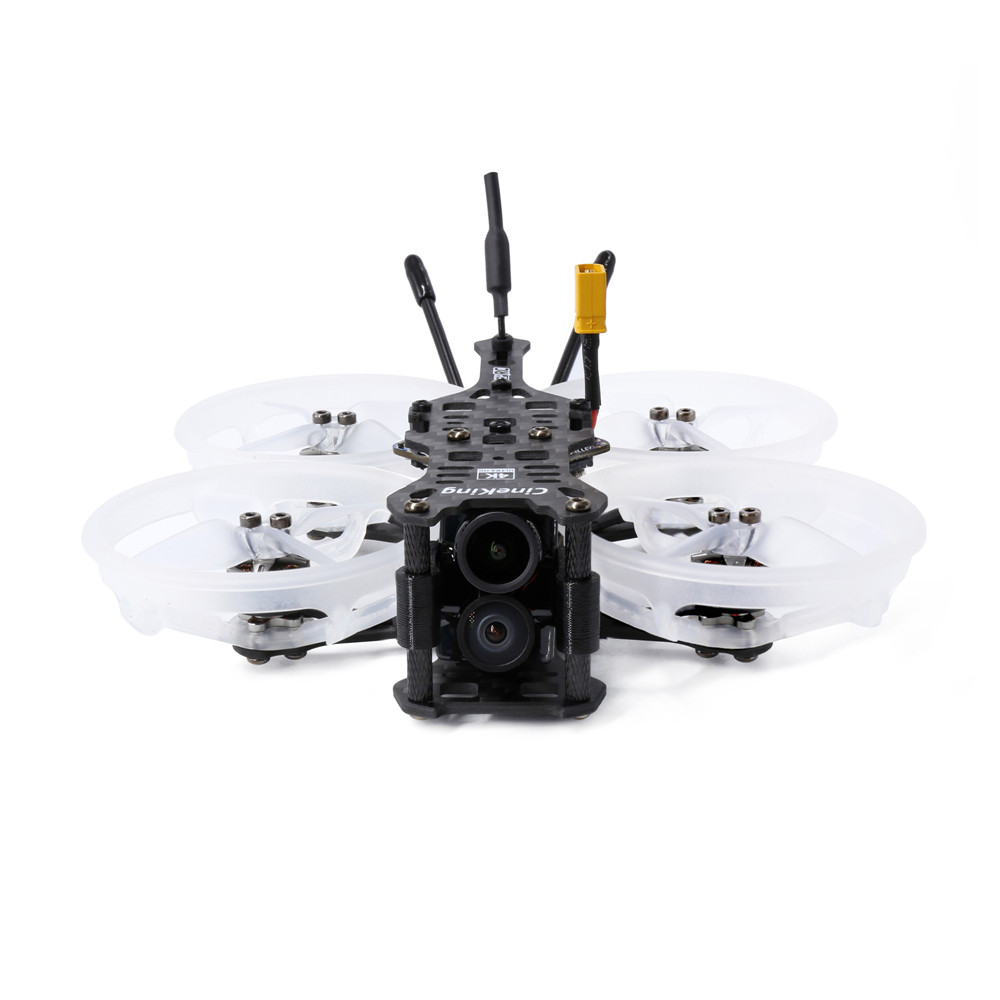

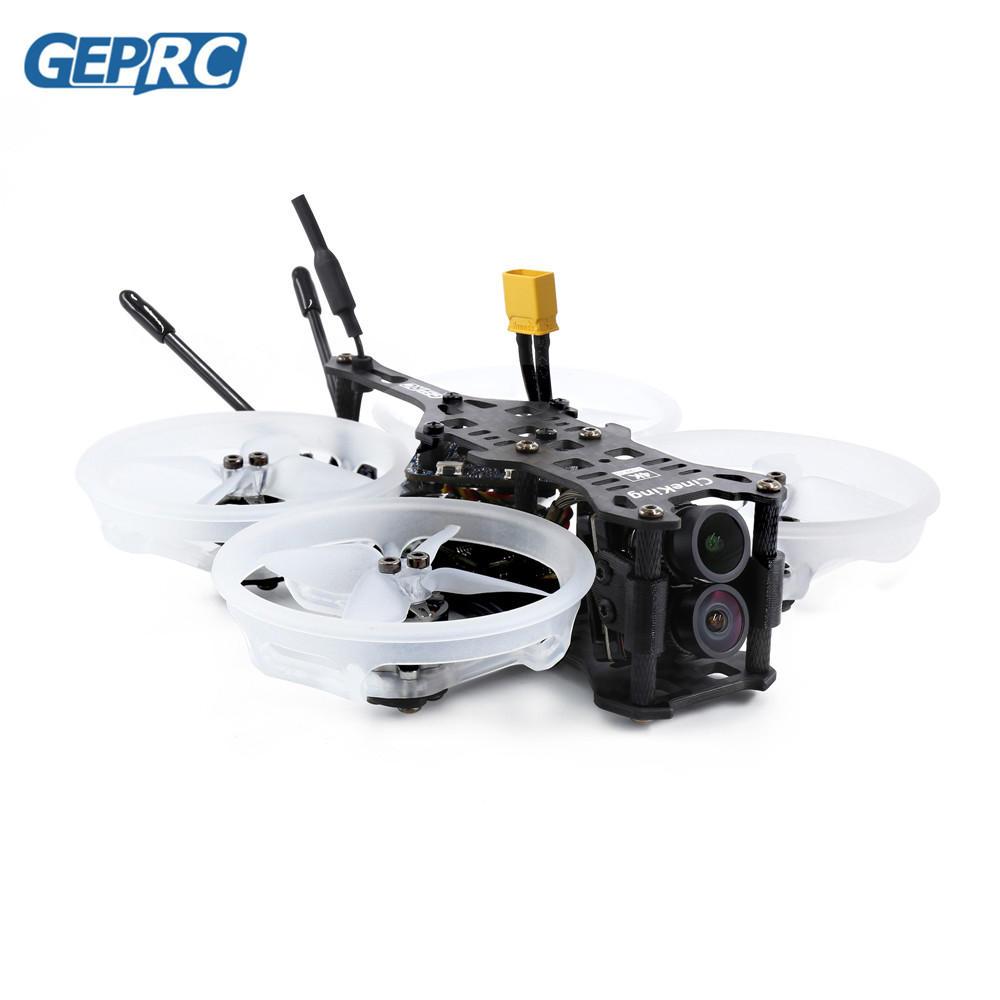

We are pleased to introduce CineKing 4K to you, a lightweight and compact quad which can accomplish some tasks that traditional aerial photographic aircraft can not accomplish, with capability of shooting beautiful and moving film up to 4K 30fps.
CineKing is mainly for indoor shooting, not only aerial photography, but also through obstacles, competitions, etc. The propeller protection is very safe. It has good airflow, safety, durability, and high efficiency, without fear that the propeller will harm people.
CineKing is carefully assembled and tested by the GEPRC team. When you get the BNF suite, you can bing and fly.For PNP suite, you need a sbus reciever of your own.
Features:
- Runcam Hybrid HD Video Recording: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps

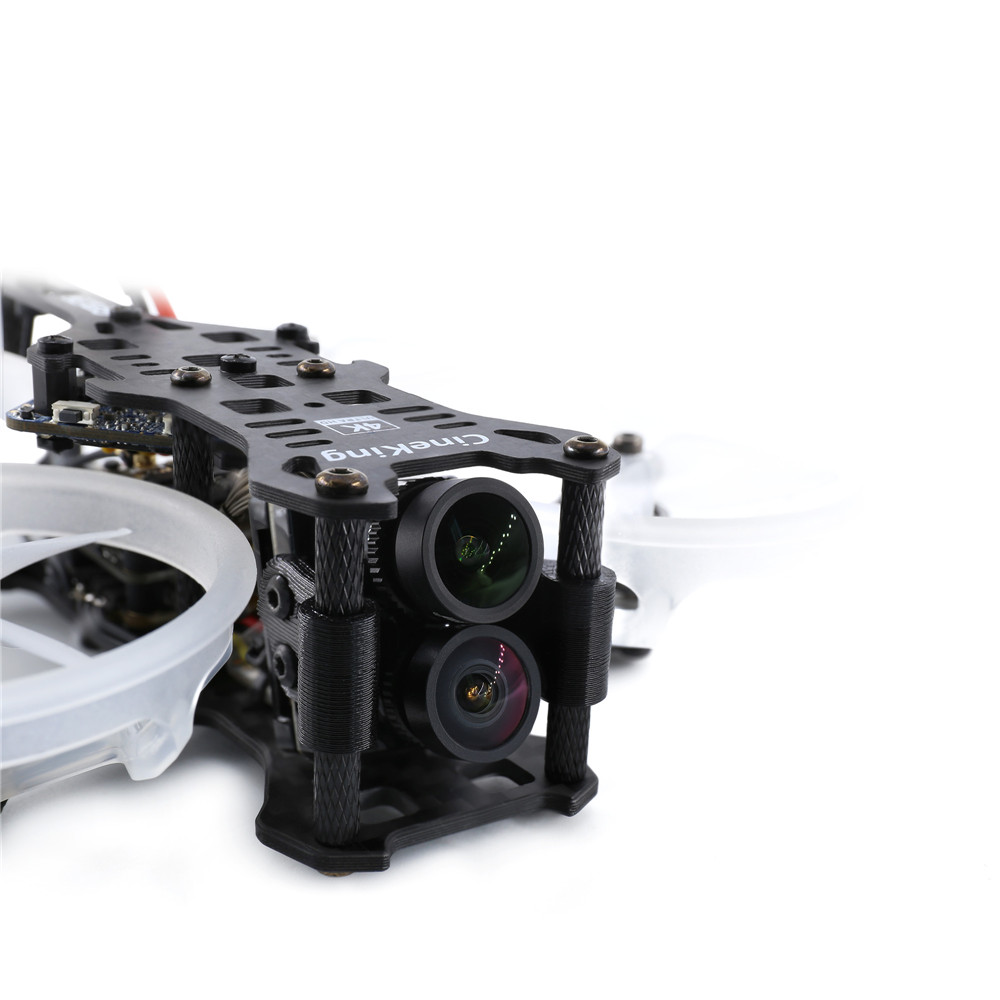

- Dual Camera System: True 145° Wide Angle 4K HD & FPV Camera
- New Propeller Guard: Better airflow, higher flight efficiency.
- Using STABLE F411 electronic system, which is very stable.
- Full Soft Mounted FC System: Provides a clean operating environment for gyro.
- Say Goodbye to Jelly: Stable video and comfortable FOV.

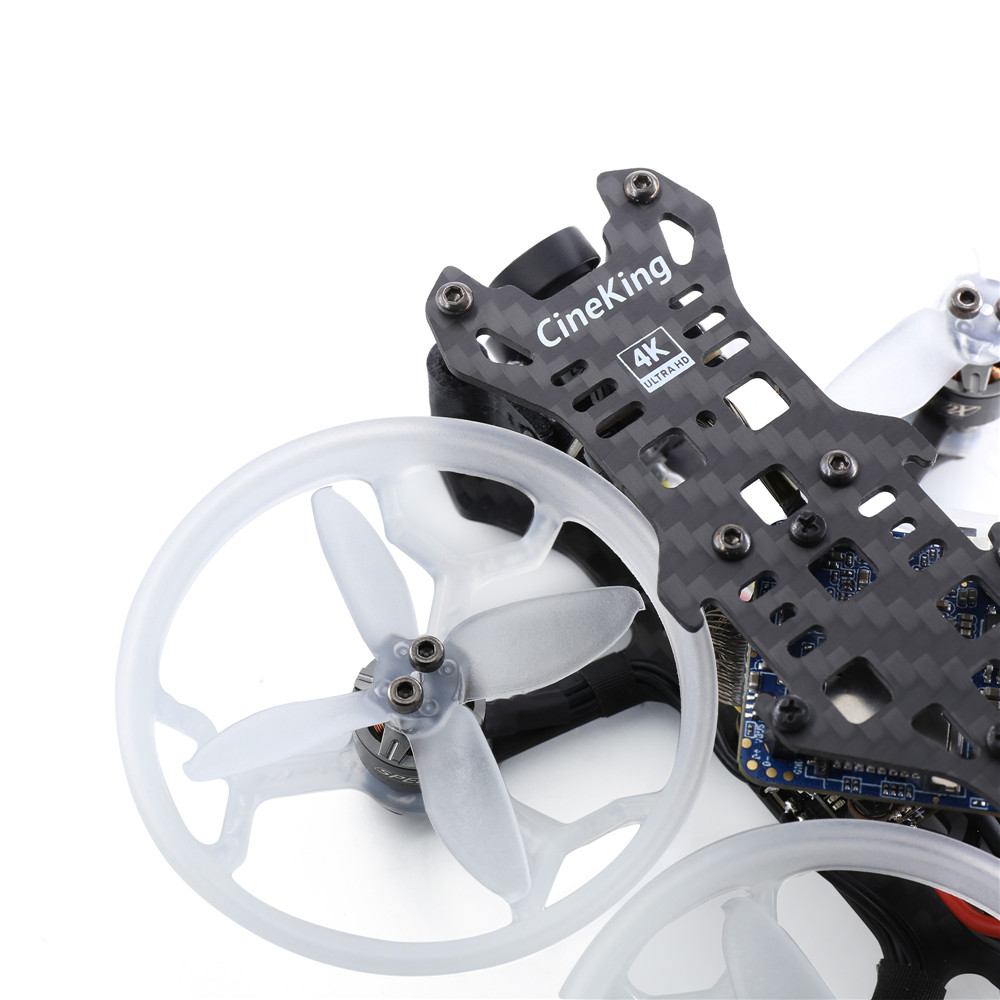

- The newly designed GEP-CK2 frame has a more reasonable layout.
- Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.
- Exquisite Assembly Process: Eliminate any potential installation problems.
- Fine pre-tuned PIDs by GEPRC team, you can bind and fly.
Specifications:
- Model: CineKing
- Frame: GEP-CK2
- Wheelbase: 95mm
- FC: STABLE F411 SYSTEM
- Camera: RunCam Hybrid 4K
- Propeller: 2inch
- Receiver option: Frsky XM+/ Frsky R-XSR//TBS Nano SE/FlySky

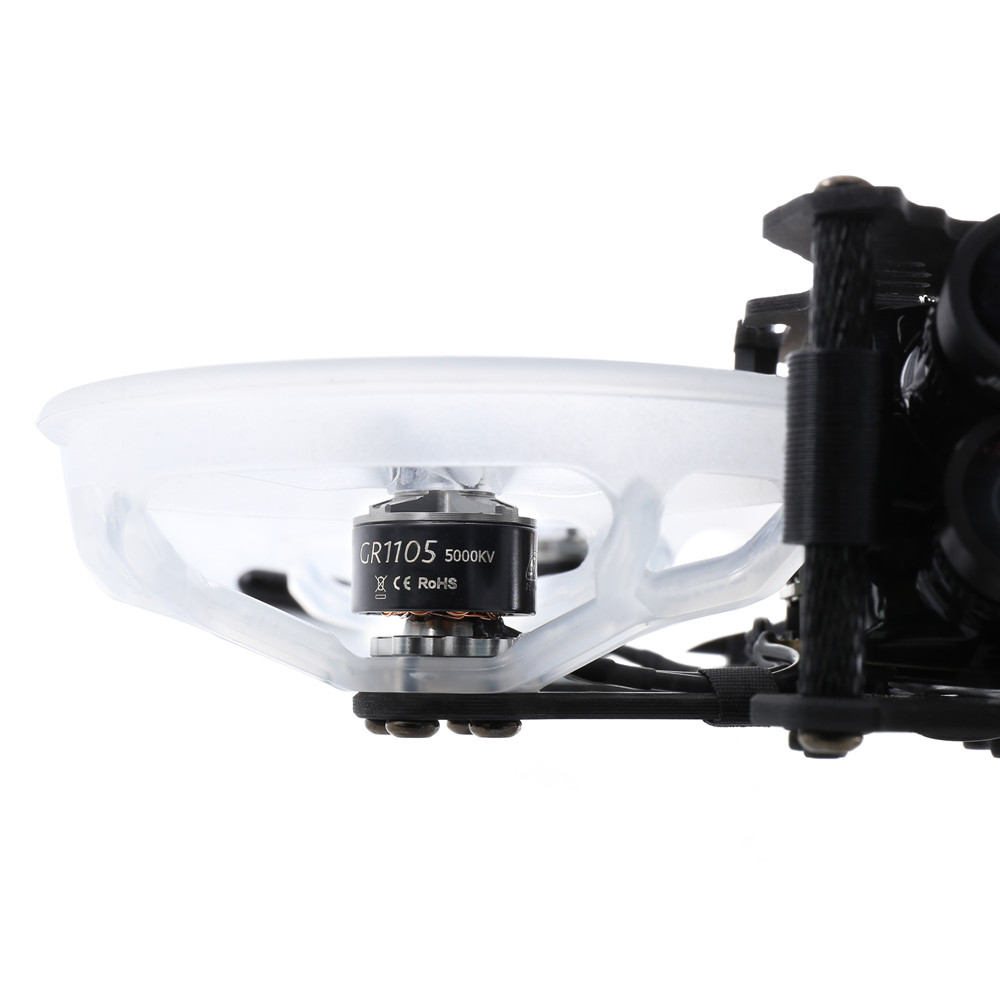

- Motors: GR1105 5000KV
- Recommend battery: 3-4S 450-550mAh Battery
- Weight: 4s version 99g (Without battery)
Specifications(Runcam Hybrid 4K):
- HD sensor:SONY 8MP
- Analog sensor:SONY 1.3MP
- Field of View (FOV):HD Recording FOV 145°(FPV FOV 150° @ 4: 3)
- Video Resolution:4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
- TV Mode:NTSC (720*480)/PAL (720*576) Switchable
- Interface:HD supports UART remote control; FPV(Analog) supports UART fimrware update.
- Lens Specs: HD Lens : M10 FPV Lens : M8
- Power Input:DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with battery will generate surges and burn the camera.)
- Working Current:480mA @5V / 140mA @12V
Max Micro SD Card Supported: Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.

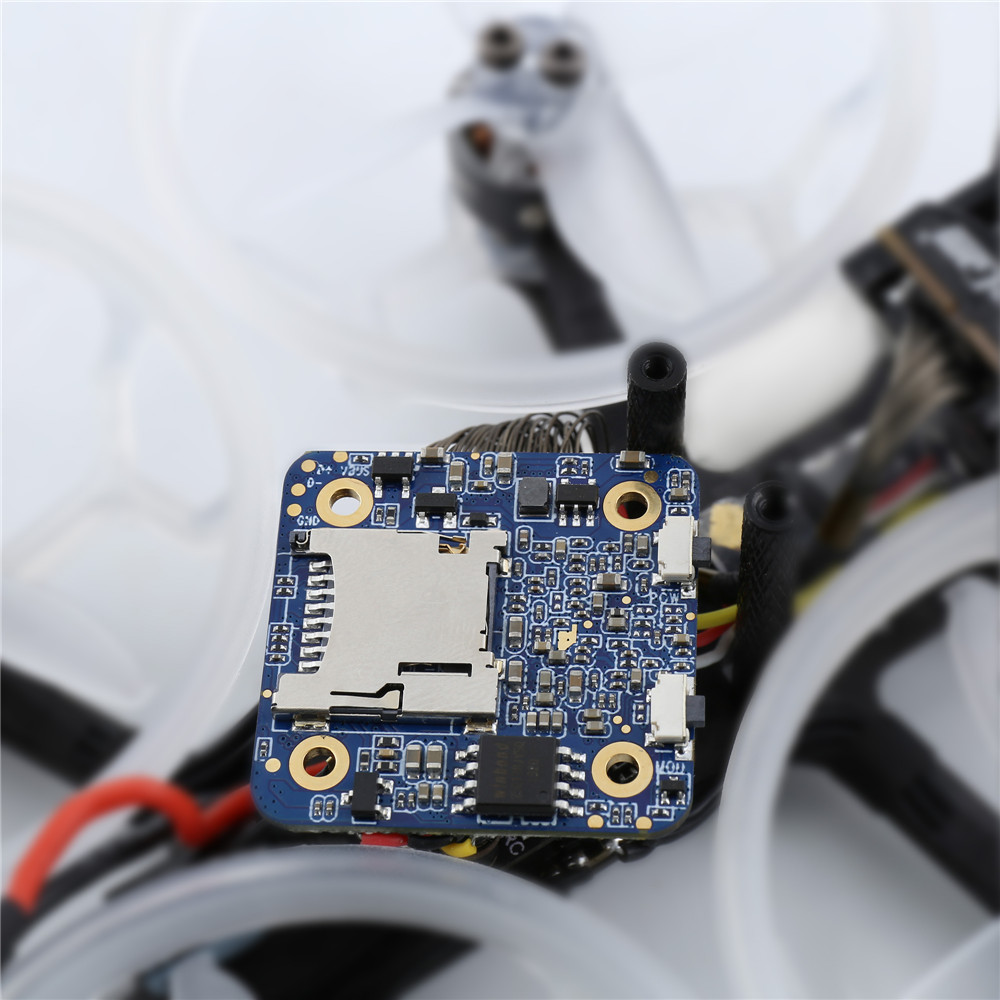

Runcam Hybrid 4K:
Manual

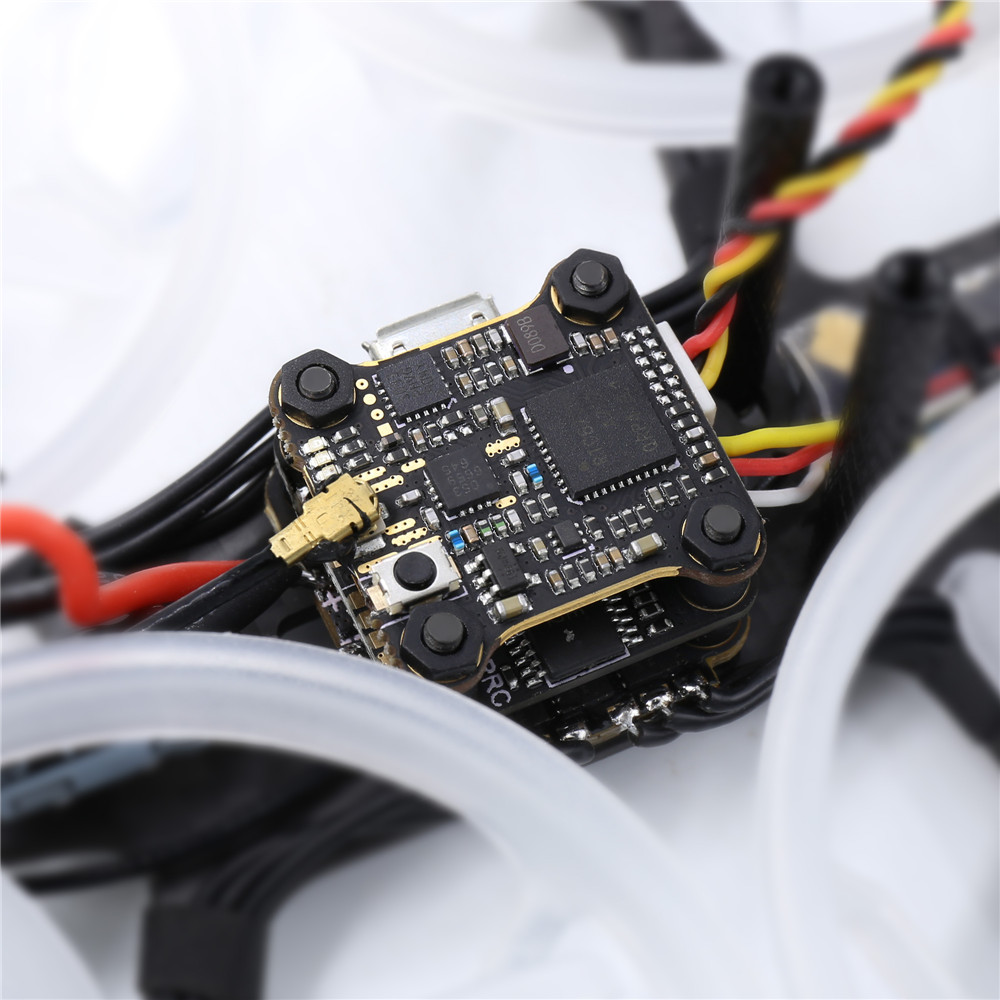

STABLE F411 Micro System:
STABLE F411 Flight Controller(16*16mm)
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@2A
- Size: 21mm*21mm
- Mounting holes: 16mm*16mm
- Integrated LC Filter
- Input voltage 2-4S LIPO
- Firmware target: MATEKF411
STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)
- MCU: BB21F16G
- Continuous current: 12A
- Input voltage : 2-4S LIPO
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Size: 23mm*21mm
- Mounting hole 16*16mm
- Firmware target: Blheli_S G_H_30
- Current meter: 210
STABLE F411 VTX 5.8G 200mW(16*16mm)
- Power : PIT/25/100/200mW
- Antenna interface : IPEX (UFL)
- Telemetry: IRC Tramp
- Size: 17mm*27mm
- Mounting holes: 16*16mm
- Integrated LC Filter
Package Included: 1 x CineKing 4k Runcam Hybrid FPV Drone
