Introduction:

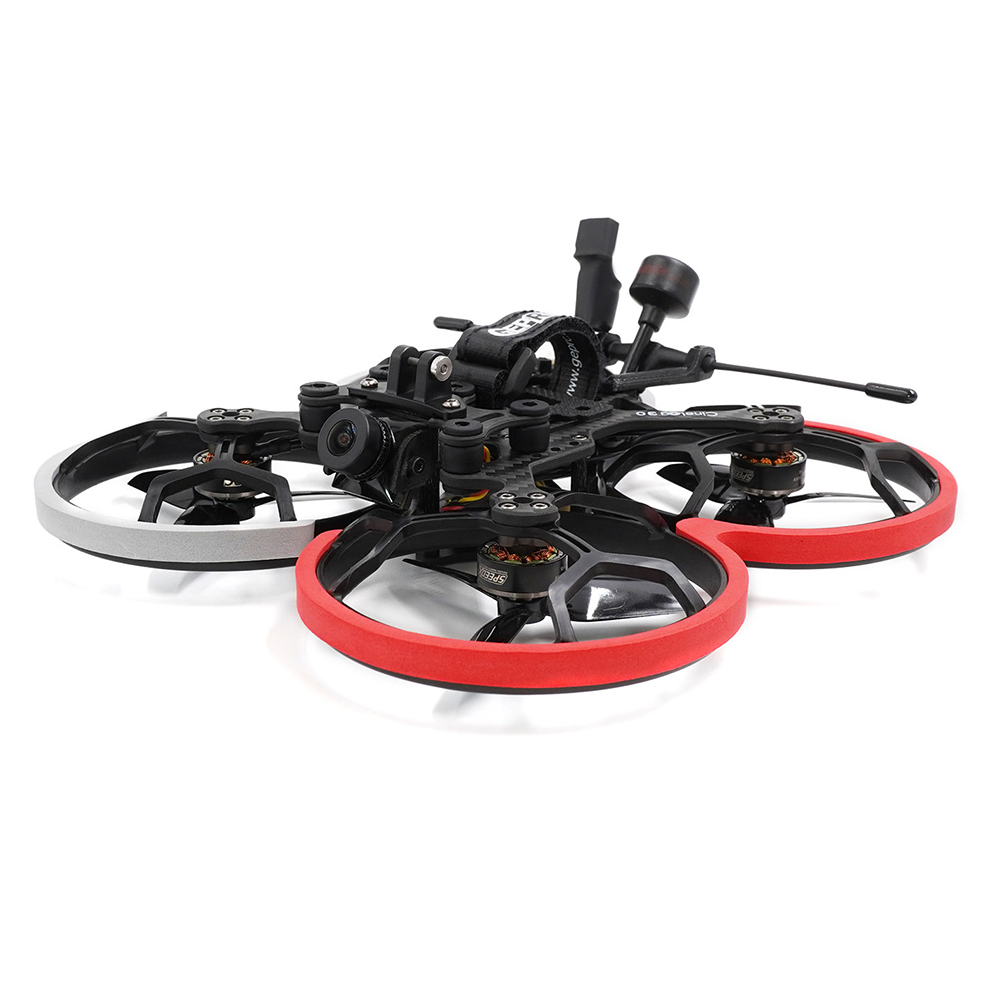

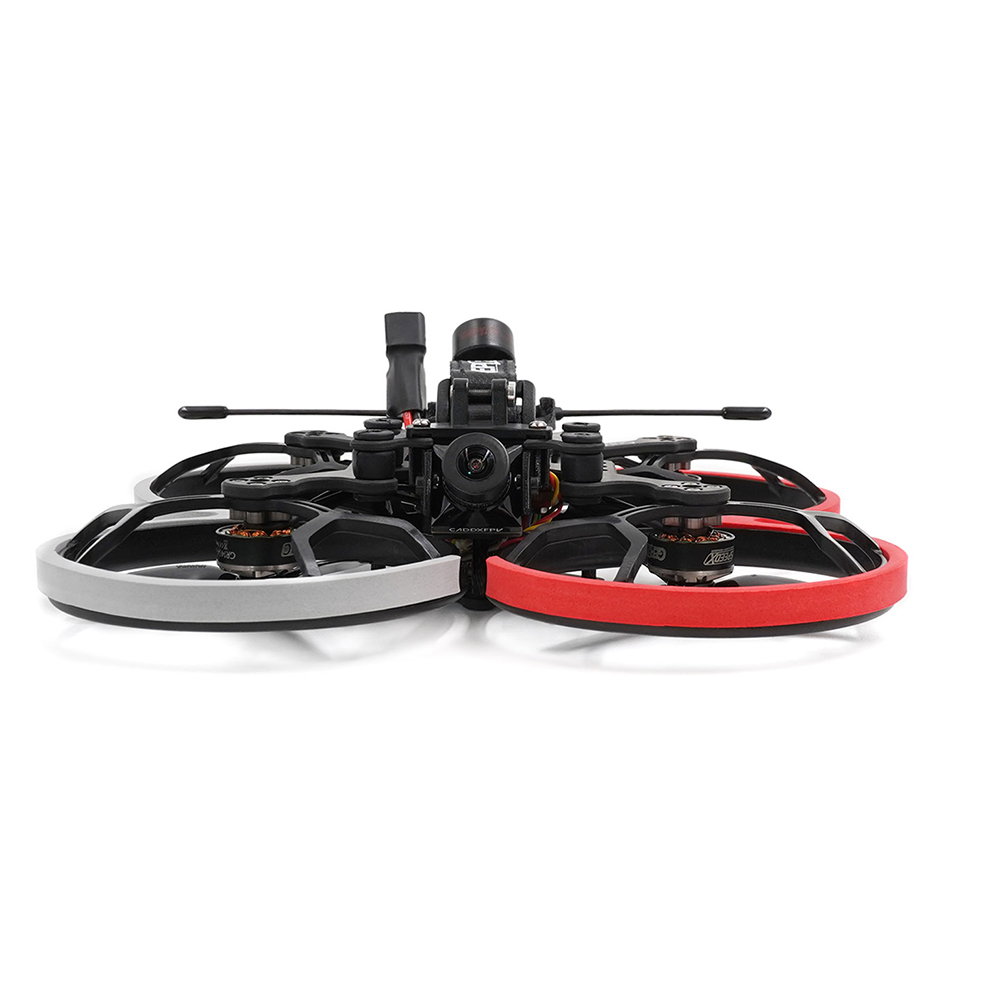

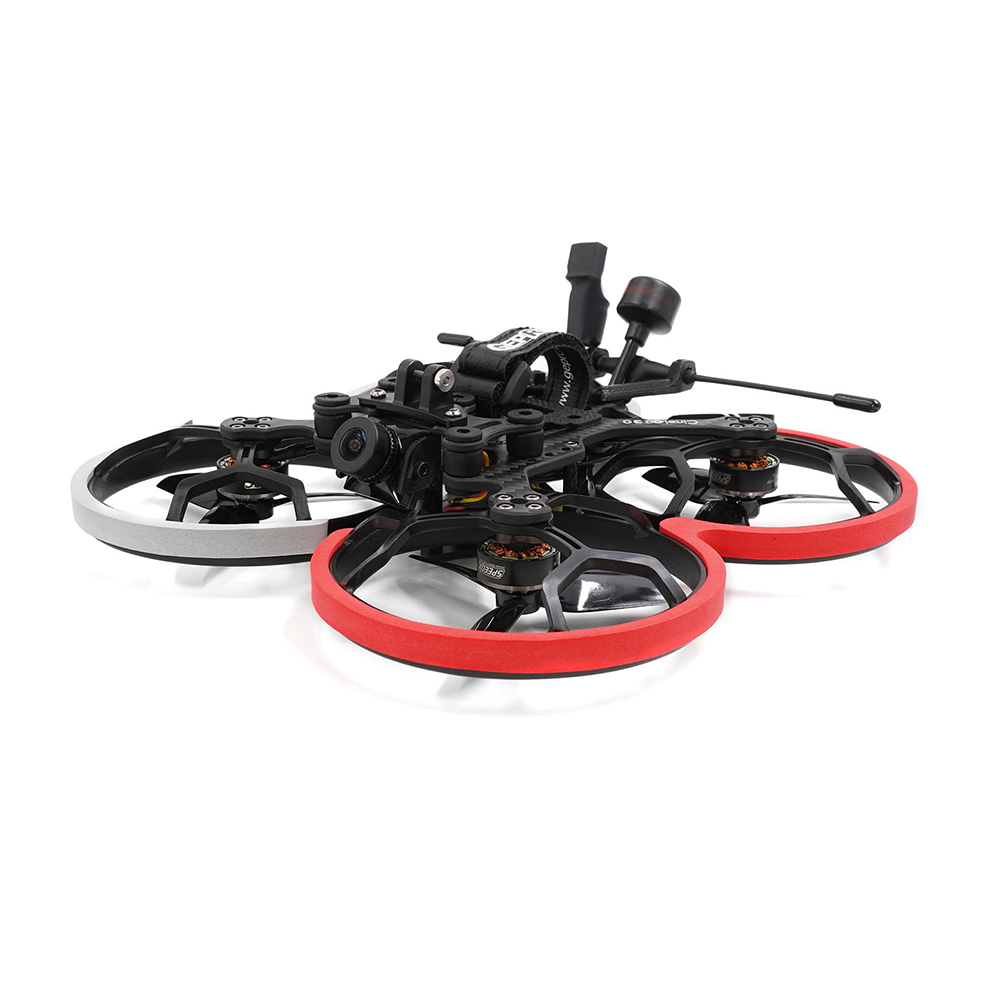

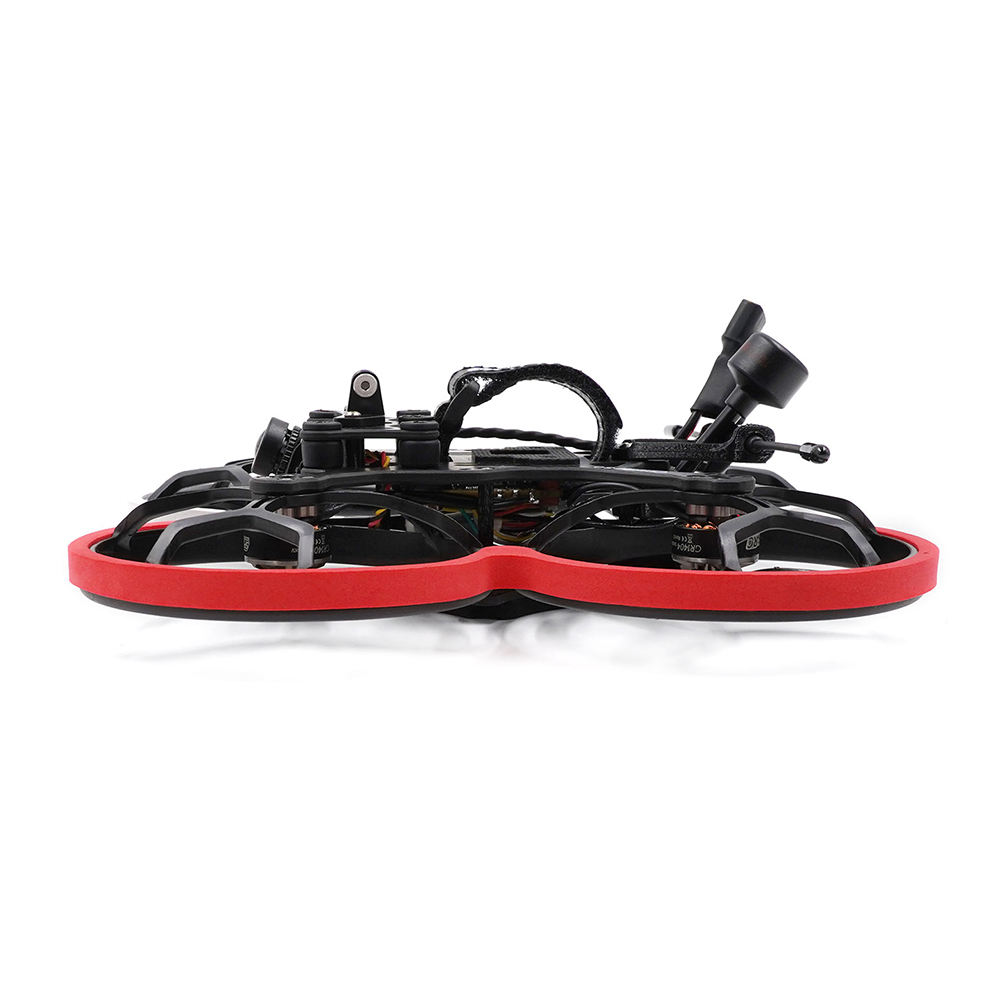

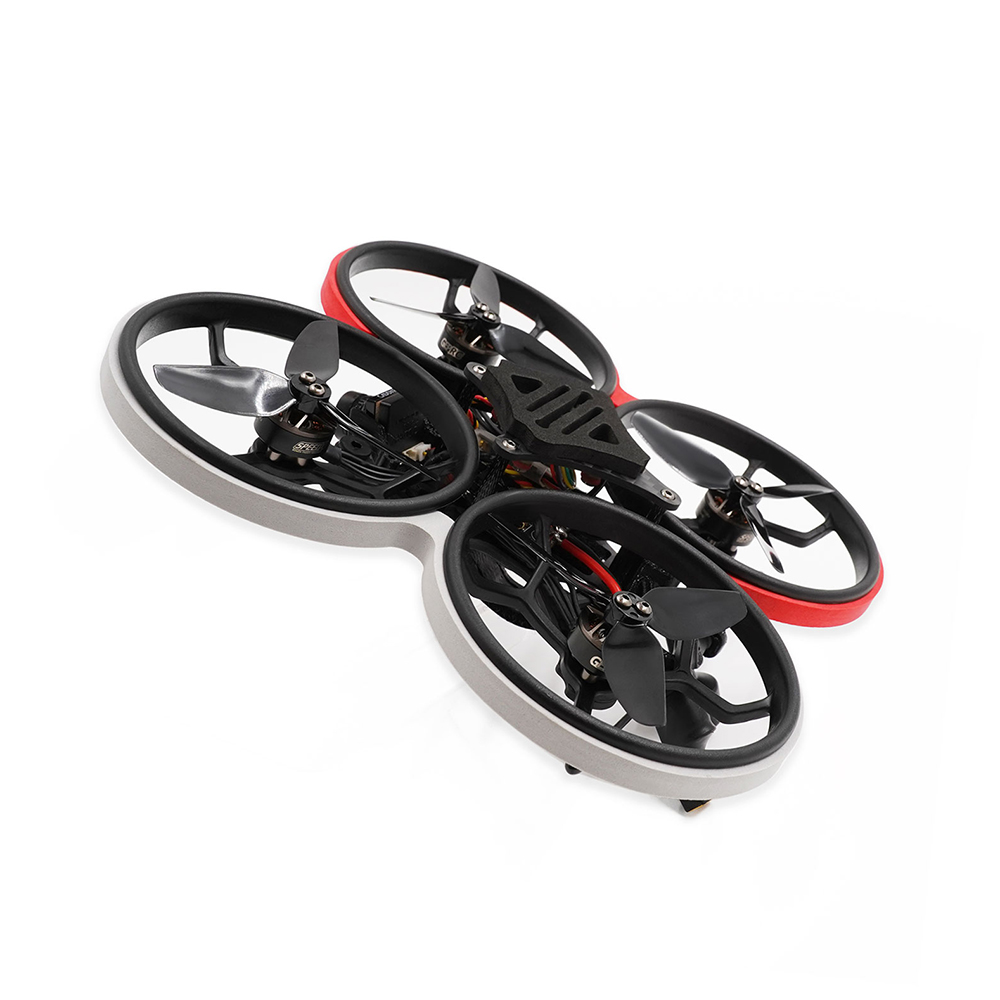

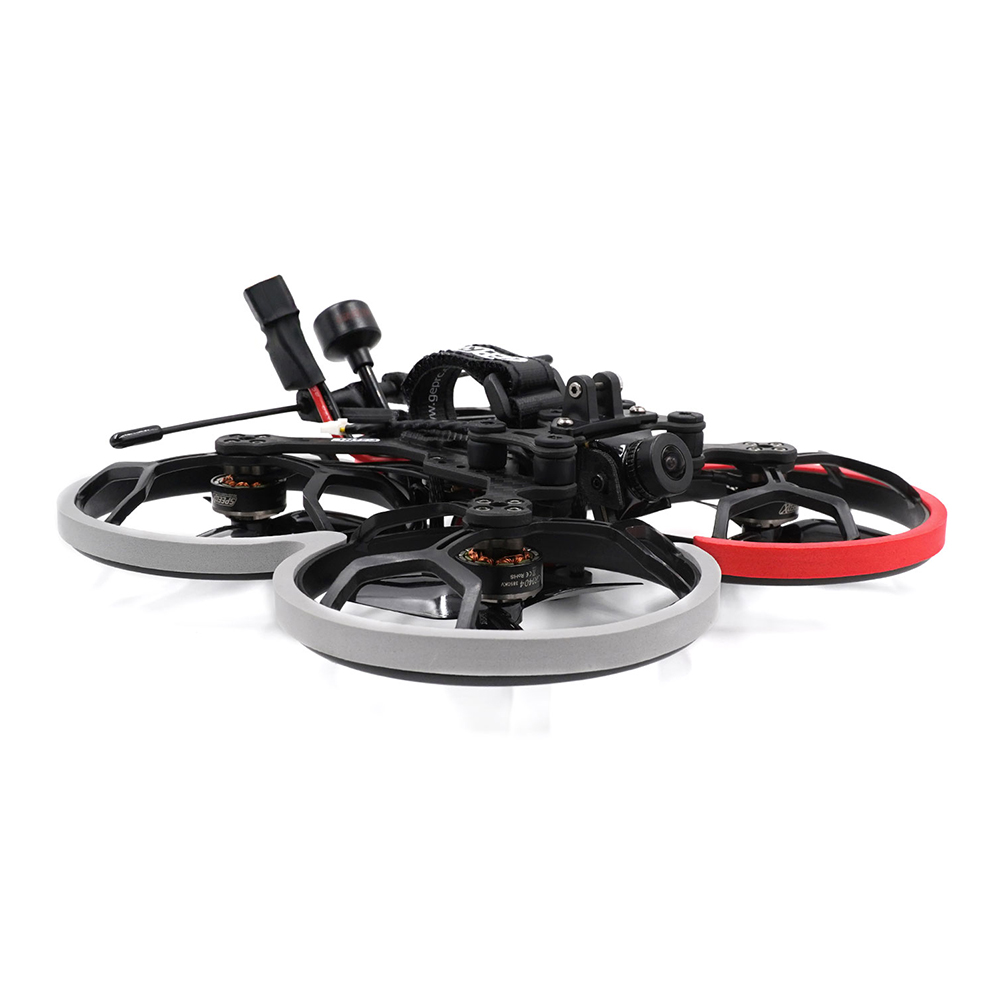

CineLog30 is developed on the basis of cinglog25. It has a stronger power output with 1404-3850kv motor and T3 x 3 x 3 propellers.Ultra light fuselage weight, and CineLog30 Analog equipped with 4s660mah battery take-off weight is only 204g.The duration of the flight is 7.5 minutes.The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed,with the mounting base.
We pursue lighter weight, better flying feel and more extended functions of the Quadcopter.
Features:

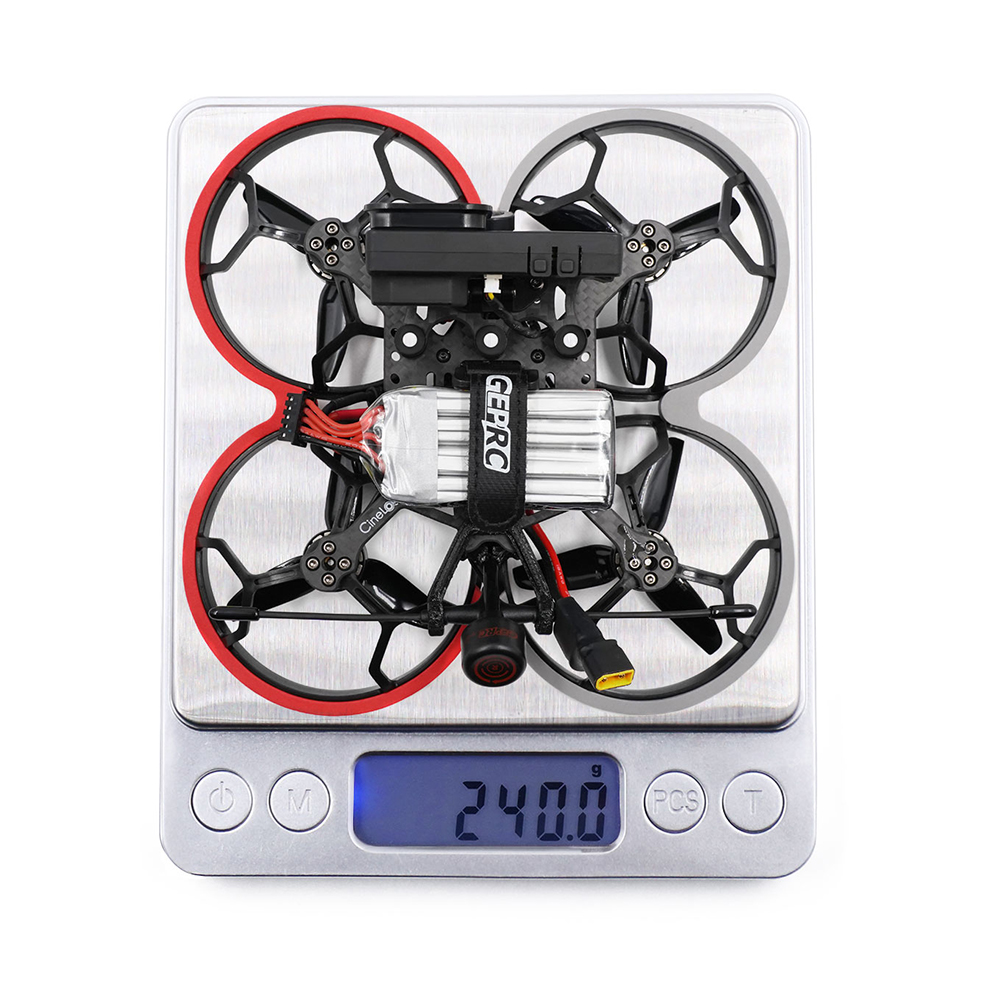

Small size, light weight, with GEPRC 4S 660mAh battery, take-off weight is only 204g.

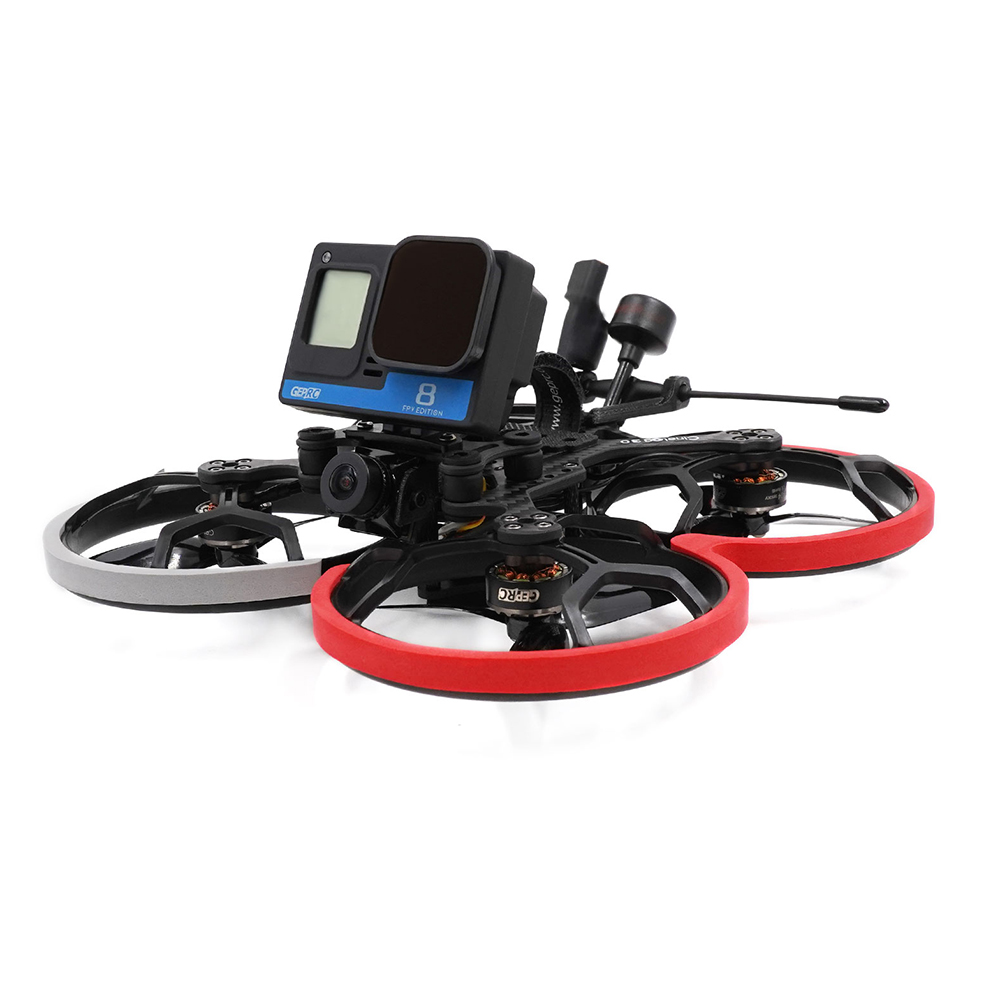

The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed, with the mounting base.
Continue the unique design damping pan tilt ， and adjust the number of damping balls according to the scene.
1404-3850KV motor with T3x3x3 propellers, strong power output.The duration of the flight is 7.5 minutes by 4S660mAh LIPO Battery.
Description:
Model: CineLog30 Analog
Item Name: 126mm F4 3 Inch FPV Racing Drone
Receiver: PNP(Without Receiver)/Frsky RXSR /TBS Nano RX (Optional)
Antenna: GEPRC Momoda 5.8g MMCX RHCP 100mm
CineLog30 Analog weight: 140g
| 126mm Frame Kit | Frame: GEP-CL30 Motor to Motor: 126mm Top plate: 2.0mm Bottom plate: 2.0mm Arm plate:3.0mm |
| F4 Flight Controller AIO 35A ESC | Model: GEP-F411-35A AIO FC MCU: STM32F411 |
| Onboard 35A BL_S 4in1 ESC | ESC MCU: 8BB21F16G Intergrated LC Filter Continue Current: 35A Burst Current: 40A(10s) Input Voltage: 2~6S (LIPO Battery) ESC Protocol: Dshot300/600,Oneshot42/125,Multishot Current meter: 210 Blackbox:16Mb ESC Target: G_H_30 BLS Size: 32x32mm Board Mount Holes: 26.5×26.5mm,M2 Weight: 8.3g |
| GR1404 3850KV Brushless Motor | Configuration: 9N12P Stator Diamter: 14mm Stator Length: 4mm Shaft Diameter: 1.5mm Motor Dimensions: Φ18.3 * 14.5mm The hole position of motor: 9mm |
| T3X3X3 3030 3 Inch 3-Blade Propeller | Quantity: 2 CW & 2 CCW |
| GEP-600mW-VTX | GEP-600mW-VTX |
| Caddx Ratel 2 1200TVL FPV Camera | Input Power:DC 5-40V Dimensions:19mm*19mm*20mm |
Remmended Lipo Battery: ( NOT Included)
Battery: GEPRC 4S 660mAh
Flight Time: With naked GoPro8(sub250g): 4S 660mAh 7-8min

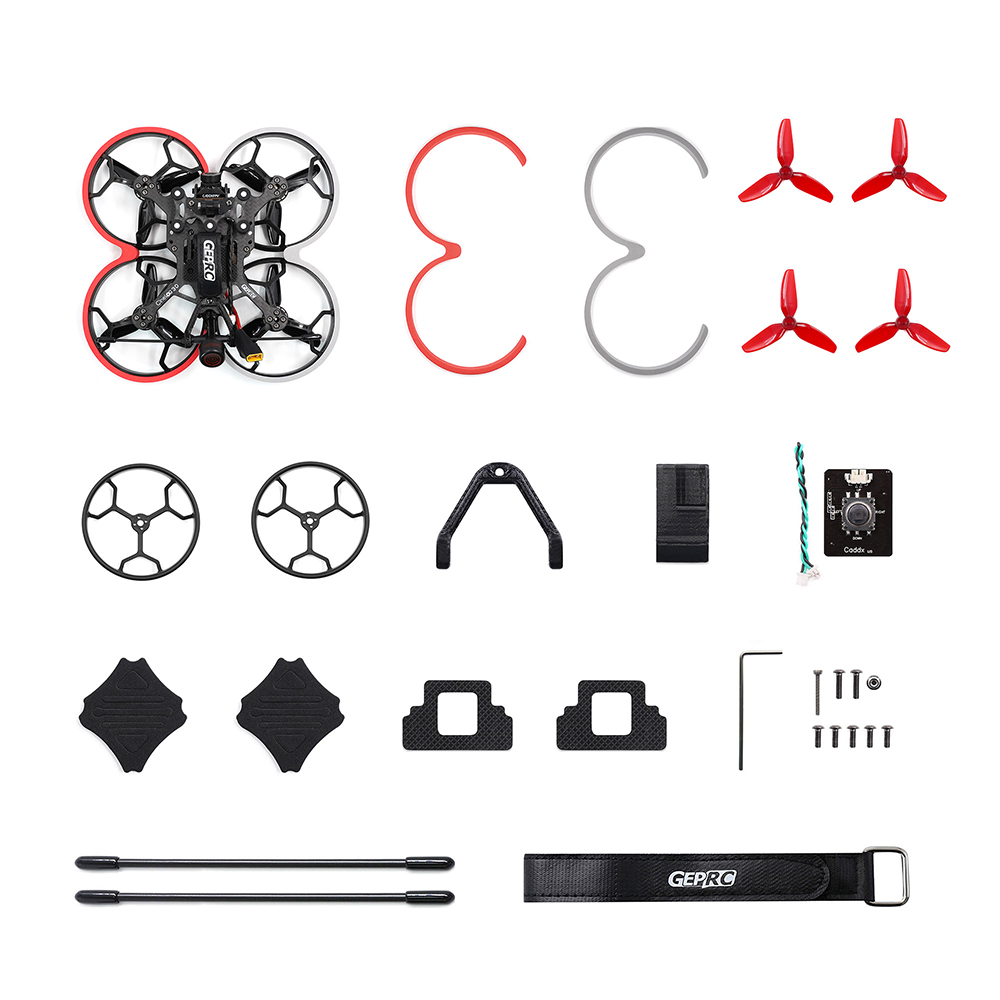

Package Included:
1 x CineLog30 Analog Quadcopter
1 x Battery straps 20x200mm
2 x T3x3x3 propellers (pair)
2 x Propeller guards
2 x EVA damping rings of guard
2 x EVA landing pads
2 x Battery Silicone Pads
1 x OSD parameter adjusting board
1 x Antenna fixed tube
1 x Screw package
1 x TBS receiver mount（PNP）
1 x TBS receiver antenna mount (PNP)
