- Stock: In Stock
- Model: ST22001149
- SKU: ST22001149
Introduction:
The best sub-250g FPV pusher drone.The latest 3-inch Quadcopter developed by GEPRC.The frame has great durability and good quality.
It could be Perfectly carrying Gep Naked camera or other cameras for Freestyle and Cinematic flight. It is a Dream Pusher Drone with incredibly stable and HD video.
CineLog30 is developed from CingLog25. It has stronger and powerful 1404-3850kv motor and T3 x 3 x 3 propellers.The newly developed GEP-CL30 frame with Ultra light fuselage weight. which is made of durable high-impact Carbon material with good toughness and strength.
The upgraded reversed-motor design and more compact structure could bring more maneuverable and stable freestyle experience.

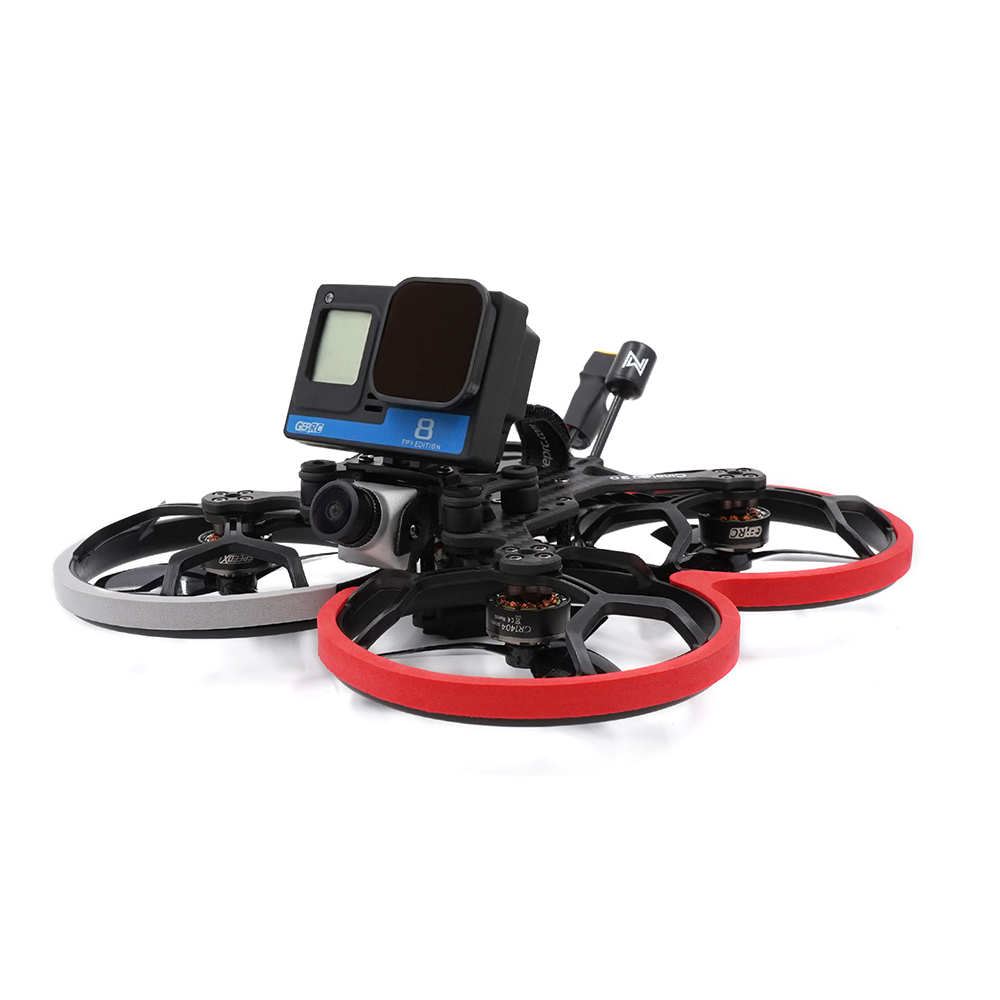

CineLog30 equipped with 4s 660mah battery take-off weight is only 204 grams.The duration of the flight is around 7.5 minutes.The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed through the mounting base.
Especilly the backward push design and the shock absorption structure of the camera mount.Every beautiful moments of flight you can shot by the DJI HD system and VISTA Polar HD camera.
We pursue lighter weight, better flying feel and more extended functions Quadcopter.
Features:
Small size, light weight, with 4s 660mah battery, take-off weight is only 222.5 grams.
Equipped with HD VISTA digital FPV system.
The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed throught the mounting base.
The newly developed GEP-CL30 frame with Ultra light fuselage weight. which is made of durable high-impact Carbon material with good toughness and strength.
The upgraded reversed-motor design and more compact structure could bring more maneuverable and stable freestyle experience.
The backward push design and the shock absorption structure of the camera mount.Every beautiful moments of flight you can shot by the DJI HD system and VISTA Polar HD camera.
Description:
Model: CineLog30 HD
Item Name: 126mm F4 4S 3 Inch FPV Racing Drone
CineLog30 HD weight: 158.5g (Without battery)
| 126mm Frame Kit | Frame: GEP-CL30 Motor to Motor: 126mm Top plate: 2.0mm Bottom plate: 2.0mm Arm plate:3.0mm |
| F4 Flight Controller AIO 35A ESC | Model: GEP-F411-35A AIO FC MCU: STM32F411 |
| Onboard 35A BL_S 4in1 ESC | ESC MCU: 8BB21F16G Intergrated LC Filter Continue Current: 35A Burst Current: 40A(10s) Input Voltage: 2~6S (LIPO Battery) ESC Protocol: Dshot300/600,Oneshot42/125,Multishot Current meter: 210 Blackbox:16Mb ESC Target: G_H_30 BLS Size: 32x32mm Board Mount Holes: 26.5×26.5mm,M2 Weight: 8.3g |

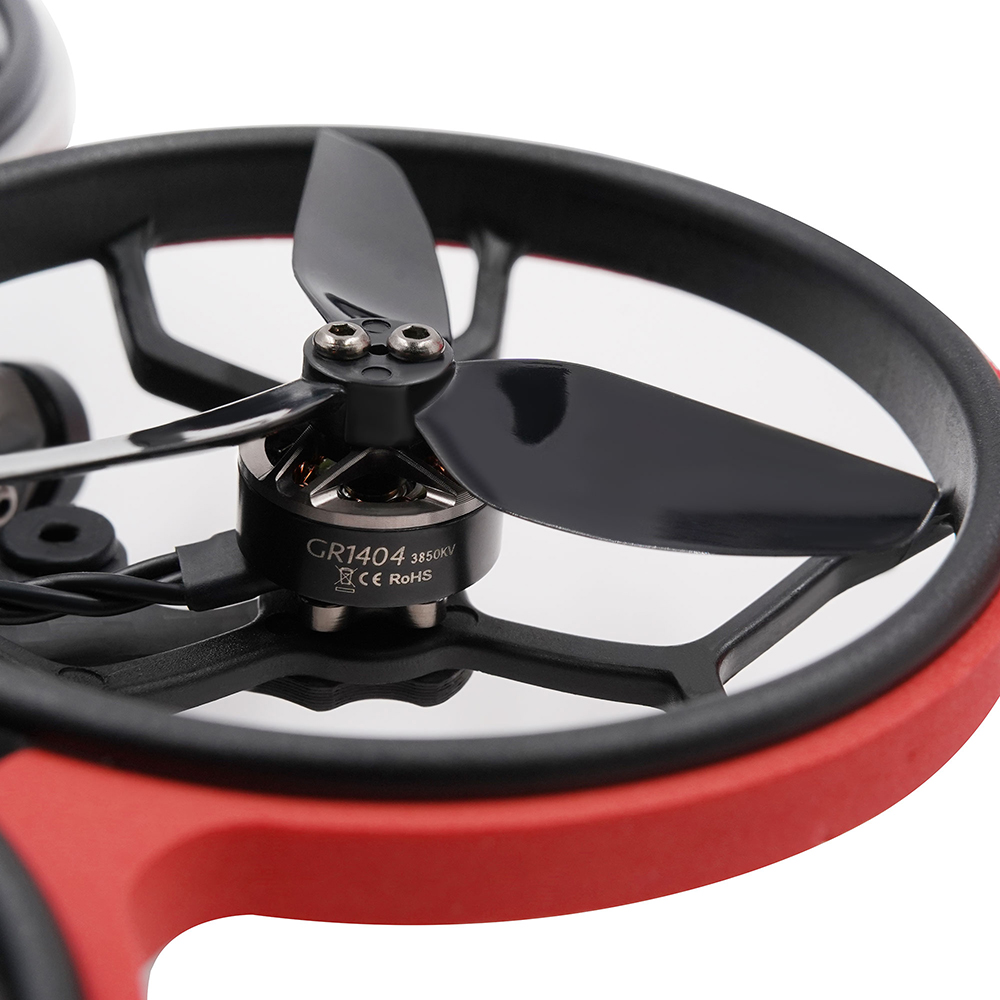

| GR1404 3850KV Brushless Motor | Configuration: 9N12P Stator Diamter: 14mm Stator Length: 4mm Shaft Diameter: 1.5mm Motor Dimensions: Φ18.3 * 14.5mm The hole position of motor: 9mm |
| T3X3X3 3030 3 Inch 3-Blade Propeller | Quantity: 2 CW & 2 CCW |

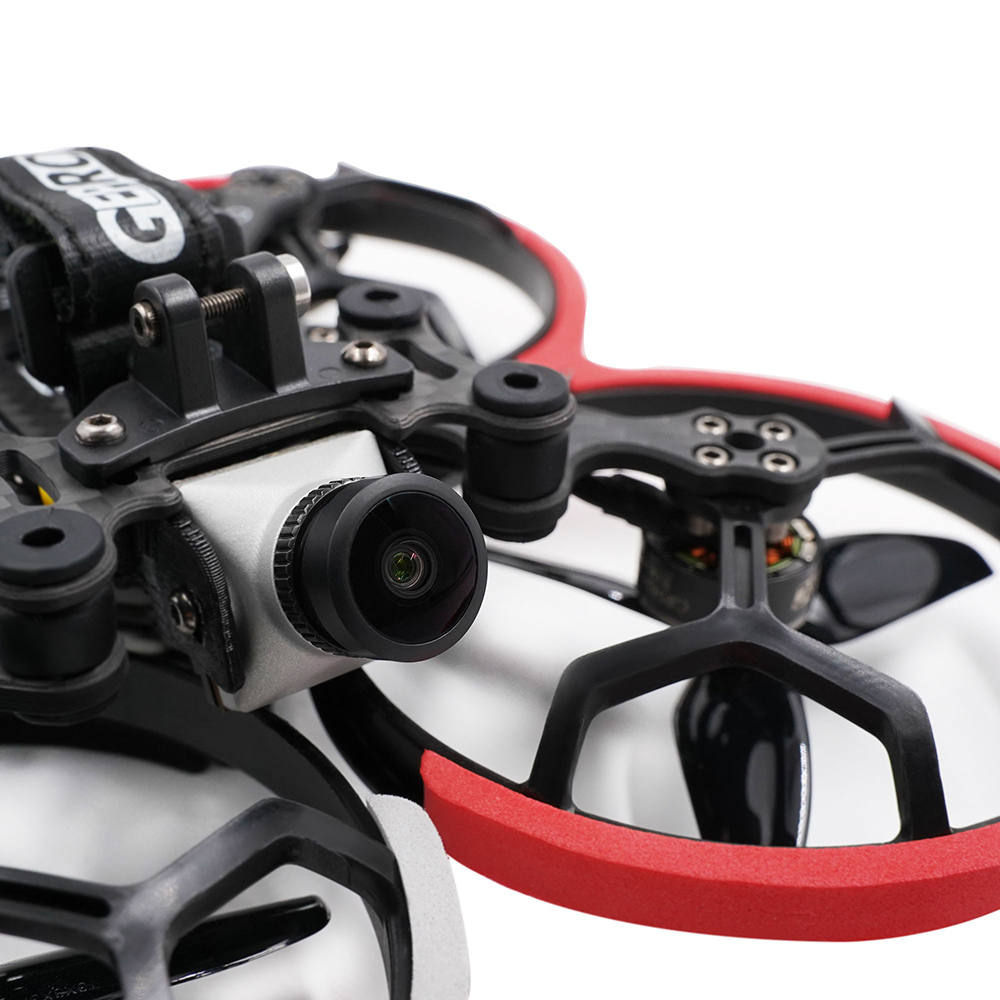

| Caddx Vista Polar HD Digital System | Weight: Vista Kit(camera included): 28g; Antenna: 1.5g Dimensions: Vista Kit: 30x29x13mm; Camera: 19x19x24mm; Coaxial Cable: 120mm Operating Frequency: 5.725-5.850GHz Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm; CE: <14dBm Max.Transmission Distance: FCC/SRRC: 4km; CE: 0.7km Input Power: 7.4-26.4V Power 0utput: 25mW/200mW/500mW/700mW Camera Specifications: Sensor: 1/1.8" Starlight CMOS Min. Illumination: 0.00003Lux Lens: F/1.6 & 8 Mega |
Recommended Battery: ( NOT Included)
Batteries: 4S 660mAh Lipo
Flight Time: With naked GoPro8(sub250g): 4S 660mAh 6-8min

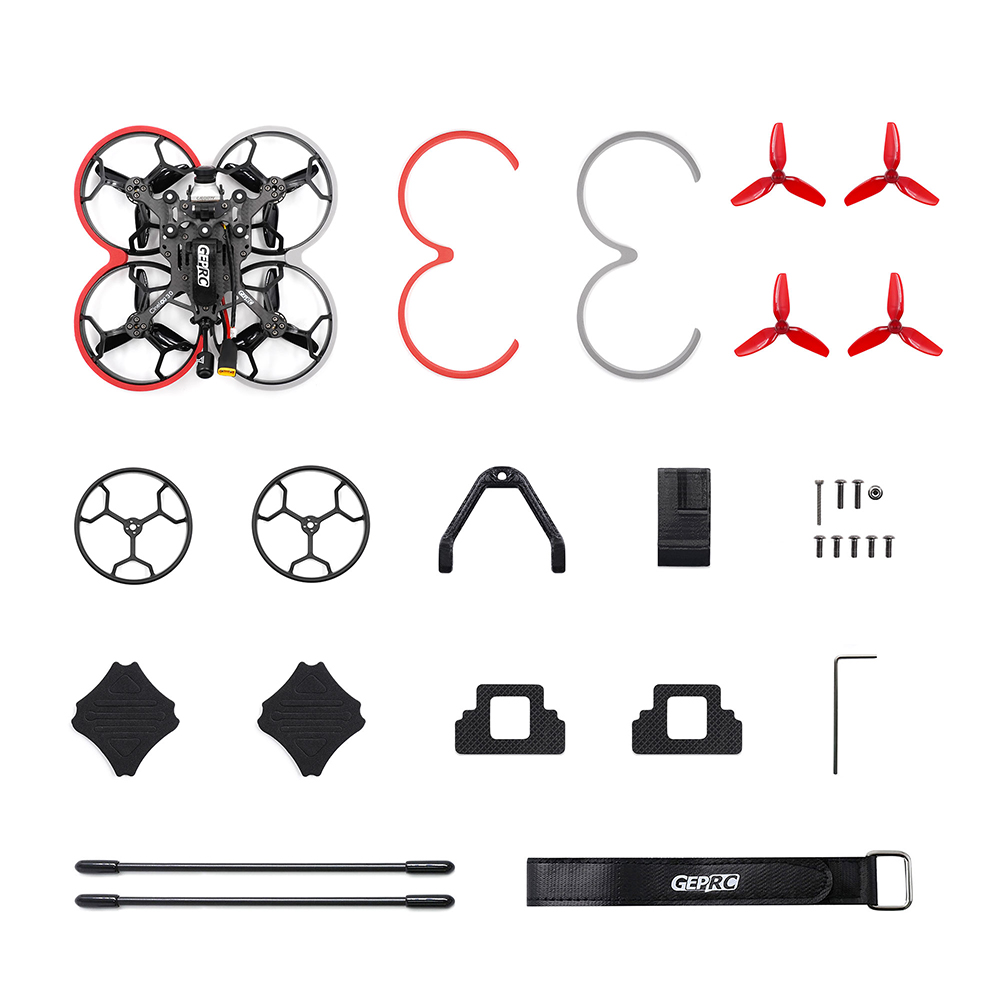

Package Included:
1 x CineLog30 HD VISTA Polar Quadcopter
1 x Battery strap 20x200mm
2 x T3x3x3 propellers (pairs)
2 x Propeller guards
2 x EVA damping rings of guards
2 x EVA landing Pads
2 x Battery Silicone Pads
1 x Antenna tube
1 x Screw package
1 x TBS receiver mount（PNP）
1 x TBS receiver antenna mount (PNP)
