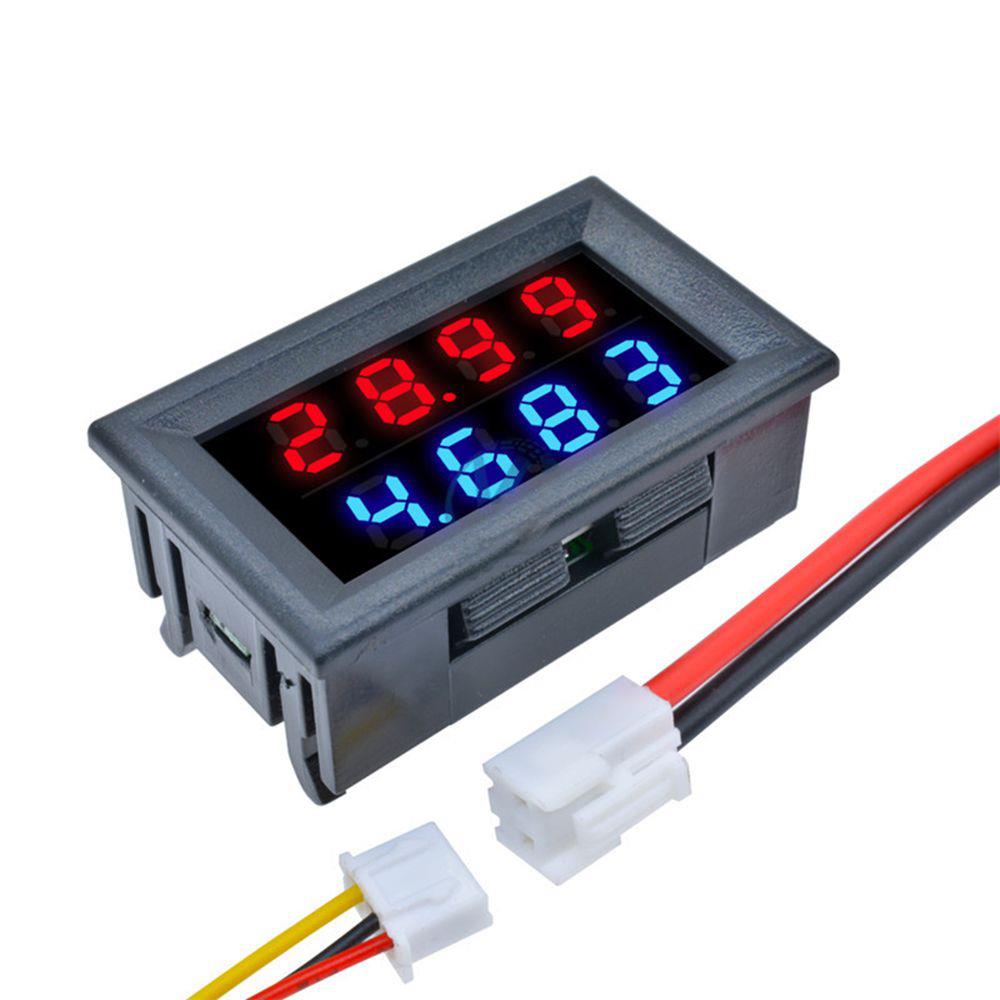

DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display

DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display
  • Stock: In Stock
  • Model: ST230045015
  • SKU: ST230045015
$4.99
Ex Tax: $4.99
Features:

High precision: 4-digit
Working voltage: DC 4V-28V
Working current: <20mA
Display: 0.28" Red + Blue Dual LED Display
Voltage Measuring Range: DC 0.000V-100.0V
Current Measuring Range: 0-9.999A
Refresh rate: about 1S / 3times
Operating temperature: -10°C - 65°C
Working pressure: 80 to 106 kPa
Size : 48x29x20 mm
Mounting hole: 46 x 27 mm
Current: Range x 0.08%+Two decimal point
Voltage: Range x 0.08%+Two decimal point

Wiring:

Red line thin: power supply +
Red line (thick): IN+, current input
Yellow line (thick): PW+, measuring terminal voltage input positiv
Black line thick: COM, common measuring

Note:

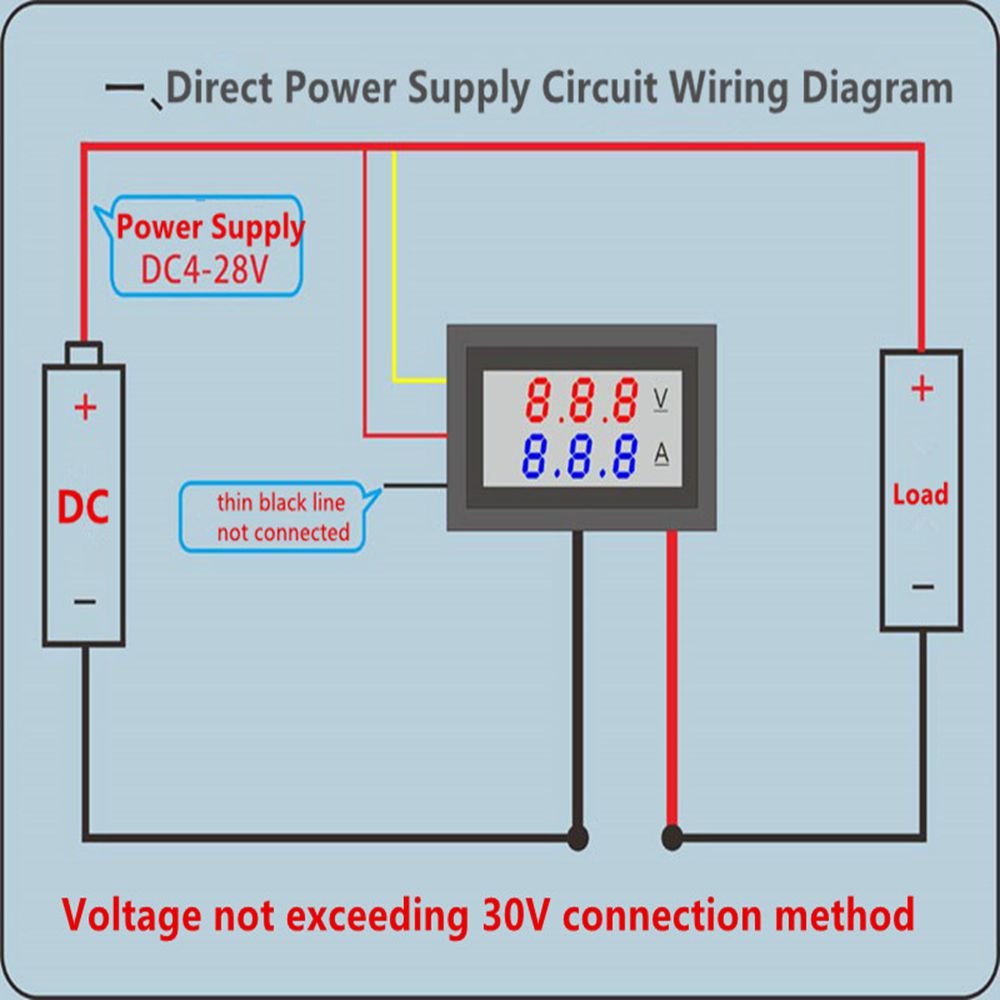

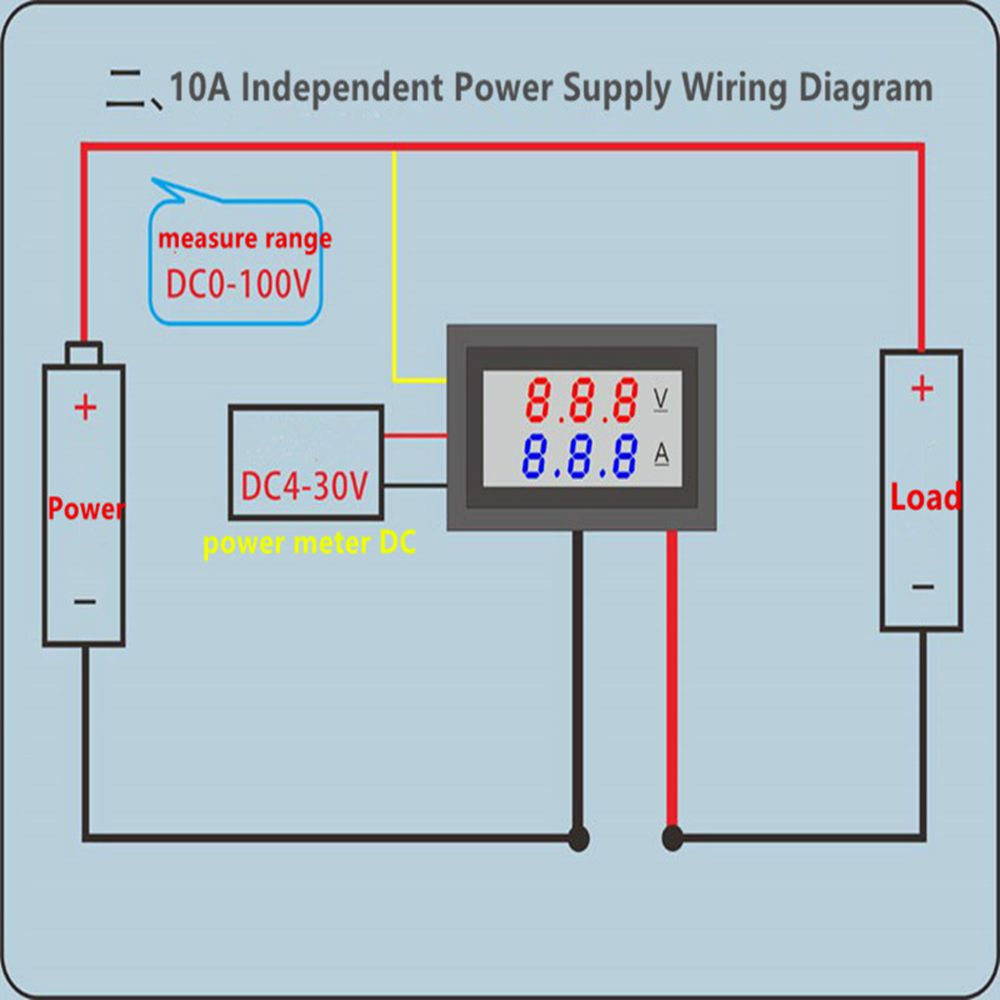

Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!

Package Included:

1 x DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter


Geekcreitreg-DC-100V-10A-028-Inch-Mini-Digital-Voltmeter-Ammeter-4-Bit-5-Wires-Voltage-Current-Meter-1460060-1

Geekcreitreg-DC-100V-10A-028-Inch-Mini-Digital-Voltmeter-Ammeter-4-Bit-5-Wires-Voltage-Current-Meter-1460060-2

Geekcreitreg-DC-100V-10A-028-Inch-Mini-Digital-Voltmeter-Ammeter-4-Bit-5-Wires-Voltage-Current-Meter-1460060-3

Geekcreitreg-DC-100V-10A-028-Inch-Mini-Digital-Voltmeter-Ammeter-4-Bit-5-Wires-Voltage-Current-Meter-1460060-4

Geekcreitreg-DC-100V-10A-028-Inch-Mini-Digital-Voltmeter-Ammeter-4-Bit-5-Wires-Voltage-Current-Meter-1460060-5
