- Stock: In Stock
- Model: ST220017657
- SKU: ST220017657
Specifications: | |
Name | Power Inverter |

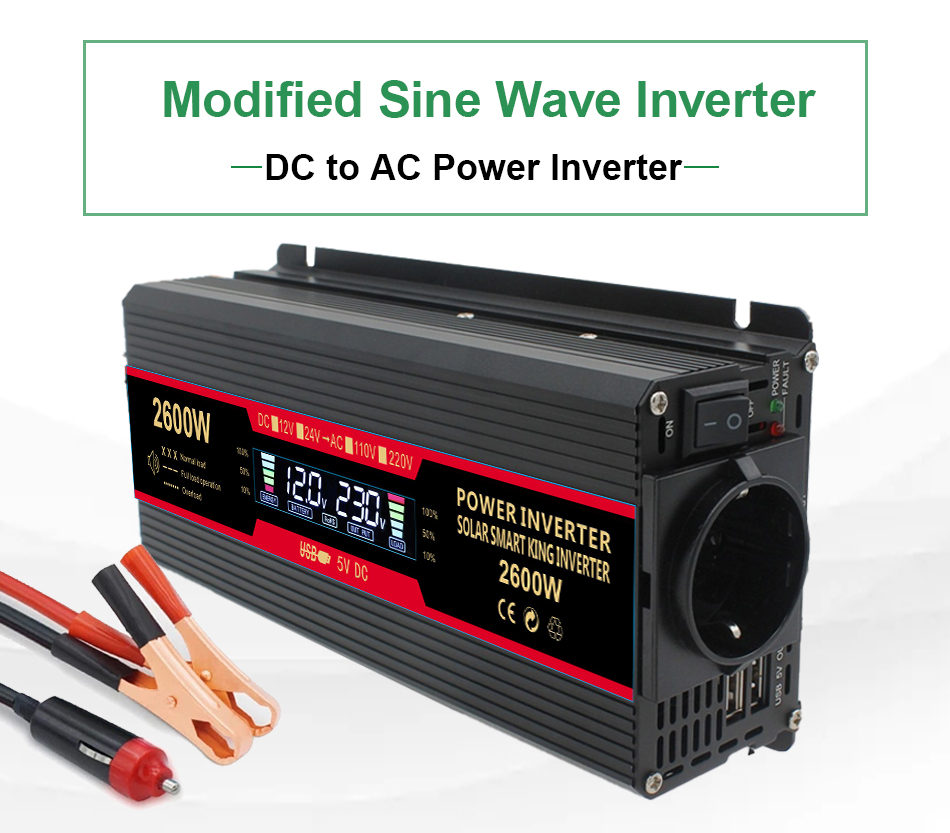

Output Waveform | Modified sine wave |

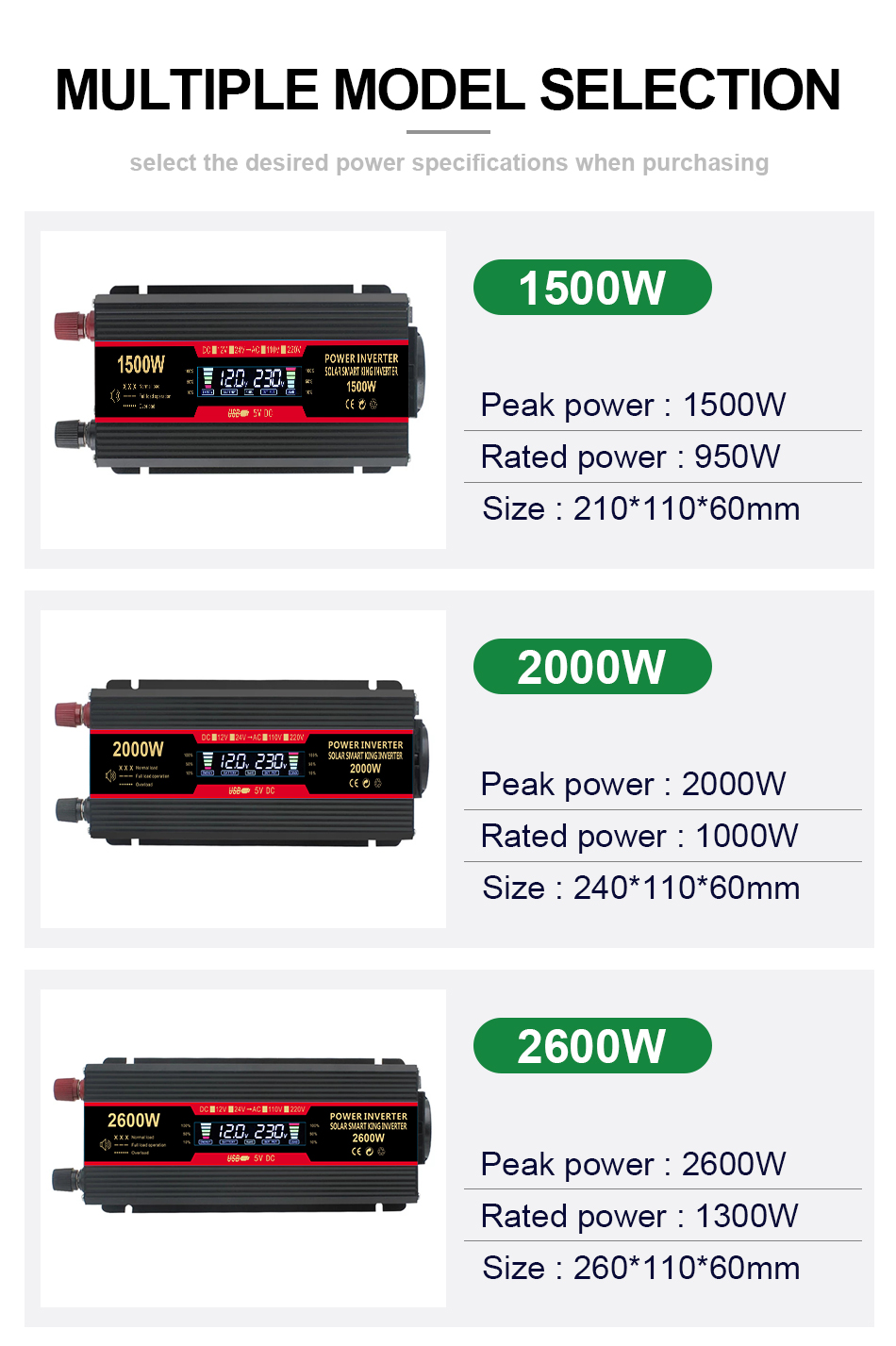

Peak Output Power | 1500W/2000W/2600W |
Continues Output Power | 950W/1000W/1300W |
30-minute Output Power | 750W/800W/1100W |
Frequency | 50HZ±2HZ |
No load Current Draw | <0.8Amps |
Inversion Efficiency | >90% |
Input DC Voltage | 12V |
DC Voltage Range | 9V-15.5V |
Output AC Voltage | 220V |
AC Voltage Range | 210V-240V |
Low Voltage Alarm | 10V DC±0.5V |
Low Voltage Shut Down | 9V DC±0.5V |
Over Load | Shut Off Output |
Over Voltage Shut Down | 15.5V |
Over Thermal | Shut Off Output Automatically |
Fuses | Short Circuit |
Start | Soft Start |
Protection | Overload, Short Circuit, Overtemp, Reverse Polarity, Under/Over Voltage |

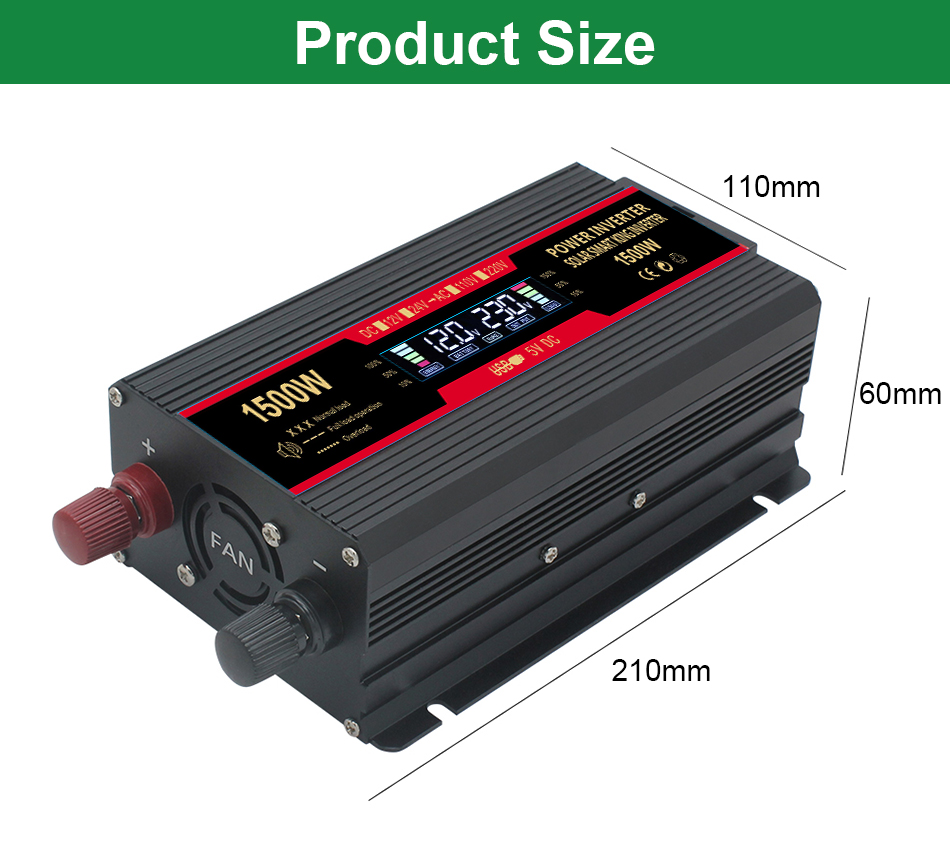

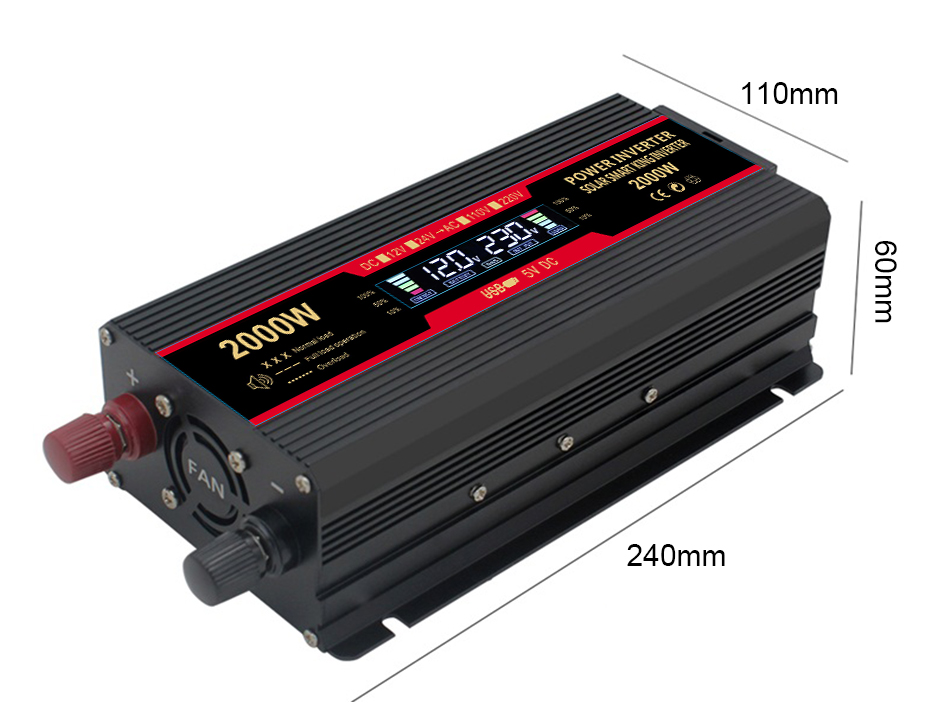

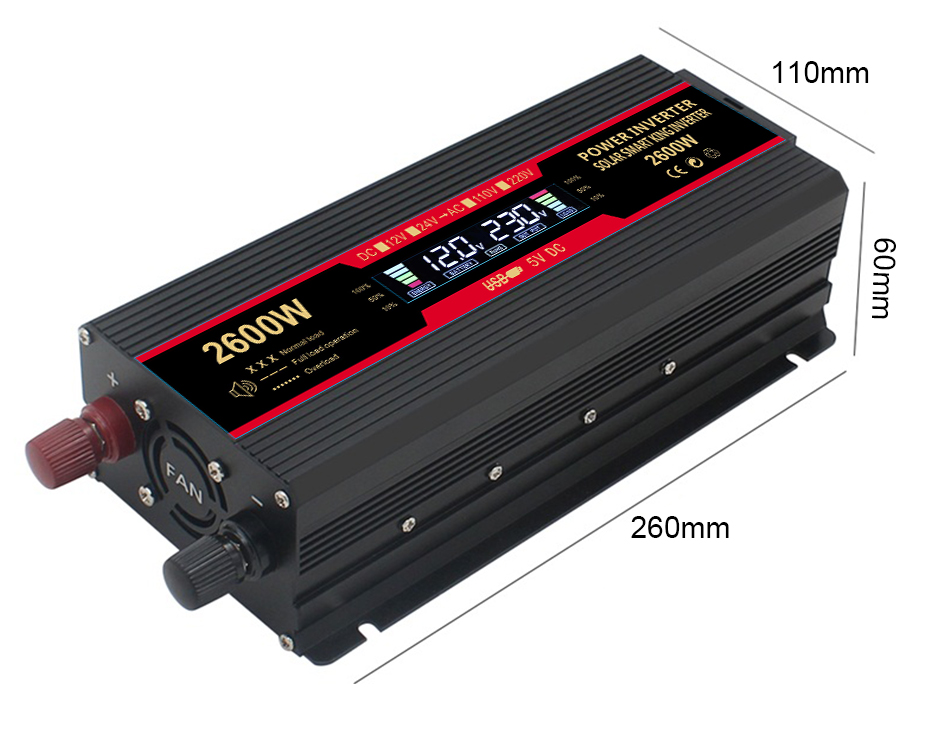

Machine Size(mm) : | 1500w inverter : 210mm*110mm*60mm 2000w inverter: 240mm*110mm*60mm 2600w inverter:260mm * 110mm* 60mm |
Start: Soft Start | Soft Start |
Weight | 1500W/2000W/2600W: 0.9kg/1.2kg /1.5kg |
USB | Double USB 3.1A |
Features:
▲High-pre-cision circuit board.
▲Built-in intelligent control chip.
▲Pure Sine Wave Inverter. Greater drive capability, better protection to sensitive equipment. Smart filter, no interference on the electrical, to protect electrical appliances.
▲Multiple Protection. Built-in primary fuse and safe charging technology to protect your battery and devices.

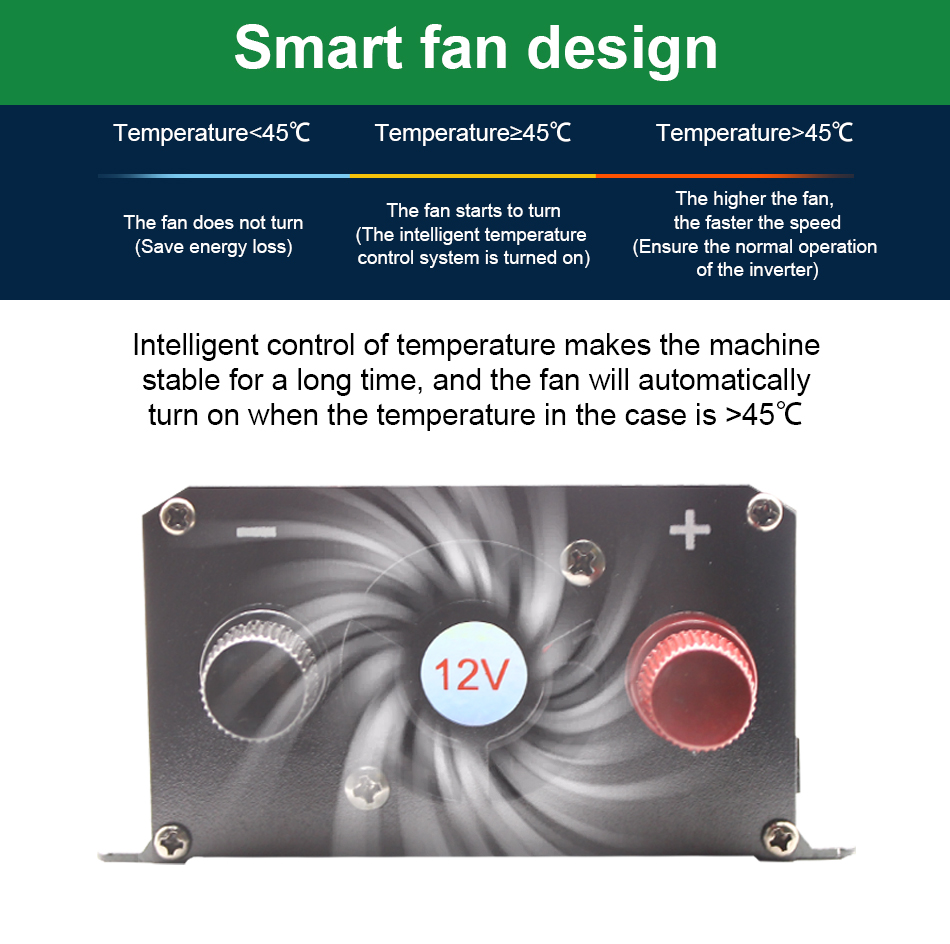

▲Smart Temperature Control. Cooling fans automatically start when the temperature exceeds reated to prevent the inverter from overheating to extend the life of the inverter.
▲Pure copper core power cord, low energy consumption and stable transmission.
▲Thick aluminum alloy outer box, effective heat dissipation.
▲Built-in intelligent control chip, nine-layer security protection.
Package Included:

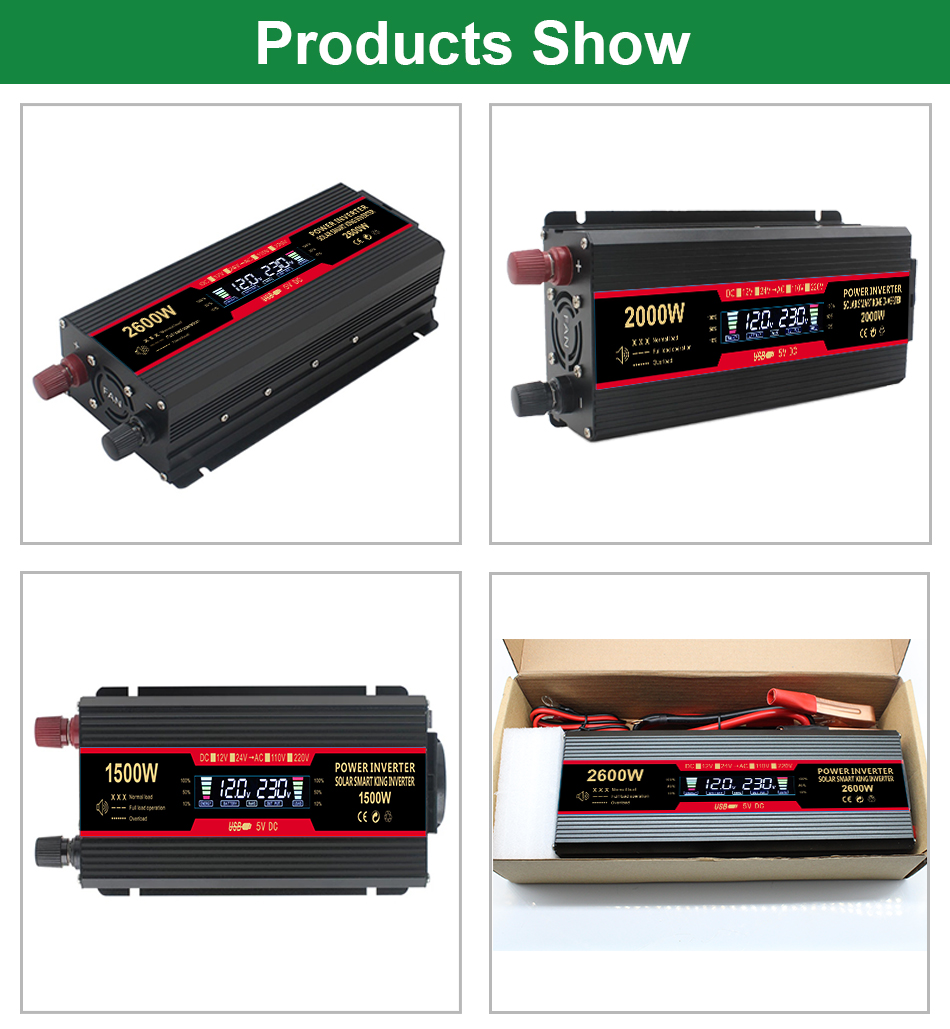

1x Power Inverter(1500W/2000W/2600W Optional)
