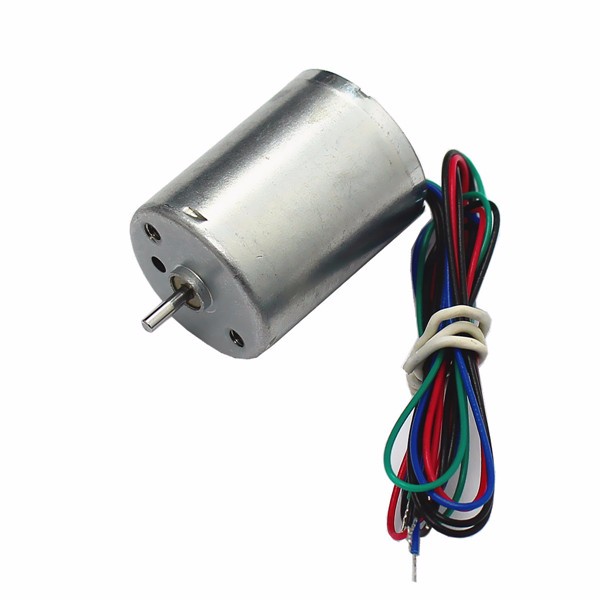

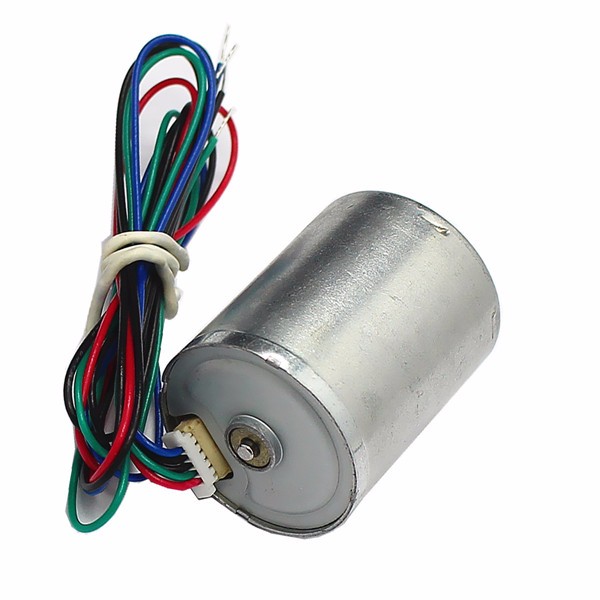

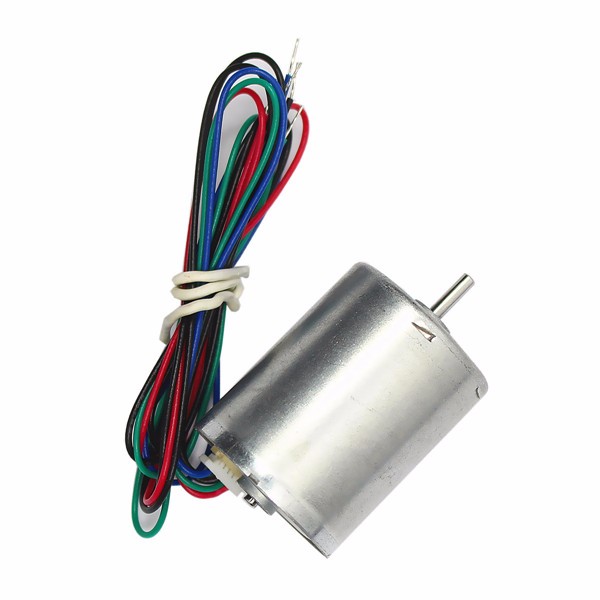

DC 12V Brushless DC Motor Micro DC Motor
- Stock: In Stock
- Model: ST220012492
- SKU: ST220012492
$18.99
Ex Tax: $18.99
Description:
DC 12V Brushless DC Motor Micro DC Motor

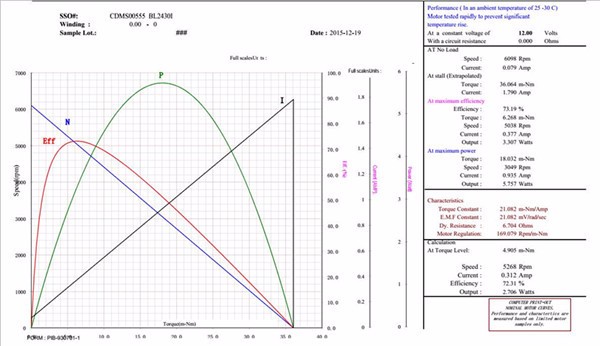

Specification: Rated Voltage: DC12V
Rated Speed: 6000±10%rpm

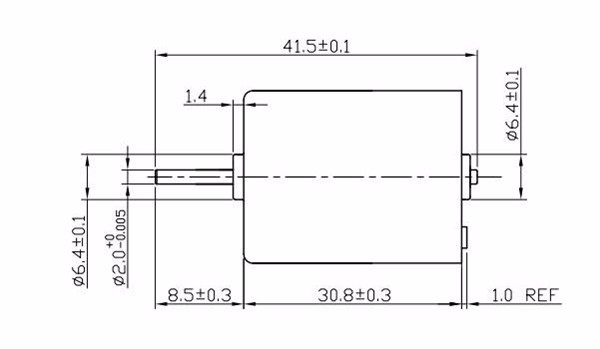

The Outside Shaft Length: 8.5mm
Dia. of Shaft: D2.0mm
Holzer drive inside with 5 lines.
一: Motor Termations
二: Block Diagram
Applications:

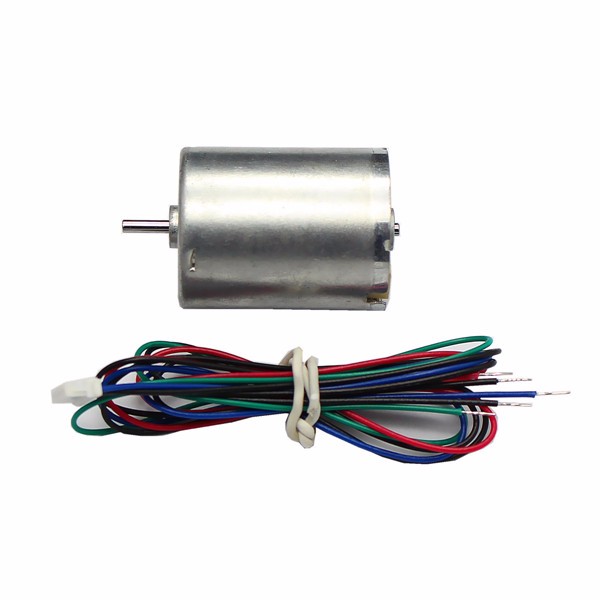

Package Included:
1x DC Motor
More Details:
DC 12V Brushless DC Motor Micro DC Motor
Specification: Rated Voltage: DC12V
Rated Speed: 6000±10%rpm
The Outside Shaft Length: 8.5mm
Dia. of Shaft: D2.0mm
Holzer drive inside with 5 lines.

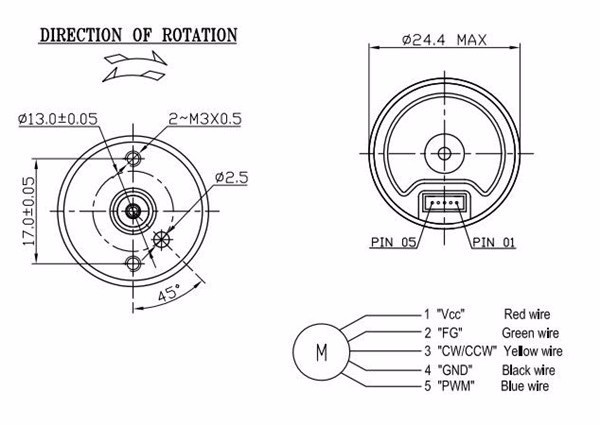

一: Motor Termations
| NO. | SIGNAL | I/O | Specifications | Note |
| 1 | Vm (red wire) | IN | DC12V±10% | POWER |
| 2 | FG | |||
| VOH | OUT | 6.0V MAX | Hall Signal Pulse Outputs | |
| VOL | 0.5V MAX | |||
| FG Singnal Current | 2mA | |||
| Pulse Outputs of ratation | 6Pulse / cycle | |||
| 3 |
CW / CCW CW / CCW Control (yellow wire) | |||
| Input Voltage Rotation | IN | [0V] [5V] |
High---motor CCW Low---motor CW | |
| VIH | 2.0V Min. or open | |||
| VIL | 0.5V Max. | |||
| 4 | GND | OUT | Power Ground | Power Ground |
| 5 | PWM Control, (blue wire) 60K MAX TYPICAL (15-25K) | |||
| Input Voltage Range | IN | [0V] [5V] 0K-30K |
High---motor OFF Low---motor ON | |
| VIH | 2.0V Min. or open | |||
| VIL | 0.5V Max. | |||

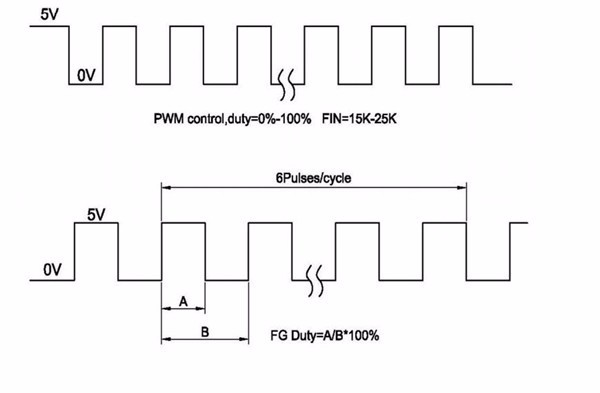

二: Block Diagram
Home appliances: small home appliances, kitchen appliances, micro actuator
Auto parts: micro pump, switch
Medical equipment: medical pump, liquid pump, gas pump, blood pressure meter, operation instrument
Power tools: electric pump, water pump, vacuum pump, micro valve
Business equipment: projector, printer, copier, scanner, currency-counting machine
Personal care: skin care, beauty equipment
Notes:
1. There must should be clean without anything surrounding the motor when using the motor.
2. For extend the lifetime of the motor, there could not be over-loaded or attached the things which might the normal rotating of the motor.
3. Plsase keep the surrounding enviroment clean, high temperature and extremely wet enviroment could affect the lifetime of the motor.
4.When soldering tin to the motor, please mind the plastic from being damaged, the temperature should be 340℃±40℃and within 3 seconds.
5. Be sure the screws are the right sizes and length.
