  • Stock: In Stock
  • Model: ST220016436
  • SKU: ST220016436
$12.99
Ex Tax: $12.99
Introduction:
- Dual mode 1 channel radio frequency remote control system.
- Learn how to program for garage door remotes or other remotely controlled needs.
- A full remote controller replacement is often the better option than to repair faulty ones.
-
 Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control.

Feature:
- Low power
- LED indicator light
- Auto code learning
- Stable performance
- Easy to install and easy to use
- Works in a multitude of different systems
- Coding: 16 different cords, if you have more, it will delete the cord at the begining that you set.
- Fit for: Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs

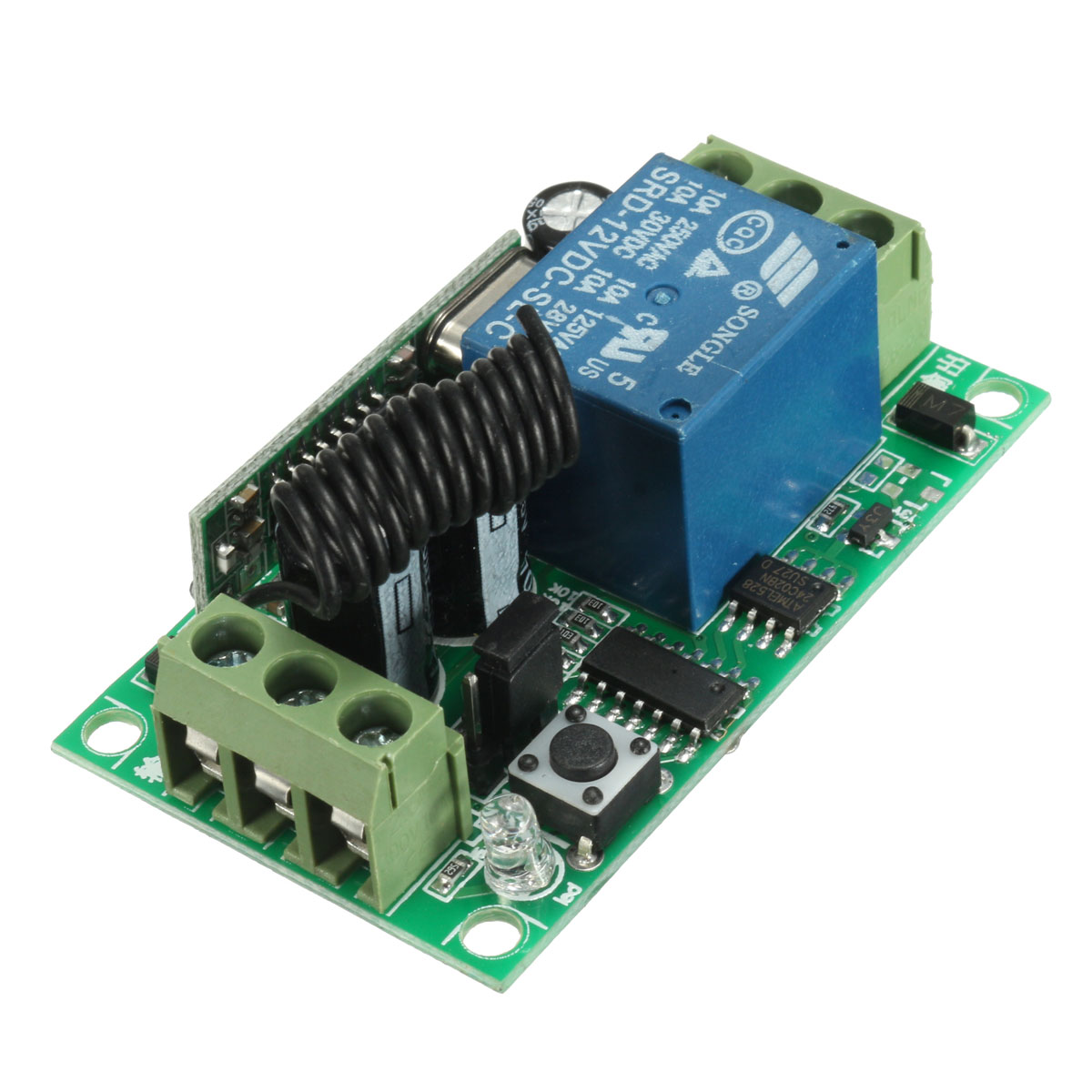

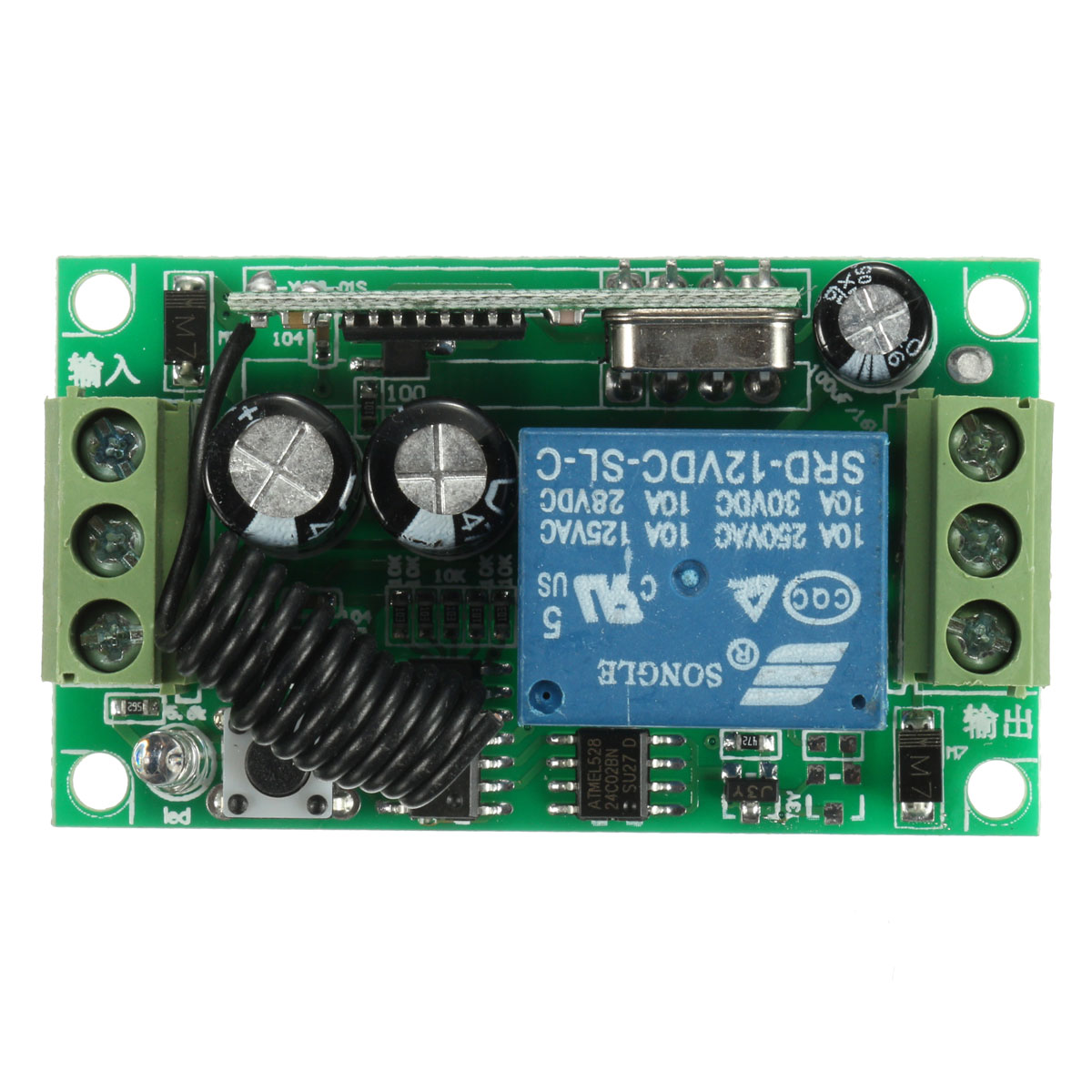

Receiver Specifications:
Channels: 1
Frequency: 315MHz
Sensitivity: ≥-95dBm
Output Current: <10A
Working voltage: 12V DC
Power consumption: <10mA

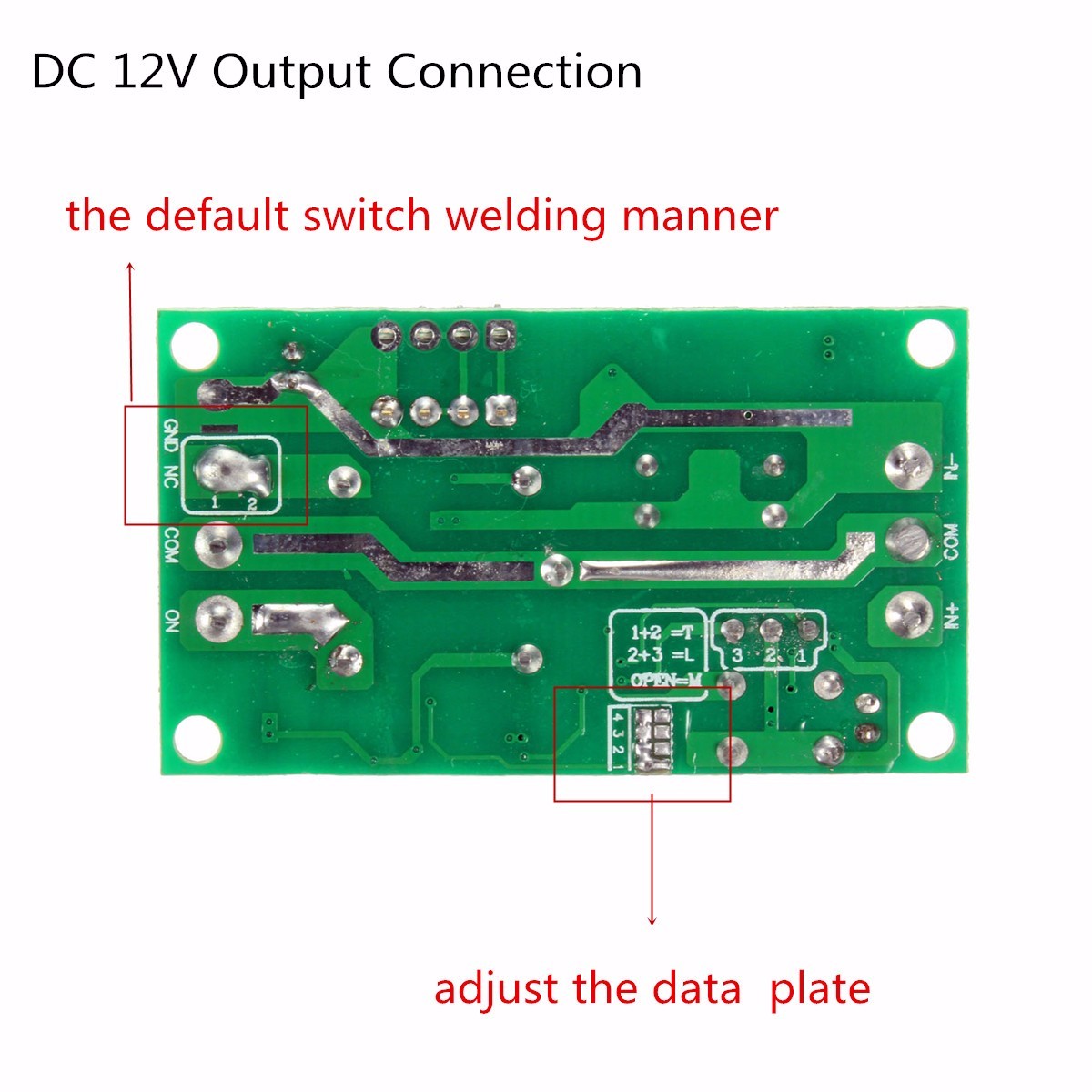

Dual mode: momentary/toggle

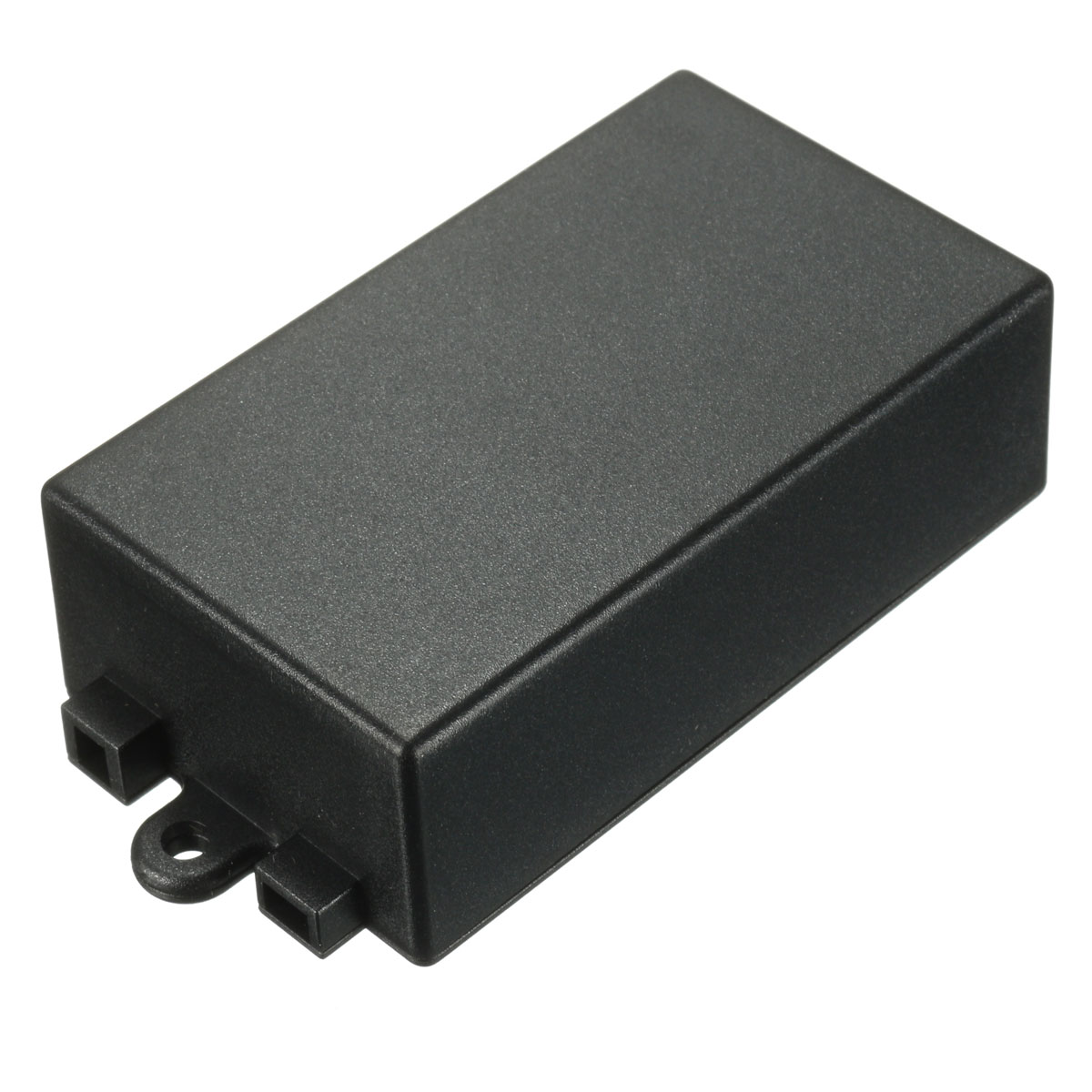

Dimensions: 65 x 38 x 22mm (2.5 x 1.5 x 0.9”)

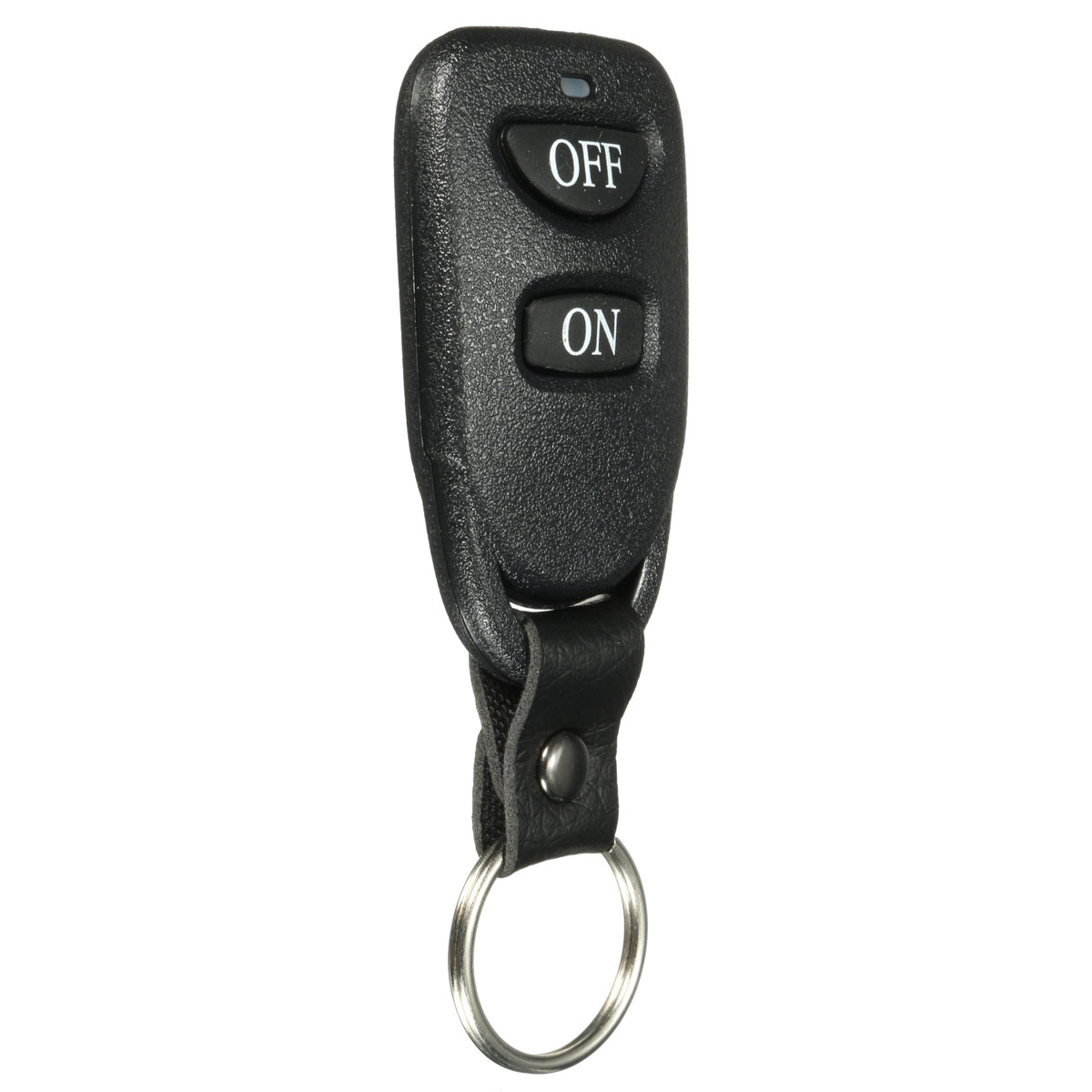

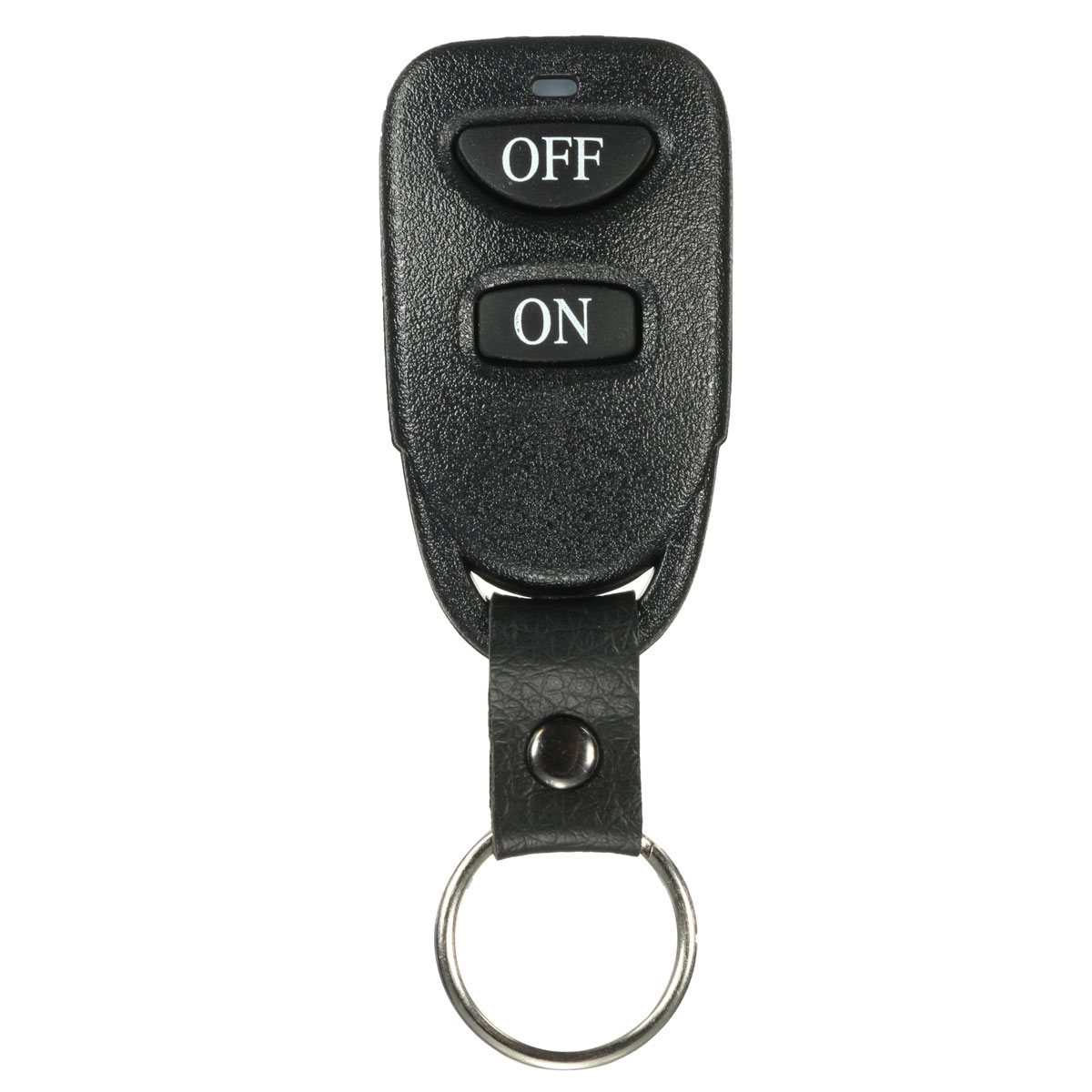

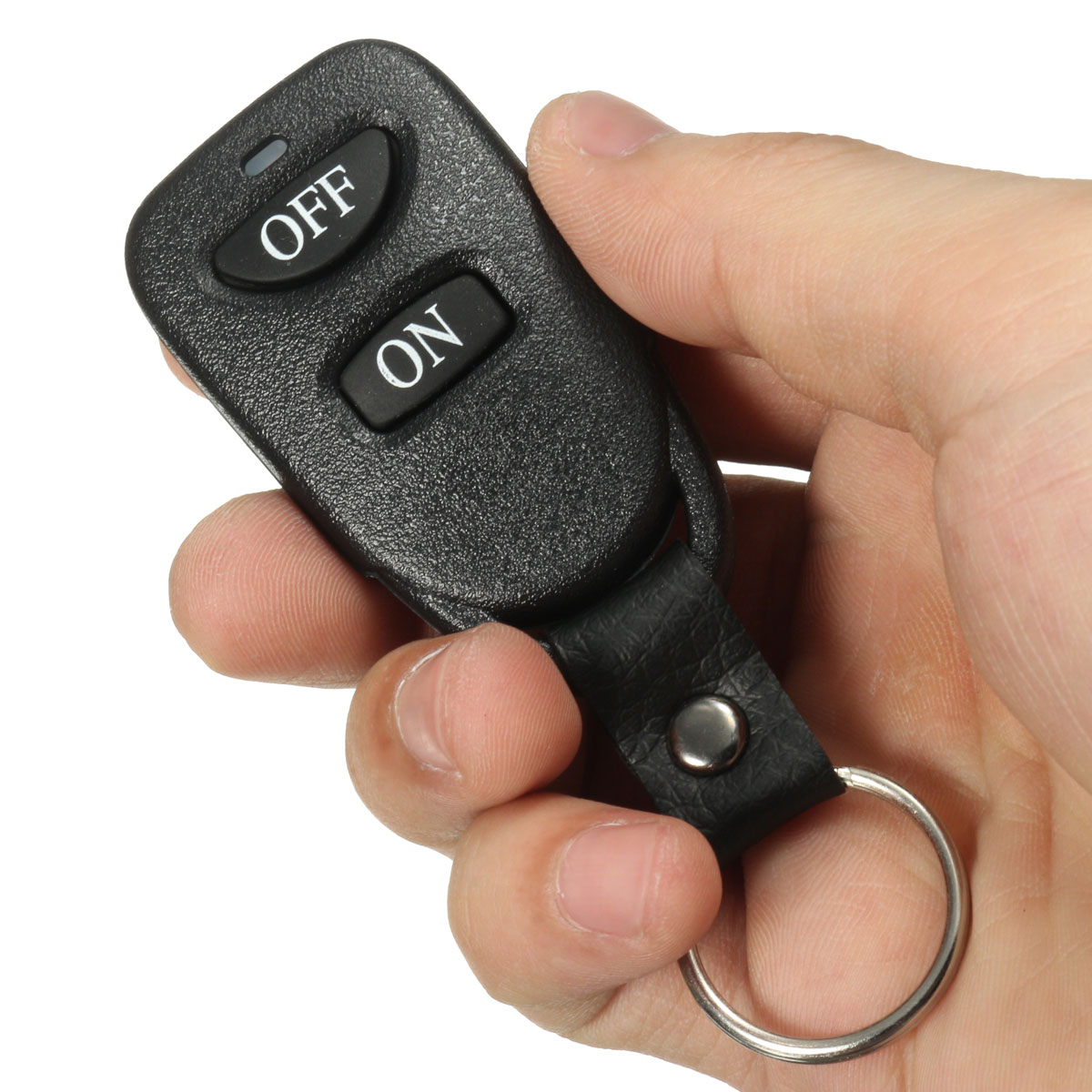

Remote Control Specifications:
Voltage: DC 6V
Current: < 15mA
Bottom: ON/ OFF
Size: 62x34x10mm
Frequency: 315MHz
Shock Resistance: 4.7
Range: 50-100 meters (Open Space)

Learning Method:
1. After power on, the indicator light is always on. Then, you press the learning cord 2 or 3 seconds, and the indicator light power off.
2. Release the learining cord, and press the any key of remote control.
3. After the indicator light have 5 times flash, it shows that you are successed in learning.

Remove Method:
-Press the learning cords about 8 seconds, and the indicator light return being power on that shows the learning cord remove.

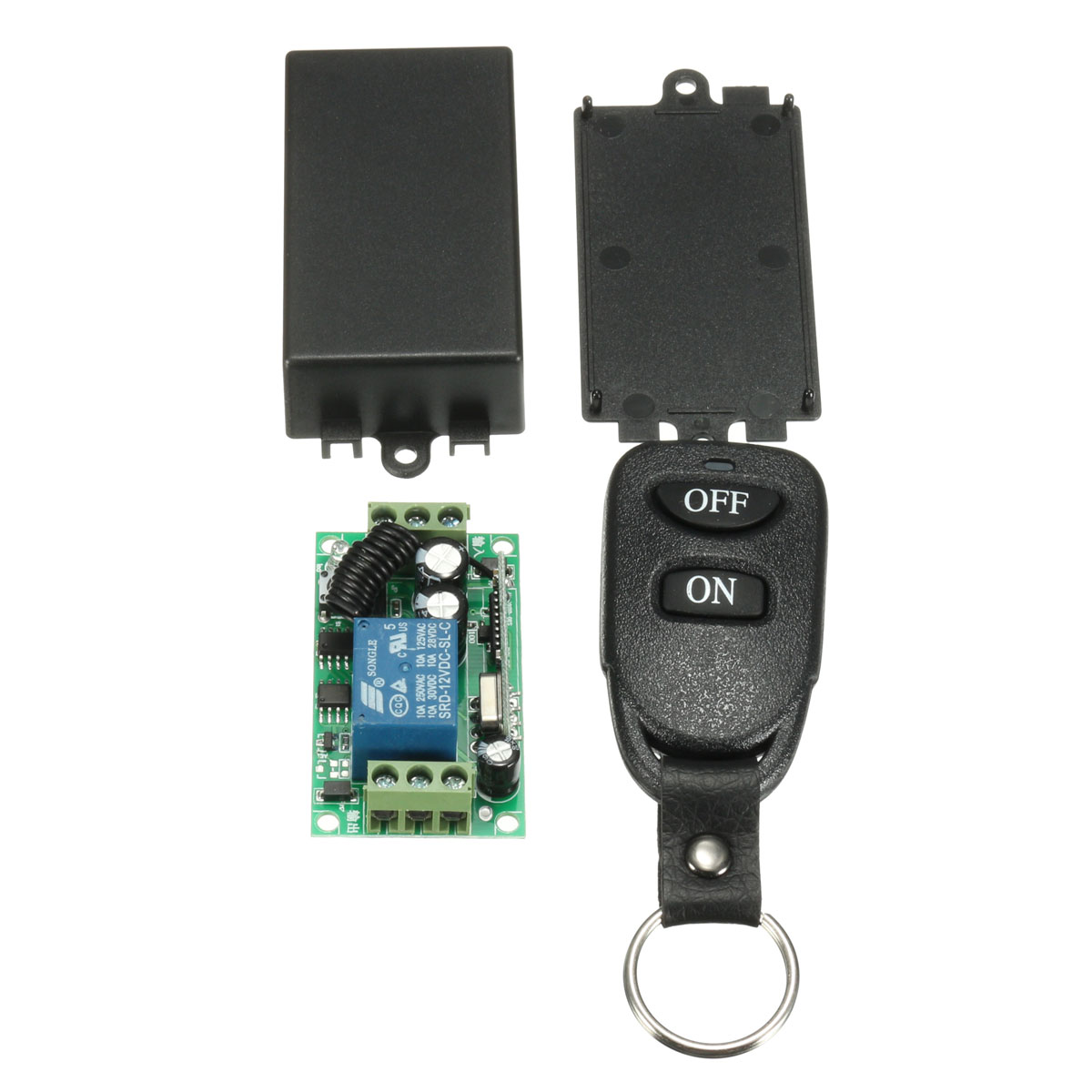

Package Included:

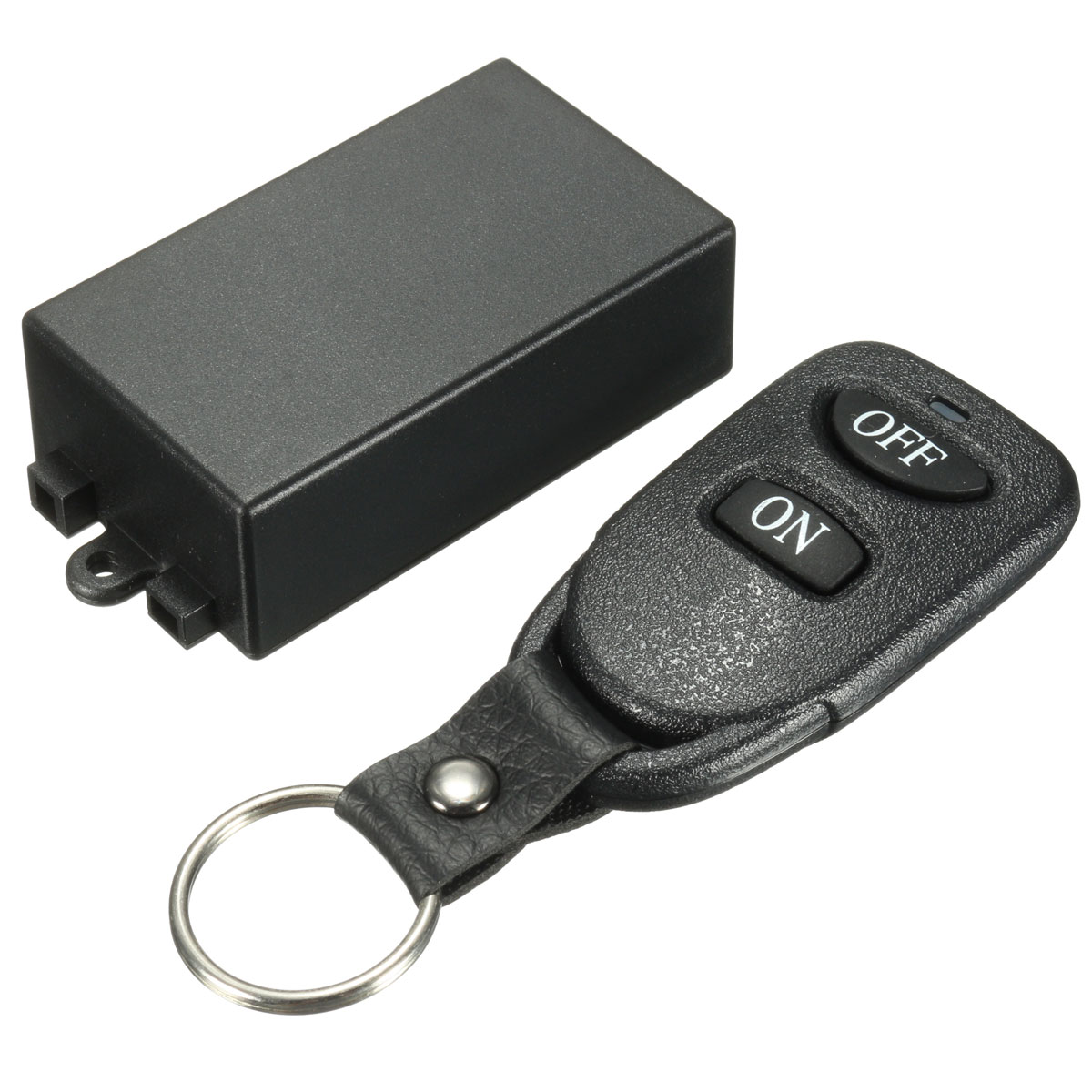

1x Receiver
1x Remote Control
