DC 6V 160rpm Encode Gear Reducer Motor Electric Gear Box Motor
- Stock: In Stock
- Model: ST220012598
- SKU: ST220012598
$16.99
Ex Tax: $16.99
Description:
DC 6V 160rpm Encode Gear Reducer Motor Electric Gear Box Motor
Specification:
Material: Iron+ steel+ nylon
Voltage: 6V
No-load Speed: 160rpm
Gear Motor parameter list:
| Rated voltage | DC6V |
| No-load speed | 160RPM 0.07A |
| Max efficiency Load | 0.8kg.cm / 125rpm / 1.0W / 0.3A |
| Max power Load | 1.8kg.cm / 80rpm / 1.5W / 0.6A |
| Stall | STALL TORQUE 3.6kg.cm STALL CURRENT 1.7A |
| Retarder reduction ratio | 1 : 30 |

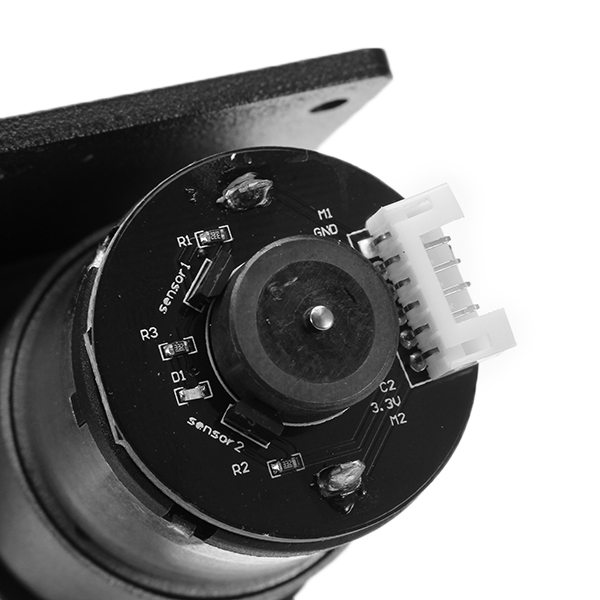

| Holzer resolution | Motor Holzer 11×ratio30=330PPR |

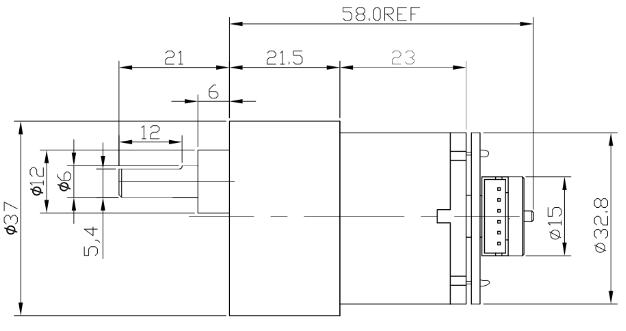

Gear Motor Outline Drawing:

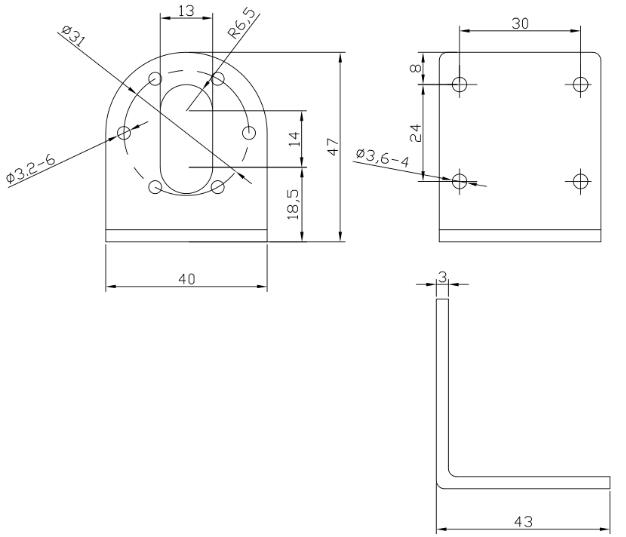

Mounting Flange Outline Drawing:
Mounting Flange Outline Drawing:
Features:
Small volume, torsion big, all metal gear, durable, not easy to wear.
Application for Boat,Car,Electric Bicycle,Fan,Home Appliance.

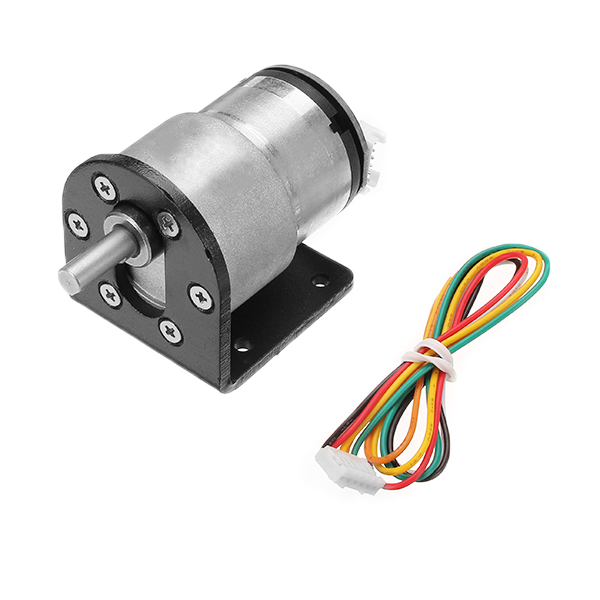

Package Included:
1 x Gear Motor
1 x Bracket
