- Stock: In Stock
- Model: ST220013262
- SKU: ST220013262

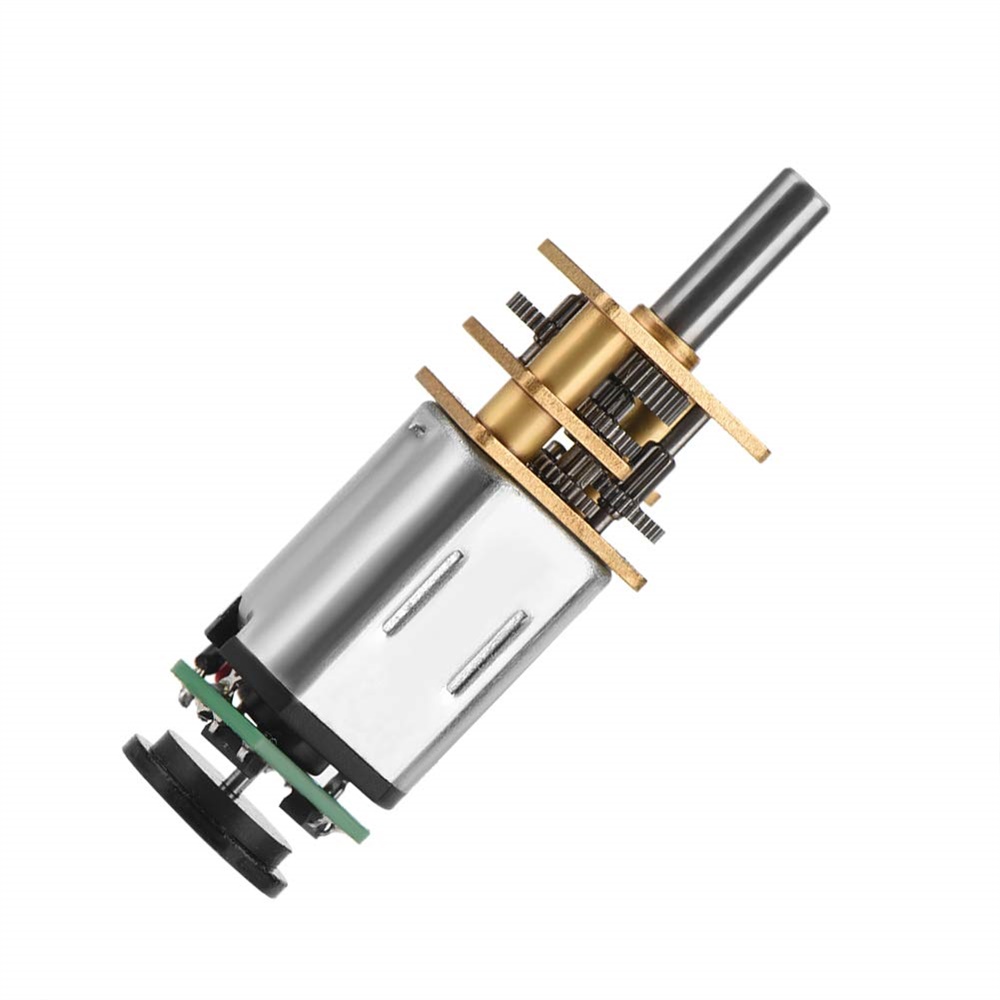

Features:
- [Widely Used]: Gear motors can be found in many different applications, and are probably used in smart toy car, robot, printer, etc.
- [Multiple Speed Options]: There are five reduction gear motors of different speed and you can choose the one you need, Speed: 30RPM, 50RPM, 70RPM, 200RPM, 500RPM.
- [Full Metal Gears]: The metal gear in the gear box has a strong carrying capacity, high temperature resistance, wear resistance, ruggedness and other characteristics effectively protect the main body of the worm gearbox motor.
- [High Torque]: Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.
- [Specifications]: Voltage: DC 6V | Power: 2W | Output signal: AB phase | Shaft length: 10mm/0.4in | Shaft diameter: 3mm/0.1in | Hall response frequency: 100KHz.
Specification:
Produce type | Brushed DC motor |
Model | GM12N20 |
Voltage | DC 6V |
Power | 2W |
Shaft type | D-shaped shaft |
Shaft thickness | 2.5mm |
Shaft length | 10mm / 0.4in |
Shaft diameter | 3mm / 0.1in |
Total length | 45mm |
Magnetic code disc length | 74mm |
Lead length | 80±5mm |
Weight | Approx.13g (Different reduction ratios, different parameters, different weights) |
Output signal | AB phase |
Hall response frequency | 100KHz |
Encoder voltage | 5V/3.3V |
Operating temperature range | -40℃~120℃ |
Basic pulse number (resolution) | 7ppr |
Rotating speed (Optional) | 30RPM, 50RPM, 70RPM, 200RPM, 500RPM |
Certification | CE, |
【General parameters】:
Gear ratio | Motor no-load | Output speed |
1:298 | 6V 10000 | 30RPM |
1:298 | 6V 15000 | 50RPM |
1:298 | 6V 22000 | 70RPM |
【Encoder details】:
Specification:
1. Two-channel Hall encoder
2. Maximum response frequency 100KHz
3. Number of output pulses 3PPr
4. Temperature range -30℃-110℃
Wiring method:
Socket type: JST ZHP-6 P=1.5-6P
Cable specification: UL1007 26AWG
- Black lead: Motor power input negative "-"
- Red lead: Motor power input positive "+"
- Brown lead: Encoder power input positive "+"
- Green lead: Encoder power input negative "-"
- Blue lead: Encoder signal output phase A
- White lead: Encoder signal output phase B
Produce Included:
1 Pc x | Gear motor |
