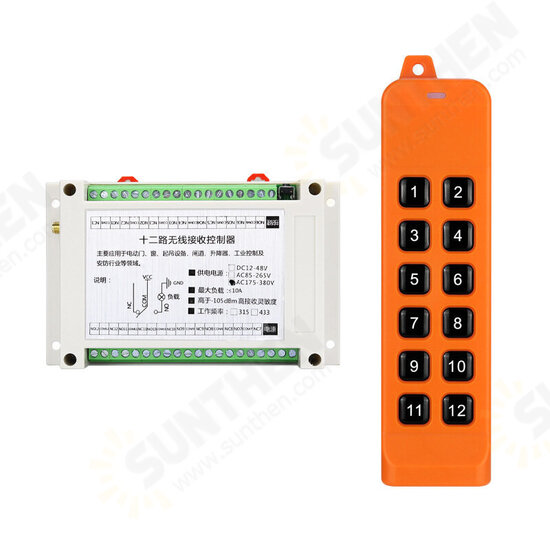

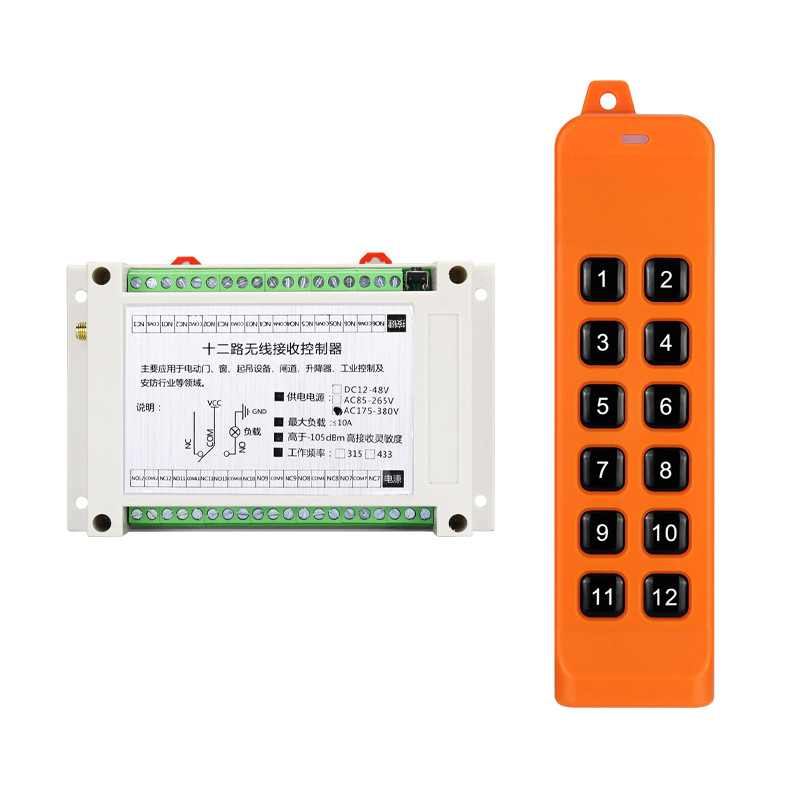

DC12V 24V 36V 868MHz 12 Channel Wireless Controller Bridge Crane System Receiver 868Mhz Remote Control

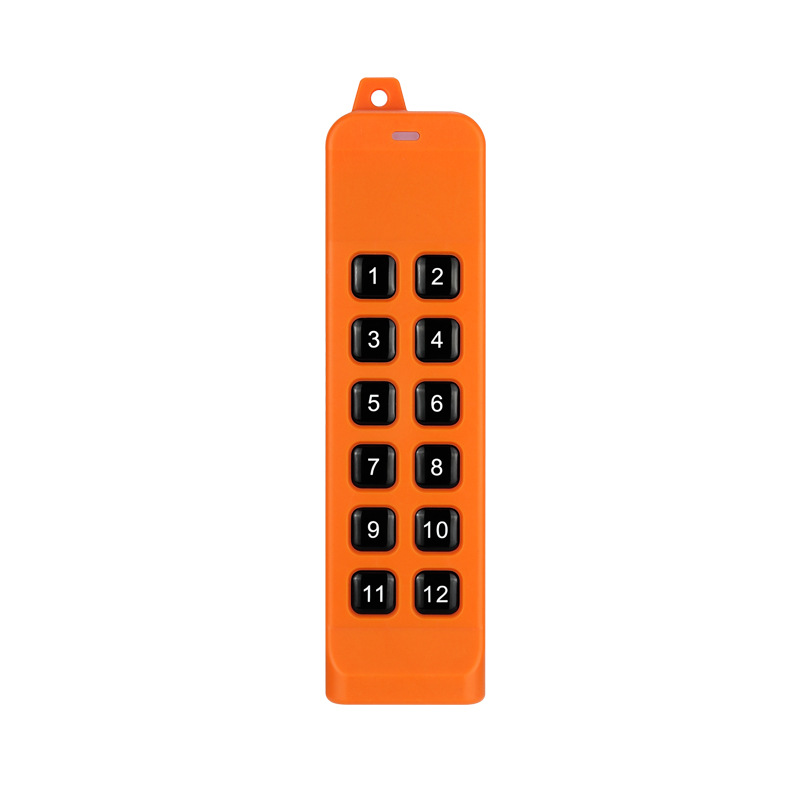

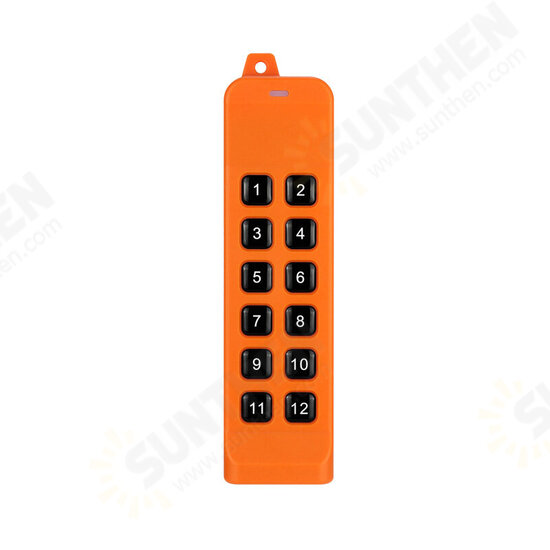

Remote Control Feature:

Product model: FSK-12 key

Shell material: PC+fiber

Standby power: <2.5mA

Launch distance: >200 meters

Mediation: FSK

Signal frequency: 868MHz

Remote control working voltage: DC3V/2XAA battery (not includes)

Dimensions and weight: 231*57*40mm/230g

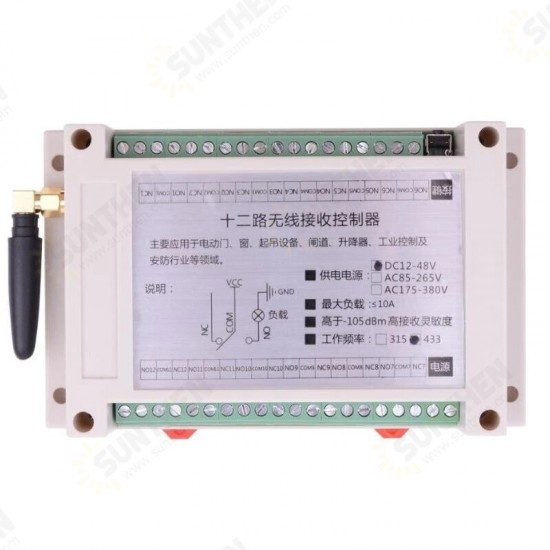

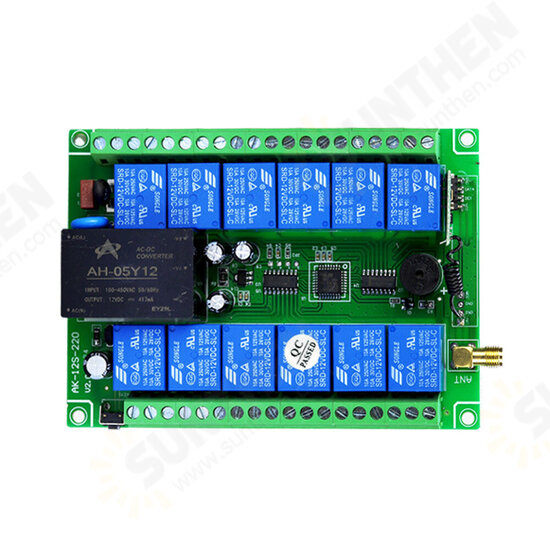

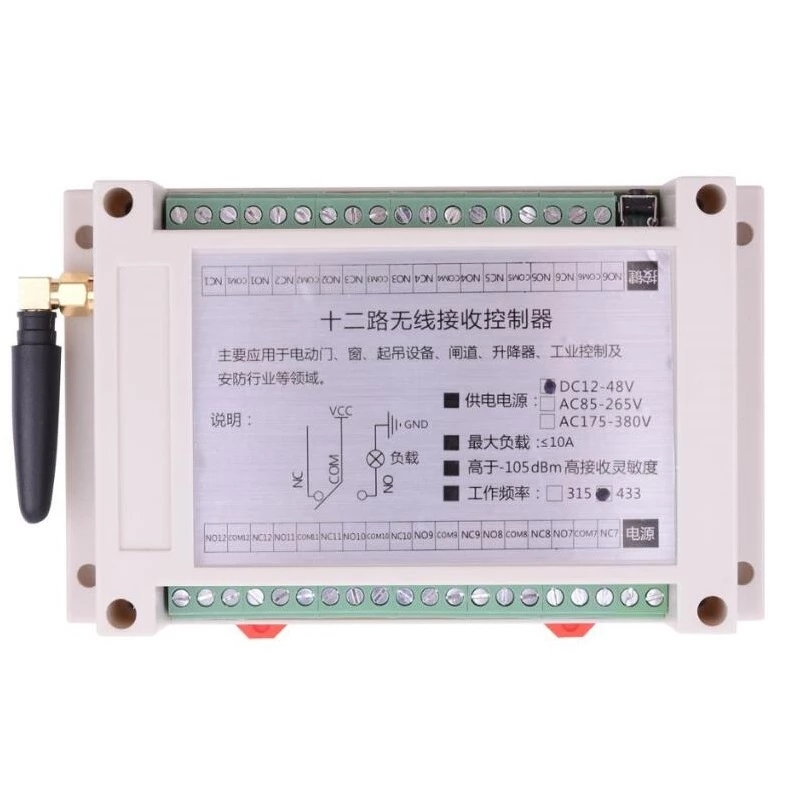

Receiver Feature:

Product model: AK-RK012S-Industrial control DC 12-way

Shell material: PC

Working voltage: DC12-48V/AC1750-380V (optional)

Maximum load: single <=10A

Operating temperature: -40°C~80°C

Mediation: FSK

Dimensions and weight: 145*91*40mm/260g

Pairing method:

Learn to pair:

Press the receiver learning key - the buzzer sounds, indicating that it has entered the learning state, press any key on the remote control - the buzzer stops beeping, indicating that the learning has been successful.

Mode switch:

①Signal jog----press the No.1 button of the remote control to learn.

②Signal interlocking----press the No. 2 key of the remote control to learn.

③Signal self-locking----press the No.3 button of the remote control to learn.

Working principle:

1-6 way jog, 7-12 way self-locking----press 4 key of remote control to learn

1-6 way jog, 7-12 way interlock----press 5 key of remote control to learn

1-6 way interlock, 7-12 way self-locking----press 6 key of remote control to learn

1-4 way jog, 5-8 way interlock, 9-12 way self-locking----press 7 key of remote control to learn

1-6 way self-locking, 7-12 way jog----press 8 key of remote control to learn

To clear the code, press and hold the receiver learning button until the buzzer stops, indicating that the stored information has been successfully cleared.

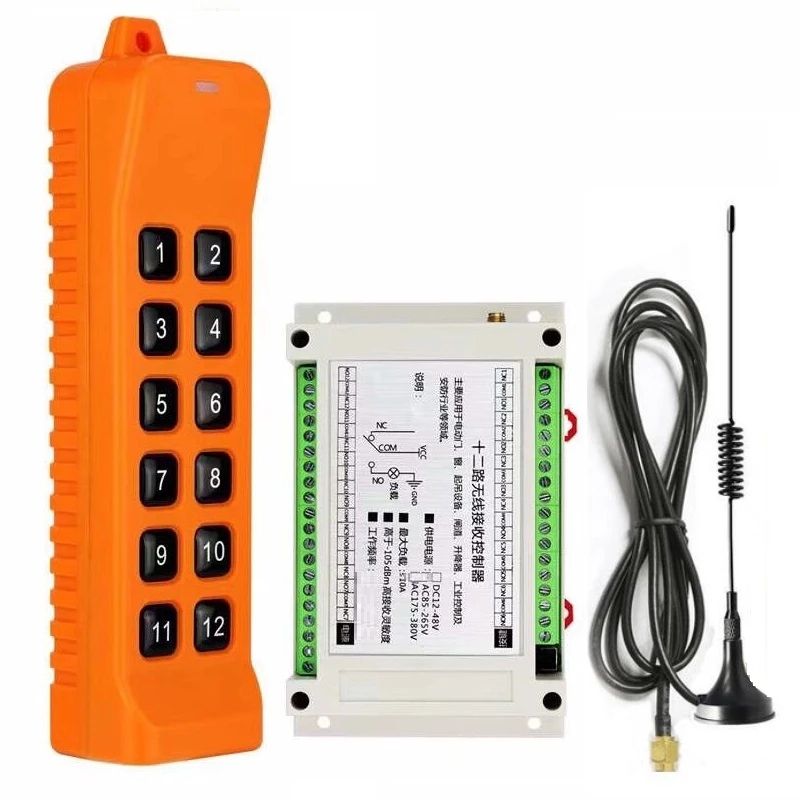

Package includes:

1 x Remote

1 x Controller
