DIY Robot Arm Kit Five-axis Joint 5 Motor Control LED Light Science Experiment Toys
- Stock: In Stock
- Model: ST22000880
- SKU: ST22000880
$54.99
Ex Tax: $54.99
Features:

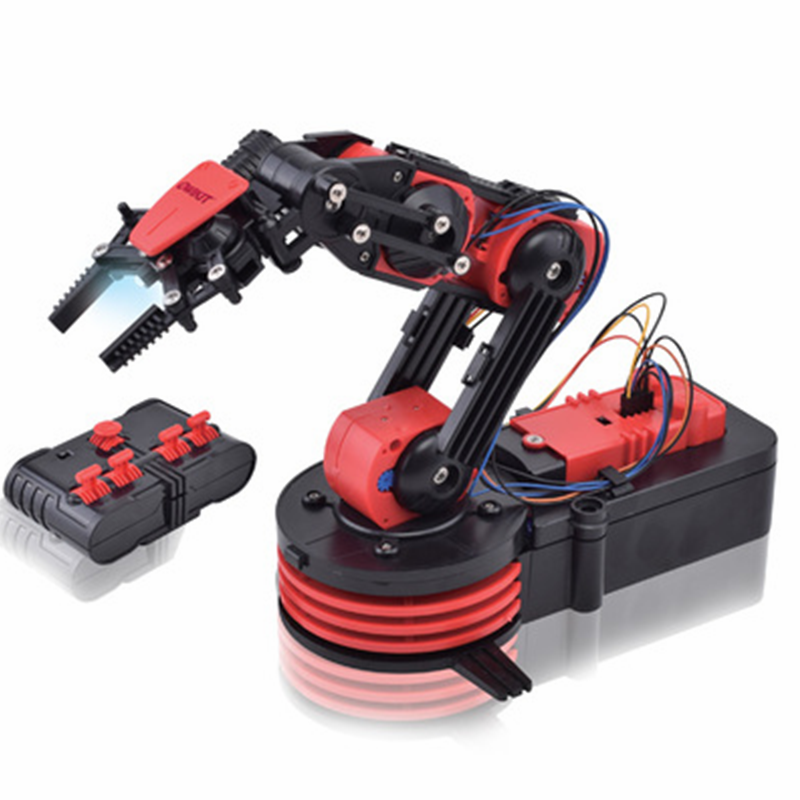

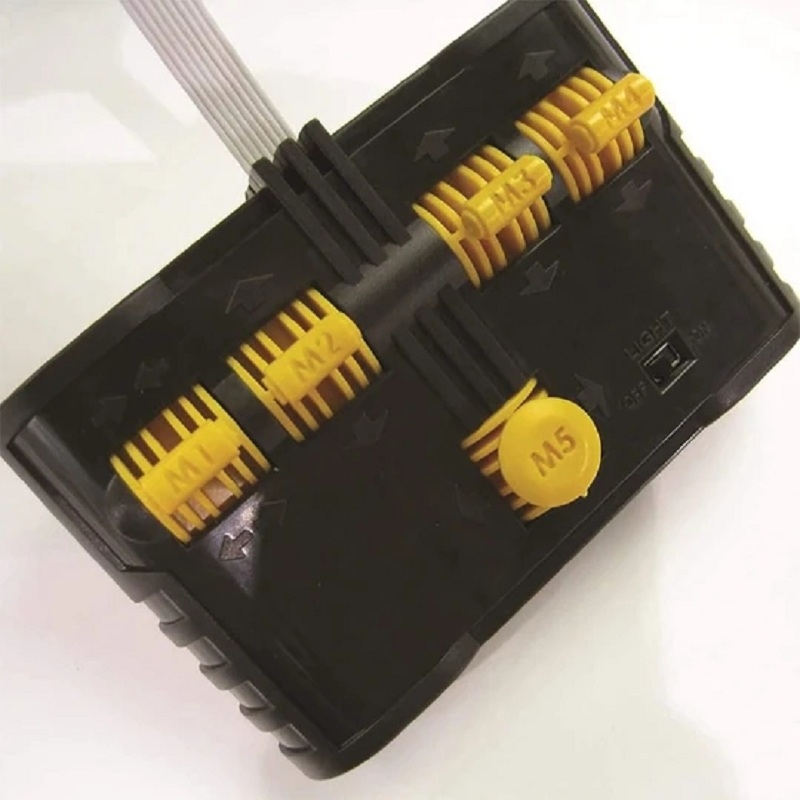

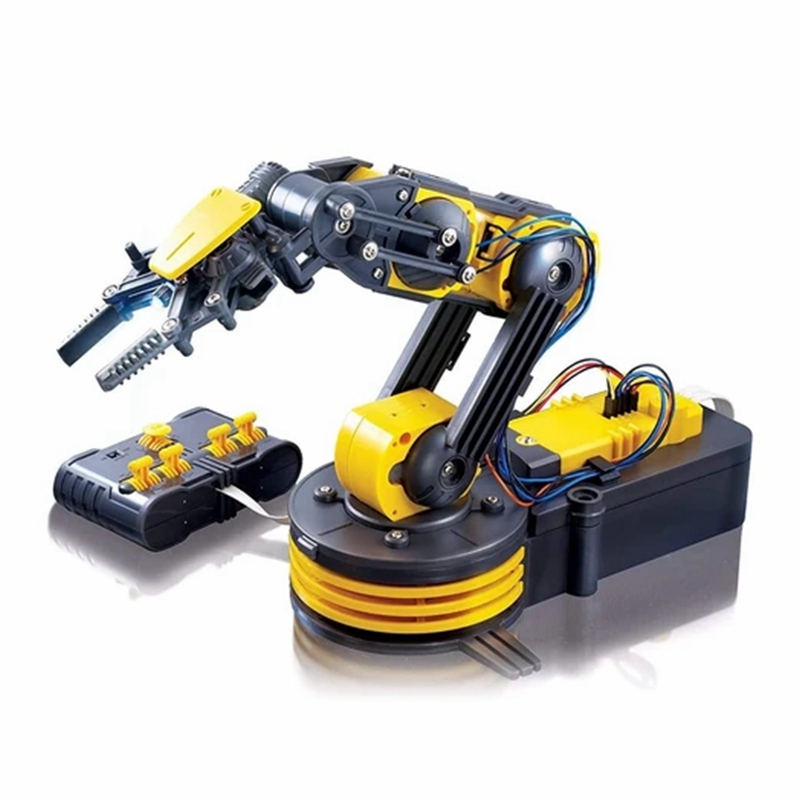

Build your own robot arm, commonly found in car factories to teach yourself about basic robotics. The robot features 5 motors which can be controlled easily via the handset for amazing precision movements, allowing you to pick up items up to 1.7" using the open hand gripper.

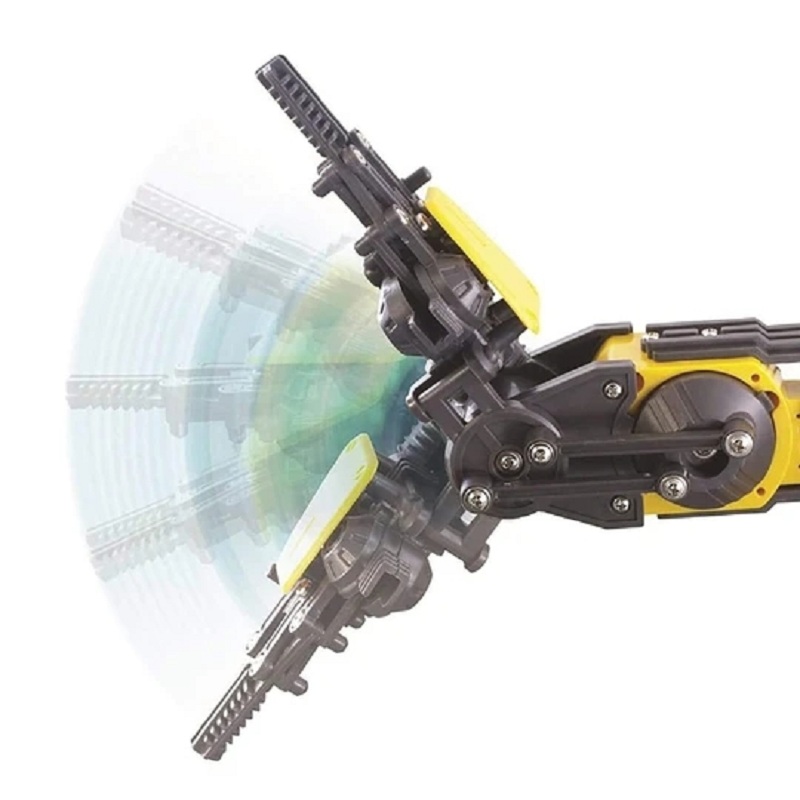

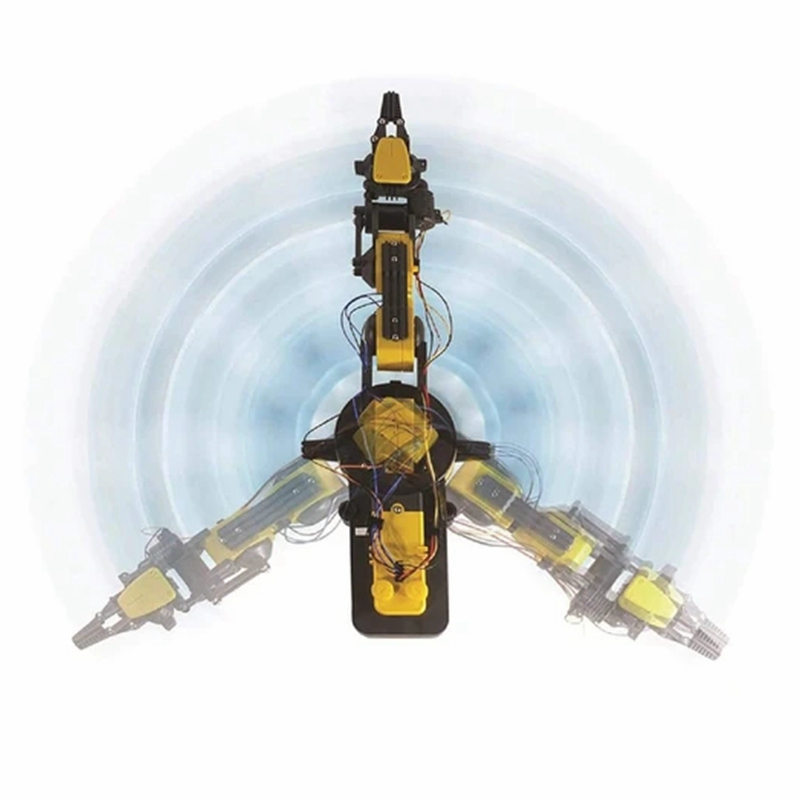

The arm pivots 120 degrees on the wrist and 300 degrees on the elbow in addition to a 180 degree base motion to allow you to pick up 100 weight.

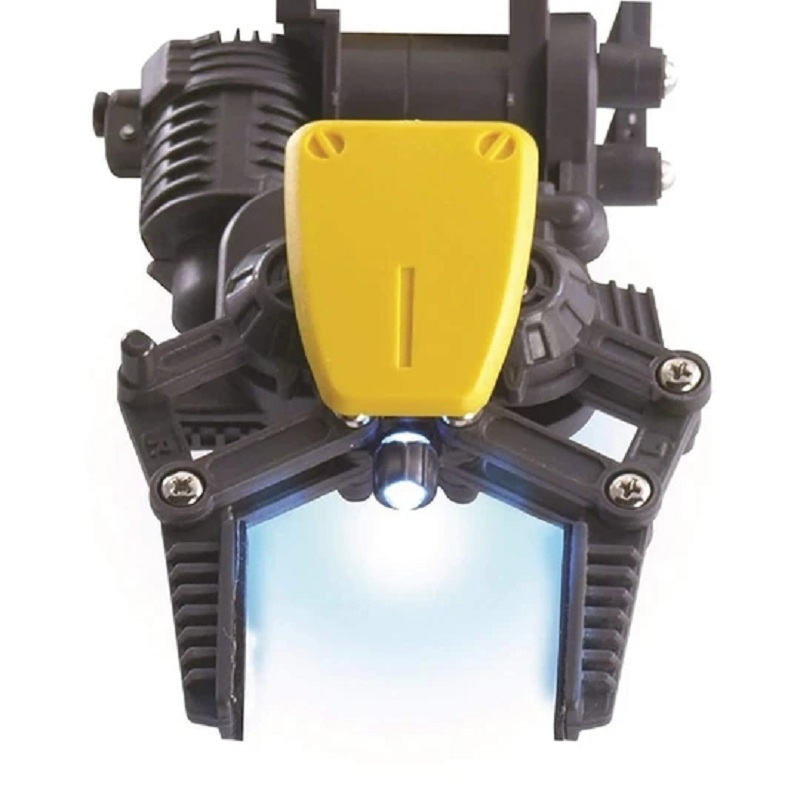

Features a LED search light for night time operation.
Motor Specification:
Operating Voltage:DC3V
No Load Current:255mA Max.
No Load Speed:12340rpm ±12%
Stall Torque:60g-cm
Stall Current:3170mA
Motor Dimensions:
End Shaft ( Metal Case Side):9.4 ±0.5mm
End Play:0.05~0.60mm
Motor Length:25.0 ±0.3mm
Motor Diameter:Φ20 ±0.2mm
End Bell Case Width:Φ15.1 ±0.15mm
Bearing Case Diameter:Φ10 +0.05/-0.25mm
Bearing Case Width:8.9 ±0.25mm
Package Included:

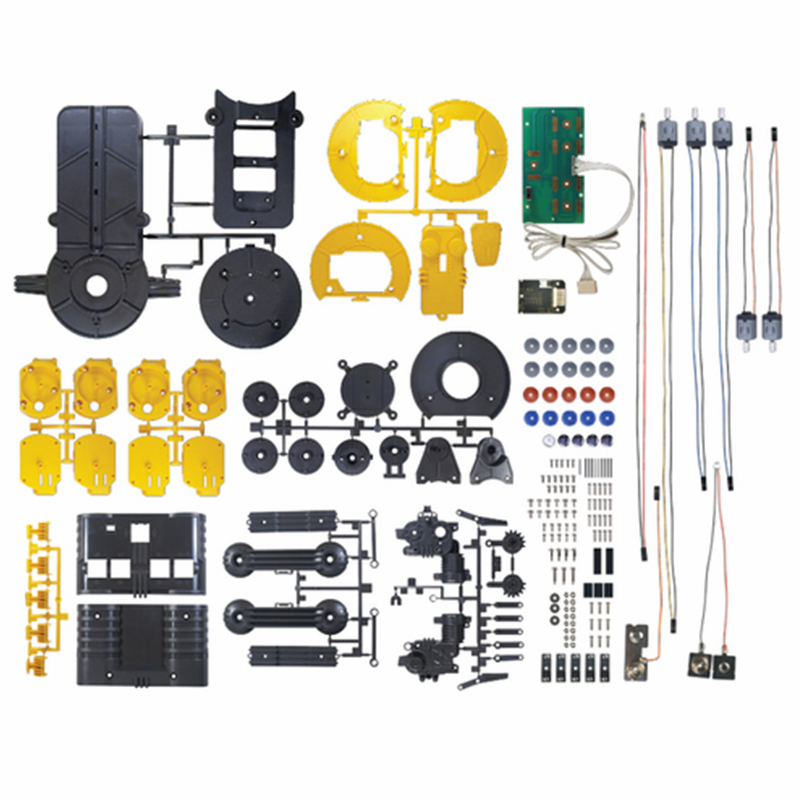

1xRobot Arm Kit
