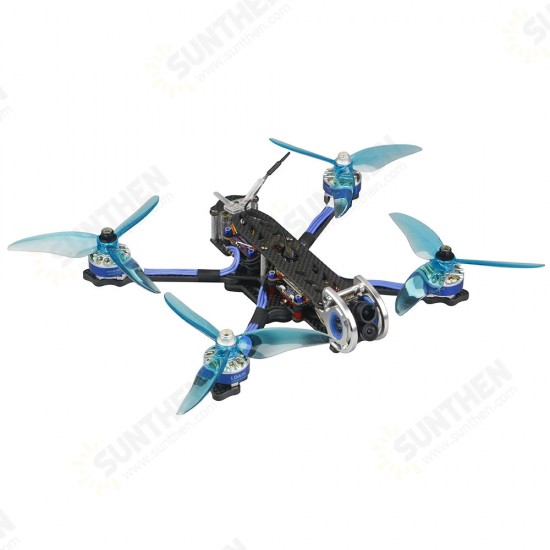

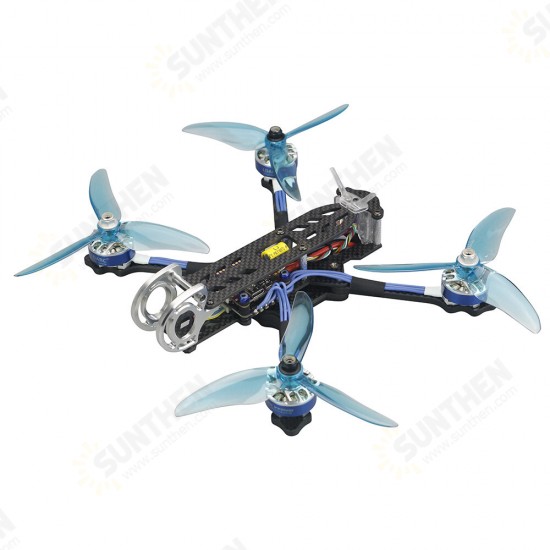

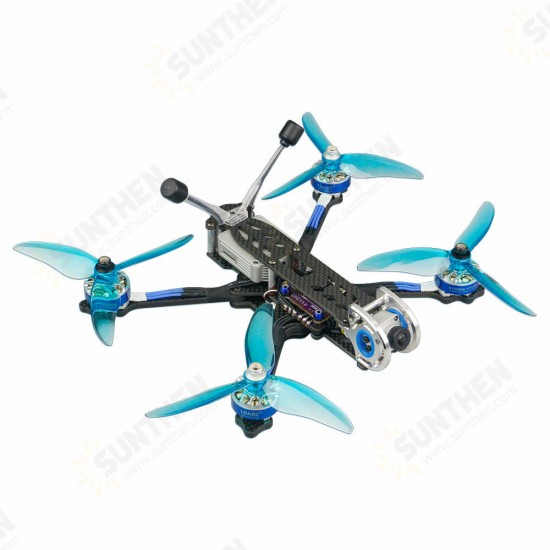

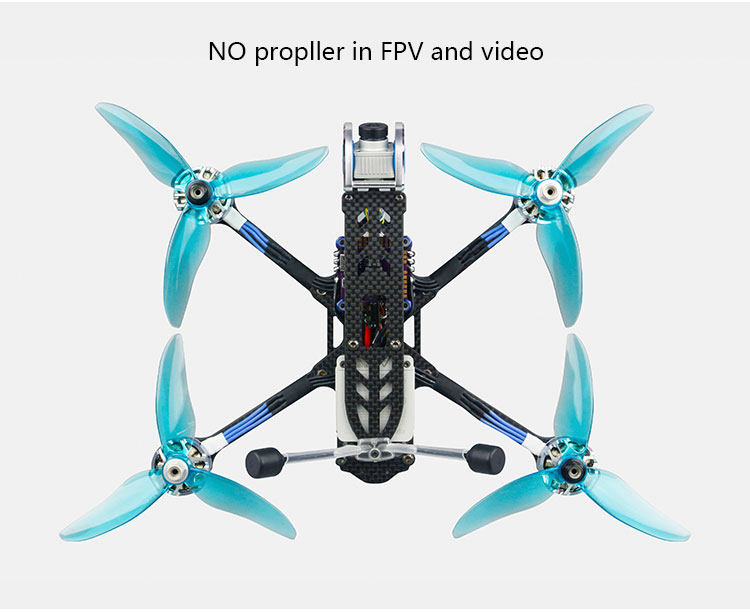

DJ220/DJ220-Digital PNP 219MM 5inch 4S Cinewhoop FPV Racing Drone RC Quadcopter Configure FPV Digital
- Stock: In Stock
- Model: ST22000993
- SKU: ST22000993
$207.89
Ex Tax: $207.89
User Manual: DJ220 PNP User manual
Rmark: DJ220 DJI FPV digital must be use with DJI sepecial TX and glasses, if be use with other type TX.It needs to be connected to a another matching receiver else.
Wheelbase: 219mm
Drone weight:
369.1g(DJ220-Digital)
369.1g(DJ220-Digital)
316.7g(DJ220)
Package size: 275*205*90mm
Package weight:
842g(DJ220-Digital)
842g(DJ220-Digital)
765g(DJ220)
Plate thicknss:
top plate 2.5mm; bottom plate 2.5mm.
top plate 2.5mm; bottom plate 2.5mm.
arm frame 5mm; bottom plate 3mm.

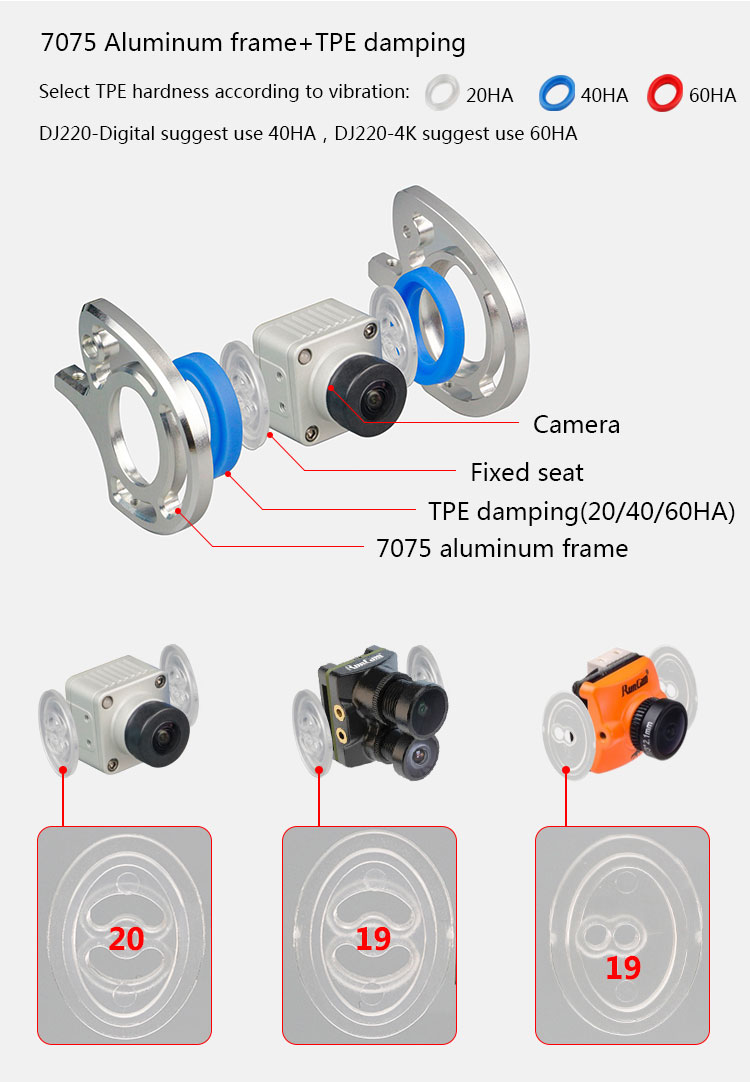

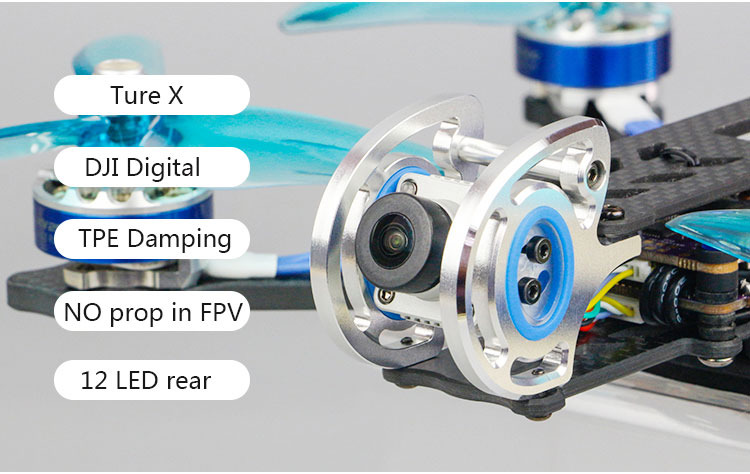

Camera angle:15-50
Mounting size: Flytower 30.5*30.5mm,
motor Φ16 M3*8 ; camera 19mm/20mm
KK tower new name
KKT16 mounting size 16*16mm
KKT20 mounting size 20*20mm
KKT30 mounting size 30.5*30.5mm

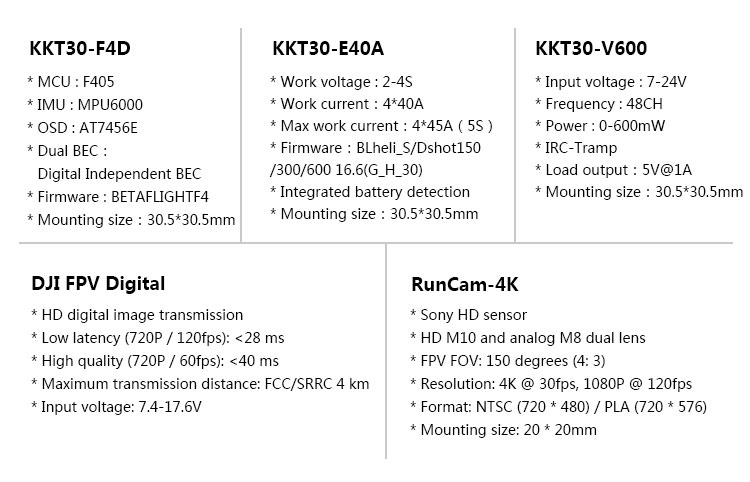

Configuration:
FC: KKT30-F4D (Old name: F4+VTX)
ESC: KKT30-E40A Old name: ESC 40A(KK supper part)

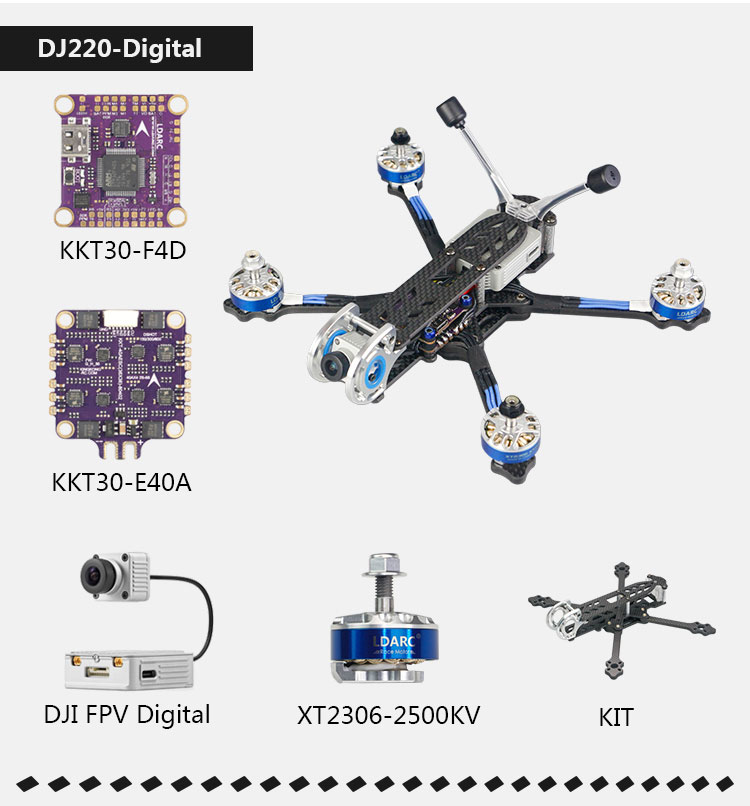

DJ220-Digital : DJI FPV Digital+Camera

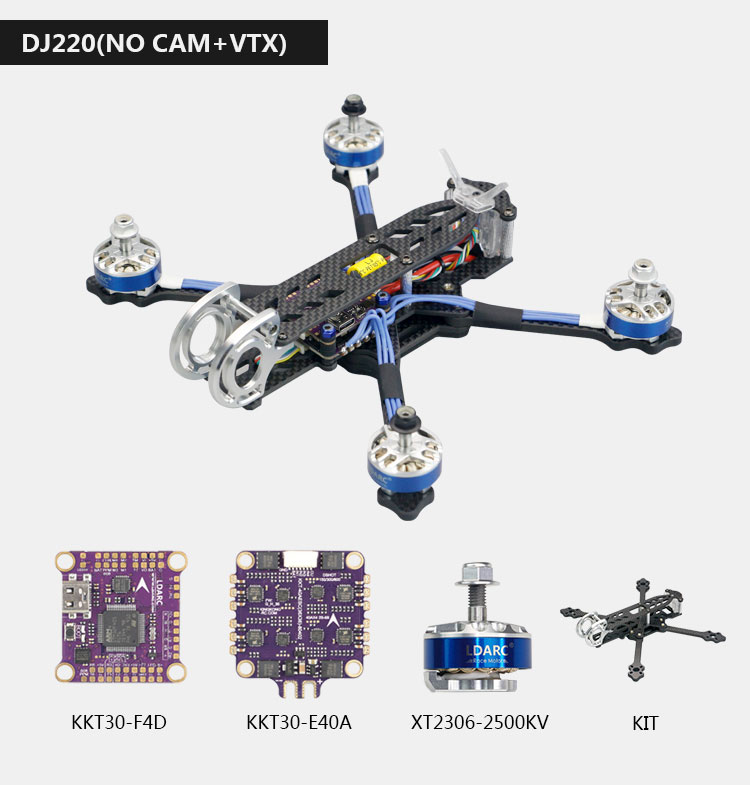

DJ220 : NO CAM+VTX
Motor: XT2306-2500KV
Prop: 51499-3blade
Recommend battery: 14.8V 1300-1800mAh
Receiver: DJ220-Digital(Include DJI RX, it canable to use DJI transmitter),
FC can use AC2000, XM+ etc. receiver, it can use Frsky ,Futaba transmitter

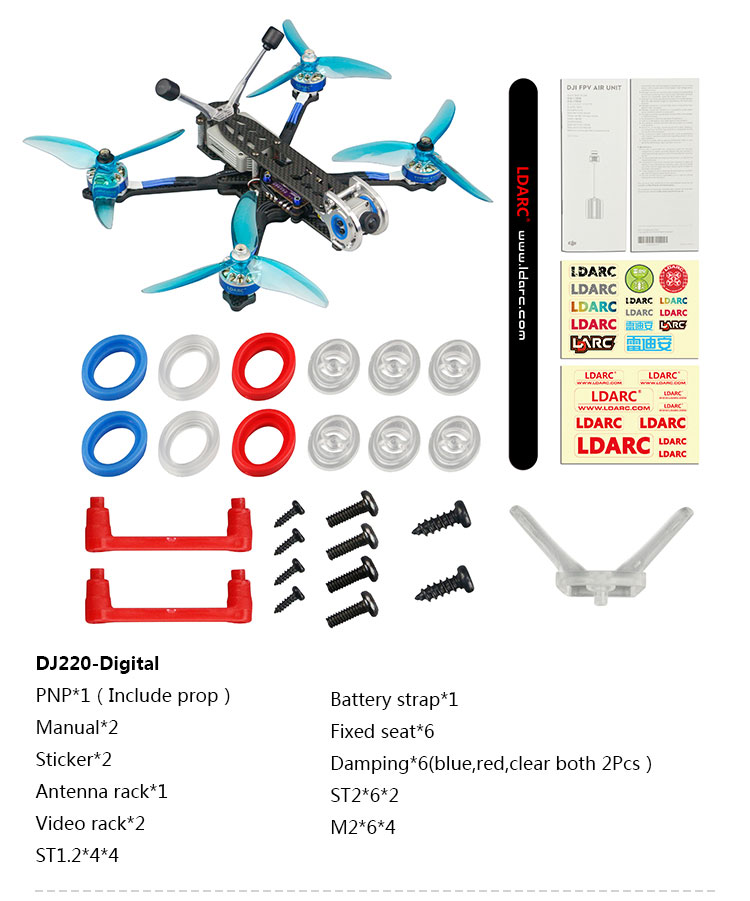

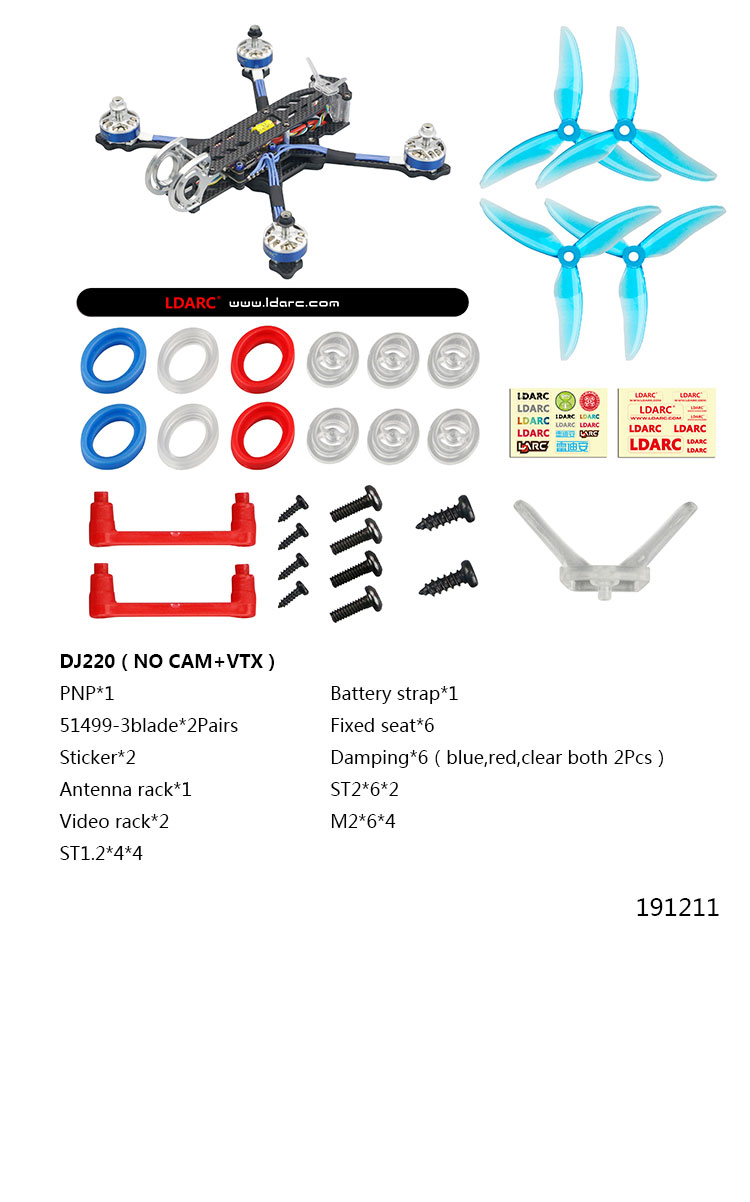

Package Included:
1* LDARC DJ220 /DJ220-Digital PNP FPV Drone
Package Included:
1* LDARC DJ220 /DJ220-Digital PNP FPV Drone
