DP-21/DP-22 220*160/320*240 Pixel 3.5inch Color Digital Screen WIFI Handheld Thermal Camera Portable High-precision IR Thermal Imager Type-C Interface
- Stock: In Stock
- Model: ST22011841
- SKU: ST22011841
$415.99
Ex Tax: $415.99
Description:
DP-22/DP-21 infrared thermal imaging handheld device is a high-precision thermal imaging handheld device. It adopts infrared thermal imaging plus visible light display mode. It can photograph the temperature of each pixel of the target object and realize it by combining visible light. Know the status of the subject.
Features:

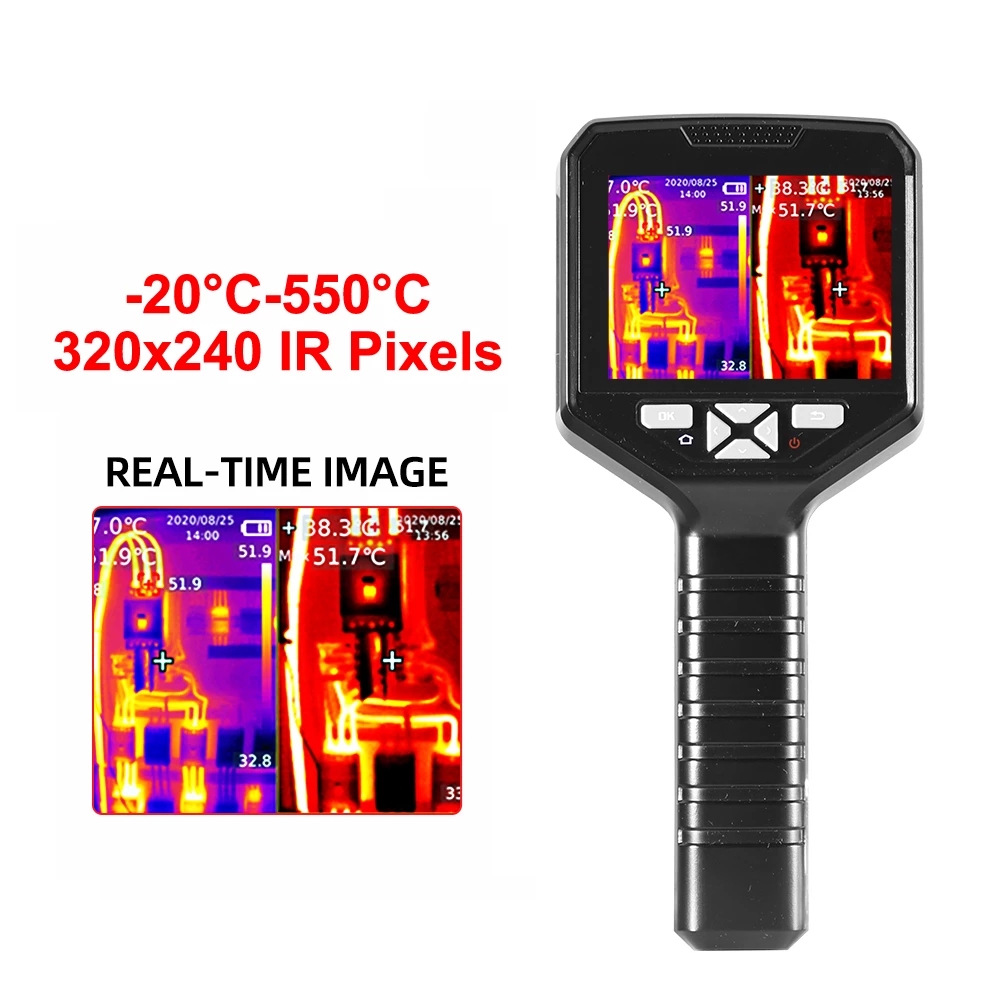

1. High-definition images. The high resolution is DP-22 (320*240 Pixel) / DP-21(220*160 Pixel), which can observe the measured object more clearly. With 8 palettes, it can be adapted to more scenes for temperature measurement. Supports accurate temperature measurement from -10°C to 450°C (±2°C or ±2%).
2. Support multiple image display modes. Three different image enhancement modes can be selected under each palette to match different test objects and ambient temperatures, and you can choose to highlight the test object itself or background details.
3. Image enhancement. It supports central point temperature measurement and continuous tracking of high and low temperatures, and can shield other high and low temperature interference by selecting high and low temperature tracking in certain areas.
4. Flexible temperature measurement. Support center point temperature measurement and continuous tracking of high and low temperature, regional temperature measurement, visible light mode temperature measurement,
5. Temperature alarm. The high and low temperature thresholds can be set, and an alarm will be generated when the threshold is higher or lower.

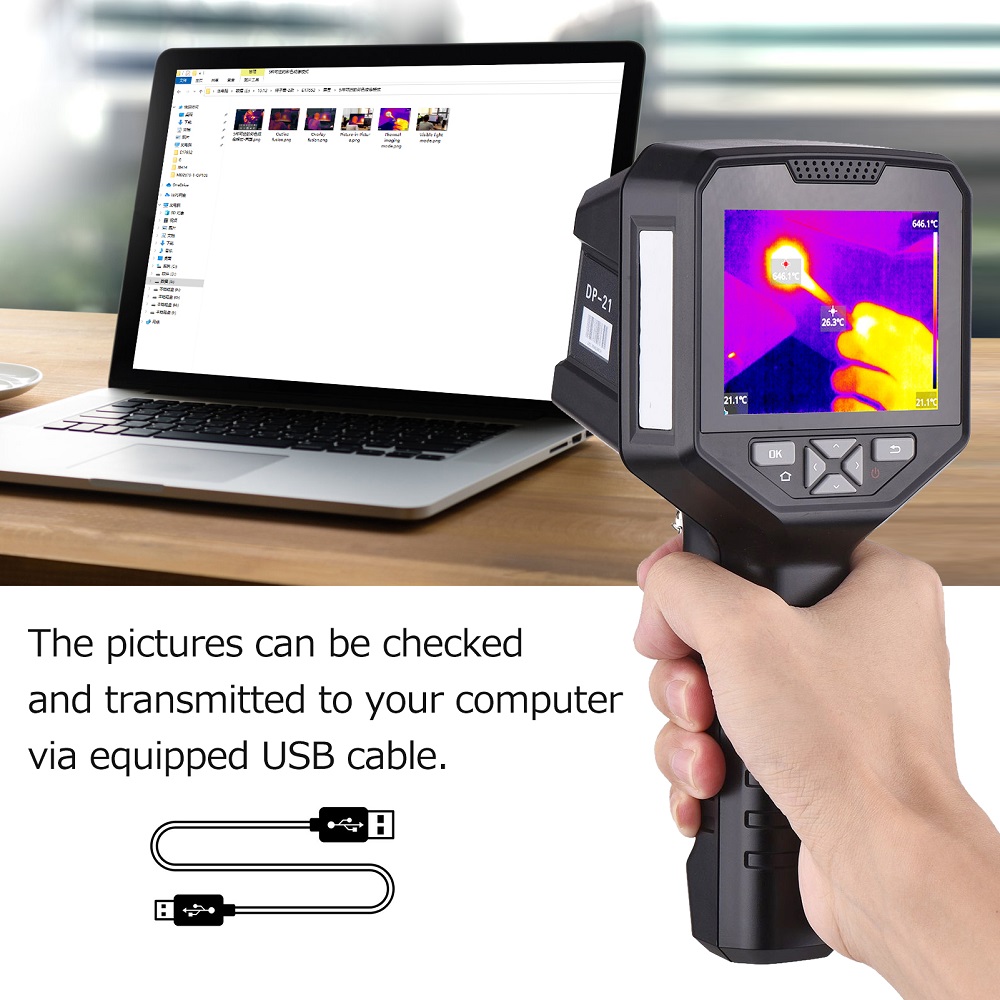

6. WiFi. By turning on WiFi, you can directly transfer the pictures taken by the handheld device to a PC or Android device at any time, and you can perform various analyses on the pictures without using a data cable (the data cable can also copy the pictures to a PC or Android device). Android device).
7. Image preservation and analysis. When shooting, save the picture in Tiff format each time, the picture contains 3 frames of images at the same time, you can use various conventional viewing software to view different frames (only through our image analysis software can view the temperature of each image pixel, regular viewing The software can only view images and does not support temperature analysis)
8. Analysis software. After importing the pictures into the analysis software, the photographed pictures can be preliminarily screened according to the temperature range and temperature difference of the images to filter out unnecessary pictures and improve production efficiency.

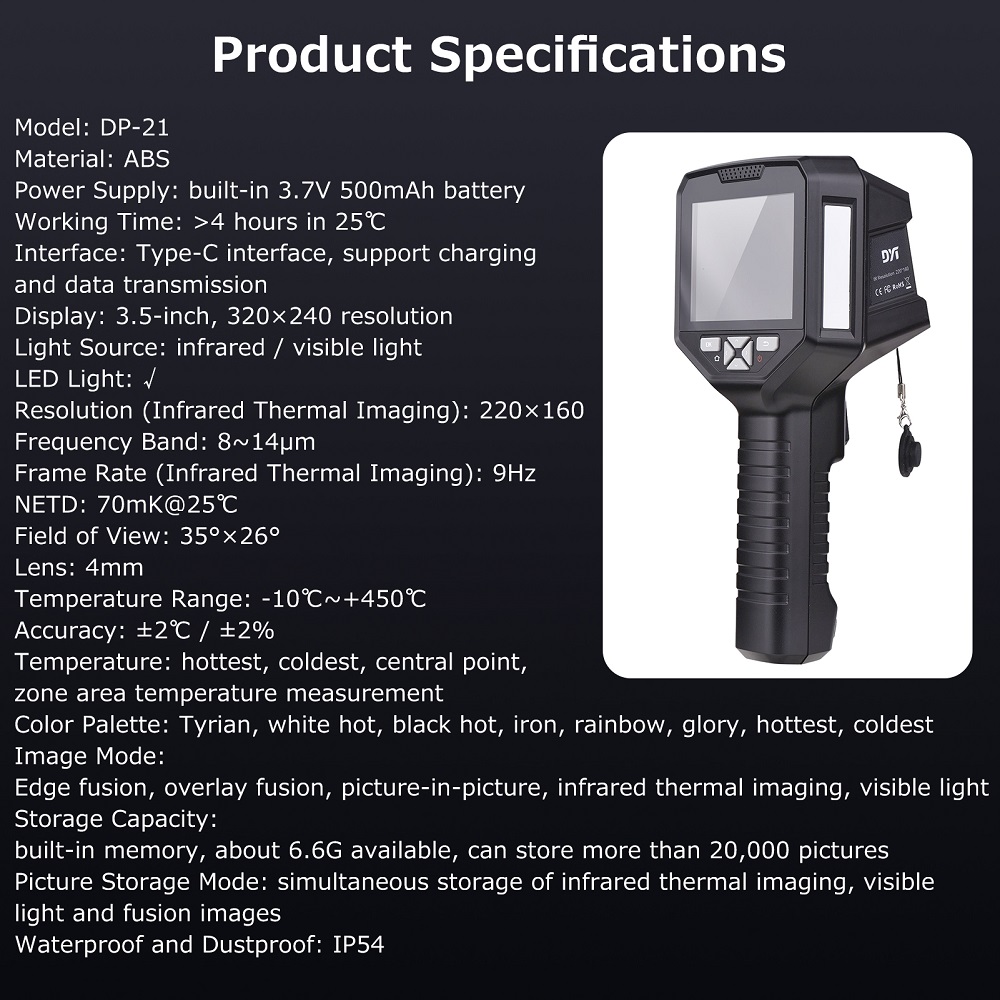

Specification:
Infrared thermal imaging resolution: DP-22 (320*240 Pixel) / DP-21(220*160 Pixel)
Working range: 8~14um
Infrared thermal imaging frame rate: 9Hz
NETD: 70mK @ 25℃
Field of view: 56° horizontal, 42° vertical

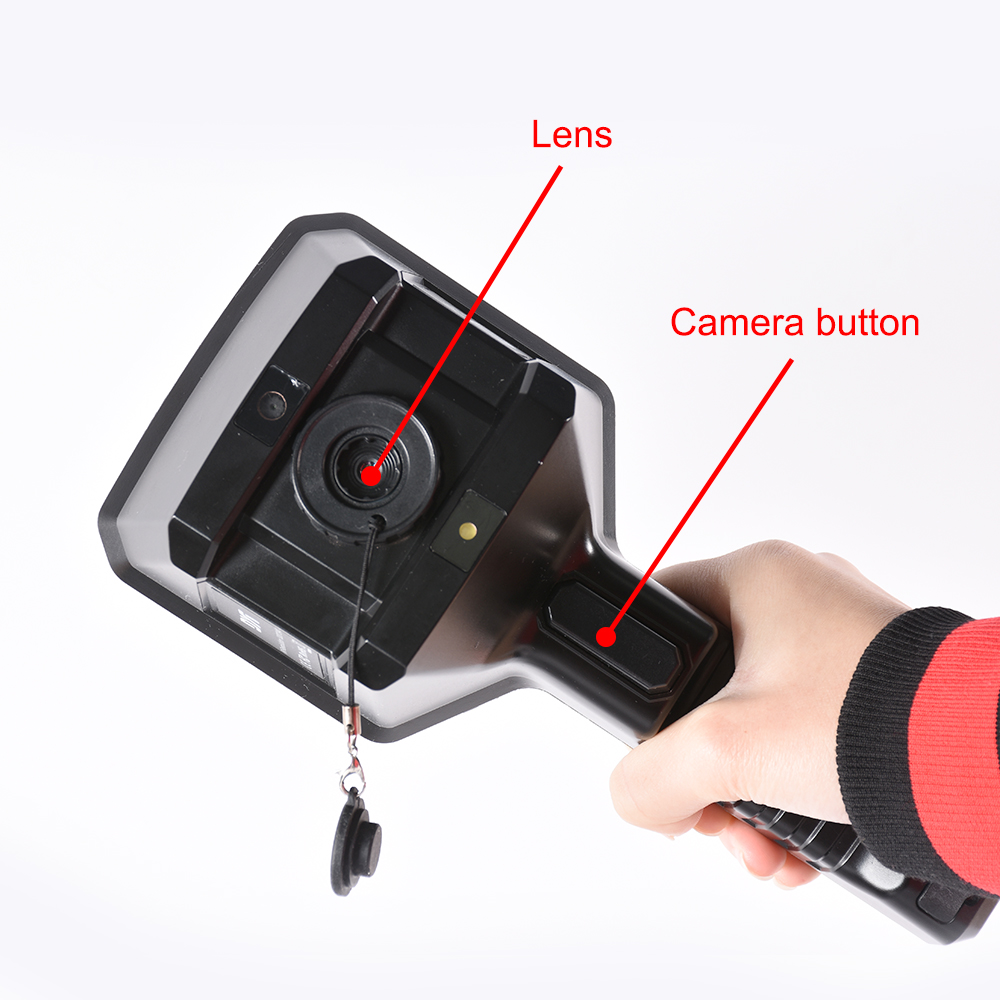

Lens: 4 mm
Temperature measurement range: -10°C~450°C
Temperature measurement accuracy: ±2°C or ±2%

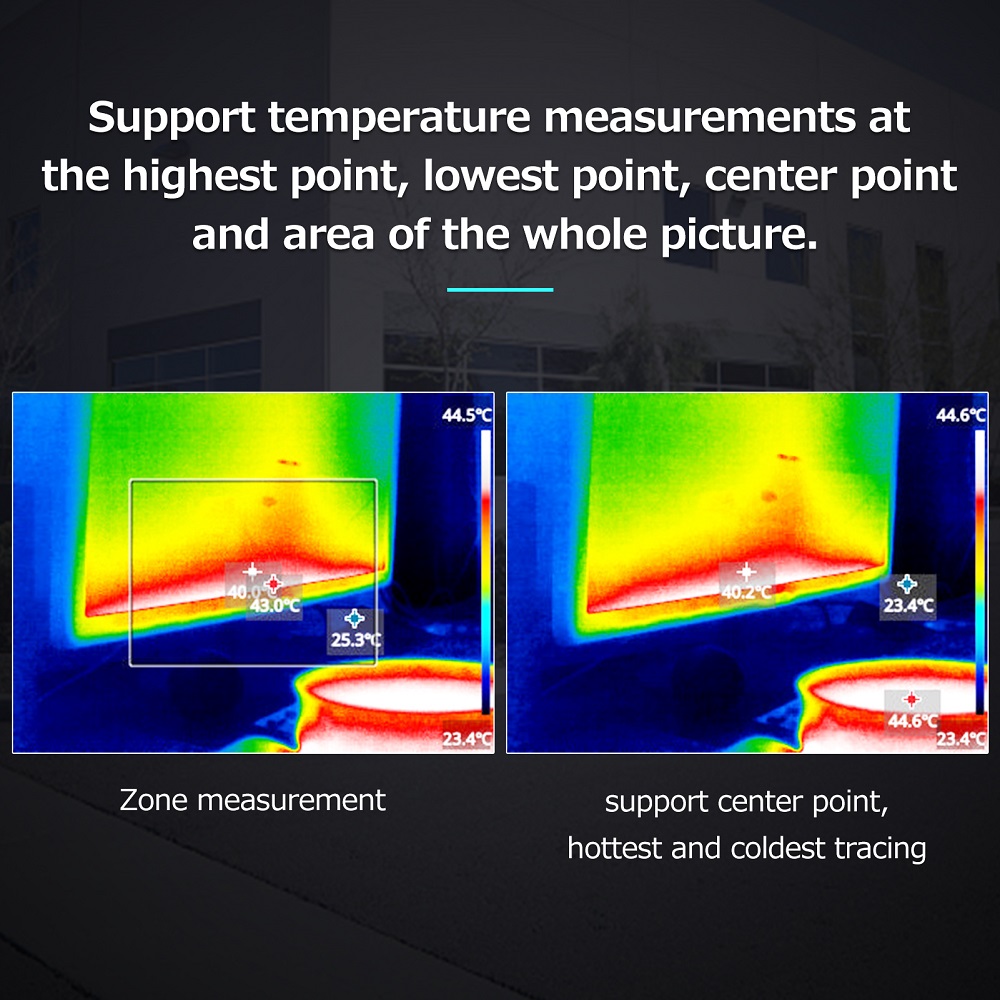

Temperature measurement: support full-screen highest point, lowest point, center point temperature measurement and regional temperature measurement

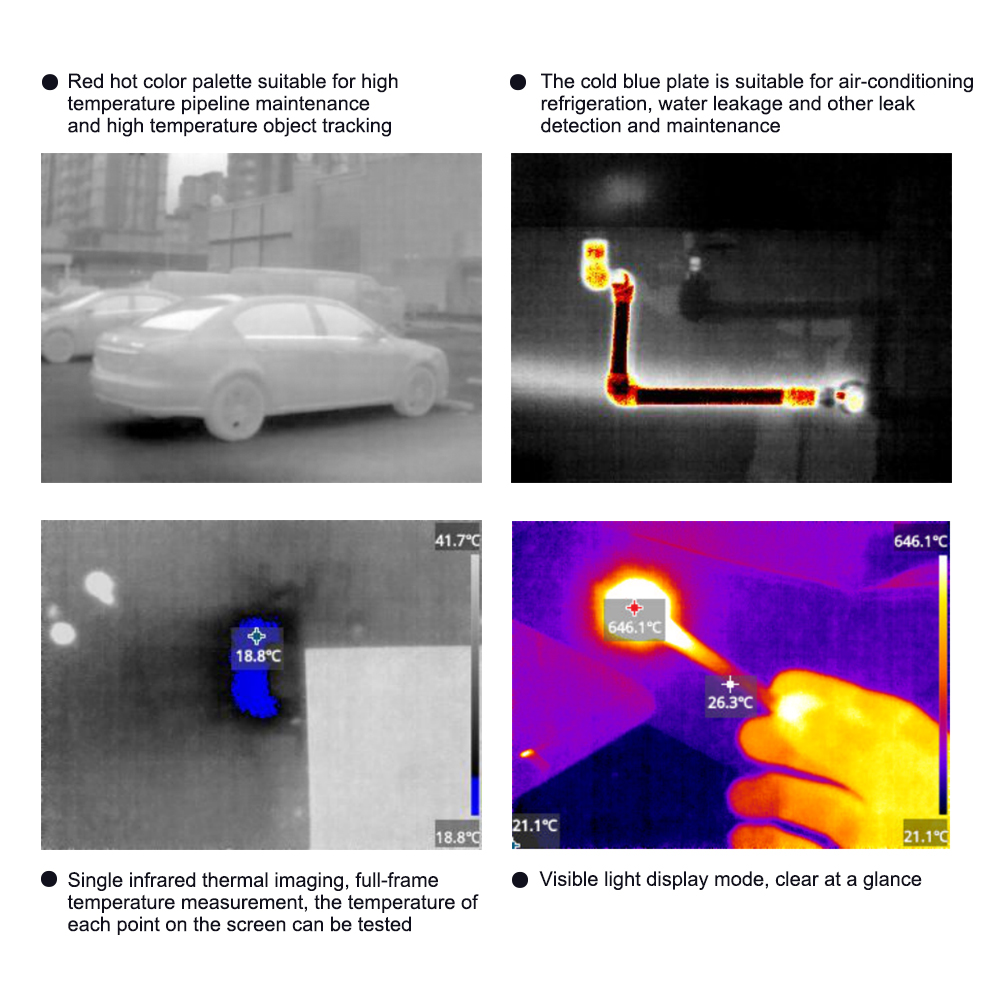

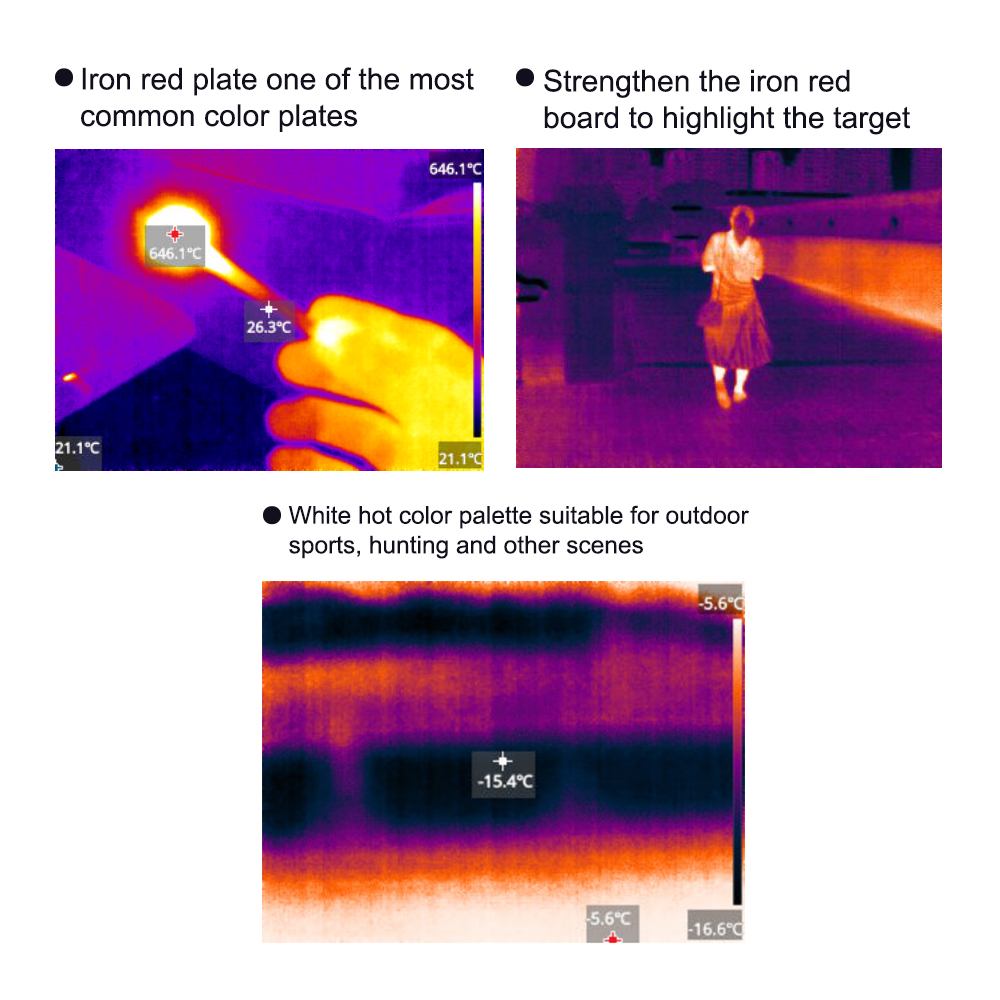

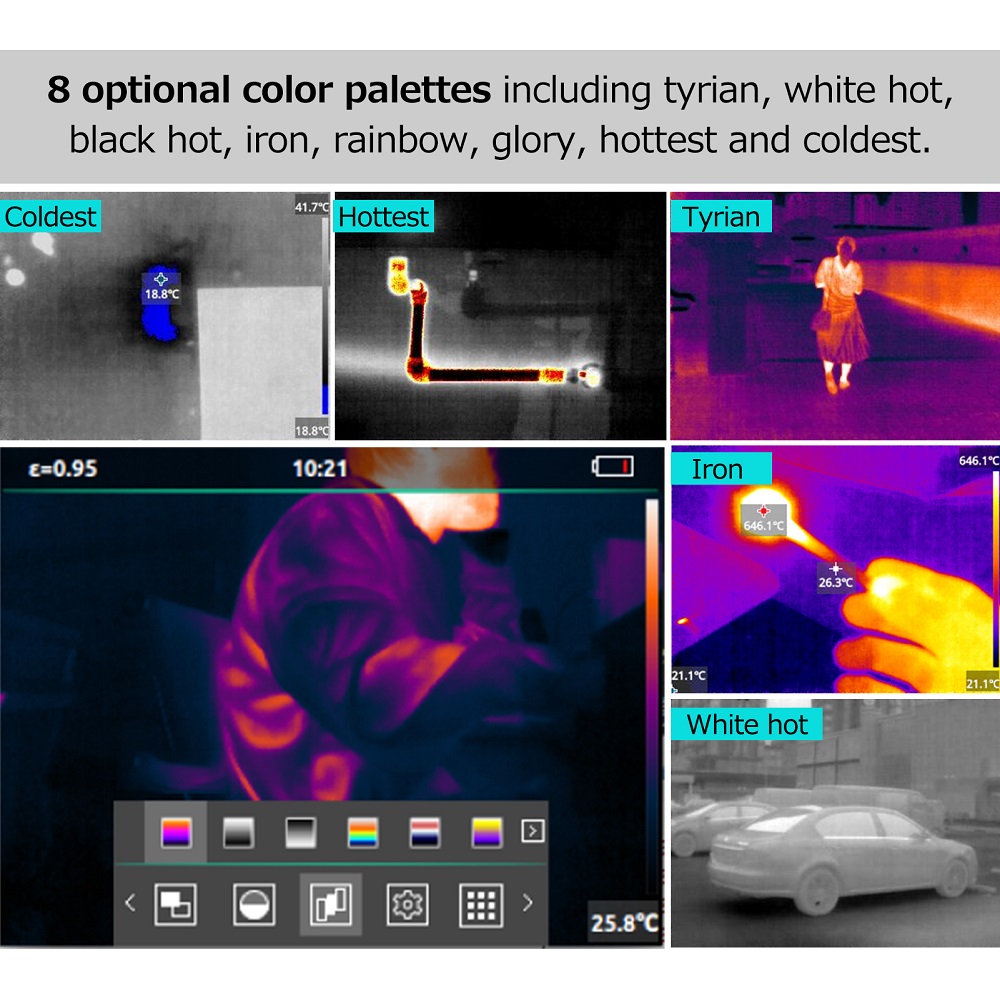

Swatches: enhanced iron red, white hot, black hot, iron red, rainbow, red hot, cold blue, etc.
Visible light resolution: 640x480
Visible light frame rate: 25Hz

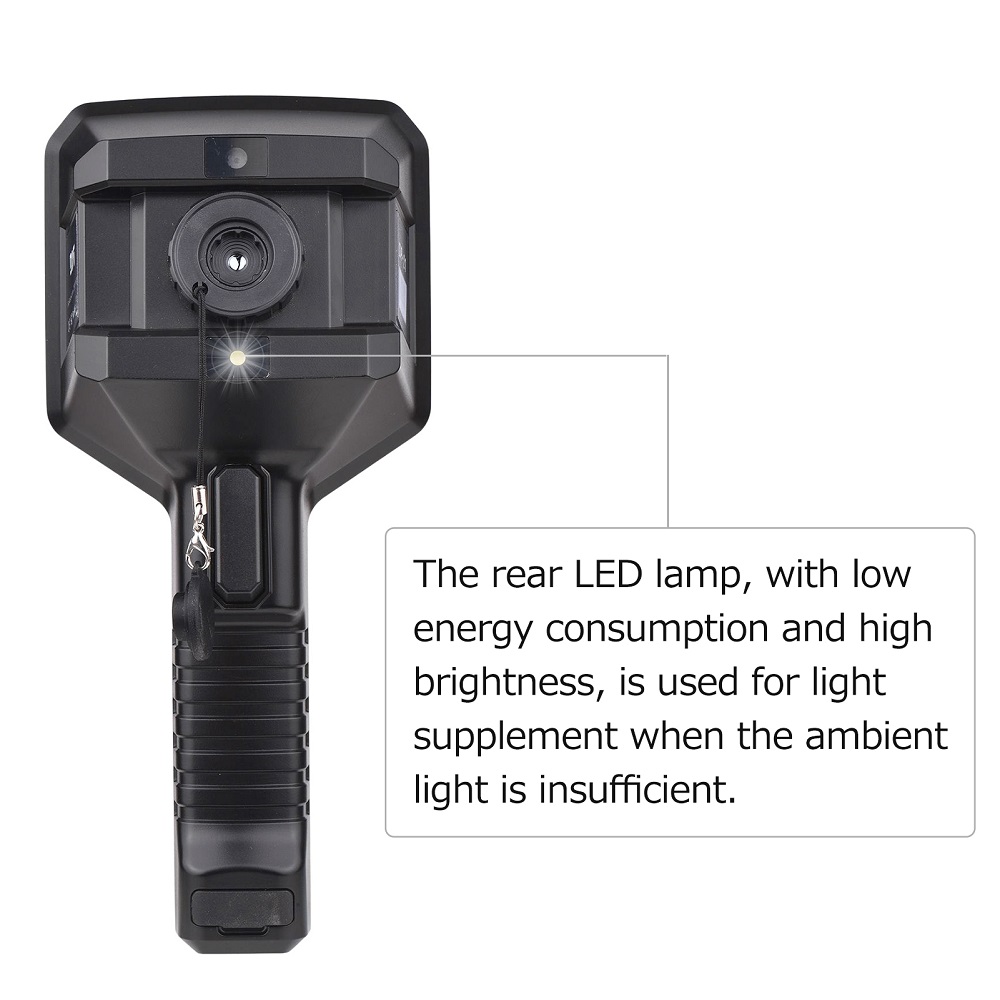

LED fill light: support

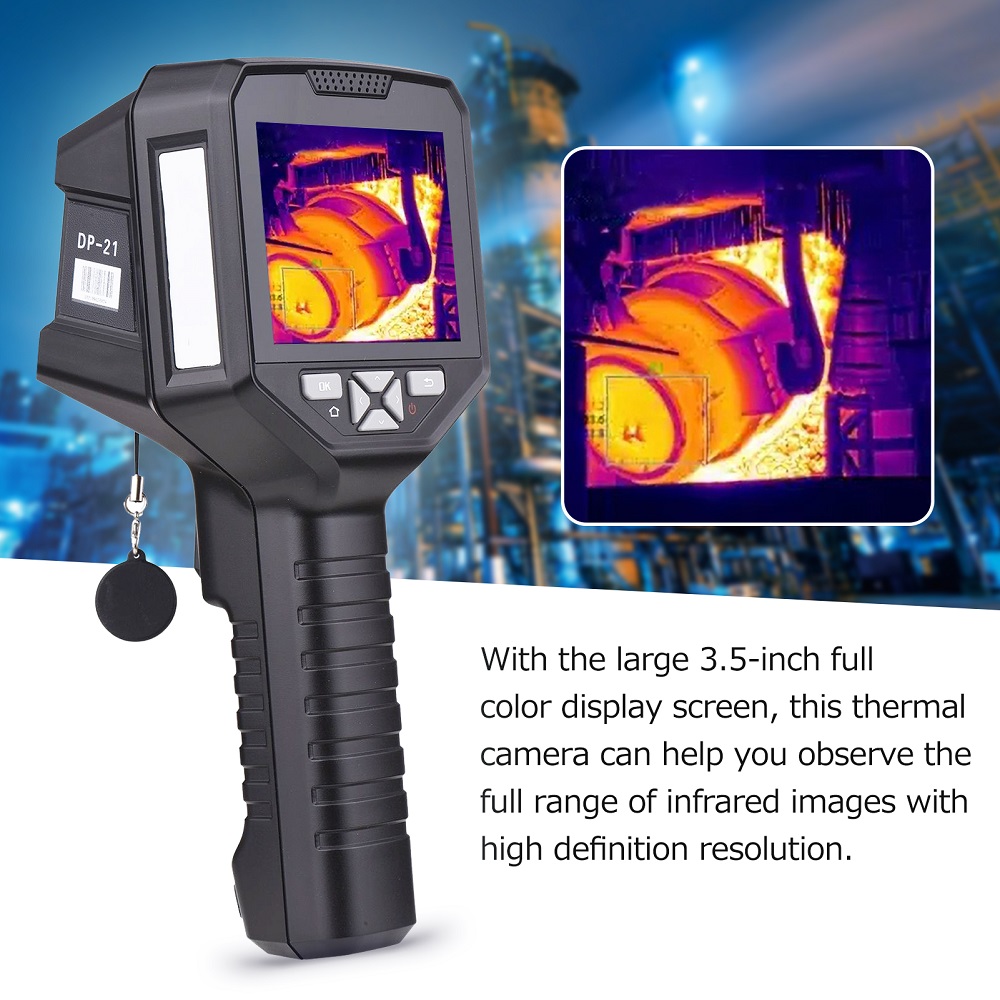

Screen size: 3.5 inches

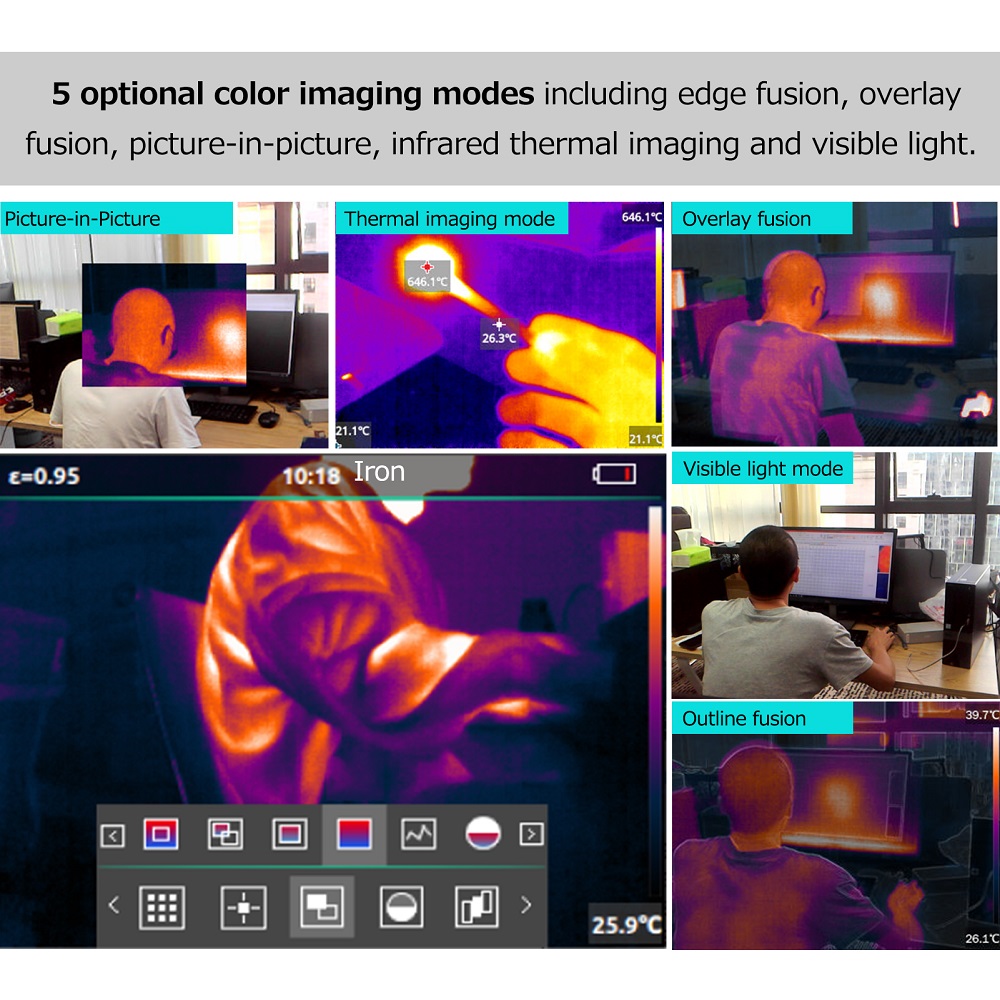

Image mode: edge fusion, superposition fusion, picture-in-picture, single infrared, single visible light
Language: Support Simplified Chinese, Traditional Chinese, English, French, Spanish, Russian, Arabic, Japanese and Korean.
Working time: 5000mAH large capacity battery, which can be used for about 4 hours at 25°C
Charging: Built-in battery, it is recommended to use a universal USB charger of 2A or above
WiFi: Support Android App and PC software data transmission
Working temperature: -20°C~+60°C
Storage temperature: -40°C~+85°C
Waterproof and dustproof: IP54
Capacity: Built-in memory, usable about 6.6G, can store more than 20,000 pictures
Picture storage mode: three pictures storage (infrared thermal imaging, visible light, working state photos)
File format: TIFF format, support background full-scale temperature analysis
Data and charging interface: USB Type-C (support charging and data transmission)
Analysis software: computer analysis system can analyze the captured pictures

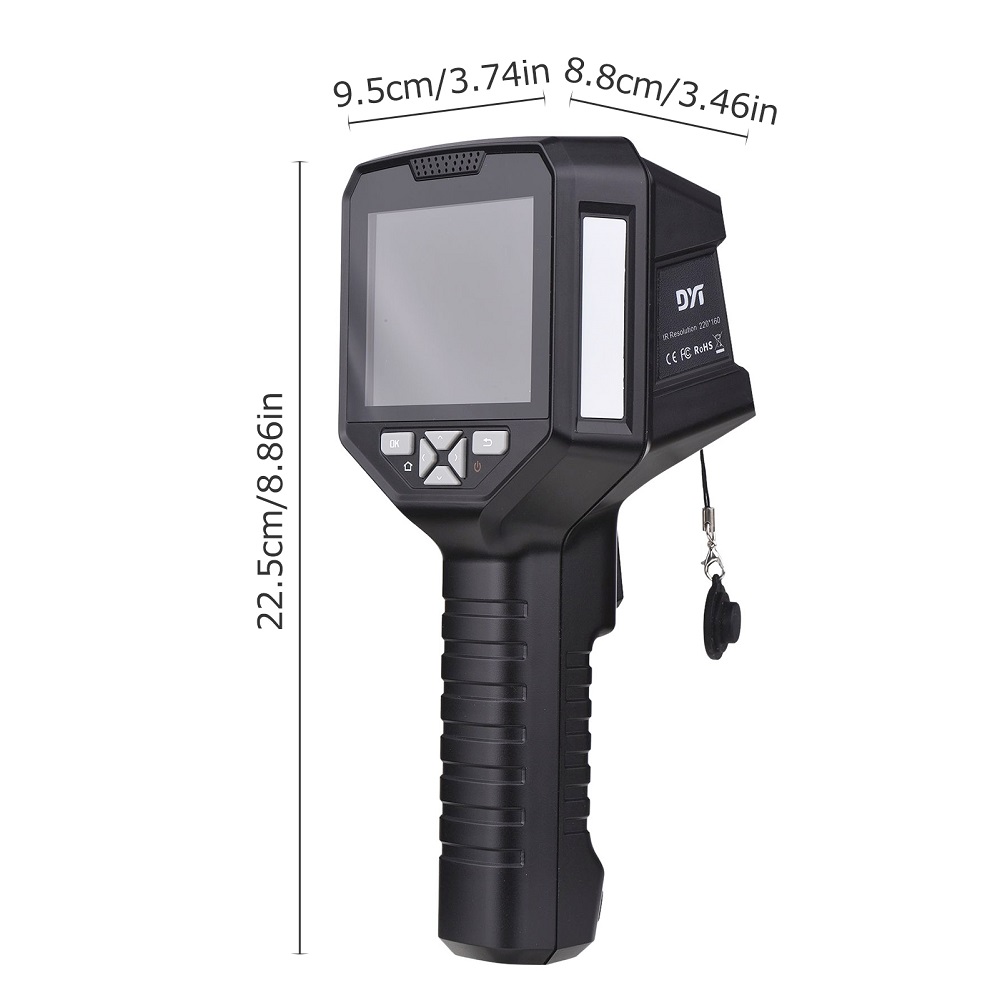

Product size: 230mm x 100mm x 90mm
Net weight: 420g
Packing size: 270mm x 150mm x 120mm
Gross weight (including color box packaging): 970g

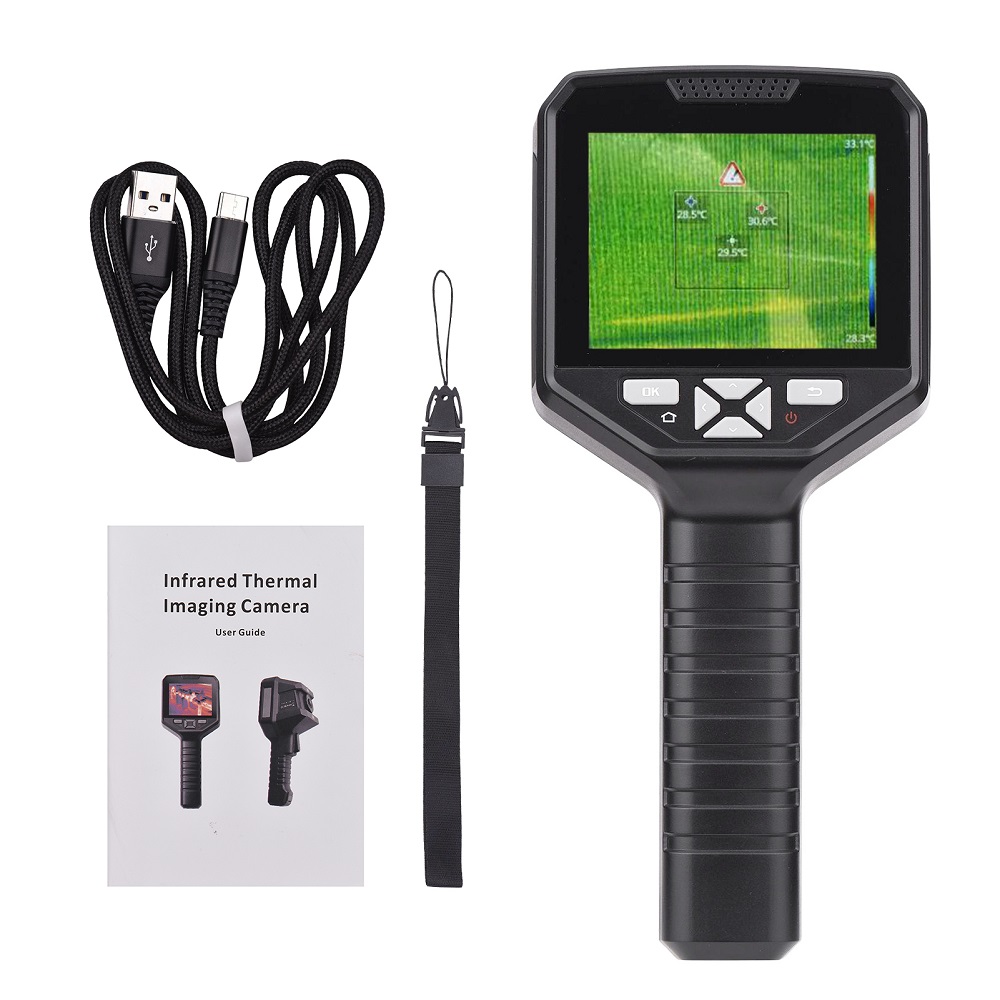

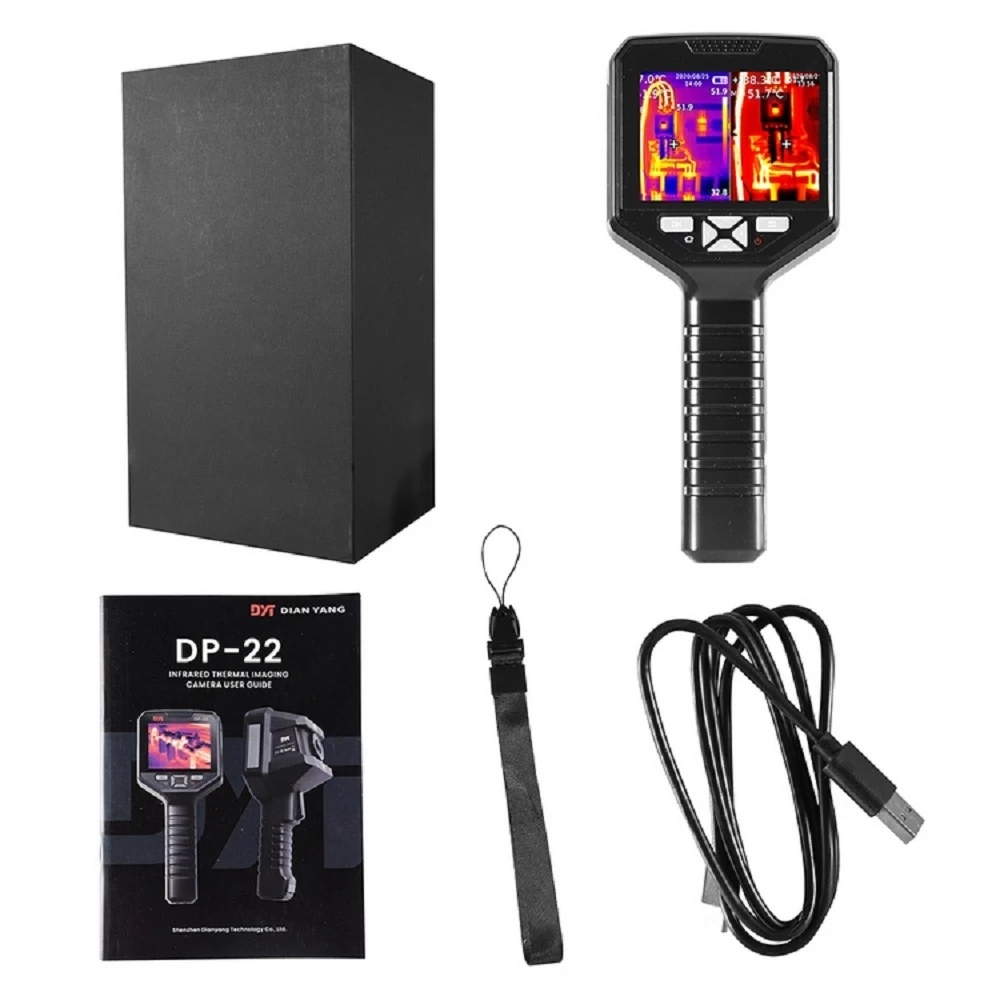

Package includes:
1 x DP-22/DP-21 infrared thermal Imager
1 x USB type C data cable
1 x Lanyard
1 x User manual
1 x Warranty card
