DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply

DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
  • Stock: In Stock
  • Model: ST220016482
  • SKU: ST220016482
$117.29
Ex Tax: $117.29

Available Options


Description:

DPS series product is a three-window four-position display high-precision switching DC stabilized power supply
It can display voltage, current and power at the same time.
The products are widely used in mobile phone repairs, computer repairs, schools and production lines.
The output voltage and output current can be continuously adjusted between 0 and the nominal value.
The stability and ripple factor of the power supply are very good, with USB fast charging function and perfect short circuit protection circuit.
Its small size, beautiful design, convenient operation, can work at full load for a long time, and it is very popular among users.


Specification :


Model

DPS3010U

Input Voltage

110V/220V Regulated ±10% 60Hz /50Hz

Output Voltage

0-30V

Output Current

0-10A

Wattage

300W

More Function

USB fast charge, support multiple fast charge protocols

Three Displays

Current(0.001) / Wattage(0.01) / Voltage(0.01) Display

Protection

- Current limit protection
- Short circuit alarm stop output
- Self-recoverys

Voltage/Current stability

0.1%±3mV

Load stability

0.2%±3mV

Ripple voltage

≤0.5% Vp-p

Recoverys time

≦500 μs(50% load change, minimum load 0.5A)

Ripple & Noise

≦5mVrms, 100mVp-p

Temperature Coefficients

≤100ppm/℃

Operation Temperature &Humidity

0°C to 40°C, <80%

Storage Temperature & Humidity

-10°C to 70°C, <70%

Size

L225mm X W90mm X H145mm

Weight

1.8Kg

Features

- Display accuracy: 0.5% ± 3 characters
- 0.56 inch white light four digital tube display

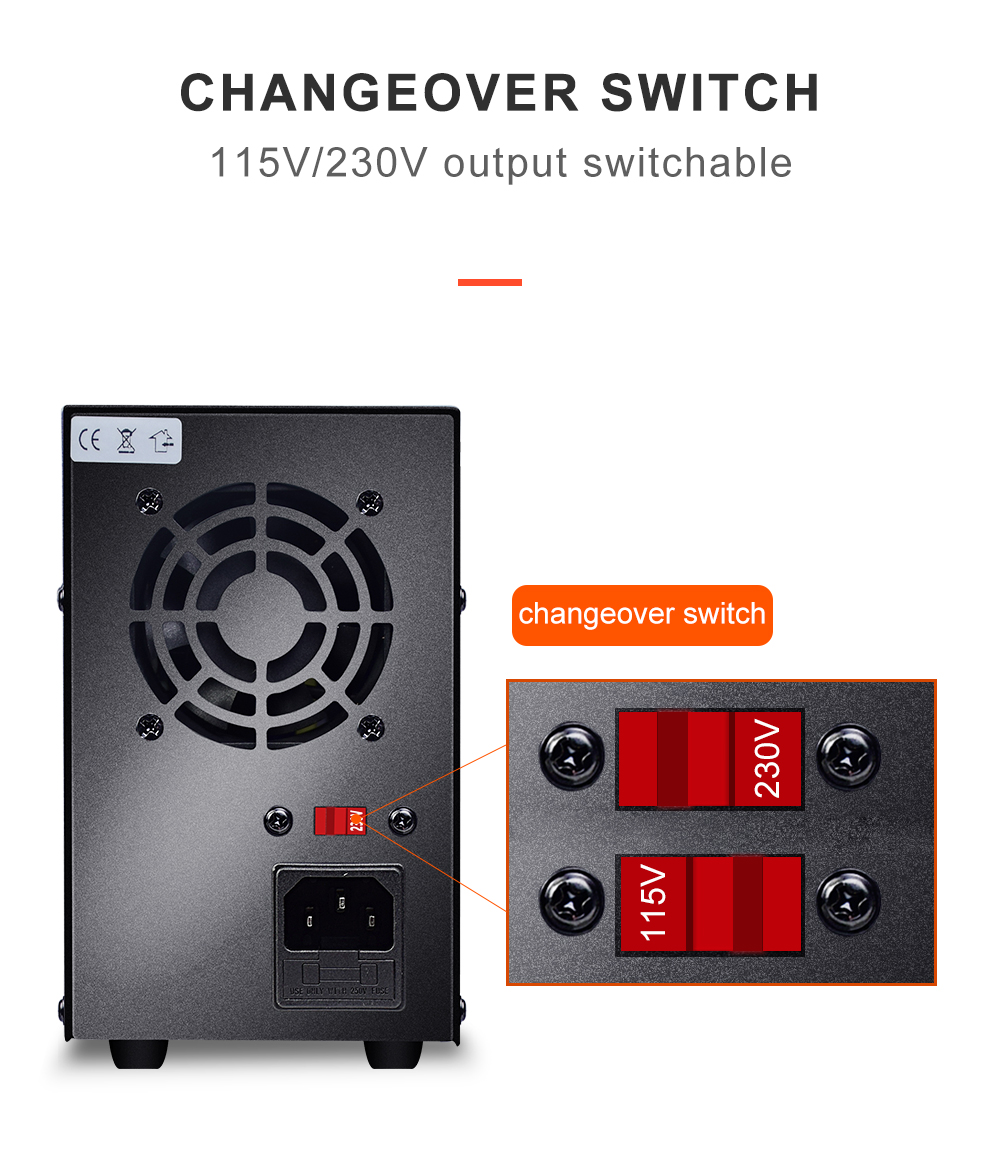

- 110V/220V Regulated switching power supply.

- USB fast charging function, support multiple fast charging protocols.
- Short circuit protection function, short circuit stop output.
- Small size, light weight and high power density.
- Constant pressure and constant current switch automatically.
- Three LED display of voltage, current and power, high precision.

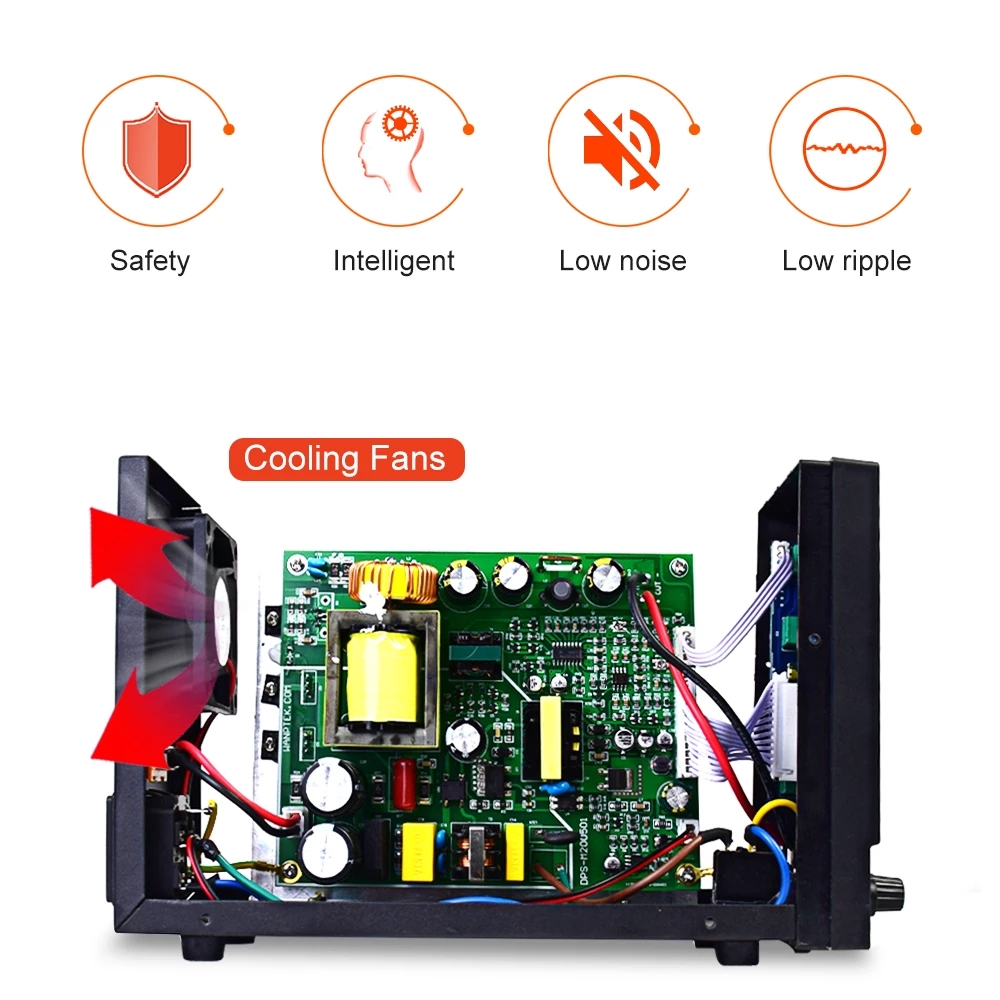

- Temperature controlled fan dissipates heat, has low noise and long life.

Application field

Production line test.
2. Mobile phone, computer, electrical appliance maintenance.
3. Product aging, electroplating.
4. Charge the battery.
5. Laboratory, scientific research teaching.
6. All other occasions requiring DC power supply.


Package included


1X110V/220V Adjustable DC Power Supply
1X Plug Power Cord
1X Crocodile Clip
1X Warranty Card

1X English Manual




Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-1

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-2

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-3

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-4

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-5

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-6

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-7

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-8

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-9

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-10

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-11

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-12

Wanptek-DPS3010U-110V220V-4-Digits-Adjustable-DC-Power-Supply-0-30V-0-10A-300W-USB-Fast-Charging-Lab-1687613-13
