DS212 Digital Storage Oscilloscope Portable Nano Handheld Bandwidth 1MHz Sampling Rate 10MSa/s Thumb Wheel
- Stock: In Stock
- Model: ST22011508
- SKU: ST22011508
$109.99
Ex Tax: $109.99
Features:
With thrumbwheel adjust key

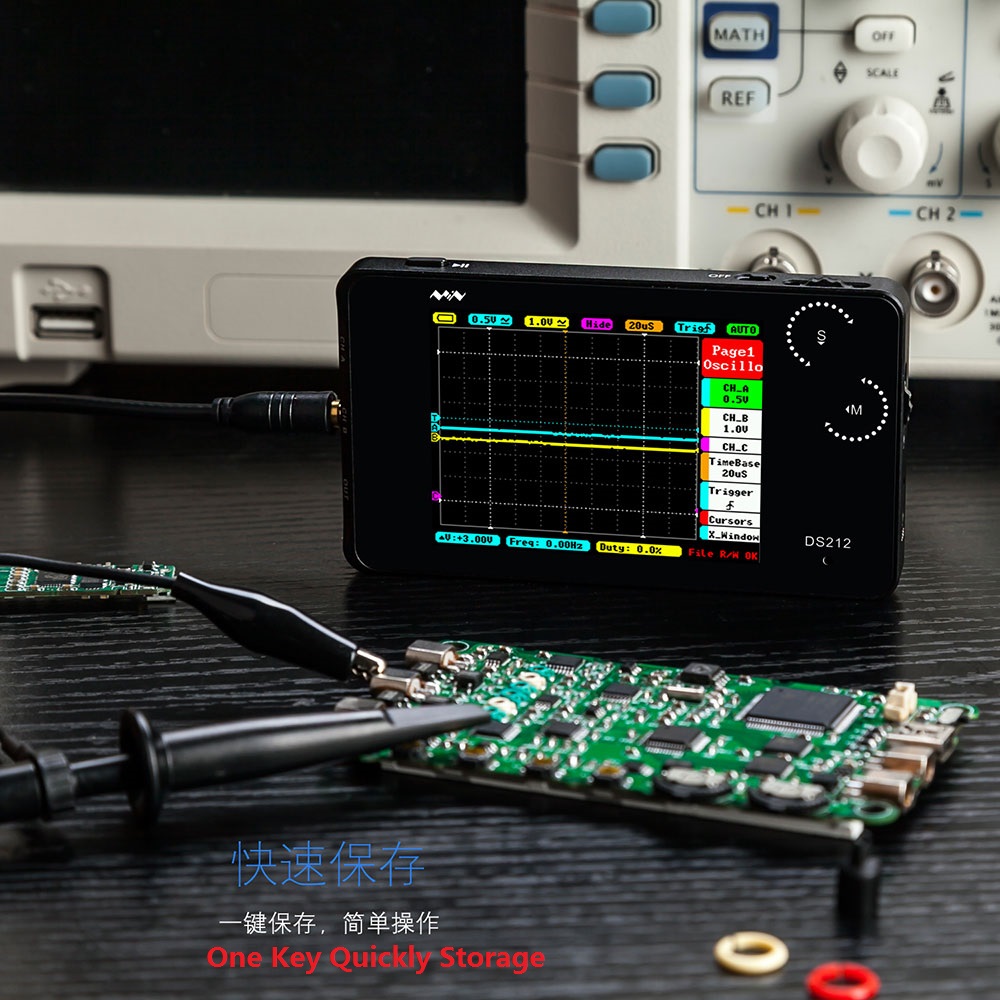

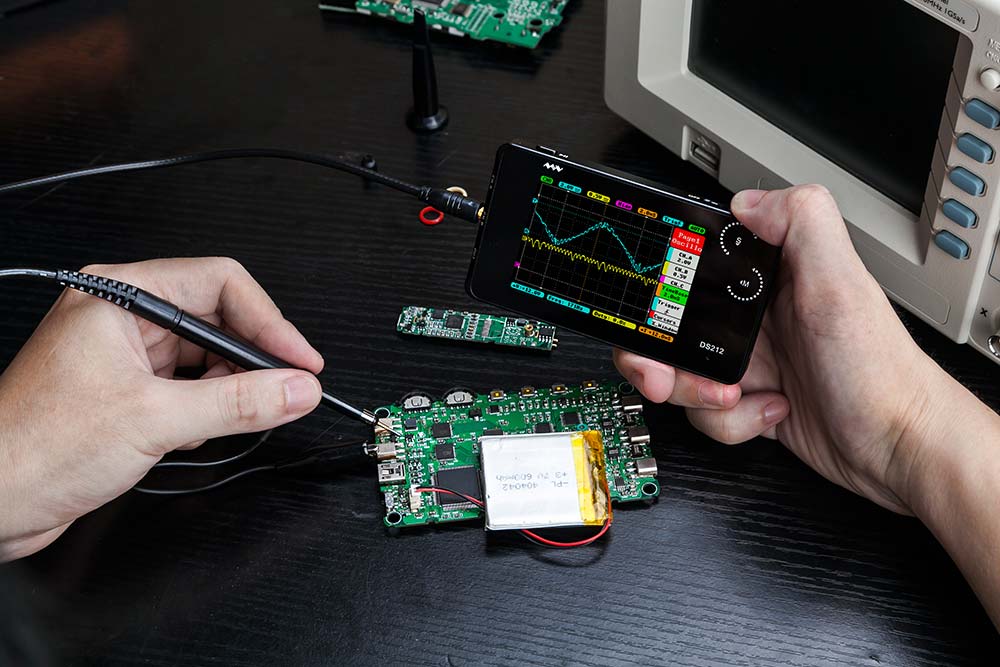

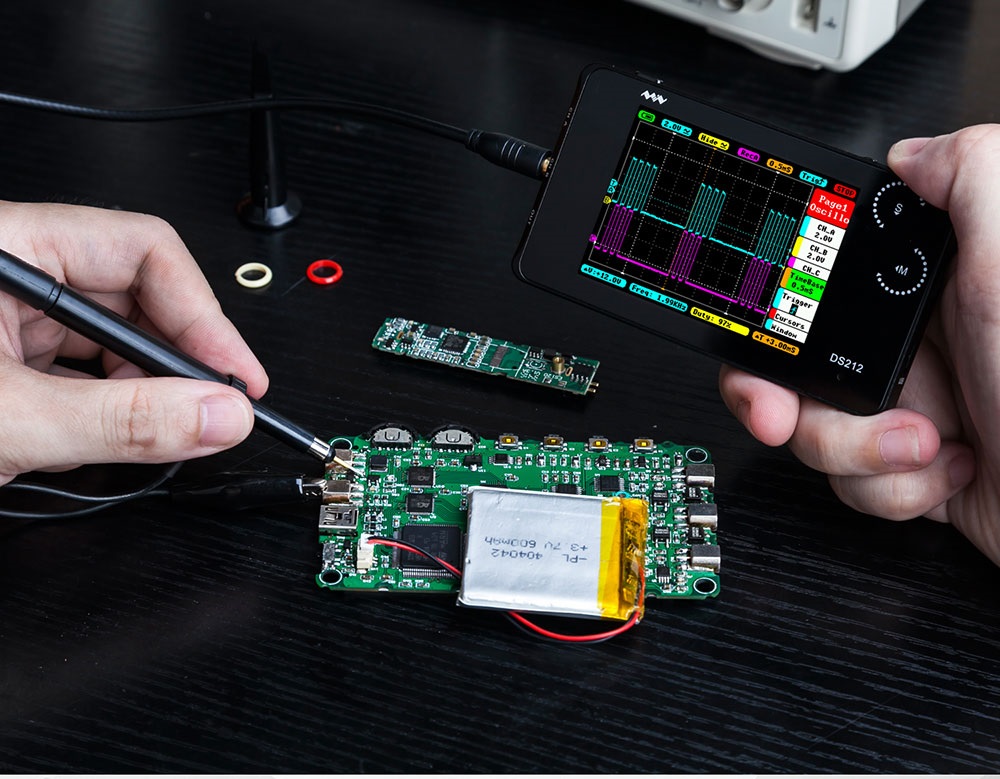

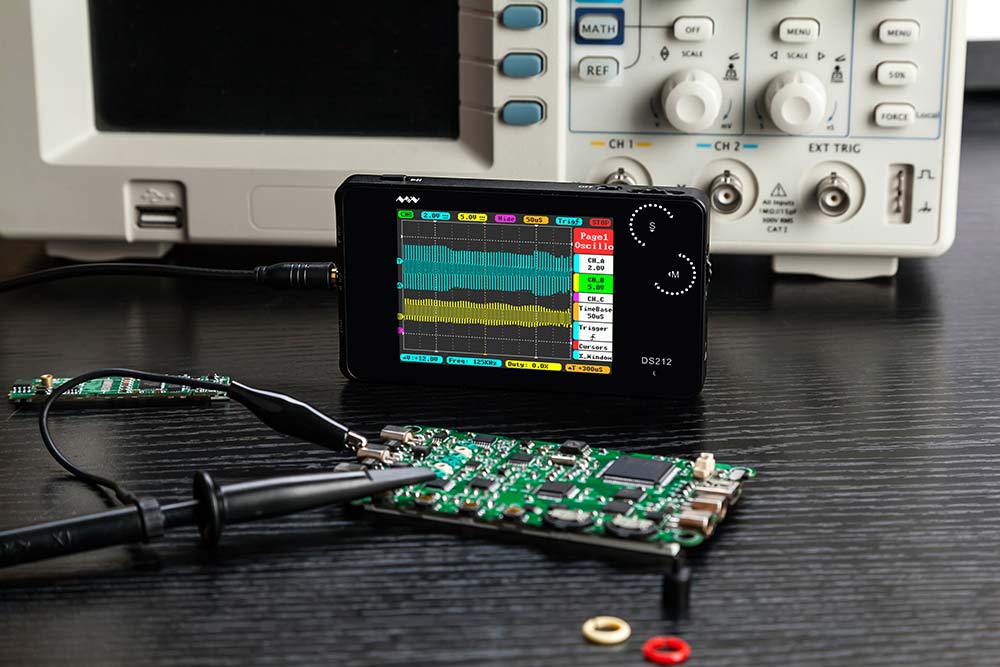

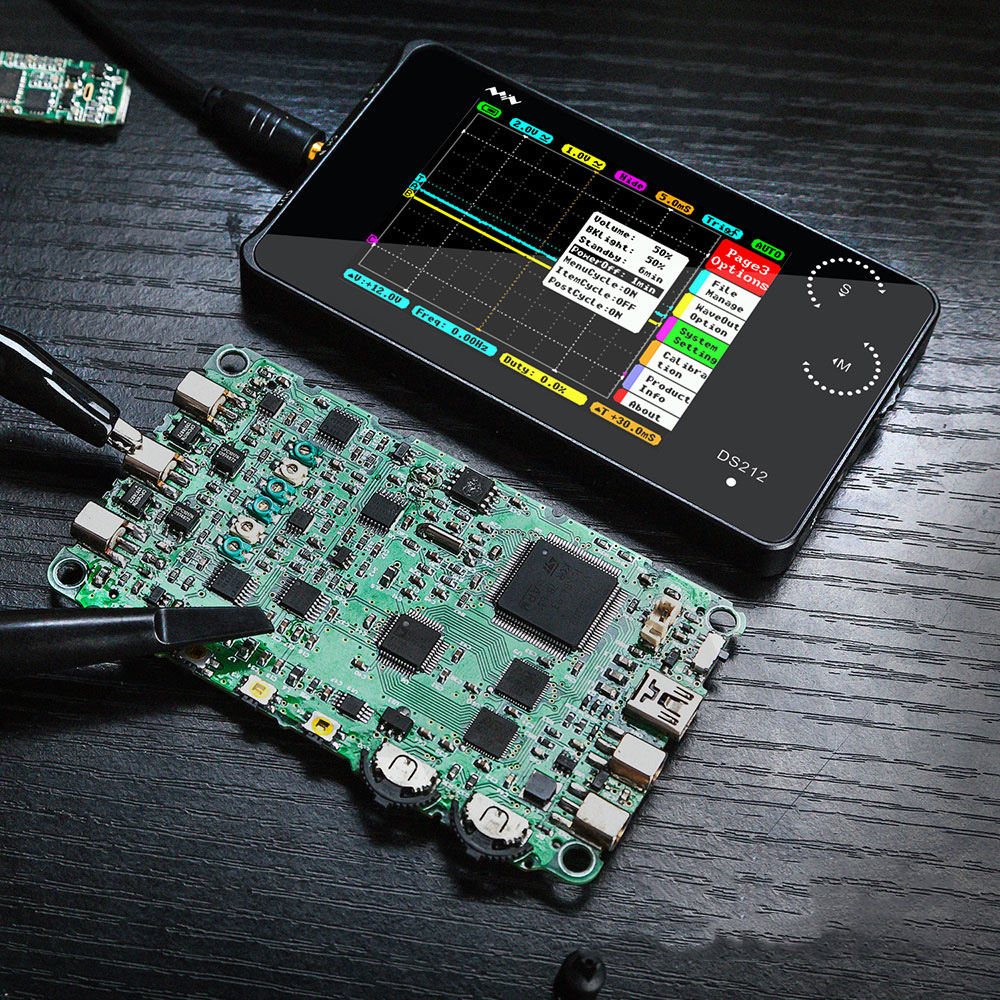

Pocket-sized digital storage oscilloscope meets basic electronic engineering requirements.
Dual trace three lines, new kind of system interface, capacitive convenient operation.
You can easily operate it with the gestures of one-click, double-click, press and slide.
The aluminum shell is very fashionable equipped with 320*240 color display, 8M
Memory card (USB flash disk), and chargeable Lithium batteries.
The thickness is about 11 mm/ 0.43 inch only! The volume is small enough to take it anywhere.
It can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.
Specifications:
Model: DS212
MCU: STM32F303VC
ADC: MCU internal ADC
Channels: 2 analog channels, 1 operation channel
Analog Bandwidth: 1 MHz
Max Sample Rate: 10 MSa/s
Max Sample Memory Depth: 8K
Horizontal Sensitivity: 1uS/div to 2S/div (1-2-5 step)
Vertical Sensitivity: 20mV/div to 10V/div (1-2-5 step)
Analog Input Impedance: 1 MΩ
Coupling: DC/AC
Trigger Mode: ascend/descend edge trigger mode
Math Waveforms: -A, -B, A+B, A-B, RecA, RecB, RecC
Inbuilt Signal Generator: sine/square/triangle/sawtooth wave
Synchronous Mode: auto, normal, single, none, scan value/average
Storage: 8 MB flash disk memory
APP Installed: 2
Operation: Button, Wheel button
USB Port: Micro USB
Battery: 500 mAh
Screen Type: TFT LCD
Screen Size: 2.8"
Screen Resolution: 320 x 240

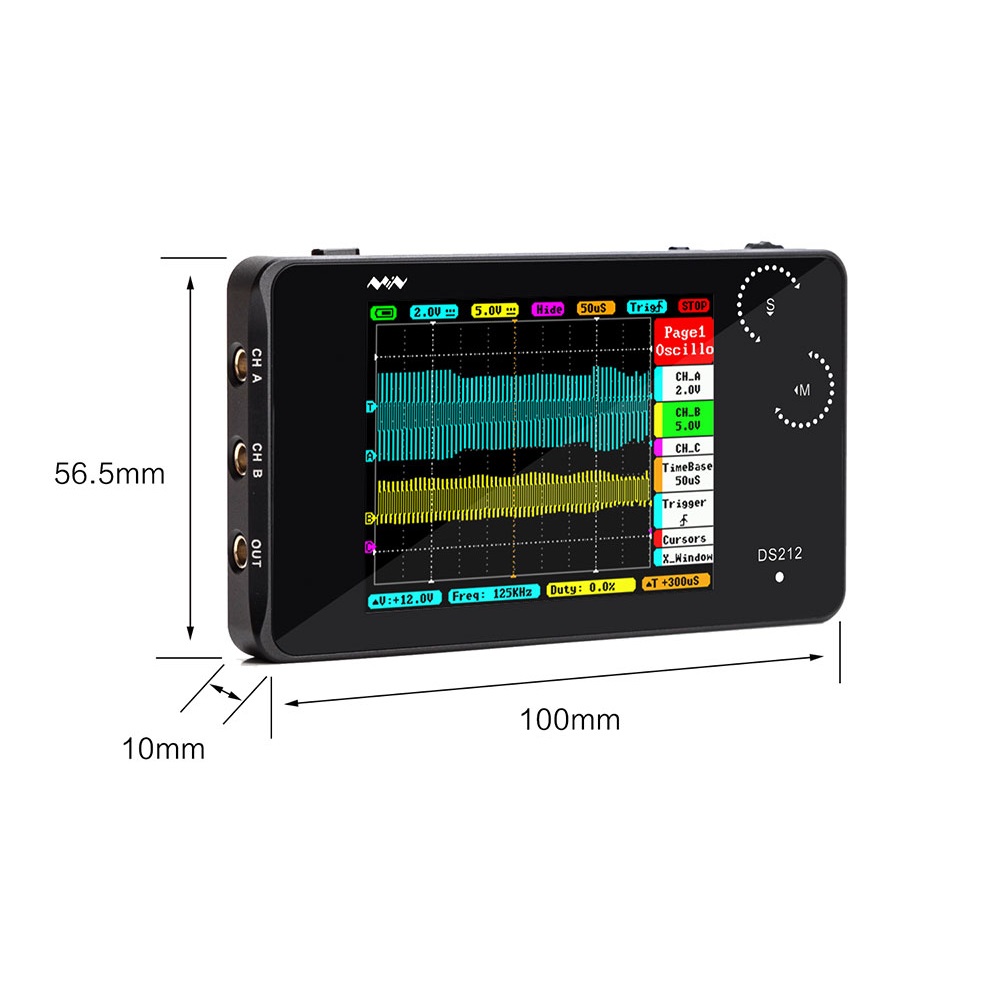

Dimension: 100 x 56.5 x 10.7 mm
Weight (with battery): 90 g
Open Source: application layer open-source

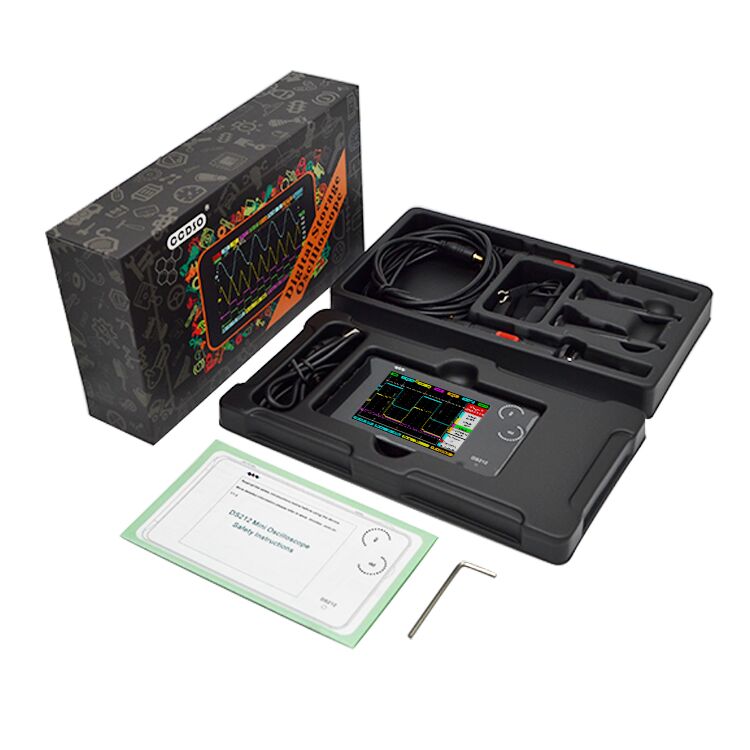

Package Includes:
1x DS212 Mini Oscilloscope
1x Battery(built in)
2x Probes(with X1X10)
1x MicroUSB
1x Hex Key
1x Safety Instruction
Note: the package Includes has been updated on 2019.6.27th.
