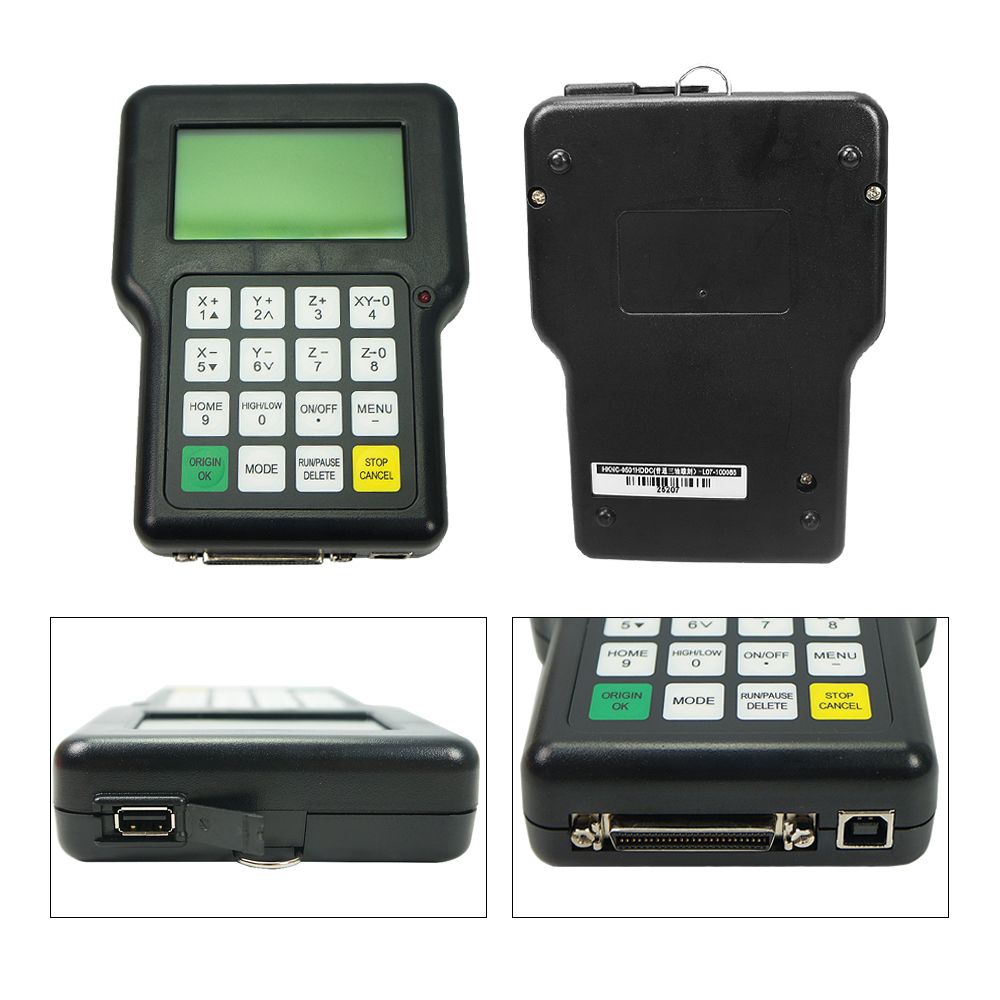

DSP0501 3 Axis Engraving Machine Controller CNC DSP Handle Router Remote Control Remote Processing

Features:

- New three-axis motion mode for full control

- Support XYZ driver, spindle inverter processing error alarm function

- Large storage space, high compatibility with USB flash drive, fast reading, and reliable processing

- Intelligent document checking function

- Supports parameter backup and recovery, effectively preventing the loss of important parameters

- Stronger anti-interference, passed a number of CE tests

- Intelligent processing and memory function, supporting breakpoints and power-off functions

- the 1/0 interface can be customized and edited to provide users with a wide range of development platforms

Specification:

Processor: 160M DSP

File Memorizer: 128M memorizer inside, it supports file with any size because of adopting mobile memorize technology

Display: LCD with 128 dot*64 dot

Communication Terminals: USB terminal and U Disk

File Format: G code , PLT files (optional)

Axes: 3 axes

Help Function: Useful help information and guide

Languages: Chinese, English

Operating Interface: Friendly Buttons and Menu Drive

Drive System: Step Motors

Interpolation function: linear, curve

Cutter Adjusting function: Yes

Spindle Control Function: Yes

System Data Inspect Function: Yes

Processing Data Inspect Function: Yes

Processing Position Adjusting Function: Yes

Multi Working Coordinates: It has 9 working coordinates

Stop Point Reprocessing Function: Yes

Copy Processing Function: Yes

Data protection when power off: Yes

Working Temperature: 0C to +70C

Humidity: <90 no dew no frost

Outer Voltage: 5 V

Consumptions: 2 W

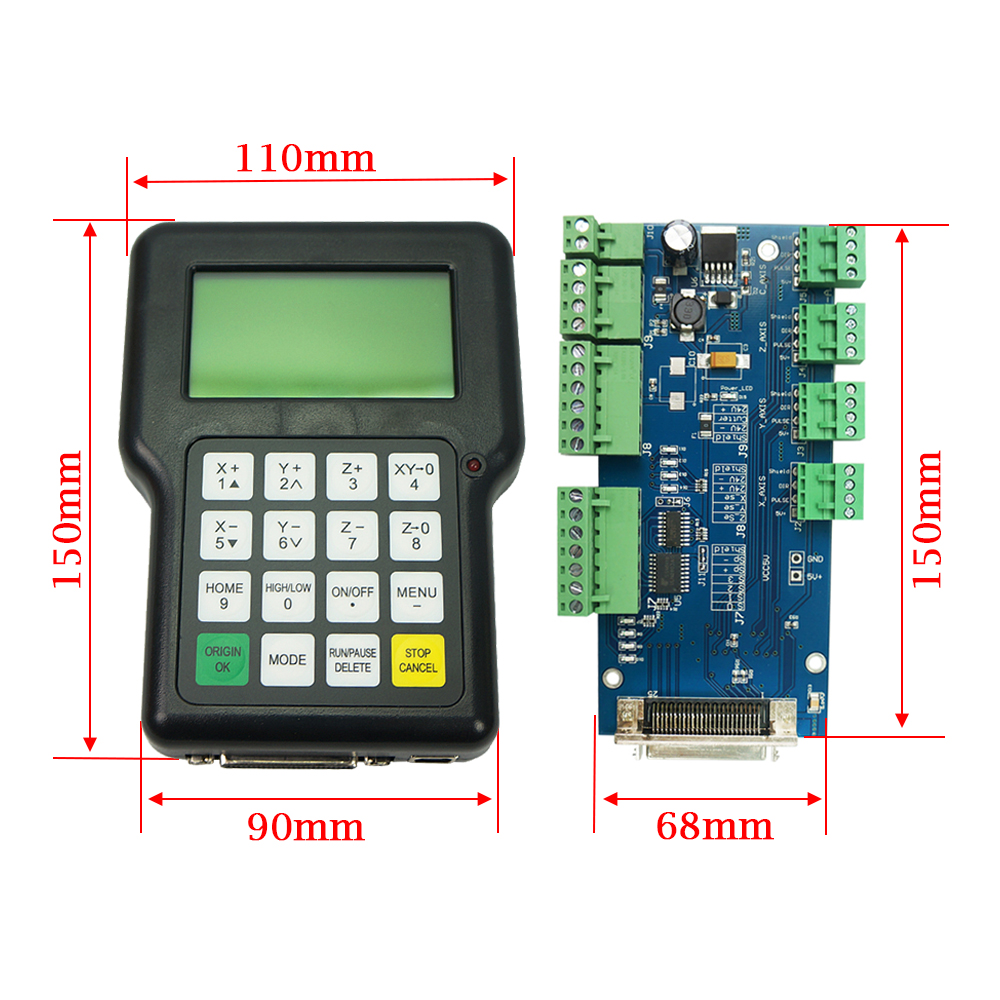

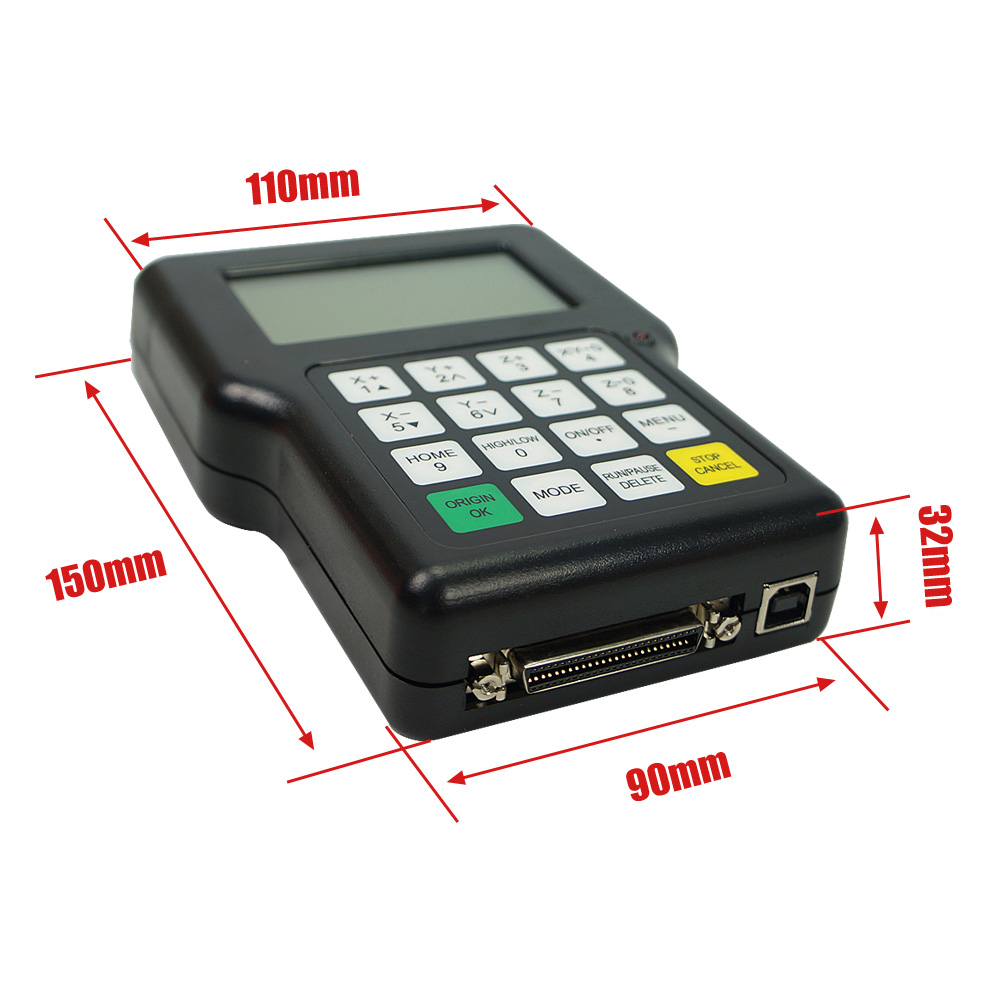

Dimensions(mm): 156*110*38

Cautions:

- Don't use this product in strong magnetic filed or interfere environments;

- Don't PnP U Disk while it is running a file;

- Protect it from water, moist, dust and fire;

- Protect it from metal materials getting into the cover;

- Forbad to open the cover, there is no any user maintainable parts inside;

- Plug U Disk and other lines gentle.

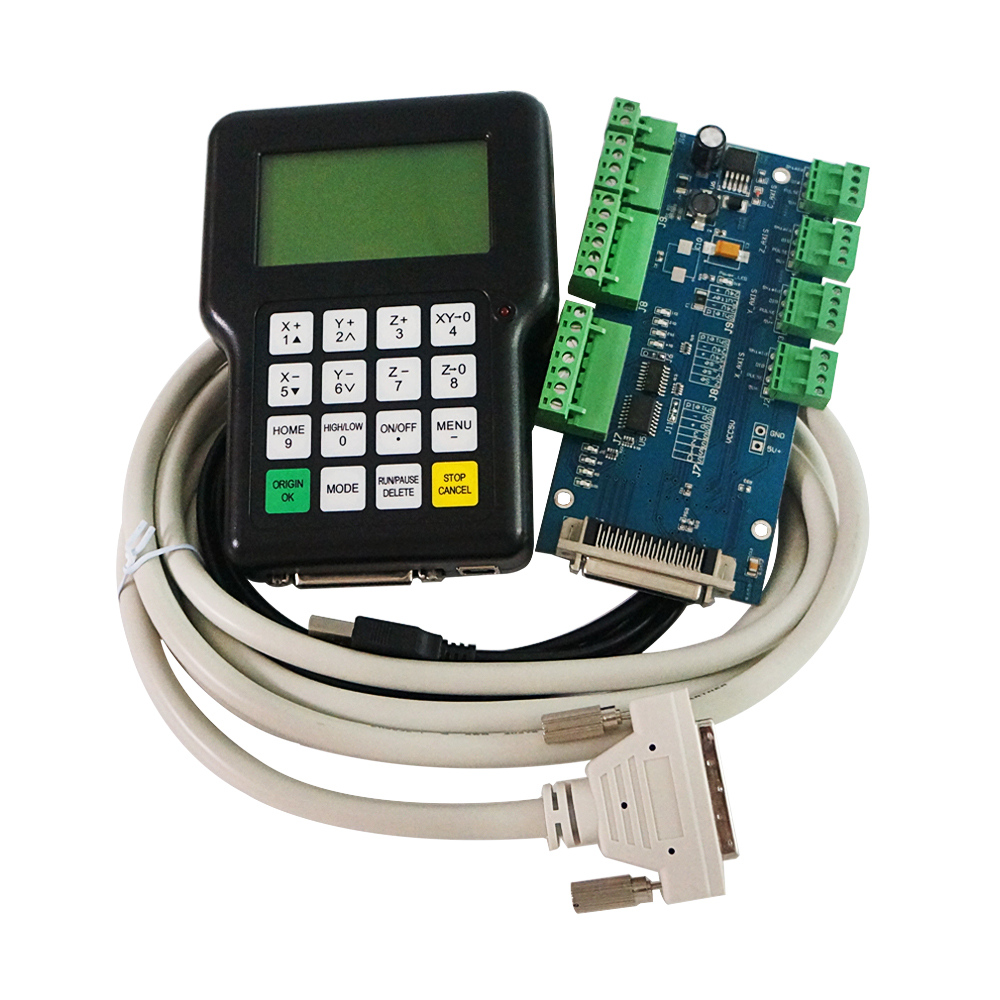

Package included:

1 x 3-Axis handle

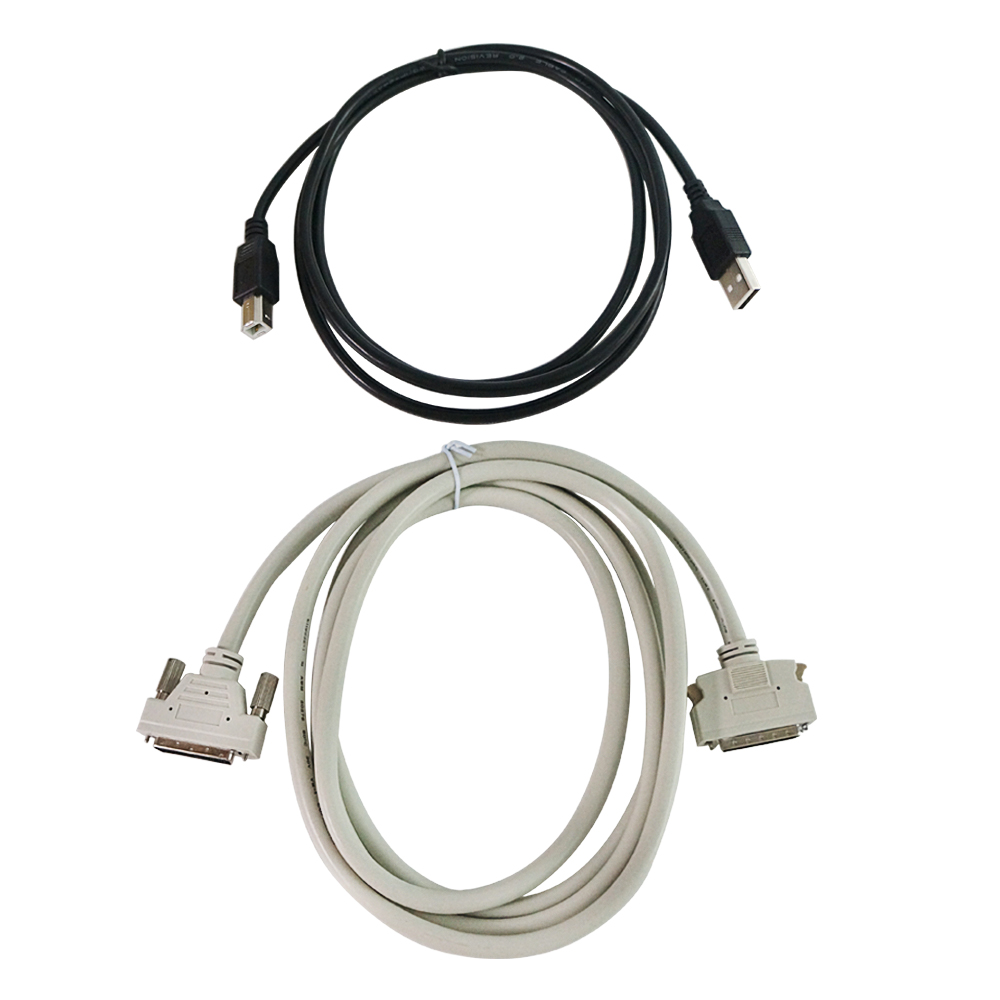

1 x USB cable

1 x 50 pin Data cable 2.5m

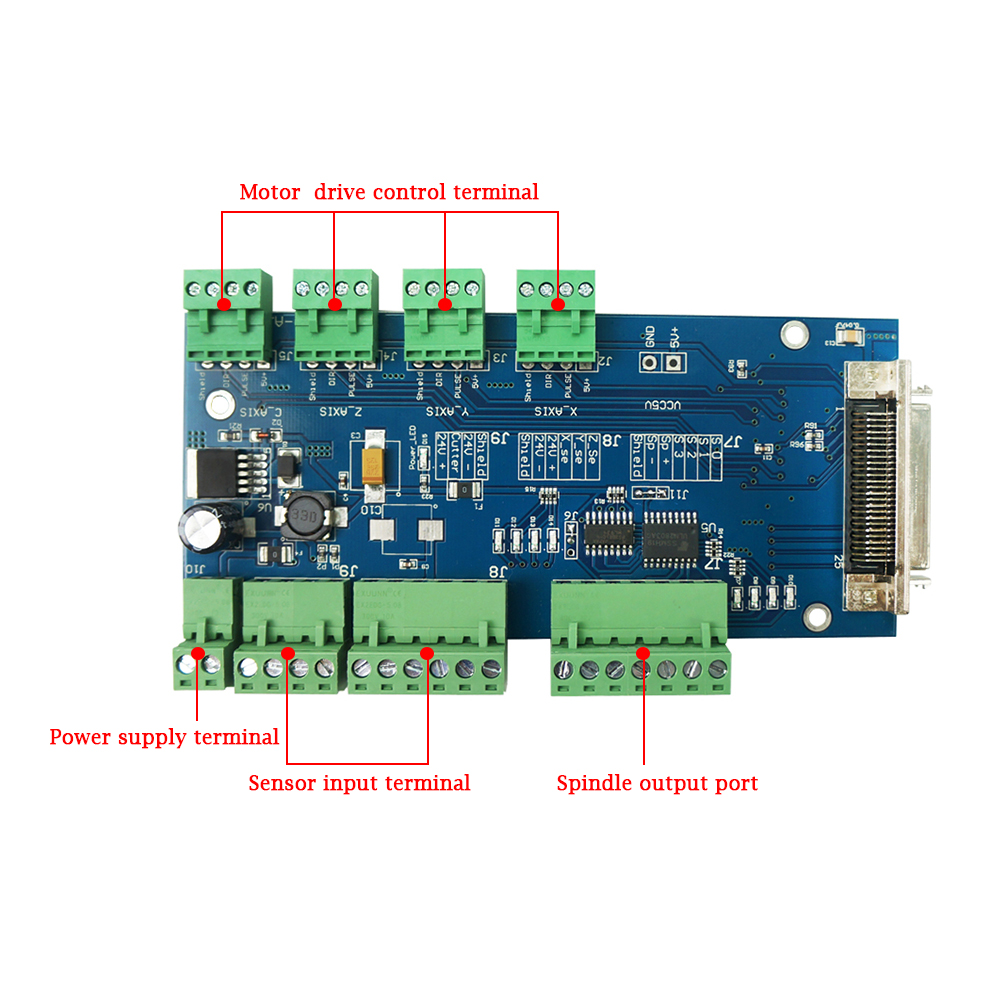

1 x Interface board

1 x Manual
