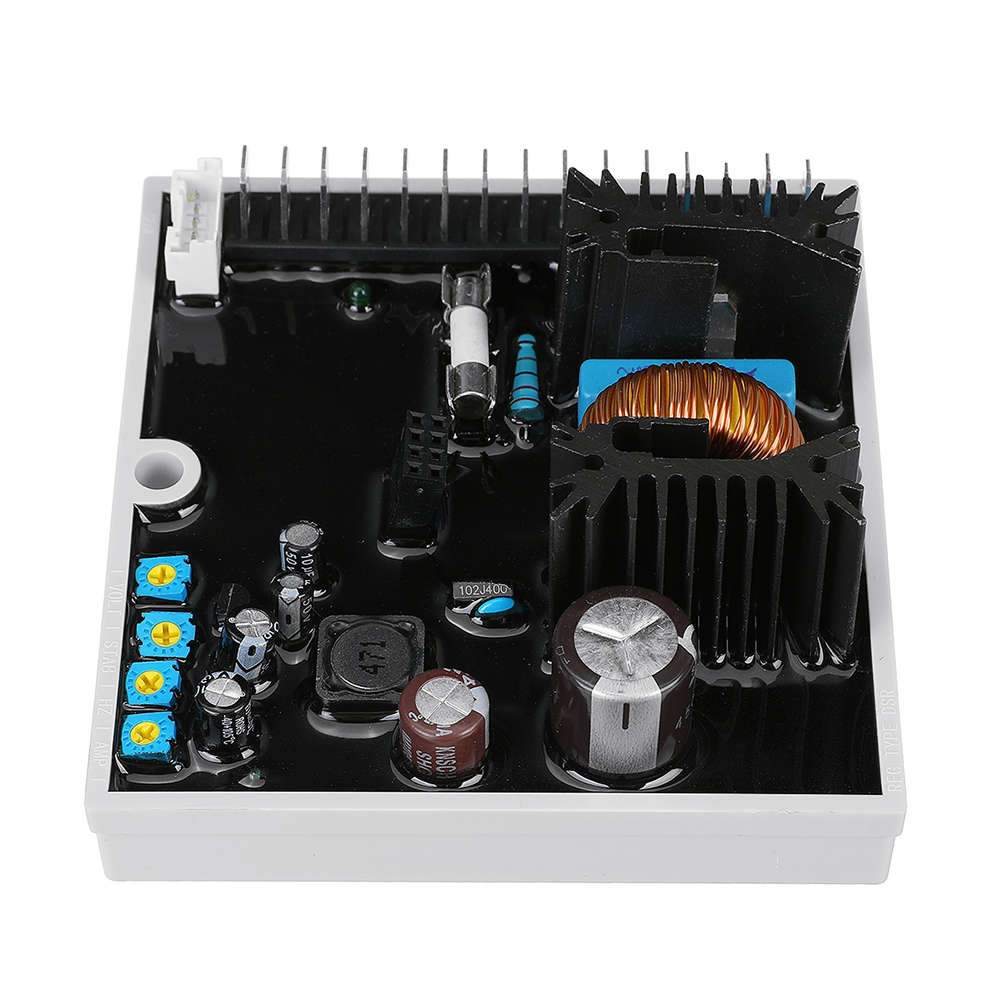

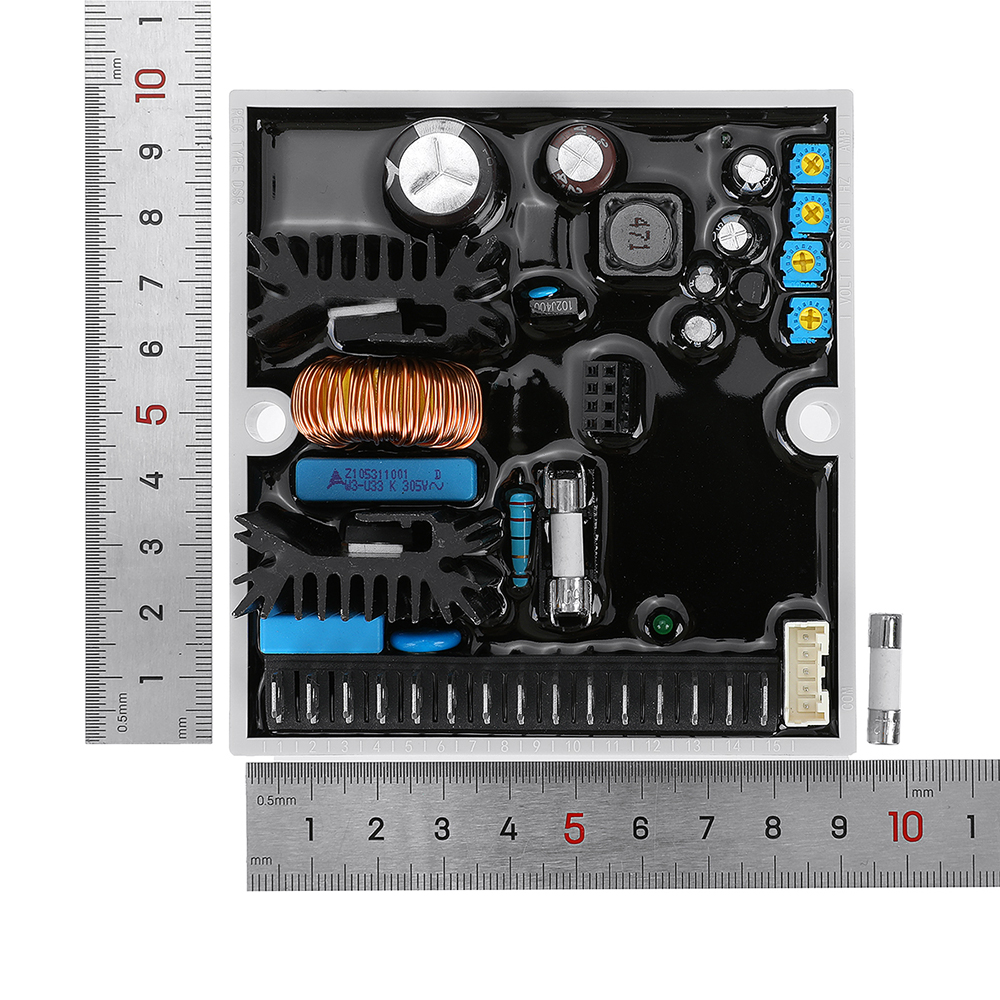

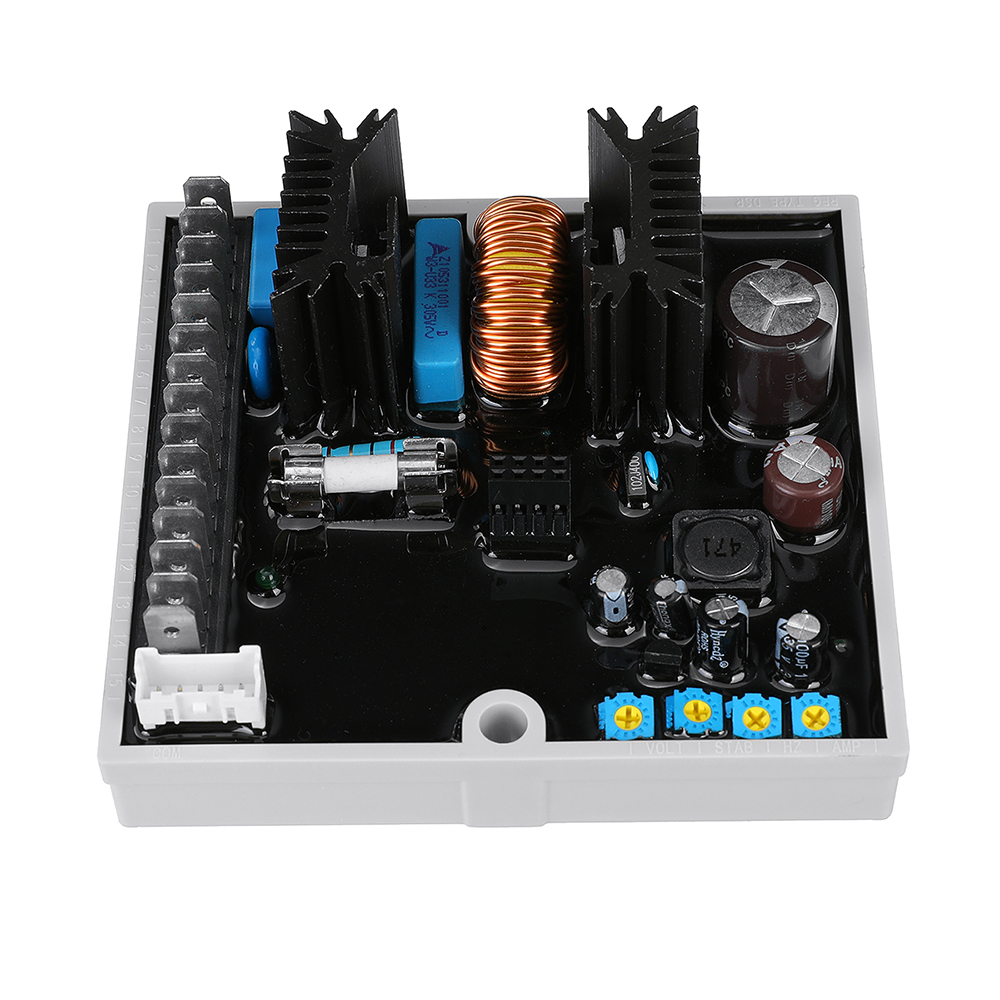

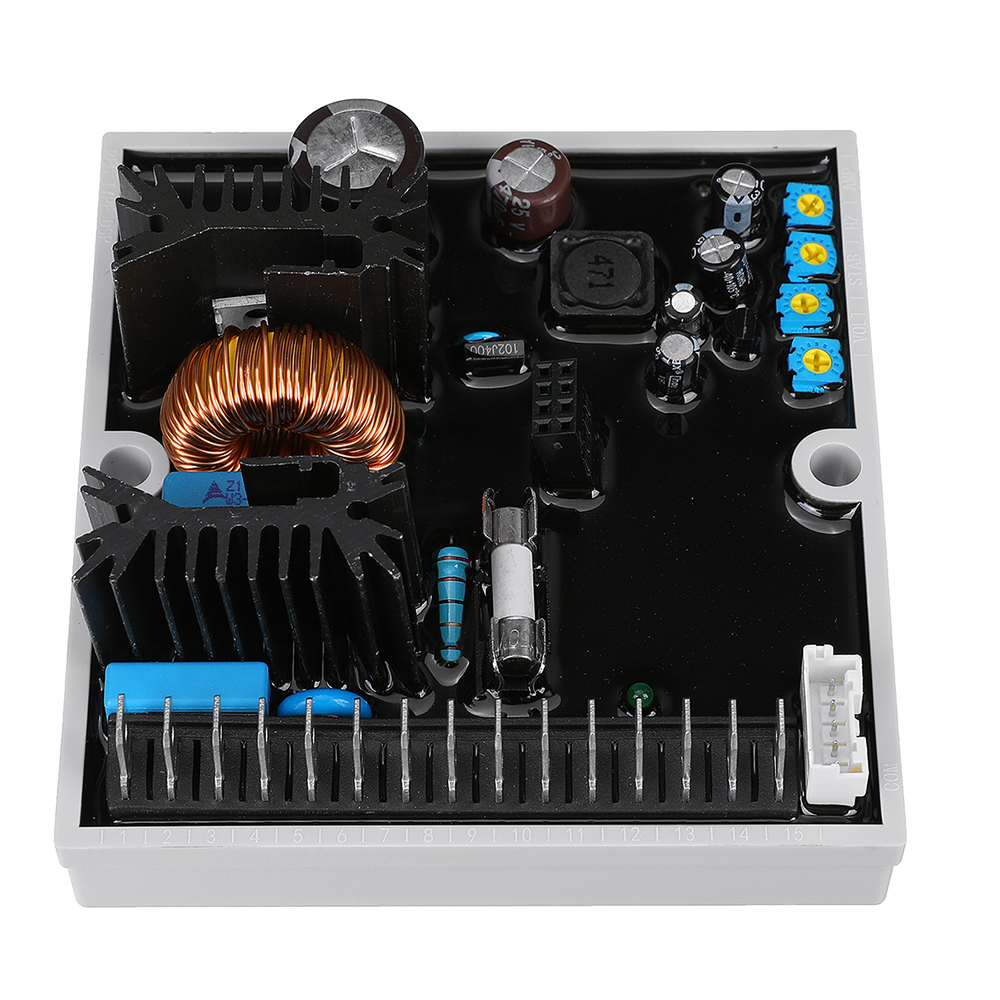

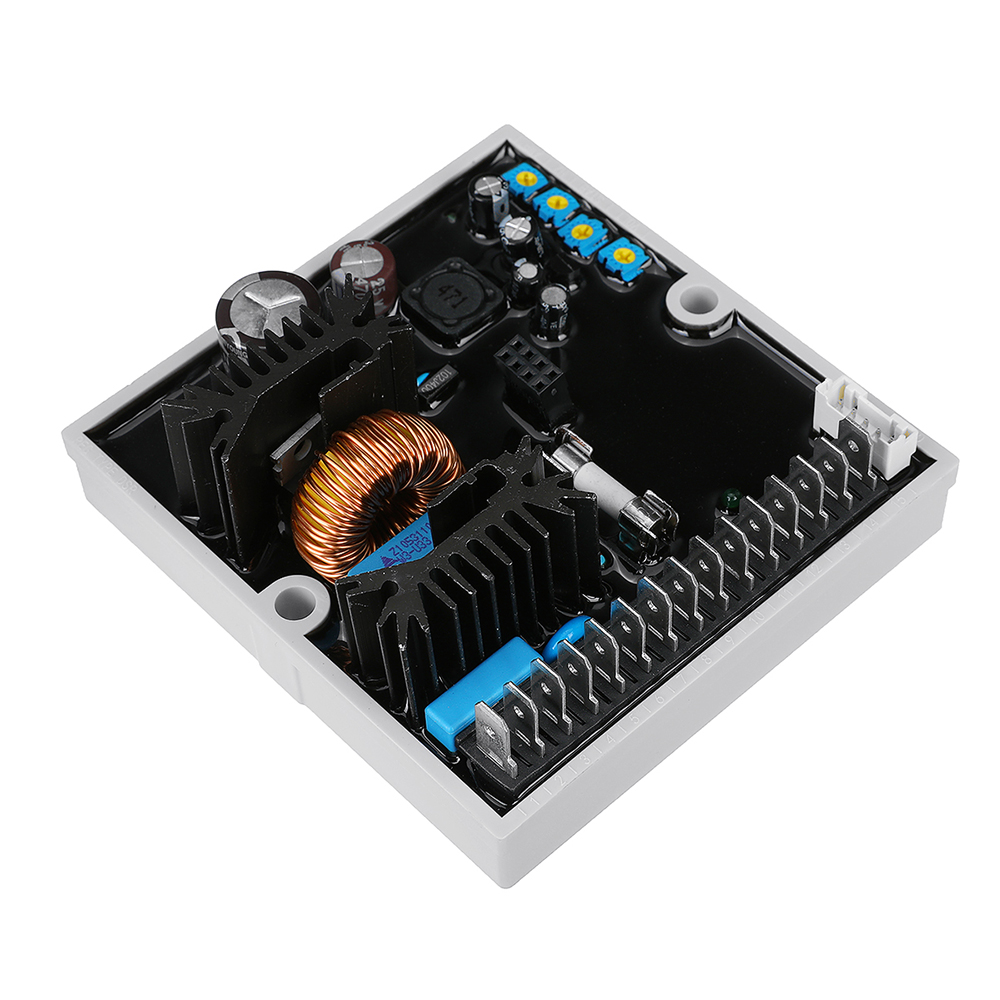

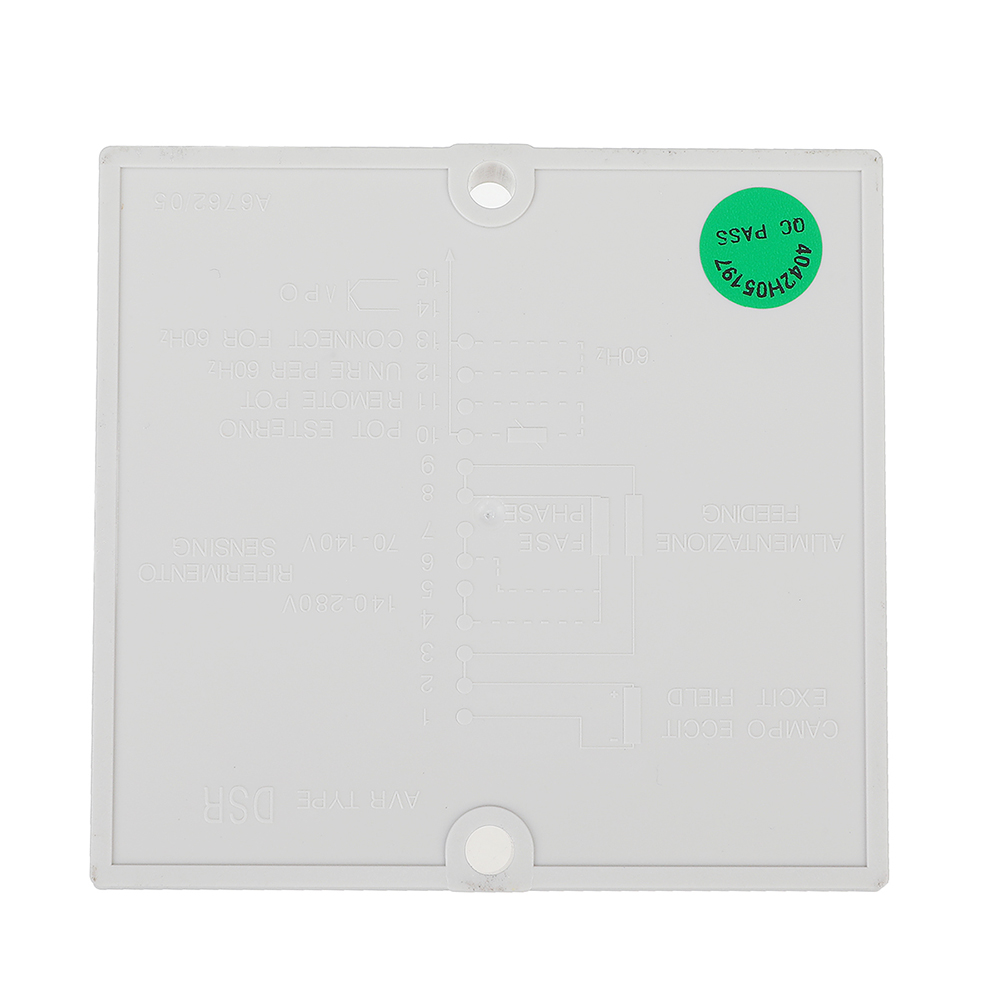

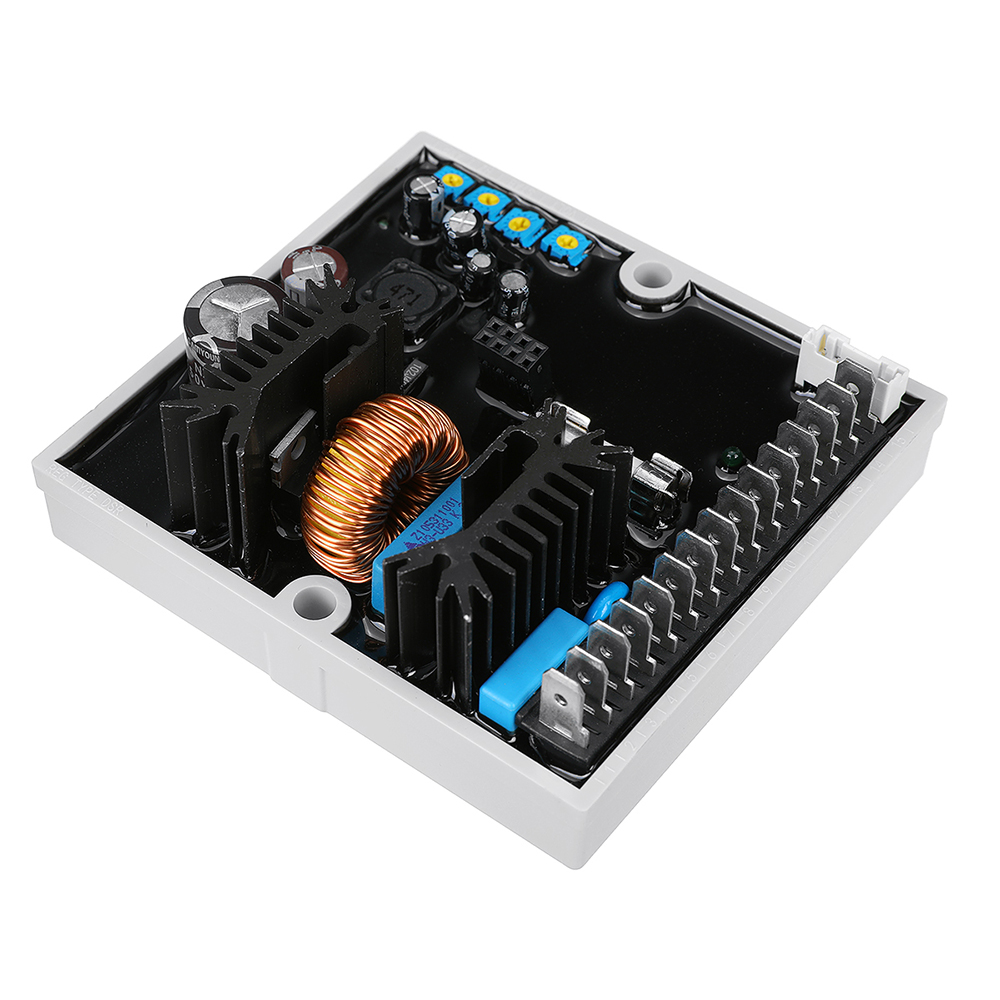

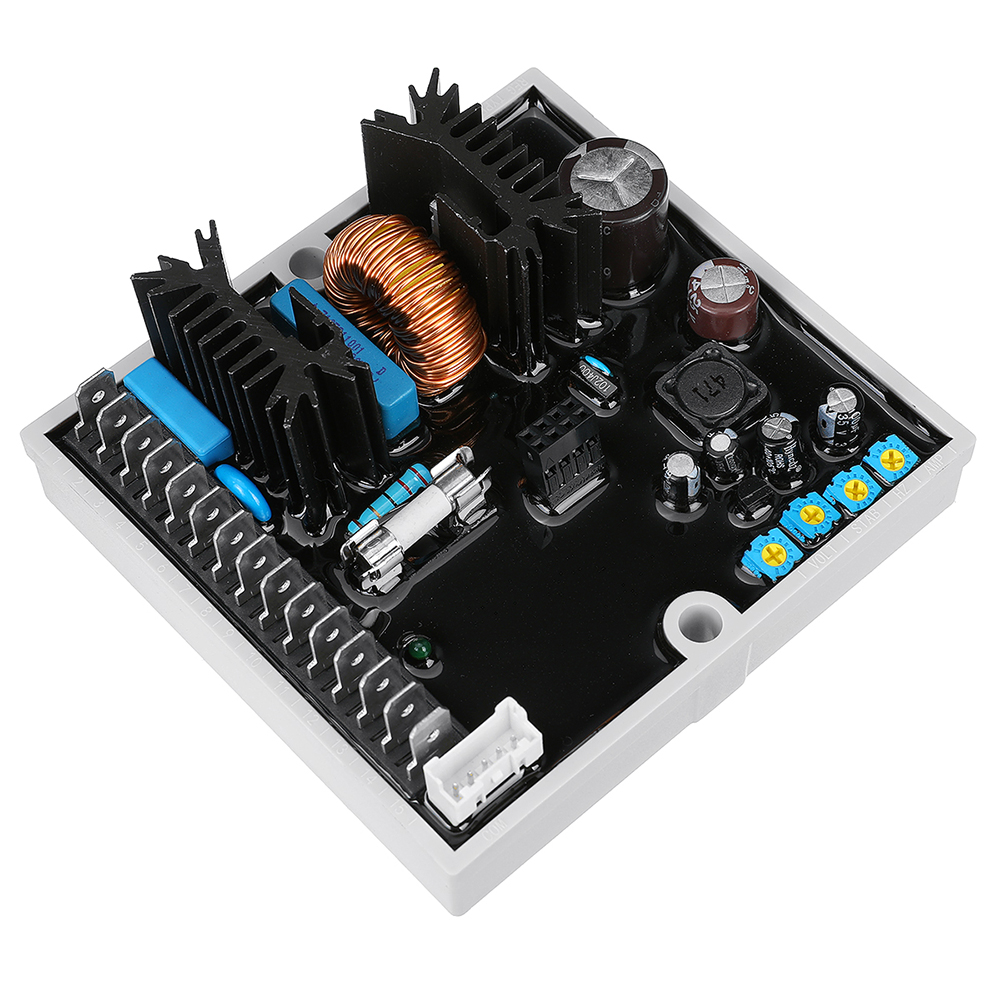

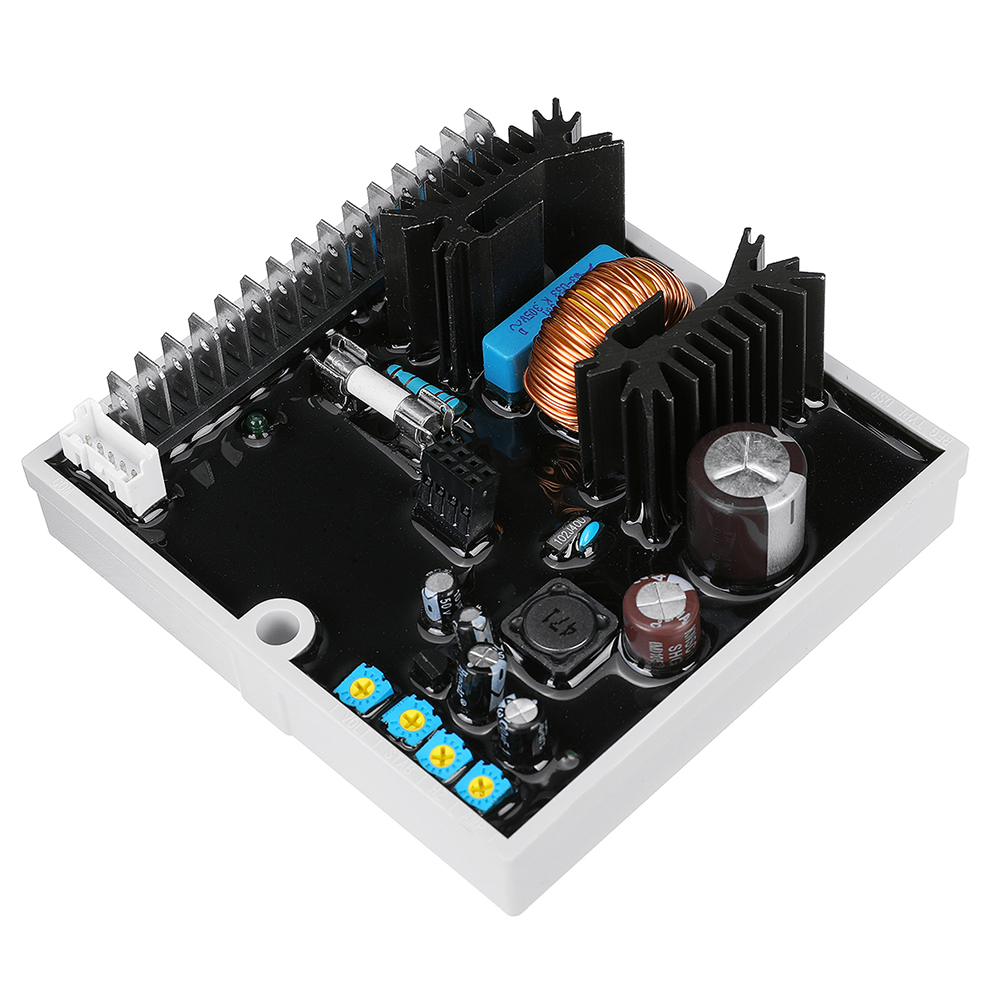

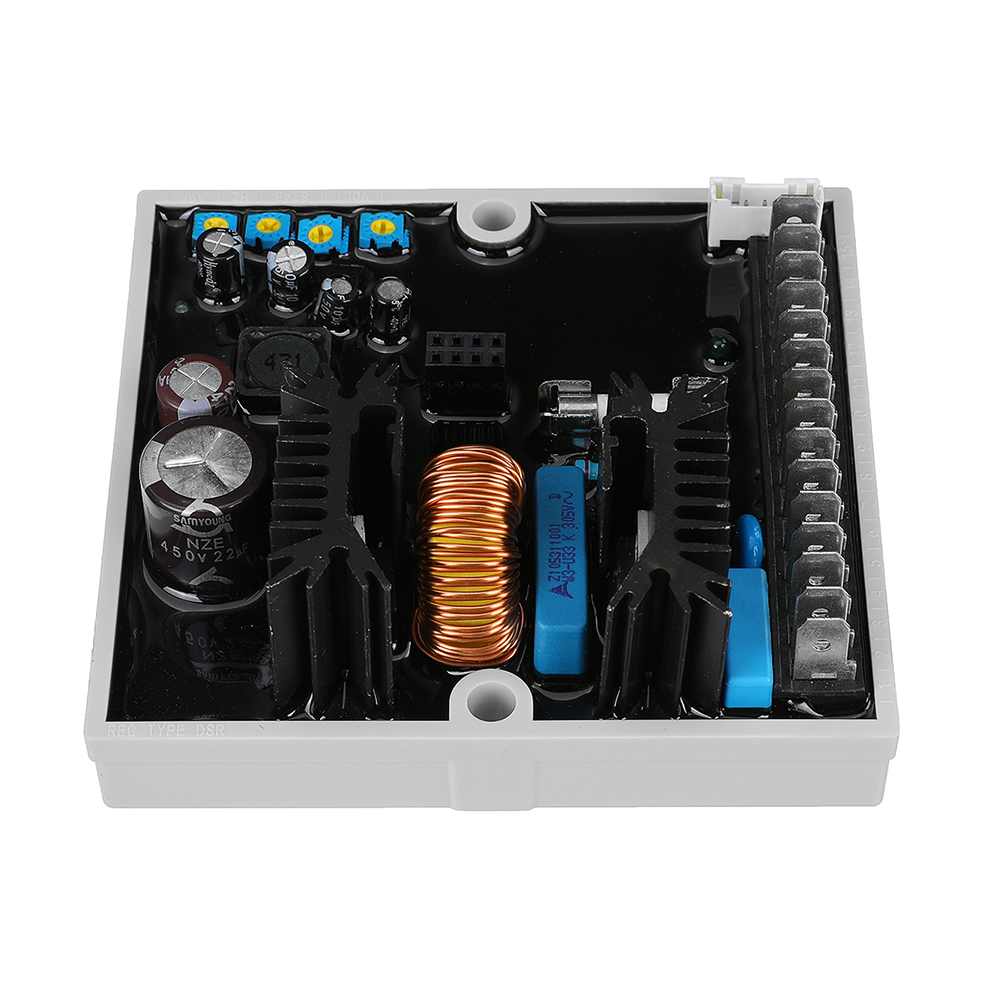

DSR Voltage Regulator AVR Diesel Generator Accessories Automatic Voltage Regulator Board
- Stock: In Stock
- Model: ST230048797
- SKU: ST230048797
$127.19
Ex Tax: $127.19
Product Description:
Used on generators, DSR is suitable for all types of generators below 85KVA (single-phase or three-phase)
●AVR: SX440, SX460, MX321, MX341, AS440, AS480, TC05A
AVR: R230, R250, R438, R448, R449, R450, R450M, R450T, LSA432, R220
●AVR, DVR2000E, SE350
●AVR, AVC63-7F; AVC63-4, VR6
AVR: M40FA640A, M16FA655A;
AVR: UVR6, SR7; DSR
●Ordinary brushless motors: AVR: GAVR 8A, GAVR 8AH, GAVR 10A, GAVR-10B, GAVR-12A, GAVR-12B, GAVR 15A, GAVR 15B, GAVR-15C, GAVR 20A
●Controller: DSE501K, DSE520, DSE701, DSE702AS, DSE703, DSE704, DSE705, DSE710, DSE720, DSE5110, DSE5120, DSE5210, DSE5220, DSE6310, DSE6320, GTR, DSE3110, DSE6020, DSE7110, DSE7210, DSE7210, DSE DSE7510, DSE8610
●Sensor: MSP678 MSP677 MSP675 MSP676 MSP6714 MSP677 MSP678 MSP6729 3034572, speed sensor M18*1.5, M16*1.5, 3/4 sensor, 5/8 sensor, 3034572, MSP675
●Floating charger: 3A, 5A, 10A, 8A, 6A, 4A (12V/24V)
Troubleshooting:
| Fault | Check | Result | Cause Analysis |
| No voltage output after starting | Measure phase voltage, usually> 5VAC | Loss of magnetization or remanence is too low, need to be magnetized | |
| The excitation voltage between F+ and F- should be ＞0.5VDC | >0.5VDC | • AVR failure | |
| • Diode failure | |||
| • Open circuit of main rotor winding | |||
| Whether the wiring is wrongly connected, especially the excitation wire and power wire | NO | • Attempt to magnetize | |
| • Try to replace the AVR | |||
| Low voltage | Can the voltage be adjusted | YES | Check whether the detection input voltage is normal, usually it is caused by the wrong connection of the detection circuit |
| No response | AVR failure | ||
| Check the speed | Normal speed | • AVR failure | |
| • Short circuit of field winding | |||
| • Diode failure | |||
| • The main turn the winding is open | |||
| Speed is too low | • Adjust the speed to normal | ||
| Voltage too high | Can the voltage be adjusted | No response | • Check the AVR's detection input line |
| • AVR failure | |||
| Unstable voltage | Adjust and stabilize potentiometer | No effect | • Check whether the speed is also unstable |
| • Check whether the speed is low | |||
| • AVR failure | |||
| Voltage swing | Check whether various protections are operating (corresponding indicator lights) Overexcitation voltage protection Over-excitation current protection | Bright | Adjust the corresponding protection potentiometer |
| No-load voltage is normal, voltage drops when loaded | Check whether the low frequency protection is working (whether the indicator light is on) | Bright | • Adjust UFRO |
| Check the excitation voltage | > 25V | • Diode failure | |
| • Partial short circuit of main rotor winding | |||
| • AVR failure |
Package includes:
1 x Voltage Regulator Board
