Digital Level Angle Finder Bevel Box Magnetic Base 360° (4 x 90°) Inclinometer Protractor Gauge Tilt Direction Indicator
- Stock: In Stock
- Model: ST22011932
- SKU: ST22011932
$21.99
Ex Tax: $21.99
Product Description:
Highly accurate level box or "angle finder cubes" provides absolute and relative measurements, including the ability to zero set to any position. It has a magnetic base that can be attached to the work surface area that is going to be measured.

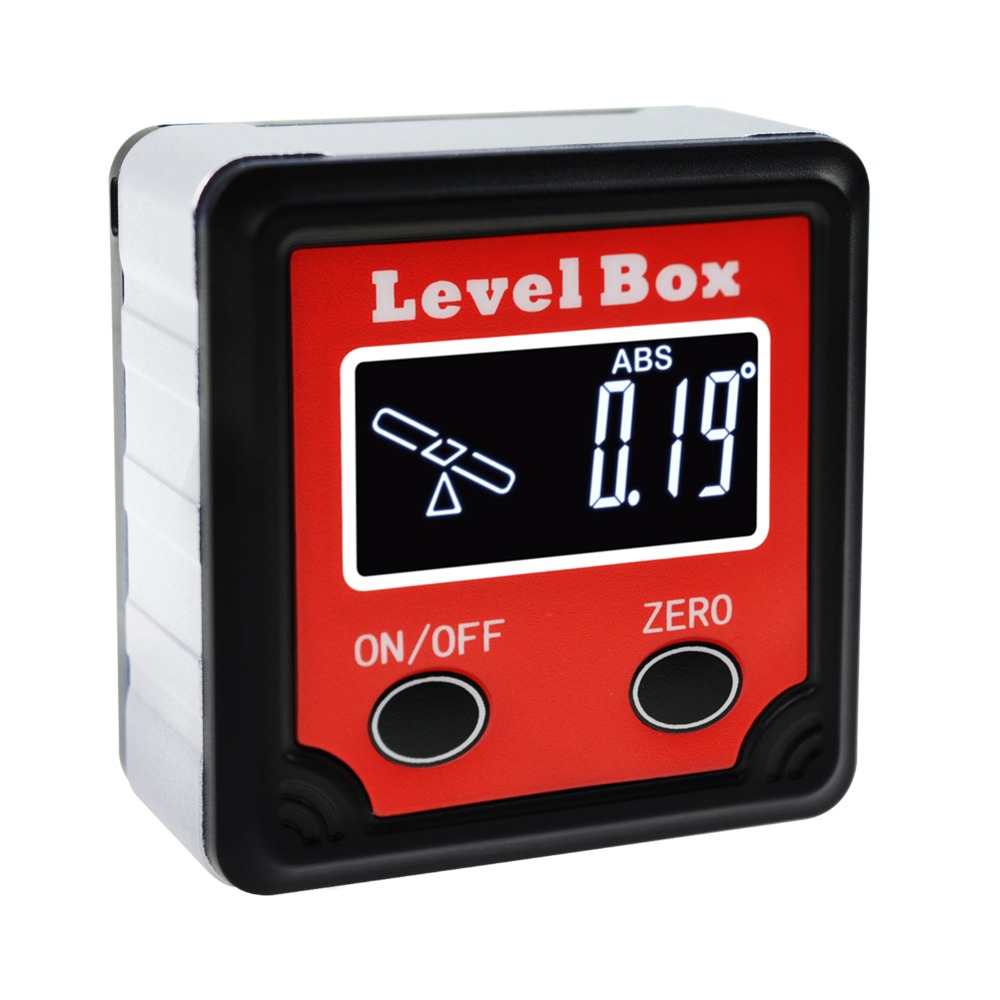

A see-saw figure is specially designed on the display to show the direction that the plate is tilting. This is especially useful when the tilted degree is small and difficult to be judged by naked eyes.
Applications: setting pitch angles for helicopters, adjusting the blade angle of miter saws, table saws and circular saws, setting up the tool settings on lathes, assessing drainage angles and run off slopes, and aligning graders and tractors.
Features:
Clear illuminated LCD display with automatic backlight

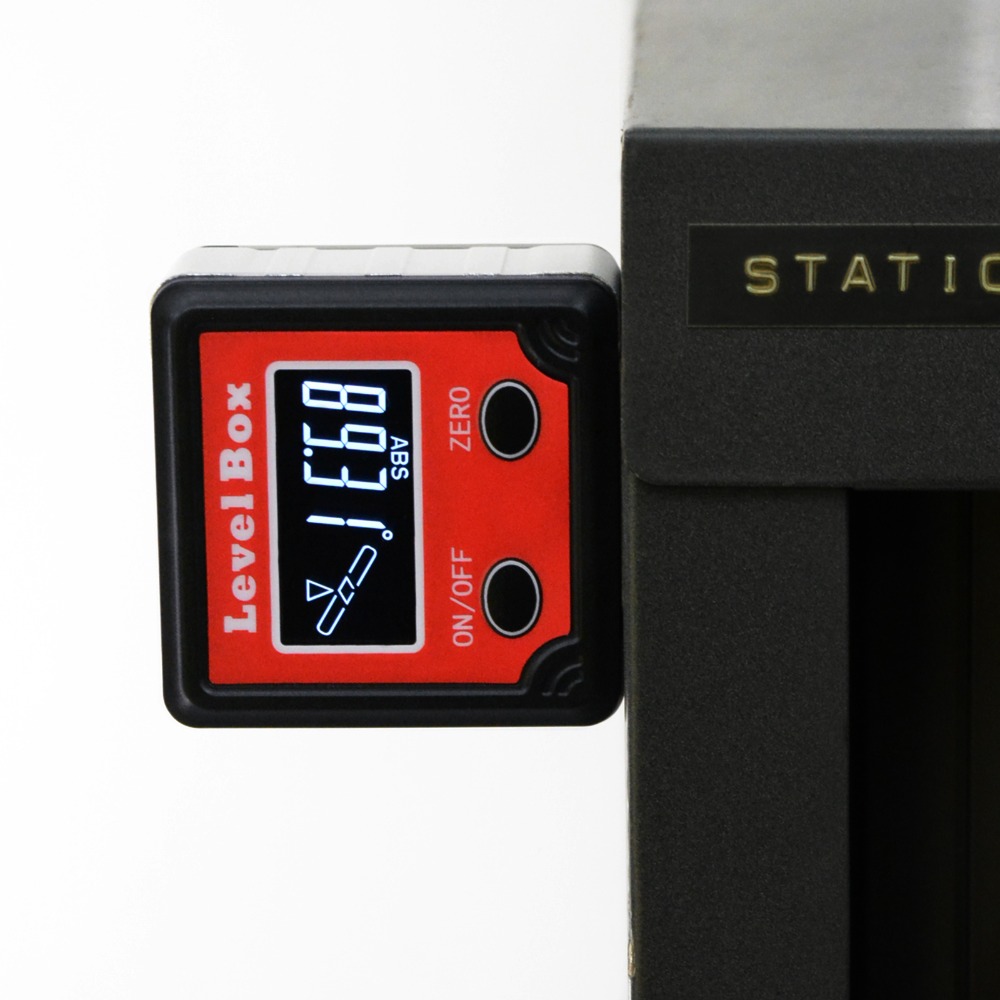

Magnetic base
Simple operation by just 2 buttons

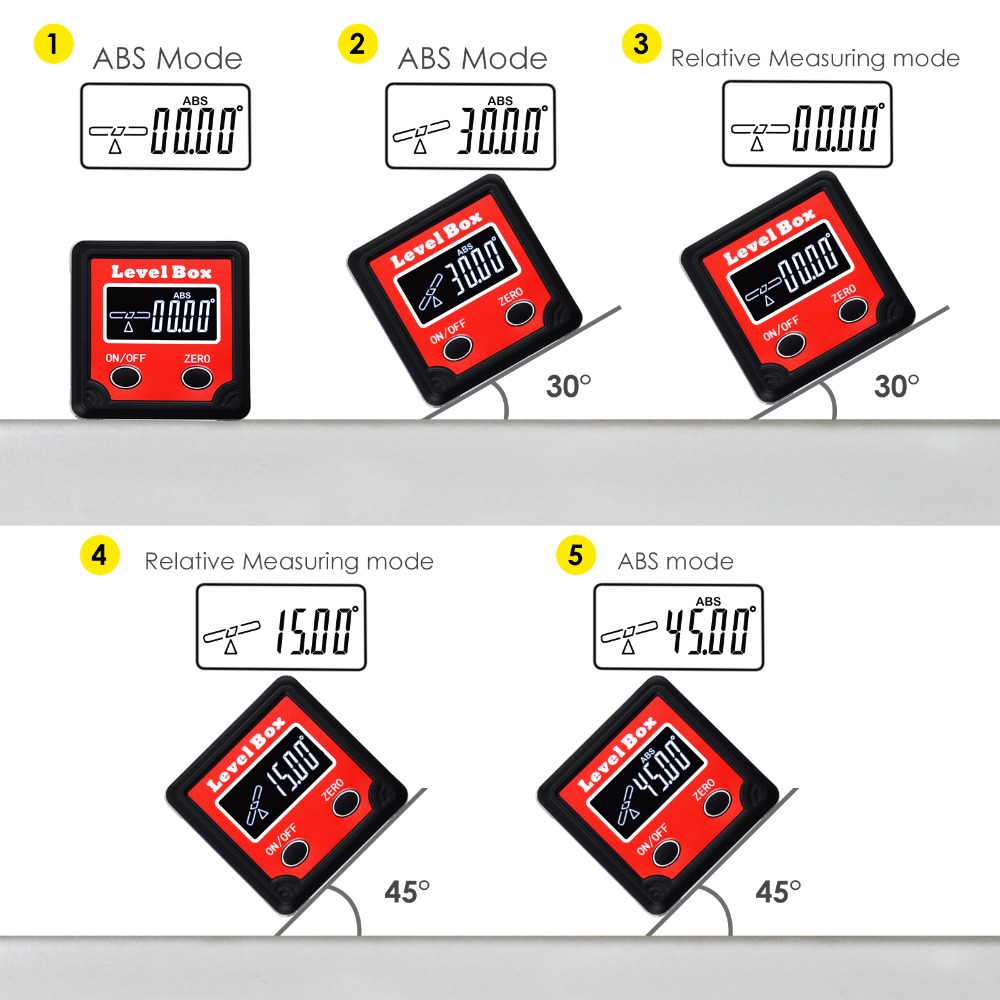

Absolute & relative measurement
Zero set to any position to find the relative angle between 2 planes
See-saw figure on the display to show the tilted direction
No Temperature drift
Auto power off function
Aluminum framework
Handy easy to carry anywhere
Pre-calibrated at the factory
Specifications:
Working range: 4 x 90°
Accuracy: 0 & 90°: ±0.1°, the rest: ±0.2°
Resolution: 0.05°
Relative Measurement: set any angle to zero
Working Temperature: 0~40°C ( 32~104°F)
Working Humidity: ≤85%

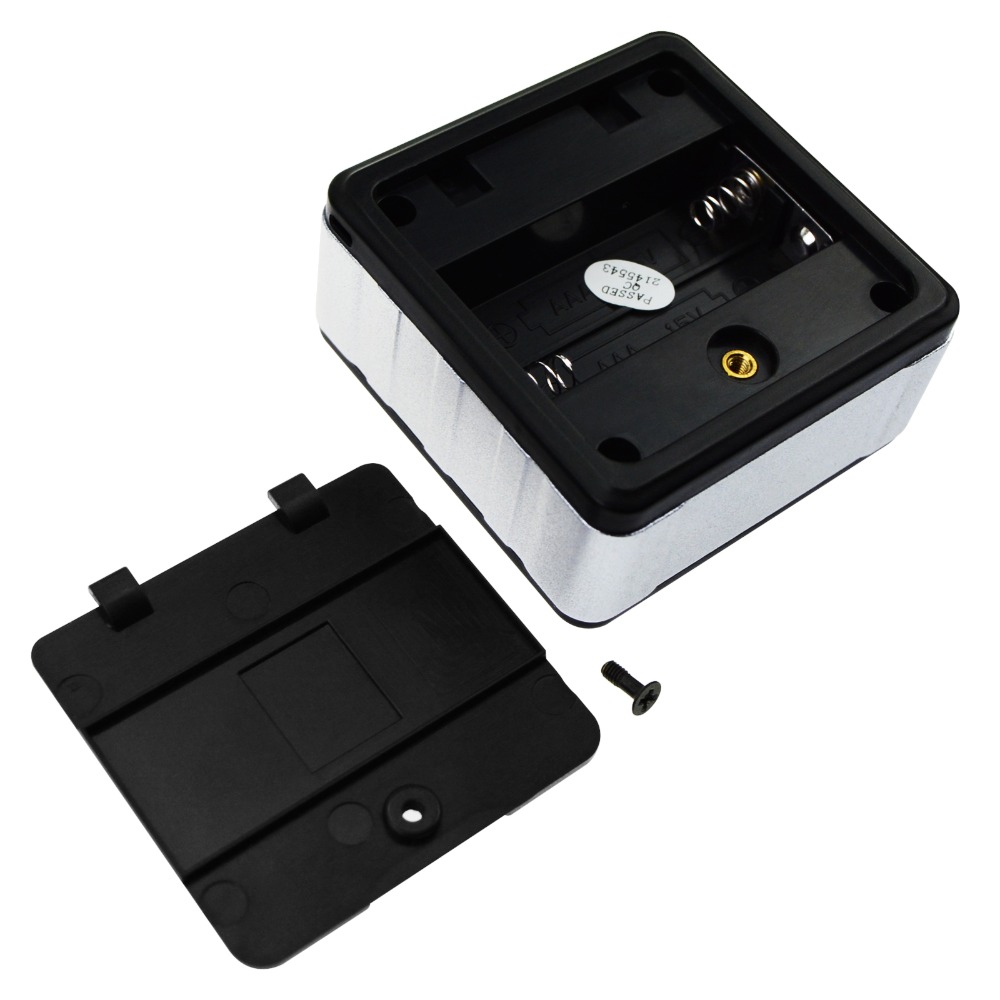

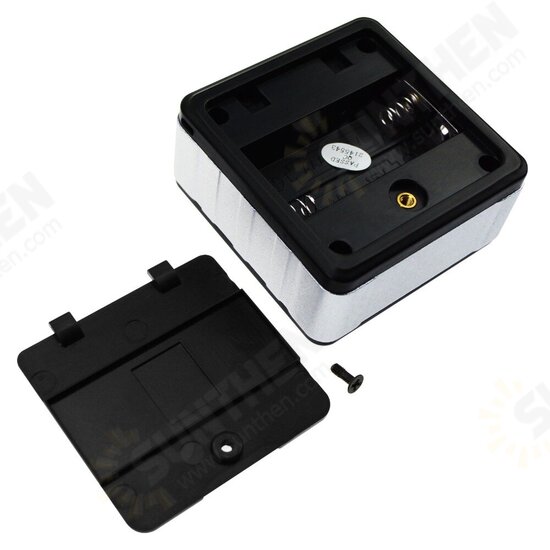

Power Supply: 2 x AAA Alkaline battery(not included)

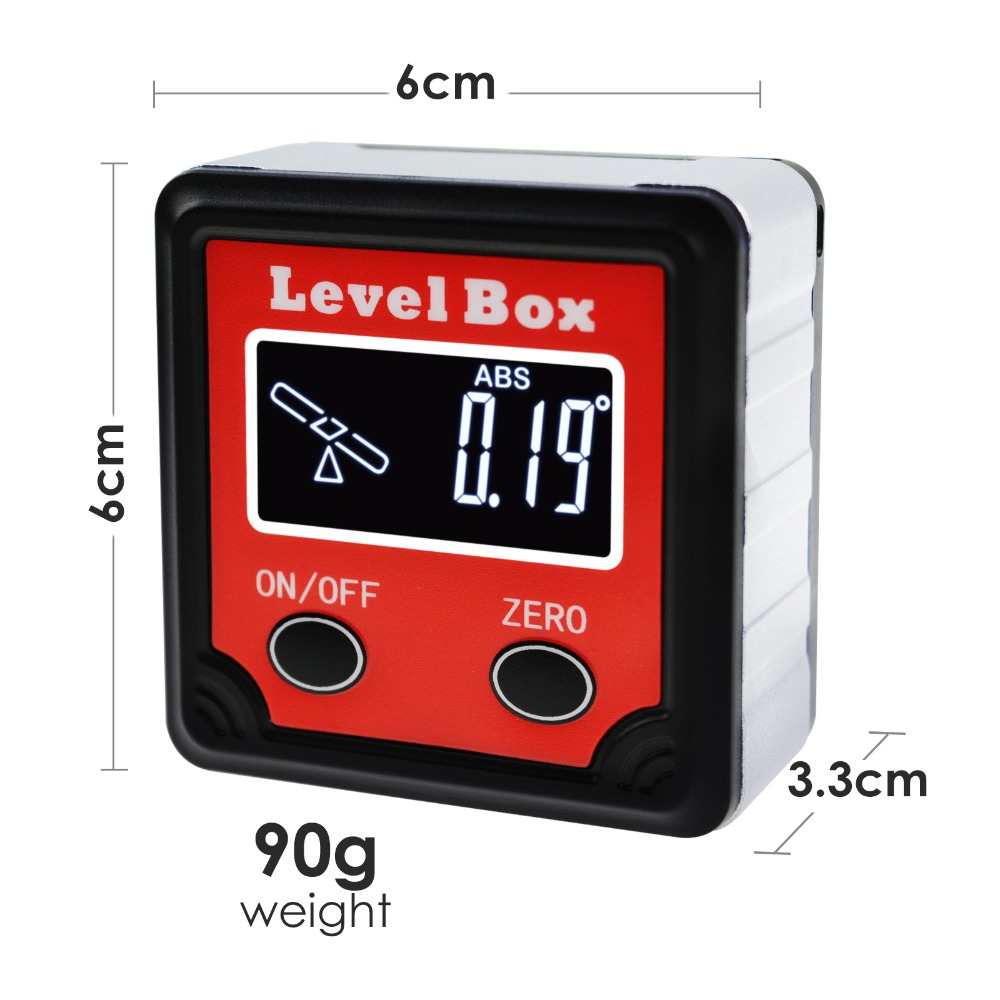

Dimension: approx. 59 x 59 x 28mm
Weight: approx. 70gms

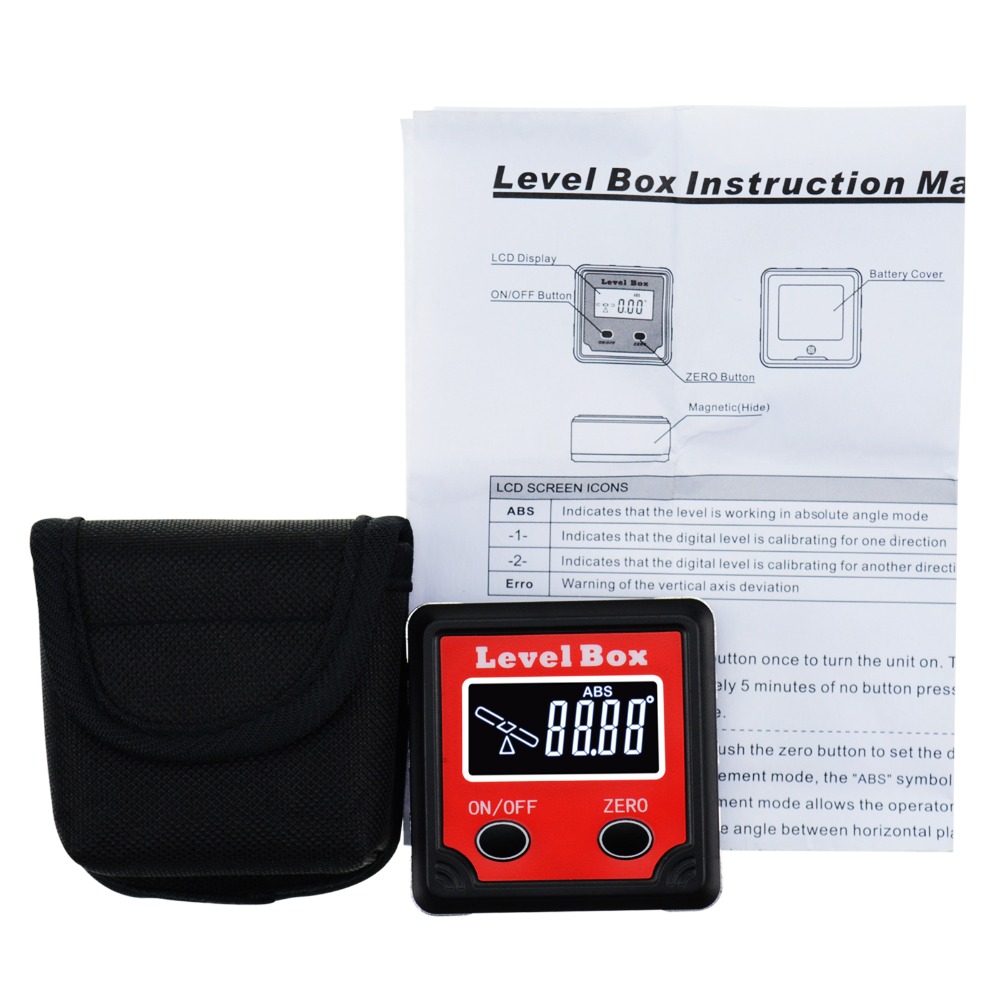

Package includes:
1 x Bevel Box

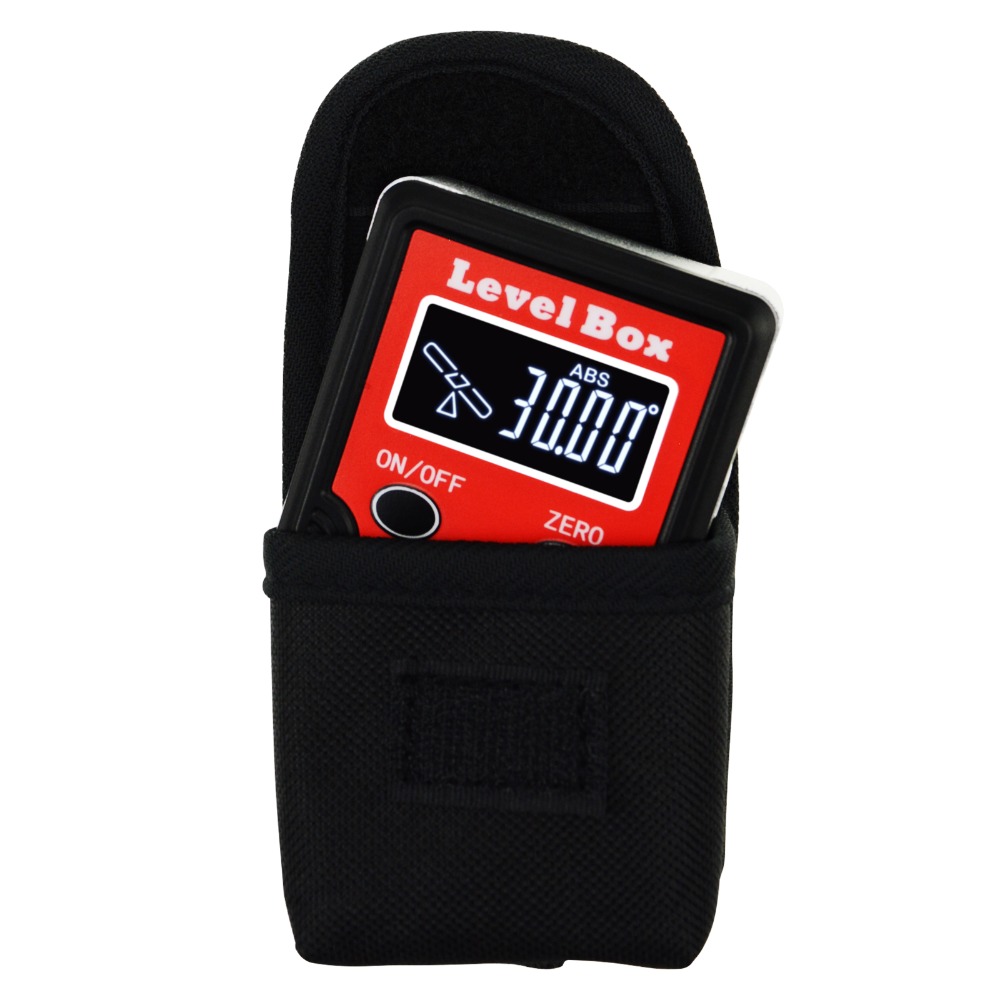

1 x Carrying pouch
1 x English Manual
Details pictures:
