  • Stock: In Stock
  • Model: ST230052156
  • SKU: ST230052156
$4.99
Ex Tax: $4.99

Available Options

Description:

Double-Side Prototype Board
Grid: 0.1inch (2.54mm)
Thickness: 1.6mm
Hole diameter: 0.9mm
Hole spacing: 2.54mm (100mil) (mm)
Material: FR-4 (glass fiber)
All holes are plated through
Both sides are identical
For point to point prototyping

Specification:

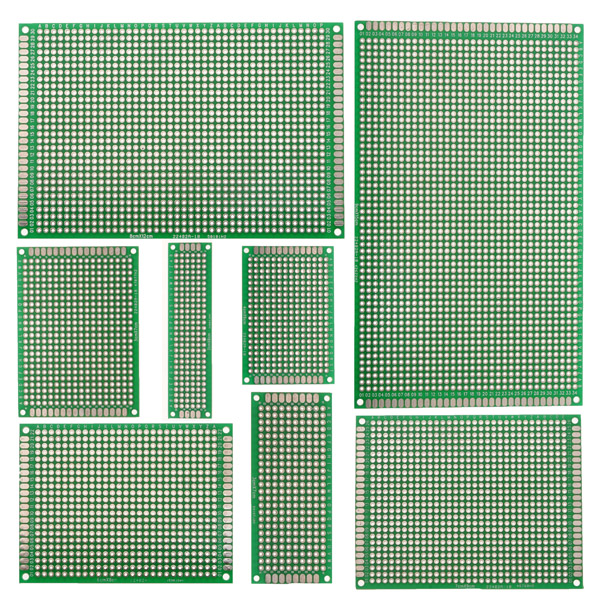

Dimension W x L (mm) Dimension W x L  (inch) Hole (column x   row)

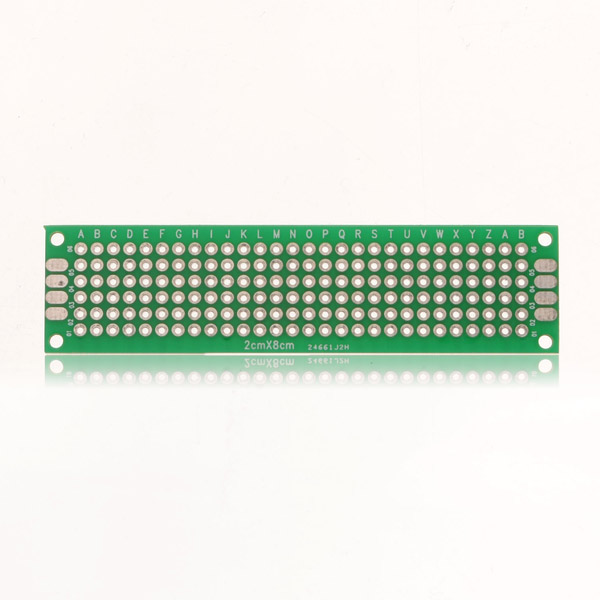

20mm x 80mm 0.8 x 3.2 inch 6 x 28

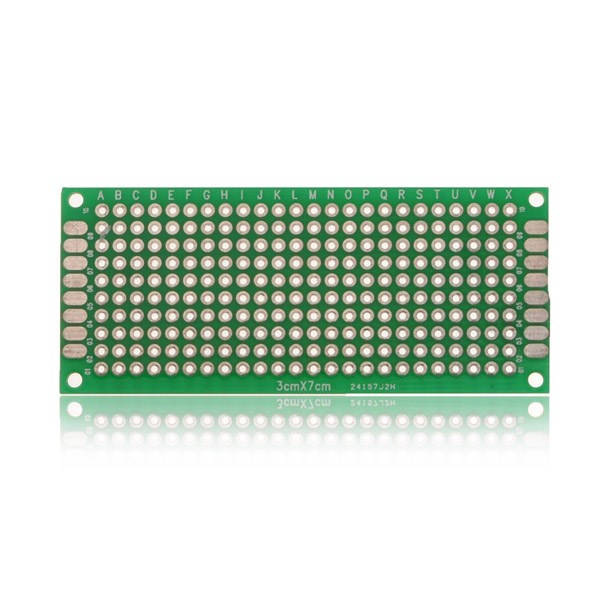

30mm x 70mm 1.2 x 2.8 inch 10x24

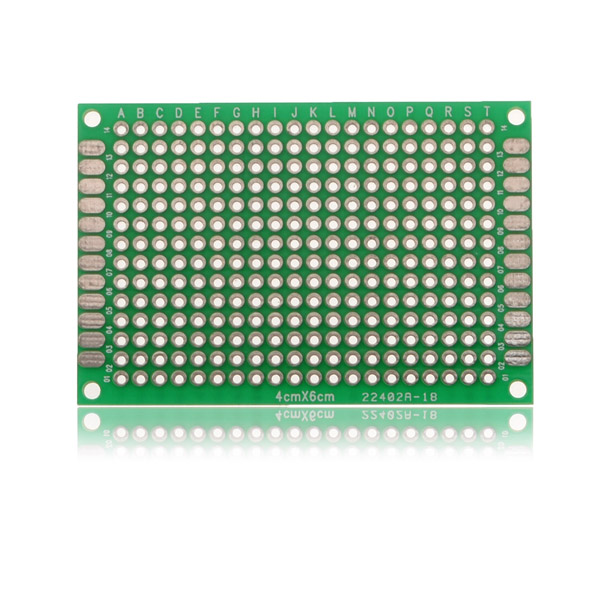

40mm x 60mm 1.6 x 2.4 inch 14 x 20

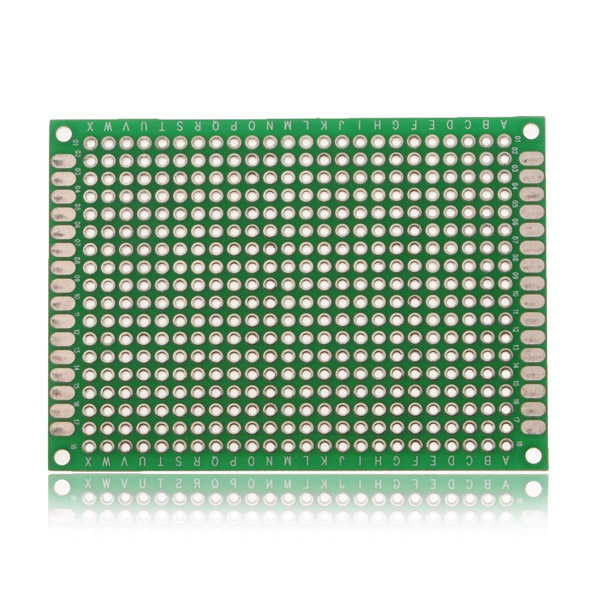

50mm x 70mm 2.0 x 2.8 inch 18 x 24

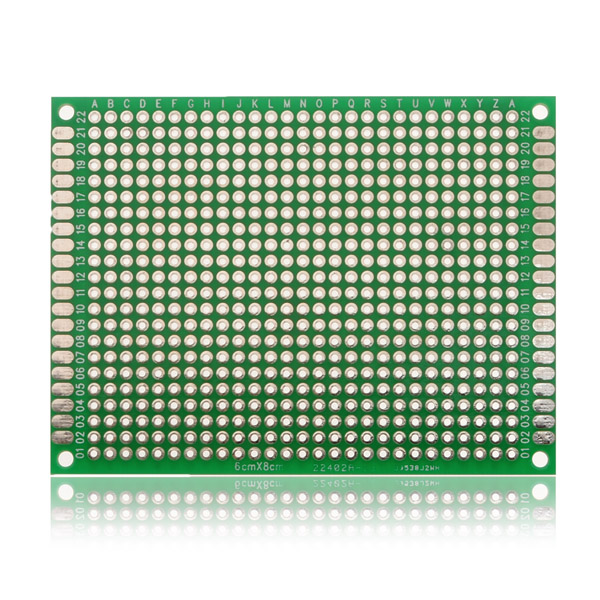

60mm x 80mm 2.4 x 3.2 inch 22 x 27
70mm x 90mm 2.8 x 3.5 inch 26 x 31

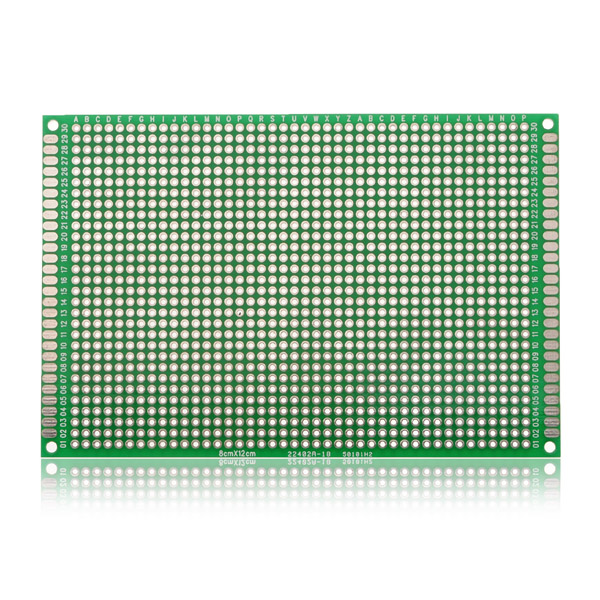

80mm x 120mm 3.2 x 4.7 inch 30 x 42

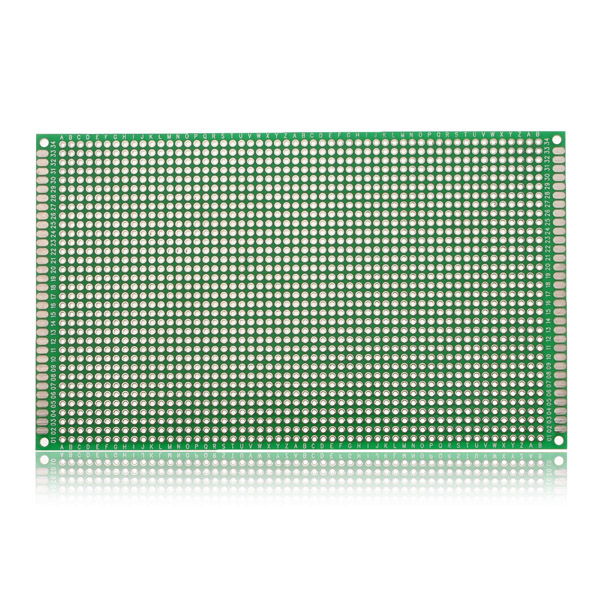

90mm x 150mm 3.5 x 5.9 inch 34 x 54

Package included:

1 x Double-Side Prototype PCB universal board (Size as your choice)
