Dual 12 Position 15A 600V Screw Terminal Strip Covered Barrier Block
- Stock: In Stock
- Model: ST220015470
- SKU: ST220015470
$11.99
Ex Tax: $11.99
Description:
Dual 12 Position Screw Terminal Strip Covered Barrier Block 15A 600V
Specification:
| Model | TB-1512L |
| Pitch | 7.5mm |
| Poles | 12P (Dual Row) |
| Material: |
Screw: M4, Steel, Ni plated
Terminal: Brass or Tin plated Contact: copper Housing : polyphenyl or polycarbonate |
| Certification | CE, CCC, UL, ROHS |
| Wide/High/Thick | 128.5mm / 22mm / 17.5mm |
Capability:
Rated voltage: 600V
Rated current: 15A
Wire section:0.5-1.5²
Wire section:0.5-1.5²
Withstanding voltage: AC2000V/ 1Min
Temperature: -40℃~+105℃
Wiring Method: Barrier Terminal
Applications: Integrated Circuits IC
Interface Type: AC / DC
Feature:

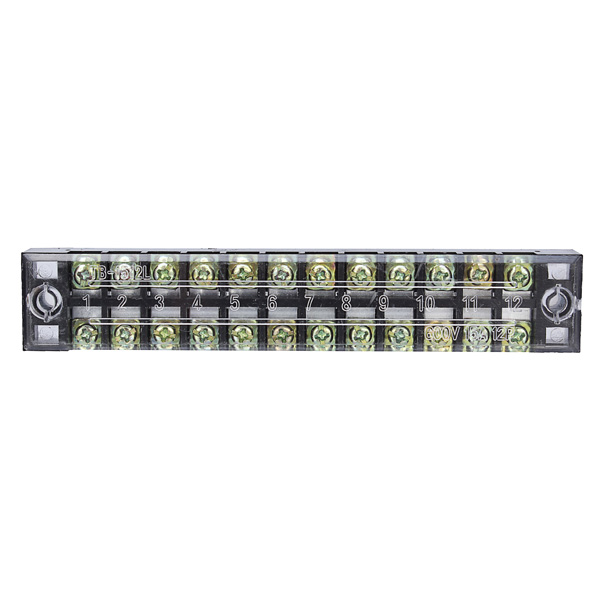

TB series Barrier Terminal Block, 12 position, double row.

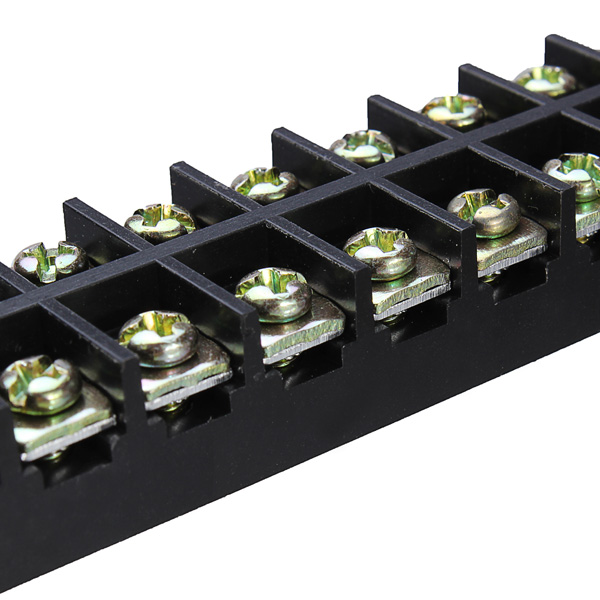

The terminals are insulated from each other.

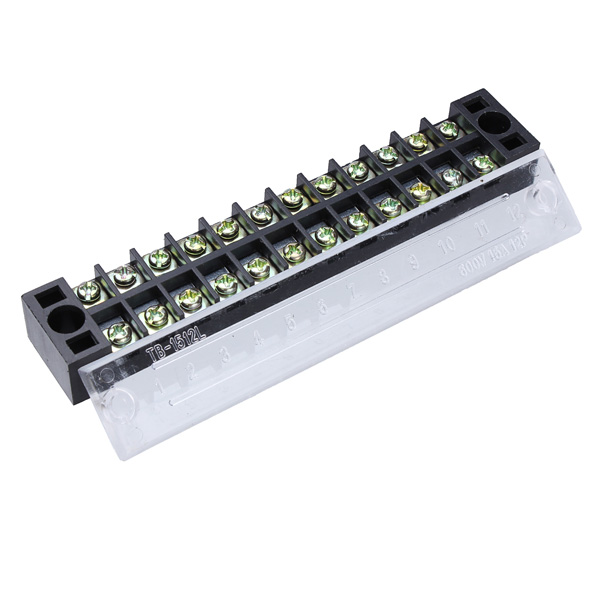

Lead numbers were marked on the plastic cover.

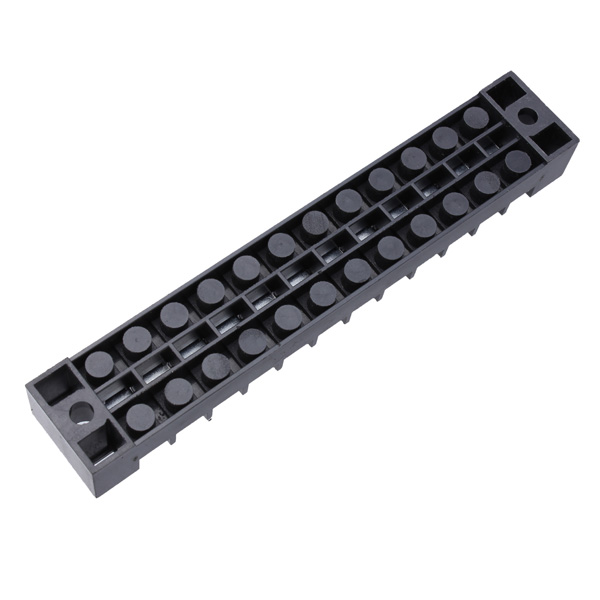

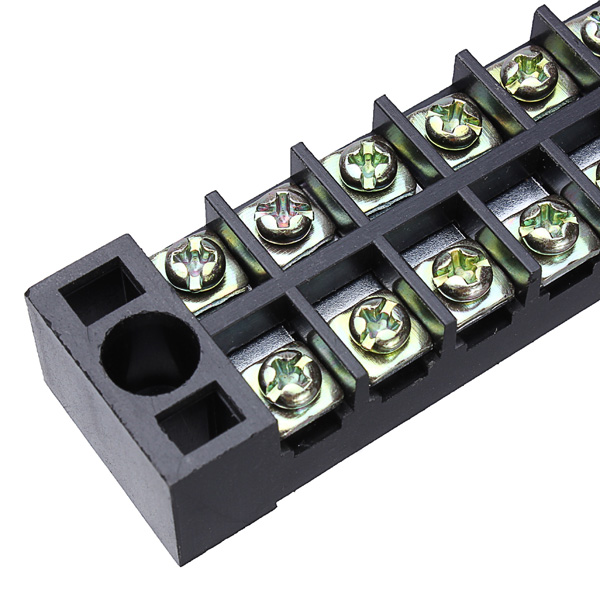

One mounting hole at each end.
Good to build prototype project, electric wiring, other electronic design for electricians or technicians.
Package included: 1x TB-1512 Screw Terminal
Package included: 1x TB-1512 Screw Terminal

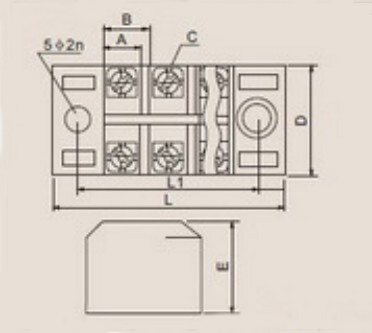

| Type | Rated Data | Number of Poles | Dimensions(mm) | ||||||
| TB-1512L | 15A 600A | 12 | L | L1 | A | B | C | D | E |
| 128.5 | 108 | 7.5 | 9 | M3 | 10.5 | 22 | |||
