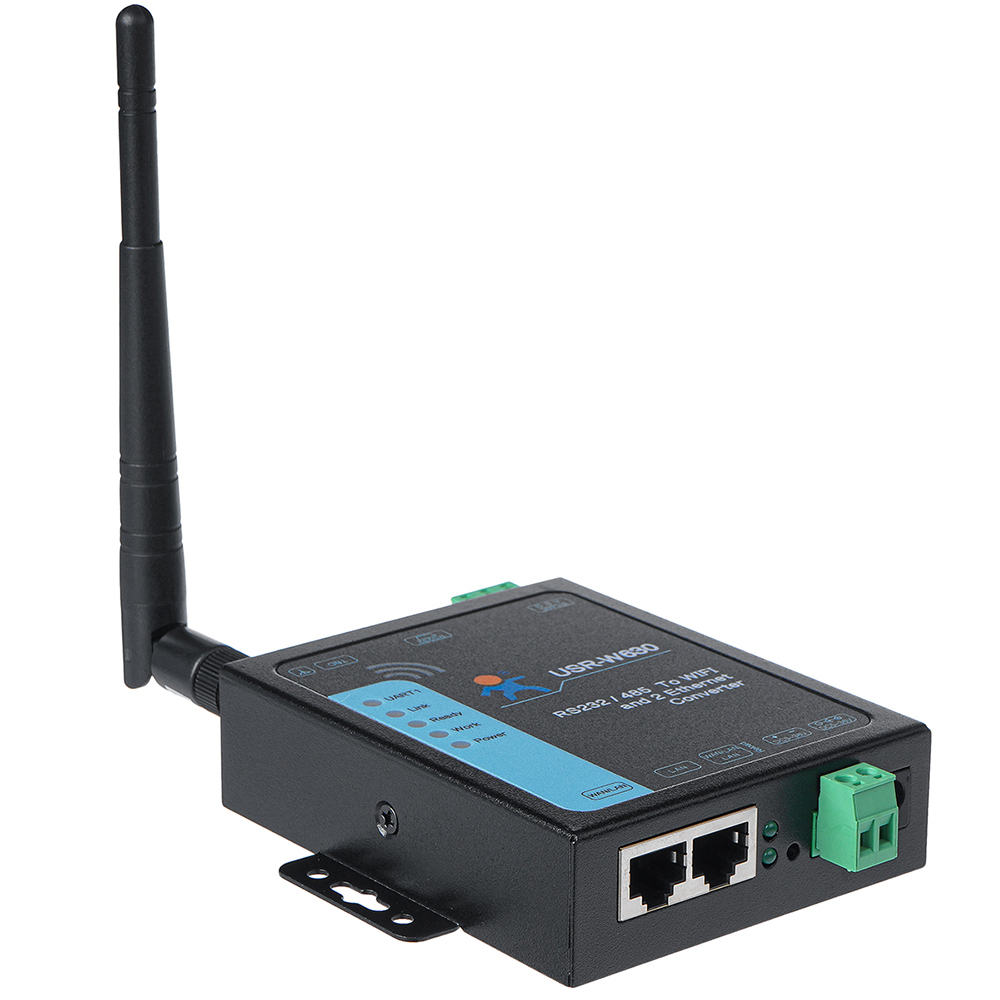

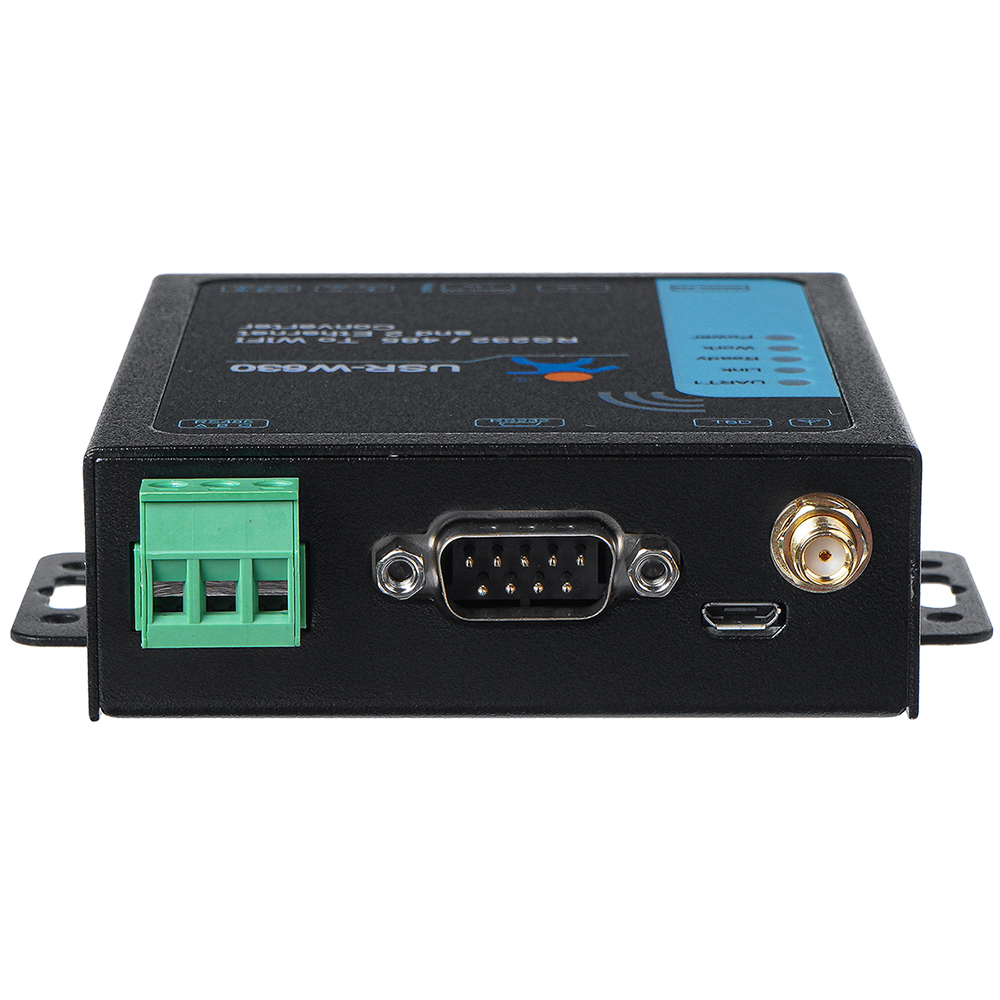

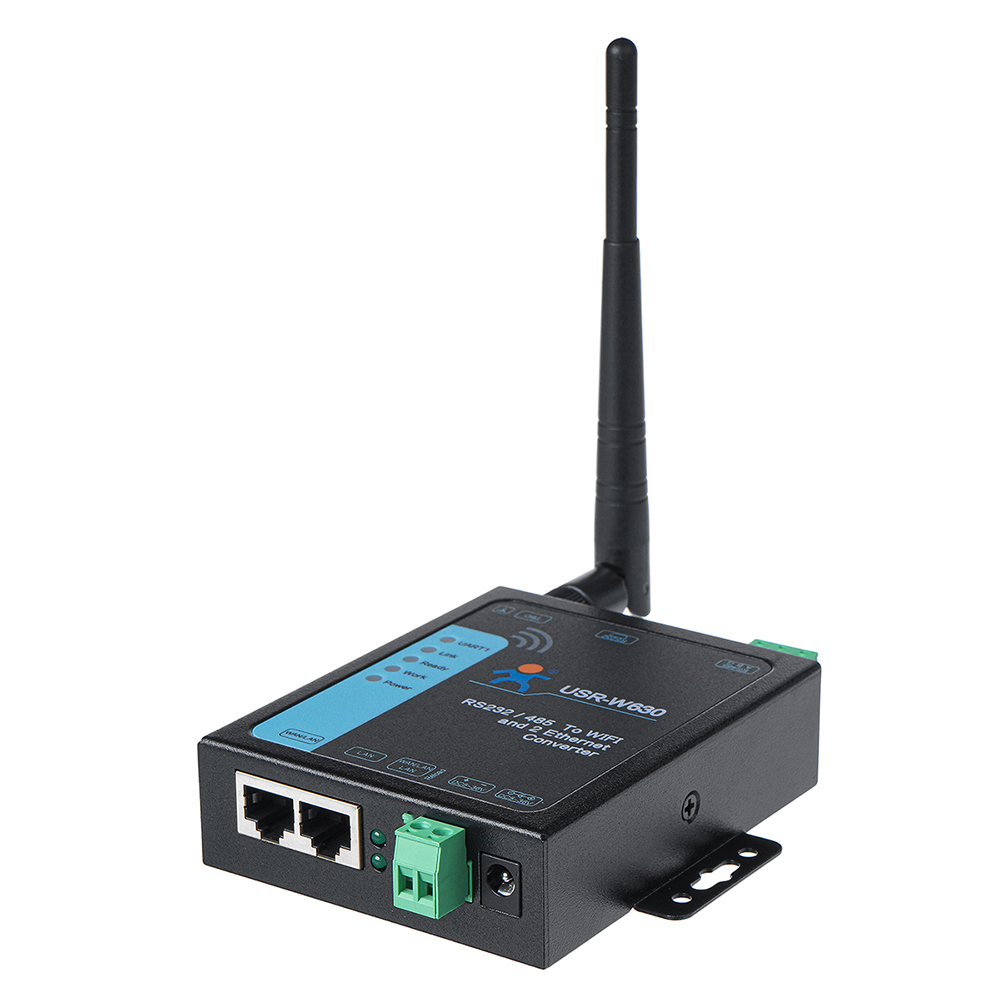

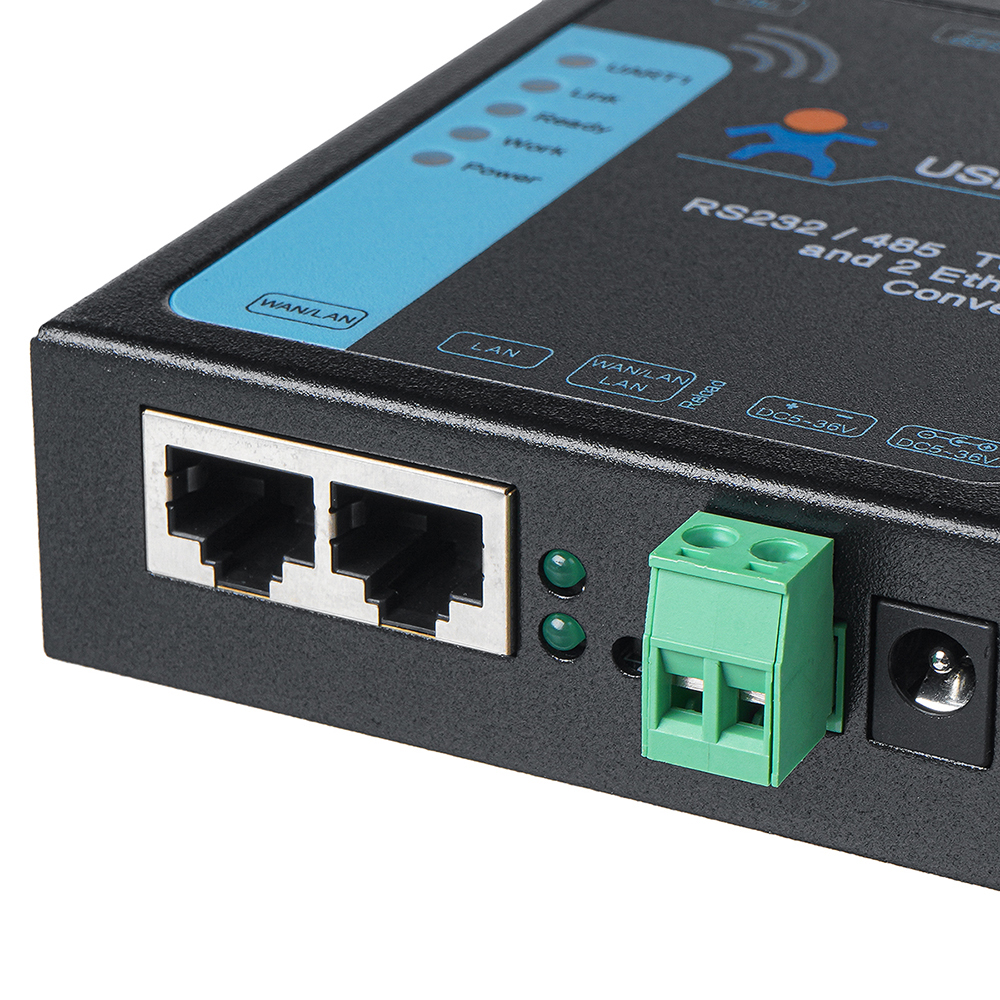

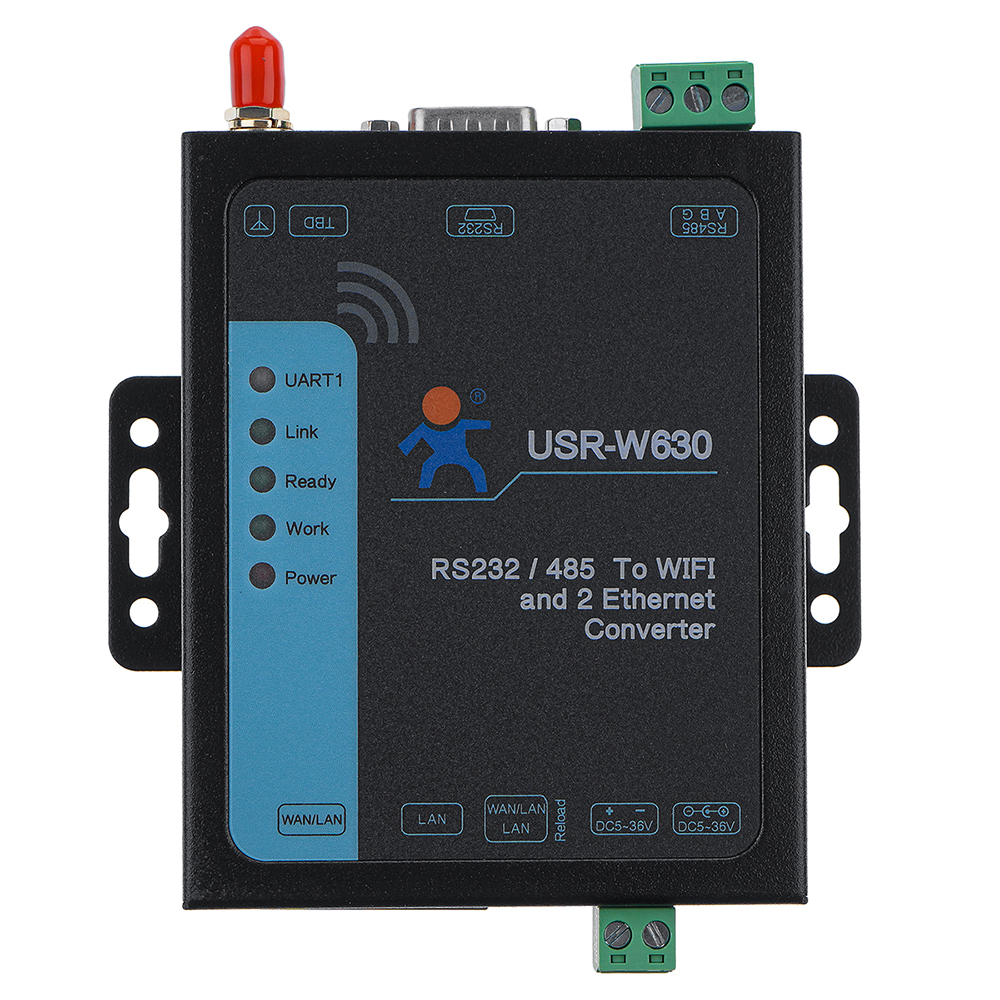

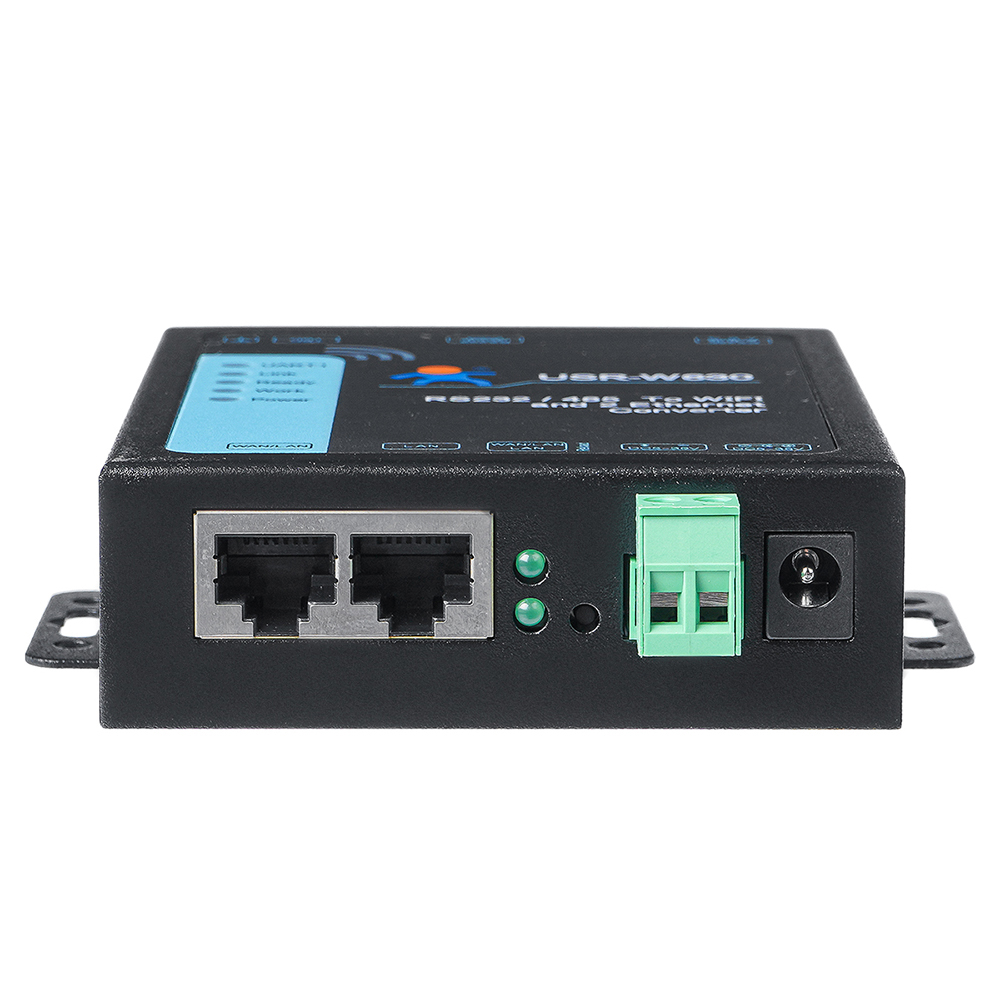

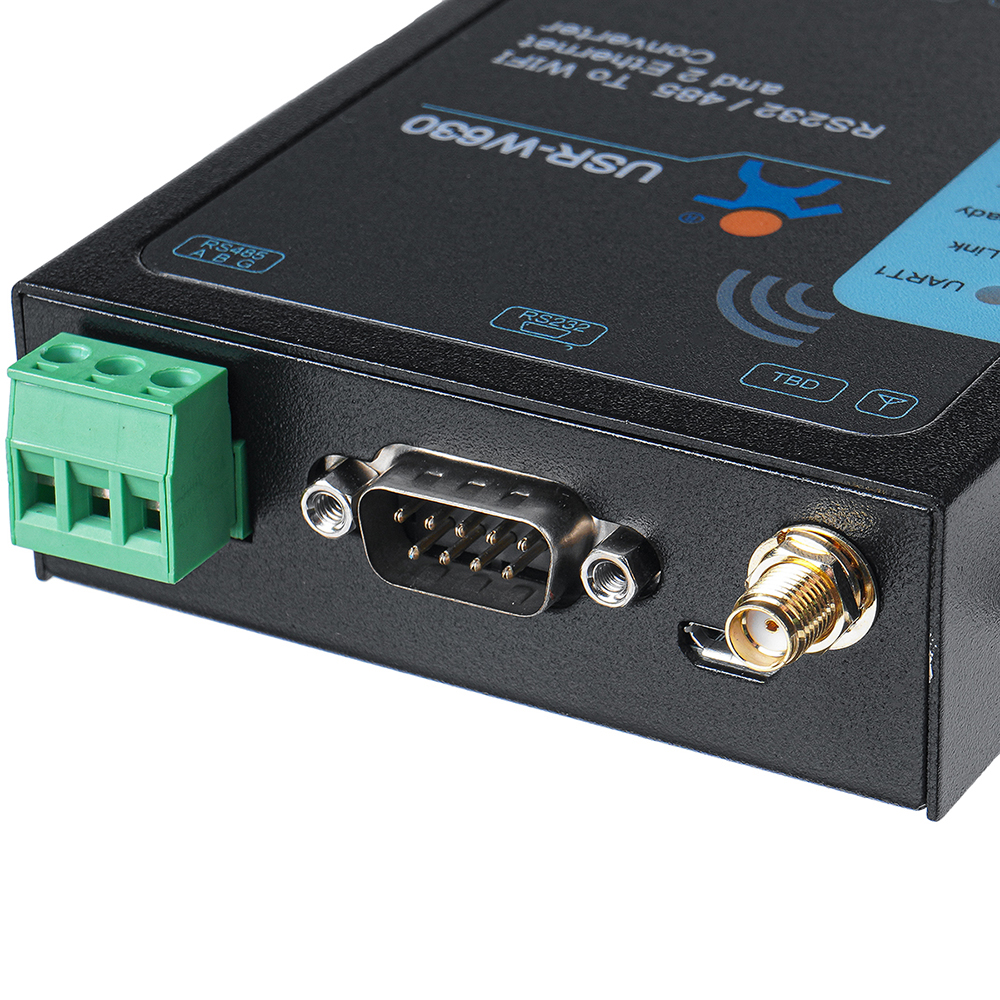

Dual Network Port WiFi Serial Server RS485/232 Serial Port to Wi-Fi Ethernet USR-W630
- Stock: In Stock
- Model: ST230042235
- Dimensions: 103.00mm x 105.00mm x 28.00mm
- SKU: ST230042235
$44.72
Ex Tax: $44.72
Feature:
| Project | Index | Description |
| Wireless parameters | Standard certification | FCC/CE |
| Wireless standard | 802.11 b/g/n | |
| Frequency Range | 2.412GHz-2.484GHz | |
| Transmit power | 802.11b: +20dBm(Max.) | |
| 802.11g: +18dBm(Max.) | ||
| 802.11n: +15dBm(Max.) | ||
| User can configure power | ||
| Receiving sensitivity | 802.11b: -89dBm | |
| 802.11g: -81dBm | ||
| 802.11n: -71dBm | ||
| Hardware parameters | Data interface | UART: 300bps -460800bps |
| 485 interface (anti-surge, light protection, overcurrent protection) | ||
| Ethernet: 10Mbps/100Mbps | ||
| Operating Voltage | DC5-36V | |
| Operating temperature | -20℃- 70℃ | |
| Storage temperature | -40℃- 125℃ | |
| Size | 103*105*28mm(L*W*H) | |
| Software parameters | Wireless network type | Station/AP mode |
| Security Mechanism | WPA-PSK/WPA2-PSK | |
| Encryption type | TKIP/AES | |
| Operating mode | Transparent transmission mode/serial port command mode/Httpd Client mode/Modbus mode | |
| Set command | AT+command structure | |
| Network protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | |
| Maximum number of TCP connections | 24 | |
| User configuration | Web server + AT command configuration | |
| Customer Application Software | Support customer customized application software |
Package includes:
1 x Module
