Duet 2 Wifi V1.04 Cloned DuetWifi 32Bit Board Controller Expansion Board + 4.3inch/5.0inch/7.0inch PanelDue Touch Screen Kit for 3D Printer Parts

Please choose the type you wanted:

#A = Duet 2 Wifi

#B = Duet 2 Wifi and 4.3LCD

#C =Duet 2 Wifi and 5.0LCD

#D = Duet 2 Wifi and 7.0LCD

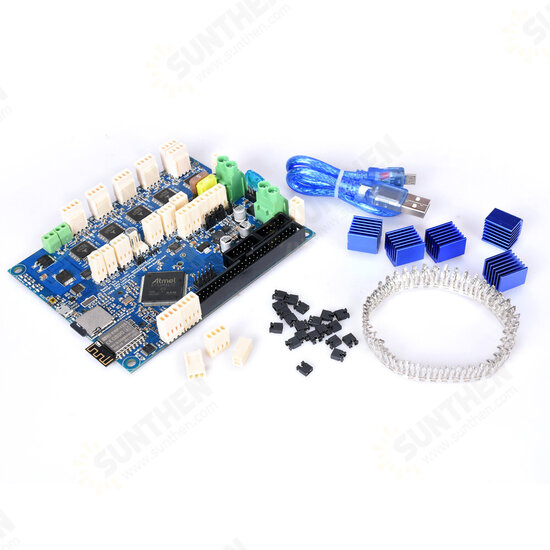

• This is the latest version of the Duet 2 Wifi, v1.04. Duet 2 Wifi is an advanced 32 bit electronics for the control of 3D printers and other CNC machines. It has the same features as the Duet 2 Ethernet other than providing a WiFi connectivity rather than ethernet

  Electric parameter：

  ● Input voltage DC : 12-24V

  ● The total current of fan fuse : 1A

  ● The total current of fuses for two heating rods and stepper motor : 7.5A

  ● The total current of fuses for build-plate：15A （when replacing the 20A fuse ,be sure the overload current is not exceed allowable 18A.）

  ● The three stepper motor among five TMC2660 stepper motor are used in X axis ,Y axis and Z axis, the others are used in extruding machine. The max current of each motor can be set to 2.4A.

  Firmware：

  ● Using a modified version of open source RepRapFirmware.

  ● Firmware office web: https://github.com/dc42/RepRapFirmware.

  Function Overview:

  ● Powerful 32 Bit Processor:  A powerful AtmelSAM4E8E with 120MHz dominant frequency and ARM Cortex-M4 core.

  ● Dedicated Wifi module: All networking is handled by a separate module, this leaves the main processor free to do precise stepper pulse timing and implement other advanced features.

  ● Super quiet TMC2660 stepper drivers: SPI controlled and capable of up to 256 microstepping with optional 16x interpolation when using 16x microstepping. Hardware support for variable microstepping and variable stepper current for optimum speed and power efficiency.

  ● On board High speed SD card and support for a second SD external card if required.

  ● Dual extruders: 3 heater/thermistor channels for a heated bed and 2 extruders.

  ● 3 PWM controllable and 2 always-on fans. These can be run from either the input voltage, from 5V, or from external power for added flexibility.

  ● High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high current (18A1)

  ● Connect via PC, tablet or smartphone on the same network to the Duet Web Control web interface. There is no need for an app install, internet connectivity or cloud service to sign up for yet you can control your printer, upload and start prints from the browser.

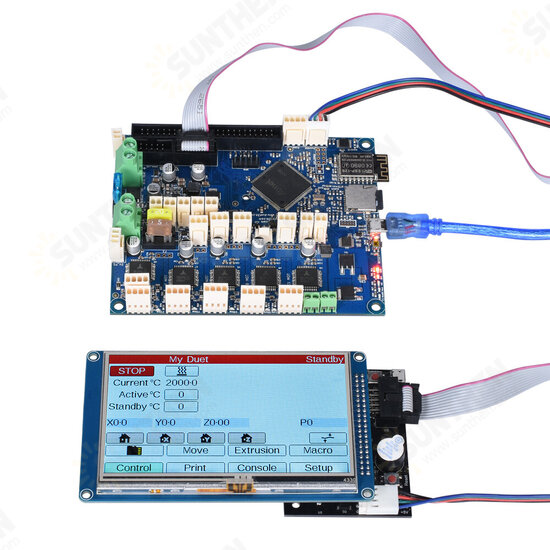

  ● PanelDue: Full Color Graphic Touch Screen.

  ● Also connect via USB or serial if desired.

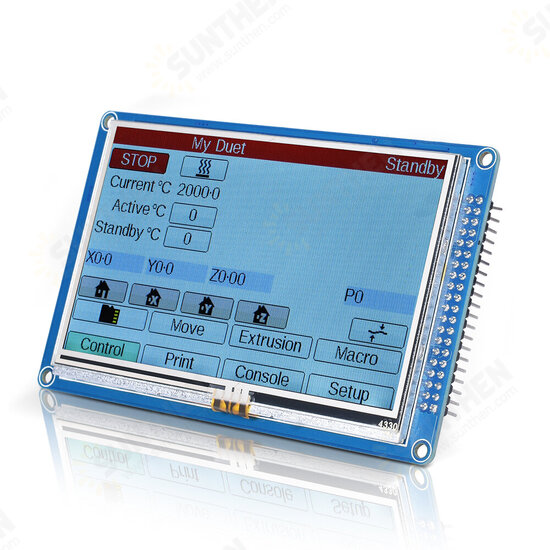

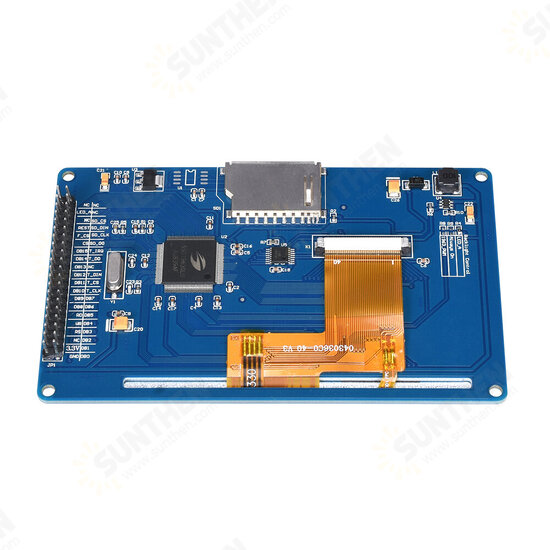

  ● The PanelDue is a colour touch screen controller for the Duet and other 3d printing electronics that support it.

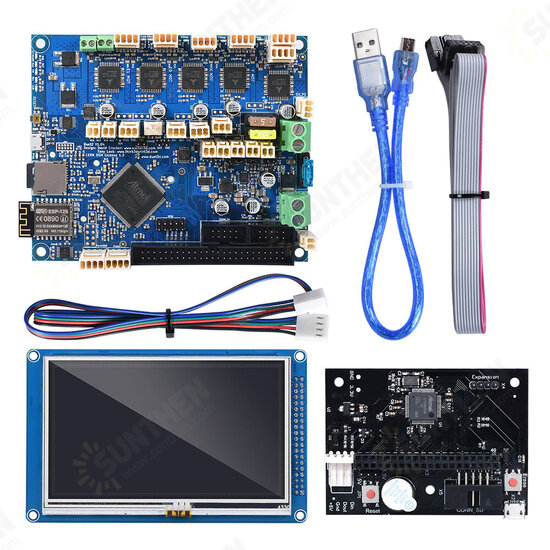

  Package Included:

  1PC *Duet 2 Wifi (With USB)

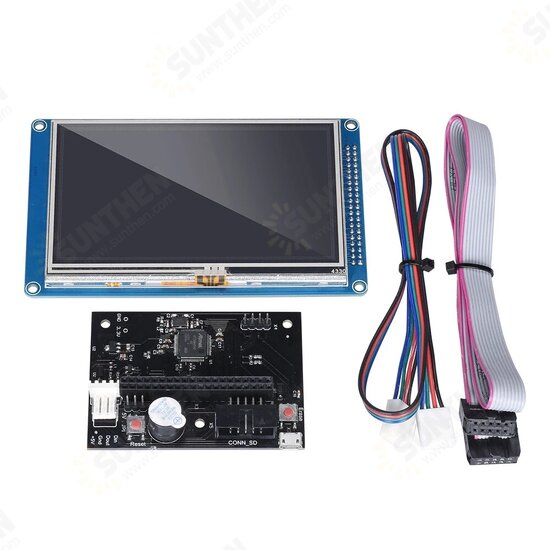

  1PC *4.3/5/7'' Touch Screen(With  Cables)
  1PC *Panel Due(With Cable)
