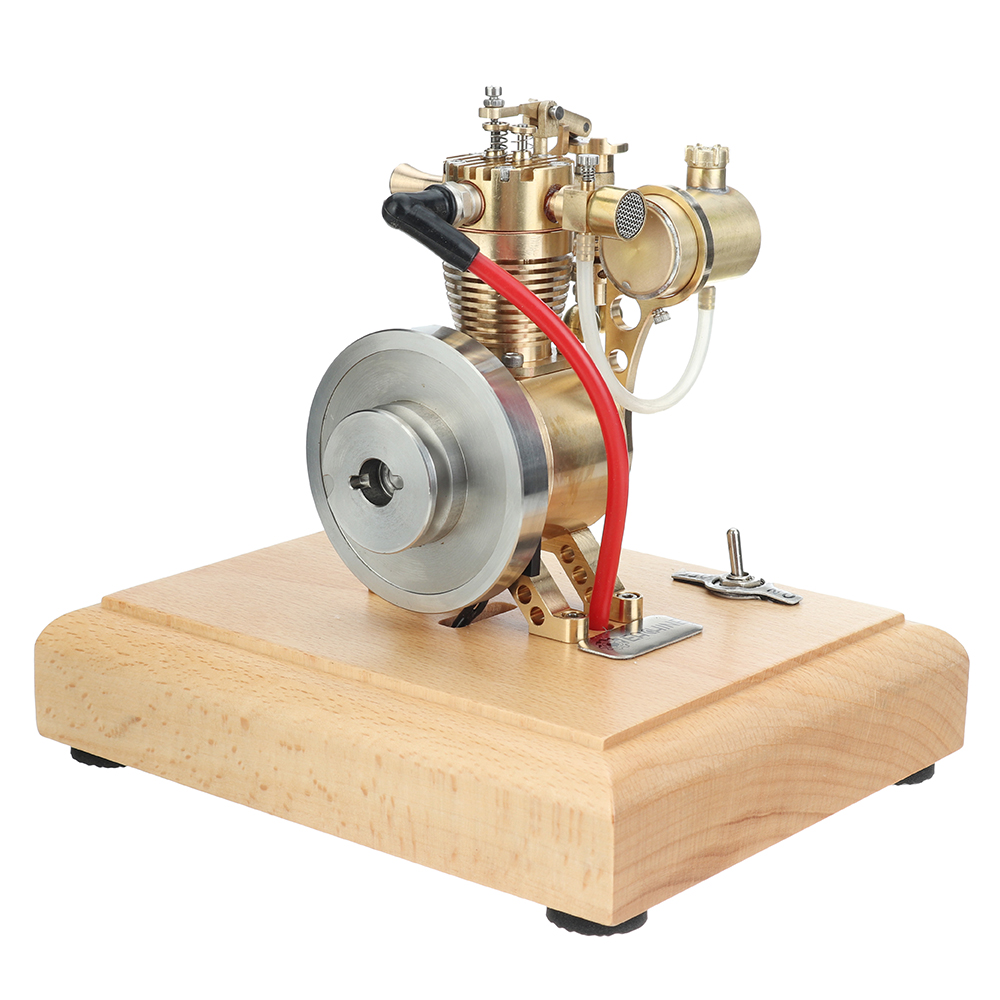

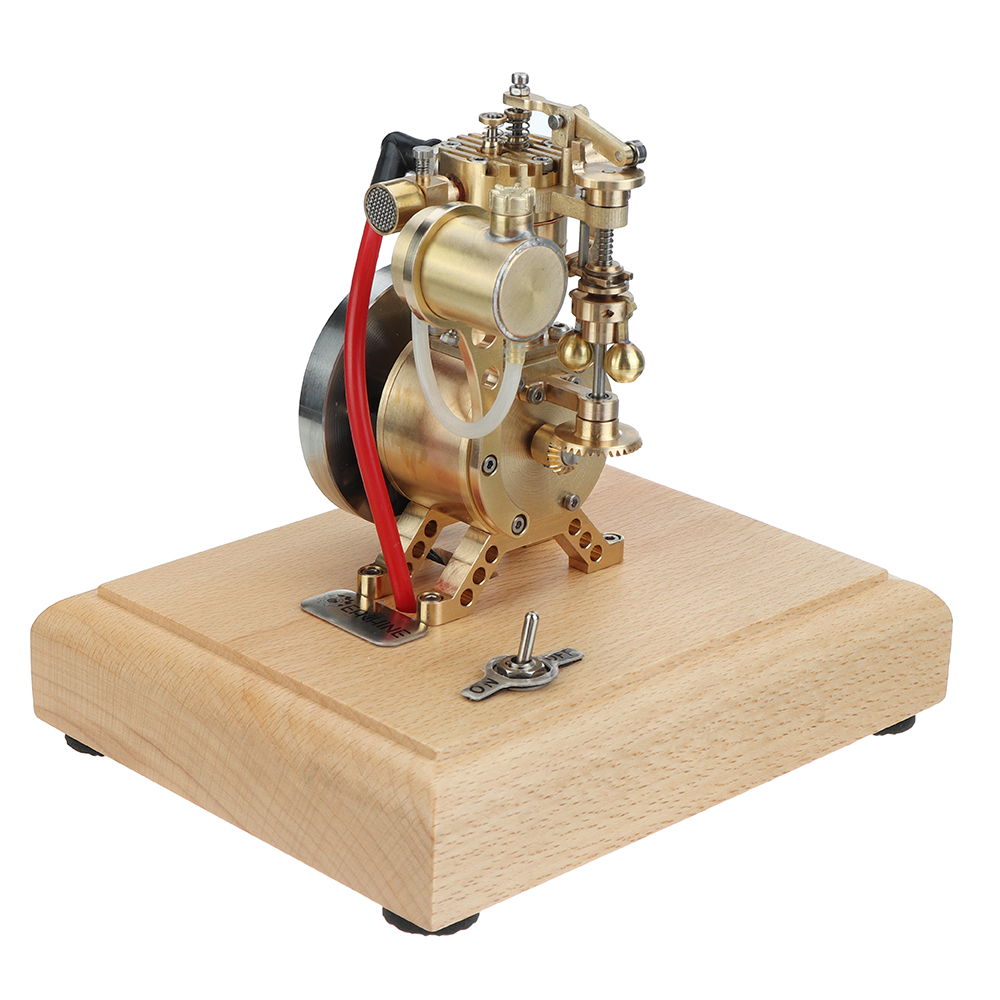

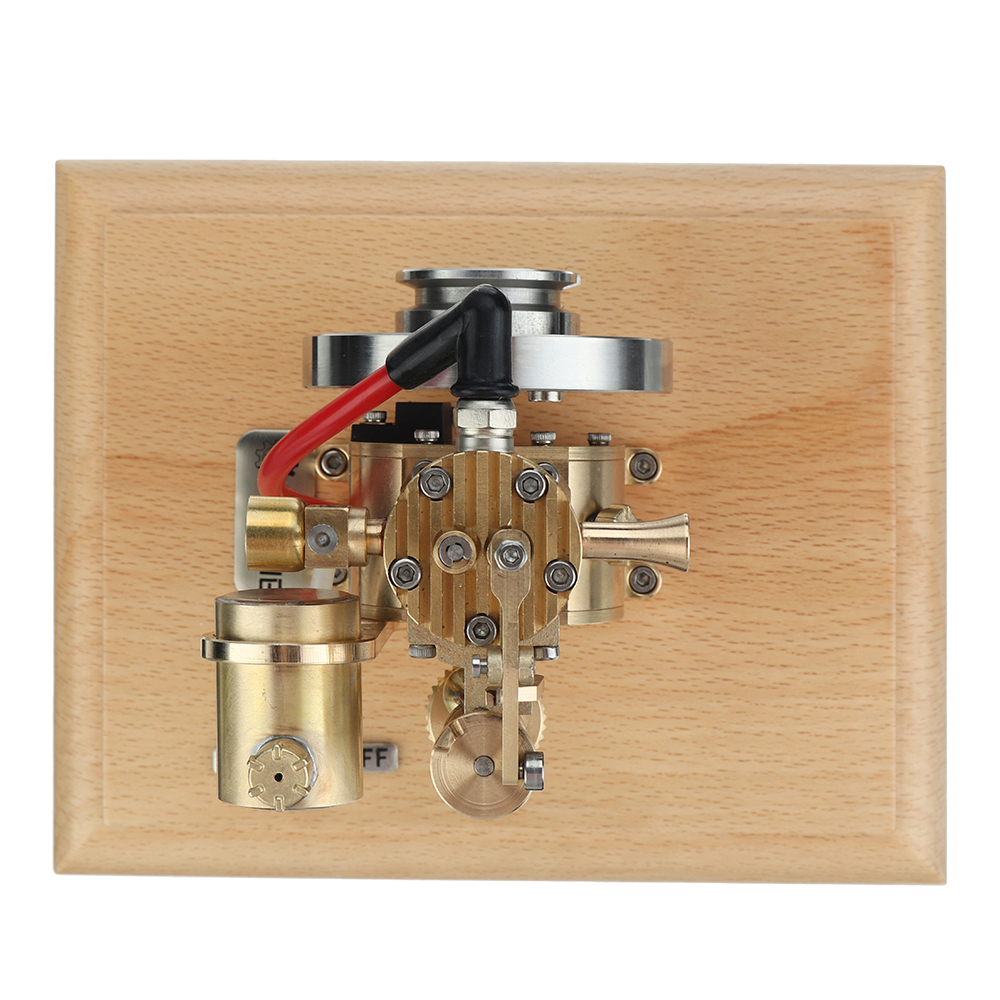

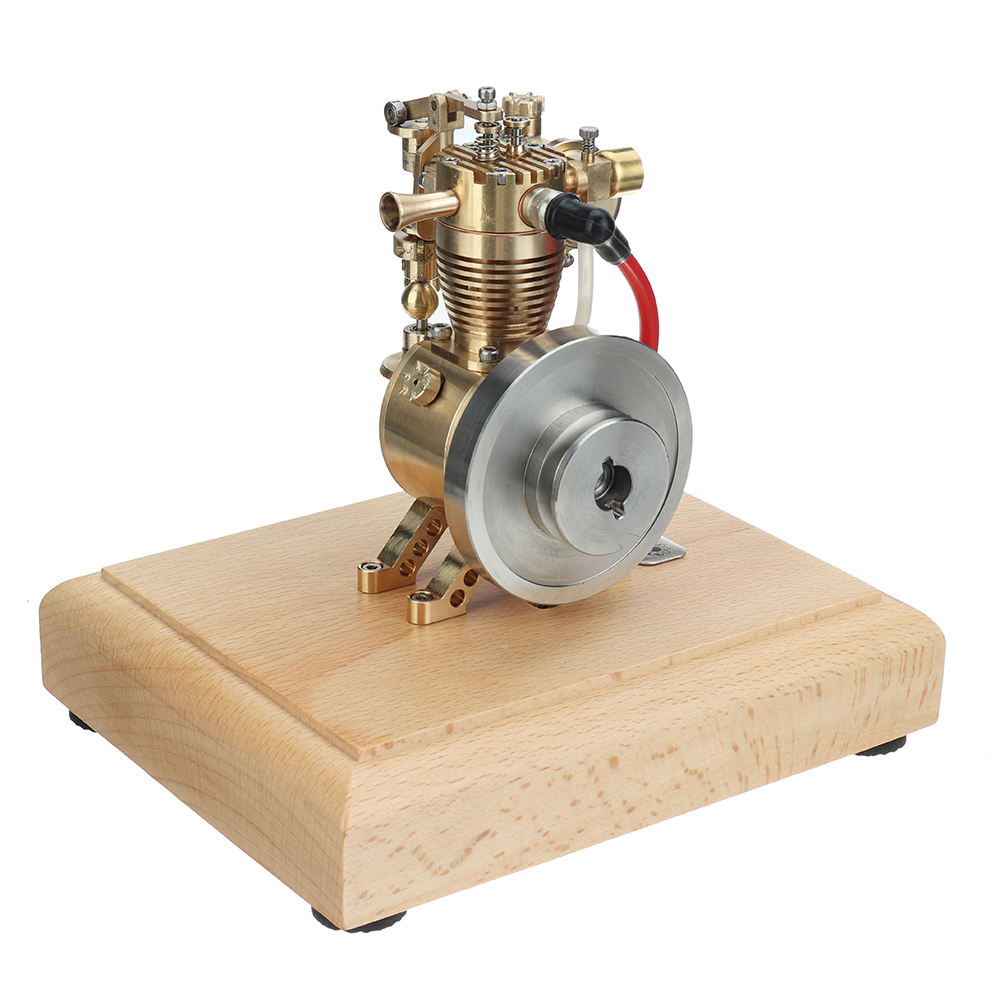

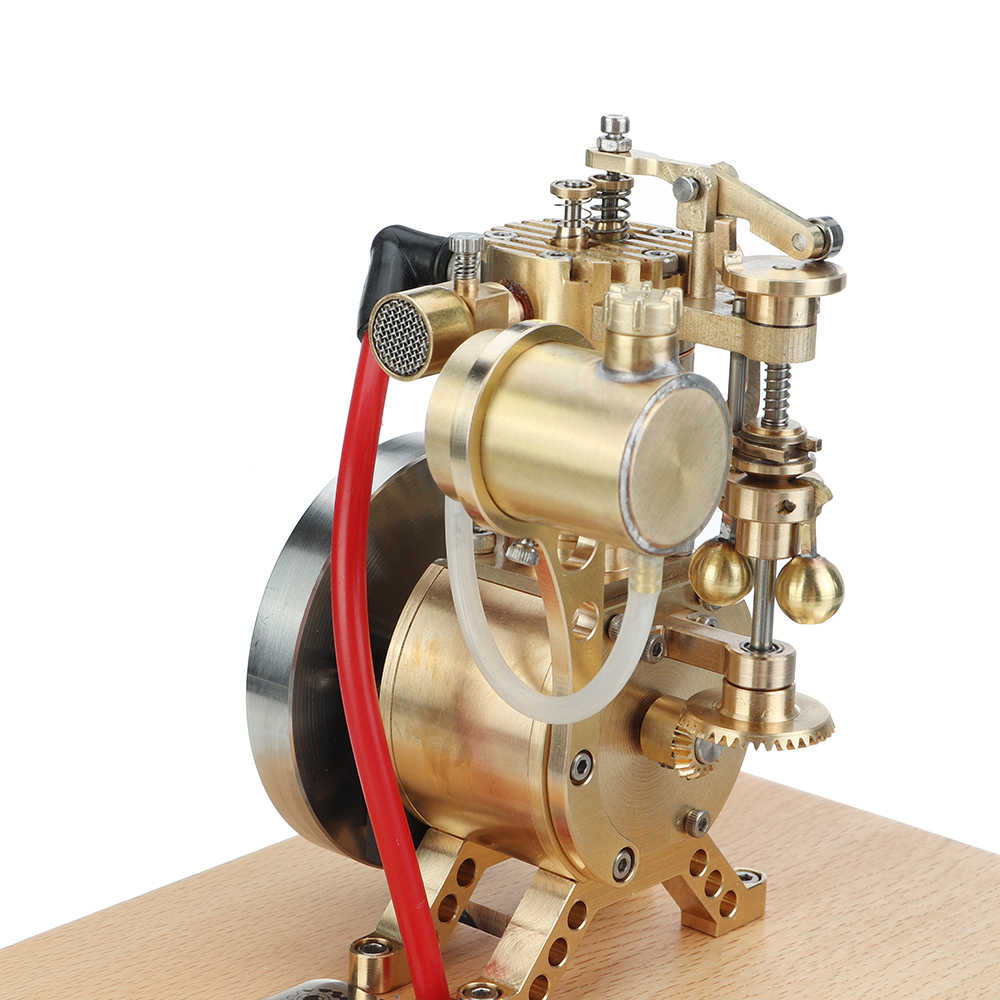

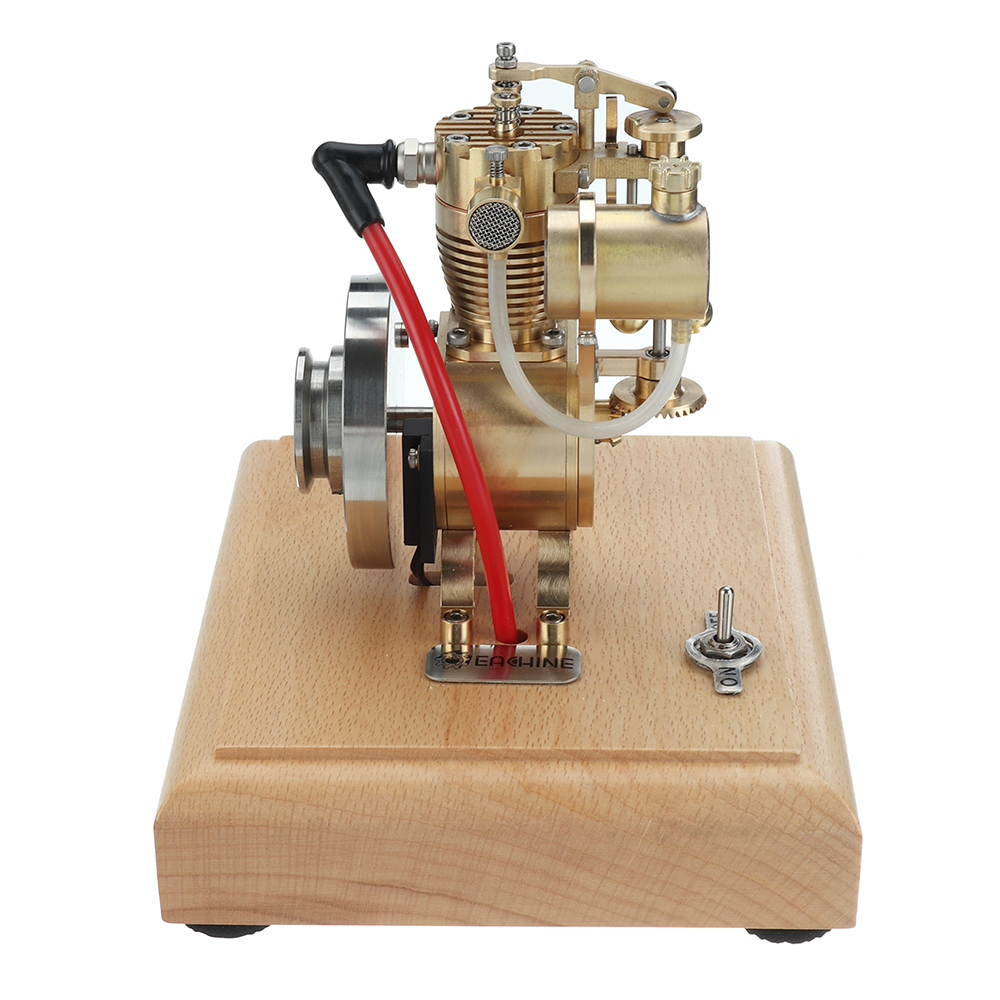

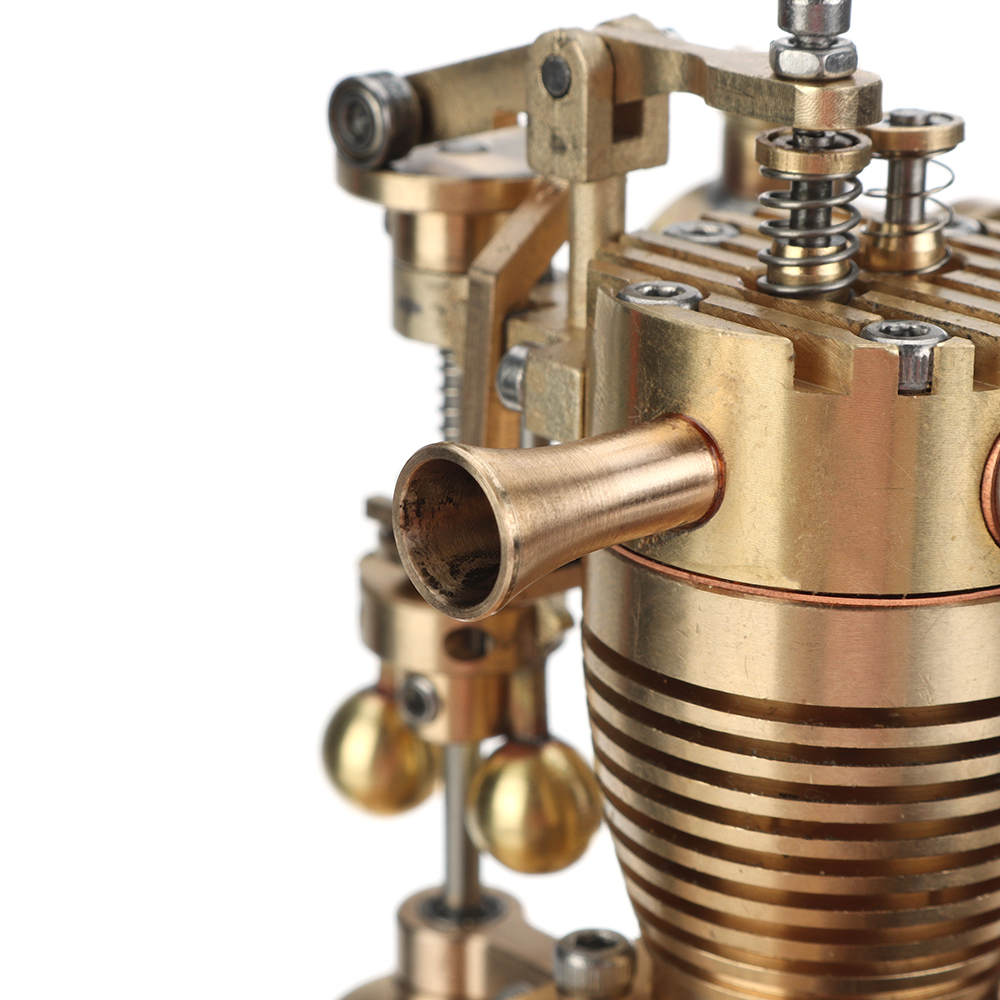

EM2 Governor Gas Vertical Engine Model Upgraded Version Engine Collection

Size:85*70*105MM

Displacement :1.6CC

Cylinder diameter:13MM

Itinerary:12MM

Weight:1000G

This is a micro engine . It is made of brass and stainless steel . It has alimited speed structure . The ignition device is powered by a 4.5V powersupply . Its starting can be divided into two ways : external force ( electricdrill ) and manual starting.

1.Open the bottom plate to check the wiring of the engine , connect thefuel tank pipeline , and close the bottom plate after installing three No.5 batteries.

2.Use gasoline ( 95 # ) to fill the fuel tank . When the filling is completedmake sure that there is no air in the fuel pipe.

3.On the right side of the engine ( where the fly hammer is installed ) ,slowly turn the wheel counterclockwise for more than one circle , itsfunction can make the mixed gasoline fully enter the cylinder.

4.Turn on the power switch and quickly turn the flywheel clockwise tostart the engine on the right side of the engine ( flywheel position ).

1.When the ignition device is normal and the cylinder compression isnormal , if the machine cannot start normally , it is very likely that thecarburetor oil needle needs to be adjusted.

.Unscrew the screw on thetop of the carburetor from the bottom , then loosen 1 / 4 turn , start theflywheel , so that the mixing ratio of gasoline and air can reach the normalworking mixing ratio after several times.

3.When the machine stops , the power switch should be turned off.

1. Please understand the product might have some colour difference due to different monitors and scenes.

2. Please allow slight deviation for the measurement data.

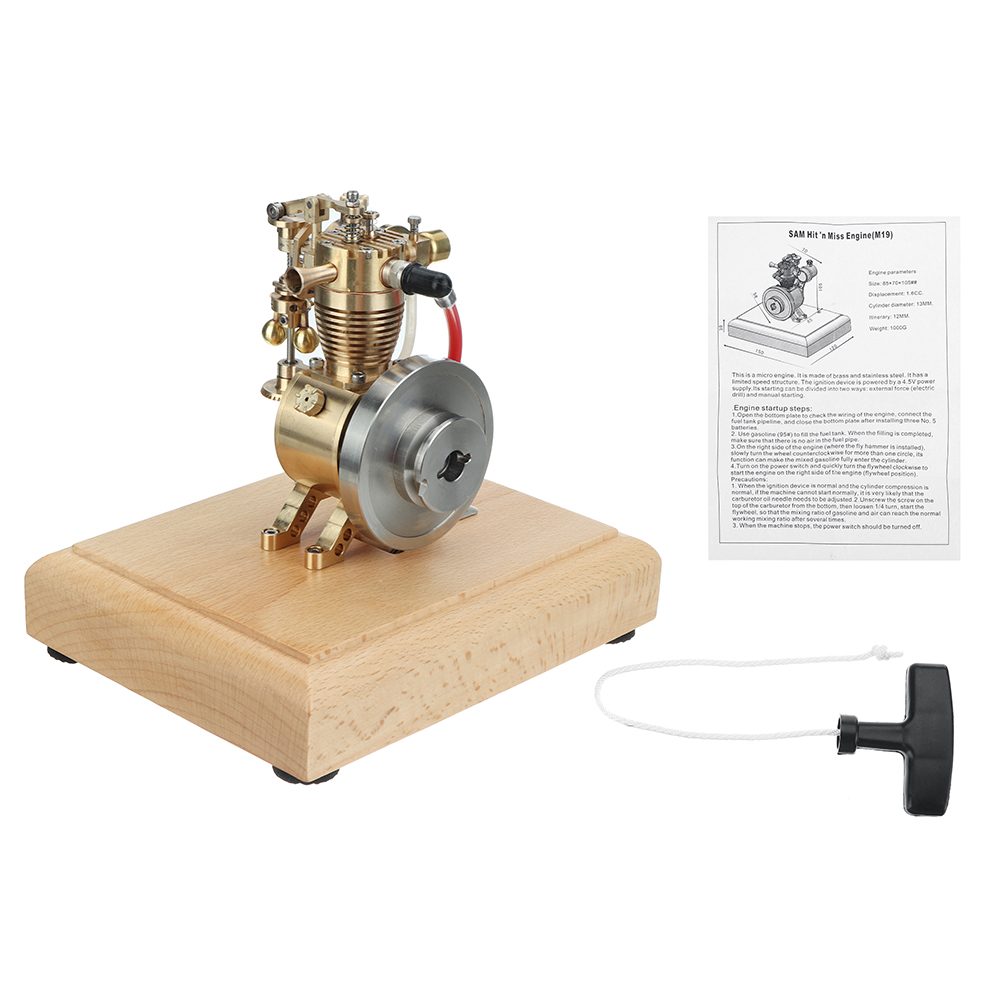

1 x Eachine EM2 Vertical Engine Upgraded Model

1 x Engine Spare Parts Hand Start Device
