- Stock: In Stock
- Model: ST230043668
- Dimensions: 320.00mm x 332.00mm x 170.00mm
- SKU: ST230043668
Wireless NVR | |||
Operating system | Embedded Linux real-time operating system | ||
Video and audio input | Network video input | 8 channels | |
Video and audio output | HDMI output | 1 channel, resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080p, support audio output | |
VGA output | 1 channel, resolution: 1024x768, 1280x1024, 1366x768,1440x900, 1920x1080p | ||
Video and audio code parameters | Video resolution | D1/960H/720P/960P/1080P/3MP | |
Synchronous playback | 4 channels | ||
Video | Video/capture mode | Manual recording, timing recording, motion sensor detection recording, alarm recording | |

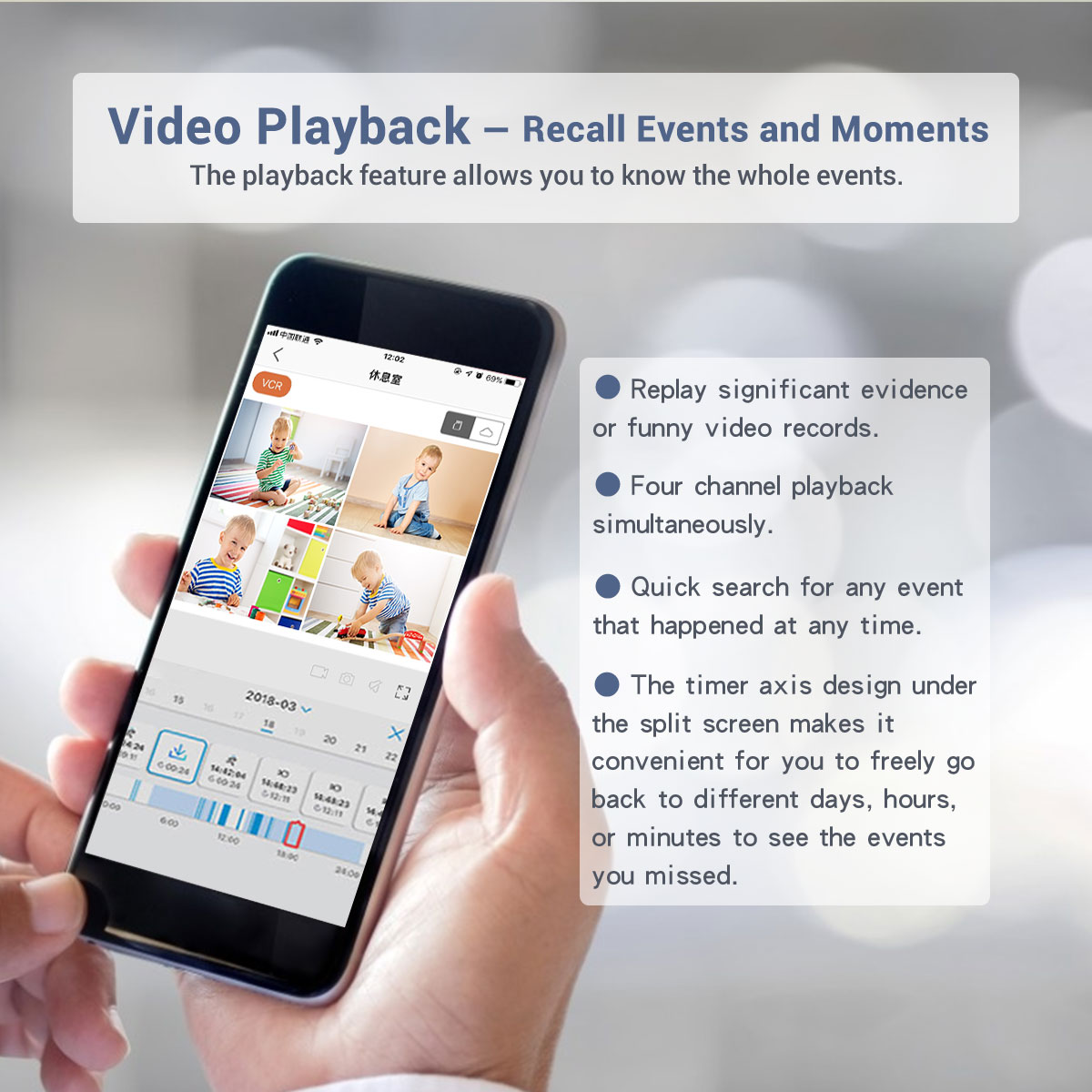

Playback mode | Instant playback, regular playback, event playback | ||
Backup mode | Regular backup | ||
Storage | Cloud storage | 7 days free recurring storage | |
Hard disk interface type | 1 SATA interface | ||
Maximum hard disk capacity | Hard drive up to 6TB | ||
External interface | Network Interface | 1, RJ45 10M/100M adaptive Ethernet port | |
USB interface | 1 USB | ||
Audio port | A 3.5mm headphone port | ||
Network | Network protocol | UPnP (plug and play), SMTP (mail service), PPPoE (dial-up Internet access), DHCP (automatically obtain an IP address), etc. | |
Other | Power supply | DC 12V 2A | |
Power consumption (without hard disk) | ≤5W | ||
Operating temperature | -10℃--＋55℃ | ||
Working humidity | 10%--90% | ||
Weight (without hard disk) | ≤1Kg | ||
Size | 255 x 220 x 42mm | ||
Wireless IPC | |||
Pixel | 3MP | ||
Image Sensor | 1/2.7” CMOS Sensor, color: 0.1 Lux, black/white: 0.01 Lux | ||
Lens | 4mm | ||
Video processing | H.264/H.265 video encoding, support dual stream | ||
Image output | Main stream: 2304*1296@15fps; Sub stream: 640x360@15fps | ||
Shutter | Automatic shutter | ||
Noise reduction | Support 2D/3D noise reduction | ||
Wide dynamic | Support digital wide dynamic | ||
Day and night mode | IR-CUT infrared filter type support infrared / full color / smart 3 modes | ||
Image flip | Support horizontal and vertical flip | ||
Audio processing | G.711 code standard, support audio and video synchronization | ||
Audio port | 1 input, level 2Vp-p, impedance 1kΩ, support MIC/pickup input; 1 output, impedance 8Ω, 1W output power, support direct speakers | ||
Wired network | 1 RJ45 Ethernet interface, 10/100M adaptive; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols | ||

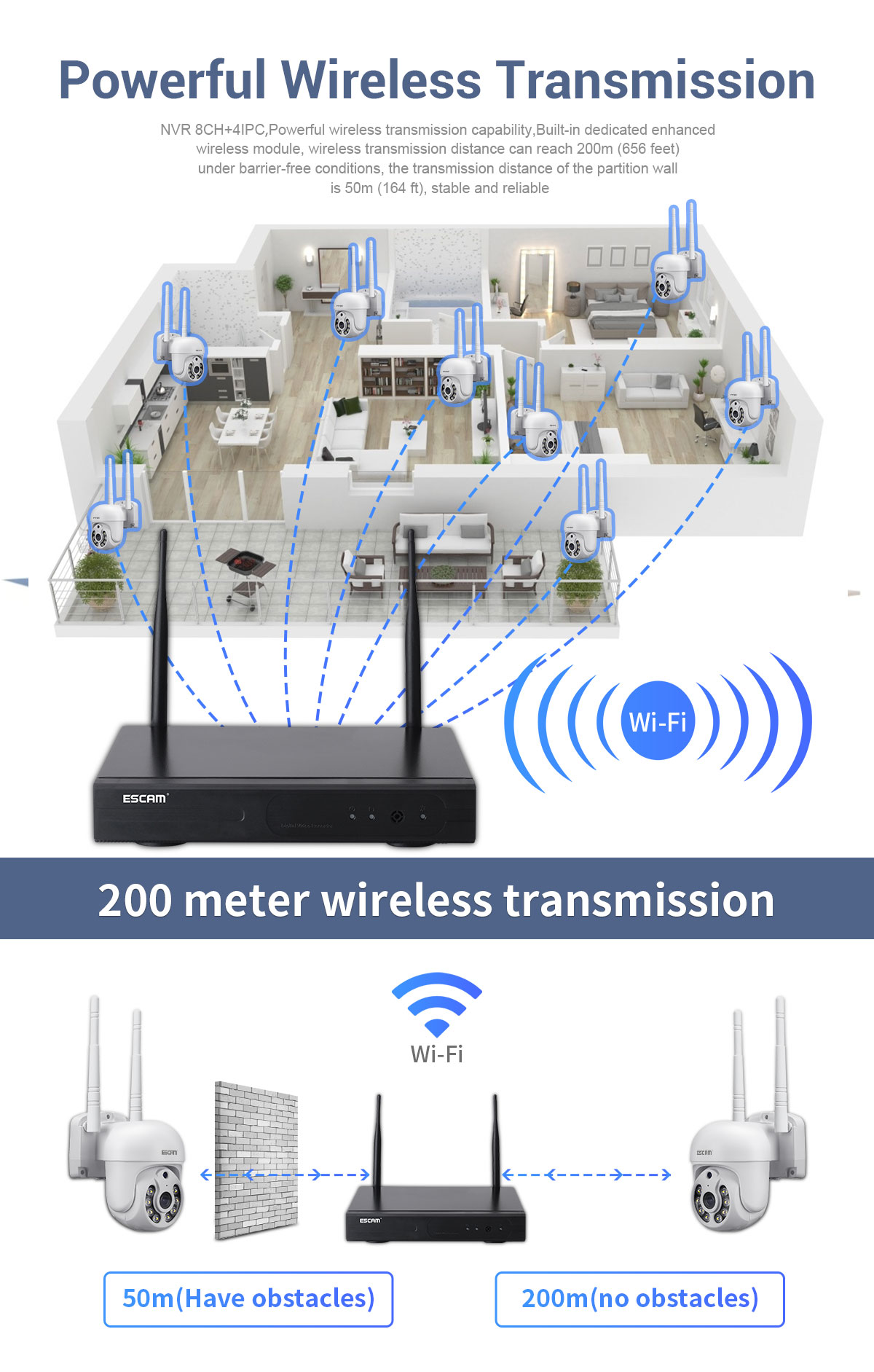

Wireless network | 802.11b/g/n | ||
IR signal interface | 1 photoresistor interface, 1 IR-CUT drive interface, support dual light source lamp panel control (dual IO control, no lamp panel MCU) | ||
Yuntai | 350° left and right, 90° up and down | ||
Reset button interface | stand by | ||
SD card slot | Max support 128G | ||
Features | Motion sensor detection; push alarm information; support remote monitoring of mobile phones and clients | ||
Night vision | 4 IR light + 4 white light | ||
Power supply | DC 12V 1A | ||
Weight | 0.65kg | ||
Size | 156 x 91 x 130mm | ||
Package information | Weight | 3.25kg | |
Size | 320 x 332 x 170mm | ||
