  • Stock: In Stock
  • Model: ST22011970
  • SKU: ST22011970
$172.99
Ex Tax: $172.99
ET43 series handheld bridge features 2.8” TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures long run. It can measure comprehensive parameters, and supports for screening and deviation measurement, with continuously adjustable output frequency. The basic precision reaches 0.2%.

Features:

Ø The measurement frequency reach to 100kHz, the 1Hz stepping can be adjusted continuously.
Ø DC resistance, electrolytic capacitance measurement
Ø Internal bias voltage output (10mV-500mV)
Ø Automatic identification of component measurement
Ø Support for screening and deviation measurement
Ø 2.8 inch TFT display, 4 half display
Ø USB communication interface
Ø Large capacity lithium battery power supply
Ø Support SCPI protocol

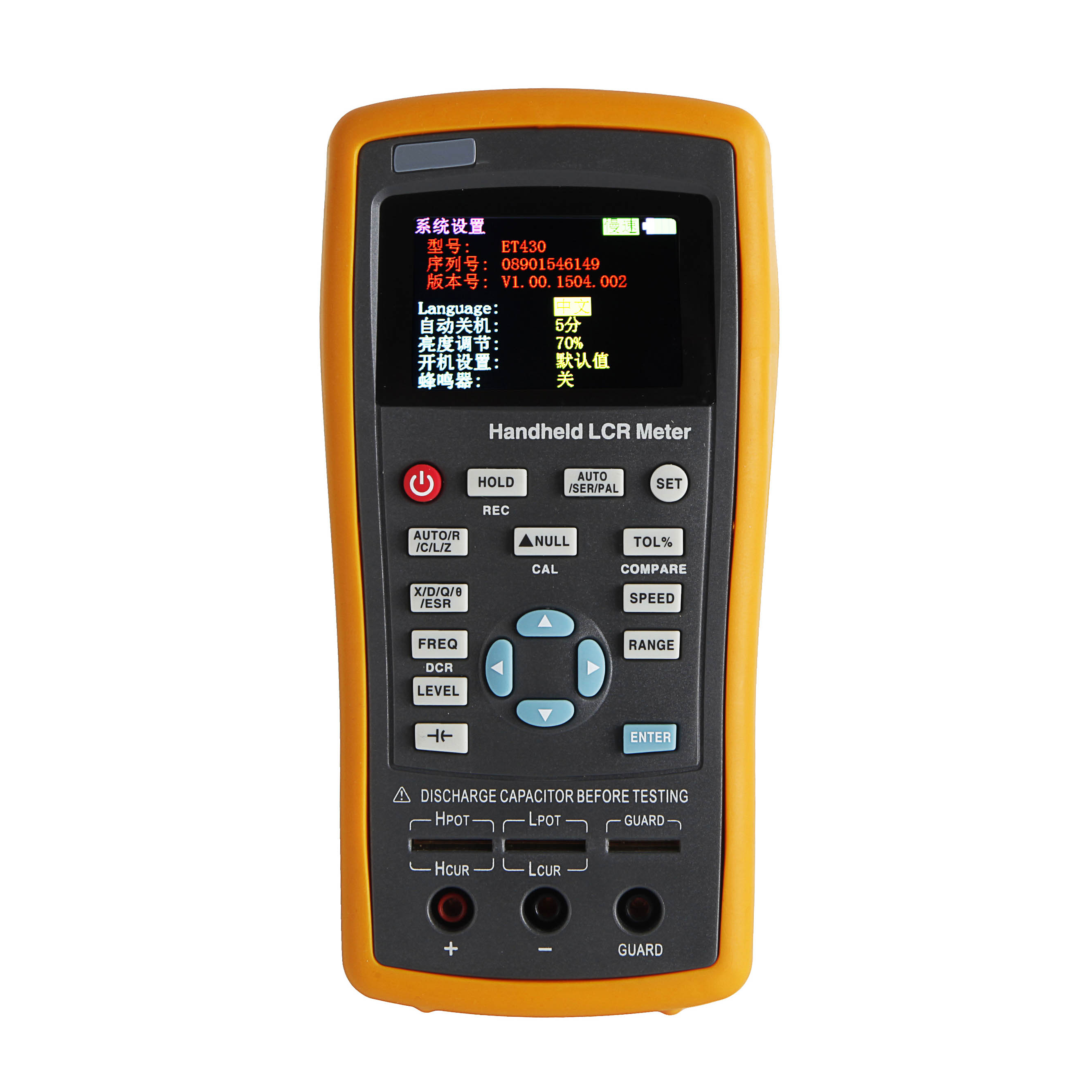

Ø Provide system settings, according to their own requirements configuration language, buzzer, screen brightness, etc.
Ø Basic measurement accuracy 0.2%, measurement speed can be adjusted
Ø Manual and automatic range
Ø Open circuit fault


Specification:


Model ET430B ET430 ET431 ET432 ET433
Measurement parameters Main parameter:L/C/R/Z
Secondary parameter:X/D/Q/θ/ESR
Equivalent mode Series, parallel
Mode of range Manual, automatic
Measurement speed Fast(4 times/s), medium(2 times /s), slow(1 times /s)
Configuration of the test terminal 3-terminal, 5-terminal
Correctionfunction Short circuit, open circuit
Communication interface Mini-USB(virtual serial port)
Frequency of test signal
100Hz, 120Hz, 1kHz,
10kH
100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz 100Hz, 120Hz, 1kHz,
10kHz
100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz 10Hz-100KHz adjustable, 1Hz stepping
Level of test signal 0.6Vrms 0.6Vrms,0.3Vrms, 0.1Vrms 0.1Vrms-0.7Vrms adjustable, 1mVrms stepping
Output impedance 100Ω
Highest accuracy (see accuracy indicators for details) 0.3%
0.2%
Electrolysis and capacitance mode No Yes
DCR mode No Yes
Internal bias No 0-500mV adjustable, 1mV stepping
Scope of measurement L:0-2000H
C:0-20mF
R:0-20MΩ

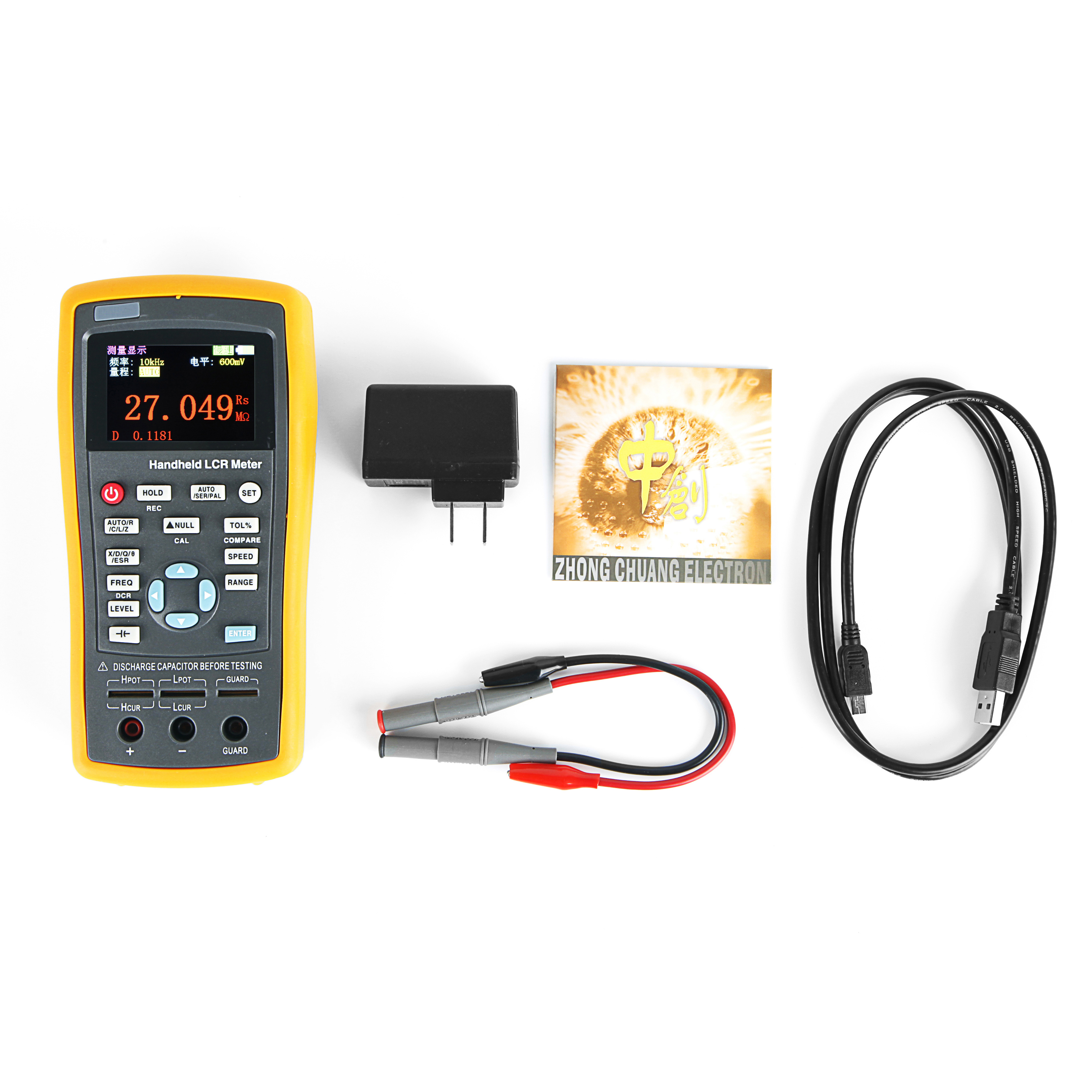

Package includes:
1 X ET432 LCR Meter
1 X USB Line
1 X US Plug (We will send you a plug adapter according to your country.)
1 X Test Cable
1 X English User Manual

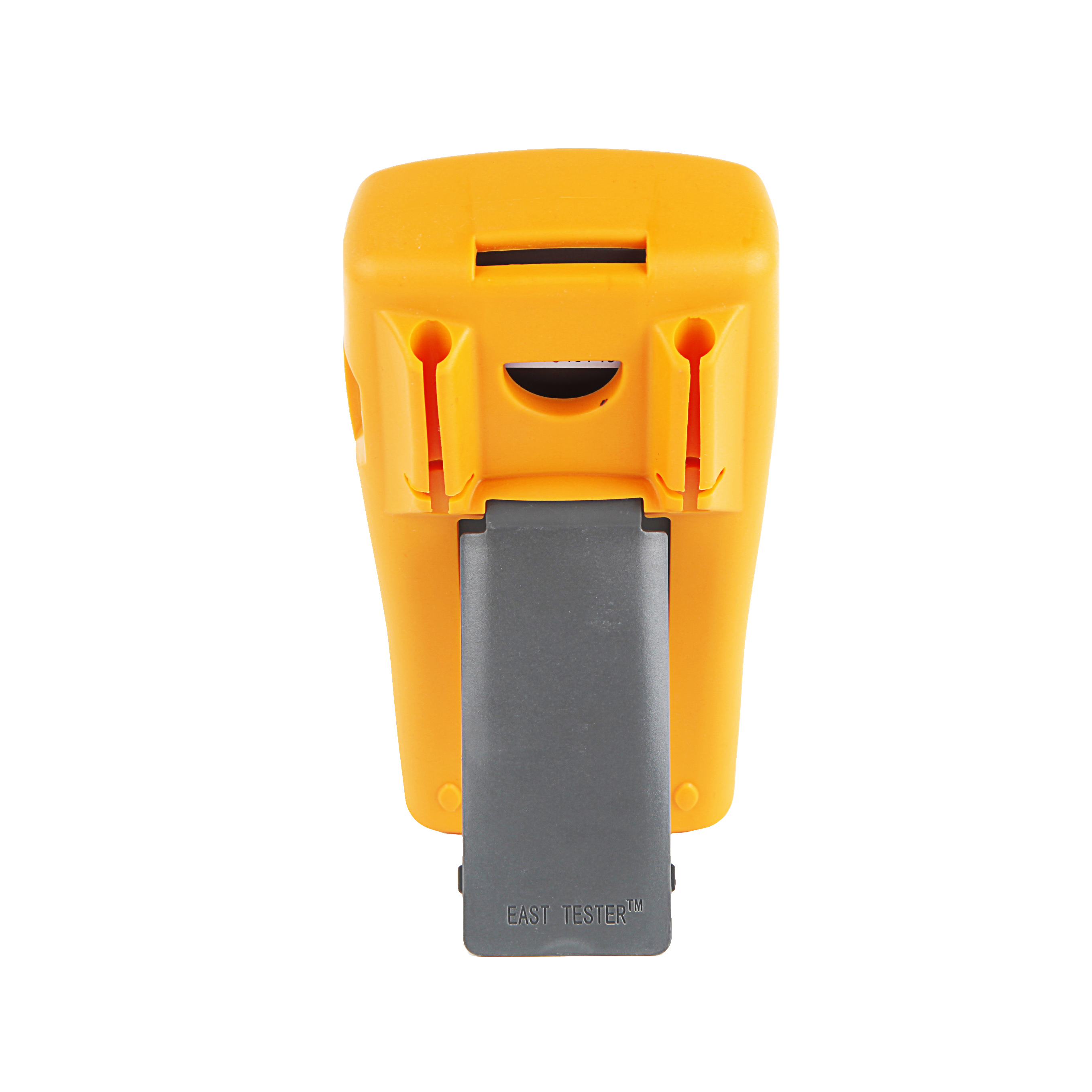

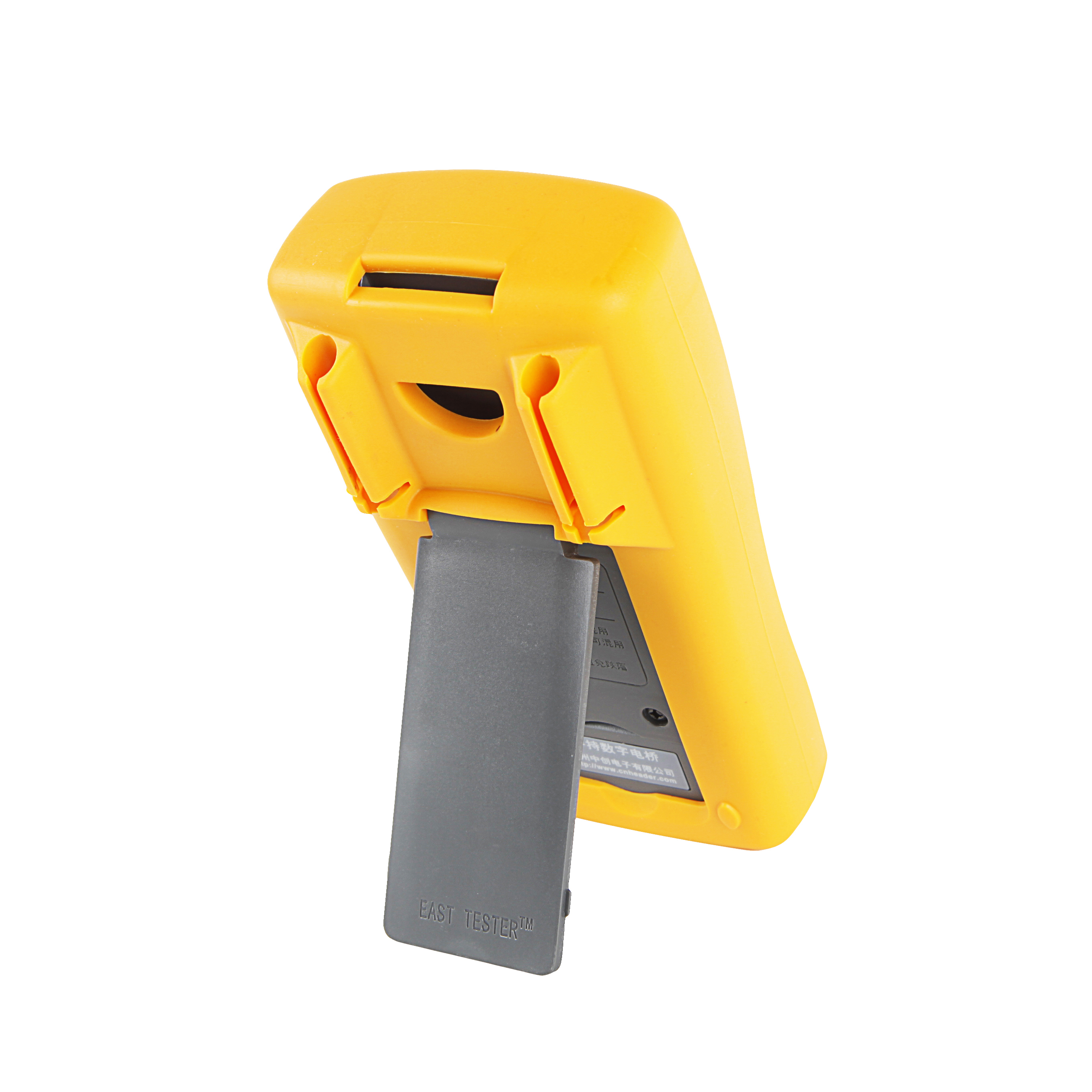

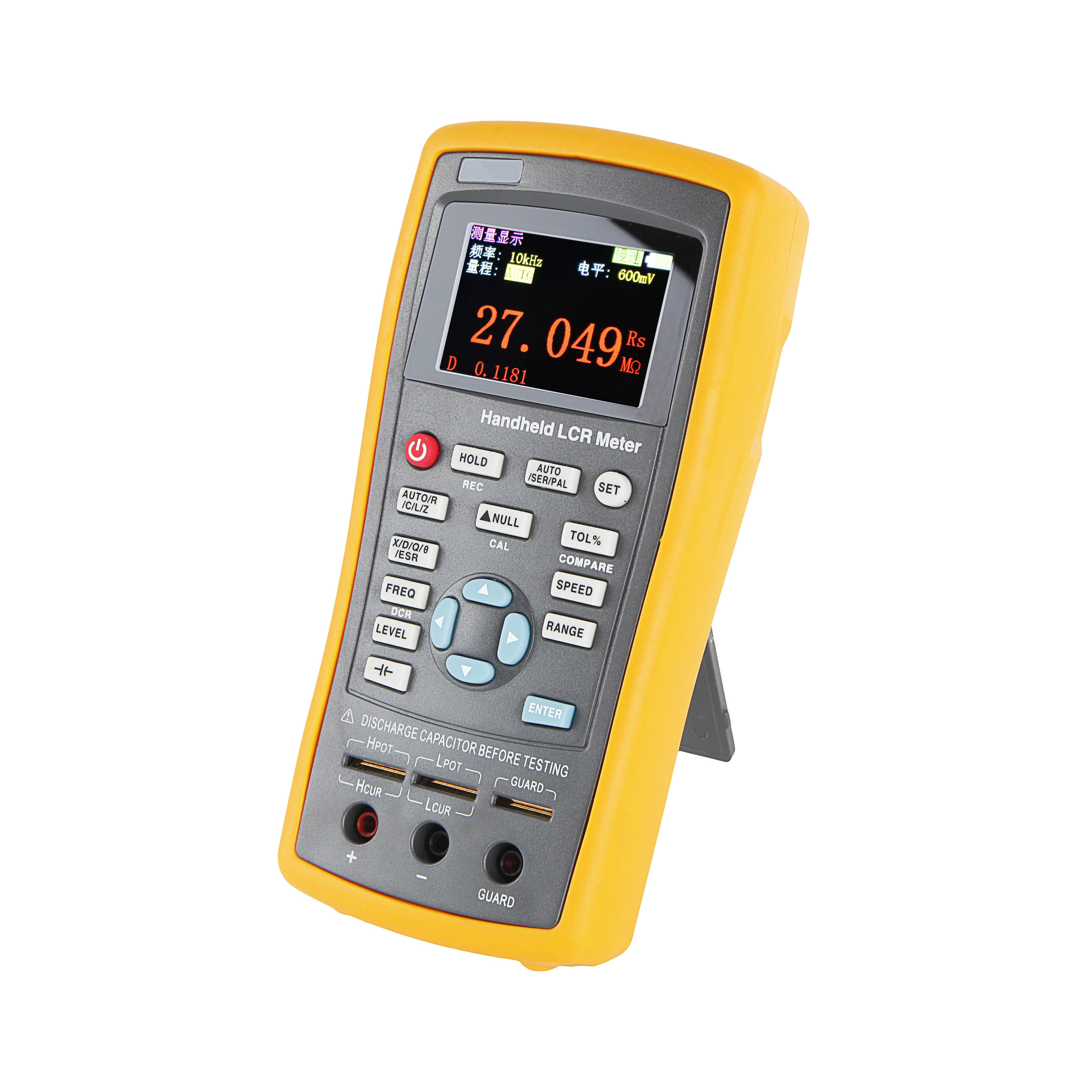

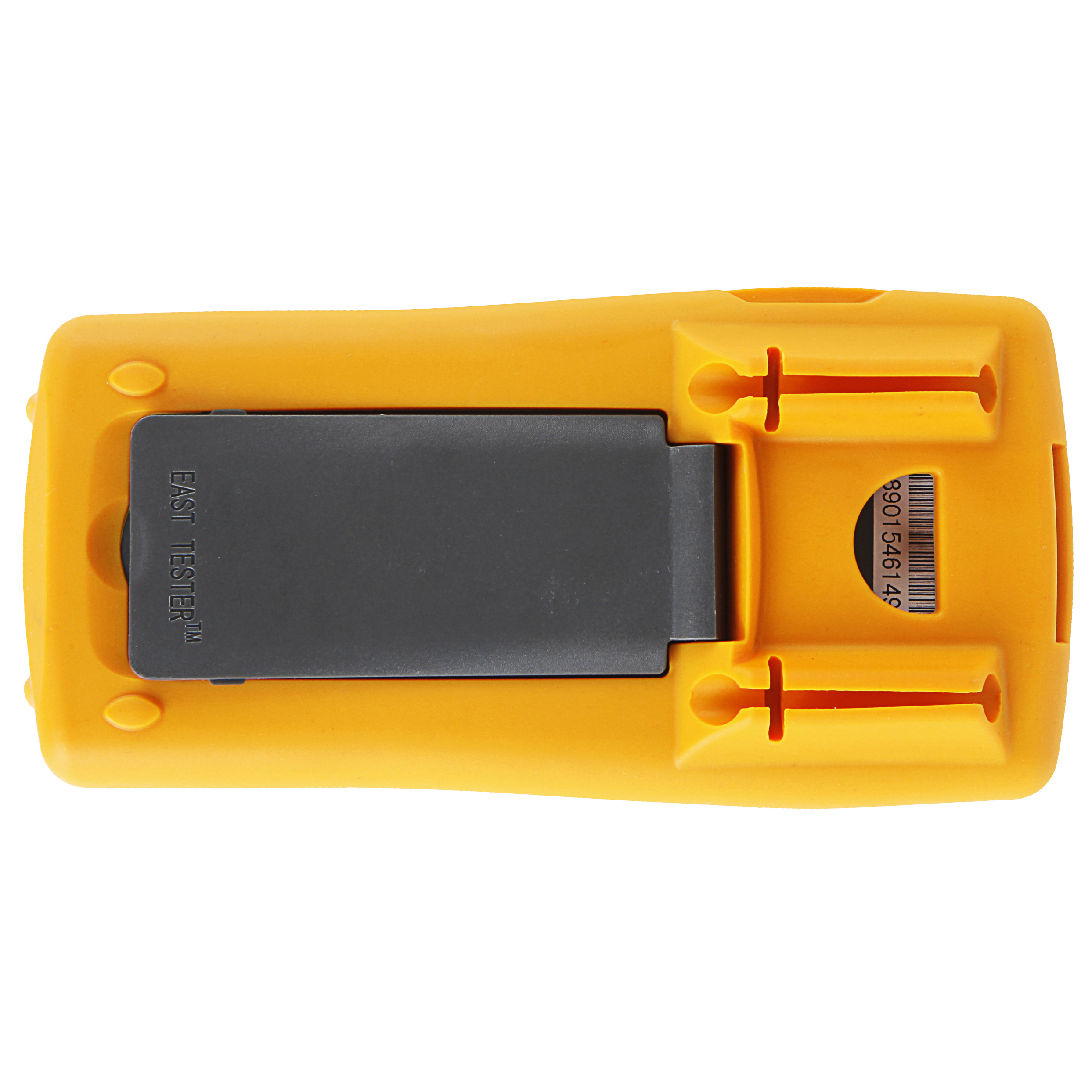

Details pictures: ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-1 ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-2 ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-3 ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-4 ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-5 ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-6 ET432-Precision-Digital-LCR-Meter-100KHz-LCR-Digital-Bridge-Inductance-Resistance-Capacitance-Tester-1532418-7
