- Stock: In Stock
- Model: ST22001605
- SKU: ST22001605
Available Options

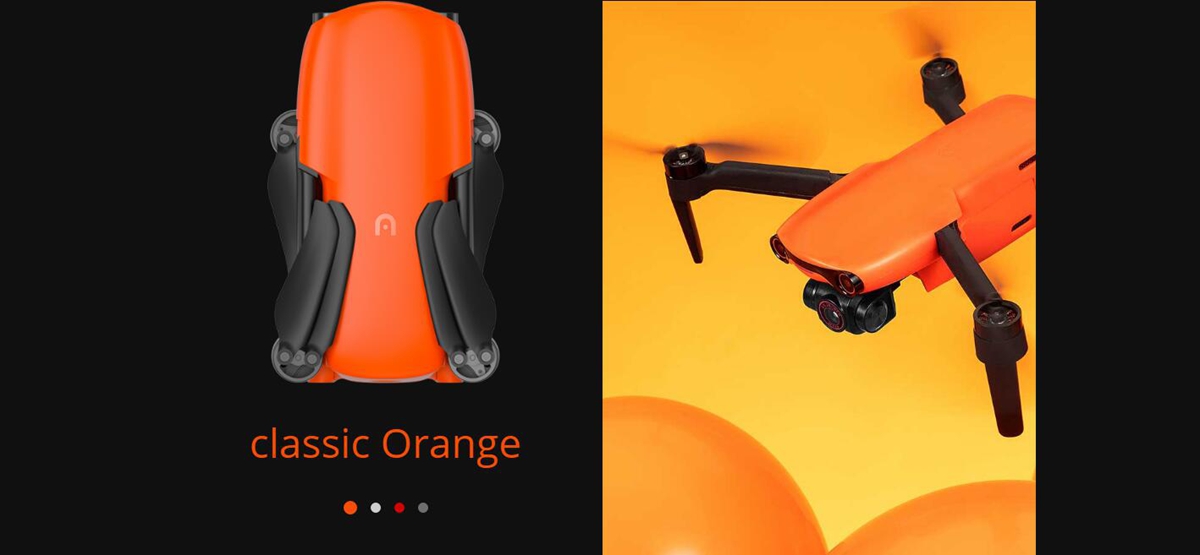

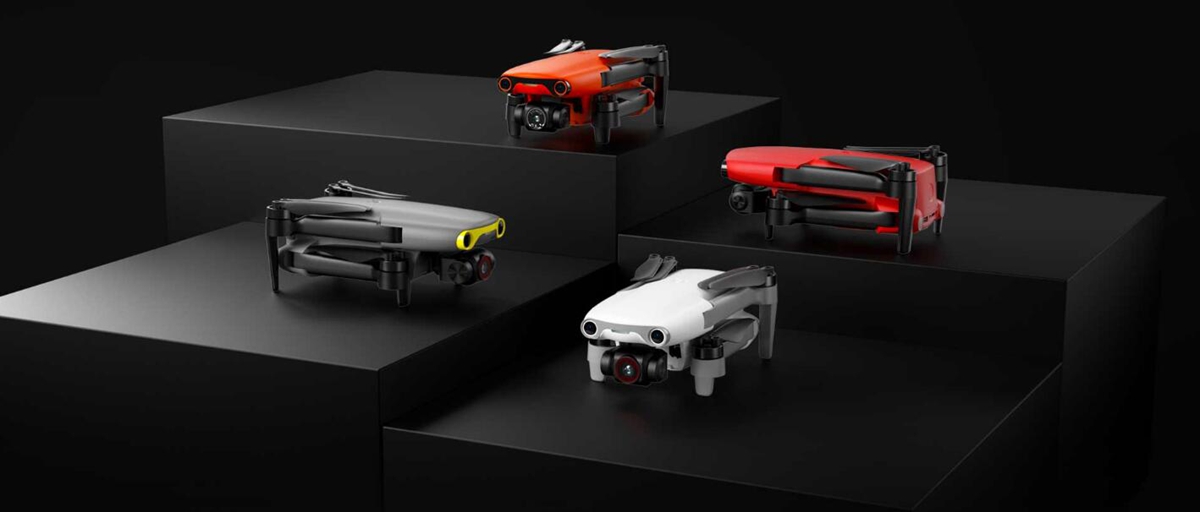

AutelRobotics EVO Nano Nano+ Series 249g 10KM FPV with 1/1.28" CMOS 50MP Camera 3-Axis Gimbal 28mins Flight Time RC Drone Quadcopter RTF
Specifications:
Aircraft |
Takeoff Weight | 249 g |
Dimensions (including blades) | Folded: 140×90×50mm Unfolded: 264×310×50mm | |
Wheelbase | 231 mm | |
Max Ascension Speed |
6 m/s (S Mode) 4 m/s (N Mode) 3 m/s (C Mode) | |
Max Descent Speed |
4 m/s (S Mode) 3 m/s (N Mode) 2 m/s (C Mode) | |
Max Level Flight Speed(near sea level, no wind) |
15 m/s (S Mode) 10 m/s (N Mode) 5 m/s (C Mode) | |
Maximum Takeoff Altitude | 4000 m | |
Max Flying Time (no wind) |
28 minutes | |
Max Hovering Time (no wind) | 26min | |
Max Flying Distance (no wind) | 16.8KM | |
Max Wind Resistance | Level 5 | |
Max Tilt Angle |
33° (S Mode) 25° (N Mode) 25° (C Mode) | |
Max Angular Vellocity |
200°/s (S Mode) 120°/s (P Mode) 60°/s (C Mode) | |
Operating Temperature Range | -10°C ~ 40°C | |
Operating Frequency | 2.400-2.4835GHz, 5.725-5.850GHz, 5.150-5.250GHz | |
Transmitter Power (EIRP) | FCC:≤30dBm | |
GNSS | GPS | |
Hovering Accuracy |
Vertical: ±0.1 m (when the Visual Positioning is active), ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning) | |
Gimbal | Mechanical Range | Pitch: -125°~35° Roll: -34°~33° Yaw: -25°~25° |
Controllable Range | Pitch: -90°~ 0° | |
Stabilization | 3-axis | |
Max Control Speed (Pitch) | 30°/s | |
Angular Vibration Range | ±0.003° | |
Perception System | Forward | Accurate Measurement Range: 0.5~16m Effective Sensing Speed: <10m/s FOV: Horizontal<40°, Vertical<30° |
Backward | Accurate Measurement Range: 0.5~18m Effective Sensing Speed: <12m/s FOV: Horizontal <40°, Vertical <30° | |
Downward | Accurate Measurement Range: 0.5~20m Visual Hovering Range: 0.5~40m FOV: Horizontal <40°, Vertical <30° | |
Operating Environment | Forward, Backward: Surface with clear pattern and adequate lighting(lux> 15) Downward: Surface with clear pattern and adequate lighting(lux> 15); Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.) | |
Remote Controller& | Operating Frequency | 2.400-2.4835GHz, 5.725-5.850GHz, 5.150-5.250GHz |
Max Transmission Distance (unobstructed, free of interference) | FCC: 10KM | |
Operating Temperature Range |
0° to 40°C | |
Transmitter Power (EIRP) | FCC: ≤30dBm | |
Battery Capacity | 3930 mAh | |
Max Battery Life | 3.5h (when connected to a mobile phone) 2.5h (when not connected to mobile phone) | |
Interface Types | Type-C | |
Video Transmission System | SkyLink | |
Max Transmission Quality | 2.7K(<1km) | |
Transmission Bitrate | 90 Mbps | |
Transmission delay | ≤200ms | |
Intelligent Flight Battery | Capacity | 2250 mAh |
Voltage | 7.7 V | |
Max Charging Voltage | 8.8 V | |
Battery Type | LiPo 2S | |
Energy | 17.32Wh | |
Single Battery Charging Time | 90min | |
Max Charging Power | 30 W | |
Charging Temperature |
5° to 45°C | |
Charger | Input | 100-240 V, 50-60 Hz |
Output | 5V⎓3A,9V⎓3A,12V⎓2.5A | |
Rated Power | 30W | |

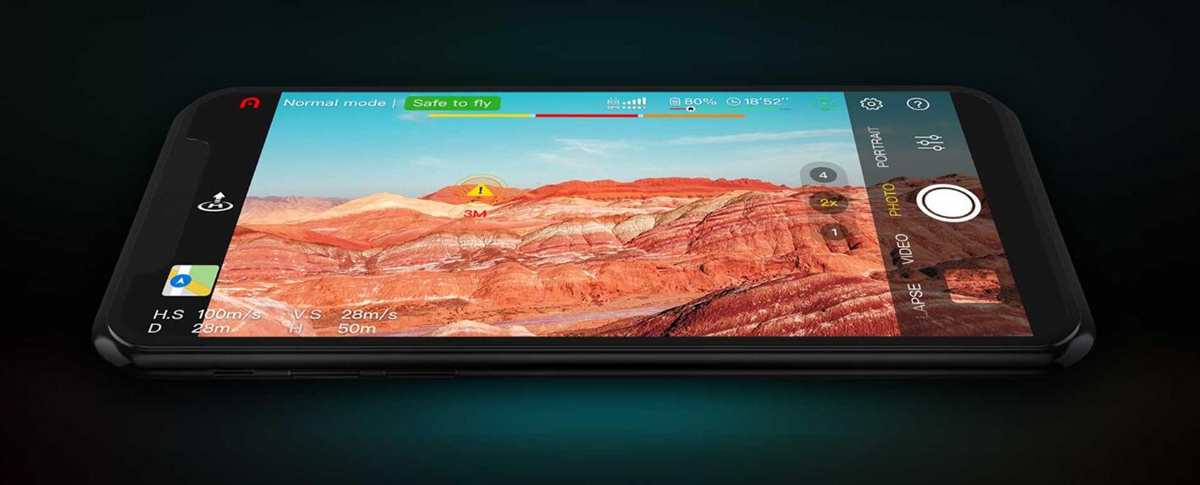

APP | Name | Autel/Sky |
Mobile System Required | iOS 12.0 and above Android 8.0 and above | |
Storage | Supported SD Cards | Max. Support 256GB (UHS-3 Rating Required) |
Camera Specifications:
Nano | Nano+ | |
Sensor | CMOS: 1/2 inch Effective Pixels: 48M Pixel Size: 1.6μm*1.6μm (Bin2) | CMOS: 1/1.28 inch Effective Pixels: 50MP Pixel Size:: 2.44μm*2.44μm (Bin2) |
Lens | FOV: 84° Equivalent Focal Length: 24mm Aperture: f/2.8 Focus Range:1m ~ ∞ Focus Mode: Fixed Focus | FOV: 85° Equivalent Focal Length: 23mm Aperture: f/1.9 Focus Range: 0.5m ~ ∞ Focus Mode: PDAF+CDAF/MF |
Shooting Mode | Automatic Mode (P Gear): EV Adjustable, ISO/Shutter Automatic Manual Mode (M Gear): ISO/Shutter Adjustable, EV not Adjustable Shutter Priority (S File): Shutter/EV Adjustable, ISO Automatic | Automatic Mode (P Gear): EV Adjustable, ISO/Shutter Automatic Manual Mode (M Gear): ISO/Shutter Adjustable, EV not Adjustable Shutter Priority (S File): Shutter/EV Adjustable, ISO Automatic |
ISO Range | Video: ISO100 ~ ISO3200 Photo: ISO100 ~ ISO3200 | Video:ISO100 ~ ISO6400 Photo:ISO100 ~ ISO6400 |
Shutter Speed | Photo Mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/Frame Rates | Photo Mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/Frame Rates |
Portrait Blur | Real-time Image Transmission Portrait blur and Photo Portrait Blur | Real-time Image Transmission Portrait Blur and Photo Portrait Blur |
Defog Mode | Support | Support |
Zoom Range | Digital Zoom: 1 ~ 16 times | Digital zoom:1 ~ 16 times |
Photo Format | JPG / DNG / JPG+DNG | JPG / DNG / JPG+DNG |
Photo Resolution | 48MP:8000x6000 (4:3) 12MP (Default): 4000x3000 (4:3) 4K: 3840x2160 (16:9) | 50MP: 8192x6144 (4:3) 12.5MP (Default): 4096x3072 (4:3) 4K: 3840x2160 (16:9) |
Photo Shooting Mode | Single Shot Burst Shooing: 3/5 Auto Exposure Bracketing(AEB): 3/5 Shots Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s) HDR Imaging: 3840x2160 | Single shot Burst shooing: 3/5 Auto exposure bracketing(AEB): 3/5 shots Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s) HDR imaging: 3840x2160 |
Video Coding Format | H265/H264 | H265/H264 |
Video Resolution | 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 HDR: 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 | 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 HDR: 3840x2160 p30/25/24 2720x1528 p30/25/24 1920x1080 p60/50/48/30/25/24 |
Max Bitrate | 100Mbps | 100Mbps |
Timelapse | Original Image: 3840*2160,JPG/DNG Video: 4K P25 | Original Image: 3840*2160, JPG/DNG Video: 4K P25 |
Panorama | Horizontal/Vertical/Wide-angle/Spherical Original Image: 4000*3000,JPG/DNG | Horizontal/Vertical/Wide-angle/Spherical Original Image: 4096*3072, JPG/DNG |
Supported File System | Fat32, exFat | Fat32, exFat |
Video Format | MP4/MOV | MP4/MOV |

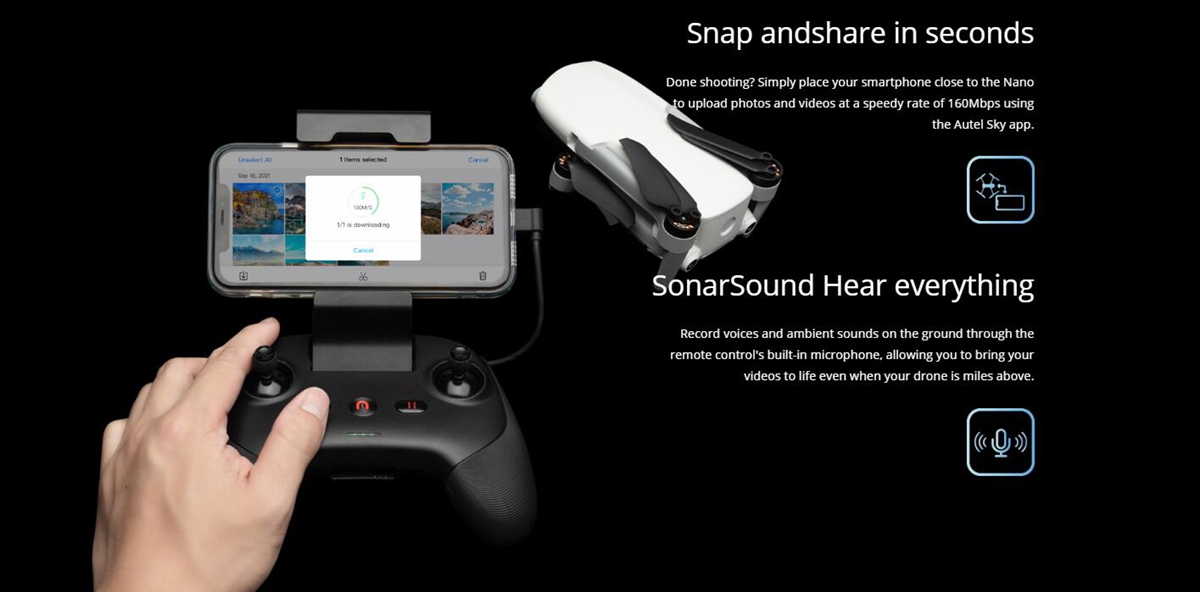

WIFI Transfer | 20MB/s | 20MB/s |
Features:
- The weight of Nano series is ≤249g
- Support 2.4GHz/5.8GHz/5.2GHz tri-band
- Effective image transmission range up to 10KM (6.2Miles).
- Real-time image transmission resolution 2.7K/30FPS
- Obstacle Avoidance

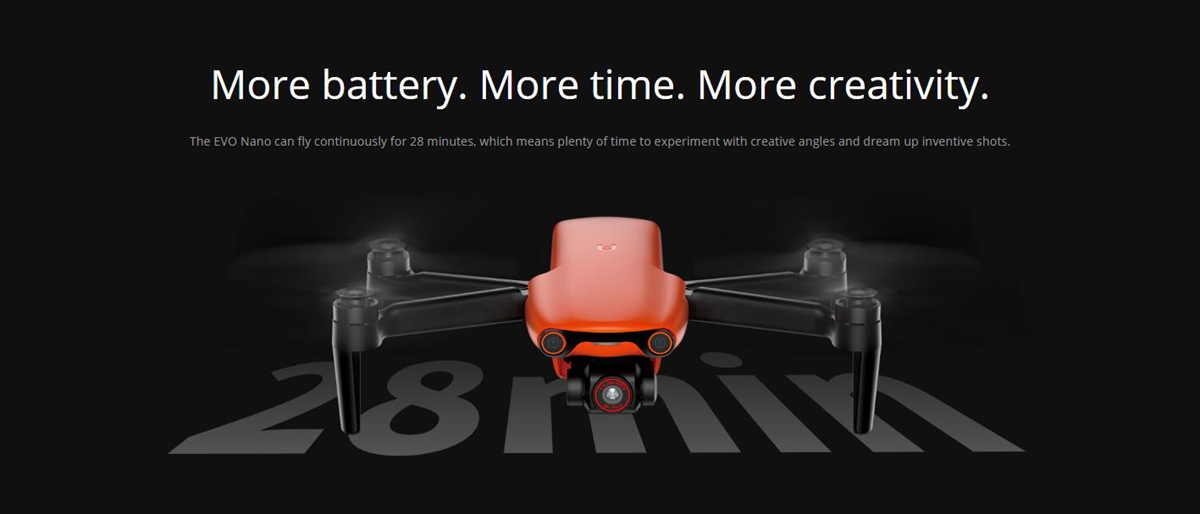

- Maximum battery life up to 28mins

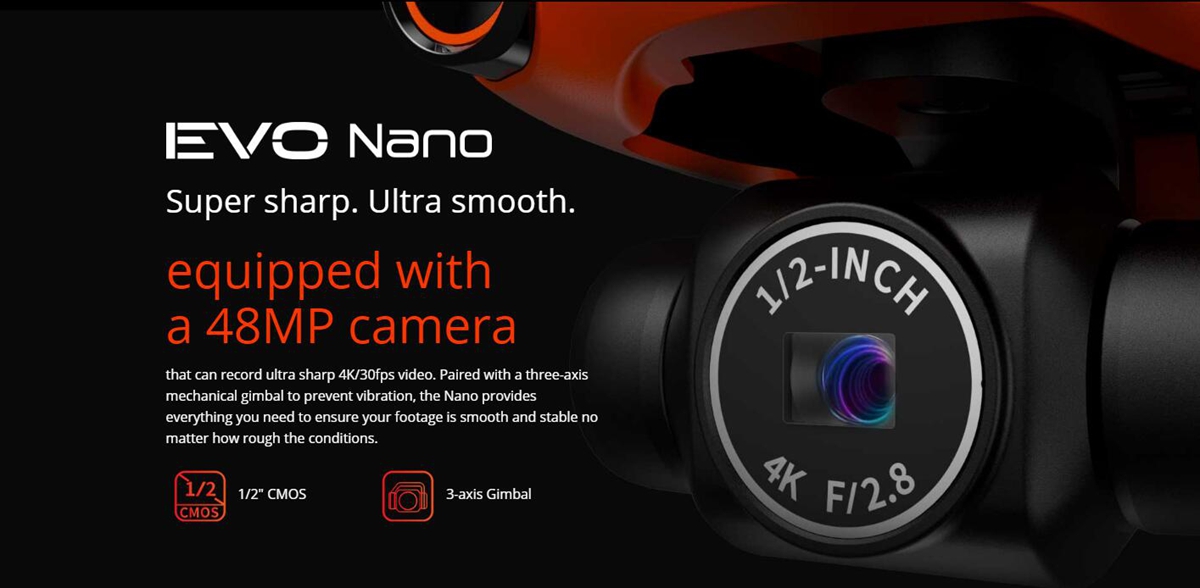

- Nano with 48MP / 4K HDR / 0.5' CMOS

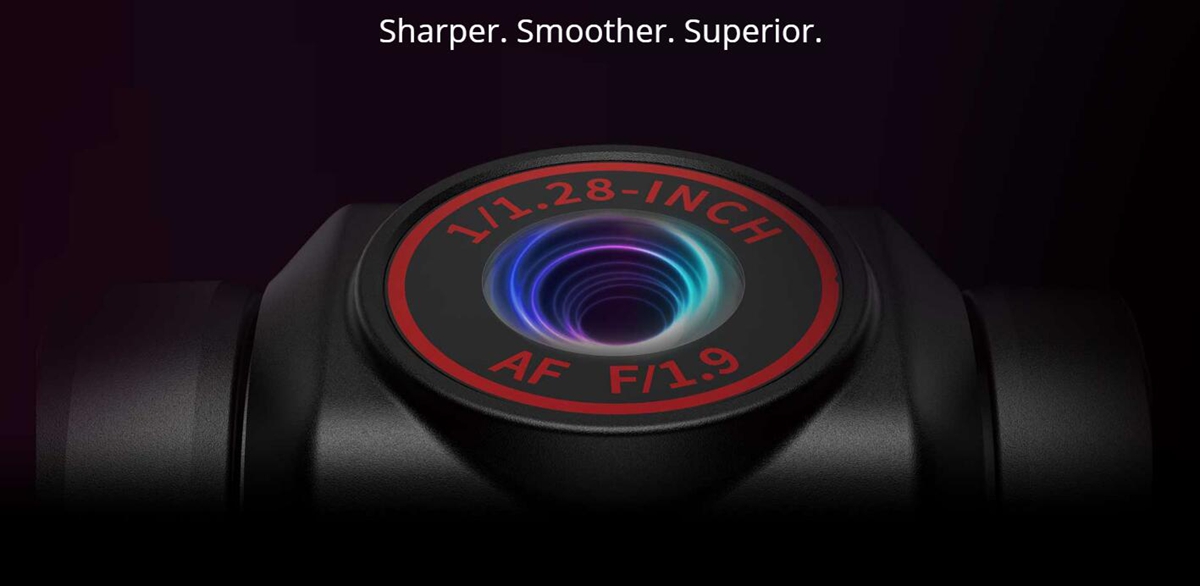

- Nano+ with 0.8' CMOS / RYYB Sensor / 2.44um / PDAF+CDAF
Package Included:
Standard Version:
1 x EVO Nano / EVO Nano+ Aircraft (Optional)
1 x Remote Control
1 x 2250mAh Battery
1 x Charging Cable
2 x Spare Propeller
3 x USB Cable
8 x Screw
1 x Screwdriver
1 x User Manual
Fly More Combo:
1 x EVO Nano / EVO Nano+ Aircraft (Optional)
1 x Remote Control
3 x 2250mAh Battery
1 x Charging Cable
6 x Spare Propeller
3 x USB Cable
8 x Screw
1 x Screwdriver
1 x Storage Bag
1 x User Manual
