- Stock: In Stock
- Model: ST230044521
- Dimensions: 125.00mm x 62.00mm x 25.00mm
- SKU: ST230044521

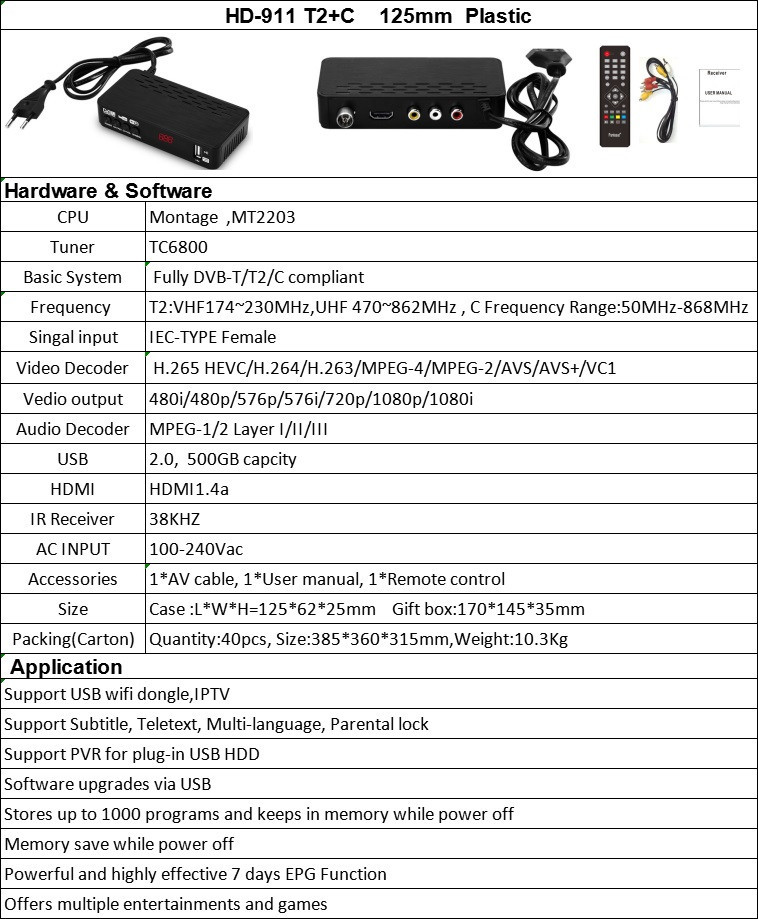

| Hardware&Software | |
| CPU | Montage, MT2203 |
| Tuner | TC6800 |
| Basic System | Fully DVB-T/T2/C compliant |
| Frequency | T2: VHF174-230MHZ, UHF470-862MHZ C frequency range: 50-868MHZ |
| Singal Input | IEC-TYPE Female |
| Video Decoder | H.265 HEVC/H.264/H.263/MPEG-2/AVS/AVS+/VC1 |
| Video Output | 480i/480p/576i/576p/720p/1080p/1080i |
| Audio Decoder | MPEG-1/2 Layer I/II/III |
| USB | 20, 500GB capcity |
| HDMI | HDMI 1.4a |
| IR Receiver | 38KHZ |
| AC Input | 100-240V |
| Accessoried | 1 x AV cable, 1 x User manual, 1 x Remote control |
| Size | 125 x 62 x 25mm |
| Application | |
| Support USB Wifi dongle, IPTV | |
| Support Subtitle, Teletext, Multi-language, Parental lock | |
| Support PVR for plug-in USB HDD | |
| Software upgrades via USB | |
| Stores up to 1000 programs and keeps in memory while power off | |
| Memory save while power off | |
| Powerful and highly effective 7 days EPG function | |
| Offers multiple entertainments and games | |

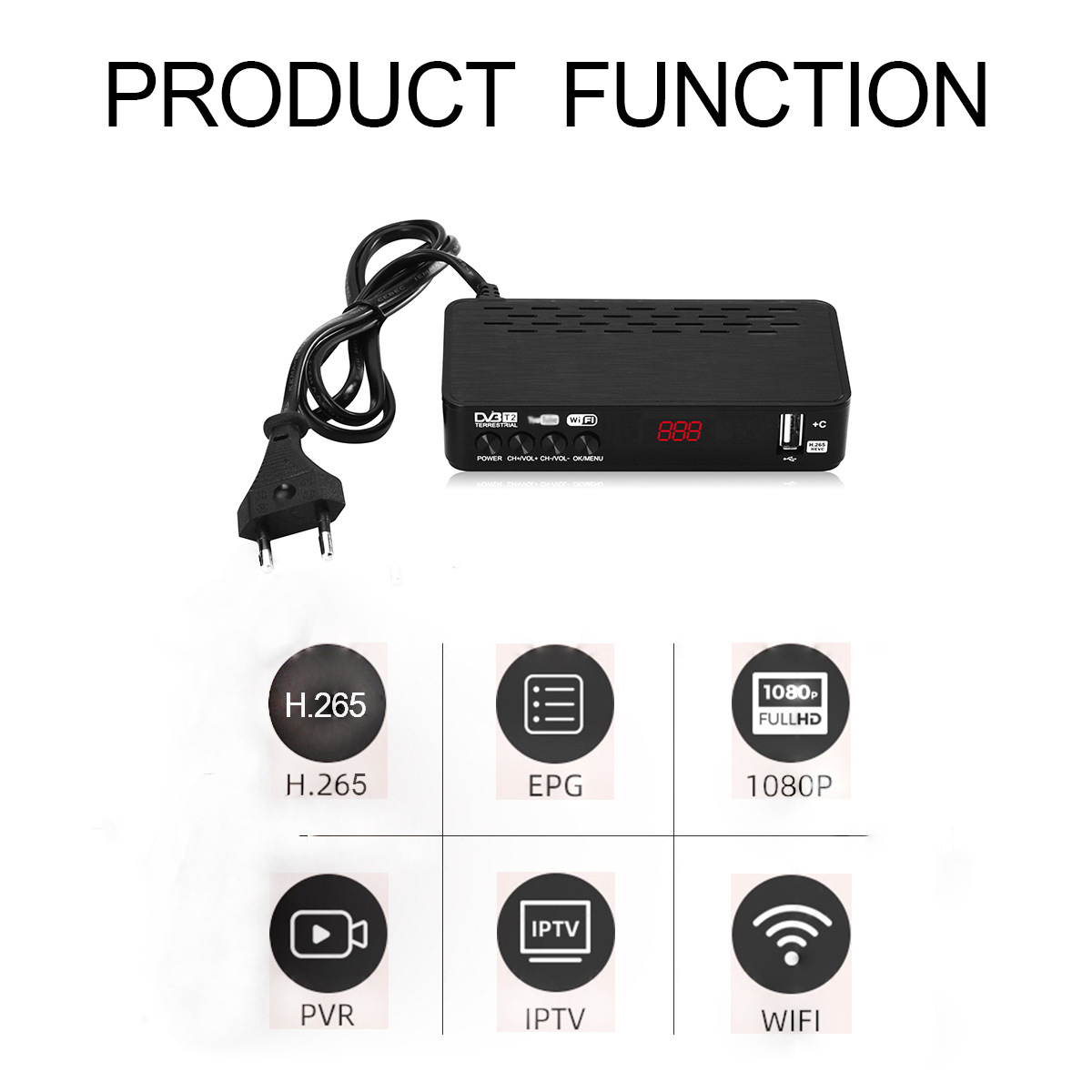

Feature:

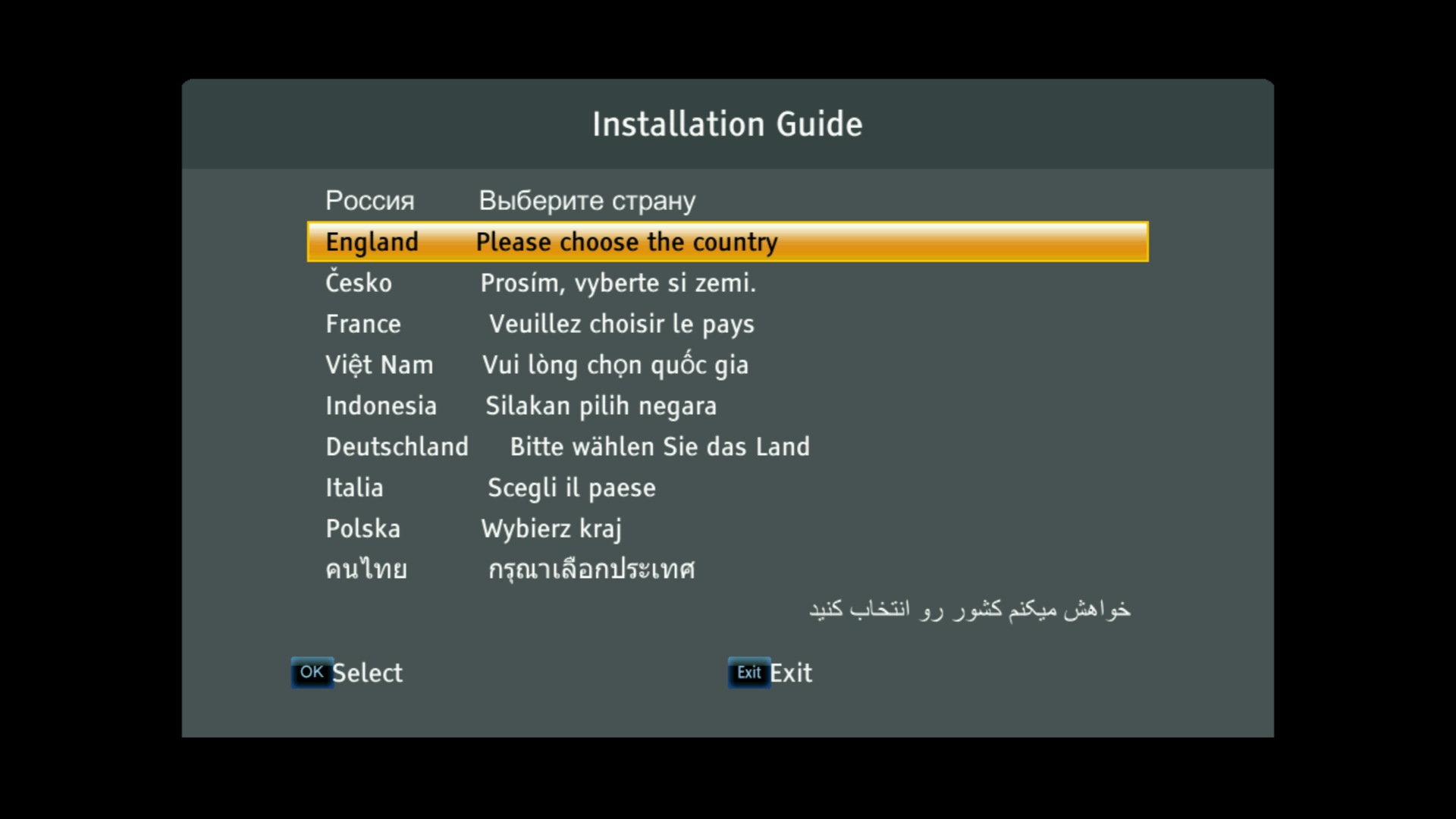

Support languages: Russian, English, Hungarian, Czech, French, Vietnamese, Indonesian, Polish, Thai, Persian
DVB-T2, DVB-C dual signal source reception, most countries in Europe, Asia, Africa, Australia can receive signals

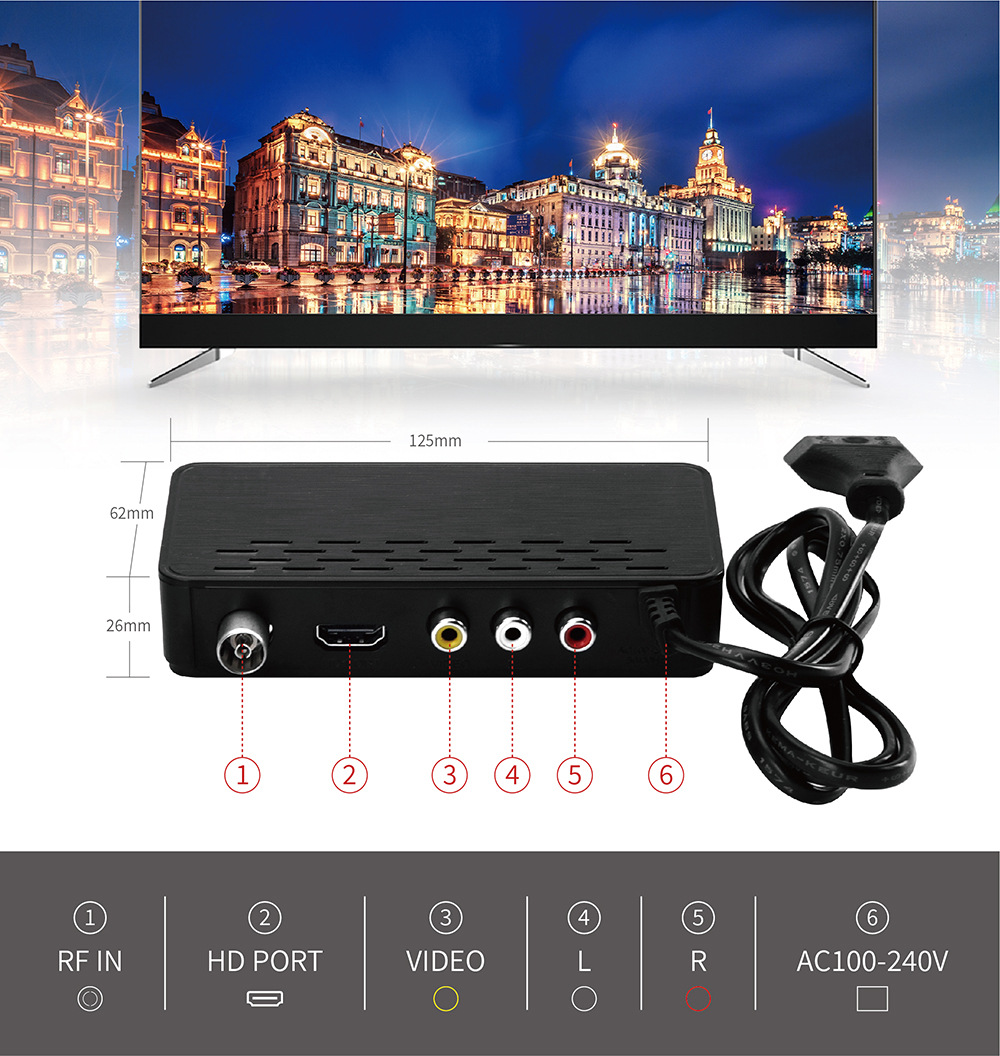

The product supports AV and HDMI output functions, supports ordinary TVs and high-definition TVs
H.265 intelligent encoding, compatible with H.264. It saves 50% bandwidth. More economical and clearer, you can watch more high-definition programs

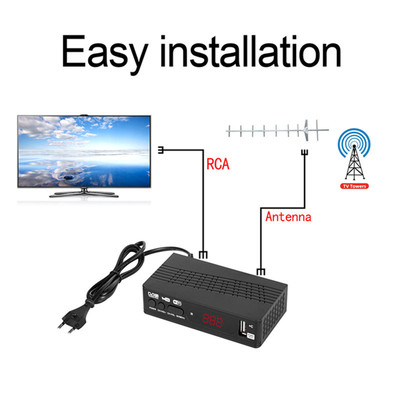

Signal receiving method: Receive outdoor signals through ground waves. It is not a satellite signal receiver, so it cannot receive satellite signals
CPU: Montage MT2203
Basic system: DVB-T, DVB-T2, DVB-C compliant
Frequency: VHF174~230MHZ, UHF 470~862MHZ
Singal inputiec: Female type
Decoder: H.265 hevc, H.264, H.263, MPEG-4, MPEG-2, AVS, AVS +, VC1
Vedio output: 480i, 480p, 576p, 576i, 720p, 1080p, 1080i
Audio Decoder: MPEG-1, MPEG-2, Layer i, Layer ii, Layer iii
USB type: 2.0
Capcity: 500GB
IR receiver: 38KHZ
AC input: 100-240 VAC
Shell material: Full plastic shell
Weight: 0.25 kg
Bare metal size: 125 x 62 x 25m
Color box size: 170 x 145 x 35mm
Instruction:
Connect to a WiFi network: Only applicable to the connection of the WIFI module with the 7601 chip. Insert the 7601 module into the USB port, after the machine recognizes the module, find the corresponding network name and enter the correct password to connect to the network
YouTube viewing: You need to use the 7601WIFI module to connect to the Internet to watch
IPTV viewing method:
1. Save the program source M3U download and save it on the U disk
2. Insert the U disk into the product, after the product recognizes the U disk, turn on the setting function in the menu IPTV
3. After the M3U file is recognized, click OK to import the program source and the program list will be displayed
4. Remove the U disk, insert the 7601WIFI module to connect to the network, you can watch the imported IPTV program normally
Note:
Please pay attention to check if the device is suitable for your local use before purchasing. The device can only receive and tune to free signals with a frequency of H.265 and below, and cannot support AC3 audio. Some Italian and Spanish channels are not available. Please check before you buy
Package Included:
1 x Grwibeou Set-top Box
1 x AV Cable
1 x Remote Control
1 x User Manual
