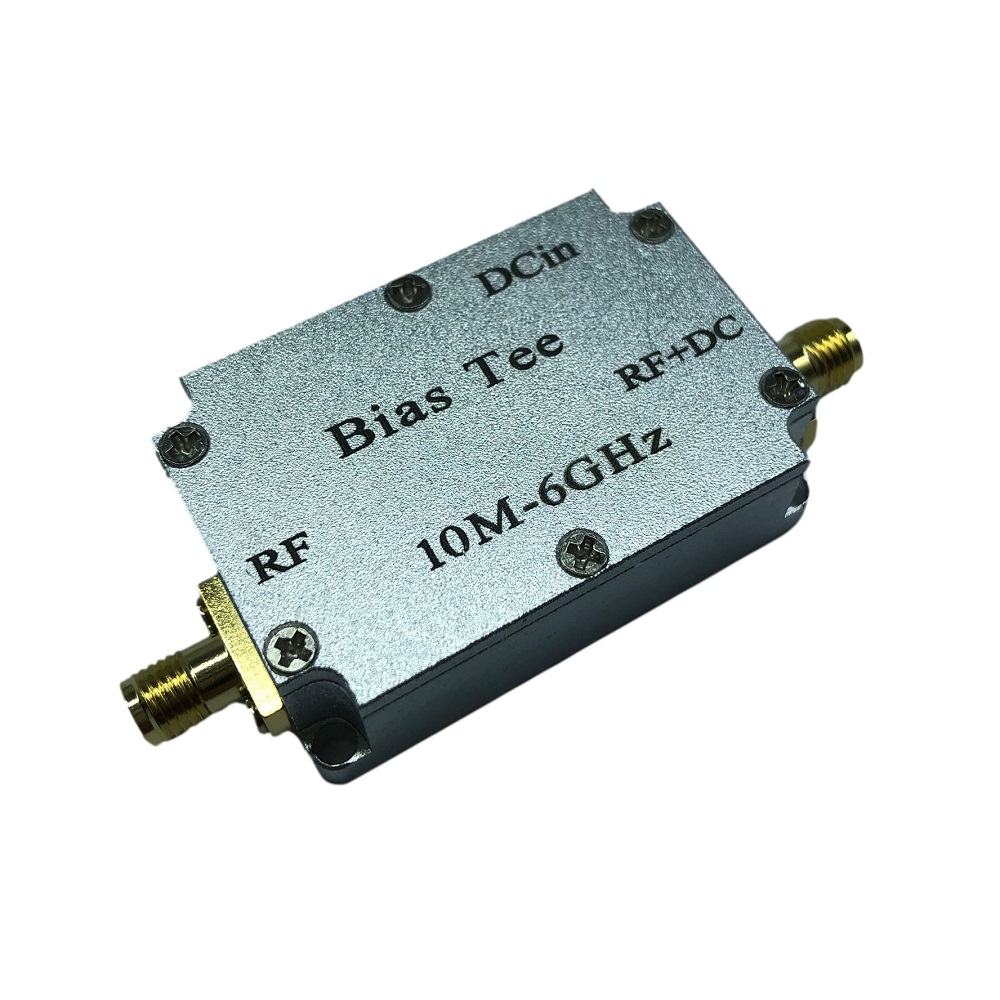

10M-6GHz 350mA 50V Low Loss Microwave Capacitor Radio Frequency Feed Box Biaser Coaxial Feed Radio Brequency Blocking
- Stock: In Stock
- Model: ST230042349
- SKU: ST230042349
$14.71
Ex Tax: $14.71
Specification:
Working frequency: 10M-6GHz
Insertion loss: ≤1dB (refer to the measured S21 S11 curve for details)
Working voltage: DC-250V (Nominal withstand voltage of DC blocking capacitor is 250V, using ATC brand, high frequency microwave low insertion loss capacitor)
Working voltage and current: ≤350mA (The feeding current is mainly related to the current limiting of the feeding inductance. The microwave radio frequency inductor currently used is 350mA; the maximum feeding voltage is 50V)
Power supply: TYPE-C interface
Input and output impedance 50 ohms, input and output interface SMA (outer screw inner hole-female)
Volume: 4.5 x 3 x 1.4cm (without protruding SMA)
Weight: 66g (including host + TYPE-C cable)
Application scenarios:
1. Antenna RF feed
2. Connect the instrument to block the direct current when testing the module [The spectrum analyzer and signal source cannot be directly connected to direct current, so direct current is required.
Package included:
1 x Frequency Feed Box
