HC-05 Bluetooth Serial Port Module Master/Slave Transceiver Board
- Stock: In Stock
- Model: ST230042587
- SKU: ST230042587
$7.22
Ex Tax: $7.22
Product Overview:

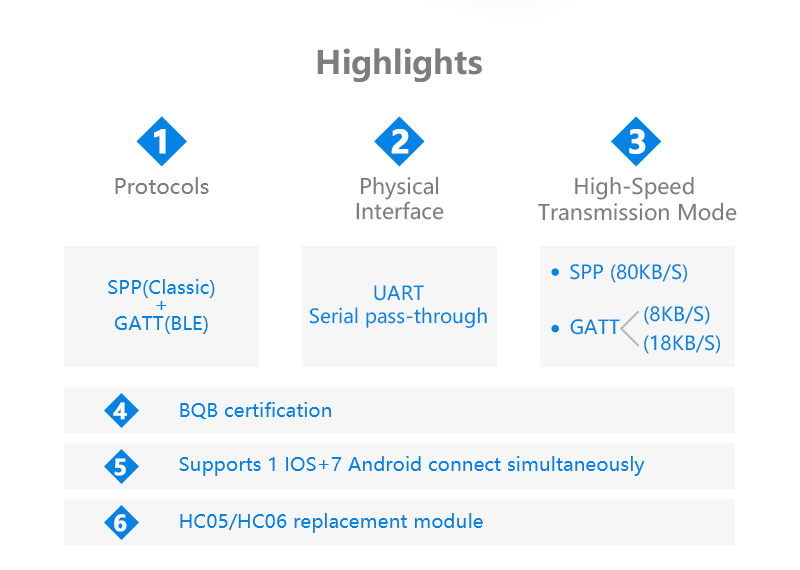

FSC-BT826 is a Bluetooth Module Dual-Mode HC-05 Pin-to-Pin Module that complies with Bluetooth 4.2 dual mode protocols(BR/EDR/LE). It support SPP +BLE , Slave and master simultaneously. It is also known as the HC-05 pin-to-pin module.
Support communicating with the FeasyBlue app and many other Bluetooth apps
Features:

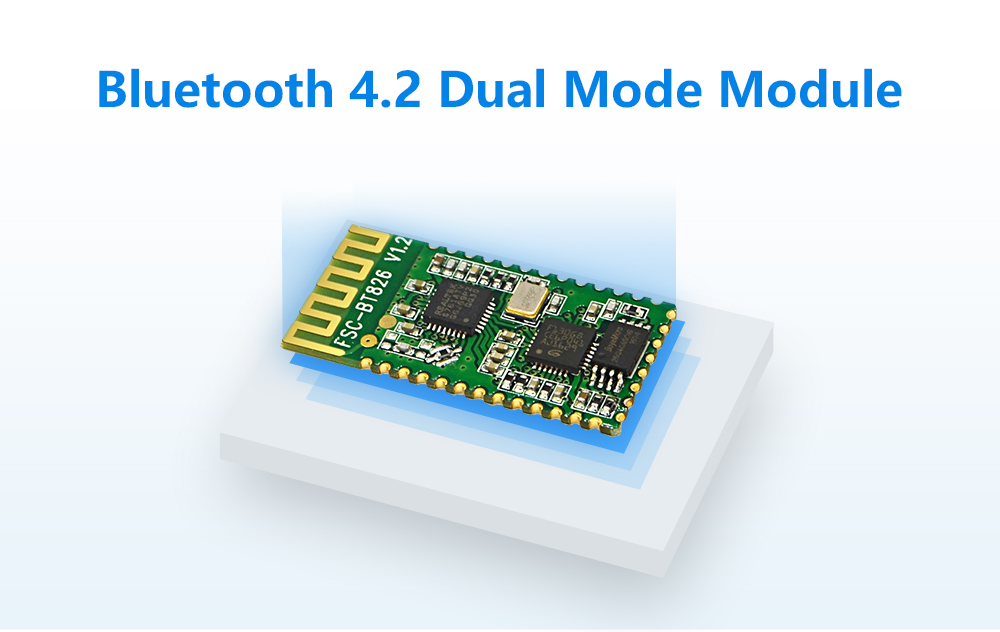

Fully qualified Bluetooth 4.2 dual mode
Profiles support: SPP, HID, GATT
Postage stamp sized: 13 * 26.9 * 2mm
Class 1.5 support(high output power)
The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921Kbps
UART, I2C,PCM / I2S data connection interfaces
Support the OTA upgrade
BQB, TELEC, FCC Certification
| Bluetooth Module Model | FSC-BT826 |
| Bluetooth version | Bluetooth 4.2 dual mode |
| Chipset | BQB(BT826), TELEC(BT826HD+Shield Case)，FCC(BT826E) |
| Dimension | 13mm x 26.9mm x 2.4mm |
| Transmit power | +5.5dBm |
| Power supply | 3.3 |
| Profiles | SPP, GATT(BLE standard) |
| Frequency | 2.402-2.480GHz |
| Antenna | Built-in PCB antenna(Default version) |
| Interface | UART |
| Features | High compatibility, Multiple Connections, Low Cost, HC-05 Pin-To-Pin Solution |

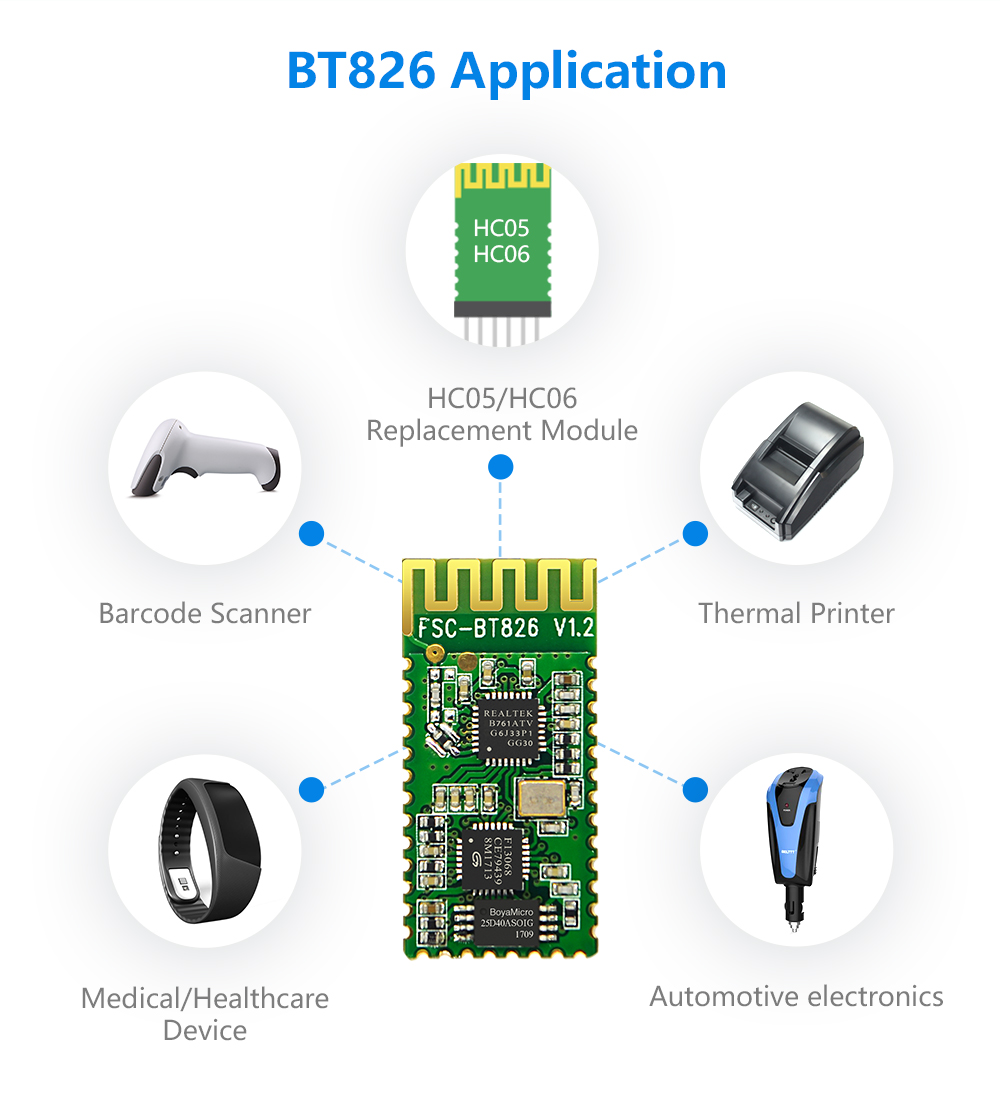

FSC-BT826E data transmission Bluetooth module’s solution:
*Bluetooth thermal printer: FSC-BT826E has two type solution for Bluetooth printer ,one is high speed data transmission, the another one is Multiple connection ,the high speed one supports connect with 1 Android+1 IOS mobile phone simultaneously(the data rate can up to 80KB/S),the Multiple connection one supports 1IOS +7Android mobile phone simultaneously.
*Barcode scanner:FSC-BT826E supports SPP,GATT,HID profiles ,so it could apply for Barcode scanner
Other applications: FSC-BT826E’s firmware supports Master/Slave 2 in 1(exchange Master and Slave via AT commands),and the data rate is high speed, so it could be used for many applications which established Master and salve data transmission via Bluetooth.
Package includes:

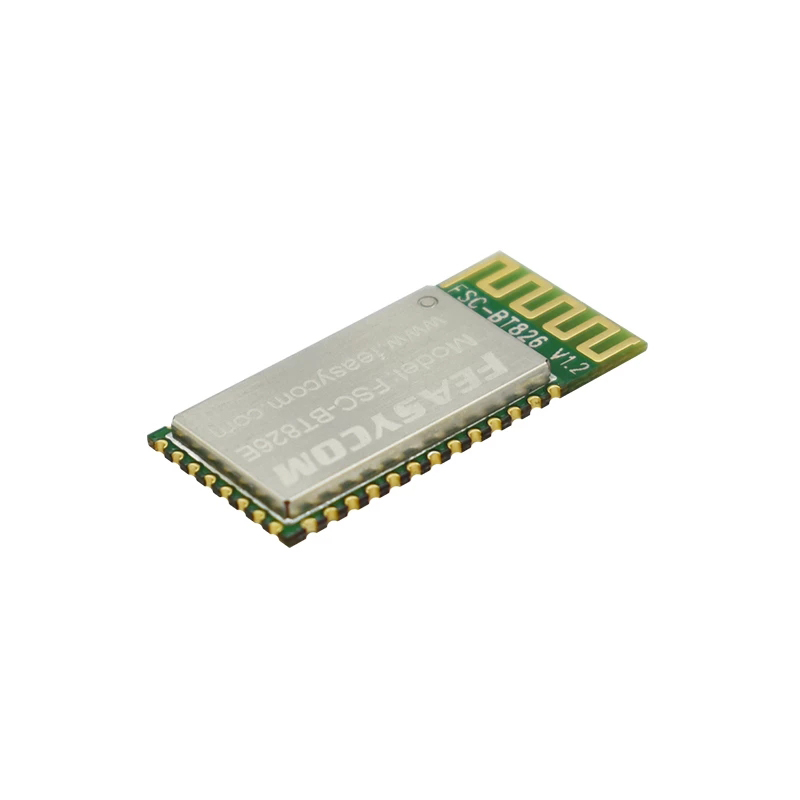

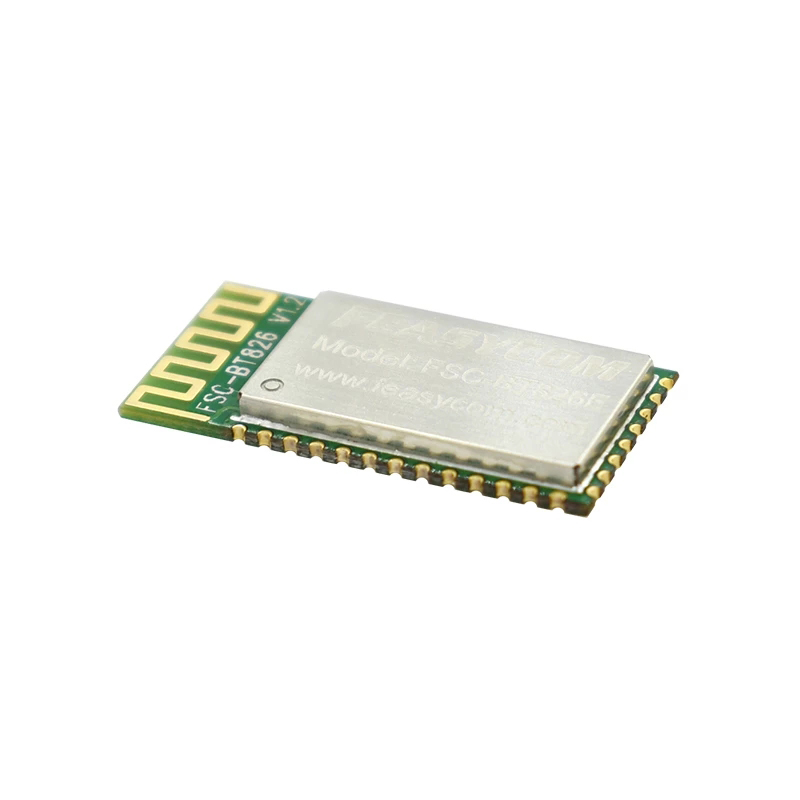

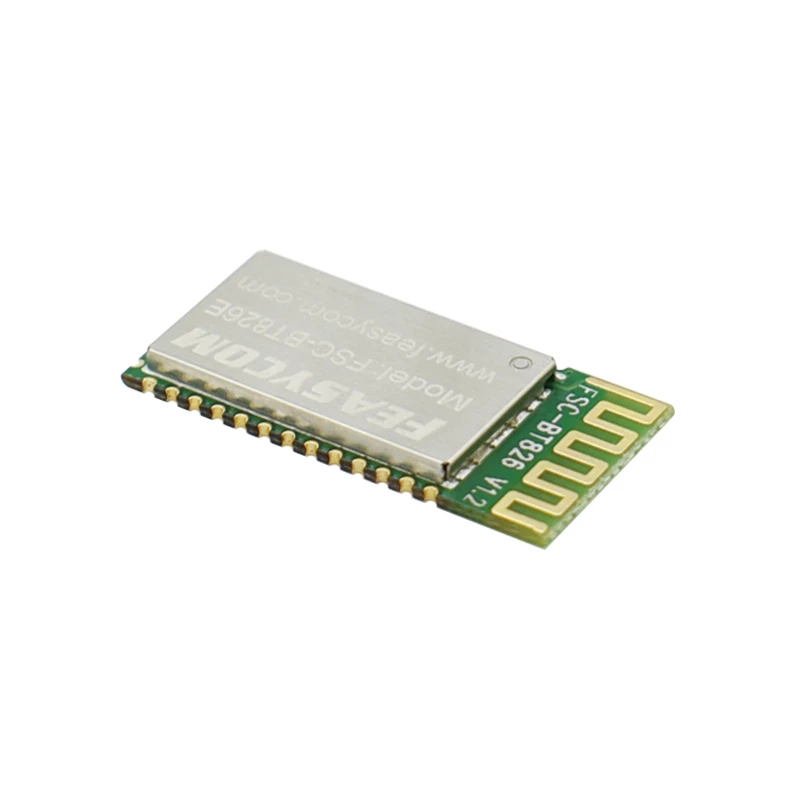

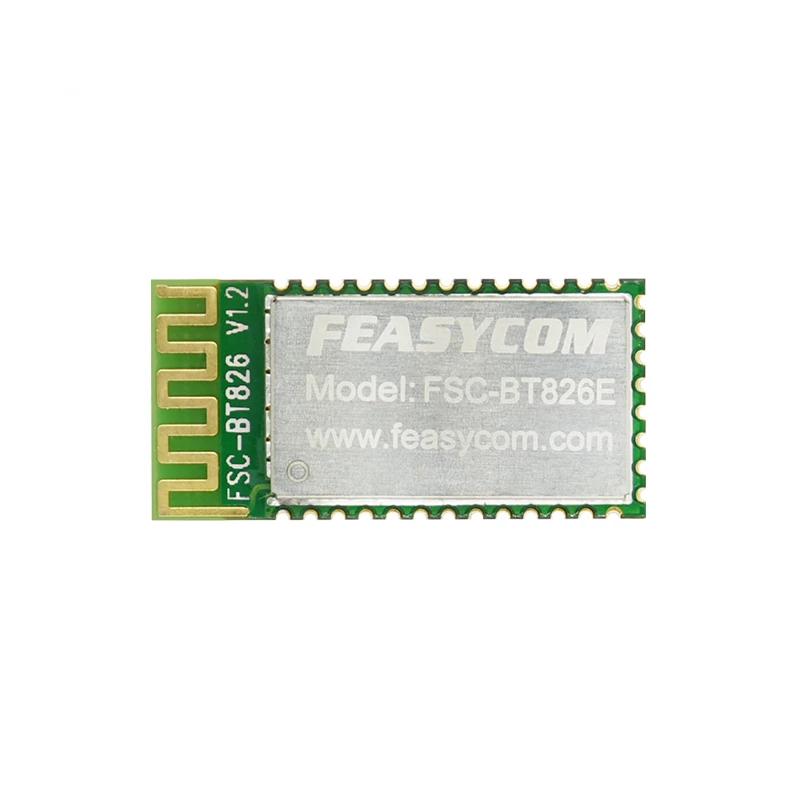

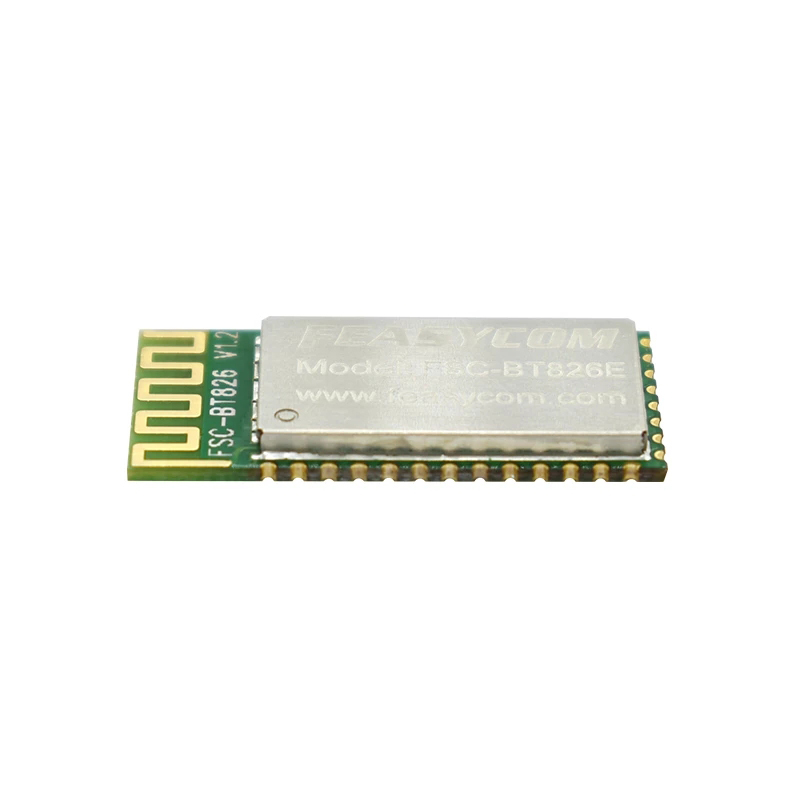

1 x FSC-BT826 Bluetooth Module (The default with shell, the following description is what it looks like after disassembling the shell)
