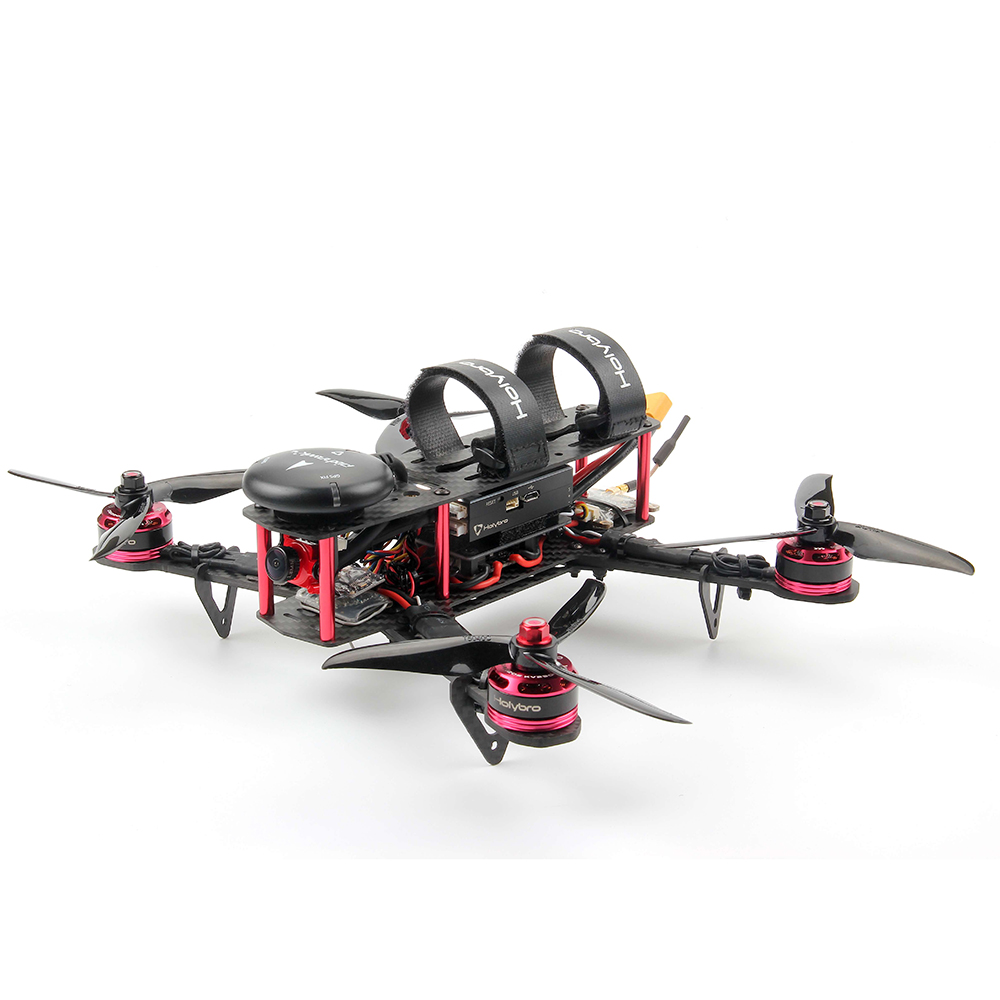

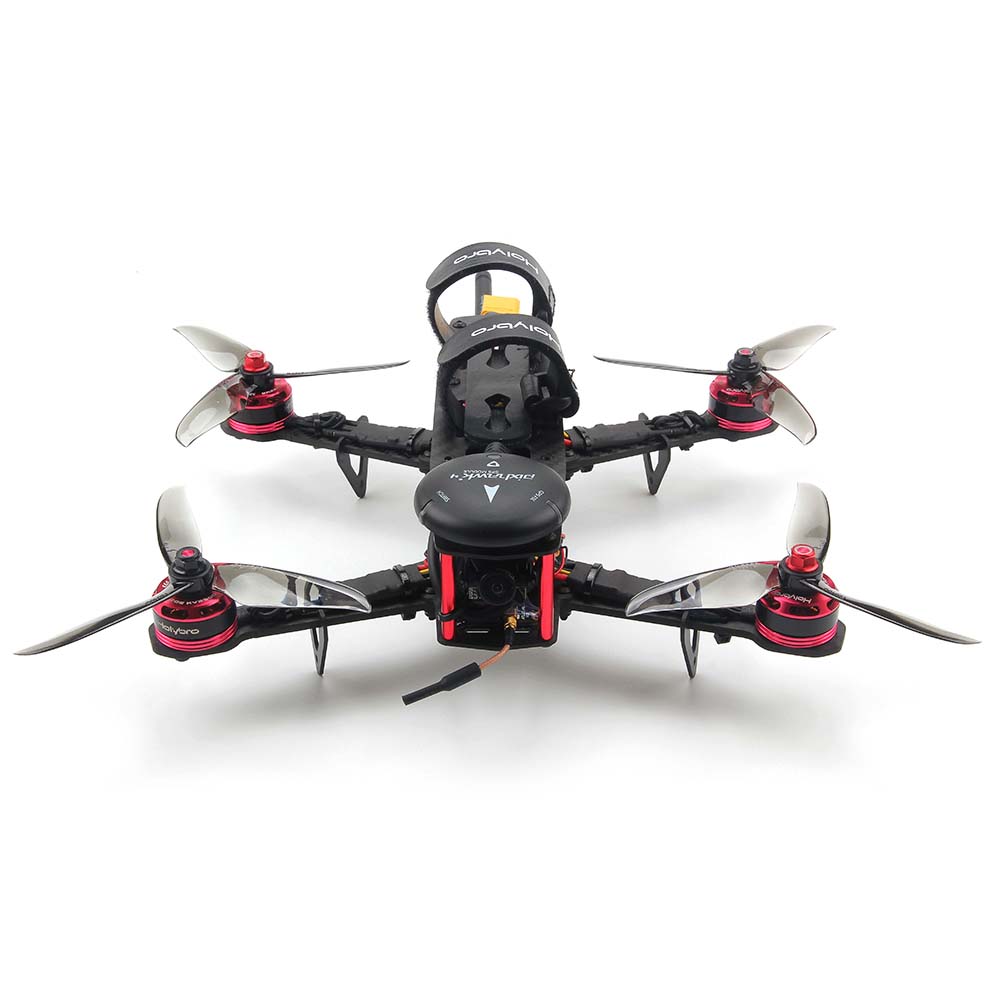

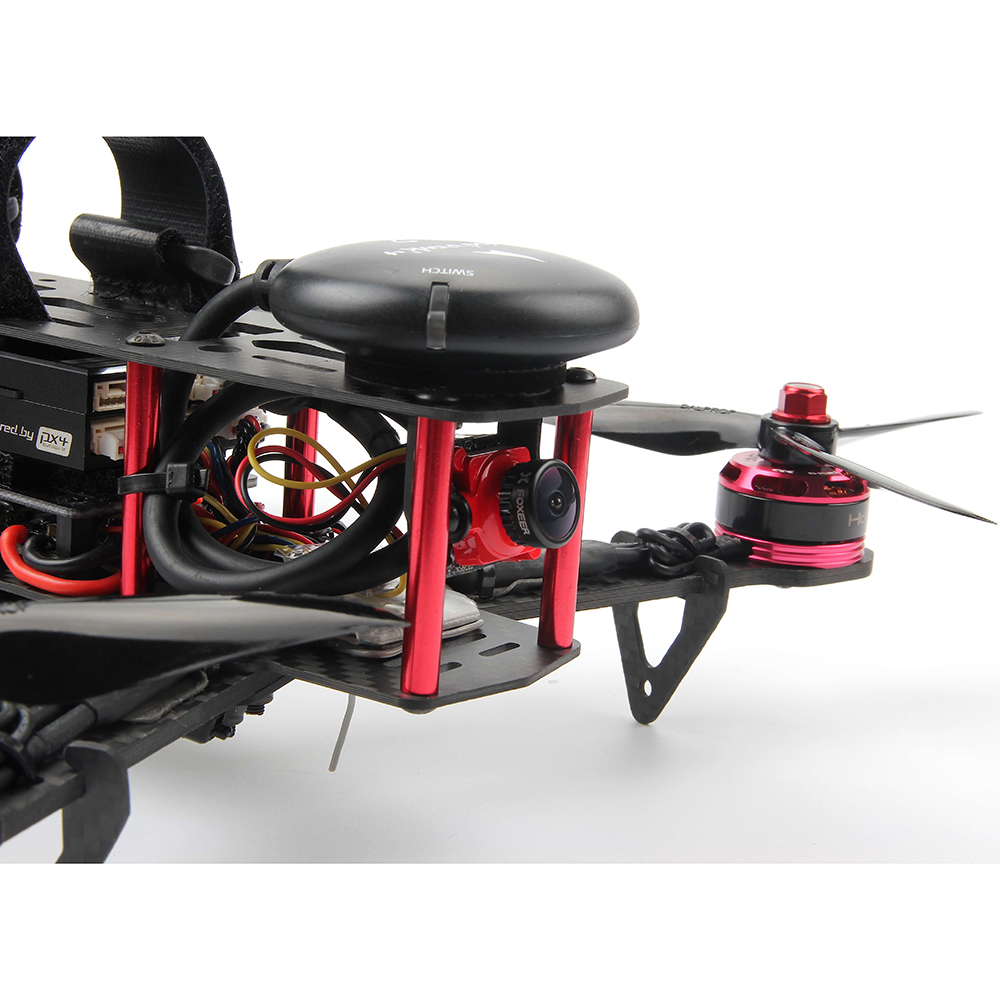

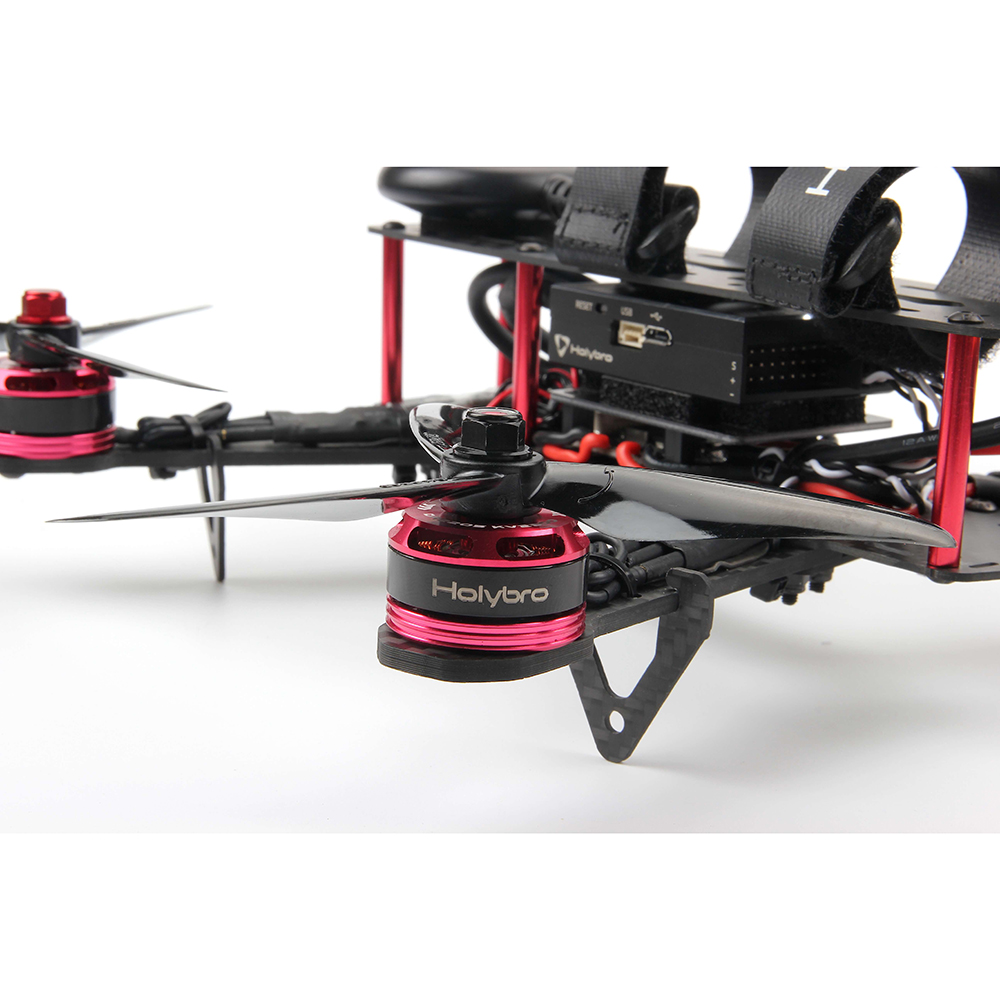

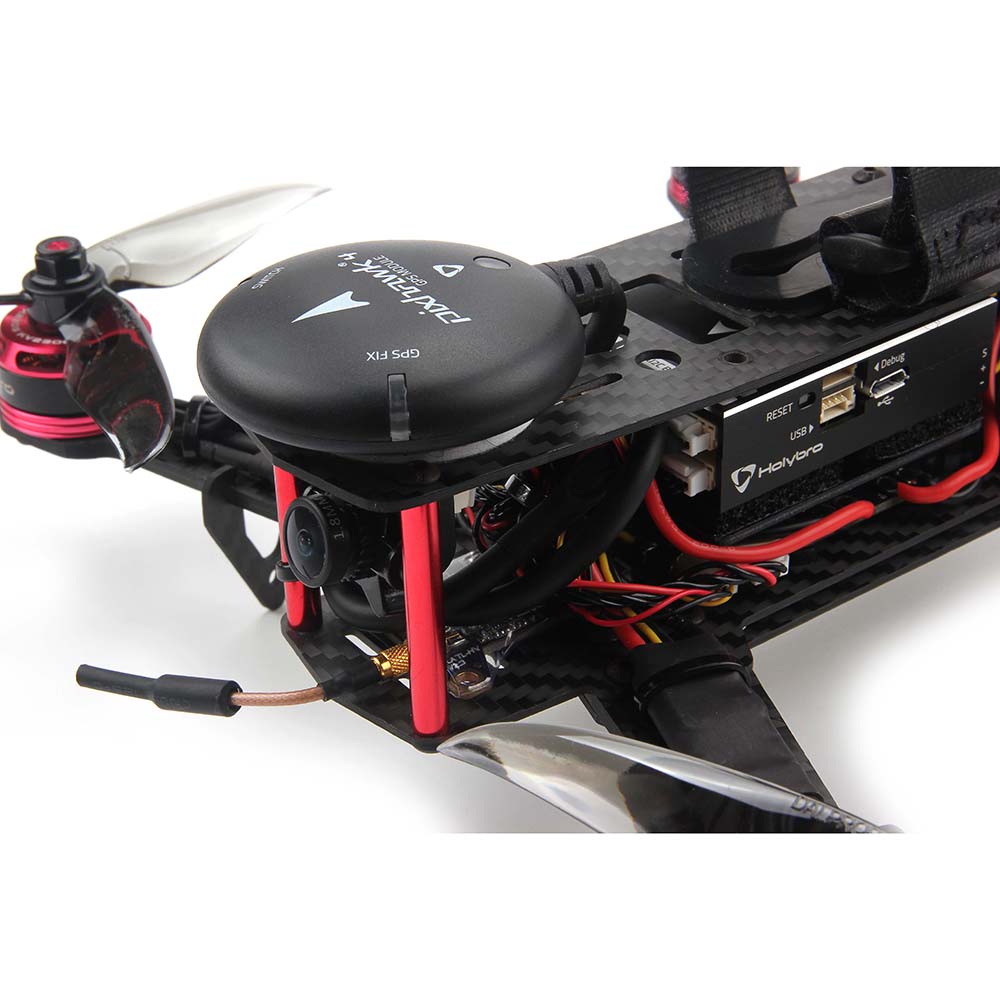

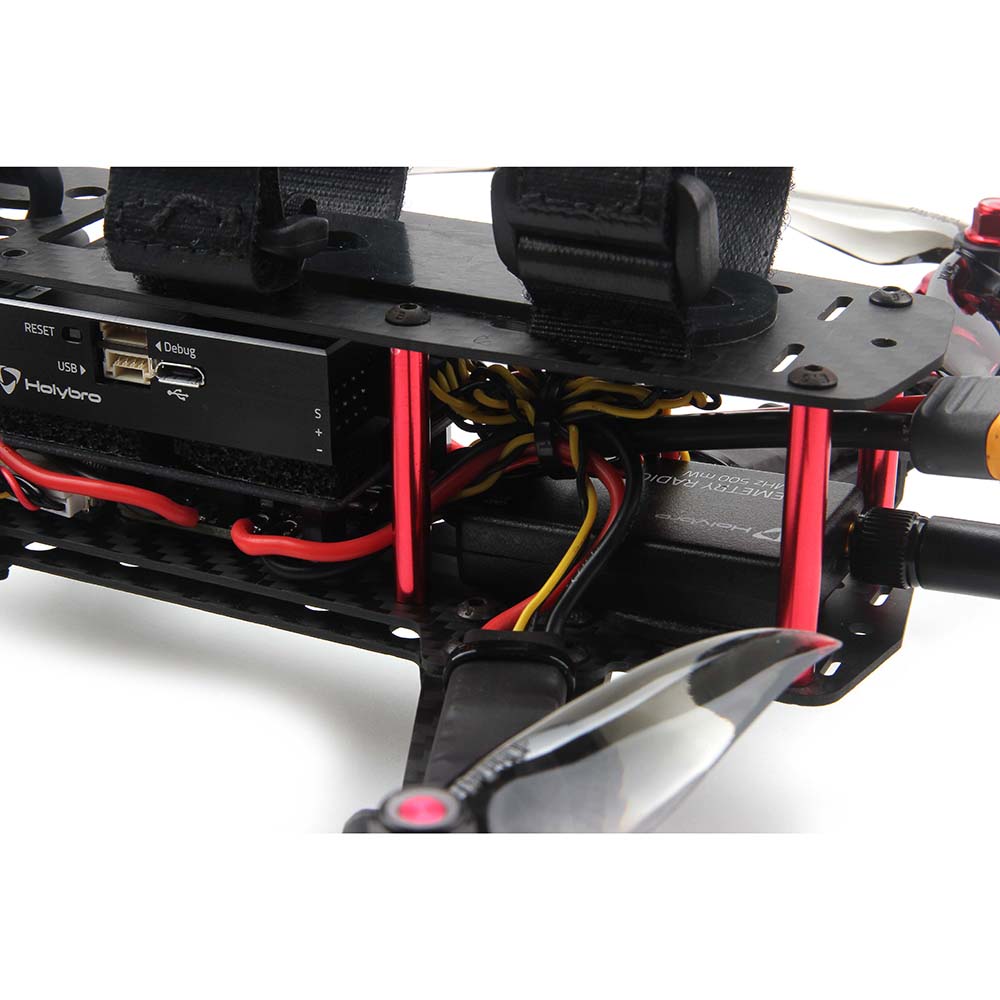

Pixhawk 4 Mini QAV250 Basic / Completet Kit 250mm Wheelbase RC Quadcopter RC Drone w/ Pixhawk 4 GPS 2206 KV2300 Motor
- Stock: In Stock
- Model: ST22001169
- SKU: ST22001169
$352.65
Ex Tax: $352.65
Notice: NOT Include Telemetry Radio Module.
Introduction:
The Pixhawk 4 Mini QAV250 Basic Kit is the perfect way to get started developing on Pixhawk 4 Mini. It pairs a carbon fiber 250 racing frame and essential electronics with a Pixhawk 4 Mini autopilot. The kit is easy to assemble. No soldering needed.
Description:
Model: Pixhawk 4 Mini QAV250 Basic Kit / Complete Kit
Item Name: 250mm Wheelbase FPV Drone Combo

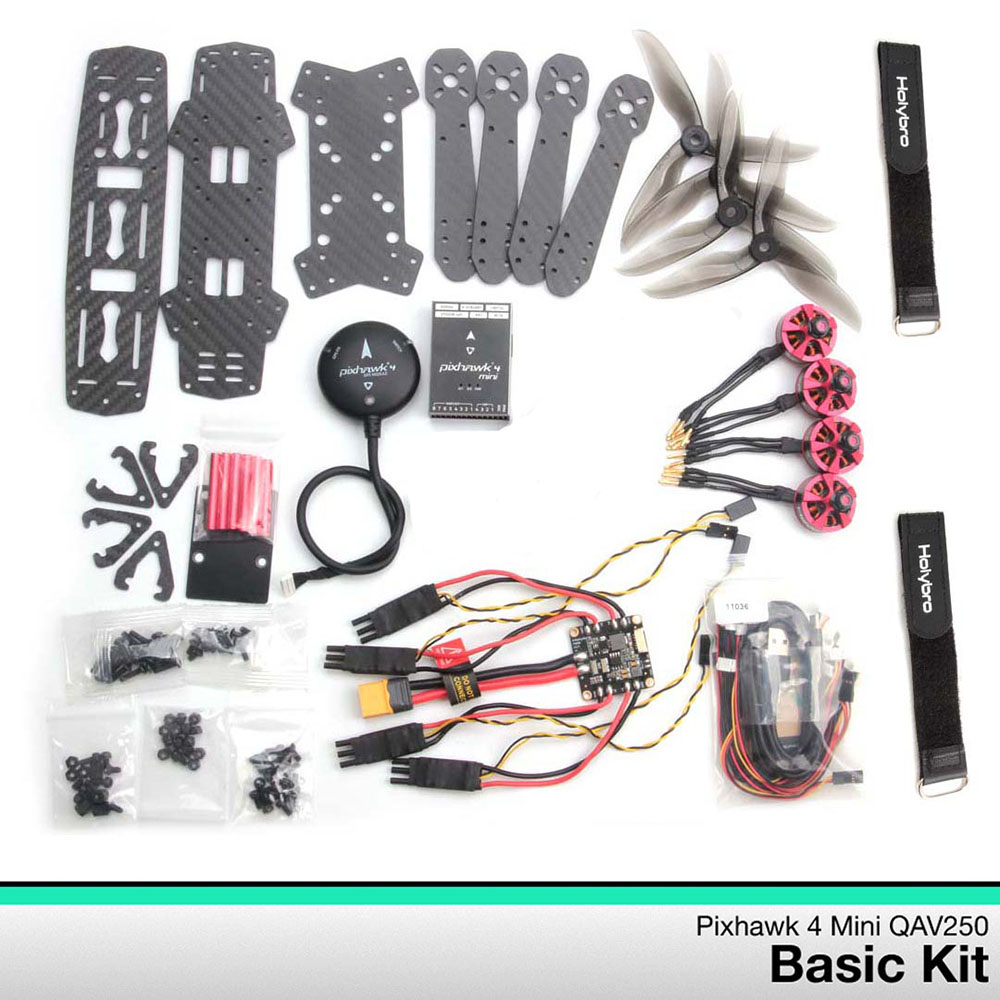

Pixhawk 4 Mini QAV250 Basic Kit
- Pixhawk 4 Mini autopilot
- Carbon fiber 250 airframe with hardware
- Motors - 2206 KV2300
- 5” Plastic Props
- Pixhawk4 GPS
- Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
- Power and Radio Cables
- Battery Straps
- Dimensions:198*235*85mm
- Wheelbase:250mm
- Weight:440g
Note: No LiPo battery included.

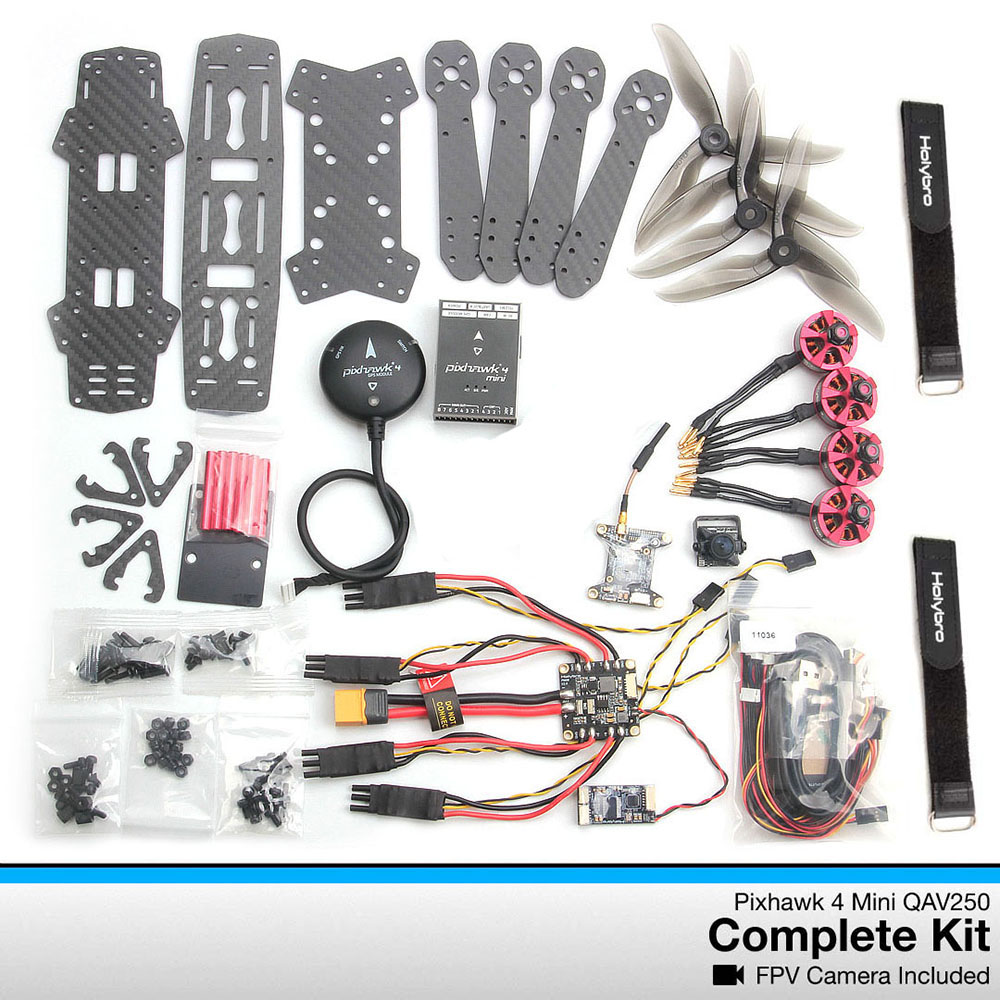

Pixhawk 4 Mini QAV250 Complete Kit
- Pixhawk 4 Mini autopilot
- Carbon fiber 250 airframe with hardware
- Motors - 2206 KV2300
- 5” Plastic Props
- Pixhawk4 GPS
- Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
- 5.8G FPV Video Transmitter
- Micro OSD V2
- 1200TVL Foxeer Micro Razer FPV Camera
- Power and Radio Cables
- Battery Straps
- Dimensions:198*235*85mm
- Wheelbase:250mm
- Weight:456g
Note: No LiPo battery included.
Recommended Battery Specification: 4S 2200~3000mAh Lipo
Max payload: up to 500g (4S 3000 mAh battery)
Spare Parts QAV250 Specification
| Motors | The previous 2205 kv2300 motors has been changed to the new 2206 kv2300 motors。 The new motors now all uses the standard direction threads and black propeller nuts, so they are more convenient to assemble. |
| OSD | Micro mini OSD has been upgraded to the Micro OSD V2 (This only apply to the “Complete Kit”) |
Manual:Pixhawk 4 Mini QAV250 Kit Quick Start Guide
Package Included:(Optional)
1x SUNTHEN Pixhawk 4 Mini QAV250 Drone
