FingerPrint Reader Module FPC1020A Capacitive Fingerprint Identification Module Grove Cable UART Interface for ESP32
- Stock: In Stock
- Model: ST230048196
- SKU: ST230048196
$20.08
Ex Tax: $20.08
FingerPrint Reader Module FPC1020A Capacitive Fingerprint Identification Module Grove Cable UART Interface for ESP32 for Arduino - products that work with official Arduino boards
Description:

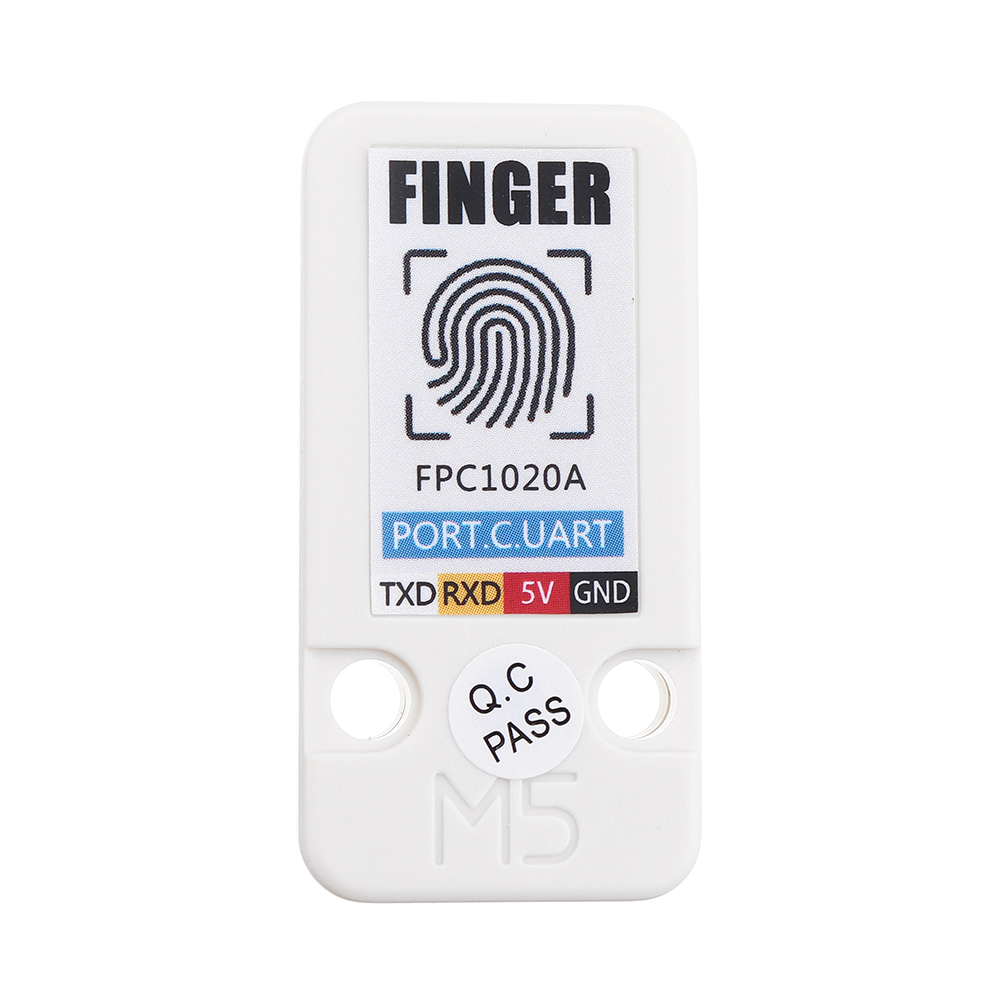

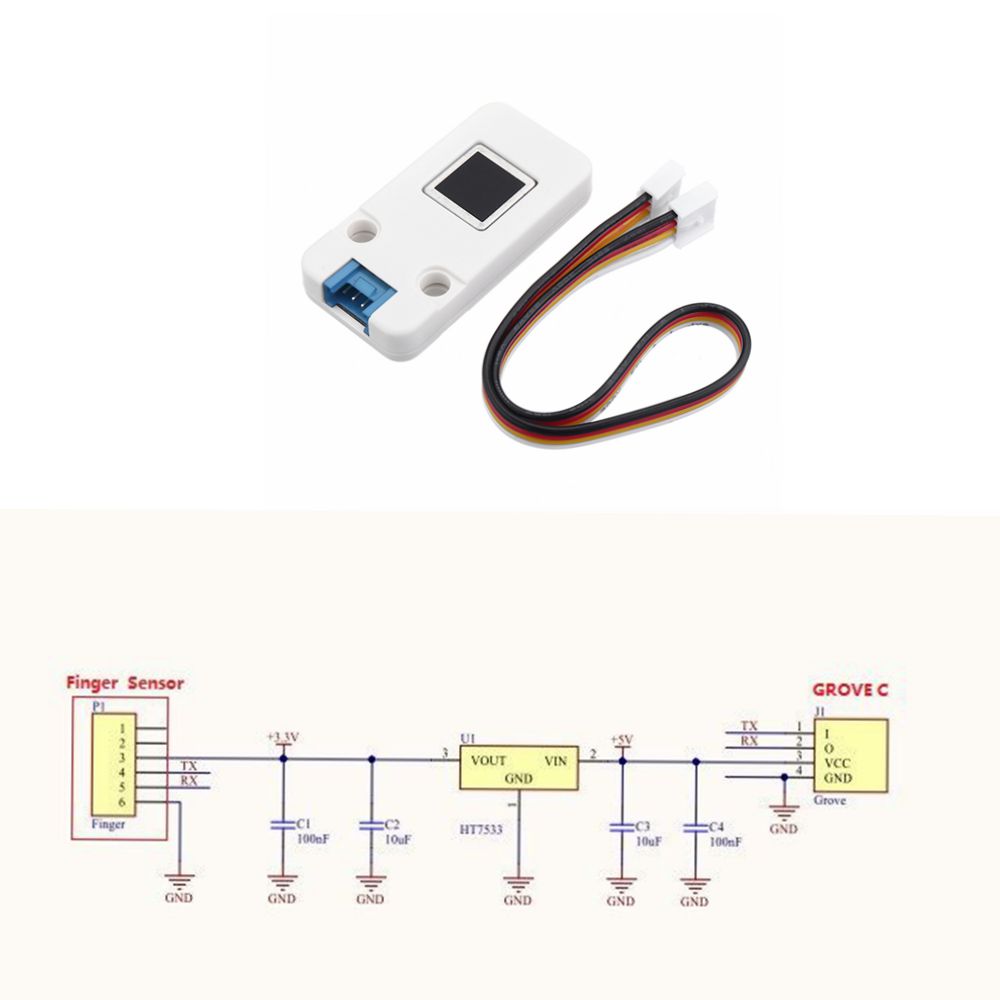

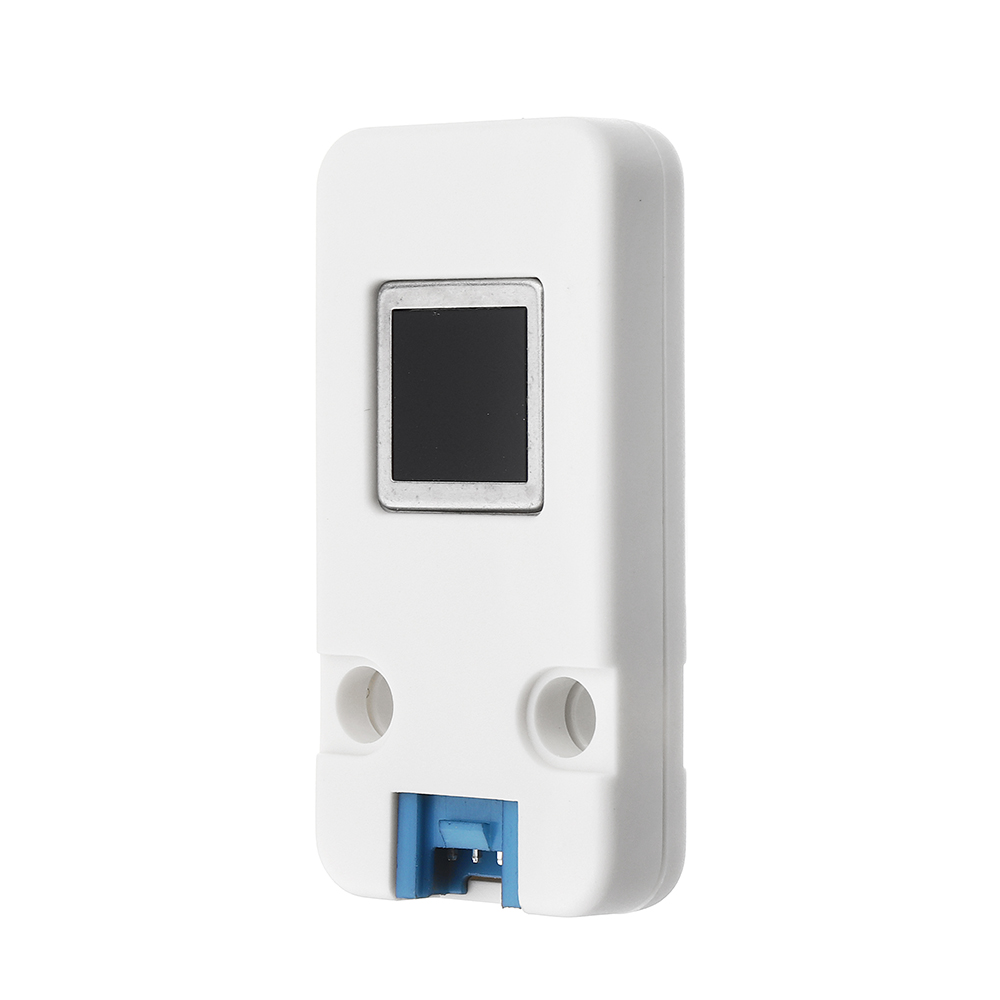

FINGER is a fingerprint recognition unit that integrates the FPC1020A capacitive fingerprint recognition module and integrates a fingerprint recognition algorithm chip. Connected to M5Core, it can realize multi-person fingerprint information input, fingerprint deletion, fingerprint comparison, fingerprint search, feature extraction and other functions. You can set the fingerprint recognition comparison level and security level. The unit communicates with the M5Core through a serial port (UART). Serial port parameters: baud rate (default is 19200bps), start bit (1 bit), stop bit (1 bit), check digit (none)
Features:
- Fingerprint capacity: 150 pieces
- Comparison mode 1:N recognition / 1:1 verification
- Fingerprint recognition comparison range: 0 ~ 9, default is 5
- Security level range: 1 ~ 5, default is 3
- Response time Fingerprint pre-processing < 0.45 s
- Input voltage range: 3.3 ~ 6V
- Operating temperature and humidity range: -10 ~ 60°, 20% ~ 80%
Related Links:
video
https://i.youku.com/i/UNjE1ODA2MzE0OA==?spm=a2hzp.8253869.0.0
forum
Http://forum.m5stack.com/
Package Included:

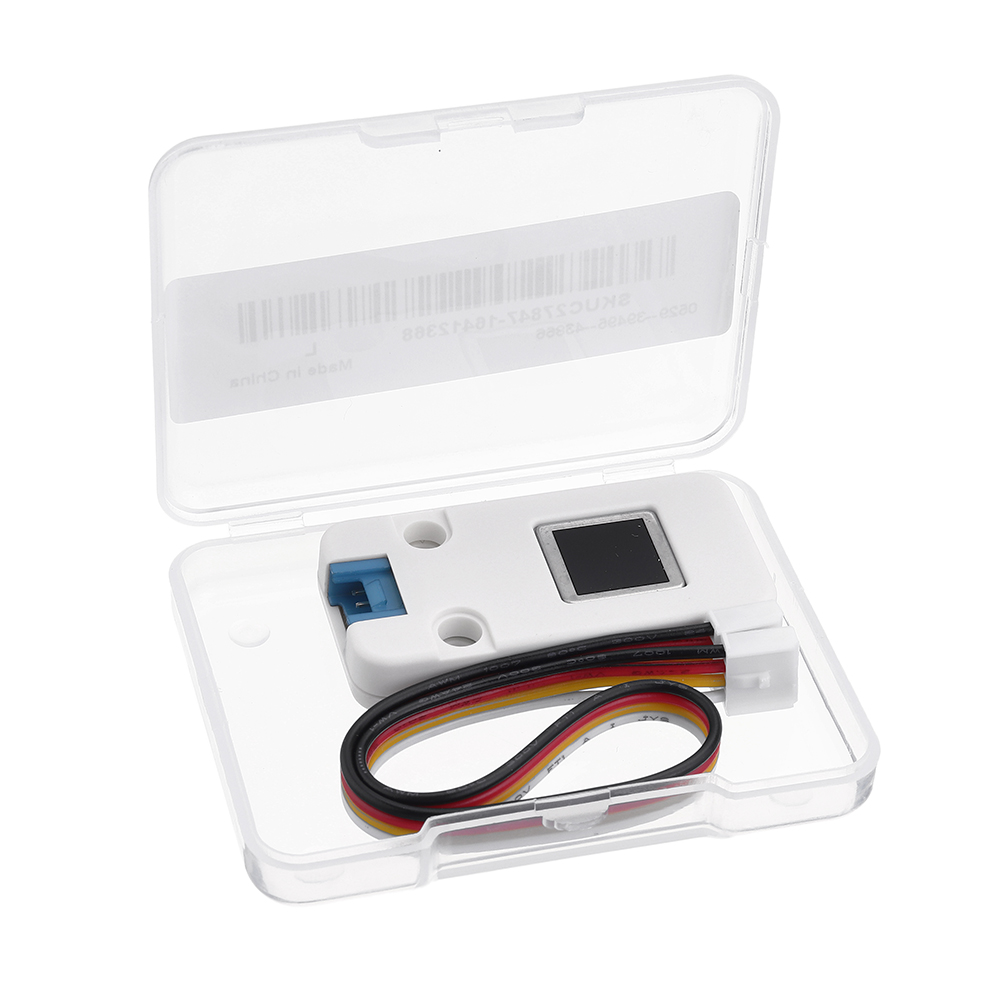

1 x FingerPrint Reader Module
1 x GROVE Cable
